User Manual for Klark Teknik DN9630 AES50 to USB 2.0 Converter

Click to enlarge the picture
Klark Teknik DN9630 AES50 to USB 2.0 Converter Contents of the user manual for the Klark Teknik DN9630 AES50 to USB
  • Product category: Networked Audio Systems Klark Teknik
  • Brand: Klark Teknik
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Klark Teknik Networked Audio Systems

Klark Teknik DN9630 AES50 to USB 2.0 Converter Klark Teknik DN9630 AES50 to USB 2.0 Converter Klark Teknik DN9630 AES50 to USB 2.0 Converter
User manual for the Klark Teknik DN9630 AES50 to USB contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Klark Teknik product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Klark Teknik user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Klark Teknik product will considerably shorten its lifespan!



Product description

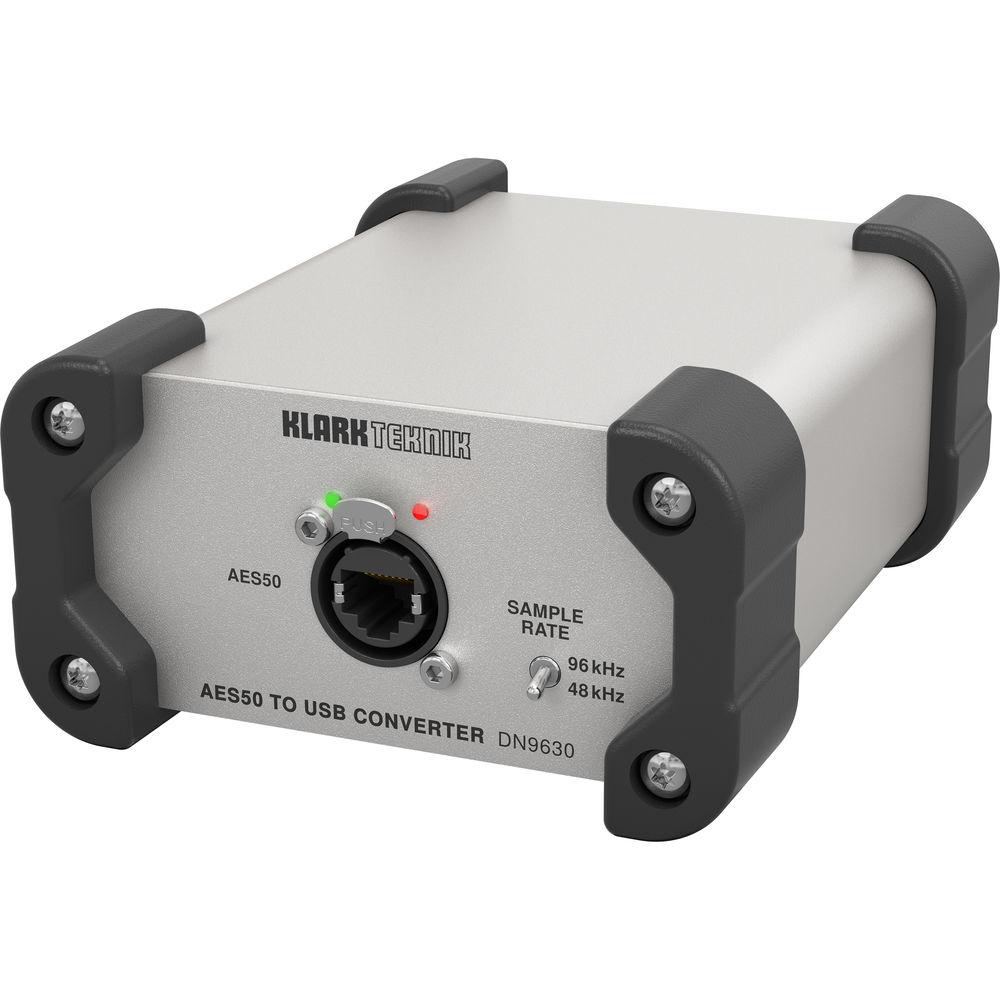

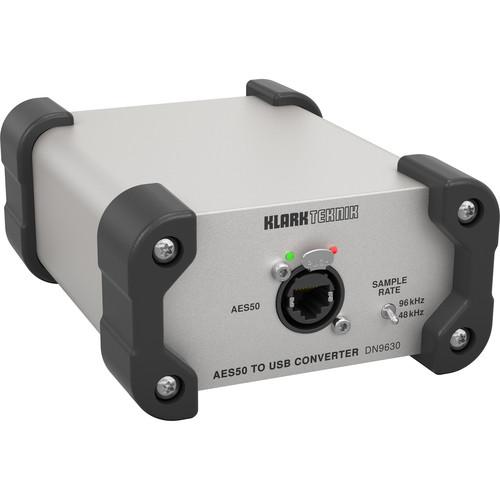

The Klark Teknik DN9630 is an AES50 to USB converter, which provides simultaneous multi-channel computer audio recording and playback, making it ideal for use with MIDAS digital consoles and other AES50 equipped products. The DN9630 features a single AES50 connector, while the single USB 2.0 port connects directly to a Windows/Mac computer, offering up to 48 bidirectional channels at 48 kHz and 24 bidirectional channels at 96 kHz sample rates. Able to withstand the rigors of on-the-road wear and tear, the compact and rugged enclosure is machined from durable aluminum and features silicone rubber coroner bumpers. The Klark Teknik DN9630 is powered via USB and includes a standard USB 2.0 cable.
    • AES50 to USB 2.0 converter for simultaneous computer audio recording and playback
    • Up to 48 bidirectional channels @ 48 kHz and 24 bidirectional channels @ 96 kHz
    • Switchable 48 kHz and 96 kHz sample rate operation
    • Operates from incoming AES50 clock
    • Powered via USB 2.0 interface
    • Native Core Audio driver support in Mac OS X, software drivers available for Windows PC
    • LED indicators monitor network activity and speed
    • Compact and rugged design with durable aluminum extrusion casing
    • Designed and engineered in the U.K.
UPC: 653341312136 In the Box Klark Teknik DN9630 AES50 to USB 2.0 Converter
  • USB Cable
  • Limited 10-Year Warranty with Registration within 90 Days
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Klark Teknik DN9630 AES50 to USB 2.0 Converter in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Download User Manual

    The user manual for the Klark Teknik DN9630 AES50 to USB 2.0 Converter can be downloaded in PDF format at the link stated below.
    Download PDF user manual - Klark Teknik DN9630 AES50 to USB 2.0 ConverterDownload PDF User Manual - https://www.search-manual.com/ upload/ klark-teknik-dn9630-aes50-to-usb-2-0-converter-306868-user-manual.pdf
    (PDF file, 0.8 MB)


    Technical parameters

    Klark Teknik DN9630 Specs

    Mac System Requirements Minimum Hardware:
    CPU: 1.5 GHz
    Ethernet port
    RAM: 512 MB
    Recommended OS: 10.8 Mountain Lion
    Windows System Requirements Minimum Hardware:
    CPU: Core 2 Duo, 2 GHz
    Ethernet port
    RAM: 1 GB
    Recommended OS: Windows 7 (32-/64-bit), Windows 8 (32-/64-bit)

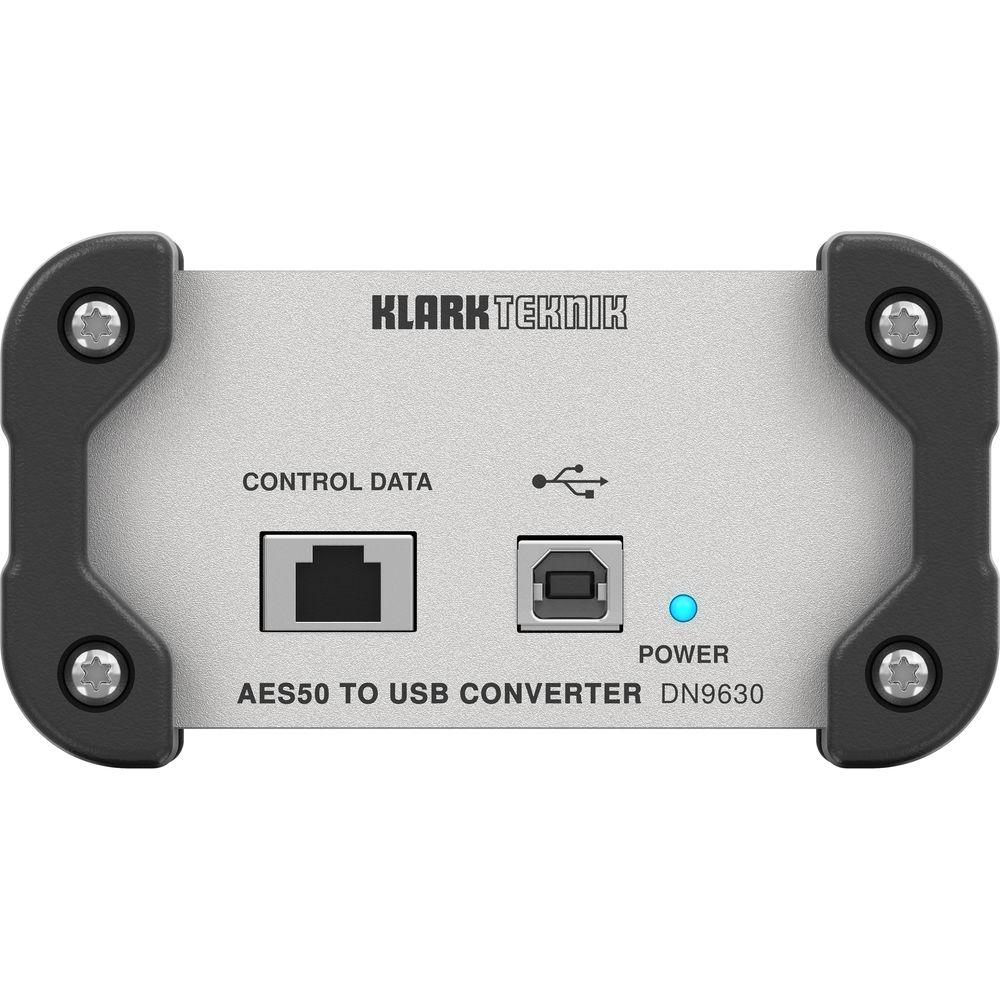

    Connectors AES50: 1 x etherCON
    USB: 1 x USB 2.0
    Control Data: 1 x RJ45
    Input / Output Channels of Input/Output at 48 kHz: 48 bidirectional
    Channels of Input/Output at 96 kHz: 24 bidirectional
    Sample Rates: 48 kHz / 96 kHz, selectable
    Sample Word Length: 24-bit
    Clock Synchronization: External

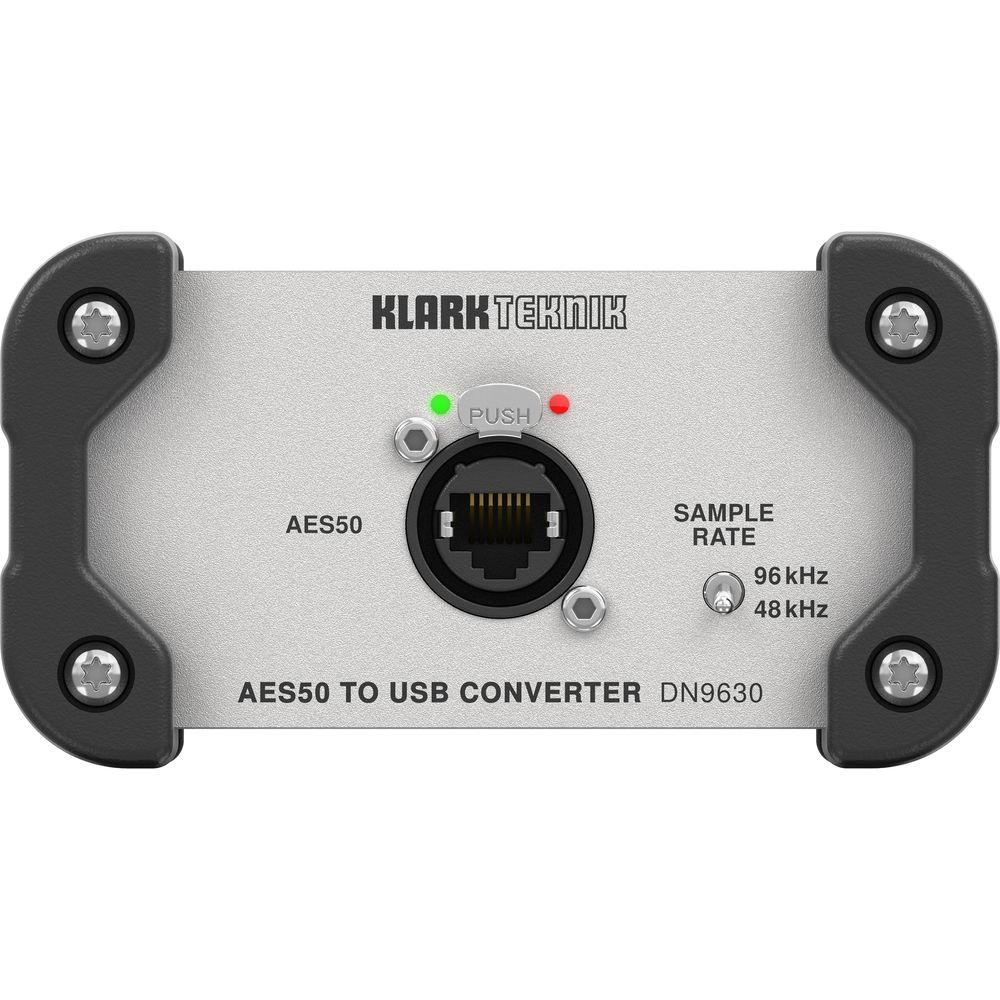

    Controls and Indicators Green AES50 Status LED: Indicates AES50 synchronization
    Red AES50 Status LED: Indicates an error with the port connection when lit
    Sample Rate Switch: Selects between 96 kHz and 48 kHz sample rates
    Power LED: Indicate the unit is powered on
    Power Connection: Remotely powered via USB 2.0
    Consumption: <2.5 W
    Dimensions (H x W x D) 2.5 x 4.6 x 6.0" / 64.0 x 118.0 x 152.0 mm
    Weight 1.1 lb / 500 g
    Package Weight 1.365 lb
    Box Dimensions (LxWxH) 7.55 x 6.35 x 4.1"
