Product description The Klark Teknik DN9650 Digital Audio Network Bridge provides a multichannel interface between AES50 networks and 3rd-party digital audio networks and point-to-point interfaces. The AES50 and 3rd-party interfaces operate in separate clock domains and are connected by a bidirectional asynchronous sample rate converter (ASRC). This technology allows the interfacing of up to 64 bidirectional channels between two independently clocked domains, which can also operate at different sampler rates.
The DN9650 is future-proof by being able to support new and emerging protocols via its expansion slot, which is compatible with Cirrus CM-1 format, offering compatibility with Klark Teknik KT-AES50, KT-DANTE64, KT-MADI and KT-USB network modules. The DN9650 works with all Midas Pro Series digital consoles, Midas digital I/O hardware, and other 96 kHz-enabled AES50 devices with Dante, MADI and USB 2.0 connections.

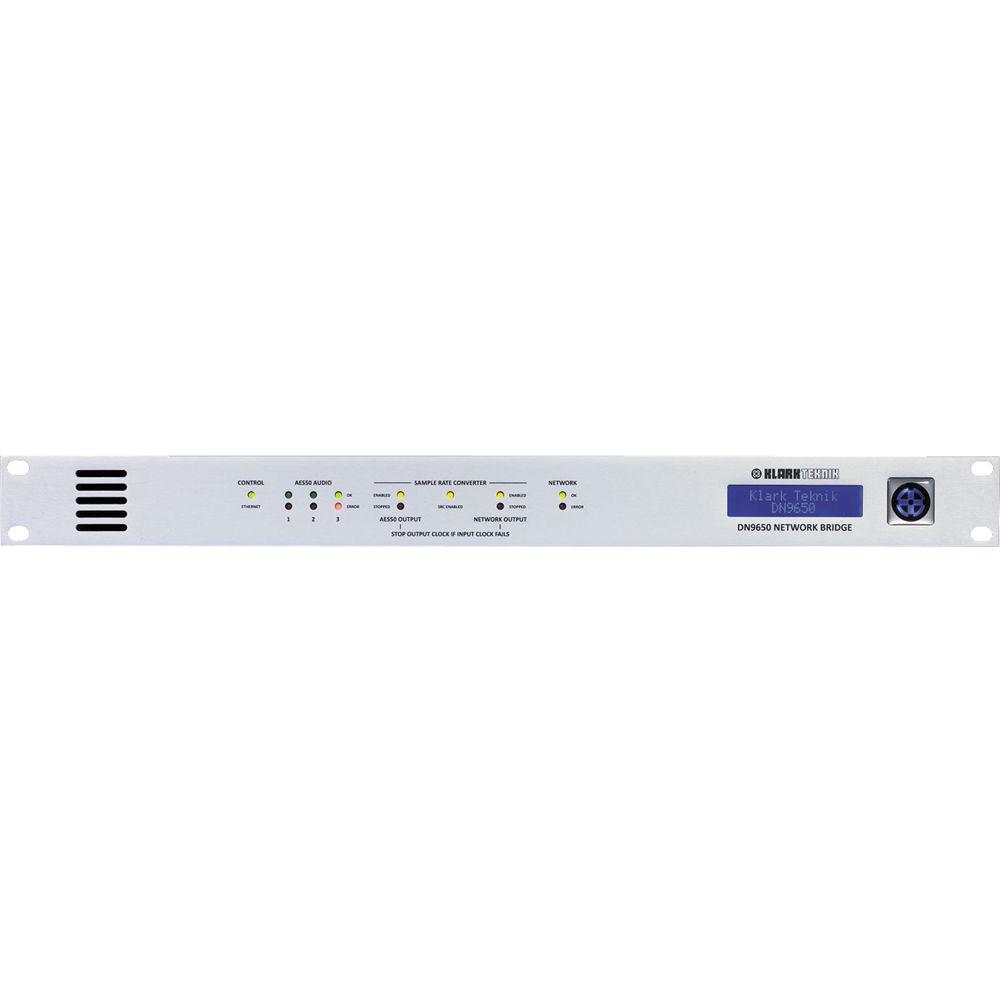

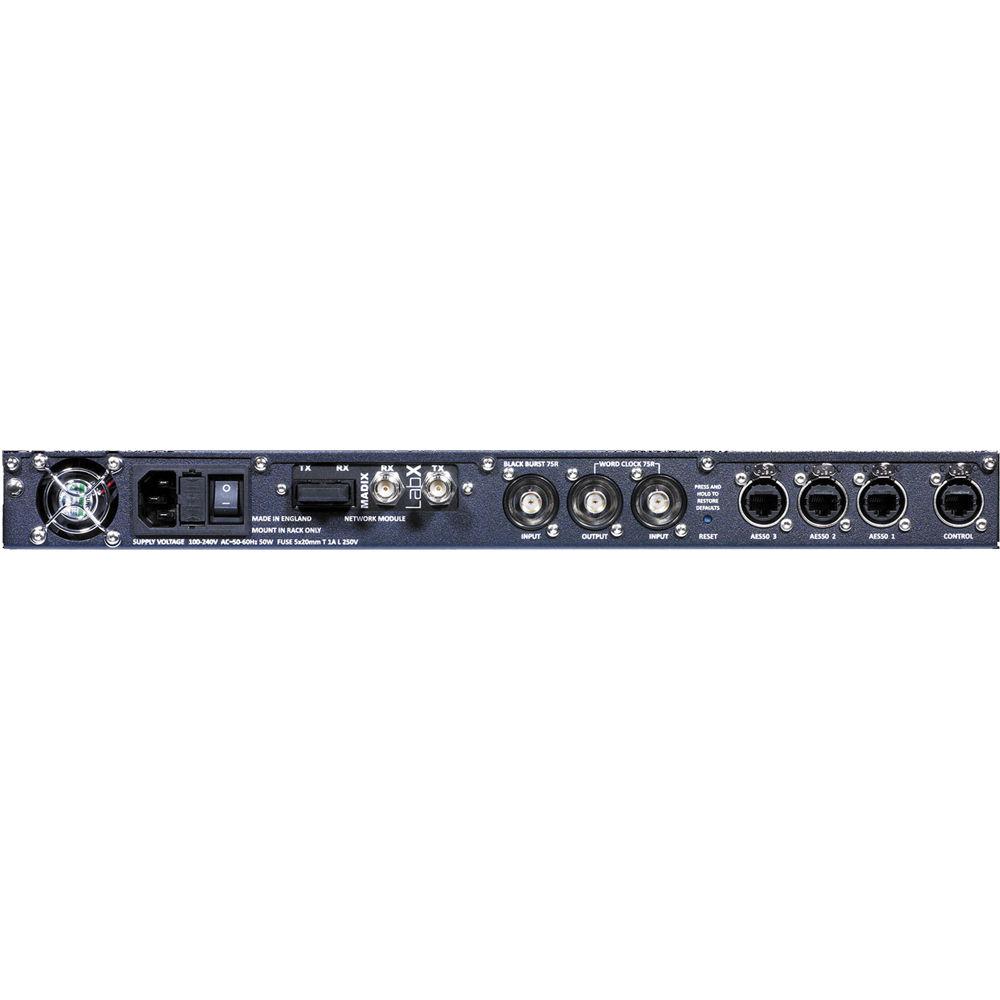

The DN9650 features status LED indicators for AES50 and network synchronization, Ethernet control port activity, and the ASRC bypass and bidirectional output clock inhibit functions on the front panel for ‘at a glance’ status display, even at wide distances and viewing angles. The rear panel utilizes Neutrik etherCON connectors for the three AES50 ports and the Ethernet control port, while word clock inputs and outputs, as well as video black burst sync use Neutrik BNC connectors. The onboard web server allows for platform-independent configuration using a web browser application, allowing for simple user selection of network module and DN9650 settings, including AES50 and third-party network domain sample rates, clock synchronization for both domains and the ASRC bypass and bidirectional output clock inhibit functions. -
- Network bridge format converter for AES50 networks with up to 64 bidirectional channels
- Compatible with Klark Teknik KT-AES50, KT-DANTE64, KT-MADI and KT-USB network modules
- Asynchronous sample rate conversion on every channel with bypass facility
- Bidirectional output audio clock inhibit feature for redundant network systems
- 24-bit audio operation with 96 and 48 kHz sample rates
- Video synchronization in standard- and high-definition formats
- Internal "AES Grade 1" temperature-compensated word clock (1 ppm)
- Internal web server allows browser-based configuration via Ethernet control port
- Status indicator LEDs and LCD display on front panel
- Features Neutrik etherCON network ports
- Rugged 1 RU chassis for durability in portable applications
- Auto-ranging universal switch-mode power supply
UPC: 736211844774 In the Box Klark Teknik DN9650 Digital Audio Network Bridge Power Cord Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Klark Teknik DN9650 Digital Audio Network Bridge in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKlark Teknik DN9650 Specs | AES50 Ports | Ports: 3
Type: Neutrik etherCON with LED status indication
Sample Rate: 48, 96 kHz | | Ethernet Control | Port: 1
Type: Neutrik etherCON with LED status indication | | External Sync | Word Clock Input: 1
Type: Neutrik BNC with 75-Ohm termination
Sample Rate: 48, 96 kHz
Word Clock Output: 1
Type: Neutrik BNC (no termination)
Sample Rate: 48, 96 kHz
Video Black Burst Input: 1
Type: Type: Neutrik BNC with 75-Ohm termination
Formats
Standard Definition: PAL, SECAM, NTSC
High Definition: 720P, 1080P, 1080i | | Module Slot | Network Module Expansion Slot: 1
Type: Cirrus CM-1 format compatible | | Sample Rate Converter | Channels: 64 bidirectional
Bypass: Sync network domain to AES50 domain (user-selectable)
Output Clock Inhibit: Bidirectional stop output clock if input clock fails (user-selectable) | | Clock | Onboard Clock Type: Temperature-controlled crystal oscillator (TCXO) with 1 part-per-million (1 ppm) stability
AES50 Domain Clock Source Options:
AES50 external clock
Onboard oscillator (AES50 internal clock)
Word clock input
Video black burst input
Network Domain Clock Source Options:
External network clock
External network clock with word clock
in synchronization
Onboard oscillator (AES50 internal clock)
Network module onboard clock
AES50 clock source
Word clock input
Video black burst input
Word Clock Output Source Options:
AES50 clock domain
Network clock domain
Word clock input | | Power | Connector: 3-pin IEC
Voltage: 100 to 240 VAC, 50 / 60 Hz
Consumption: <50 W | | Dimensions (W x D x H) | 19.0 x 16.2 x 1.7" / 483.0 x 411.0 x 44.0 mm | | Weight | 11.2 lb / 5.1 kg | | | | Package Weight | 15.35 lb | | Box Dimensions (LxWxH) | 22.047 x 19.843 x 6.772" |
