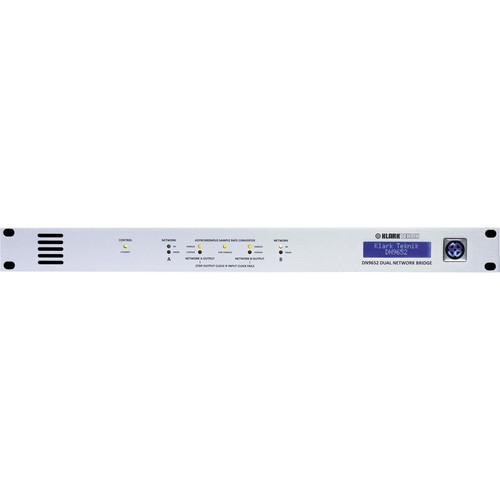

User Manual for Klark Teknik DN9652 Dual Network Bridge Format Converter Click to enlarge the picture
Contents of the user manual for the Klark Teknik DN9652 Dual Network Bridge
- Product category: Networked Audio Systems Klark Teknik
- Brand: Klark Teknik
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Klark Teknik Networked Audio Systems
|
User manual for the Klark Teknik DN9652 Dual Network Bridge contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Klark Teknik product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Klark Teknik user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Klark Teknik product will considerably shorten its lifespan!
|
Product description The Klark Teknik DN9652 Digital Audio Network Bridge provides a multichannel interface between two 3rd-party digital audio networks and point-to-point interfaces. The 3rd-party interfaces operate in separate clock domains and are connected by a bidirectional asynchronous sample rate converter (ASRC). This technology allows the interfacing of up to 64 bidirectional channels between two independently clocked domains, which can also operate at different sampler rates.
The DN9652 is future-proof by being able to support new and emerging protocols via its two expansion slots, which are compatible with Cirrus CM-1 format, offering compatibility with Klark Teknik KT-AES50, KT-DANTE64, KT-MADI and KT-USB network modules.
The DN9650 features status LED indicators for both 3rd-party network domains, Ethernet control port activity, and the ASRC bypass and bidirectional output clock inhibit functions on the front panel for ‘at a glance’ status display, even at wide distances and viewing angles. The rear panel features two network slots which are compatible with the optional Klark Teknik KT-MADI and KT-Dante64 modules, while word clock inputs and outputs, as well as video black burst sync use Neutrik BNC connectors. The onboard web server allows for platform-independent configuration using a web browser application, allowing for simple user selection of network module and DN9652 settings, including 3rd-party network domain sample rate and clock synchronization options and the ASRC bypass and bidirectional output clock inhibit functions. -
- Dual network bridge format converter with up to 64 bidirectional channels
- Compatible with Klark Teknik KT-AES50, KT-DANTE64, KT-MADI and KT-USB network modules
- Bidirectional asynchronous sample rate conversion on every channel with bypass facility
- Bidirectional output audio clock inhibit feature for redundant network systems
- 24-bit audio operation with 96 and 48 kHz sample rates
- Video synchronization in standard- and high-definition formats
- Internal "AES Grade 1" temperature-compensated word clock (1 ppm)
- Internal web server allows browser-based configuration via Ethernet control port
- Status indicator LEDs and LCD display on front panel
- Features Neutrik etherCON network ports
- Rugged 1 RU chassis for durability in portable applications
- Auto-ranging universal switch-mode power supply
In the Box Klark Teknik DN9652 Dual Network Bridge Format Converter Power Cord Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Klark Teknik DN9652 Dual Network Bridge Format Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKlark Teknik DN9652 Specs | Ethernet Control | Port: 1
Type: Neutrik etherCON with LED status indication | | External Sync | Word Clock Input: 1
Type: Neutrik BNC with 75-Ohm termination
Sample Rate: 48, 96 kHz
Word Clock Output: 1
Type: Neutrik BNC (no termination)
Sample Rate: 48, 96 kHz | | Video | Video Black Burst Input: 1
Type: Type: Neutrik BNC with 75-Ohm termination
Formats
Standard Definition: PAL, SECAM, NTSC
High Definition: 720P, 1080P, 1080i | | Module Slot | Network Module Expansion Slots: 2
Type: Cirrus CM-1 format compatible | | Sample Rate Converter | Asynchronous Sample Rate Converter Channels: 64 bidirectional
Bypass: Bidirectional Sync network domain to AES50 domain (user-selectable)
Output Clock Inhibit: Bidirectional stop output clock if input clock fails (user-selectable) | | Clock | Onboard Clock Type: Temperature-controlled crystal oscillator (TCXO) with 1 part-per-million (1 ppm) stability
External network clock
External network clock with word clock in synchronization
Onboard oscillator
Network module onboard clock
Clock selection from other network domain
Word clock input
Video black burst input
Word Clock Output Source Options:
Either network clock domain
Word clock input | | Power | Connector: 3-pin IEC
Voltage: 100 to 240 VAC, 50 / 60 Hz
Consumption: <50 W | | Dimensions (W x D x H) | 19.0 x 16.2 x 1.7" / 483.0 x 411.0 x 44.0 mm | | Weight | 11.0 lb / 5.0 kg | | | | Package Weight | 12.122 lb | | Box Dimensions (LxWxH) | 27.0 x 21.0 x 13.0" |
