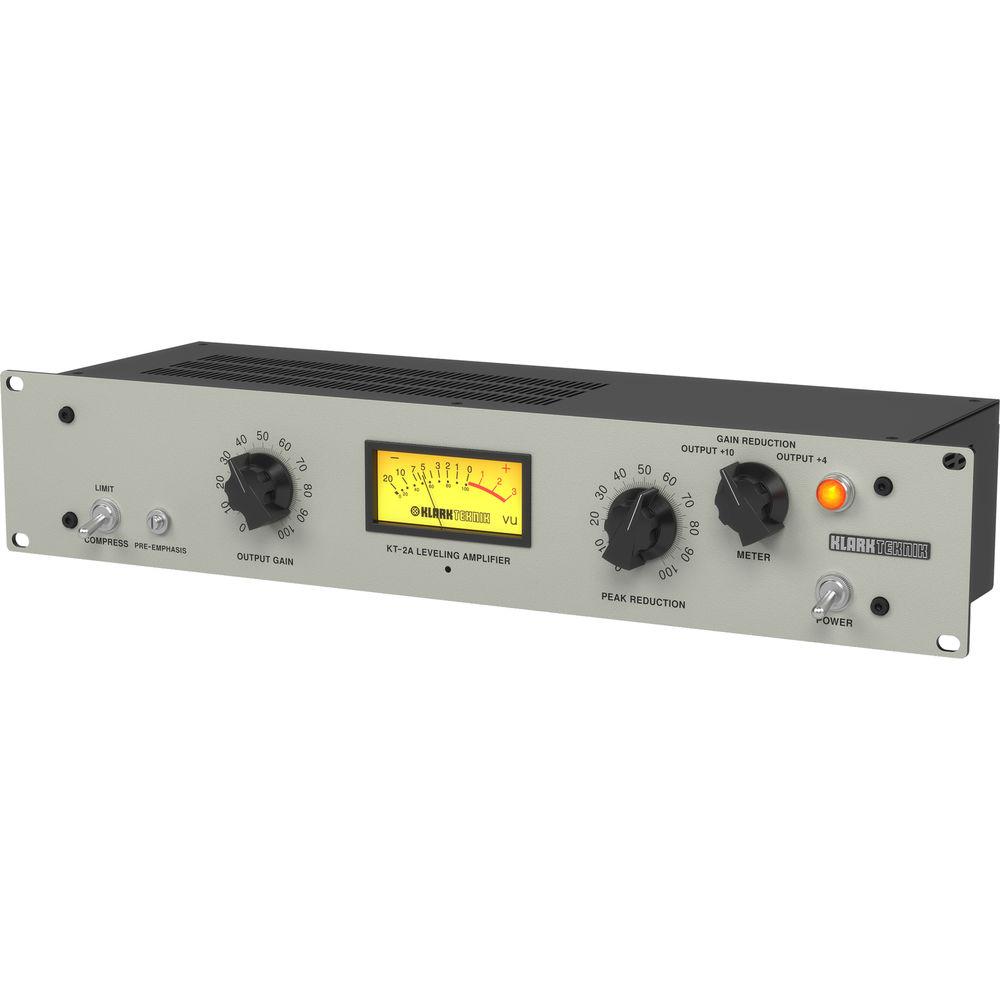

Product description The Klark Teknik KT-2A is a one-channel hardware compressor based on the prized, iconic Teletronix LA-2A. The original is a tube-based optical compressor that reacts in a nonlinear and musical way to input signal, smoothing out peaks in a largely subtle manner suitable for vocals, acoustic guitars, and other acoustic instruments. The Klark Teknik version draws inspiration from the original, using the same electroluminescent cell and high-quality, discrete components.
A full complement of tubes is utilized in the KT-2A, including 12AX7s, EL84s, and a 12BH7. The pleasant harmonic distortion from these tubes lends warmth to the low end and a silky smoothness to the upper registers. One differentiation over the original is the inclusion of Midas input and output transformers, which are respected for their fidelity in both recording and live situations.

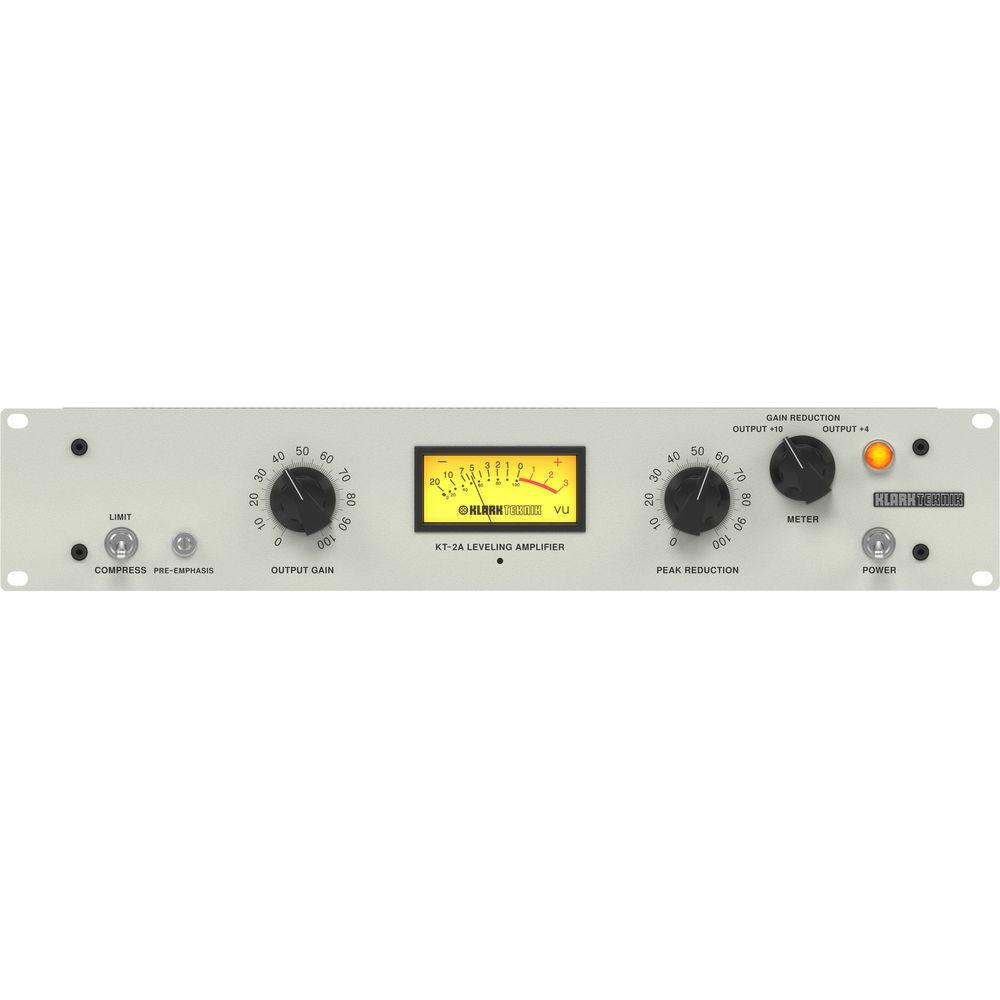

Controls on the unit include an output gain knob, a gain reduction knob, a limit/compress switch, and a pre-emphasis trimmer that affects the frequencies of the compressor's sidechain path. This trimmer makes the compressor less susceptible to higher frequencies, so gain-reduction isn't as reactive to the treble range. No attack and control variables are provided, as is the style with LA-2A emulations. Retro-style VU meters adorn the unit, giving you the ability to monitor gain reduction and various levels of output.

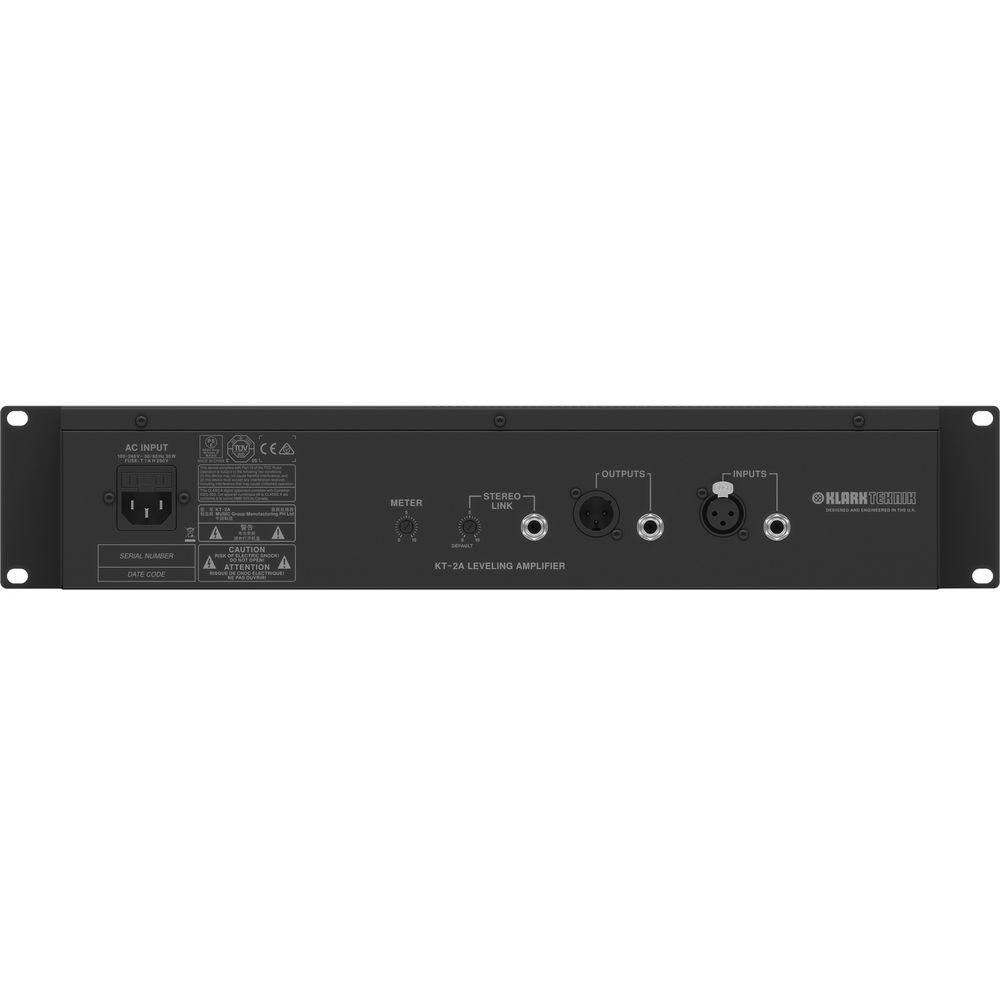

The signal path is balanced, and both XLR and 1/4" phone jacks are provided on the input and output. However, you can use this compressor with unbalanced cables as well. A stereo-linking TRS jack provides the ability to link two KT-2As for stereo processing. - Key Features at a Glance
-
- Classic tube compressor/leveling amplifier modeled after the iconic Teletronix LA-2A
- Completely discrete signal path
- Tube complement of 12AX7, 12BH7, and EL84 tubes
- Lag-free optical attenuator based on original electroluminescent technology
- Custom-built MIDAS input and output transformers
- Frequency response of 10 Hz to 20 kHz ±1 dB
- Peak reduction of 0 to 30 dB
- Fast attack time of around 10 ms
- Release time between 50 ms to 5 seconds
- Adjustable stereo-link connection
- Variable pre-emphasis for digital audio recording and broadcasting transmission
- Vintage-style meter featuring gain reduction, +10 output, and +4 output
- Transformer-balanced inputs and outputs on Neutrik XLR connectors
- Rugged 2 RU rackmount chassis ensuring durability in portable applications
- Auto-ranging universal switch-mode power supply
- 10-Year Warranty Program
- Designed and engineered in the U.K.
UPC: 653341315335 In the Box Klark Teknik KT-2A Single Channel Leveling Amplifier and Compressor Limited 3-Year Warranty, Extendable to 10 Years Upon Registration Table of Contents
|
Upload User Manual
Have you got an user manual for the Klark Teknik KT-2A Single Channel Leveling Amplifier and Compressor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKlark Teknik KT-2A Specs | | | Type | XLR, 1/4" TRS, transformer balanced | | Impedance | 600 Ohms, balanced and unbalanced | | Maximum Input Level | +20 dBu, balanced and unbalanced | | CMRR | -80 dB at 1 kHz, typical | | | | Type | XLR, 1/4" TRS, transformer balanced | | Impedance | 70 Ohms, balanced and unbalanced | | Maximum Output Level | +18 dBu, balanced and unbalanced | | | | Frequency Response | 10 Hz to 20 kHz (±1 dB) | | Noise | -87 dBu, unweighted, 20 Hz to 20 kHz (unity gain) | | THD | Typically <0.1%, 20 Hz to 20 kHz (unity gain, 0 dBu input level) | | | | Attack Time | Typically 10 ms | | Release Time | Typically 50 ms for 50% release, up to 5 seconds for full release | | Maximum Output Gain | +30 dB | | Gain Reduction | Maximum peak reduction of -30 dB | | Tube Type | 2 x 12AX7
1 x 12BH7
1 x EL84 | | Meter Settings Options | Gain reduction, +4 output, +10 output | | | | Mains Voltage | Approximately 100 to 240 VAC, 50/60 Hz | | Power Consumption | 30 W | | Fuse | T1AH 250 V | | Connection | Standard IEC receptacle | | | | Dimensions (H x W x D) | 3.5 x 19 x 6.2" / 88 x 483 x 158 mm | | Weight | 6.4 lb / 2.9 kg | | | | Package Weight | 8.0 lb | | Box Dimensions (LxWxH) | 22.1 x 13.1 x 9.3" |
