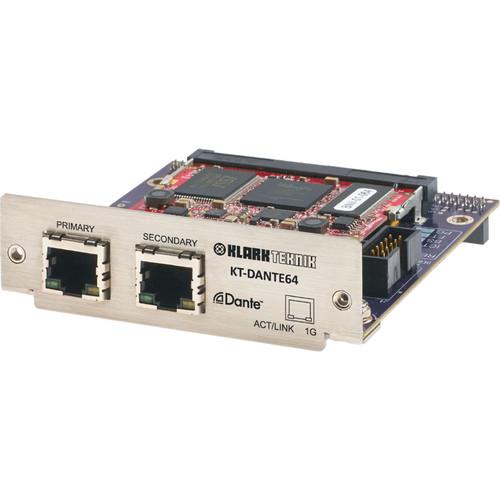

User Manual for Klark Teknik KT-Dante64 Network Module Click to enlarge the picture
Contents of the user manual for the Klark Teknik KT-Dante64 Network Module
- Product category: Accessories Klark Teknik
- Brand: Klark Teknik
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Klark Teknik Accessories
|
User manual for the Klark Teknik KT-Dante64 Network Module contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Klark Teknik product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Klark Teknik user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Klark Teknik product will considerably shorten its lifespan!
|
Product description The KT-Dante64 Network Module from Klark Teknik is an Ethernet compliant audio networking module, compatible with the DN9650 and DN9652 Network Bridges. Using technology developed by Audinate, the KT-DANTE64 Network Module provides direct-to-computer audio recording, flexible routing, and plug and play technology with automatic discovery.
The KT-DANTE64 uses CAT5/5e cables and standard networking components to distribute multiple streams of audio and integrated control data. It contains the Brooklyn II chipset from Audinate with up to 64 channels of bidirectional audio with low latency, low jitter, and sub-microsecond synchronization over Gigabit networks. This network module is designed to meet the demands of live sound environments. - Audinate Dante network module in Cirrus Logic CobraNet CM-1 format
- Up to 64 bidirectional channels at 48 kHz and 32 bidirectional channels at 96 kHz
- Enables multi-channel recording and playback through Dante Virtual Soundcard (PC or Mac)
- Primary and secondary Ethernet interfaces for dual-redundant Dante networking
- Operates from internal Dante network Precision Time Protocol (PTP) clock or external clock via host unit
- Optional Dante Controller software for remote configuration (PC or Mac)
- LED indicators monitor network activity and speed
UPC: 748252169747 In the Box Klark Teknik KT-Dante64 Network Module Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Klark Teknik KT-Dante64 Network Module in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKlark Teknik KT-DANTE64 Specs | Audio Capabilities | Sample Rates: 44.1/48/88.2/96/176.4/192 kHz
Audio Channels In/Out (44.1/48 kHz): Up to 64 x 64 channels
Audio Channels In/Out (88.2/96 kHz): Up to 32 x 32 channels
Audio Channels In/Out (176.4/192 kHz): Up to 16 x 16 channels
Audio Flows In/Out: Up to 32 x 32 simultaneous streams
Digital Audio Format: TDM, I2S
Sample Bit Depth: 16, 24, or 32 bits per sample
Audio Buffering: Up to 2000 samples per channel
Clocking: Onboard word clock or external word clock | | Interfaces | Control Interfaces SPI Master and Slave, GPIO, I2C, Network RGMII/MII | | Processor | Microprocessor Soft-core Microblaze | | Application Accelerator FPGA | High performance Xilinx Spartan6 | | Clock | High quality, low jitter onboard SiLabs | | Module | Form Factor Card edge module | | Ethernet | Standard RGMII/MII interface for Ethernet PHY or switch chip | | Connector / Interface | Mini-PCI | | Power | 3.3 VDC @ 2 W max. | | Dimensions | 1.75 x 2.4" (4.5 x 6.1 cm) | | | | Package Weight | 0.395 lb | | Box Dimensions (LxWxH) | 6.4 x 5.3 x 2.25" |
