User Manual for Klark Teknik MADI Module for DN9650 & DN9652 Network Bridges Click to enlarge the picture
Contents of the user manual for the Klark Teknik MADI Module for DN9650
- Product category: Networked Audio Systems Klark Teknik
- Brand: Klark Teknik
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Klark Teknik Networked Audio Systems
|
User manual for the Klark Teknik MADI Module for DN9650 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Klark Teknik product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Klark Teknik user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Klark Teknik product will considerably shorten its lifespan!
|

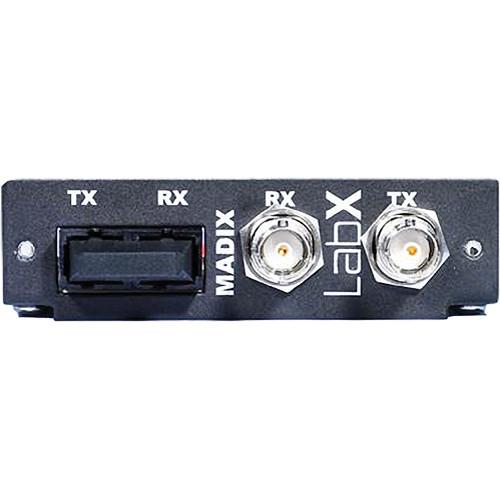

Product description The Klark Teknik KT-MADI is a network module designed for the DN9650 and DN9652 network bridges. The module provides up to 64 bidirectional channels at 48 kHz or 32 bidirectional channels at 96 kHz. The KT-MADI offers high-performance point-to-point links over optical fiber and coaxial copper connections and is well suited to interface with third-party recording and playback equipment.
The KT-MADI features dual redundant operation with automatic fail-over to the coaxial copper interface in the event of a failure with the optical fiber interface. The module can act as a MADI clock master, clock slave, or can synchronize to an external clock source through the DN9650 or DN9652 host unit. The Klark Teknik KT-MADI is electrically and mechanically compatible with the industry standard Cirrus CM-1 format. -
- MADI (AES10-compliant) network module with up to 64 bidirectional channels @ 48 kHz and 32 bidirectional channels @ 96 kHz
- Compatible with Klark Teknik DN9650 and DN9652 network bridges and MIDAS NEUTRON-NB expansion module
- Operates up to 1640' over optical fiber link and 656' over coaxial copper link
- Optical transmission on SC-Duplex connector
- Copper transmission on 75-ohm coaxial BNC connectors
- Dual redundant operation with fail-over from optical to copper connections
- Operates as either MADI clock master, MADI clock slave or from external clock via host unit
UPC: 696859305672 In the Box Klark Teknik MADI Module for DN9650 & DN9652 Network Bridges Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Klark Teknik MADI Module for DN9650 & DN9652 Network Bridges in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKlark Teknik DN9650 Specs | Format | Cirrus CM-1 compatible | | Sample Rates | 48, 96 kHz | | Audio Channels | Audio Channels (48 kHz): Up to 64 bidirectional channels
Audio Channels (96 kHz): Up to 32 bidirectional channels | | Clock Sources | MADI clock master, MADI clock slave, or external word clock | | Optical Fiber | Optical Fiber Interface (Transmit, Receive) Connector Type: SC-Duplex | | Coaxial | Coaxial Copper Interface (Transmit, Receive) Connector Type: 75-ohm BNC | | Dimensions (H x W x D) | 1.2 x 4.3 x 3.5" / 31.0 x 110.0 x 89.0 mm | | Weight | Not specified by manufacturer | | | | Package Weight | 0.45 lb | | Box Dimensions (LxWxH) | 6.3 x 5.4 x 2.3" |
