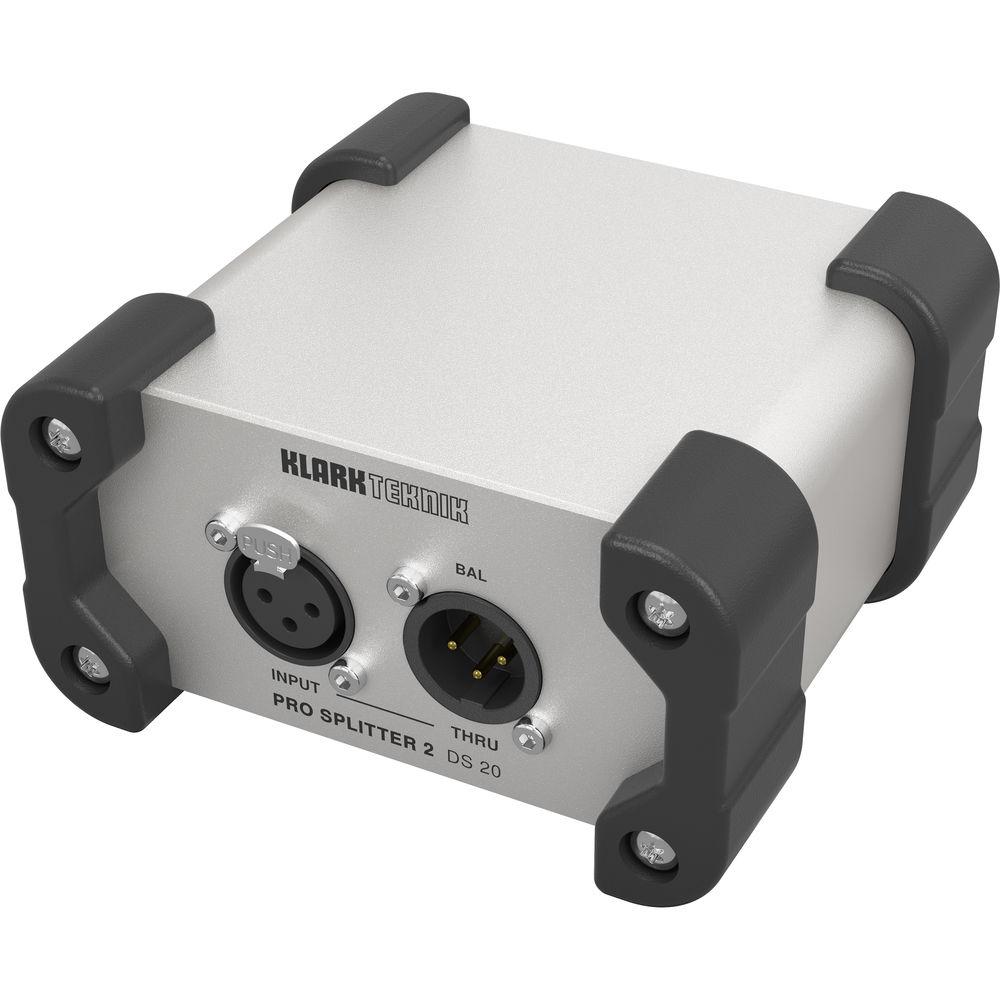

Product description The Klark Teknik Pro Splitter 2 DS 20 is a passive signal splitter designed to split a line-level signal to multiple outputs for audio engineers, broadcast mixers, and A/V technicians in clubs, conferences, houses of worship, and live stage applications. Utilizing Neutrik XLR 3-pin connectors for all I/O, it accepts a mono line-level signal and simultaneously splits it to two outputs and a thru jack. High headroom and linearity along with a custom Midas transformer and low-noise circuitry ensure uncompromising signal quality. Additionally, ground-lift switches for the outputs allow independent elimination of ground loops. Being passive, the Pro Splitter 2 DS 20 requires no power source. Its sturdy aluminum enclosure and protective rubber corners provide tour-worthy durability day after day. - Line-level splitter sends single input signal to two outputs and one thru jack
- Custom-built Midas transformer
- High headroom and linearity
- Transformer-isolated design ensures electrical separation
- Neutrik XLR 3-pin connectors

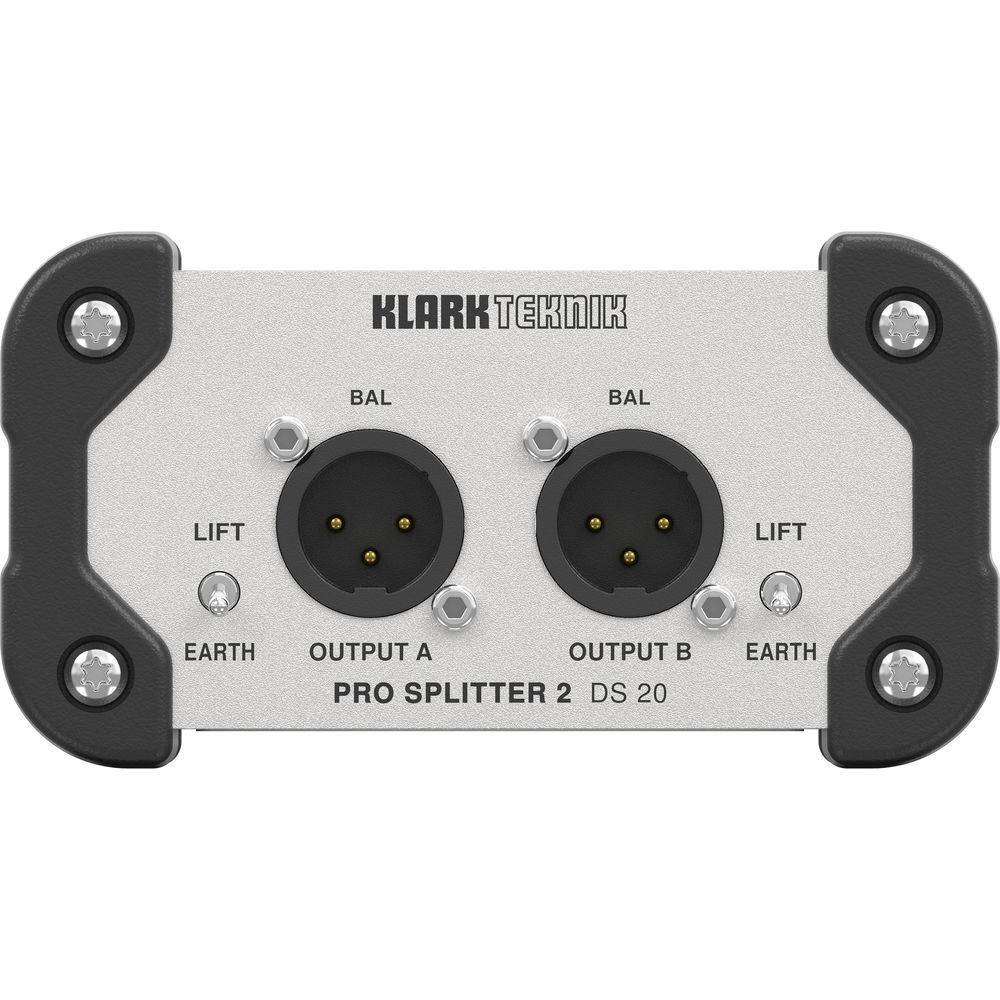

- Ground-lift switches for each output eliminate ground loop problems
- Compact and rugged aluminum enclosure with protective rubber corners
- Designed and engineered in the United Kingdom
UPC: 653341311535 In the Box Klark Teknik Pro Splitter 2 DS 20 Passive Signal Splitter Limited 10-Year Warranty upon Registration within 90 Days Table of Contents
|
Upload User Manual
Have you got an user manual for the Klark Teknik Pro Splitter 2 DS 20 Passive Signal Splitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

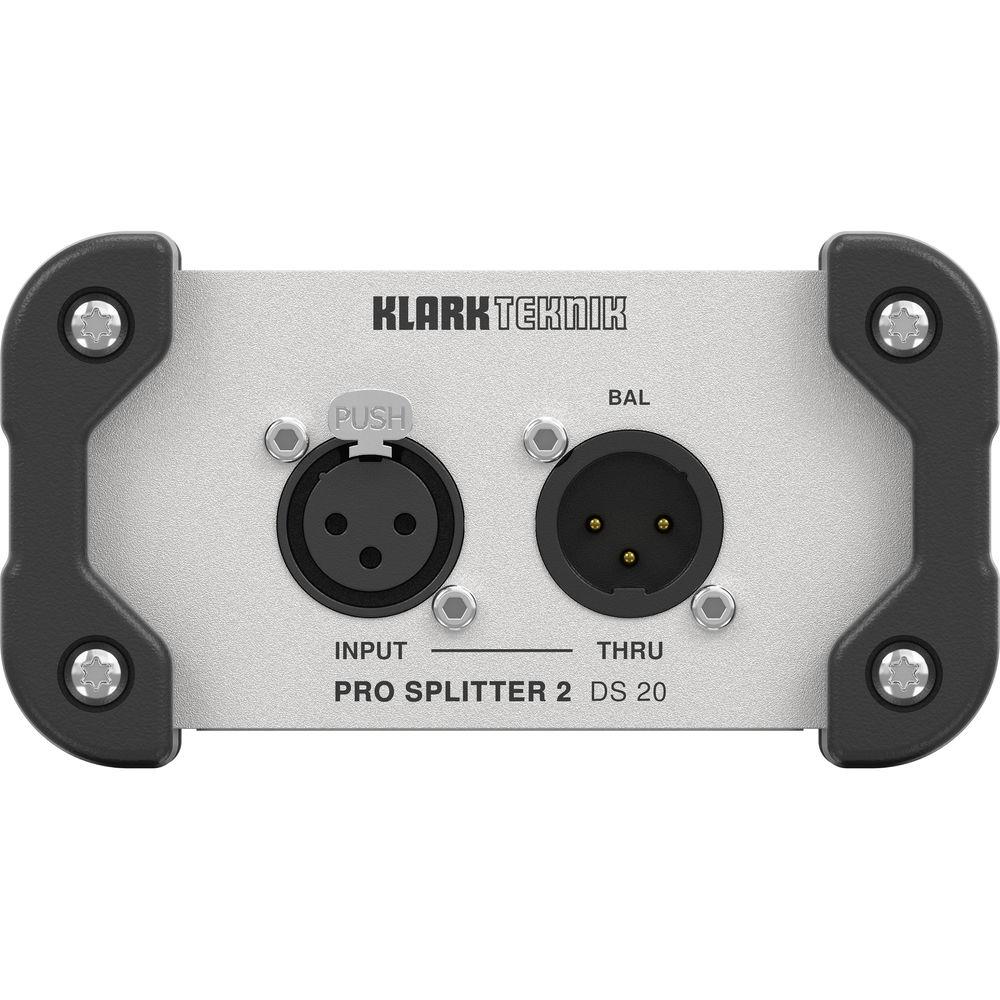

Technical parametersKlark Teknik DS 20 Specs | Input | 1 x XLR 3-pin female (balanced) | | Outputs | 2 x XLR 3-pin male (balanced) | | Thru | 1 x XLR 3-pin male (balanced) | | Input Impedance | 1.9 kOhms | | Frequency Response ± 3dB | 30 Hz to 45 kHz | | Dynamic Range | 124 dB | | THD + N | < 0.03% at 1 kHz and +4 dBu | | Signal-to-Noise Ratio (SNR) | >100 dB at +4 dBu | | Construction Material | Aluminum casing
Rubber corners | | Dimensions (W x D x H) | 4.6 x 4.7 x 2.5" / 118 x 120 x 64 mm | | Weight | 1.3 lb / 0.6 kg | | | | Package Weight | 1.45 lb | | Box Dimensions (LxWxH) | 6.2 x 6.2 x 4.15" |
