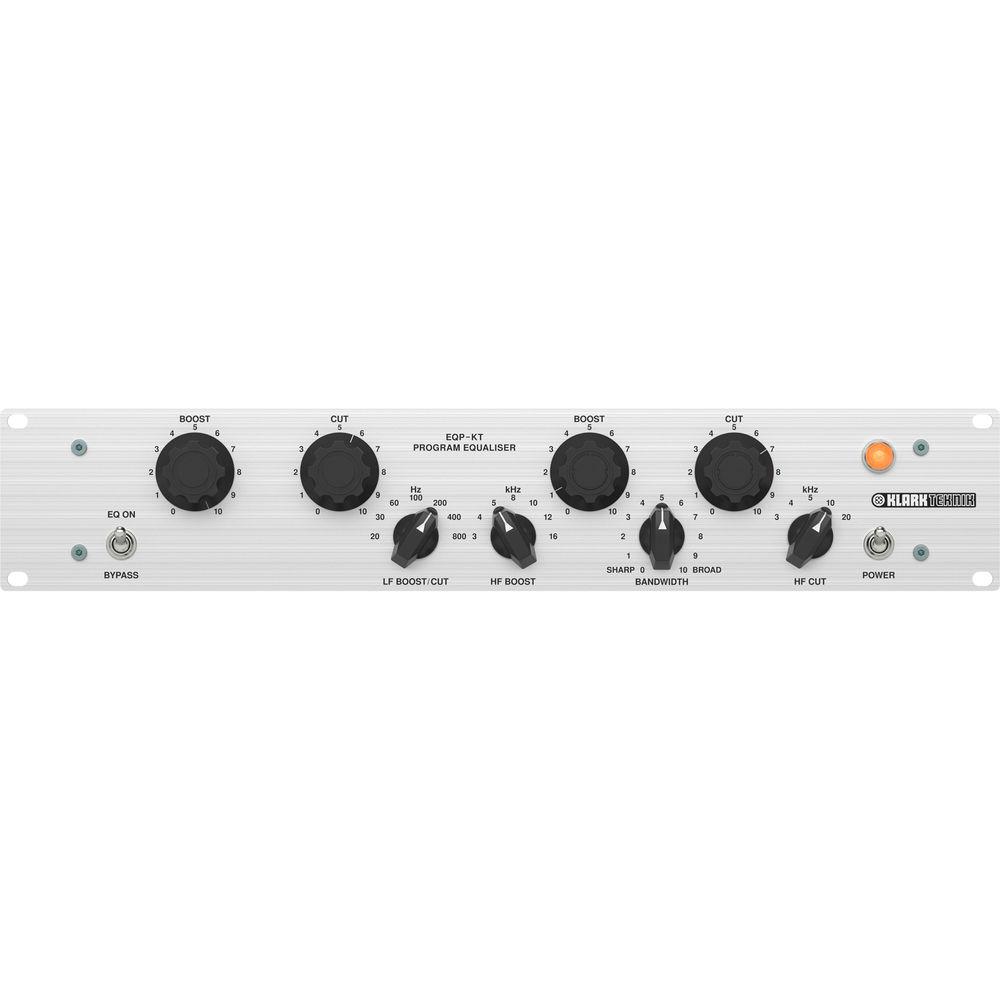

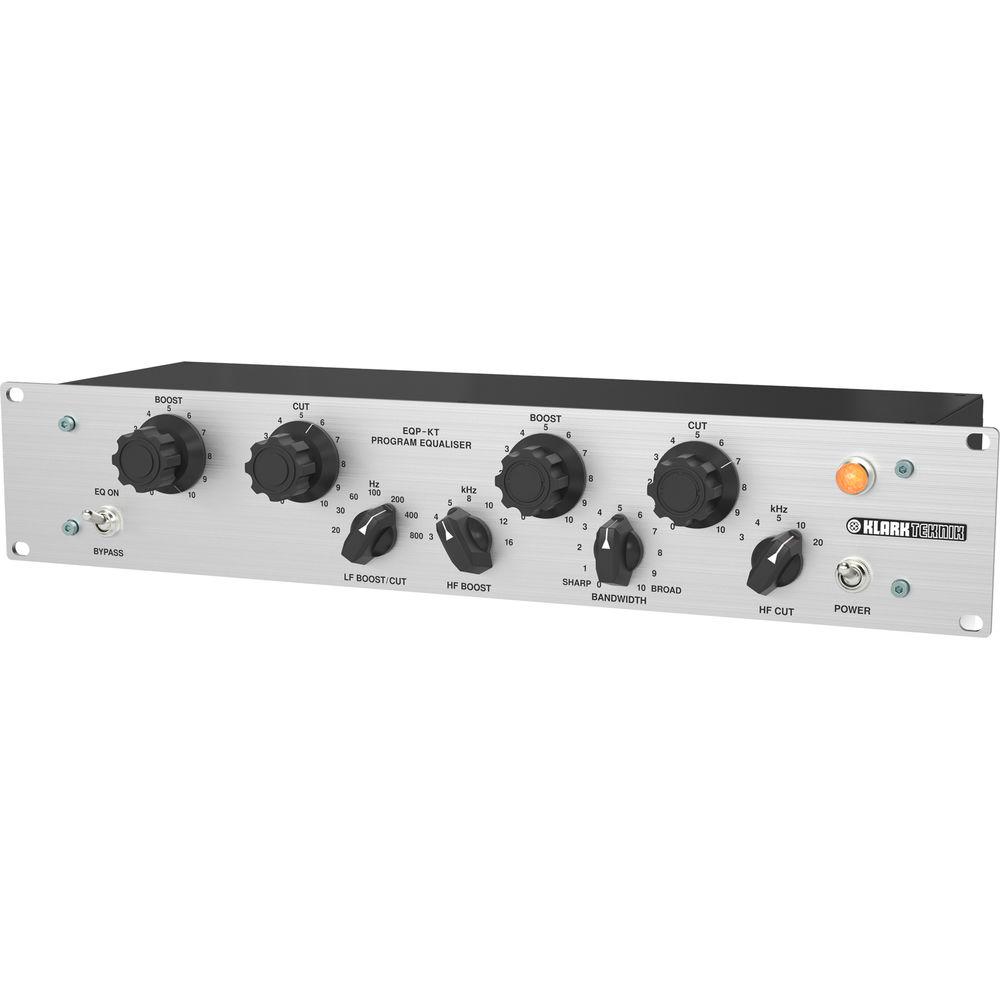

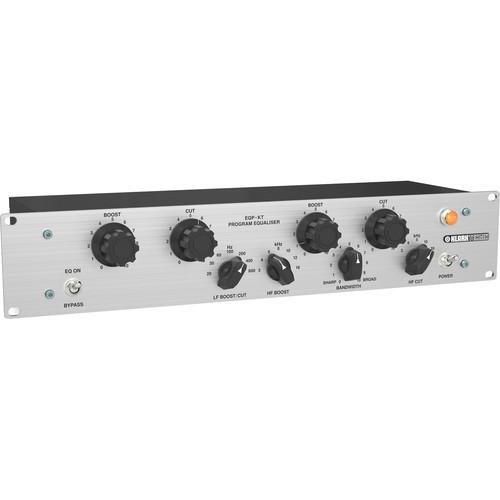

Product description The Single-Channel 2-Band Equalizer from Klark Teknik features a valve driven transformer output stage in a standard 2 RU 19" rackmount chassis. It features a Class-A circuit design for enhanced signal integrity. The equalizer is equipped with 12AX7 and 12AU7 tubes that help in providing low-noise analog output with the ideal balance of tight, warm bass, smooth mid-range, and improved treble. The equalizer incorporates a two-band design that allows the boost and cut controls to work independently of one another for flexible shelving. Both the LF Boost/Cut and HF Boost controls provide 7 frequency selections, along with a variable broad-bandwidth mid-range control. In addition, the equalizer also comes with HF Cut control. The equalizer features a Bypass/EQ On switch and its signal path consists of a MIDAS input transformer, two-band equalizer, a makeup gain amplifier, and a MIDAS output transformer. When the switch is in the Bypass position, the only section that is no longer part of the signal path is the equalizer. The EQP-KT has both XLR and 1/4" TRS balanced inputs and outputs, both of which operate at line level. Unbalanced connections are also available via 1/4" TS cables. - Single-channel, two-band equalizer based on Pultec EQP-1A
- Class-A, discrete circuit for signal integrity
- 12AX7 and 12AU7 vacuum tubes
- Custom-built MIDAS input and output transformers
- Switchable frequency selectors with up to 7 frequency points
- Independent boost and cut controls
- Variable bandwidth control for wide sound sculpting
- Inductor based equalizer section
- Bypass switch allows A/B comparison

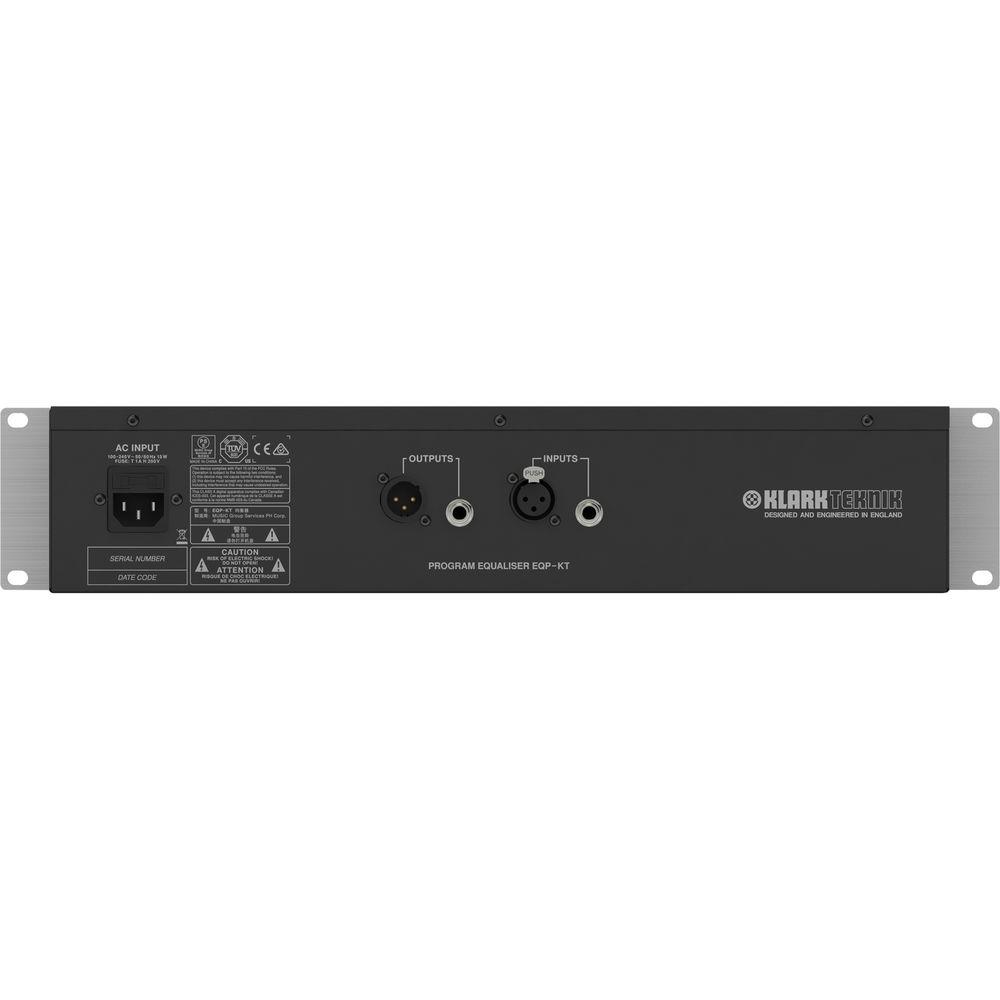

- Transformer balanced inputs and outputs on Neutrik XLR connectors
- Rugged 2 RU rackmount chassis for durability in portable applications
- Auto-ranging universal switch-mode power supply
UPC: 748252171948 In the Box Klark Teknik Single-Channel 2-Band Equalizer with Switchable Frequency Selection, Variable Bandwidth, and Custom-Built MIDAS Transformers Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Klark Teknik Single-Channel 2-Band Equalizer with Switchable Frequency Selection, Variable Bandwidth, and Custom-Built MIDAS Transformers in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKlark Teknik EQP-KT Specs | Filter Type | Passive | | Number of Channels | 1-channel | | Inputs | 1 x XLR, 1/4" TRS, transformer balanced | | Outputs | 1 x XLR, 1/4" TRS, transformer balanced | | Maximum Input Level | 21 dBu | | Frequency Bands | LF Boost / Cut:
20, 30, 60, 100, 200, 400, 800 Hz, selectable
HF Boost:
3, 4, 5, 8, 10, 12, 16 kHz, selectable
HF Cut:
3, 4, 5, 10, 20 kHz, selectable | | Bandwidth | Q = 1 to 10 (sharp to broad), selectable | | Range (Boost/Cut) | Low Frequency
Boost:
0 to 12 dB, shelving
Cut:
0 to -24 dB, shelving
High Frequency
Boost:
0 to 12 dB, shelving
0 to 10 dB (broad)
Cut:
0 to -20 dB, shelving | | Maximum Output Level | 21 dBu | | Frequency Response | 20 to 20 kHz, 1 dB | | Dynamic Range | >101 dB, typical (20 to 20 kHz, unweighted) | | Noise | SNR: 80 dB at 4 dBu In | | Impedance | Audio Input: >600 Ohms, balanced and unbalanced
Audio Output: <300 Ohms, balanced and unbalanced | | Input Level | Optimum: 4 dBu | | Minimum Load Impedance | Output: 600 Ohms | | Distortion | <0.1% at 1 kHz, 4 dBu (THD+N) | | Circuit | Class-A | | Vacuum Tubes | 12AX7, 12AU7 | | Mains Voltage | 100 to 240 VAC, 50/60 Hz | | Power Consumption | 15 W | | Fuse | T1AH 250 V | | Power Connector | Standard IEC receptacle | | Dimensions (H x W x D) | 3.5 x 19 x 6.6" (89 x 483 x 168 mm) | | Weight | 6.6 lb (3 kg) | | | | Package Weight | 8.3 lb | | Box Dimensions (LxWxH) | 21.4 x 8.6 x 6.2" |
