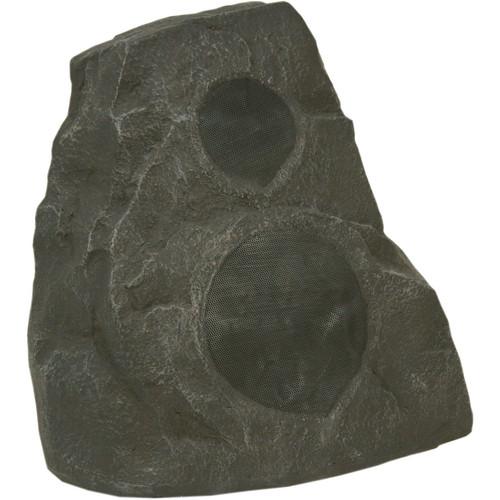

User Manual for Klipsch AWR-650-SM Granite Outdoor Rock Speaker Click to enlarge the picture
Contents of the user manual for the Klipsch AWR-650-SM Granite Outdoor Rock Speaker
- Product category: Outdoor Speakers Klipsch
- Brand: Klipsch
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Klipsch Outdoor Speakers
|
User manual for the Klipsch AWR-650-SM Granite Outdoor Rock Speaker contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Klipsch product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Klipsch user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Klipsch product will considerably shorten its lifespan!
|
Product description The AWR-650-SM Granite Outdoor Rock Speaker from Klipsch is a passive audio speaker and outdoor decor element in one. This configuration from Klipsch's All Weather speaker lineup combines two 0.75" tweeters and a 6.5" woofer with an attractive yet durable faux stone-finished enclosure. The fiberglass composite enclosure is weather-resistant and UV-treated to endure permanent outdoor installation. The dual-tweeter design enables the speaker to output a mono or stereo signal, and the 6.5-inch dual voice coil woofer delivers rich low-end response that results in full-bodied sound that can further enhance the ambiance of your next backyard barbeque or pool party. The granite-like finish, irregular shape, and concealed speaker cones help the AWR-650 blend with outdoor decor elements and landscaping. - Audio Performance
-
- 200W peak power output
- 66-20,000Hz frequency response
- Two 0.75" polymer tweeters
- 8 ohm nominal impedance
- Enclosure Details
-
- Granite finish
- UV-treated and weather-resistant
- Fiberglass composite construction
- 45° side-firing bass-reflex port
UPC: 743878019568 In the Box Klipsch AWR-650-SM Granite Outdoor Rock Speaker Lifetime Limited Warranty User Manual PDF 494.8kb More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the Klipsch AWR-650-SM Granite Outdoor Rock Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKlipsch AWR-650-SM Specs | Enclosure | Fiberglass composite with bass-reflex via 45° side-firing port | | Frequency Response | 66 - 20,000 Hz ±3dB | | Low Frequency Extension | 43 Hz | | Power Handling | 50 W (continuous); 200 W (peak) | | Amplifier Power | 100 W (recommended); 200 W (peak) | | High Frequency Driver | (2) 0.75" polymer dome tweeters using neodymium magnets | | Low Frequency Driver | 6.5" dual voice coil woofer with polymer cone and ceramic motor | | Sensitivity | 94dB at 2.83V / 1m | | Nominal Impedance | 8 ohm | | Drive Components | (2) 0.75" | | High Frequency Crossover | 2500 Hz | | Dimensions (H x W x D) | 17 x 15 x 11" (43 x 38 x 28 cm) | | Weight | 13 lb (5.9 kg) | | | | Package Weight | 15.0 lb | | Box Dimensions (LxWxH) | 17.0 x 17.0 x 14.0" |
