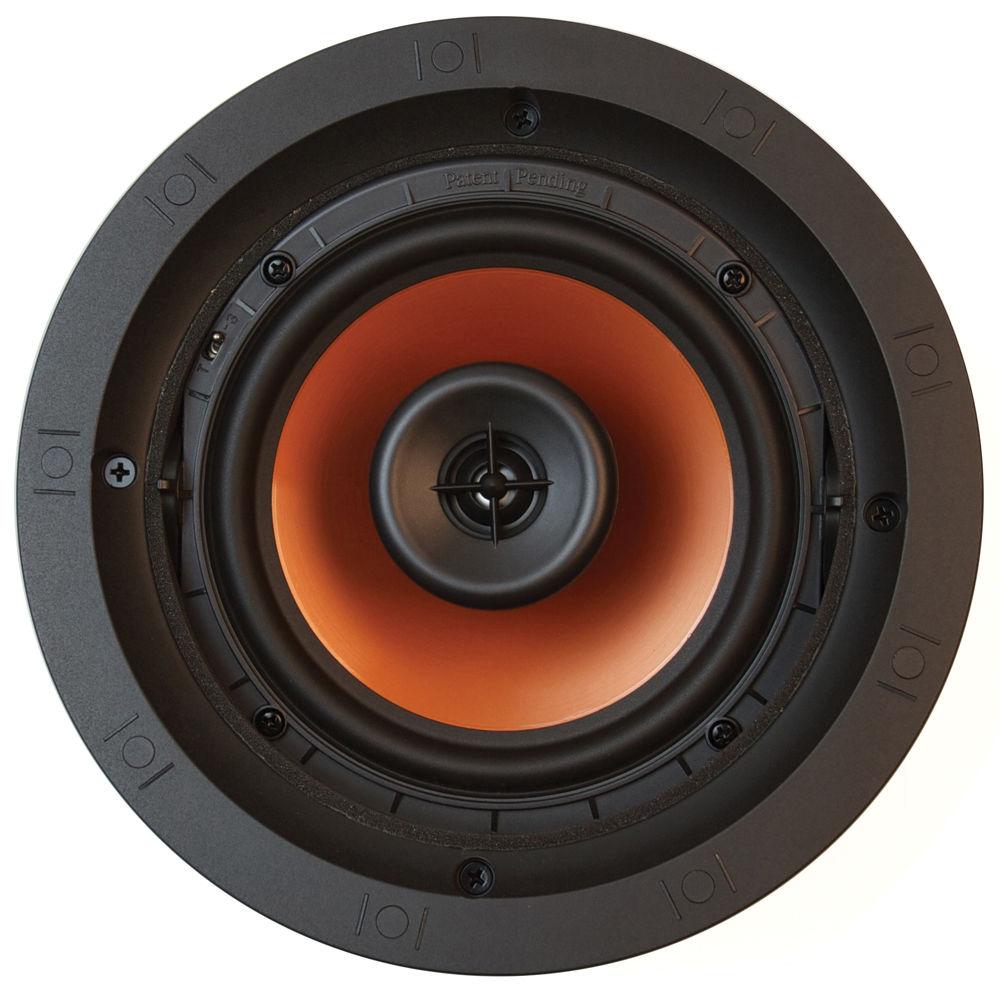

Product description The CDT-3650-C II In-Ceiling Speaker from Klipsch is a 6.5" 2-way in-ceiling speaker, which handles 50 Watts of power and has a frequency response of 63 Hz to 23 kHz. The 3650-C II's pivoting IMG woofer is paired with a 1" aluminum compression driver (tweeter) mated to a Tractrix Horn in a two-way design.
Klipsch Controlled Dispersion Technology (CDT) allows for the tweeter to swivel while the woofer can rotate a full 360° and pivot 15° in any direction. The controlled dispersion of the horn-loaded tweeter allows the high frequencies to be directed towards the listening area. This, combined with the woofer's ability to also direct more narrowly dispersed mid-bass frequencies, yields improvement in the overall sound. The 3650 includes a treble attenuation switch for reduction of high frequency output in challenging install applications such as overly reflective rooms, allowing for a better frequency balance.

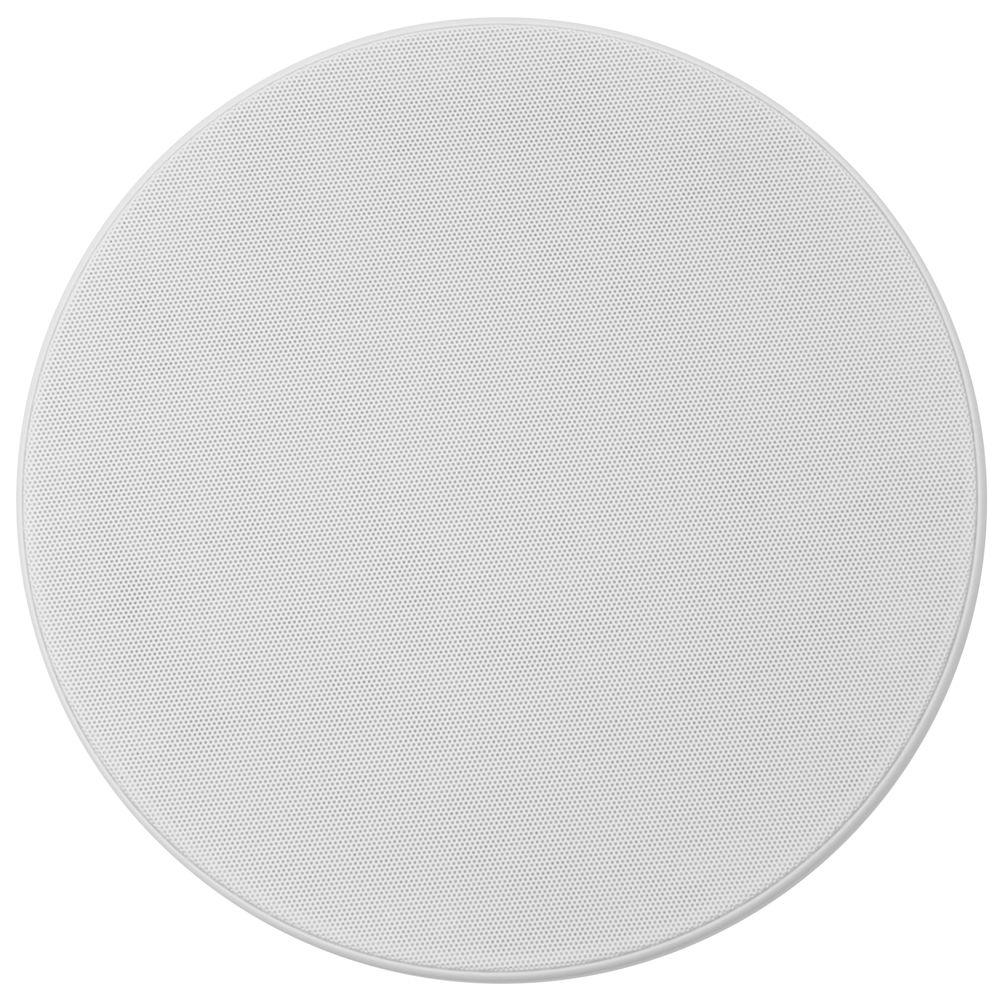

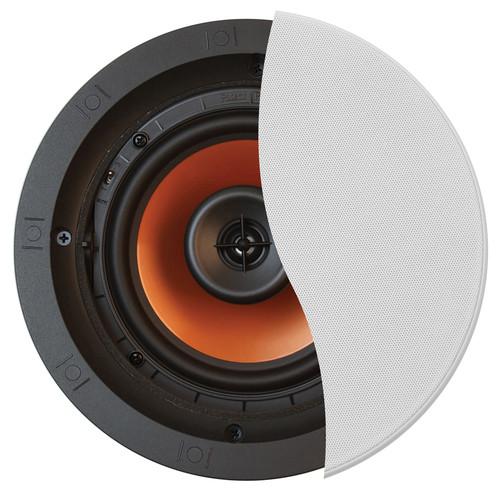

The aluminum SlimTrim grille's presence has been minimized from previous designs, and is paintable to match any décor. With its low-profile grille and speaker design, this less obtrusive, smaller footprint in-ceiling speaker is suitable for use in environments where visuals are many times as an important consideration as sound quality is. These include 2-channel home playback, in whole house audio systems, or for surround sound usage.
The speaker includes sure-grip mounting dogs, which are designed to provide even pressure against drywall for long-term installation reliability. - Horn-loaded technology for increased output and minimized distortion
- Controlled Dispersion Technology directs high and mid-bass frequencies to the main listening area
- Lower profile grille and speaker for minimized speaker presence

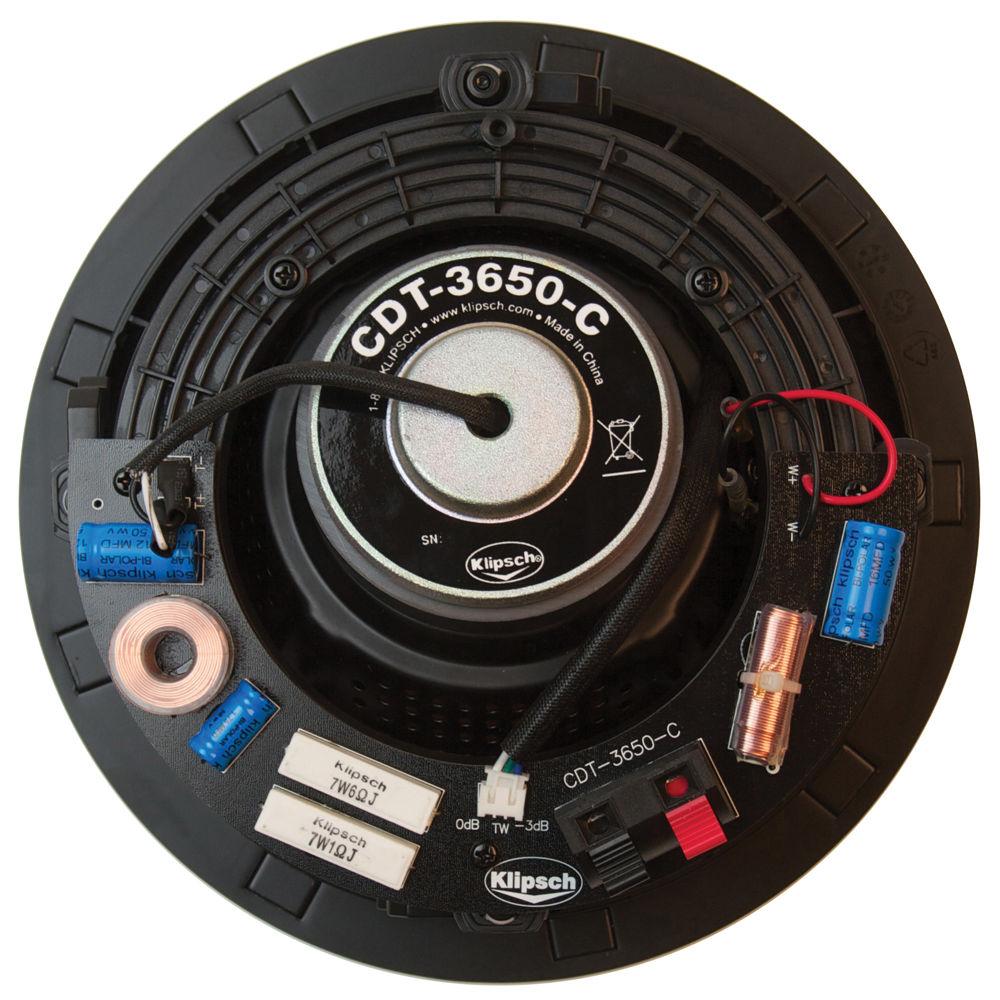

- Treble attenuation switch
UPC: 743878024067 In the Box Klipsch CDT-3650-C II In-Ceiling Speaker 5 Year Limited Warranty Brochure PDF 182.3kbzwuwzubbcerdcefdutasytx More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the Klipsch CDT-3650-C II In-Ceiling Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKlipsch 1014141 Specs | | | Frequency Response ± 3dB | 63 Hz to 23 kHz | | Maximum Power Handling | 50 W RMS / 200 W peak | | Recommended Amplifier Power | 100 W | | Speakers | 6.5" pivoting IMG cone woofer

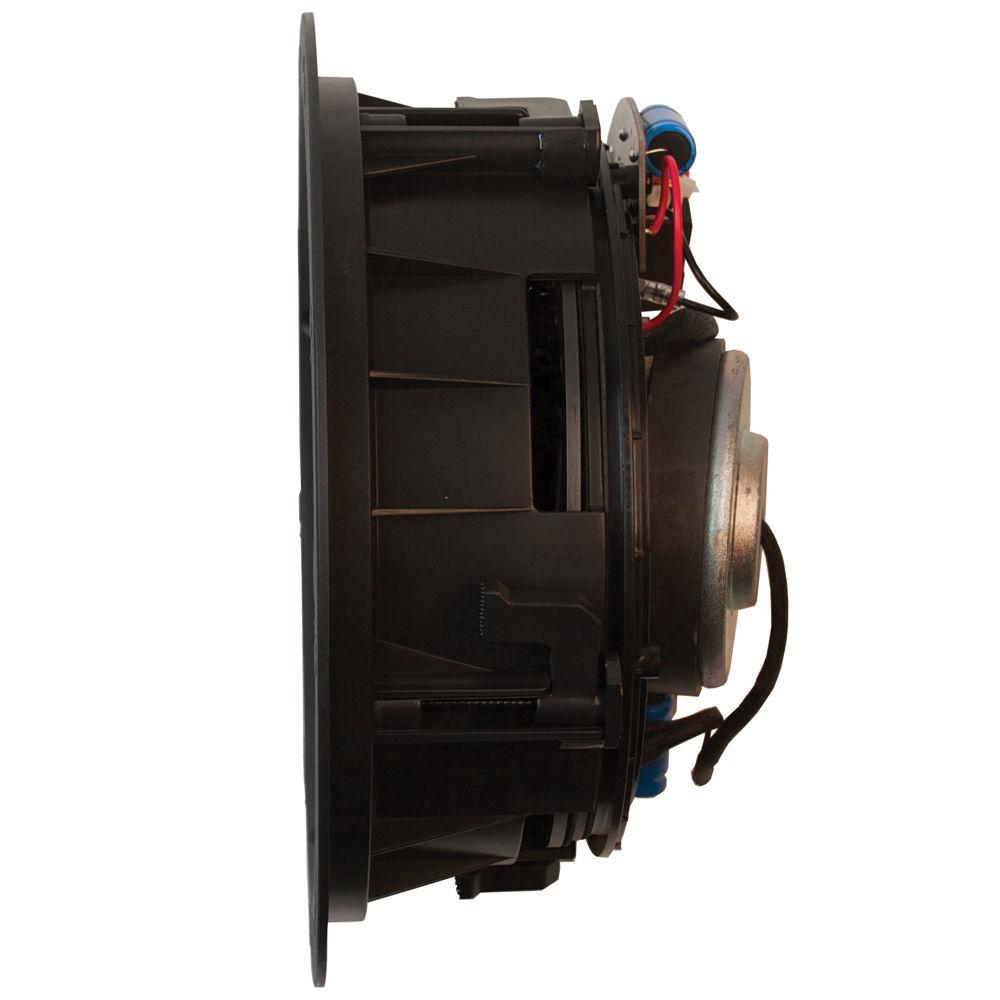

1" Aluminum compression driver (tweeter) | | Crossover Type | 2-way | | Crossover Frequency | 2800 Hz | | Impedance | 8 Ohms compatible | | Sensitivity | 93 dB @ 2.83V / 1m | | | | Color | White | | Form Factor | In-ceiling | | Enclosure Characteristics | ABS / infinite baffle, front flush with wall | | Finishing | White paintable frame and grille | | Supported Wire Gauge | 12 ga. | | Cutout Diameter | 8.3" (21.08 cm) | | Mounting Depth | 4.5" (13.72 cm) | | Diameter | 9.5" (24.13 cm) | | Weight (Approximate) | 6.8 lb (3.08 kg) | | | | Package Weight | 5.55 lb | | Box Dimensions (LxWxH) | 11.6 x 11.6 x 6.6" |
