User Manual for Klipsch CP-6 Indoor & Outdoor Speakers - Pair Click to enlarge the picture
Contents of the user manual for the Klipsch CP-6 Indoor & Outdoor Speakers
- Product category: Outdoor Speakers Klipsch
- Brand: Klipsch
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Klipsch Outdoor Speakers
 |
User manual for the Klipsch CP-6 Indoor & Outdoor Speakers contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Klipsch product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Klipsch user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Klipsch product will considerably shorten its lifespan!
|

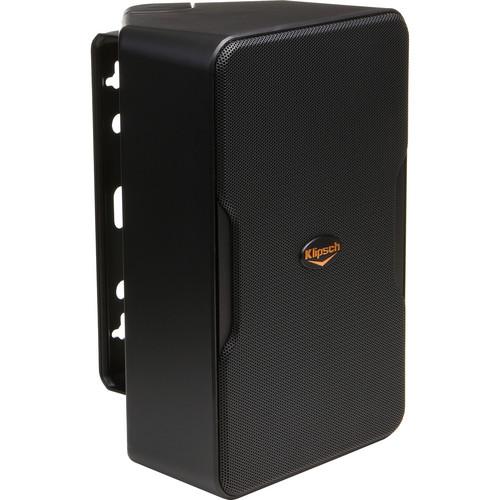

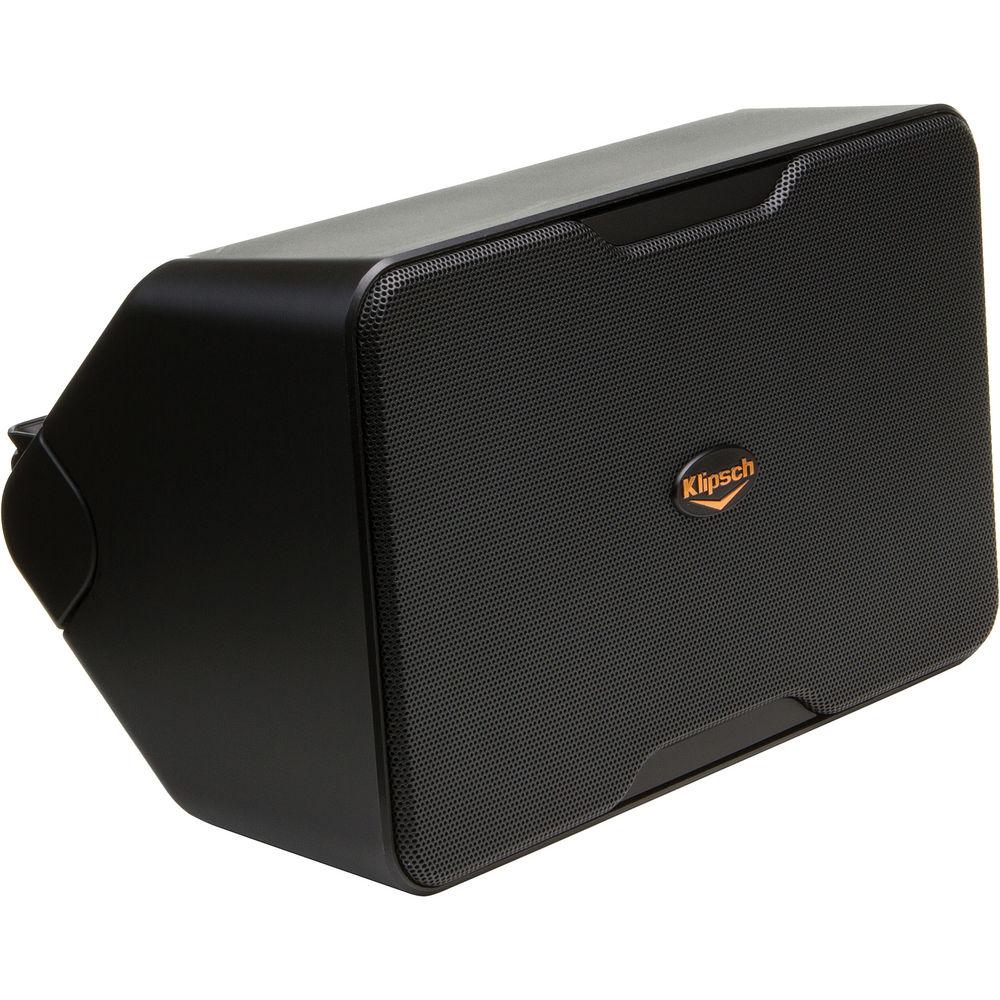

Product description The black Klipsch CP-6 Indoor & Outdoor Speakers are a multi-purpose speaker pair. Each Klipsch CP-6 speaker incorporates a .75" aluminum dome tweeter and a 5.25" long-throw IMG woofer to help deliver a dynamic audio experience. High-frequency sound is further enhanced by the speaker's built-in 90° x 90° Tractrix Horn. With a nominal power handling of 75W per speaker, the Klipsch CP-6 is compatible with a wide variety of amplifiers and music types.

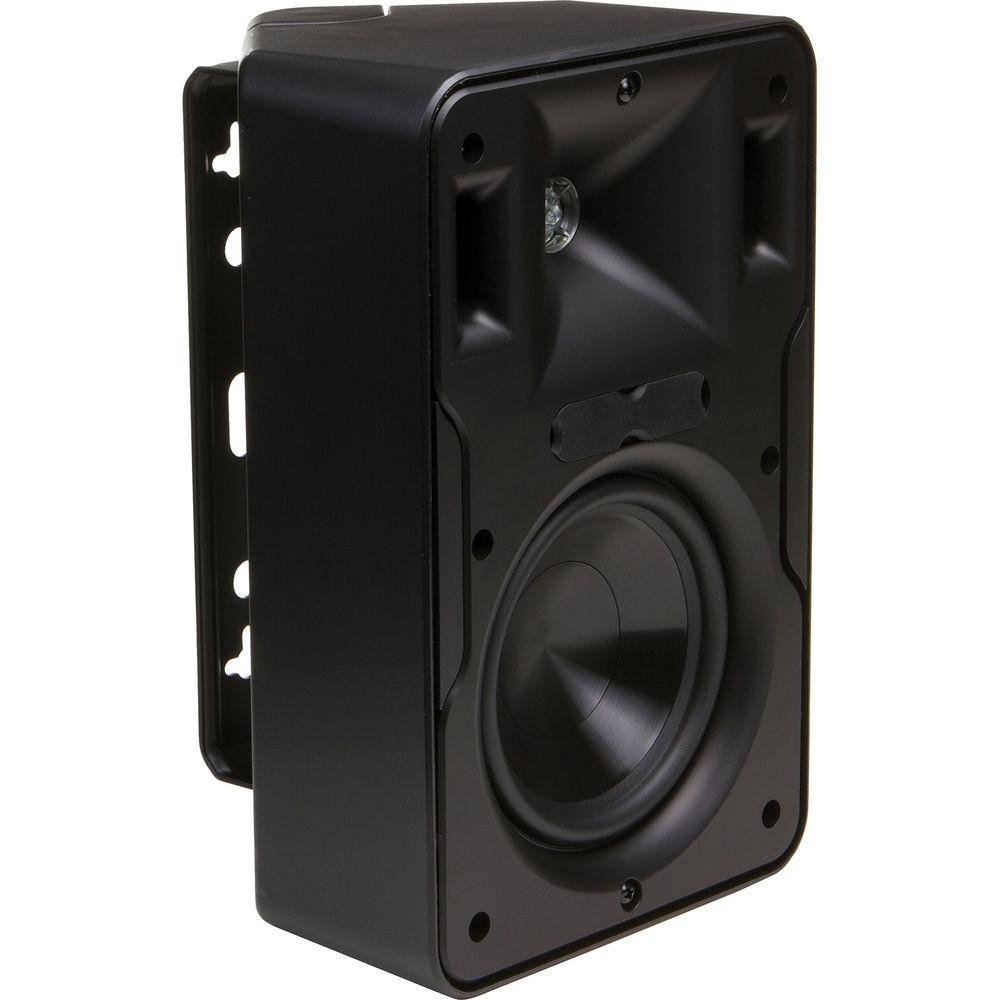

The Klipsch CP-6 features a bass-reflex design via dual front-firing ports for optimized low frequency sound. This multi-purpose speaker pair features mineral-filled cabinets and has stainless steel hardware. These speakers are weather-resistant for outdoor use, and can be painted to match your decor. You can also remove the speaker grilles to expose the speaker's tweeter, woofer and horn array; a speaker grille removal tool is included. - Compact Indoor / Outdoor Loudspeaker
- The Klipsch CP-6 mountable speaker, with its weather-resistant design, is as suited for use on a patio as it is placed on a shelf or mounted on the wall indoors. The proprietary 90° x 90° Tractrix Horn provides enhanced low-distortion clarity and detail while the long-throw woofer combines with front-firing ports for powerful low frequency response wherever they are located. Traditional Klipsch efficiency provides maximum output with minimum wattage.
- Installation

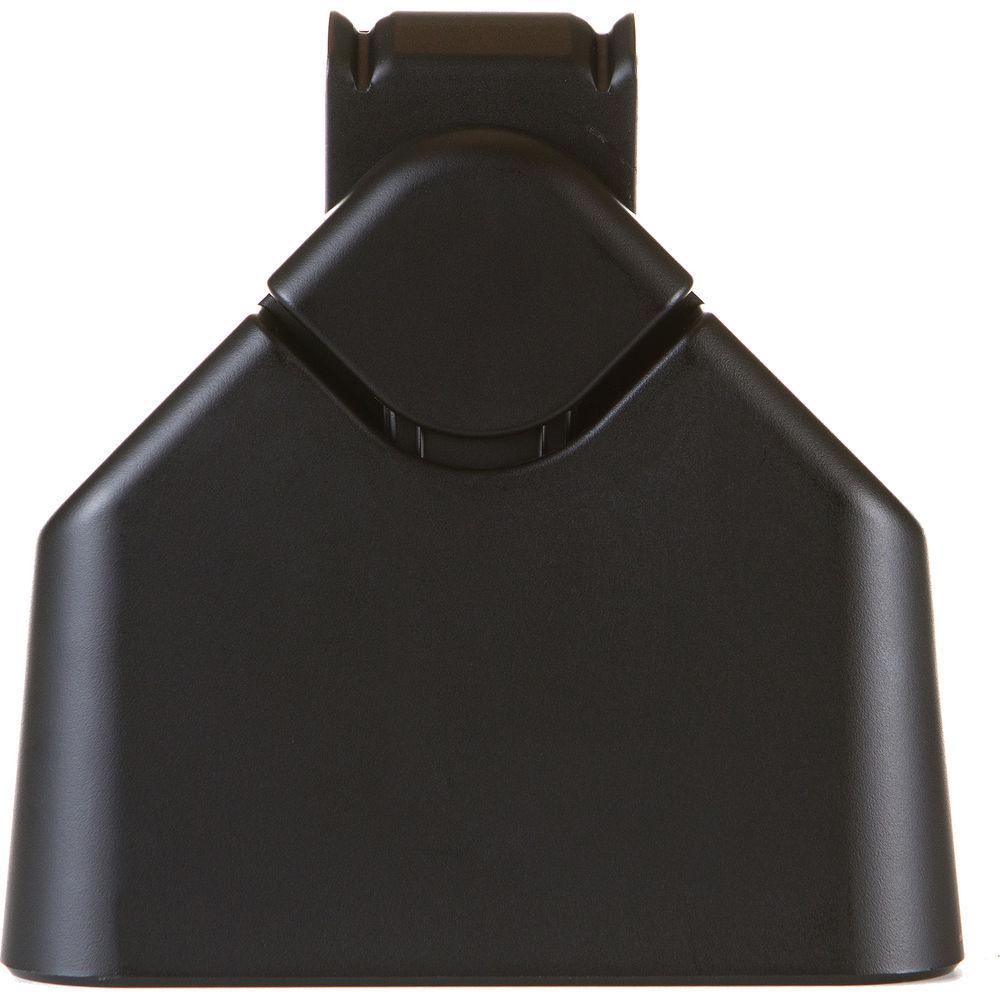

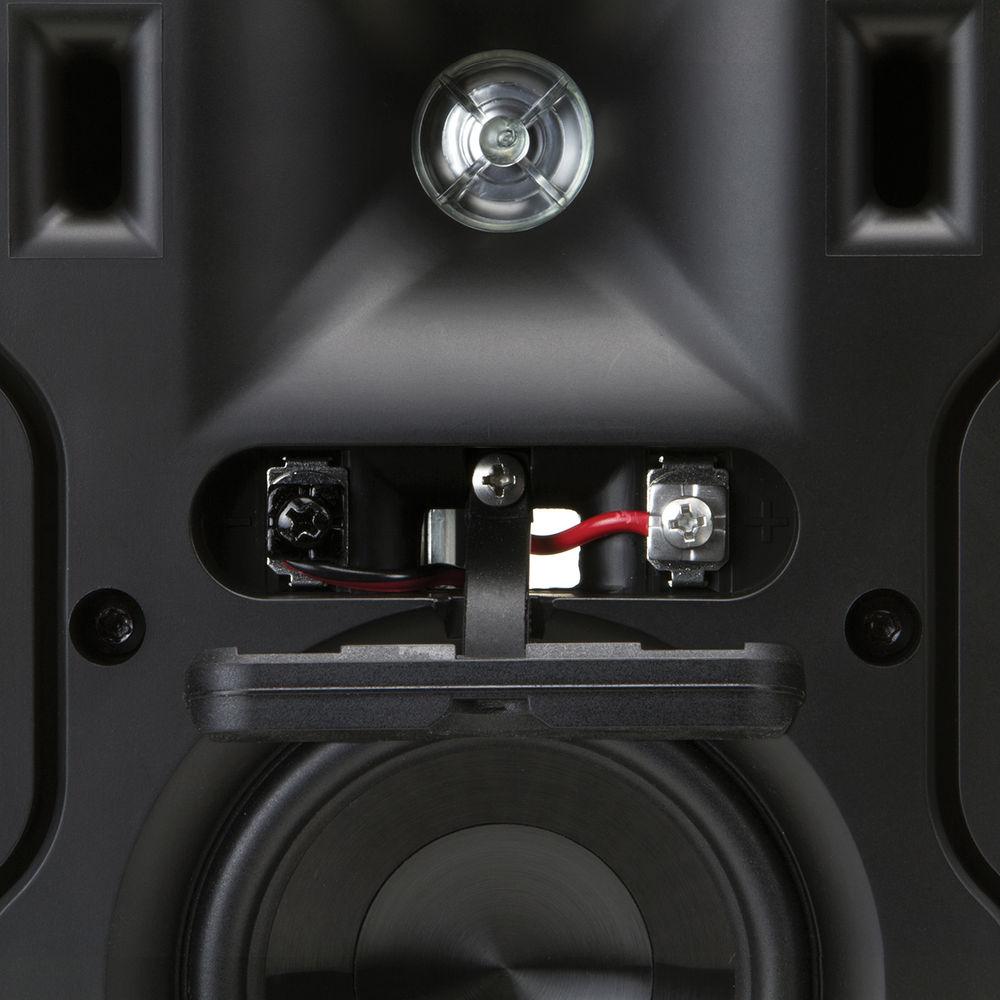

- The CP-6 has the ability to be mounted close to a wall or tucked into a corner with its V-shaped rear profile. Tool-less angle adjustment makes positioning simple. The mounting bracket assures a fast, easy, one-screwdriver installation. Front speaker wire terminals combined with a pull-through wire channel provide a quick connection with an uncluttered look. The CP-6 can also be placed on a shelf or stand without using the supplied bracket.
UPC: 743878025989 In the Box Klipsch CP-6 Indoor & Outdoor Speakers - Pair (Black) 2 x Speaker Grilles 2 x Brackets Mounting Template 4 x Bracket Retaining Screws Speaker Grille Removal Tool Limited Lifetime Warranty Guides & Manuals More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the Klipsch CP-6 Indoor & Outdoor Speakers - Pair in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Klipsch CP-6 Indoor & Outdoor Speakers - Pair can be downloaded in PDF format at the link stated below.
Technical parametersKlipsch CP-6 Specs | | | Frequency Response | 70 Hz - 22 kHz +3 / -6 dB | | Power Handling | Nominal: 75 W
Peak: 300 W | | Maximum Output | Continuous: 111 dB | | Sensitivity | 94 dB at 1 W / 1 m | | Impedance | Nominal: 8 ohms | | Tweeter | .75" (1.9 cm) aluminum dome tweeter | | High Frequency Horn | 90° x 90° Tractrix Horn | | Woofer | 5.25" (13.3 cm) long-throw IMG woofer | | Crossover Frequency | 3 kHz 12 dB octave | | Enclosure Type | Bass-reflex via dual front-firing ports | | Enclosure Material | Anti-resonant
Mineral-filled PPC
Paintable
Weather resistant | | Grille | Powder-coated aluminum with rotatable logo | | Terminals | Front baffle mounted accessed via rear pull-through | | Wire Gauge | Up to 16 AWG supported | | Mounting Options | Mounting brackets
1/4", 20-thread insert on cabinet rear | | Weight | Each: 5.8 lb (2.6 kg) | | Dimensions (HxWxD) | Without Mount: 11 x 7 x 6.1" (27.9 x 17.8 x 15.5 cm)
With Mount: 11 x 7 x 6.9" (27.9 x 17.8 x 17.5 cm) | | | | Package Weight | 16.1 lb | | Box Dimensions (LxWxH) | 19.5 x 14.8 x 10.1" |
