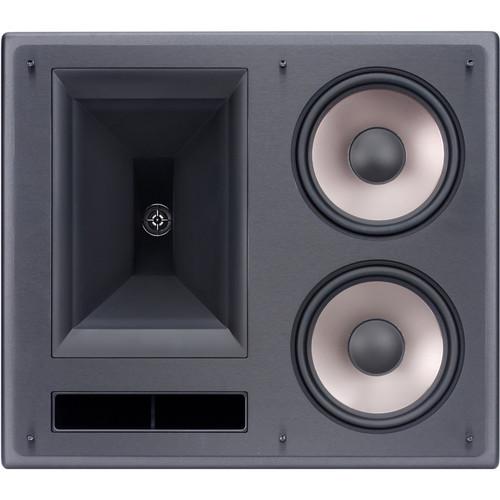

User Manual for Klipsch KL-650-THX-R Bookshelf Speaker Click to enlarge the picture
Contents of the user manual for the Klipsch KL-650-THX-R Bookshelf Speaker
- Product category: Bookshelf Speakers Klipsch
- Brand: Klipsch
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Klipsch Bookshelf Speakers
|
User manual for the Klipsch KL-650-THX-R Bookshelf Speaker contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Klipsch product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Klipsch user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Klipsch product will considerably shorten its lifespan!
|
Product description The Klipsch KL-650-THX-R is a THX Ultra2 certified loudspeaker designed primarily for front right-channel reproduction in large home theaters. It can also be used for surround channels, however, and is equally suitable for combination home-theater/music systems demanding high output capability. Its enclosure is front-ported to facilitate installation in custom cabinetry, and has back-panel threaded inserts compatible with OmniMount 60.0 Series wall/ceiling brackets.
The KL-650-THX-R build includes a rectangular 90 x 60° Tractrix horn, designed to raise the efficiency of the speaker's 1" titanium-dome compression driver tweeter, and optimize its radiation pattern. The horn enables the speaker to meet THX Ultra2 directivity specifications without lobing and comb-filtering effects. And its dual 6.5" woofers have magnetically-shielded motor structures that drive rigid, low-mass Cerametallic anodized-aluminum cones for high output and low distortion. - Front-firing port for low bass extension
- Dual 6.5" Cerametallic woofers
- 6 x 10" Tractrix horn tweeter with 1" titanium-dome compression driver
UPC: 743878021271 In the Box Klipsch KL-650-THX-R Bookshelf Speaker (Right) Rubber Feet Guides & Manuals Table of Contents
|
Upload User Manual
Have you got an user manual for the Klipsch KL-650-THX-R Bookshelf Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Klipsch KL-650-THX-R Bookshelf Speaker can be downloaded in PDF format at the link stated below.
Technical parametersKlipsch KL-650 Specs | | | Speaker Type | Bookshelf | | Drivers | 2 x 6.5" (16.5 cm) magnetically shielded, Cerametallic cone, cast aluminum frame drivers
1 x 1.0" (2.5 cm) magnetically shielded, titanium-dome compression driver with 9.6 oz (272.2 g) ceramic magnet structure | | High Frequency Horn | 1 x 10.0 x 6.0" (25.4 x 15.2 cm) rectangular 90 x 60° Tractrix horn | | Frequency Response ± 3dB | 48 Hz to 20 kHz | | High Frequency Crossover | 1400 Hz | | Max. Continuous Power | 150 W | | Maximum Power Handling | 600 W peak | | Sensitivity | 97 dB @ 2.83 V / 1 m | | Nominal Impedance | 8 Ohms compatible | | | | Cabinet | Bass reflex via front-firing port | | Enclosure Material | Medium density fiberboard (MDF) | | Mounting | 4-bolt pattern ¼"-20 threaded inserts | | Connections | 2 x pairs of binding post speaker terminals, connected via brass strap jumpers | | Dimensions (H x W x D) | 15.0 x 17.0 x 12.5" (38.1 x 43.2 x 31.8 cm) with grille | | Weight | 39.0 lb (17.7 kg) | | | | Package Weight | 43.95 lb | | Box Dimensions (LxWxH) | 21.0 x 19.0 x 19.0" |
