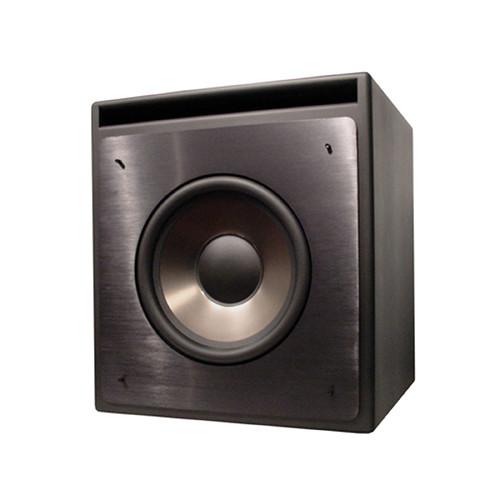

User Manual for Klipsch KW-120-THX Subwoofer Click to enlarge the picture
Contents of the user manual for the Klipsch KW-120-THX Subwoofer
- Product category: Subwoofers Klipsch
- Brand: Klipsch
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Klipsch Subwoofers
|
User manual for the Klipsch KW-120-THX Subwoofer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Klipsch product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Klipsch user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Klipsch product will considerably shorten its lifespan!
|
Product description The Klipsch KW-120-THX Subwoofer, for use exclusively with the optional KA-1000-THX amplifier, is designed to be a compact, high-output, low-distortion, passive subwoofer suitable for use in any high-performance home-theater or music system. A pair of KW-120-THXs driven by a KA-1000-THX amplifier meet all requirements for THX Ultra2 certification. Although a single KW-120-THX does not satisfy the THX Ultra2 maximum output specification, which assumes a very large room, it is adequate for a typical small or medium-sized room. The cabinet is front-ported to maximize installation flexibility.
The KW-120-THX is built around a cast-frame, long-throw driver with a 12" Cerametallic cone. Propelling it is a motor structure with a 15 lb magnet. It is constructed with a rabbet and dado locked panel cabinet designed to ensure sonic purity, consistency, and reliability. Each subwoofer enclosure has a NL2 SpeakOn input for correct, secure amplifier connections. It includes a 20' THX Ultra certified speaker cable terminated with NL2 SpeakOn connectors. - 130 dB @ 30 Hz output capability
- 12" Cerametallic cast-frame, long-throw driver with 240-ounce magnet structure
- Front-ported enclosure for maximum installation flexibility
- NL2 SpeakOn inputs for correct, secure amplifier connection
UPC: 743878021264 In the Box Klipsch KW-120-THX Subwoofer 20' THX Ultra Certified Speaker Cable Limited 5-Year Warranty on Woofer Brochure PDF 122kbwwscystetdtbyqtxubcwavwuvsredbyafub More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the Klipsch KW-120-THX Subwoofer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKlipsch KW-120 Specs | Compatible Models | Klipsch KA-1000-THX amplifier | | Frequency Response ± 3dB | 20 to 200 Hz | | Sensitivity | 130 dB @ 30 Hz,
122 dB @ 20 Hz
112 dB @ 15 Hz, 1/8 space, 3.0' (1.0 m) (two enclosures side-by-side per THX Ultra2) | | Nominal Impedance | 8 Ohms | | Driver | 12.0" (30.5 cm) front-firing, Cerametallic cone, cast aluminum frame driver with a 15.0 lb (6.8 kg) ceramic magnet structure | | Enclosure Material | Medium-density fiberboard (MDF) | | Enclosure Type | Bass reflex via front-firing slot port | | Dimensions (H x W x D) | 20.3 x 17.8 x 17.8" (51.4 x 45.1 x 45.1 cm) | | Weight | 80.0 lb (36.3 kg) | | | | Package Weight | 99.5 lb | | Box Dimensions (LxWxH) | 25.0 x 23.0 x 23.0" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 28 owners. Add your rating and experience with the product.
