User Manual for Klipsch R-115SW 400W Powered 15" Subwoofer Click to enlarge the picture
Contents of the user manual for the Klipsch R-115SW 400W Powered 15" Subwoofer
- Product category: Subwoofers Klipsch
- Brand: Klipsch
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Klipsch Subwoofers
 |
User manual for the Klipsch R-115SW 400W Powered 15" Subwoofer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Klipsch product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Klipsch user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Klipsch product will considerably shorten its lifespan!
|

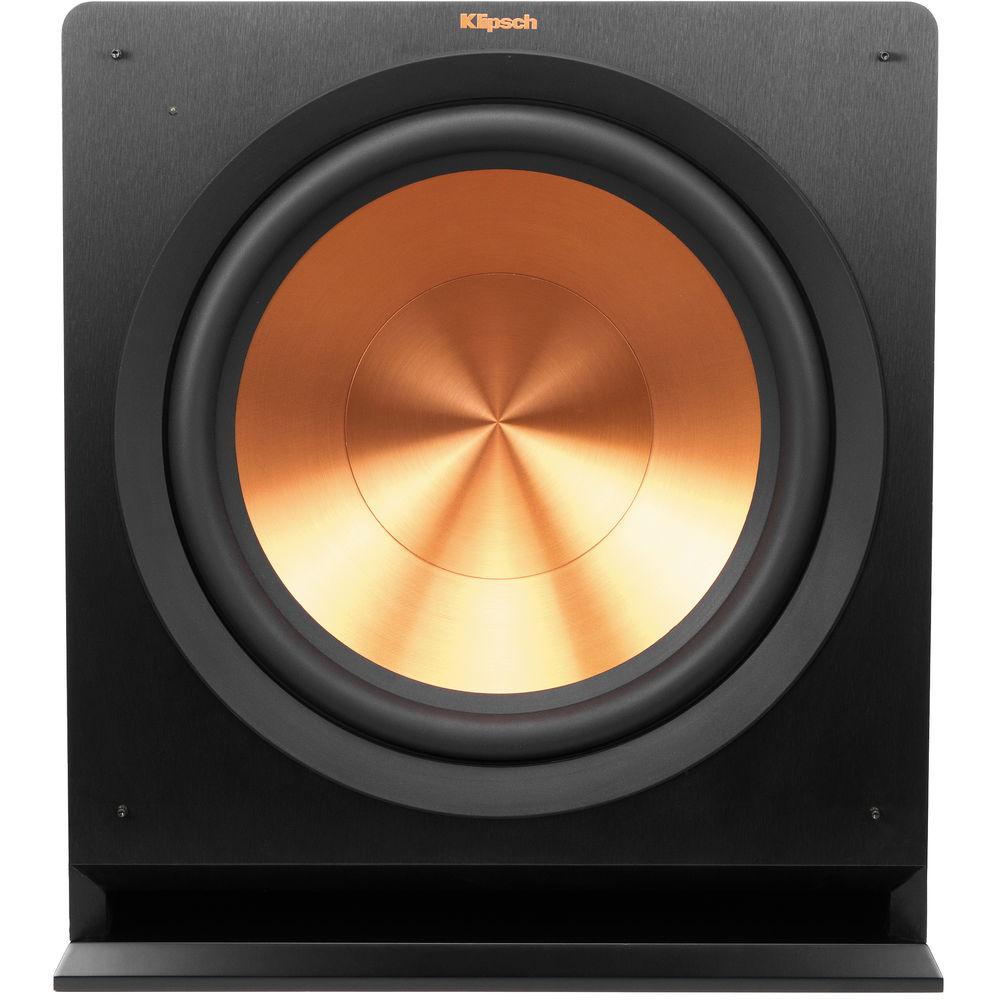

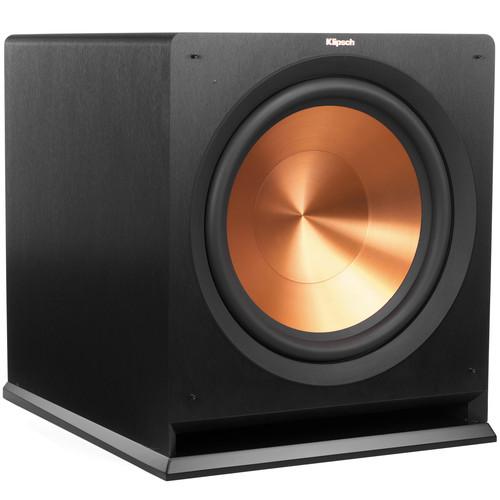

Product description Add deep bass to your movies and music with the Klipsch R-115SW 15" Subwoofer. This front-firing subwoofer features a 15" spun copper cerametallic driver and delivers up to 800W of power. With a frequency response of 18 Hz to 125 kHz, this model is equipped to handle a wide variety of listening material. Integrated low pass crossover and phase control settings allow you to optimize the sound of the subwoofer in your listening environment. For installation flexibility, LFE and line level inputs are onboard. - Spun Copper Cerametallic Driver
- The Cerametallic woofer's lightness and rigidity provide enhanced low frequency response with minimal cone breakup and distortion.
- Front-Firing Slot Port
- The front-firing design allows for placement flexibility and proprietary flared internal geometry reduces port noise for clean low frequencies with minimal distortion.
- All-Digital Amplifier
- The built-in all-digital amplifier delivers high efficiency and enhanced reproduction accuracy.
- Low Pass Crossover and Phase Control
- These settings allow you to blend the subwoofer's low-frequency tones with other speakers to establish the ideal level of bass.
- Line/LFE/Speaker Post Inputs
- Ensures compatibility with a wide variety of receivers.
- Standby Mode
- The subwoofer automatically enters standby mode after a period of inactivity. In standby mode, the subwoofer uses only 0.5 watts of power to conserve energy.
- Design Features

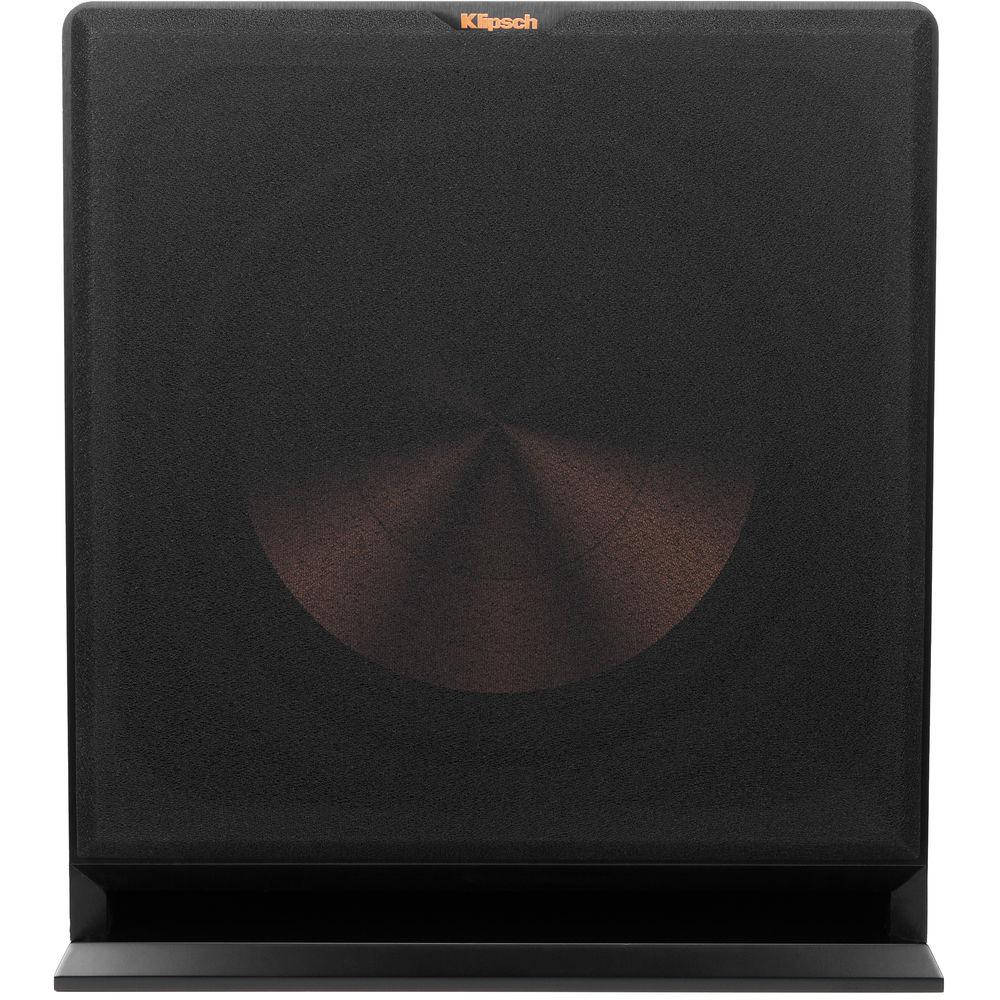

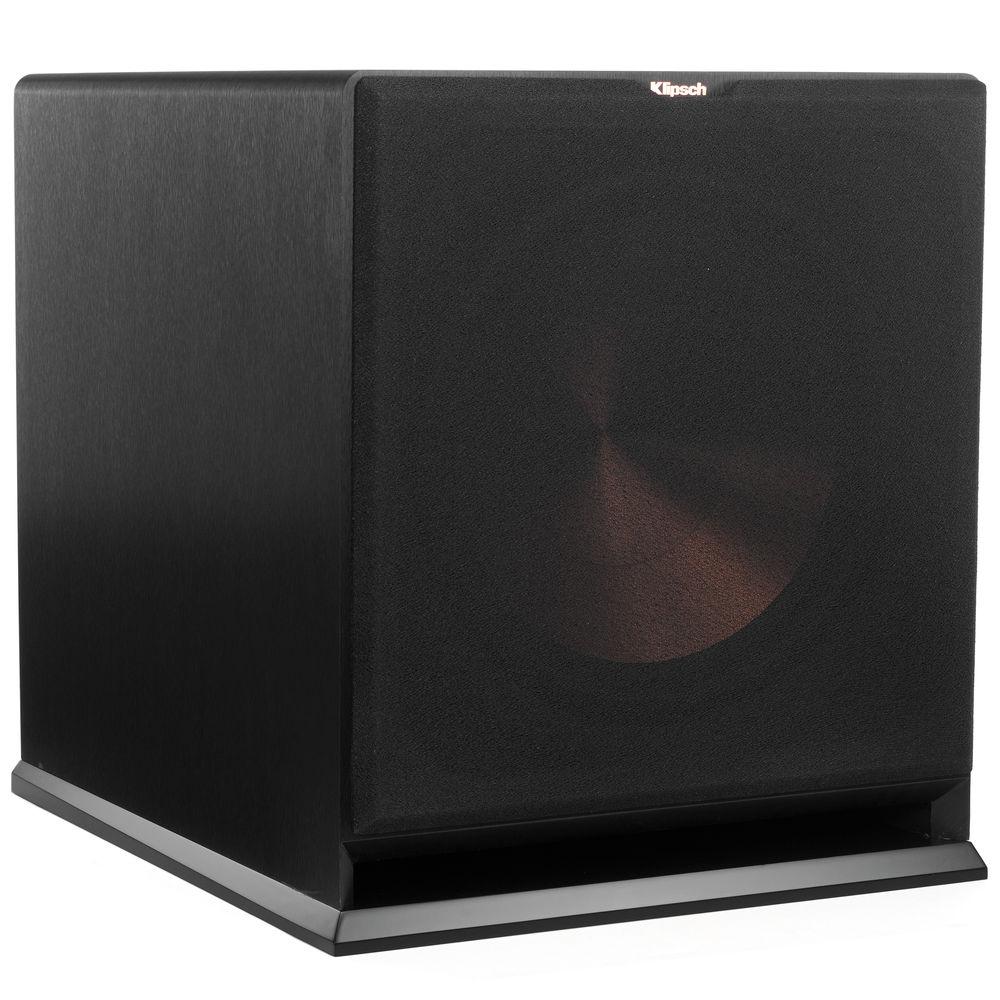

- This subwoofer has a removable woven cloth grille and its MDF body is finished with brushed polymer veneer. An LED light indicates when the system is powered on.
- Wireless Ready
- The R-115SW features a WA port, accommodating the optional WA-2 wireless subwoofer kit. This transmitter and receiver pair let you place your subwoofer where you want without the need to run a cable from your audio source.
UPC: 743878027389 In the Box Klipsch R-115SW 400W Powered 15" Subwoofer Power Cable Removable Grille Limited 2-Year Warranty on Electronics Limited 5-Year Warranty on Woofer, Cabinet, and Non-Electrical Mechanics Brochure PDF 219.8kbczrtwzswrwwwfqffczzq More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the Klipsch R-115SW 400W Powered 15" Subwoofer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

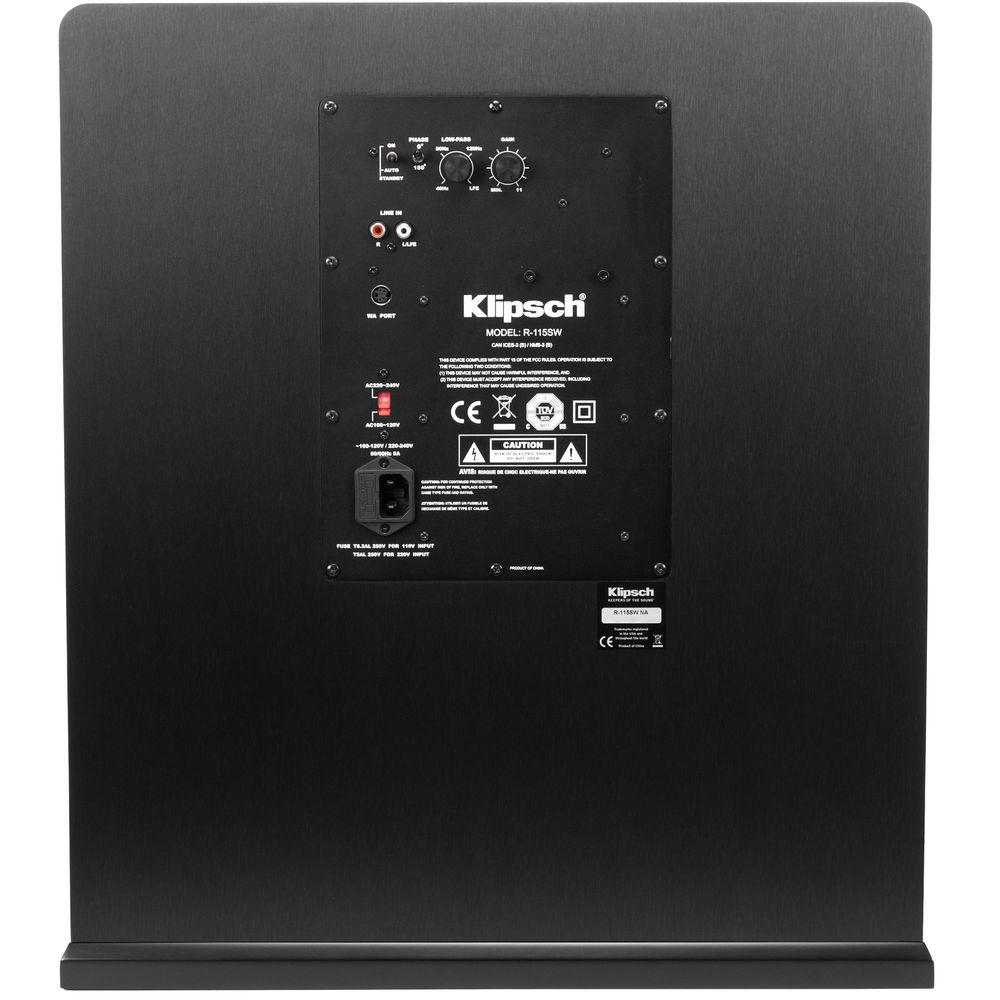

Technical parametersKlipsch R-115SW Specs | | | RMS Power Output | 400W | | Maximum Power Output | 800W | | Frequency Response | 18 Hz to 125 Hz | | Output | Maximum: 122 dB | | Amplifier Type | All-Digital | | Driver Size | 15" (38.1 cm) | | Driver Type | Spun copper front-firing cerametallic woofer | | Inputs | 1 x L/R Line-level RCA jacks
1 x LFE RCA
1 x WA-2 port | | Controls | Gain (volume), Lowpass, Phase | | Phase | Switchable 0 - 180° | | | | Power Requirements | 100 - 120 V / 220 - 240 V
50 / 60 Hz, 5 A with 0.5 W standby | | Enclosure Type | Bass reflex | | Dimensions (H x W x D) | 21.50 x 19.50 x 22.30" (54.61 x 49.53 x 56.64 cm) | | Weight | 75.4 lb (34.2 kg) | | | | Package Weight | 88.0 lb | | Box Dimensions (LxWxH) | 28.0 x 27.0 x 24.0" |
Rating96% users recommend this product to others. And what about you?
This product has already been rated by 46 owners. Add your rating and experience with the product.
