User Manual for Klipsch R-41PM 2-Way Powered Bluetooth Bookshelf Speakers Click to enlarge the picture
Contents of the user manual for the Klipsch R-41PM 2-Way Powered Bluetooth Bookshelf
- Product category: Bookshelf Speakers Klipsch
- Brand: Klipsch
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Klipsch Bookshelf Speakers
 |
User manual for the Klipsch R-41PM 2-Way Powered Bluetooth Bookshelf contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Klipsch product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Klipsch user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Klipsch product will considerably shorten its lifespan!
|
Product description Enjoy audio from nearly any source with this pair of Klipsch R-41PM 2-Way Powered Bluetooth Bookshelf Speakers. They feature Bluetooth wireless connectivity plus stereo RCA, optical, and 1/8" aux inputs for traditional wired devices, and a USB Type-B input for music stored on your computer. The RCA input is switchable between line-level and phono inputs, allowing you to switch between a turntable and other wired sources. The R-41PM speakers have a 2-way design with a built-in 35W per channel amplifier. Each speaker sports a 1" aluminum tweeter on a 90 x 90° Tractrix horn and a 4" copper-spun IMG woofer. - Designed for Simple Setup
- With an integrated phono pre-amp, Bluetooth wireless technology, optical, RCA, 1/8", and USB inputs, the R-41PM can connect to nearly any source device.
- Dynamic Bass EQ
- The R-41PM speakers are engineered to dynamically match the ear's ability to hear lower frequencies as output levels fluctuate to help provide more powerful bass at almost all listening levels. With dynamic bass extension, bass response can get as low as 66 Hz at 35% volume.
- Low-Noise Amplifiers
- The R-41PM speakers incorporate individual low-noise amplifiers designed to maximize system performance and eliminate the need for external amplification. Additionally, the components have been tuned to match perfectly for enhanced sound quality.
- Tractrix Horn Technology
- Klipsch Tractrix horn technology helps ensure that the speakers' high frequency energy is aimed at the listener and reduces artificial reverb or filtering caused by indirect sound bouncing off walls for augmented clarity, dynamics, and detail.
- Spun-Copper IMG Woofers
- Injection Molded Graphite (IMG) woofer cones are designed to be light and rigid for enhanced low-frequency response with minimal cone breakup and distortion.
- Included Remote
- The remote allows easy access to system features like source selection, track controls, and play/pause.
- Add a Subwoofer
- An onboard subwoofer output allows you to connect your powered sub for enhanced bass.
- Hi-Fi Sound Without a Receiver
- The R-41PM speakers are fashioned to deliver room-filling sound without taking up much space thanks to their built-in amplifier that is designed to maximize output and sound quality.
- Scratch-Resistant Design
- The textured wood grain vinyl features a scratch-resistant design for enhanced durability.

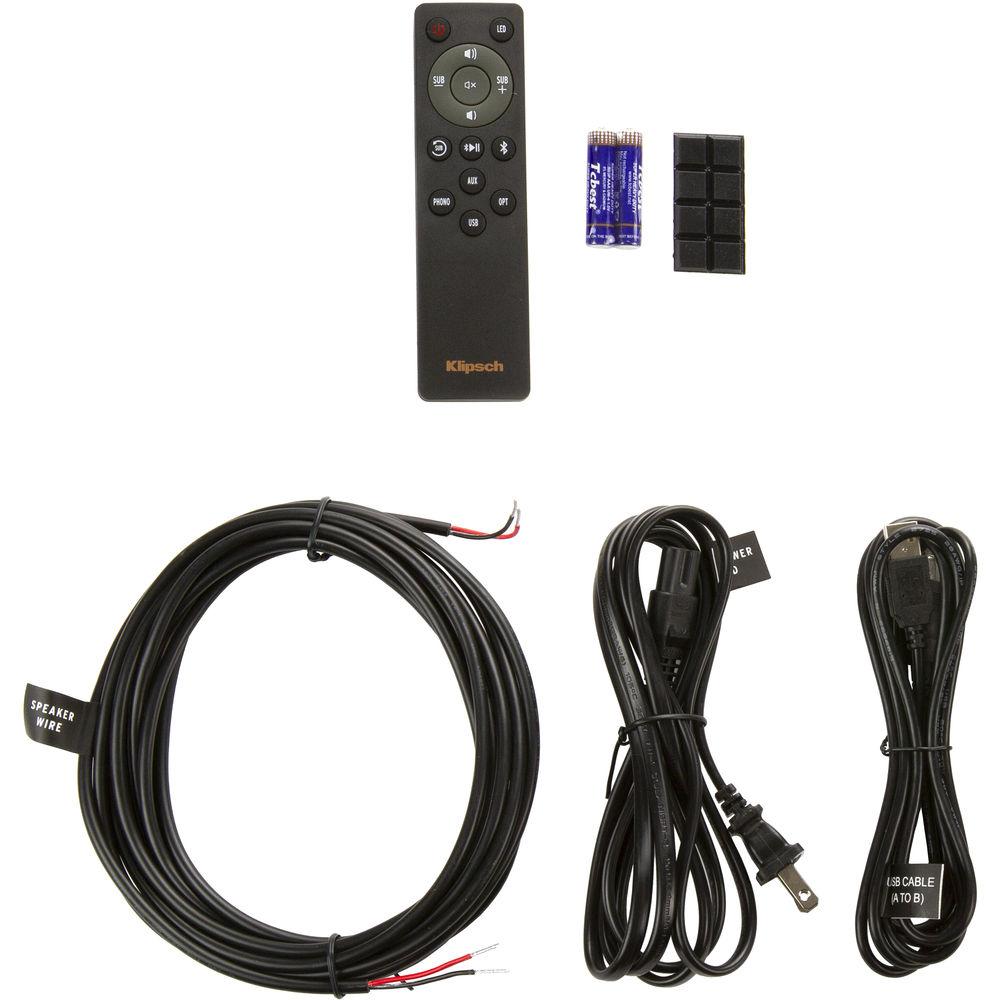

UPC: 743878036305 In the Box Klipsch R-41PM 2-Way Powered Bluetooth Bookshelf Speakers (Pair) Remote Control 2 x AAA Batteries 6.6' USB Type-A to USB Type-B Cable 13.1' Speaker Wire Rubber Feet 6.6' Power Cord Limited 1-Year Warranty on Electronics Limited 3-Year Warranty on Woofer, Cabinet, and Non-Electrical Mechanics Table of Contents
|
Upload User Manual
Have you got an user manual for the Klipsch R-41PM 2-Way Powered Bluetooth Bookshelf Speakers in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKlipsch R-41PM Specs | | | Speaker Design | 2-Way | | Configuration | Bass-Reflex via Rear-Firing Port | | Speaker Power | RMS: 35 W x 2 @ <1% THD
Peak: 120 W x 2 | | Max Acoustic Output | 105.5 dB | | Woofer | 1 x 4" / 101.6 mm Copper-Spun IMG Woofer per Speaker | | Tweeter | 1 x 1" / 25.4 mm Aluminum Diaphragm Compression Tweeter per Speaker | | Horn | 90 x 90° Square Tractrix Horn | | Frequency Response | 76 Hz to 21 kHz | | Crossover Frequency | 1730 Hz (Passive) | | | | Bluetooth | Yes | | Inputs | 1 x Stereo RCA (Line/Phono Switchable, with Ground Screw)
1 x Optical TOSLINK
1 x 1/8" / 3.5 mm Aux
1 x USB Type-B (Computer Audio) | | Output | 1 x RCA Subwoofer Pre-Out | | Speaker Connectors | Right Speaker: 1 x Binding Post Pair Out to Left Speaker
Left Speaker: 1 x Binding Post Pair In from Right Speaker | | Other Connectors | 1 x Micro-USB (Service) | | | | Enclosure Material | MDF | | Power Requirements | 100 to 240 VAC, 50/60 Hz | | Dimensions (W x H x D) | 5.75 x 11.3 x 7.9" / 14.6 x 28.7 x 20.06 cm | | Weight | 8.1 lb / 3.7 kg | | | | Package Weight | 19.85 lb | | Box Dimensions (LxWxH) | 16.0 x 15.9 x 11.5" |
