User Manual for Klipsch R-51PM 2-Way Powered Bluetooth Bookshelf Speakers

Click to enlarge the picture
Klipsch R-51PM 2-Way Powered Bluetooth Bookshelf Speakers Contents of the user manual for the Klipsch R-51PM 2-Way Powered Bluetooth Bookshelf
  • Product category: Bookshelf Speakers Klipsch
  • Brand: Klipsch
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Klipsch Bookshelf Speakers

Klipsch R-51PM 2-Way Powered Bluetooth Bookshelf Speakers Klipsch R-51PM 2-Way Powered Bluetooth Bookshelf Speakers Klipsch R-51PM 2-Way Powered Bluetooth Bookshelf Speakers Klipsch R-51PM 2-Way Powered Bluetooth Bookshelf Speakers Klipsch R-51PM 2-Way Powered Bluetooth Bookshelf Speakers Klipsch R-51PM 2-Way Powered Bluetooth Bookshelf Speakers Klipsch R-51PM 2-Way Powered Bluetooth Bookshelf Speakers
User manual for the Klipsch R-51PM 2-Way Powered Bluetooth Bookshelf contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Klipsch product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Klipsch user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Klipsch product will considerably shorten its lifespan!



Product description

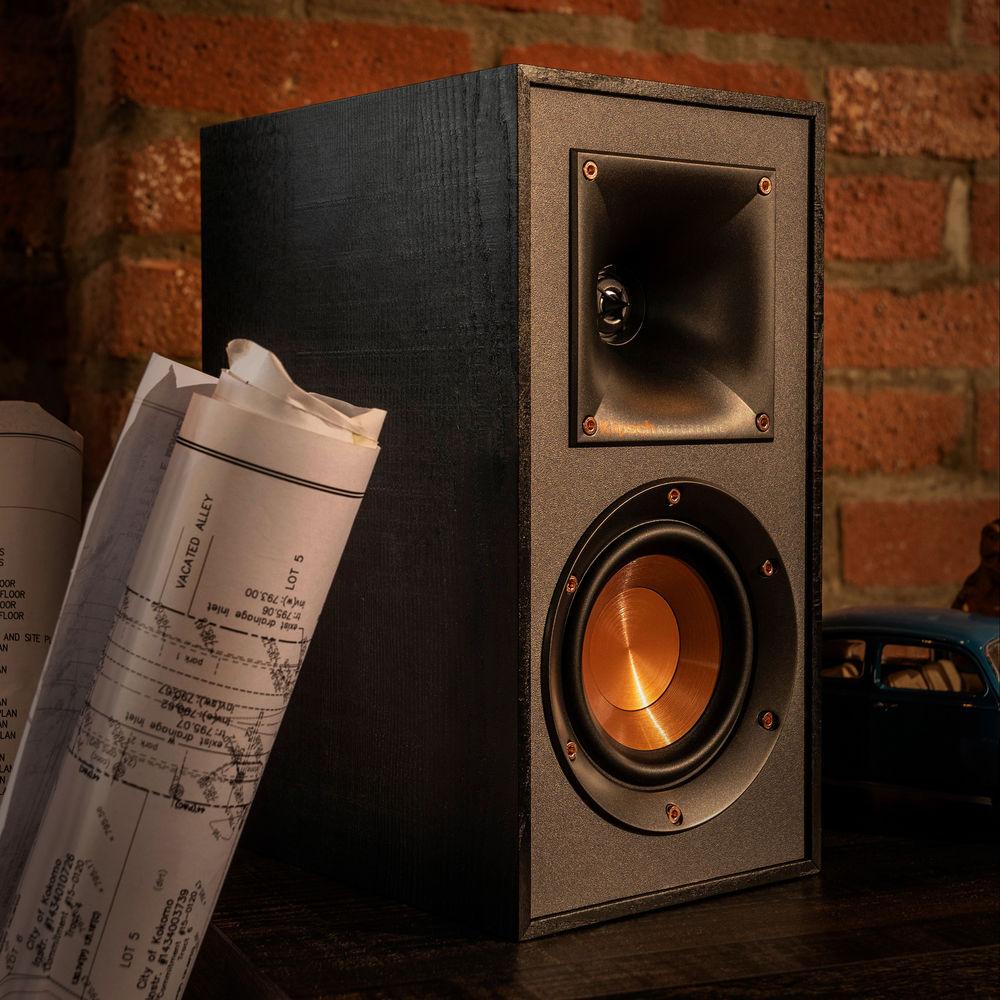

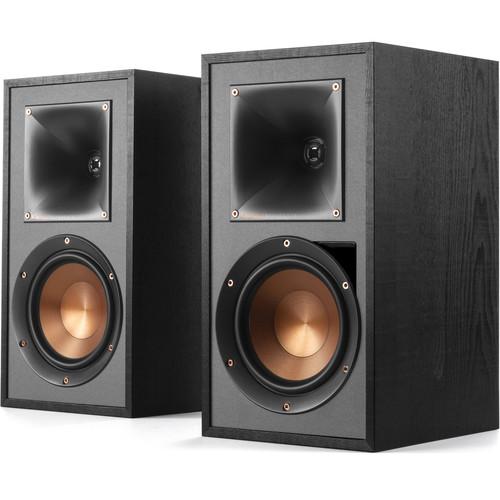

Enjoy audio from nearly any source with this pair of Klipsch R-51PM 2-Way Powered Bluetooth Bookshelf Speakers. They feature Bluetooth wireless connectivity plus stereo RCA, optical, and 1/8" aux inputs for traditional wired devices, and a USB Type-B input for music stored on your computer. The RCA input is switchable between line-level and phono inputs, allowing you to switch between a turntable and other wired sources. The R-51PM speakers have a 2-way design with a built-in 60W per channel amplifier. Each speaker sports a 1" aluminum tweeter on a 90 x 90° Tractrix horn and a 5.25" copper-spun IMG woofer.
    Designed for Simple Setup
  • With an integrated phono pre-amp, Bluetooth wireless technology, optical, RCA, 1/8", and USB inputs, the R-51PM can connect to nearly any source device.
    Dynamic Bass EQ
  • The R-51PM speakers are engineered to dynamically match the ear's ability to hear lower frequencies as output levels fluctuate to help provide more powerful bass at almost all listening levels. With dynamic bass extension, bass response can get as low as 49 Hz at 35% volume.
    Low-Noise Amplifiers
  • The R-51PM speakers incorporate individual low-noise amplifiers designed to maximize system performance and eliminate the need for external amplification. Additionally, the components have been tuned to match perfectly for enhanced sound quality.
    Tractrix Horn Technology
  • Klipsch Tractrix horn technology helps ensure that the speakers' high frequency energy is aimed at the listener and reduces artificial reverb or filtering caused by indirect sound bouncing off walls for augmented clarity, dynamics, and detail.
    Spun-Copper IMG Woofers
  • Injection Molded Graphite (IMG) woofer cones are designed to be light and rigid for enhanced low-frequency response with minimal cone breakup and distortion.
    Included Remote
  • The remote allows easy access to system features like source selection, track controls, and play/pause.
    Add a Subwoofer
  • An onboard subwoofer output allows you to connect your powered sub for enhanced bass.
    Hi-Fi Sound Without a Receiver
  • The R-51PM speakers are fashioned to deliver room-filling sound without taking up much space thanks to their built-in amplifier that is designed to maximize output and sound quality.
    Scratch-Resistant Design
  • The textured wood grain vinyl features a scratch-resistant design for enhanced durability.

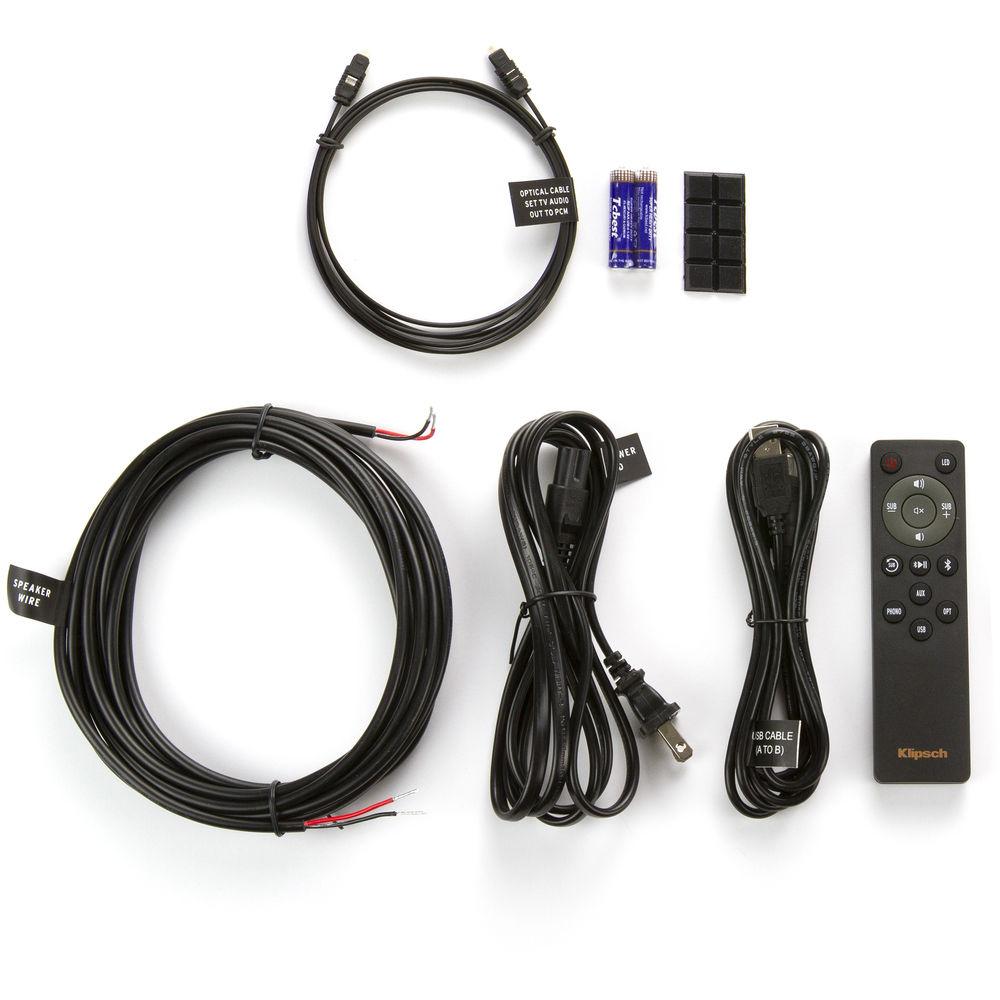

UPC: 743878036336 In the Box Klipsch R-51PM 2-Way Powered Bluetooth Bookshelf Speakers (Pair)
  • Remote Control
  • 2 x AAA Batteries
  • Optical Cable
  • 6.6' USB Type-A to USB Type-B Cable
  • 13.1' Speaker Wire
  • Rubber Feet
  • 6.6' Power Cord
  • Limited 1-Year Warranty on Electronics
  • Limited 3-Year Warranty on Woofer, Cabinet, and Non-Electrical Mechanics
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Klipsch R-51PM 2-Way Powered Bluetooth Bookshelf Speakers in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Klipsch R-51PM Specs

    Speaker Design 2-way

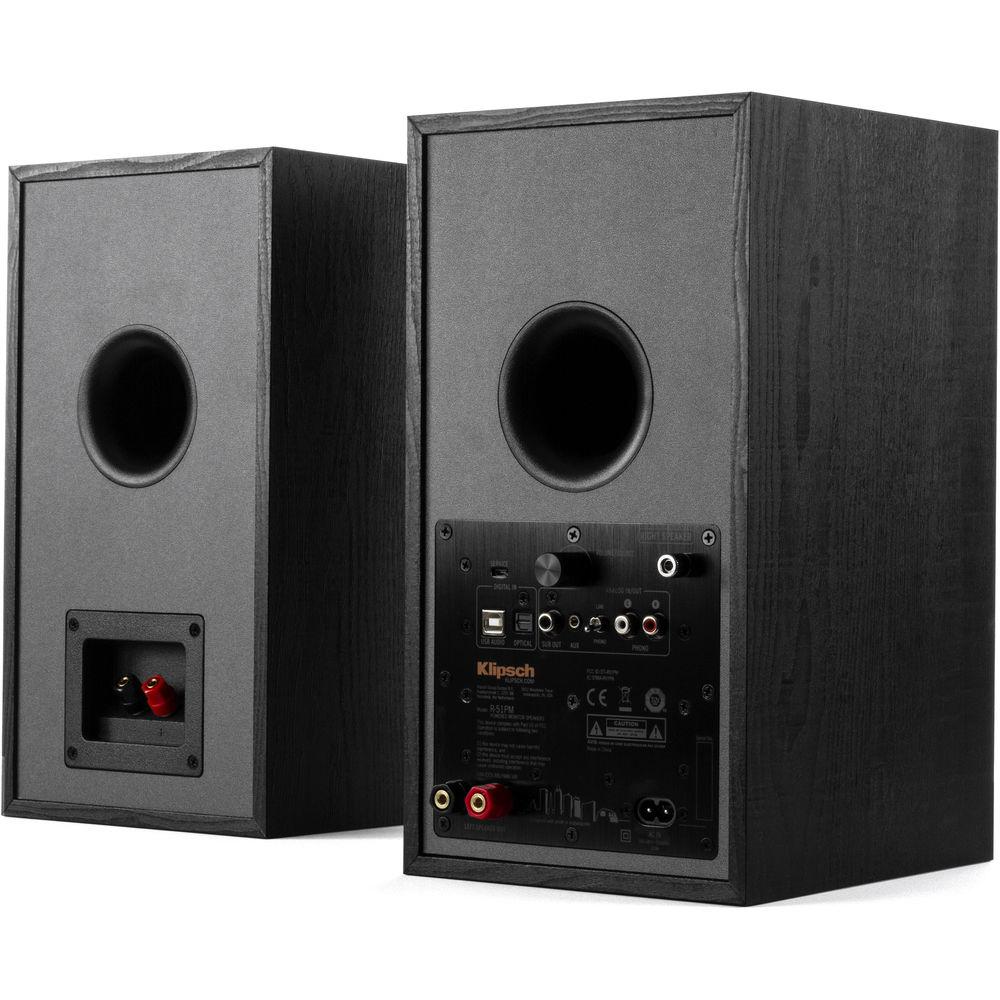

    Configuration Bass-reflex via rear-firing port
    Speaker Power RMS: 60 W x 2 @ <1% THD
    Peak: 120 W x 2
    Max Acoustic Output 107.3 dB
    Woofer 1 x 5.25" / 133.35 mm copper-spun IMG woofer per speaker
    Tweeter 1 x 1" / 25.4 mm aluminum diaphragm compression tweeter per speaker
    Horn 90 x 90° square Tractrix horn
    Frequency Response 68 Hz to 21 kHz
    Crossover Frequency 1663 Hz (passive)
    Bluetooth Yes

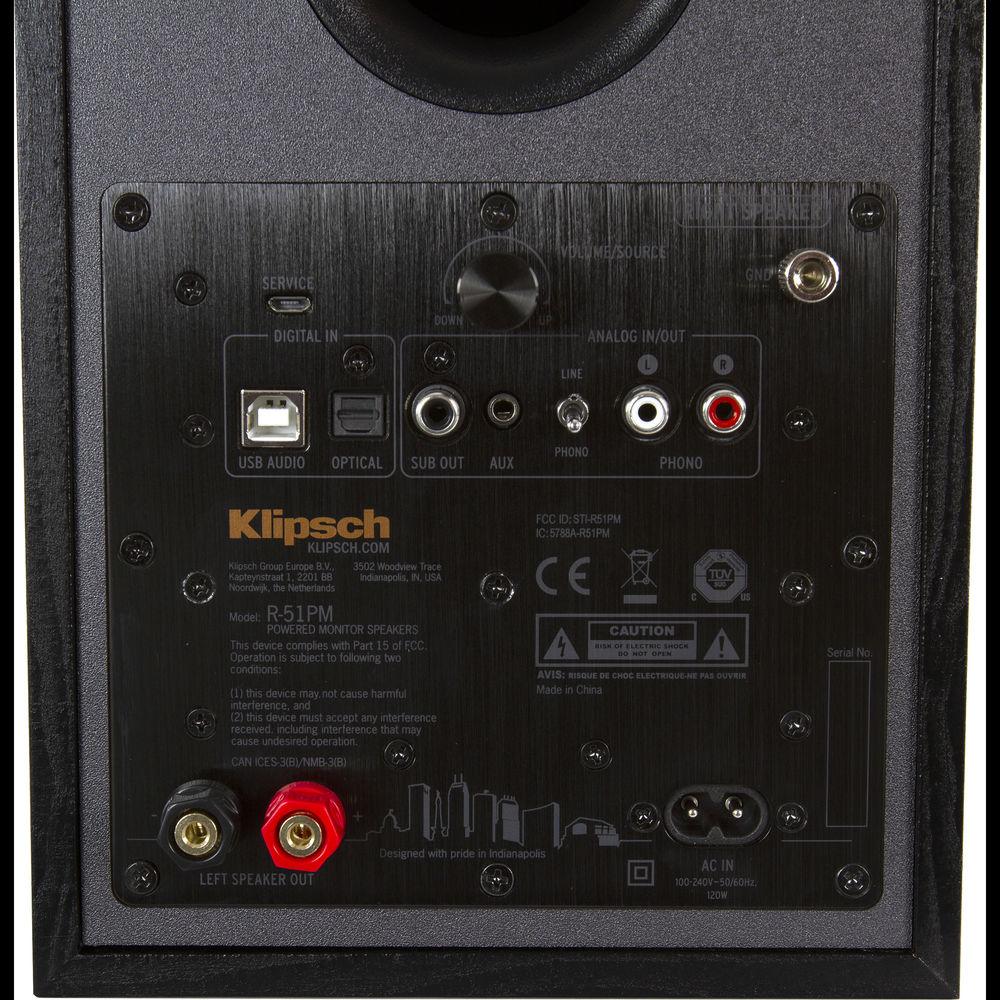

    Inputs 1 x stereo RCA (line/phono switchable, with ground screw)
    1 x optical TOSLINK
    1 x 1/8" / 3.5 mm aux
    1 x USB Type-B (computer audio)
    Output 1 x RCA subwoofer pre-out
    Speaker Connectors Right Speaker: 1 x binding post pair out to left speaker
    Left Speaker: 1 x binding post pair in from right speaker
    Other Connectors 1 x micro-USB (service)
    Enclosure Material MDF
    Power Requirement 100 to 240 VAC, 50/60 Hz
    Dimensions (W x H x D) 7 x 13 x 8.5" / 17.78 x 33.02 x 21.59 cm
    Weight 10.6 lb / 4.8 kg
    Package Weight 24.8 lb
    Box Dimensions (LxWxH) 18.3 x 18.13 x 12.1"

    Rating

    90% users recommend this product to others. And what about you?
    Rating: 4.5 of 5

    This product has already been rated by 96 owners. Add your rating and experience with the product.

    Discussion

    Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems.

    Post new comment to Klipsch R-51PM 2-Way Powered Bluetooth Bookshelf Speakers

    Subject: R 51PM optical connection issues
    Date: 02.03.2021 14:01:57Name: Trevor
    Hello,
    I just purchased the speakers and connected to TV using optical connection. The speakers are only "tapping" or "clicking". There is no other sound. The TV (LG) does not have a specific setting for optical connection. I previously had a Bose soundbar hooked up using the same connection with no issues.
    Thank you
