User Manual for Klipsch Reference Over-Ear Bluetooth Headphones Click to enlarge the picture
Contents of the user manual for the Klipsch Reference Over-Ear Bluetooth Headphones
- Product category: Bluetooth Headphones Klipsch
- Brand: Klipsch
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Klipsch Bluetooth Headphones
 |
User manual for the Klipsch Reference Over-Ear Bluetooth Headphones contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Klipsch product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Klipsch user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Klipsch product will considerably shorten its lifespan!
|

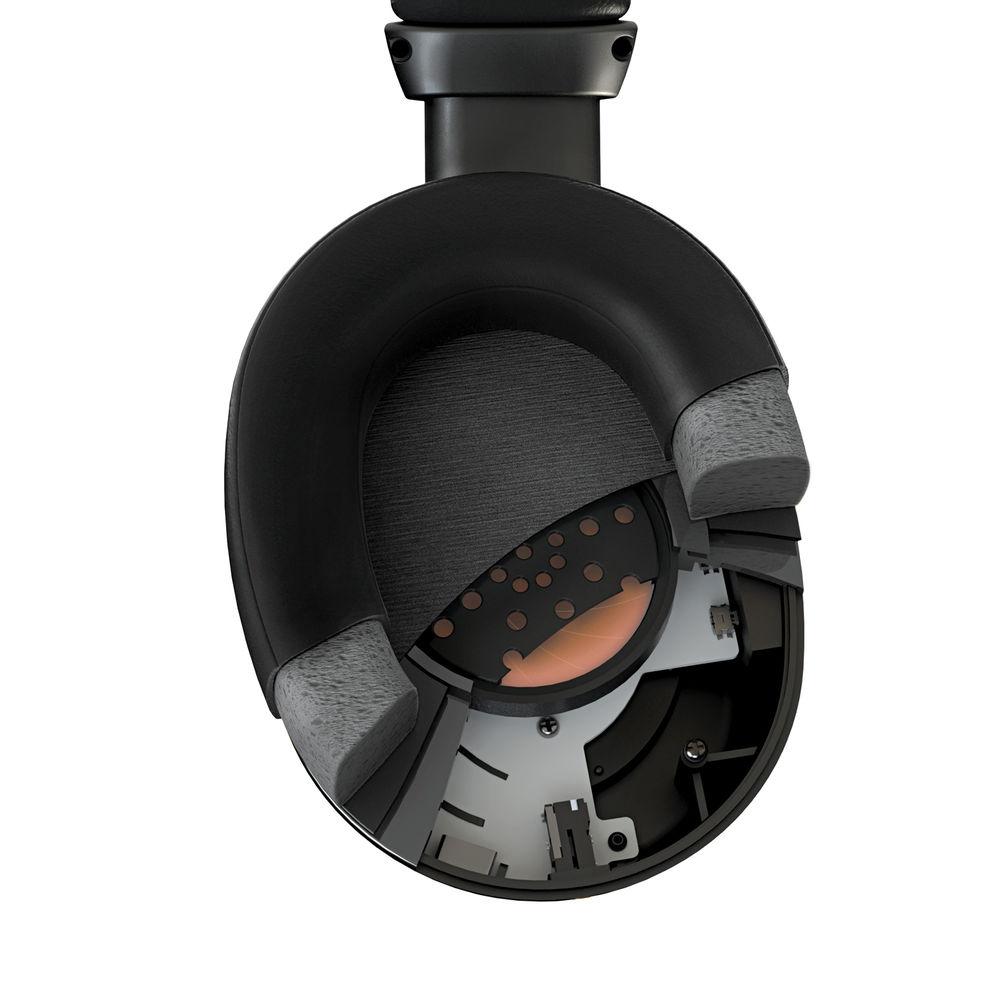

Product description The Klipsch Reference Over-Ear Bluetooth Headphones are styled in black and have been designed with Bluetooth wireless capabilities, so that you may stream audio and phone calls in a manner becoming the Reference Over-Ear series. They provide a 40mm dynamic moving-coil driver which delivers a frequency response of 15 Hz to 20 kHz. With removable memory-foam cushions that are deep and soft, these over-ear headphones offer both a comfortable listening experience, as well as an accurate one; patented Klipsch Balanced Dynamic driver technology equalizes the weight of the unit's diaphragm, eliminates the need for lead wires, and aims to reduce intermodulation distortion. All of this contributes the articulation and clarity of the sound.
Over Bluetooth 4.0, these headphones stream high-definition aptX and AAC streaming, ensuring fidelity in your sonic experience. A built-in mic and remote give you controls, as well as the ability to converse with people over your phone. You can use these headphones up to 10m away from your Bluetooth source, and the integrated battery will give you a running time of up to 20 hours at a clip. You can recharge the battery with a micro-USB cable, included with the headphones. Also included are a pass-through cable for passive listening and a travel case. - Key Features at a Glance
-
- Clear, articulate sound
- Bluetooth 4.0 with aptX and AAC
- Range of up to 10m
- iOS battery-status monitor

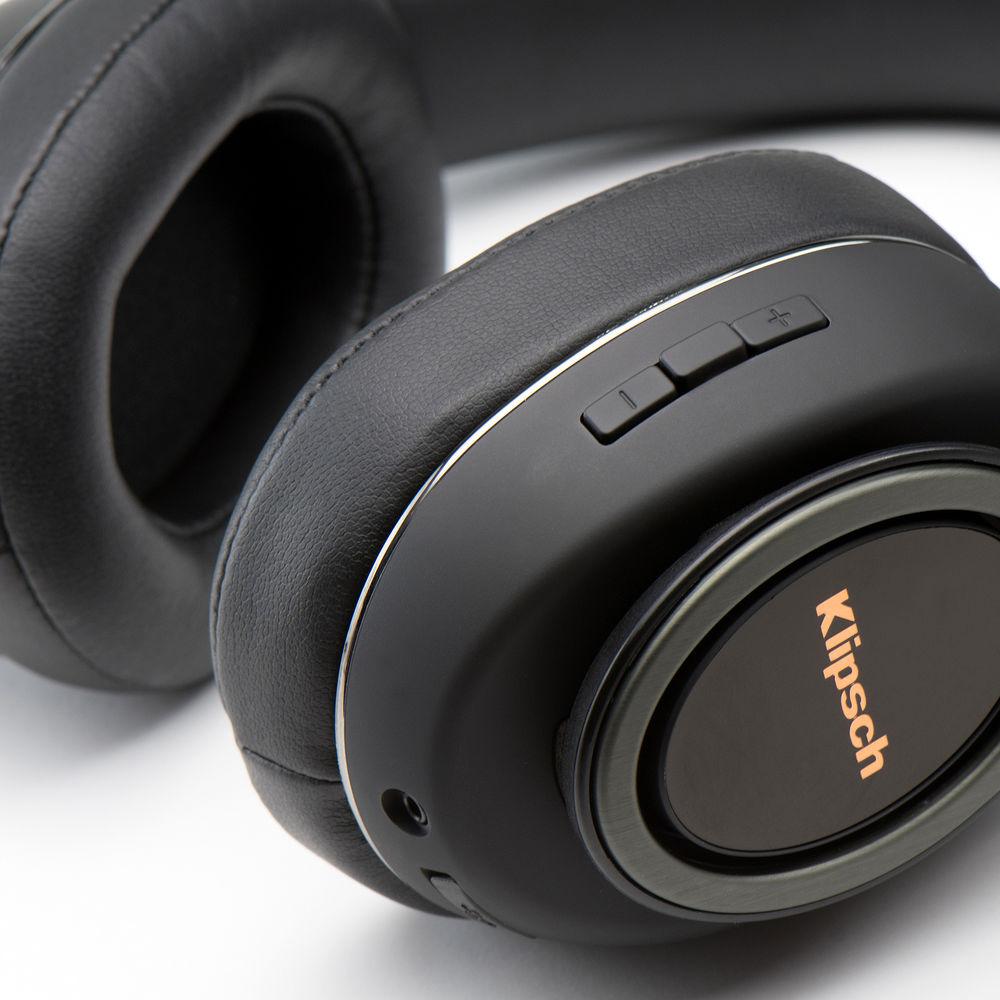

- Integrated microphone and controls
- Included pass-through cable for passive listening
- Included micro-USB cable and travel case

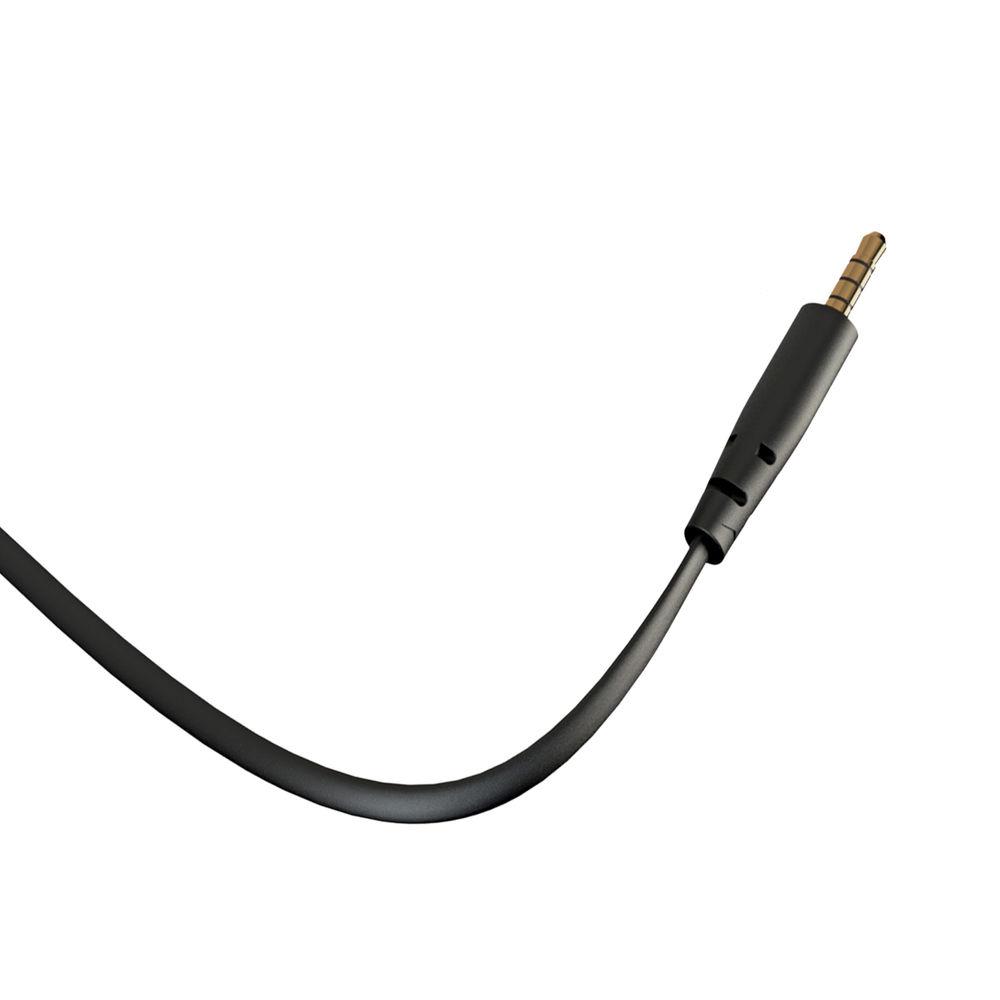

In the Box Klipsch Reference Over-Ear Bluetooth Headphones (Black) Travel Case 40" Micro-USB Cable 48.0" (121.9 cm) 3.5mm Cable Limited 1-Year Warranty User Manual PDF 1.6mb More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the Klipsch Reference Over-Ear Bluetooth Headphones in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKlipsch 1063046 Specs | | | Driver Size | 1.57" / 40 mm | | Design | On-Ear (Supra-aural) | | | | Frequency Response | 15 Hz to 20 kHz | | Sensitivity | 110 dB at 1 mW | | Impedance | 32 Ohms | | Controls/Microphone Location | Earpiece | | | | Supported Audio Codecs | AAC, SBC, aptX | | Bluetooth Profiles | A2DP
AVRCP
HFP | | Bluetooth Version | 4.0 | | Wireless Range | 32.8' / 10 m | | NFC | None | | | | Audio Connector | 1/8" / 3.5 mm TRS | | Headphone Charging Port | Micro-USB | | | | Capacity (mAh) | 400 mAh | | Runtime | 20 Hours | | DC Input Power | 5 VDC at 0.5 A | | | | LED Indicator | Yes | | Weight | 9.6 oz / 272 g | | | | Package Weight | 2.0 lb | | Box Dimensions (LxWxH) | 9.0 x 9.0 x 8.0" |
