User Manual for Klipsch Reference Premiere Designer On-Wall RP-440D-SB Passive Soundbar Click to enlarge the picture
Contents of the user manual for the Klipsch Reference Premiere Designer On-Wall RP-440D-SB
- Product category: Soundbar Speakers Klipsch
- Brand: Klipsch
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Klipsch Soundbar Speakers
 |
User manual for the Klipsch Reference Premiere Designer On-Wall RP-440D-SB contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Klipsch product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Klipsch user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Klipsch product will considerably shorten its lifespan!
|

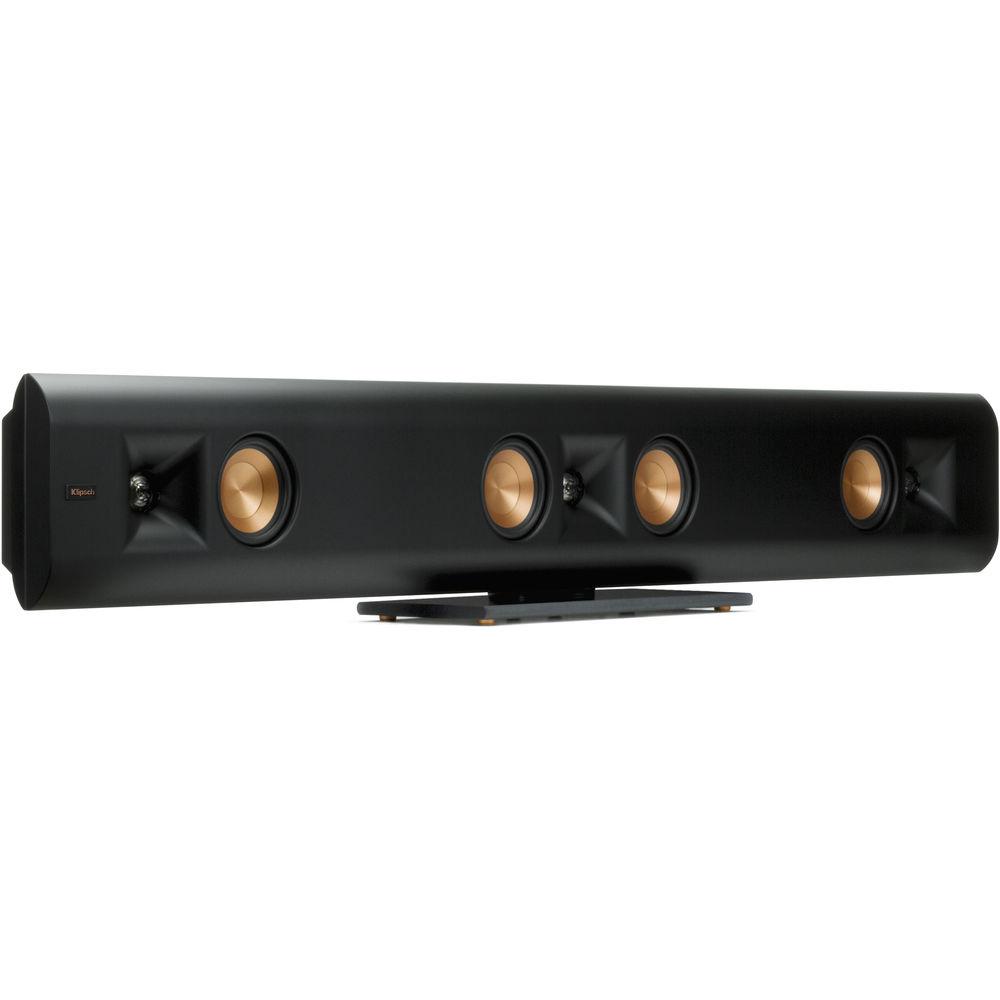

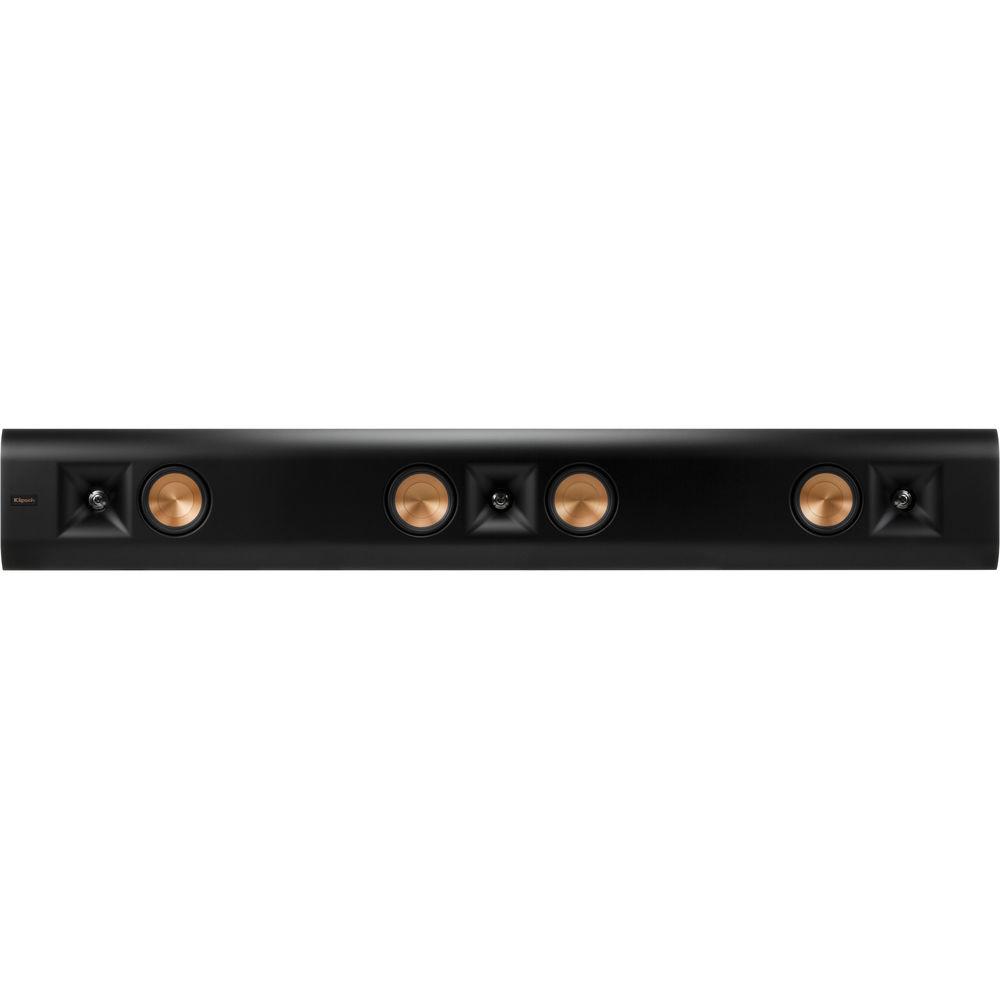

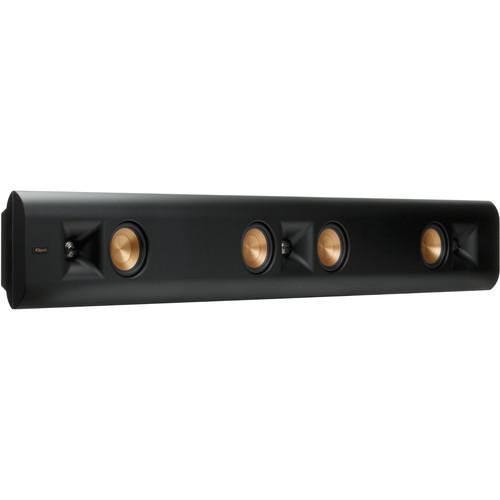

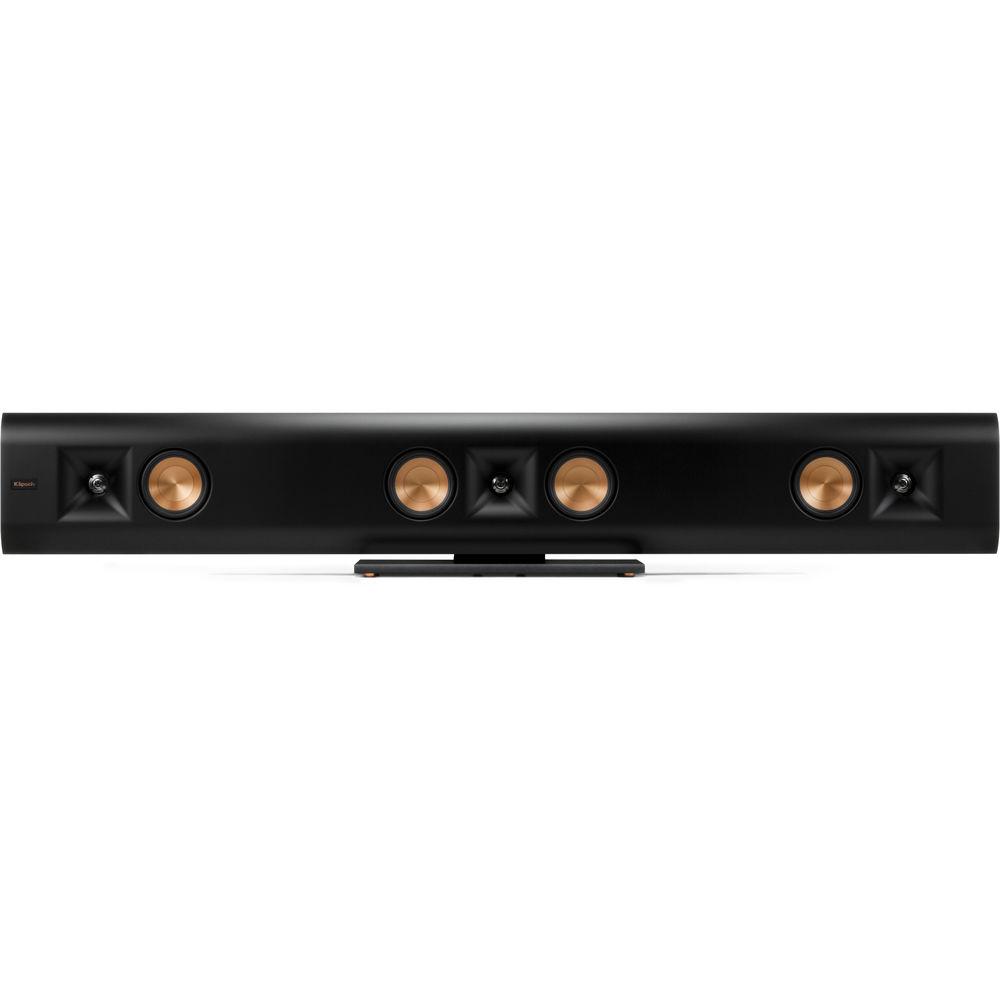

Product description How to Choose a Soundbar System Read More Consolidate the front speakers in your surround system with the Klipsch Reference Premiere Designer On-Wall RP-440D-SB Passive Soundbar. It features a three-channel design to take the place of your center and front left/right speakers, and handles up to 50W of continuous RMS power per channel from your amplifier. The soundbar is equipped with one 3.5" Cerametallic cone woofer and a 1" titanium dome LTS tweeter for the left and right channels, and two 3.5" Cerametallic cone woofers and a 1" titanium dome LTS tweeter for the center channel, to produce a full-range frequency response of 65 Hz to 25 kHz. Each tweeter is mated to a 90 x 90° Tractrix horn to help provide high-frequency response and extension, while enhancing imaging and dynamics. The RP-440D-SB can be wall-mounted with the built-in keyholes or placed on a tabletop with the included glass stand. Its grille attaches magnetically for a quick appearance change. - 90 x 90° Tractrix Horn
- The Tractrix horn geometry is designed to help improve high-frequency response and extension, while enhancing imaging and dynamics. It is also engineered to focus the high frequency sounds towards the listening area for natural sound.
- Linear Travel Suspension (LTS) Titanium Tweeter
- The Linear Travel Suspension tweeter is designed to maximize dynamics for enhanced, detailed performance.
- Spun-Copper Cerametallic Woofers
- The Cerametallic woofers have been engineered to maintain rigidity with a lightweight construction for minimal cone breakup and distortion.

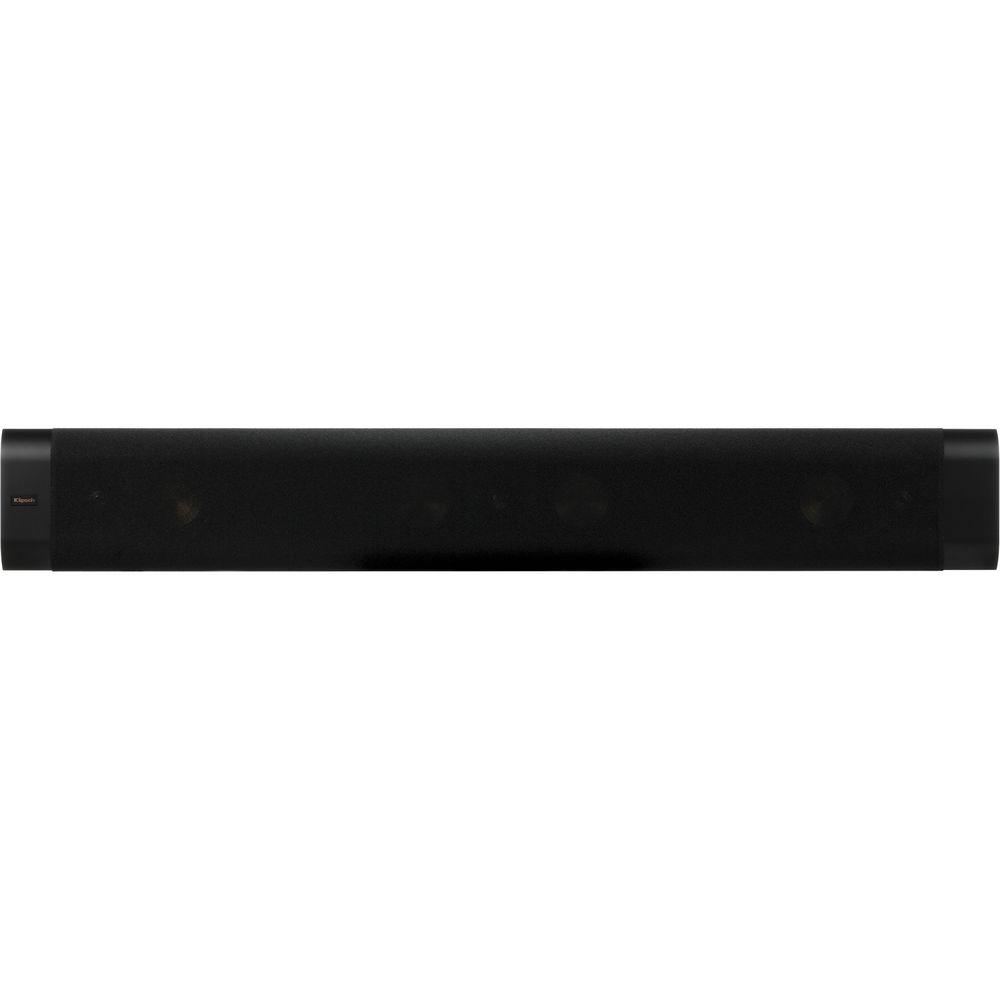

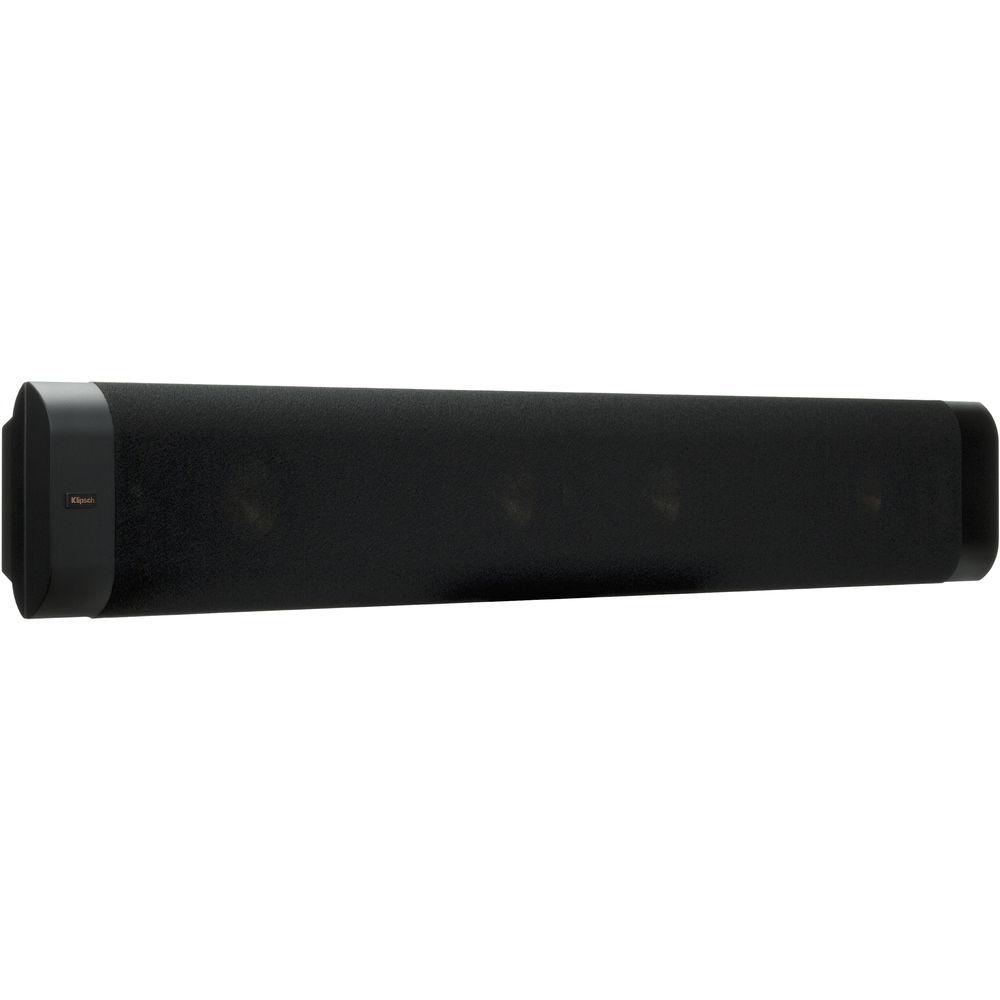

- Wrap-Around Magnetic Grille
- The front grille attaches magnetically for a simple change in aesthetics.

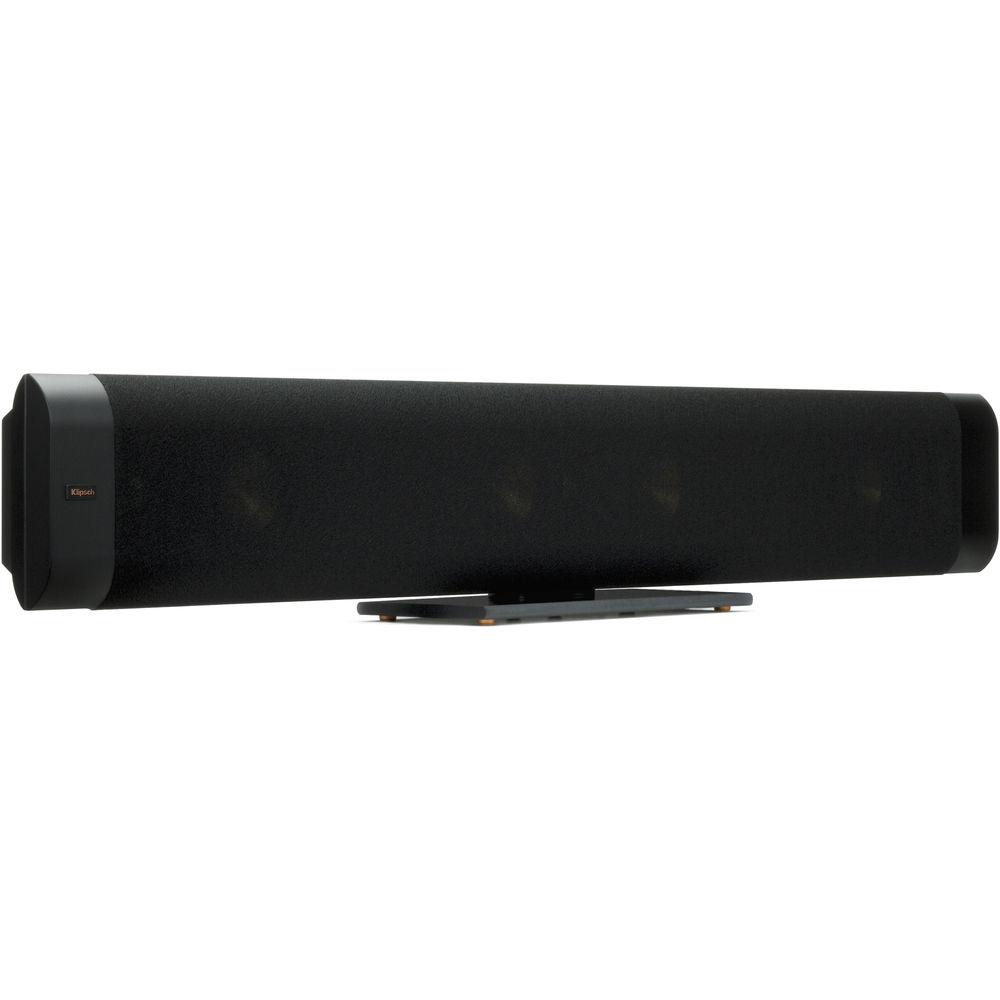

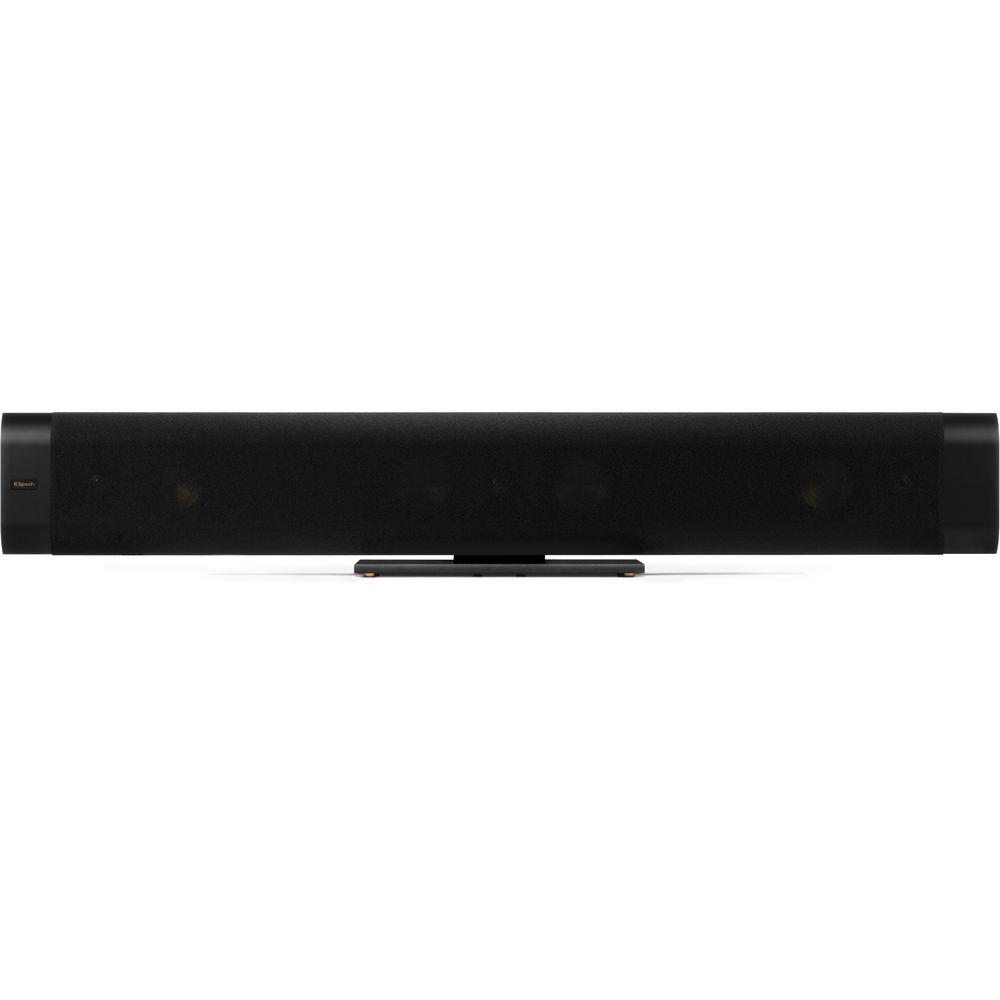

- Table Mount Included

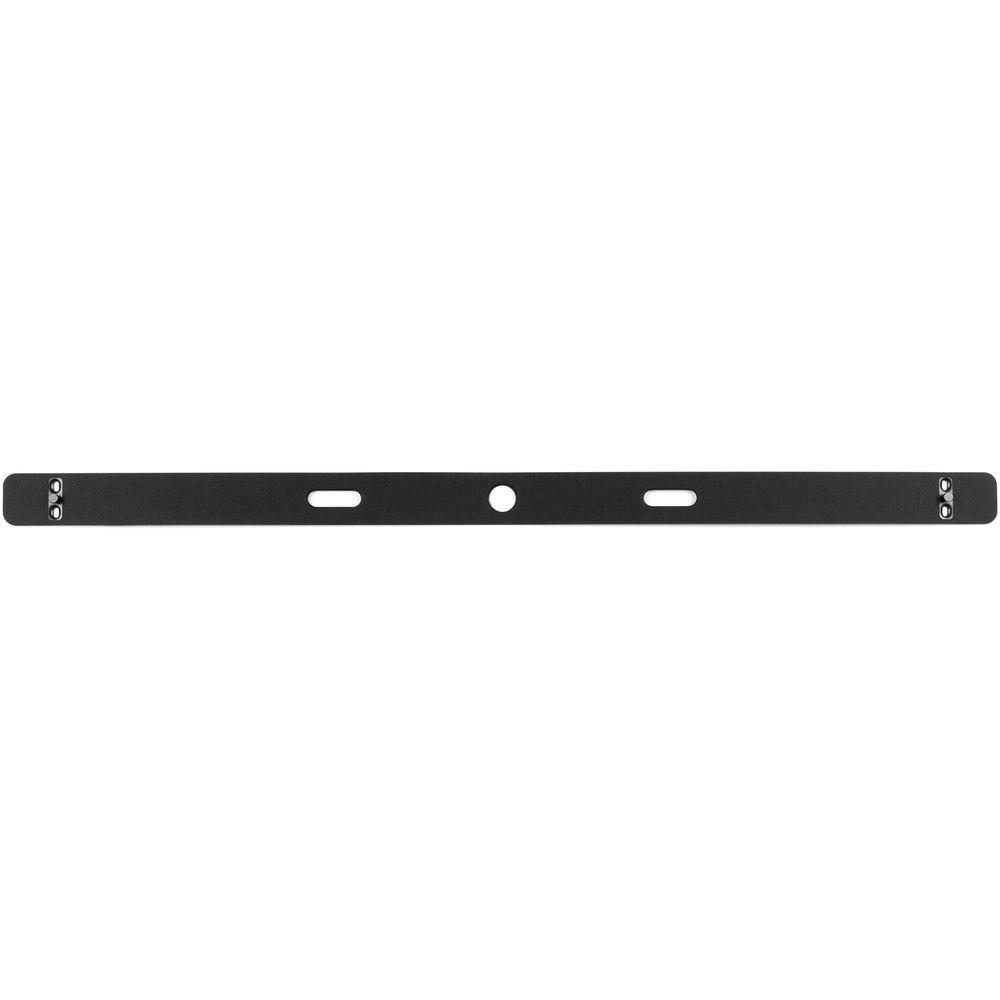

- The dual four-way keyholes allow for easy mounting, while the included glass base provides for tabletop mounting.
- Additional Features
-
- Slim 2.4" design to match wall-mounted displays
- Designed for flexible placement
- Matte black finish
UPC: 743878033038 In the Box Klipsch Reference Premiere Designer On-Wall RP-440D-SB Passive Soundbar Glass Tabletop Base Wall Mount Template Limited 5-Year Warranty Bose: The New Lineup of Home Speaker Systems Richard L. Stevens 10/11/2014 More from Manufacturer wexxqdbqzbcvwretxdfeuv Table of Contents
|
Upload User Manual
Have you got an user manual for the Klipsch Reference Premiere Designer On-Wall RP-440D-SB Passive Soundbar in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKlipsch RP-440D-SB Specs | Frequency Response ± 3dB | 65 Hz to 25 kHz | | Sensitivity | 92 dB @ 2.83 V / 1 m | | Power Handling | RMS: 50 W per channel

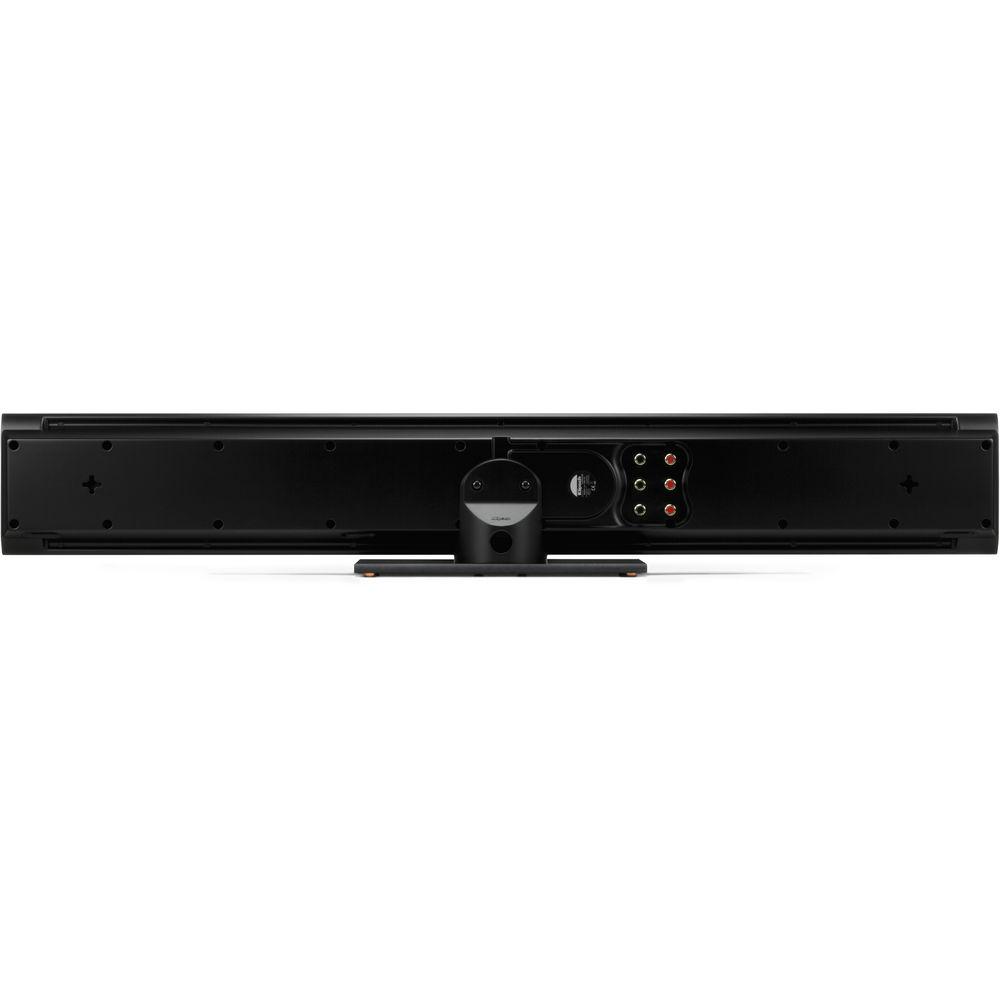

Peak: 200 W per channel | | Nominal Impedance | 8 Ohms compatible | | Crossover Frequency | 2.2 kHz | | High Frequency Drivers | 3x 1" (2.54 cm) titanium dome LTS tweeters with 90 x 90° Tractrix horn (1x per channel) | | Low Frequency Drivers | 4x 3.5" (8.89 cm) Cerametallic cone woofers (2x for center, 1x each for L/R) | | Enclosure Material | ABS | | Enclosure Type | Bass reflex | | Inputs | 3 x binding post pairs | | Dimensions (W x H x D) | 42 x 6 x 2.4" (106.68 x 15.24 x 6.1 cm) | | Weight | 12 lb (5.44 kg) | | | | Package Weight | 14.4 lb | | Box Dimensions (LxWxH) | 44.5 x 22.0 x 14.0" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 51 owners. Add your rating and experience with the product.
