User Manual for Klipsch Reference Premiere Designer On-Wall RP-640D 2-Way Speaker Click to enlarge the picture
Contents of the user manual for the Klipsch Reference Premiere Designer On-Wall RP-640D
- Product category: Bookshelf Speakers Klipsch
- Brand: Klipsch
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Klipsch Bookshelf Speakers
 |
User manual for the Klipsch Reference Premiere Designer On-Wall RP-640D contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Klipsch product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Klipsch user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Klipsch product will considerably shorten its lifespan!
|

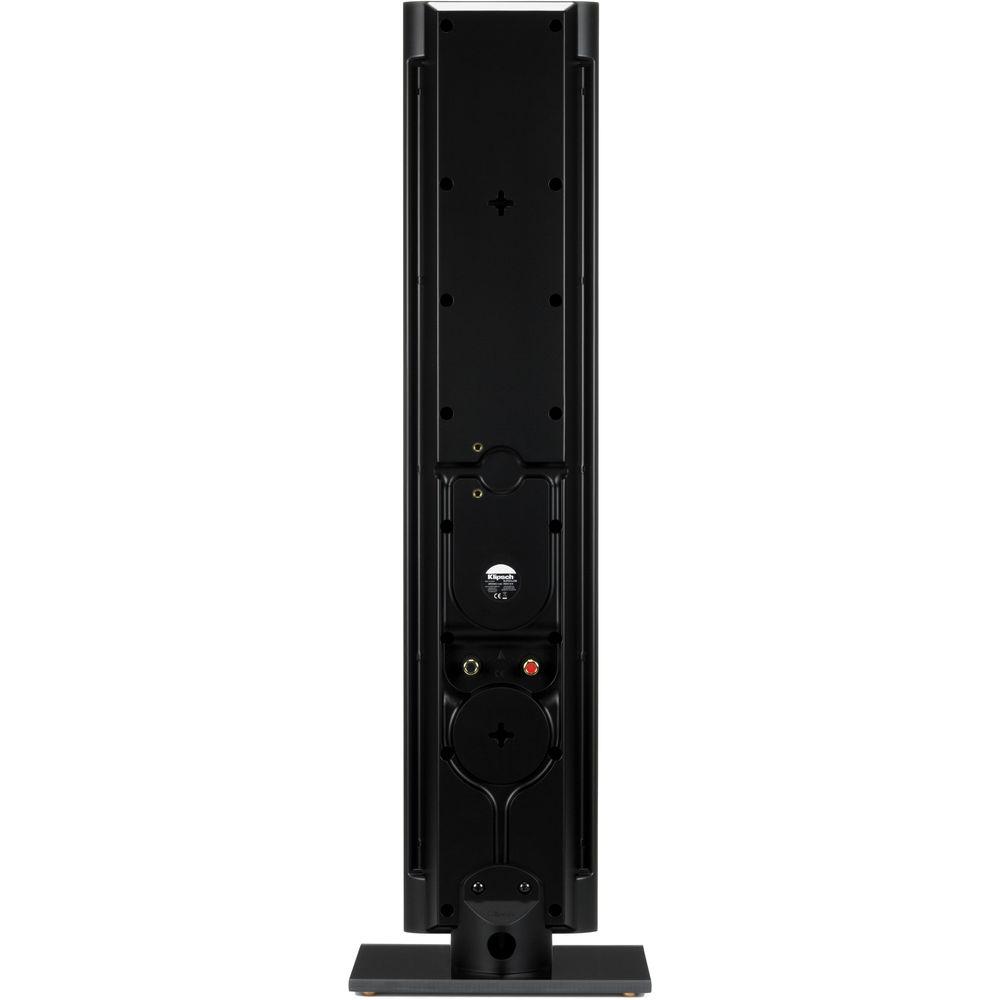

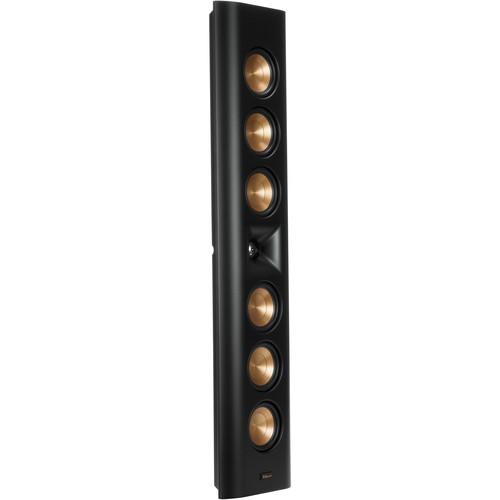

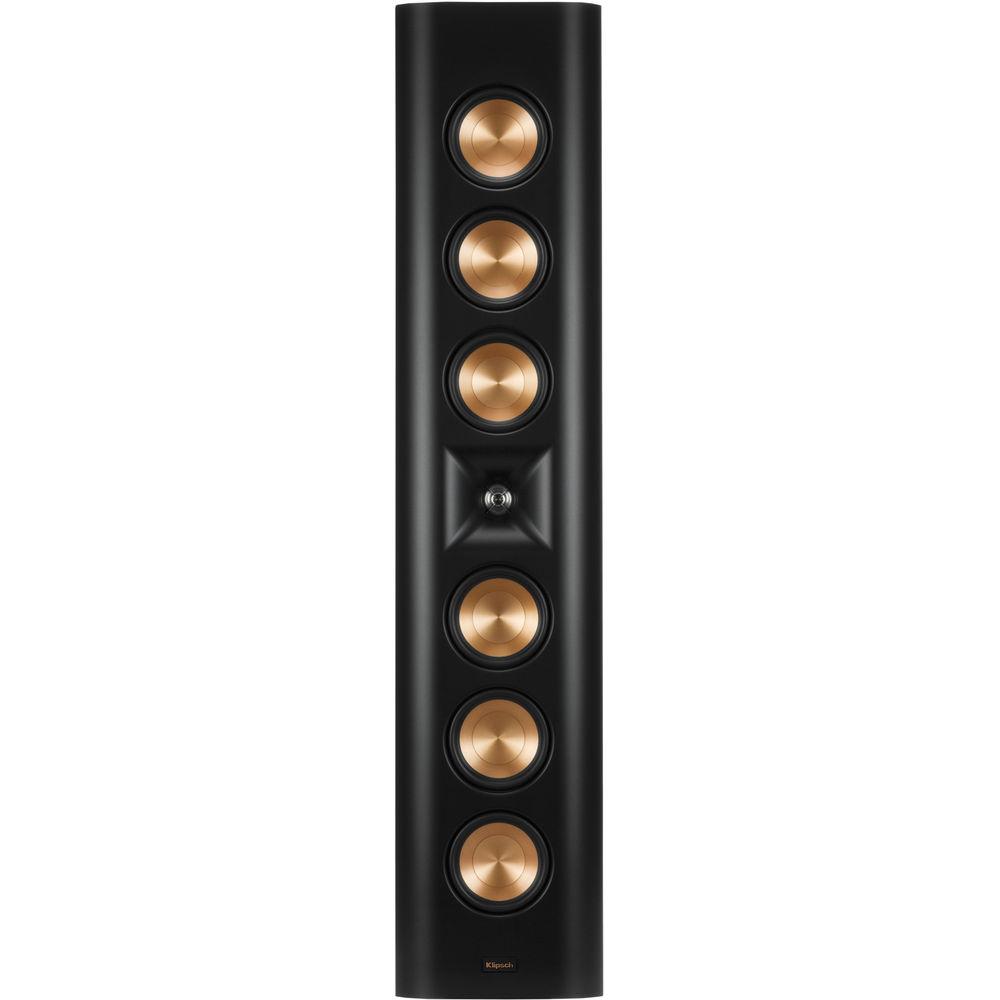

Product description Enjoy versatile placement options with the matte black Klipsch Reference Premiere Designer On-Wall RP-640D 2-Way Speaker. It features four-way keyhole slots on the back for horizontal or vertical wall mounting and includes a glass tabletop stand that will also hold the speaker either vertically or horizontally. The RP-640D uses a 1" titanium dome LTS tweeter mated to a 90 x 90° Tractrix horn for controlled highs, two 3.5" Cerametallic cone woofers for mids and lows down to 55 Hz, and four 3.5" Cerametallic cone passive bass radiators. It accepts up to 75W of RMS power from your amplifier. - 90 x 90° Tractrix Horn
- The Tractrix horn geometry is designed to help improve high-frequency response and extension, enhance imaging and dynamics, and focus the high-frequency sound towards the listening area for natural sound.
- Linear Travel Suspension (LTS) Titanium Tweeter
- The LTS tweeter design is engineered to maximize dynamics for detailed performance.
- Spun-Copper Cerametallic Woofers
- The Cerametallic woofers are designed to maintain rigidity, using a lightweight construction for minimal cone breakup and distortion.

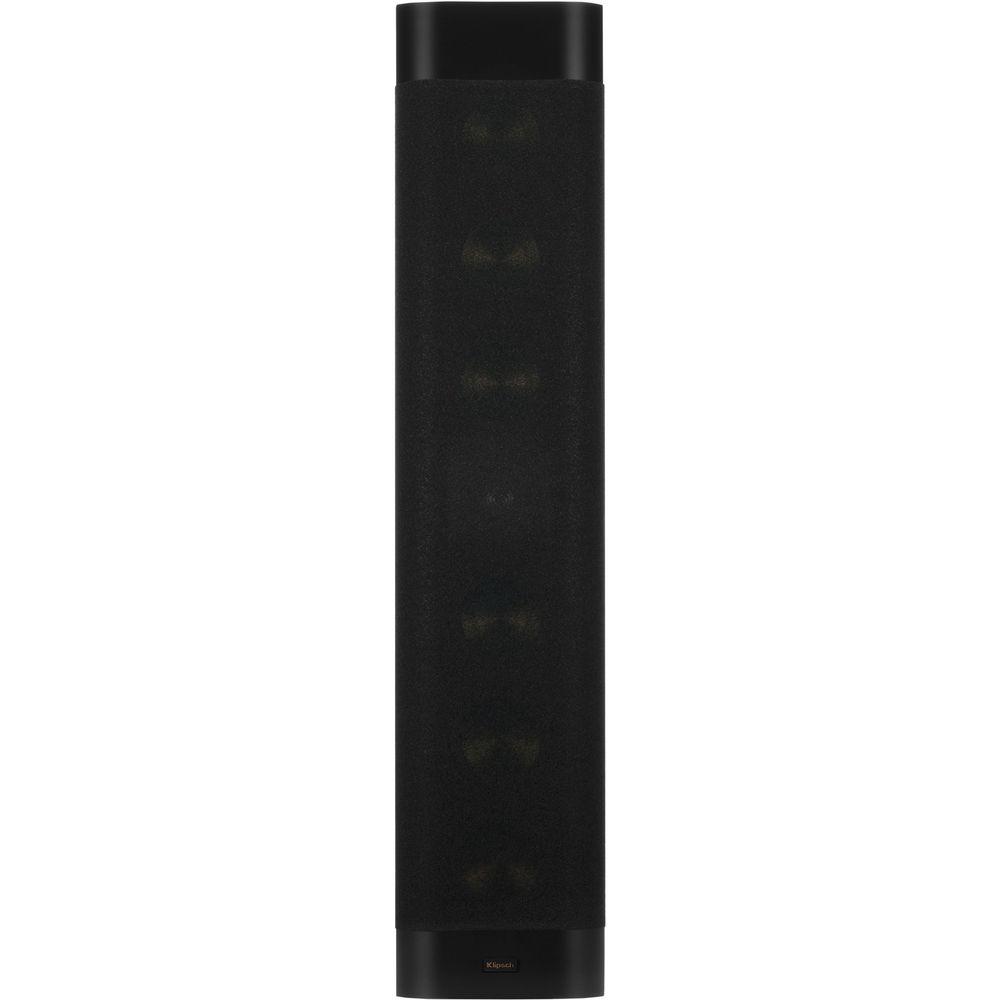

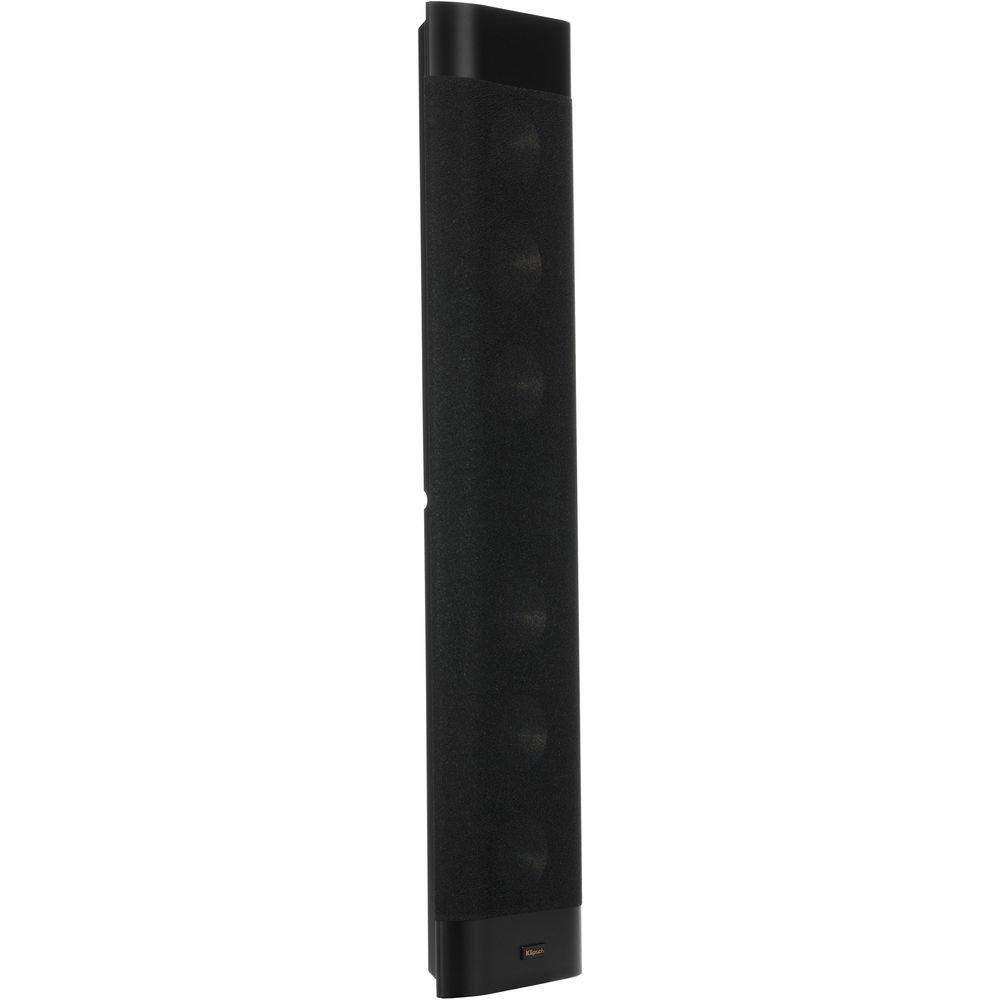

- Wrap-Around Magnetic Grille
- The front grille attaches magnetically to provide a simple change in aesthetics.

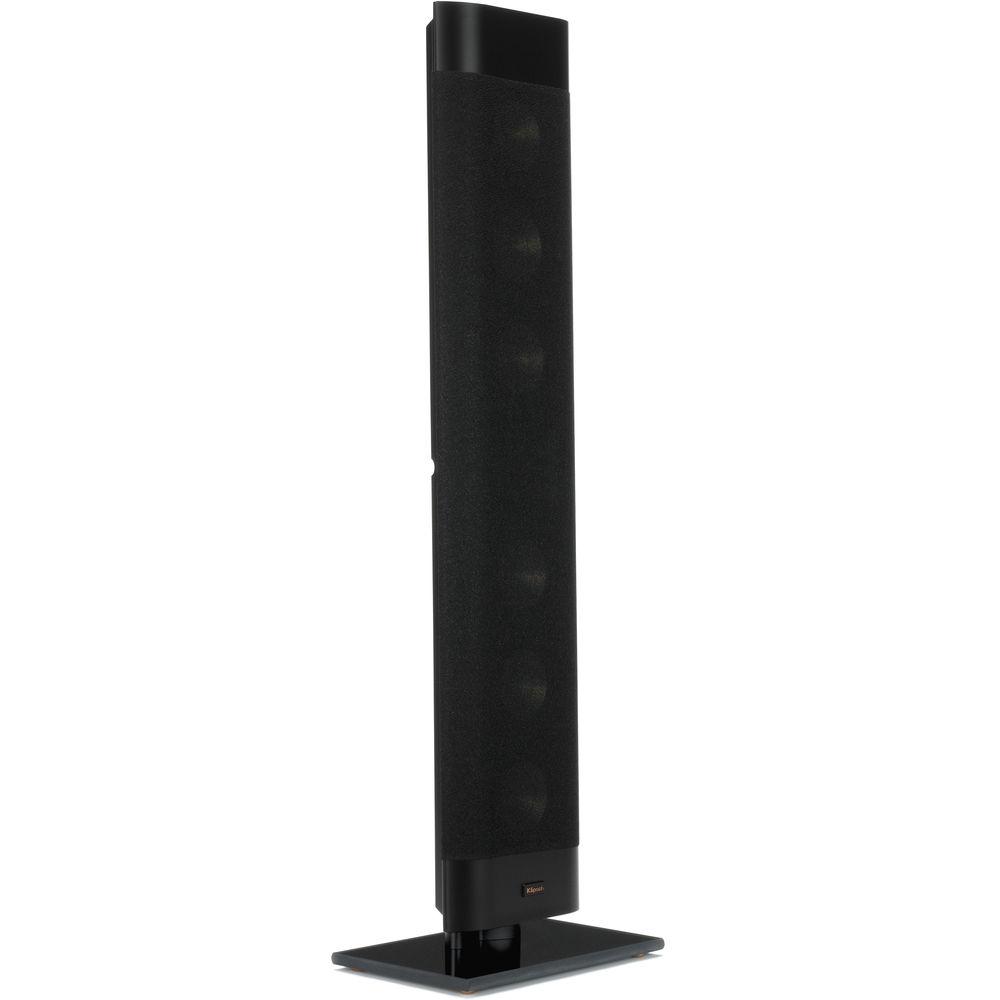

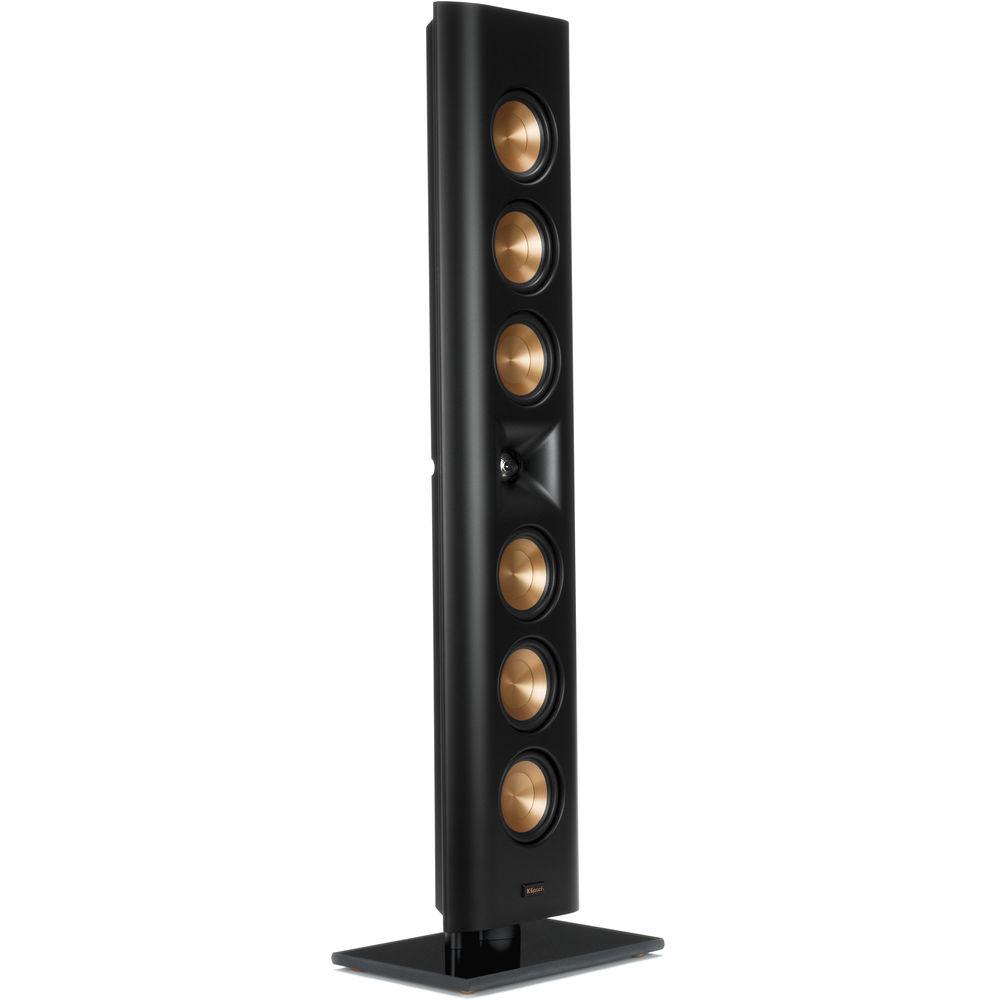

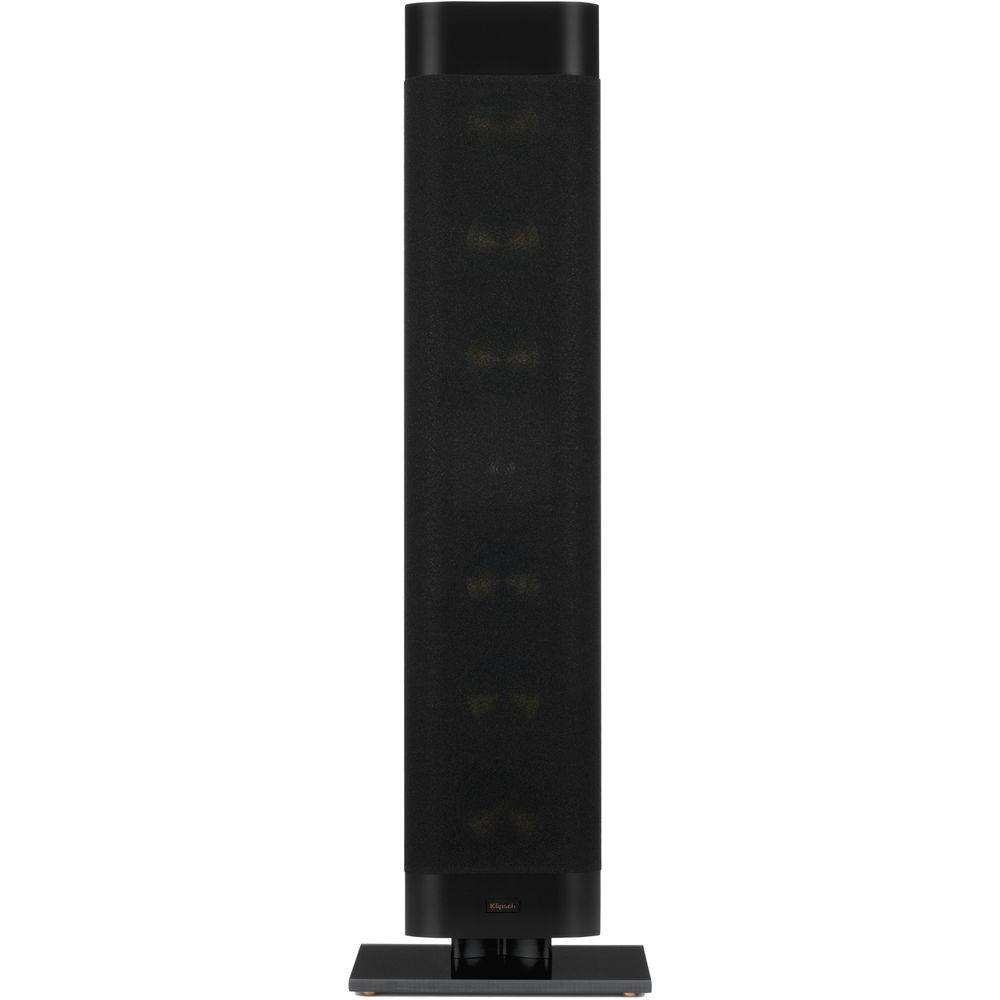

- Table Mount Included
- Dual four-way keyholes allow for easy wall mounting either vertically or horizontally, while the included glass base provides a tabletop or bookshelf option, also vertically or horizontally.
- Additional Features
-
- Slim (2.4") on-wall solution designed to match ultra-flat displays
- Reference Premiere horn-loaded acoustic technology
- Matte black painted finish helps the speaker blend in
UPC: 743878033045 In the Box Klipsch Reference Premiere Designer On-Wall RP-640D 2-Way Speaker (Matte Black, Single) Glass Tabletop Stand Limited 5-Year Warranty More from Manufacturer wusewydcuvvbattacbtqzayysbyf Table of Contents
|
Upload User Manual
Have you got an user manual for the Klipsch Reference Premiere Designer On-Wall RP-640D 2-Way Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKlipsch RP-640D Specs | Design | 2-way bass reflex | | Tweeter | 1x 1" (2.54 cm) titanium dome LTS tweeter with 90 x 90° Tractrix horn | | Woofers | 2x 3.5" (8.89 cm) Cerametallic cones | | Radiator | 4x 3.5" (8.89 cm) Cerametallic cone passive radiators | | Power Handling | RMS: 75 W
Peak: 300 W | | Crossover Frequency | 2.2 kHz | | Nominal Impedance | 8 Ohms compatible | | Frequency Response ± 3dB | 55 Hz to 25 kHz | | Sensitivity dB @ 2.83 V/1 m | 94 | | Terminals | 1 x binding post pair | | Cabinet Construction | ABS | | Dimensions (W x H x D) | 6 x 28.5 x 2.4" (15.24 x 72.39 x 6.1 cm) | | Weight | 8 lb (3.63 kg) | | | | Package Weight | 13.0 lb | | Box Dimensions (LxWxH) | 31.0 x 11.5 x 7.0" |
