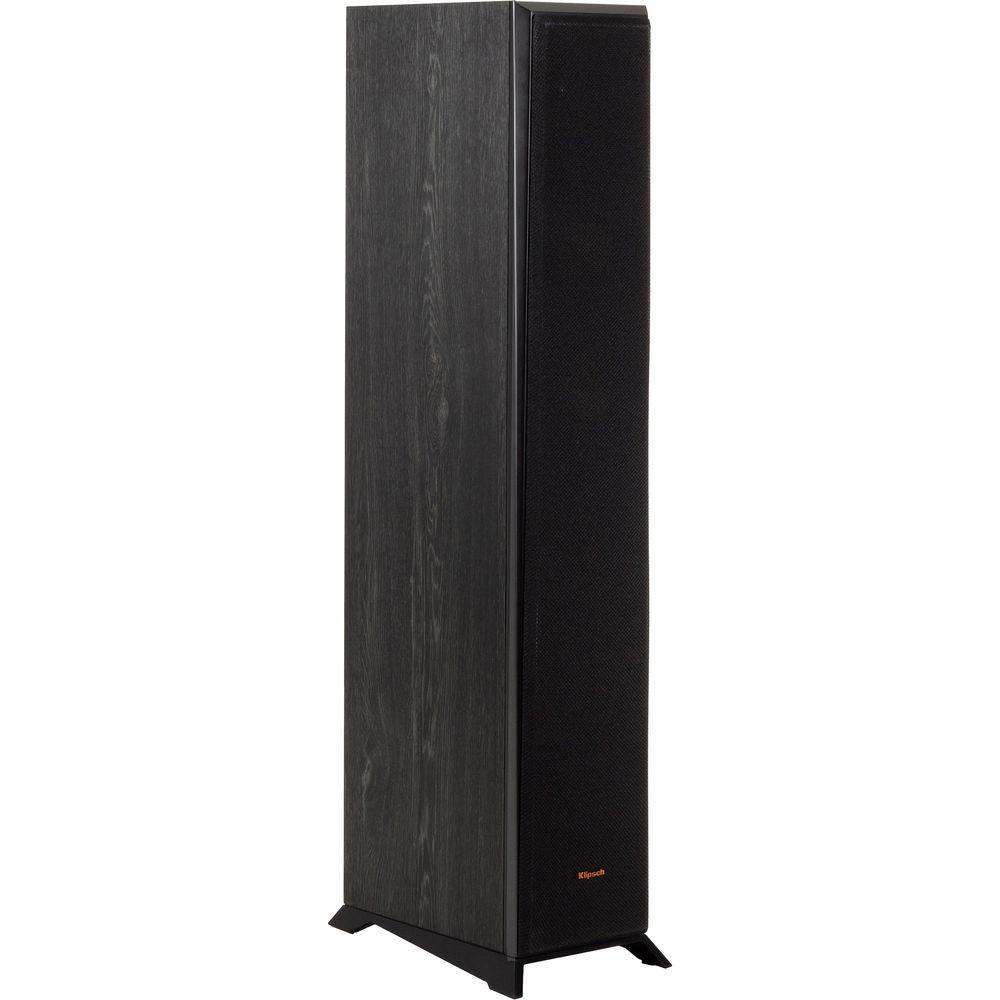

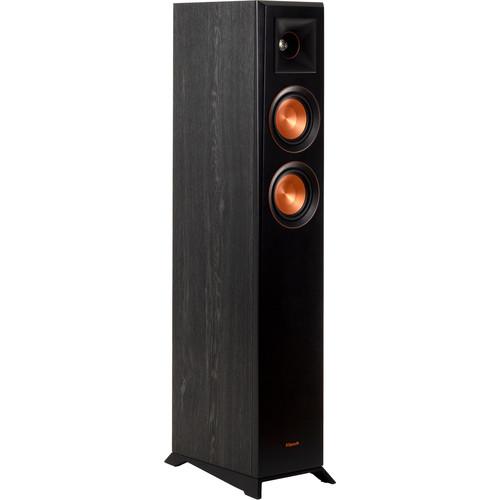

User Manual for Klipsch Reference Premiere RP-4000F Floorstanding Speaker Click to enlarge the picture
Contents of the user manual for the Klipsch Reference Premiere RP-4000F Floorstanding Speaker
- Product category: Floorstanding Speakers Klipsch
- Brand: Klipsch
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Klipsch Floorstanding Speakers
 |
User manual for the Klipsch Reference Premiere RP-4000F Floorstanding Speaker contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Klipsch product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Klipsch user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Klipsch product will considerably shorten its lifespan!
|

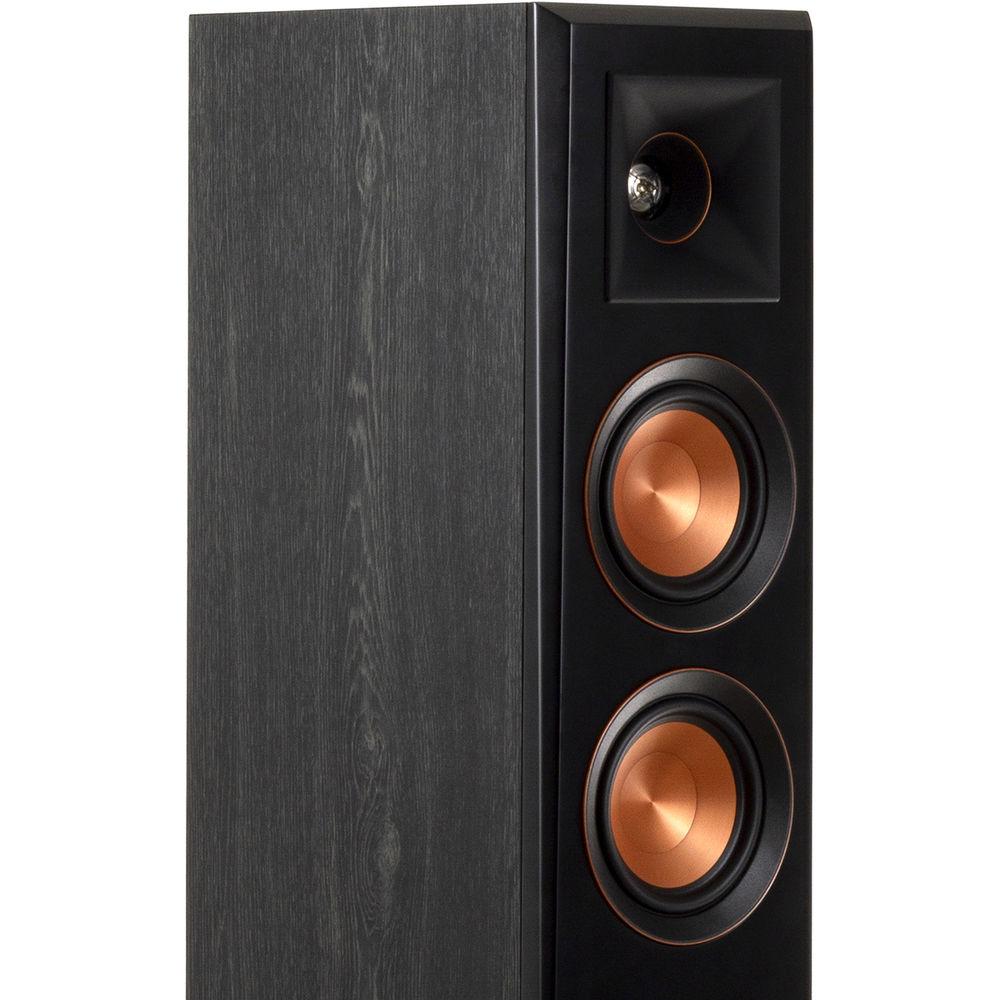

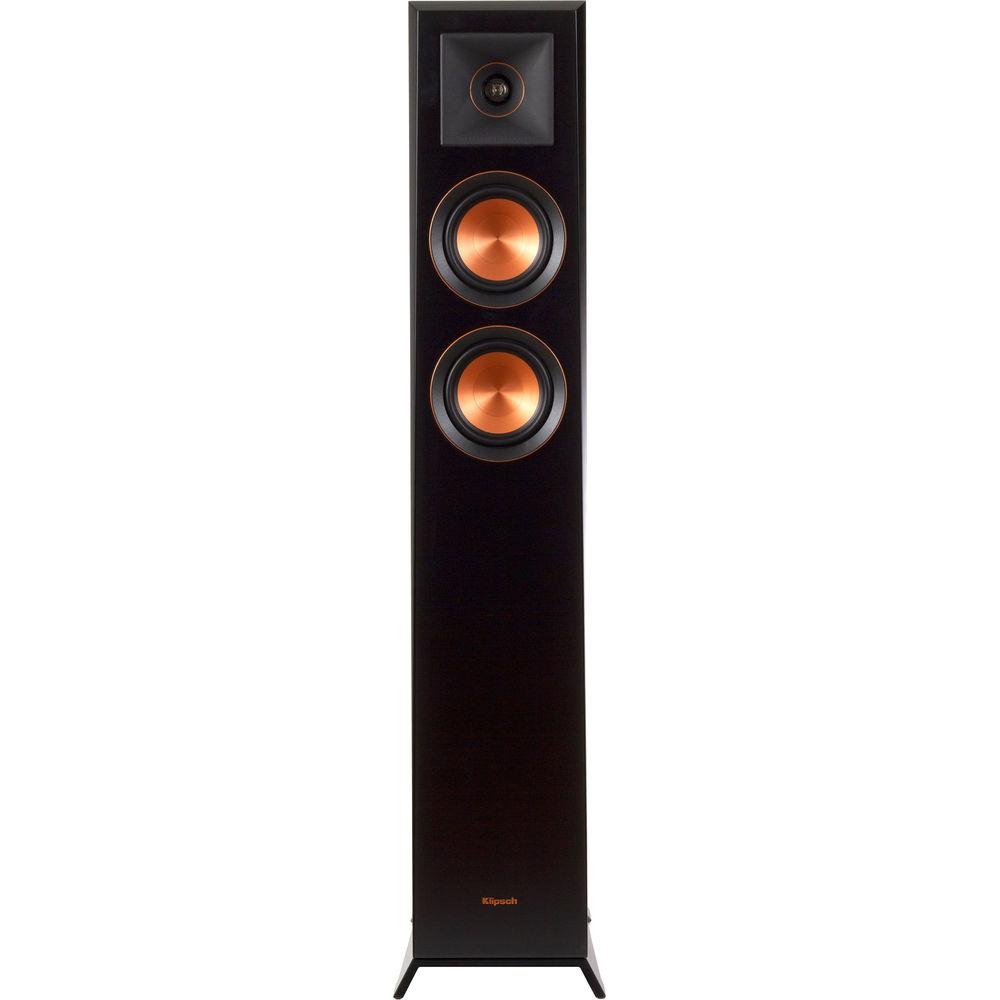

Product description Enjoy enhanced audio reproduction with the Klipsch Reference Premiere RP-4000F Floorstanding Speaker. It has a two-way design featuring two 4" woofers and a 1" tweeter paired to a 90 x 90° hybrid cross-section Tractrix horn. The speaker can handle up to 75W RMS or 300W peak power and has a 37 Hz to 25 kHz frequency response. - 90 x 90° Silicone Composite Hybrid Tractrix Horn
- Tractrix geometry is designed to provide an efficient transfer of high-frequency waves into the listening area. The phase plug and compressed molded silicone face help ensure smooth frequency response for natural sound. Additionally, the phase plug acts as a mechanical filter to further ensure a smooth, flat frequency response while also protecting the tweeter from damage.
- Linear Travel Suspension (LTS) Titanium-Diaphragm Tweeter
- This tweeter design helps minimize distortion for enhanced, detailed performance.
- Vented Tweeter Design
- The vented tweeter housing is engineered to reduce standing waves that create unwanted harmonics, resulting in augmented detail and clarity in high-frequency reproduction.
- Spun-Copper Cerametallic Woofers
- These woofers are designed to be rigid, yet lightweight, for minimal distortion and enhanced efficiency. The cones are mated to a dual-layer, copper-wound voice coil for augmented conductivity. The woofers are housed in a non-resonating, stamped-steel basket that's secured to the magnet motor to help improve efficiency and reduce distortion, and are matched to the horn-loaded tweeter.

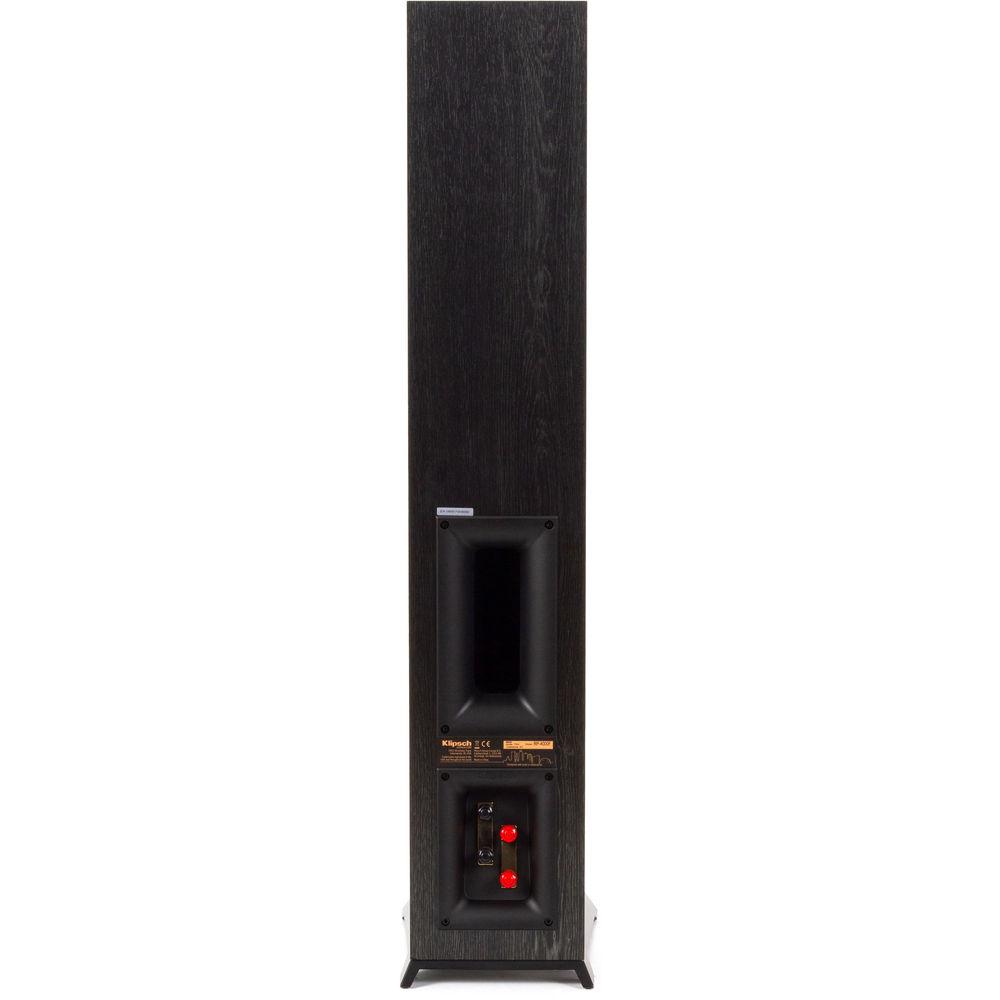

- Tractrix Port
- Utilizing Tractrix geometry, this port helps provide efficient, fast air transfer from the cabinet, reducing port noise for punchy low frequencies. The Tractrix port has inner flares that help reduce air turbulence entering the port for cleaner, more powerful bass.

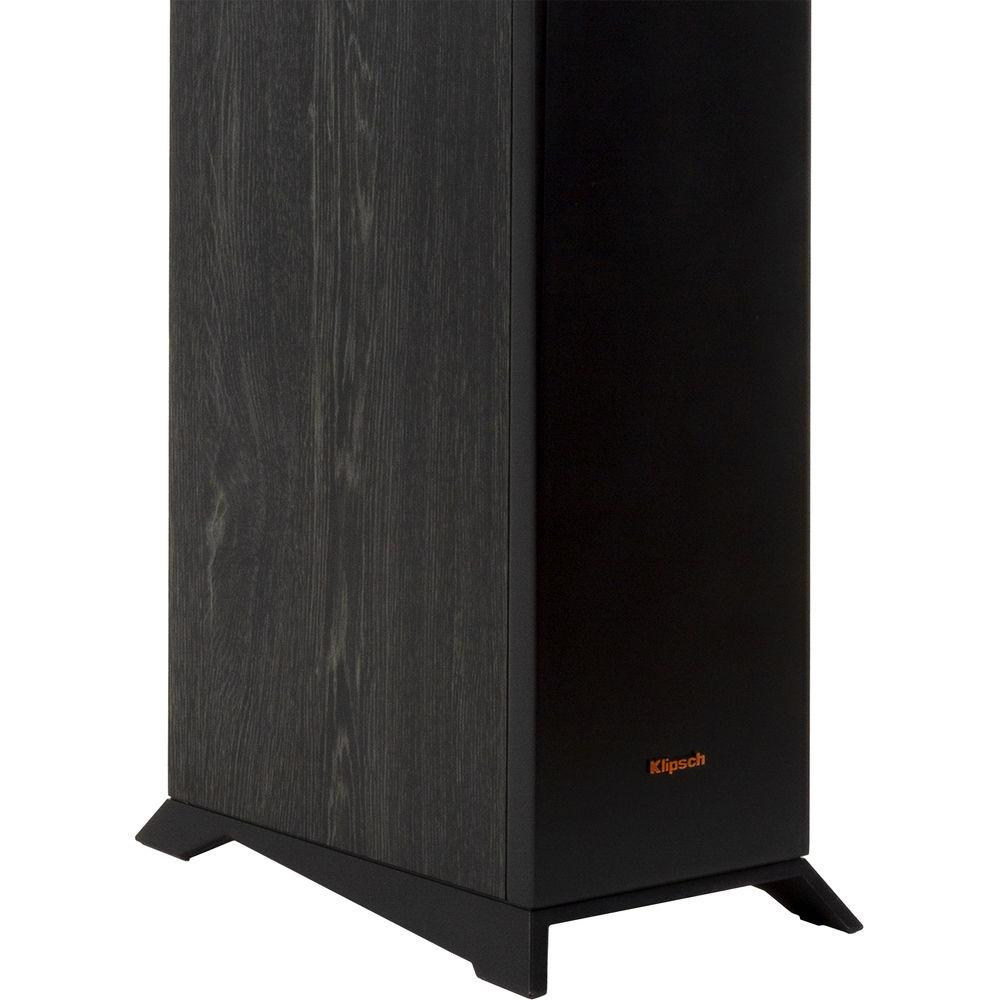

- Cast-Aluminum Feet
- The feet are mechanically designed to minimize surface area in contact with the floor, decoupling the speaker for faster, tighter low frequencies and more detail. They help provide a more modern look with less resonance than MDF or ABS plastic.

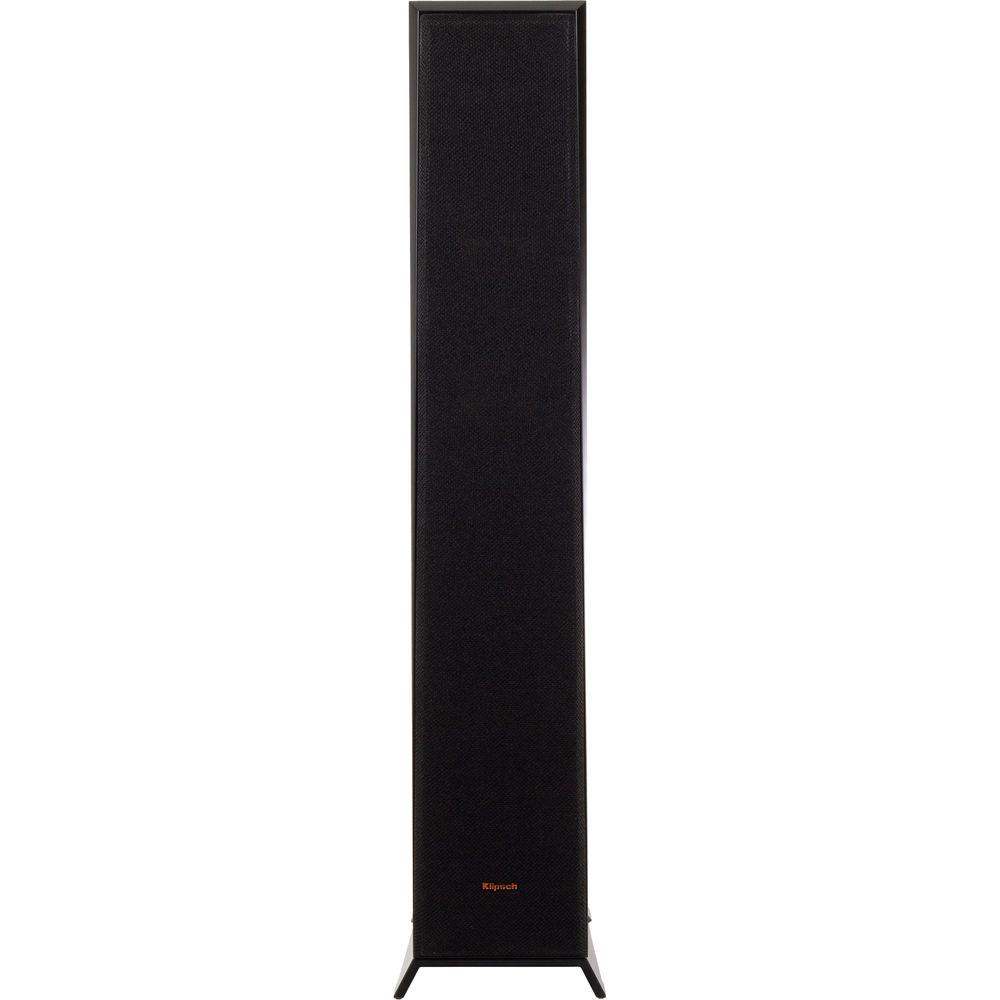

- Flexible, Removable Magnetic Grille
- The grille attaches magnetically for easy attachment and removal.

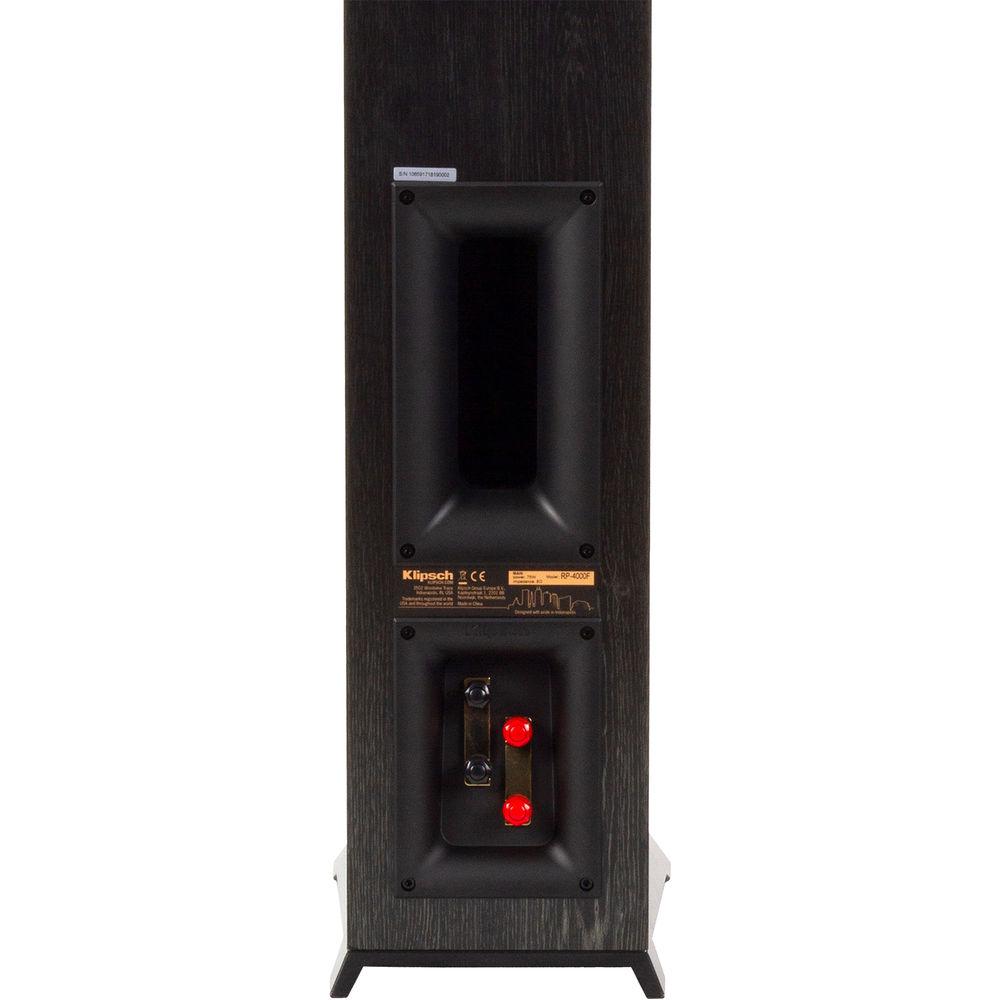

- Dual 5-Way Binding Posts
- The 5-way binding posts accept banana plugs or bare wire up to 12-gauge to provide flexible connectivity options, while the color coding helps simplify setup. Dual input terminals allow you to bi-wire or bi-amp the speaker.
- Scratch-Resistant Vinyl Finish
- The speaker sports a scratch-resistant vinyl finish with a satin-painted baffle.
UPC: 743878035698 In the Box Klipsch Reference Premiere RP-4000F Floorstanding Speaker (Single) Magnetic Grille Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Klipsch Reference Premiere RP-4000F Floorstanding Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKlipsch RP-4000F Specs | Frequency Response ± 3dB | 37 Hz to 25 kHz | | Sensitivity dB @ 2.83 V/1 m | 95 dB | | Power Handling | RMS: 75 W
Peak: 300 W | | Nominal Impedance | 8 ohms compatible | | Crossover Frequency | 1500 Hz | | Woofers | 2x 4" / 101.6 mm Cerametallic cone woofers | | High Frequency Driver | 1x 1" / 25.4 mm titanium LTS vented tweeter | | Horn | 90 x 90° hybrid cross-section Tractrix horn | | Enclosure | Bass reflex via rear-firing Tractrix port | | Inputs | 2 x 5-way binding post pairs | | Bi-Amping | Yes | | Bi-Wiring | Yes | | Construction Material | MDF | | Dimensions (W x H x D) | 7.42 x 34.12 x 12.03" / 18.85 x 86.7 x 30.56 cm | | Weight | 29 lb / 13.1 kg | | | | Package Weight | 35.65 lb | | Box Dimensions (LxWxH) | 38.0 x 15.0 x 10.5" |
