User Manual for Klipsch Reference Premiere RP-400M 2-Way Bookshelf Speakers Click to enlarge the picture
Contents of the user manual for the Klipsch Reference Premiere RP-400M 2-Way Bookshelf
- Product category: Bookshelf Speakers Klipsch
- Brand: Klipsch
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Klipsch Bookshelf Speakers
 |
User manual for the Klipsch Reference Premiere RP-400M 2-Way Bookshelf contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Klipsch product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Klipsch user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Klipsch product will considerably shorten its lifespan!
|

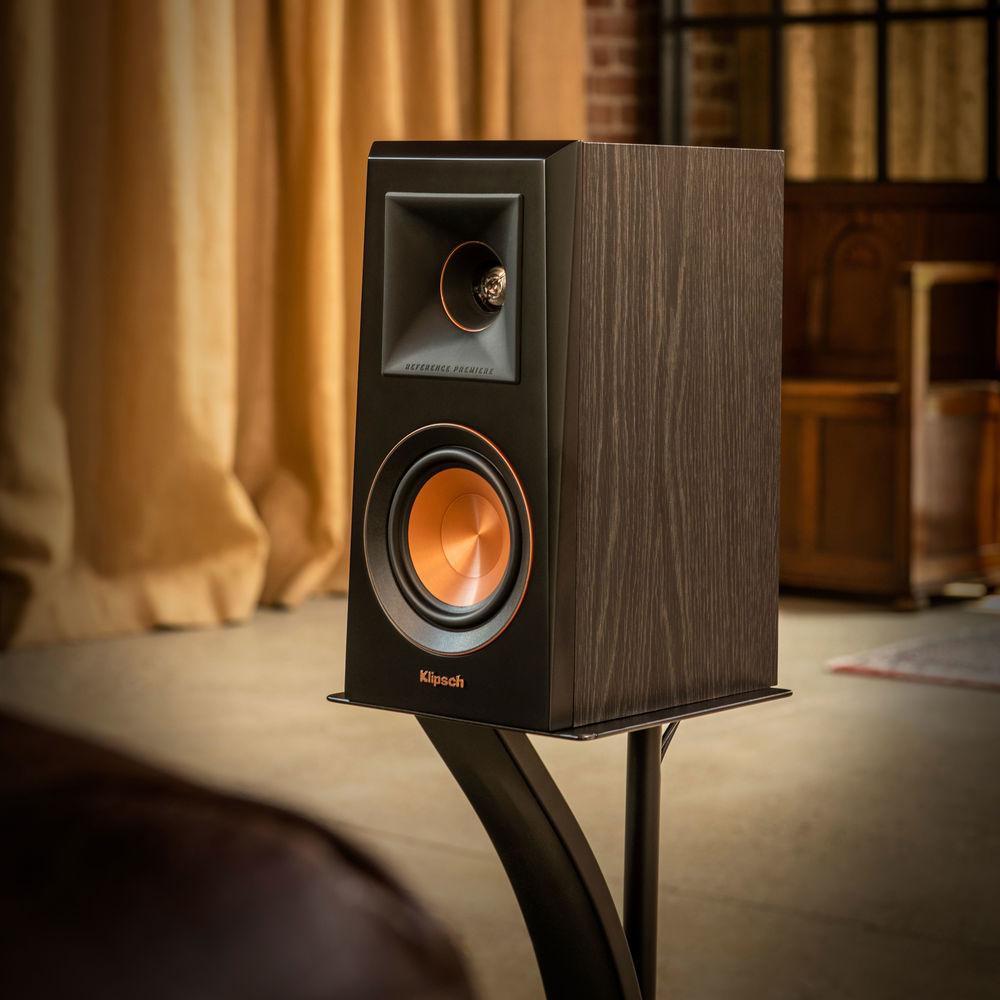

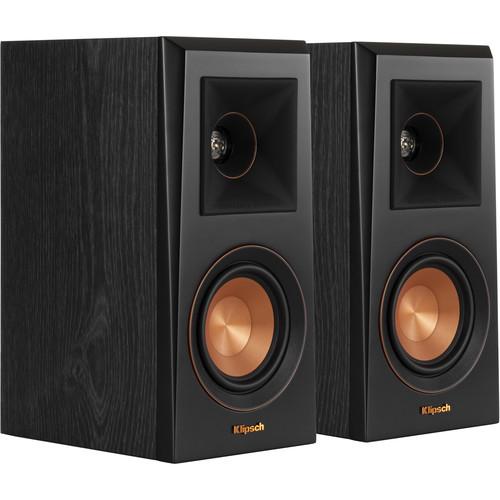

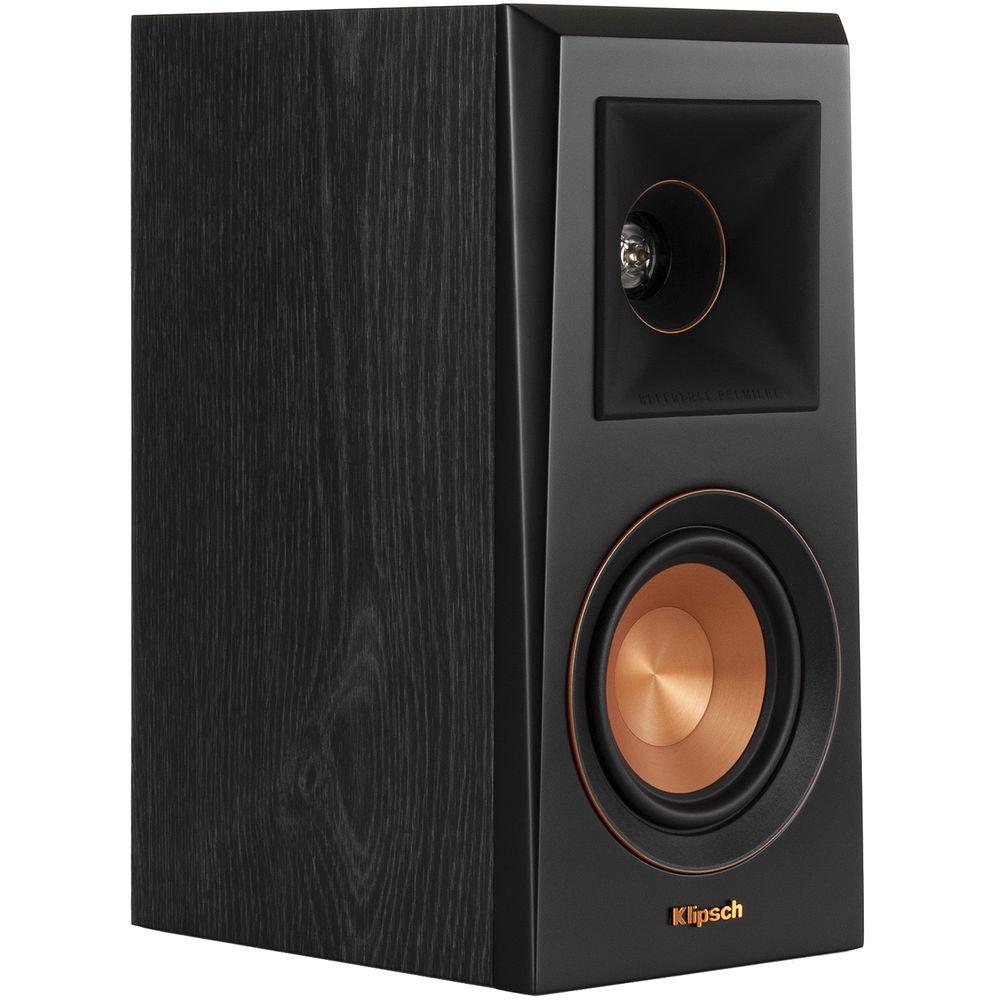

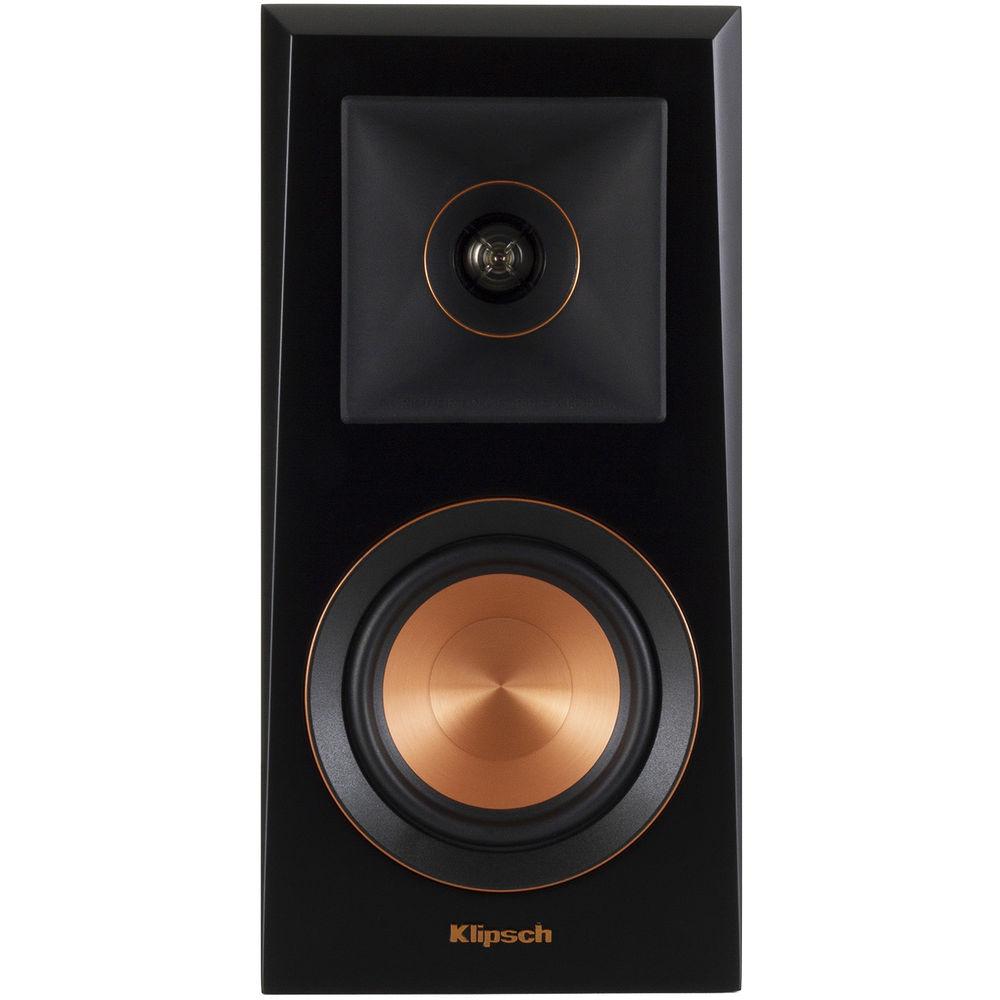

Product description Suitable for use in various settings, this pair of Klipsch Reference Premiere RP-400M 2-Way Bookshelf Speakers can handle up to 50W per channel RMS or 200W peak and are equipped with a 4" Cerametallic cone woofer and a 1" titanium LTS vented tweeter paired with a 90 x 90° hybrid cross-section Tractrix horn for broad directionality. They have a frequency response of 52 Hz to 25 kHz and feature a keyhole for convenient wall mounting. - 90 x 90° Silicone-Composite Hybrid Tractrix Horn
- The Tractrix horn is designed to ensure that the high-frequency energy is aimed at the listener and to reduce artificial reverb or filtering caused by indirect sound bouncing off walls, while the phase plug and compressed molded silicone face help ensure smooth frequency response. These technologies combine to help provide a clean, natural sound, while the phase plugs also help protect the tweeters from damage.
- Linear Travel Suspension (LTS) Titanium Diaphragm Tweeter
- The LTS tweeter helps minimize distortion for enhanced, detailed performance, thanks in part to the piston motion of the diaphragm.
- Vented Tweeter Design
- The vented tweeter housing helps reduce standing waves that create unwanted harmonics, further augmenting detail and clarity in high frequency reproduction.
- Spun Copper Cerametallic Woofers
- Cerametallic woofers are designed to be light and rigid to help provide minimal distortion and maximum efficiency. The cones are mated to a dual-layer, copper-wound voice coil for enhanced conductivity and are housed in a non-resonating, stamped-steel basket for augmented efficiency and low distortion.

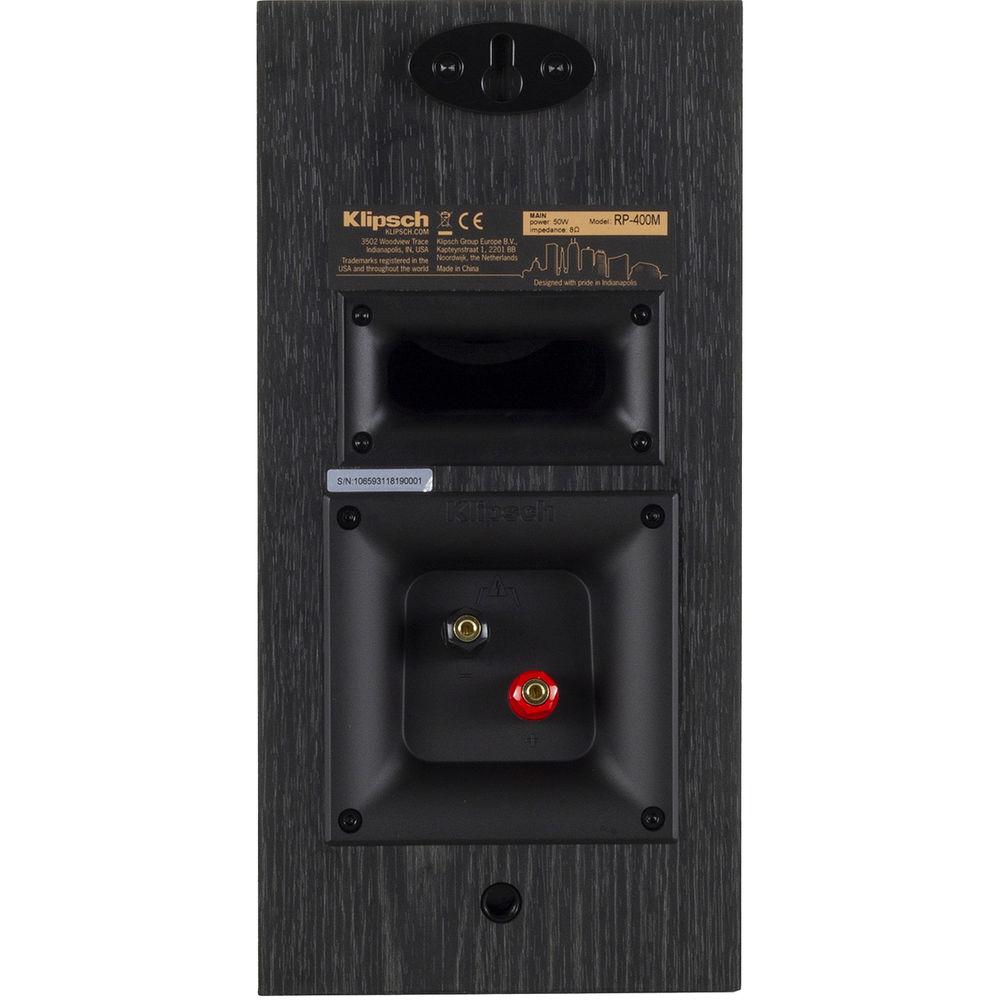

- 5-Way Binding Posts
- The binding posts accept banana plugs or bare wire up to 12-gauge for flexible connectivity options, while the color coding helps simplify setup and connection.
- Tractrix Ports
- Utilizing Tractrix geometry, the Reference Premiere ports allow for efficient, fast air transfer from the cabinet, which helps reduce port noise for punchy low frequencies. Klipsch Tractrix ports have inner flares that help reduce air turbulence entering the port, further helping to reduce port noise for cleaner, more powerful bass.
- Scratch-Resistant Vinyl Finish
- The Reference Premiere features a scratch-resistant vinyl finish with a satin-painted baffle.

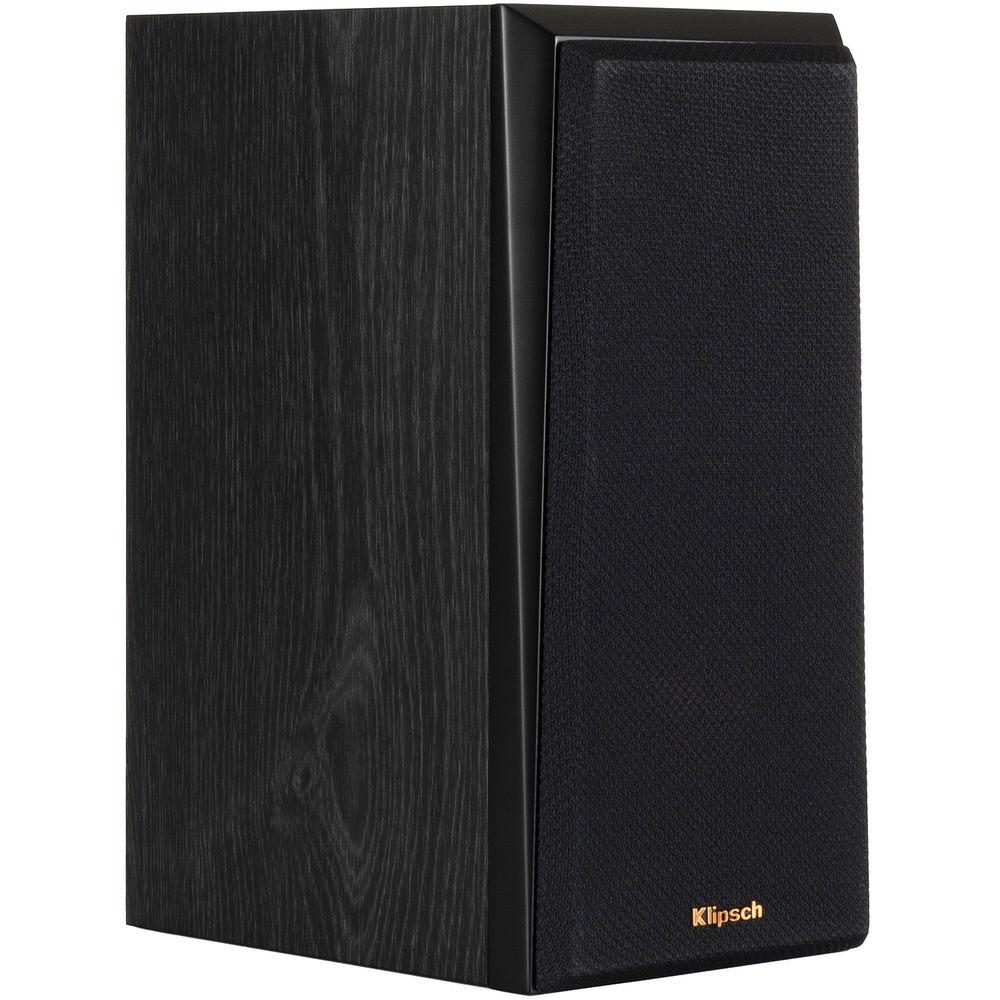

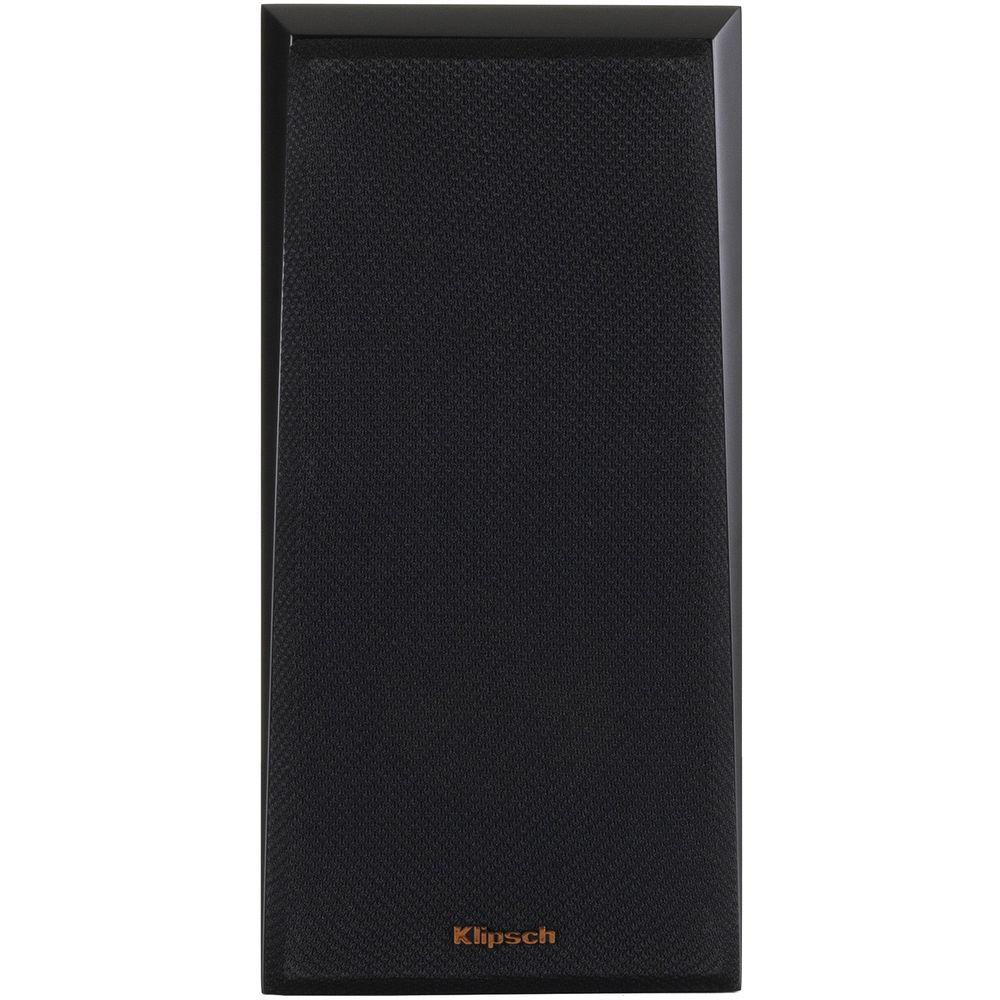

- Magnetic Grille
- The included grilles attach magnetically to help provide a quick and simple change of aesthetics.
UPC: 743878035766 In the Box Klipsch Reference Premiere RP-400M 2-Way Bookshelf Speakers (Pair) 2 x Magnetic Grilles 8 x Rubber Feet Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Klipsch Reference Premiere RP-400M 2-Way Bookshelf Speakers in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKlipsch RP-400M Specs | Frequency Response ± 3dB | 52 Hz to 25 kHz | | Sensitivity | 93 dB @ 2.83 V / 1 m | | Power Handling | RMS: 50 W
Peak: 200 W | | Nominal Impedance | 8 ohms compatible | | Crossover Frequency | 1500 Hz | | Tweeter | 1x 1" / 25.4 mm Titanium LTS vented tweeter mated to 90 x 90° hybrid cross-section Tractrix horn | | Woofer | 1x 4" / 101.6 mm Cerametallic cone woofer | | Enclosure Material | MDF | | Enclosure Type | Bass-reflex via rear-firing Tractrix ports | | Inputs | 1 x 5-way binding post pair | | Mounting | Keyhole | | Dimensions (W x H x D) | 5.67 x 11.73 x 7.5" / 14.4 x 29.8 x 19.1 cm | | Weight | 9 lb / 4.1 kg | | | | Package Weight | 22.35 lb | | Box Dimensions (LxWxH) | 16.12 x 16.0 x 12.6" |
