User Manual for Klipsch Reference Premiere RP-404C Center Channel Speaker Click to enlarge the picture
Contents of the user manual for the Klipsch Reference Premiere RP-404C Center Channel
- Product category: Center Channel Speakers Klipsch
- Brand: Klipsch
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Klipsch Center Channel Speakers
 |
User manual for the Klipsch Reference Premiere RP-404C Center Channel contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Klipsch product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Klipsch user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Klipsch product will considerably shorten its lifespan!
|

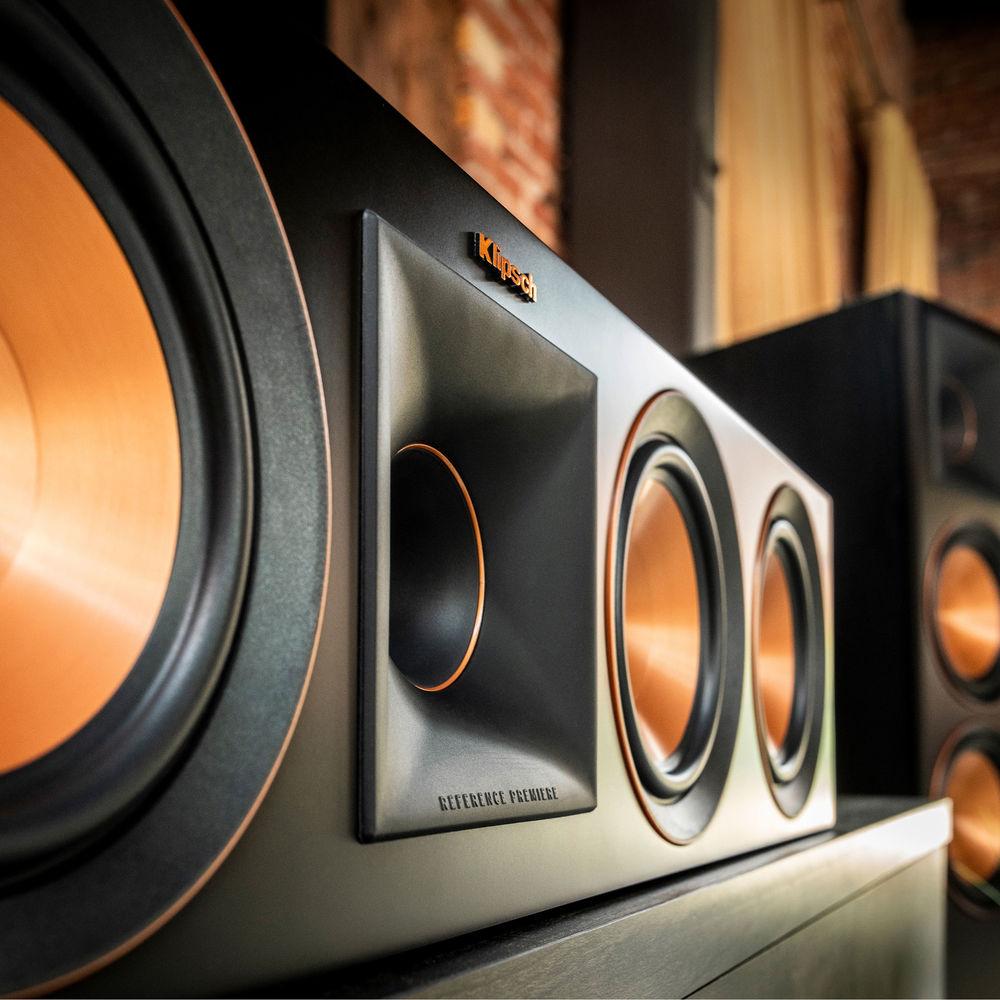

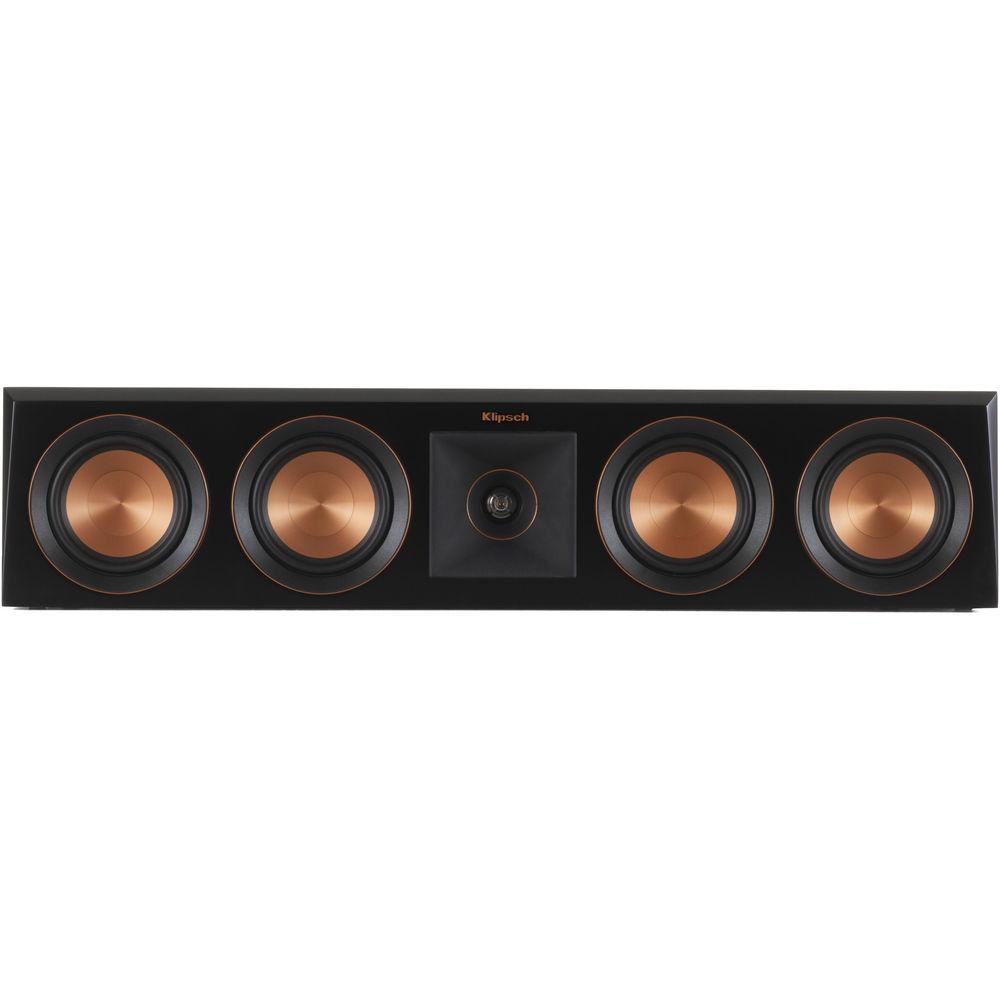

Product description Enjoy enhanced dialogue when you add the walnut Klipsch Reference Premiere RP-404C Center Channel Speaker to your compatible stereo or home theater system. As a center channel speaker, the RP-404C will handle the bulk of the dialogue in your favorite movies and TV shows when used in a traditional home theater setup. It features a 1" LTS vented tweeter paired with a 90 x 90° hybrid cross-section Tractrix horn and two pairs of 4" Cerametallic cone woofers tuned at 500 and 1500 Hz to provide a 59 Hz to 25 kHz frequency response with enhanced bass and midrange reproduction. The RP-404C can handle up to 125W of continuous power from your amplifier of choice. - 90 x 90° Silicone Composite Hybrid Tractrix Horn
- Horn loading helps to maximize efficiency and enhance detail while focusing high frequencies toward the listening area. Tractrix geometry further provides for efficient transfer of high-frequency waves into the listening area. The phase plug and compressed molded silicone face are designed to ensure a smooth frequency response.
- Linear Travel Suspension Titanium Diaphragm Tweeter
- Linear Travel Suspension (LTS) tweeters help minimize distortion for enhanced performance.
- Vented Tweeter Design
- The vented tweeter housing helps reduce standing waves that create unwanted harmonics, further augmenting detail and clarity in high frequency reproduction.
- Spun Copper Cerametallic Woofers
- Cerametallic woofers are designed to be light and rigid to help provide minimal distortion and maximum efficiency. The cones are mated to a dual-layer, copper-wound voice coil for enhanced conductivity and are housed in a non-resonating, stamped-steel basket for augmented efficiency and low distortion.

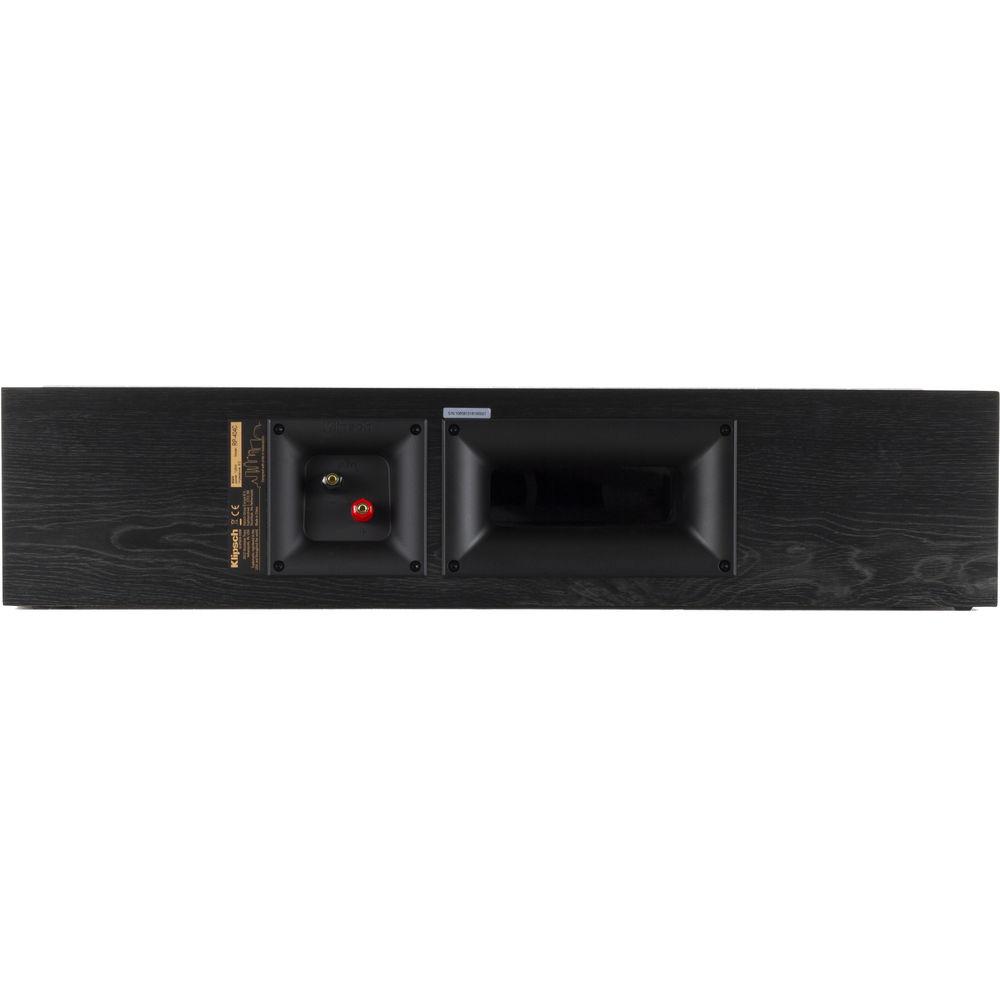

- Tractrix Port
- Utilizing Tractrix geometry, the Reference Premiere port is engineered with inner flares to allow for efficient, fast air transfer from the cabinet to help reduce port noise for punchy low frequencies.
- Dual 5-Way Binding Posts
- The 5-way binding posts accept banana plugs or bare wire up to 12-gauge to provide flexible connectivity options, while the color coding helps simplify setup.

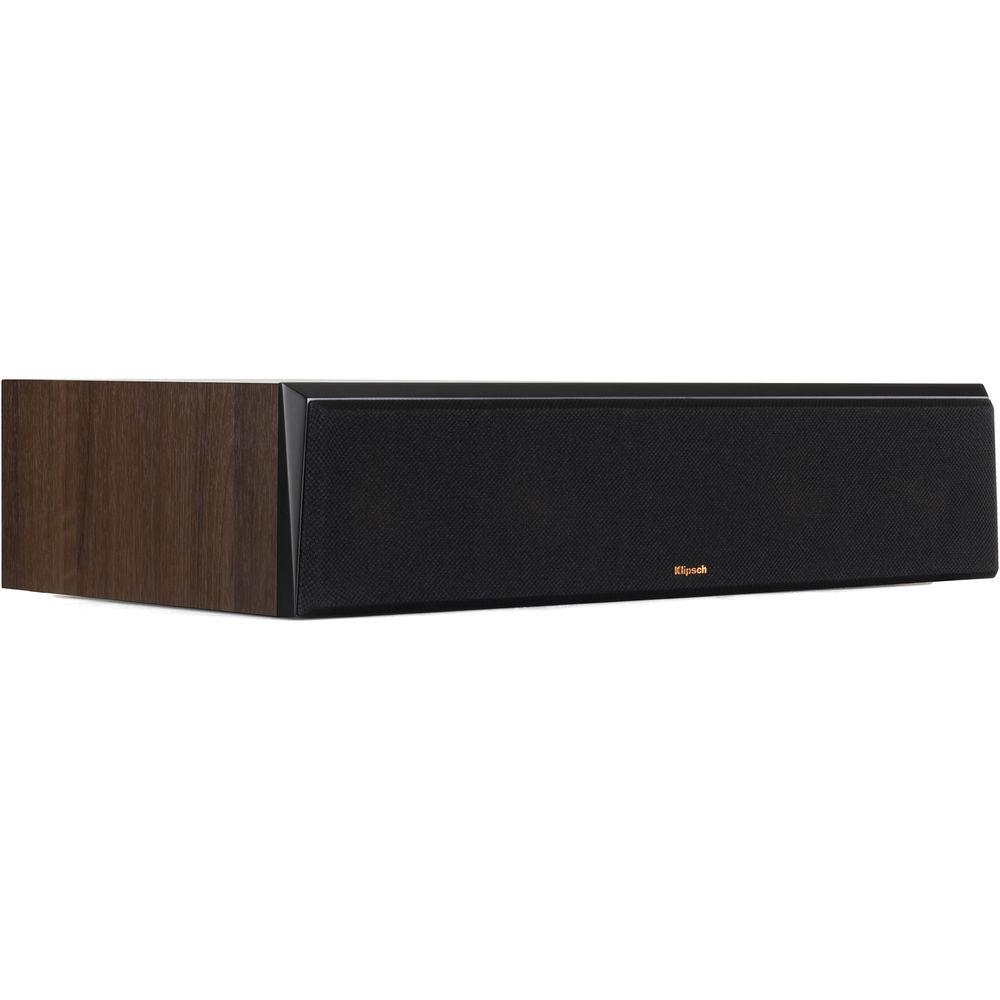

- Scratch-Resistant Vinyl Finish
- This speaker sports a scratch-resistant vinyl finish with a satin-painted baffle designed to integrate into nearly any d
|
Upload User Manual
Have you got an user manual for the Klipsch Reference Premiere RP-404C Center Channel Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKlipsch RP-404C Specs | Frequency Response ± 3dB | 59 Hz to 25 kHz | | Sensitivity | 97 dB @ 2.83 V / 1 m | | Power Handling | RMS: 125 W
Peak: 500 W | | Nominal Impedance | 8 ohms compatible | | Crossover Frequencies | 500 Hz, 1500 Hz | | Woofers | 4x 4" / 101.6 mm Cerametallic cone woofers | | Tweeter | 1x 1" / 25.4 mm titanium LTS vented tweeter | | Horn | Hybrid cross-section Tractrix horn | | Enclosure Material | MDF | | Enclosure Type | Bass reflex via rear-firing Tractrix port | | Inputs | 1 x 5-way binding post pair | | Dimensions (W x H x D) | 26 x 5.7 x 13" / 66.04 x 14.39 x 33.02 cm | | Weight | 28 lb / 12.7 kg |
