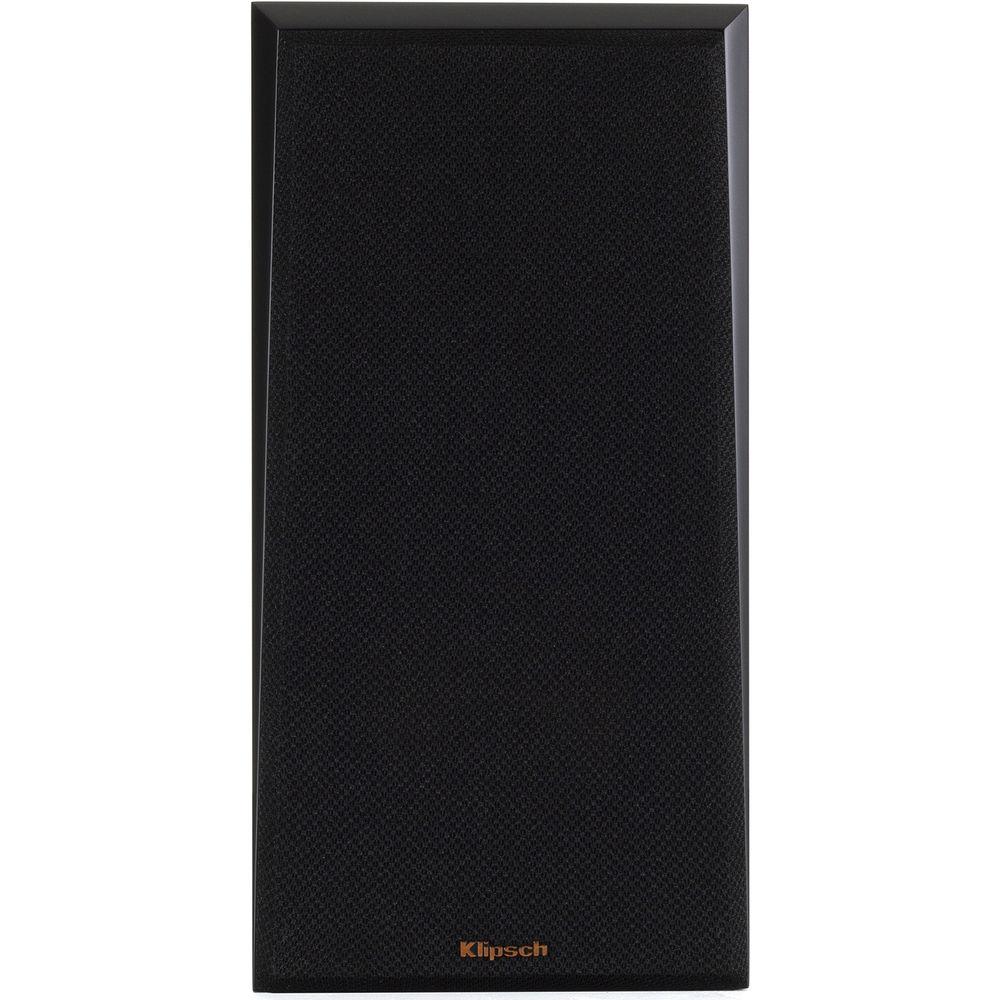

User Manual for Klipsch Reference Premiere RP-500M 2-Way Bookshelf Speaker Click to enlarge the picture
Contents of the user manual for the Klipsch Reference Premiere RP-500M 2-Way Bookshelf
- Product category: Bookshelf Speakers Klipsch
- Brand: Klipsch
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Klipsch Bookshelf Speakers
 |
User manual for the Klipsch Reference Premiere RP-500M 2-Way Bookshelf contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Klipsch product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Klipsch user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Klipsch product will considerably shorten its lifespan!
|

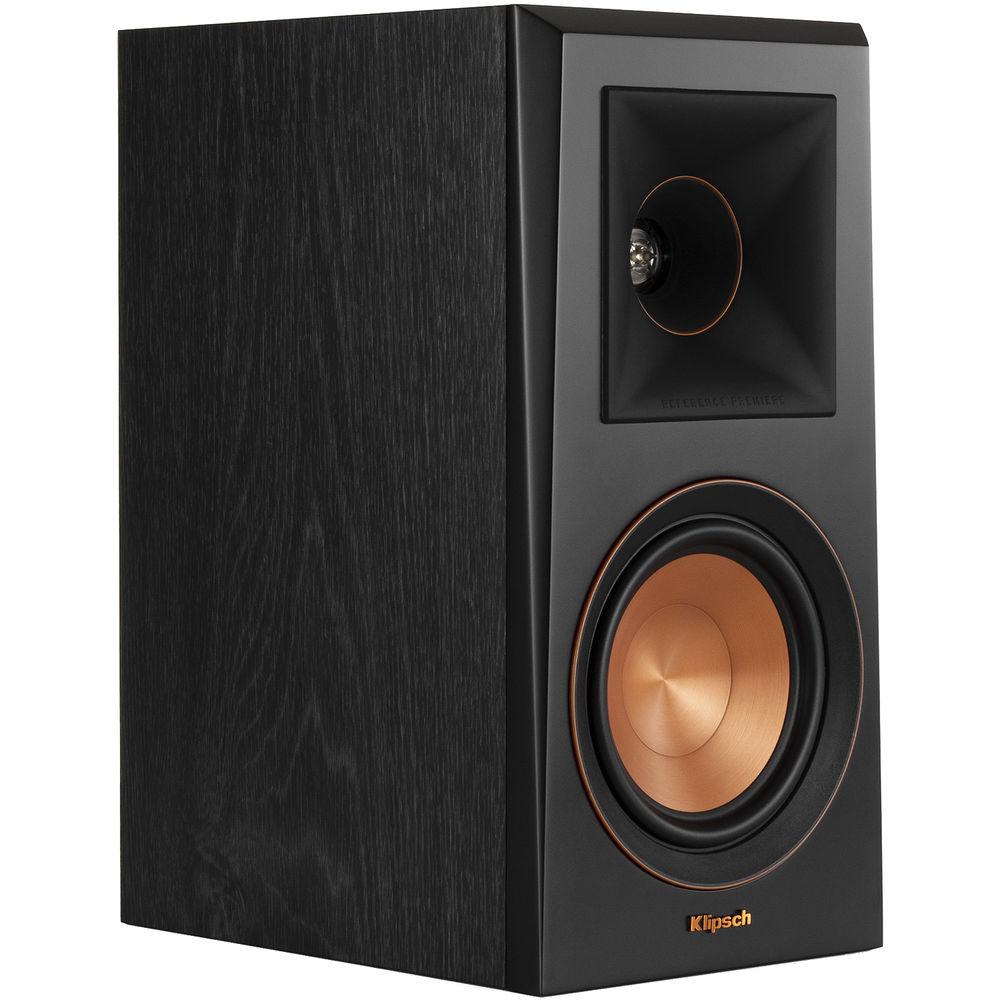

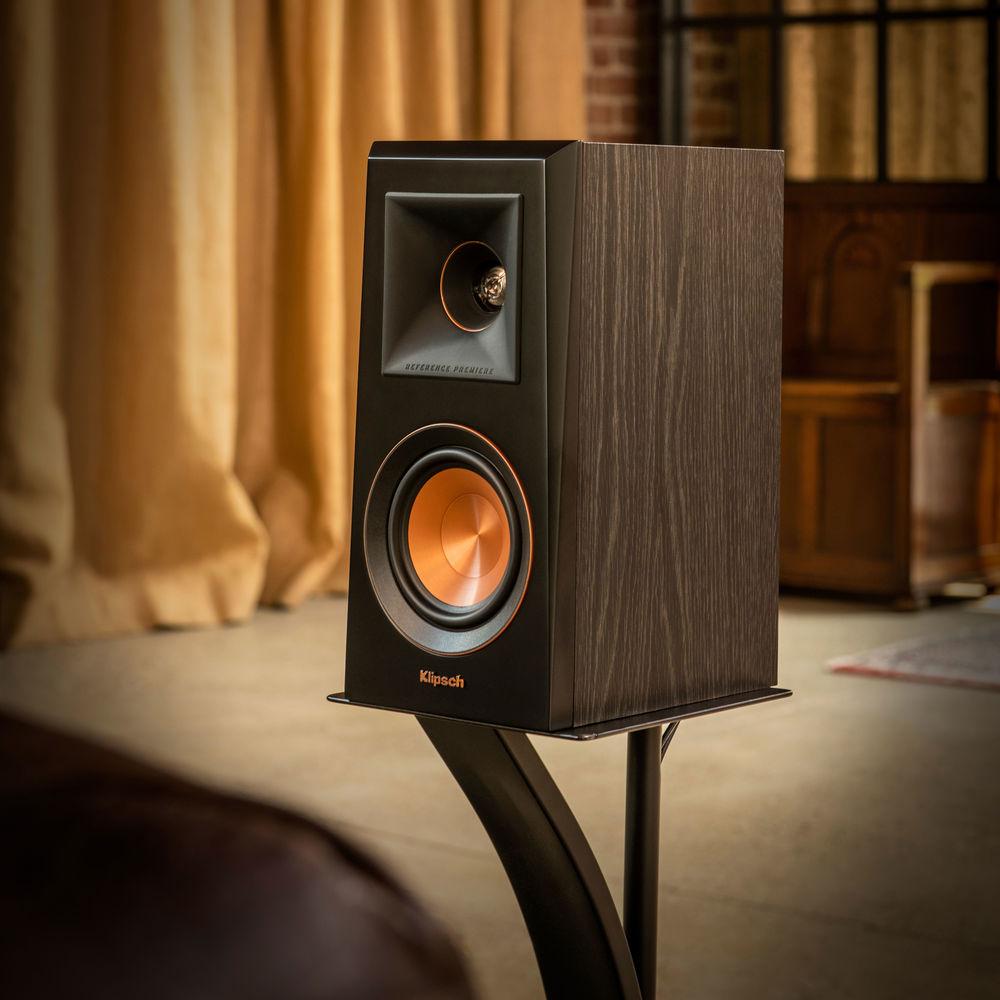

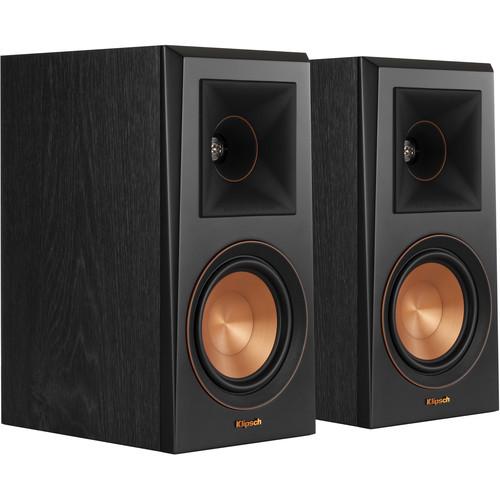

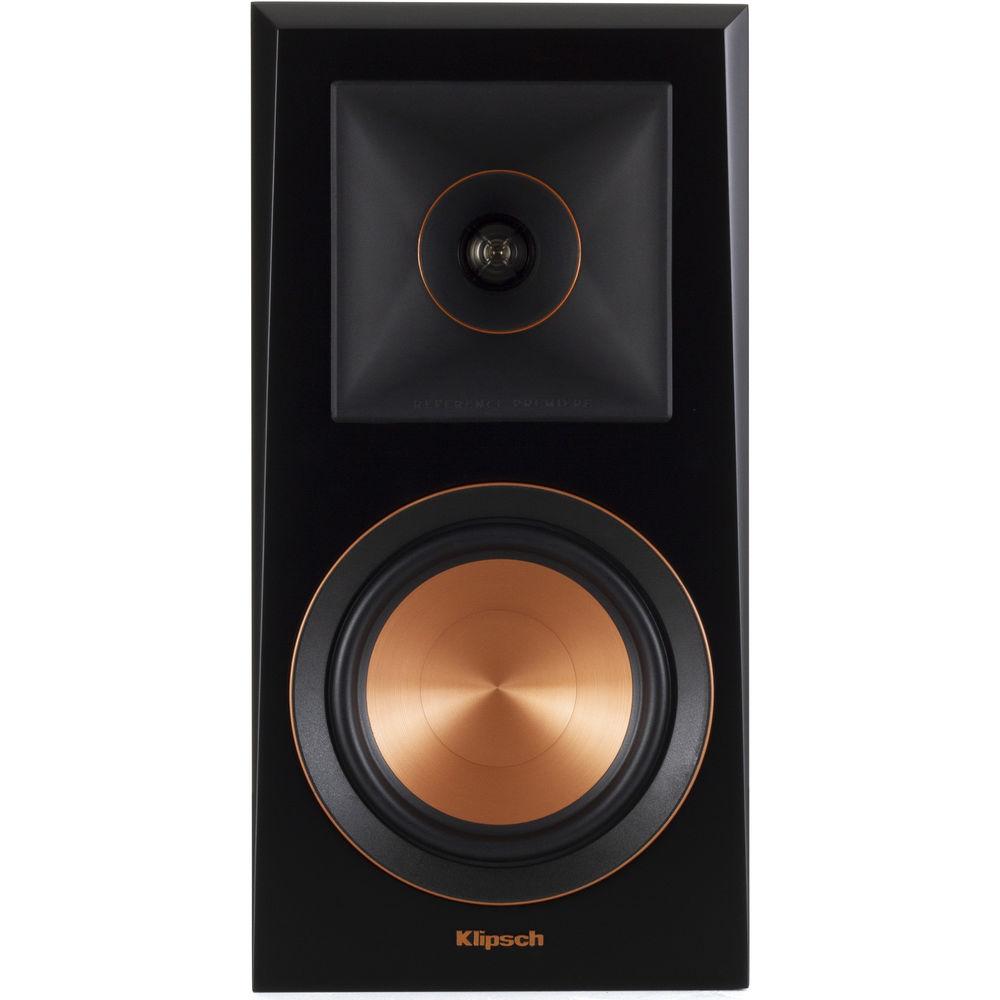

Product description Bring pure, natural sound to your home theater with this pair of ebony Reference Premiere RP-500M 2-Way Bookshelf Speakers from Klipsch. Featuring a two-way speaker design, each RP-500M incorporates a 1" titanium LTS vented tweeter paired with a hybrid Tractrix horn and a 5.25" spun copper Cerametallic woofer. The RP-500M delivers a frequency response of 48 Hz to 25 kHz and can handle up to 75W of continuous power from your amplifier of choice. - 90 x 90° Silicon Composite Hybrid Tractrix Horn
- The RP-500M incorporates a Tractrix horn designed to enhance efficiency and increase detail while focusing high frequencies towards the listening area. The horn uses a phase plug and a compressed molded silicone face to ensure smooth frequency response and deliver clean, natural sound.
- Linear Travel Suspension (LTS) Titanium Diaphragm Tweeter
- The speaker's design includes a Linear Travel Suspension tweeter that minimizes distortion for enhanced, detailed performance.
- Vented Tweeter Design
- The vented tweeter housing reduces standing waves that create unwanted harmonics. This tweeter design results in enhanced detail and clarity in high-frequency reproduction.
- Spun Copper Cerametallic Woofer
- The RP-500M's Cerametallic woofer combines high rigidity with a lightweight construction to minimize distortion. It pairs seamlessly with the Tractrix horn-loaded LTS tweeter to deliver enhanced speaker efficiency.

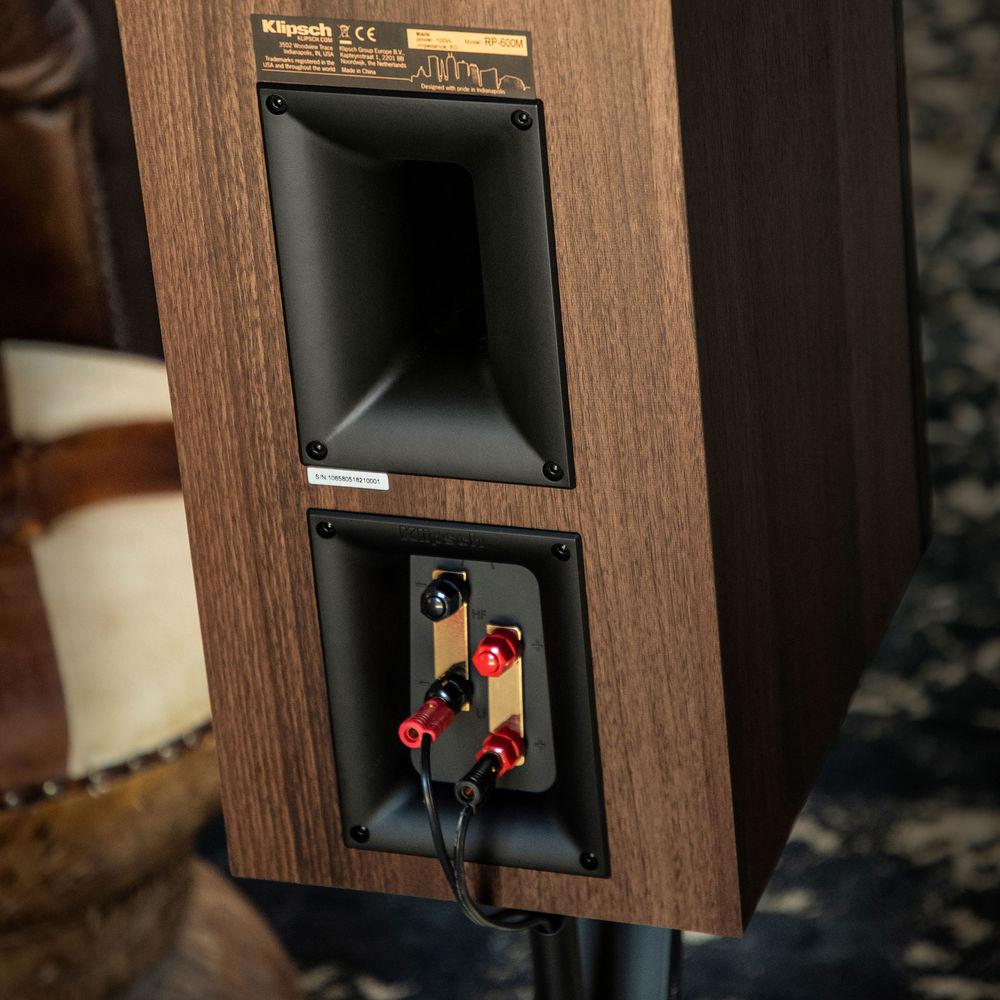

- Robust Input Terminals
- The RP-500M's 5-way screw terminal pair accepts banana plugs or bare wire up to 12-gauge for a flexible, lasting connection. To facilitate setup, the terminals are color coded.

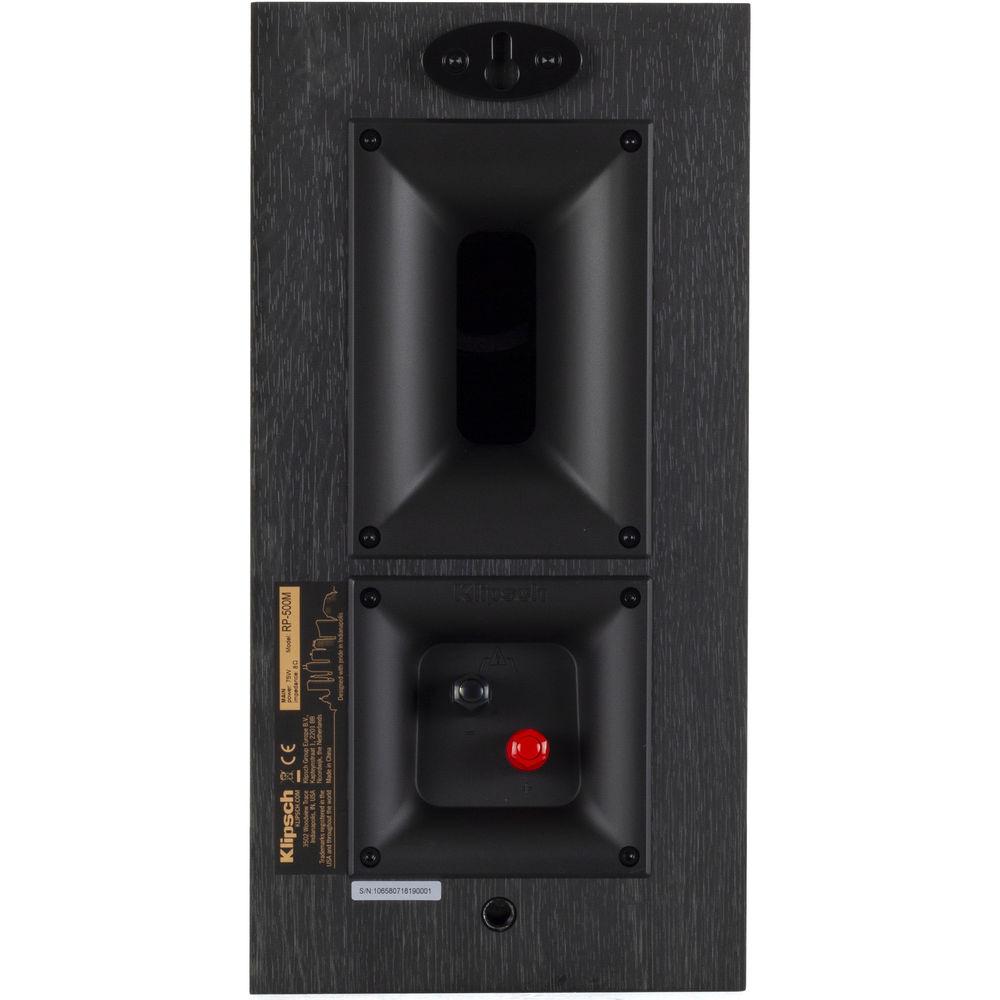

- Tractrix Port
- Using Tractrix geometry, the RP-500M's port allows for efficient, fast air transfer from the cabinet, reducing port noise and resulting in punchier low frequencies. Inner flares help reduce air turbulence entering the port for cleaner, more powerful bass.
- Furniture-Grade Materials and Finishes
- The speaker cabinet boasts an ebony vinyl finish, as well as satin-painted baffles with a scratch-resistant finish.

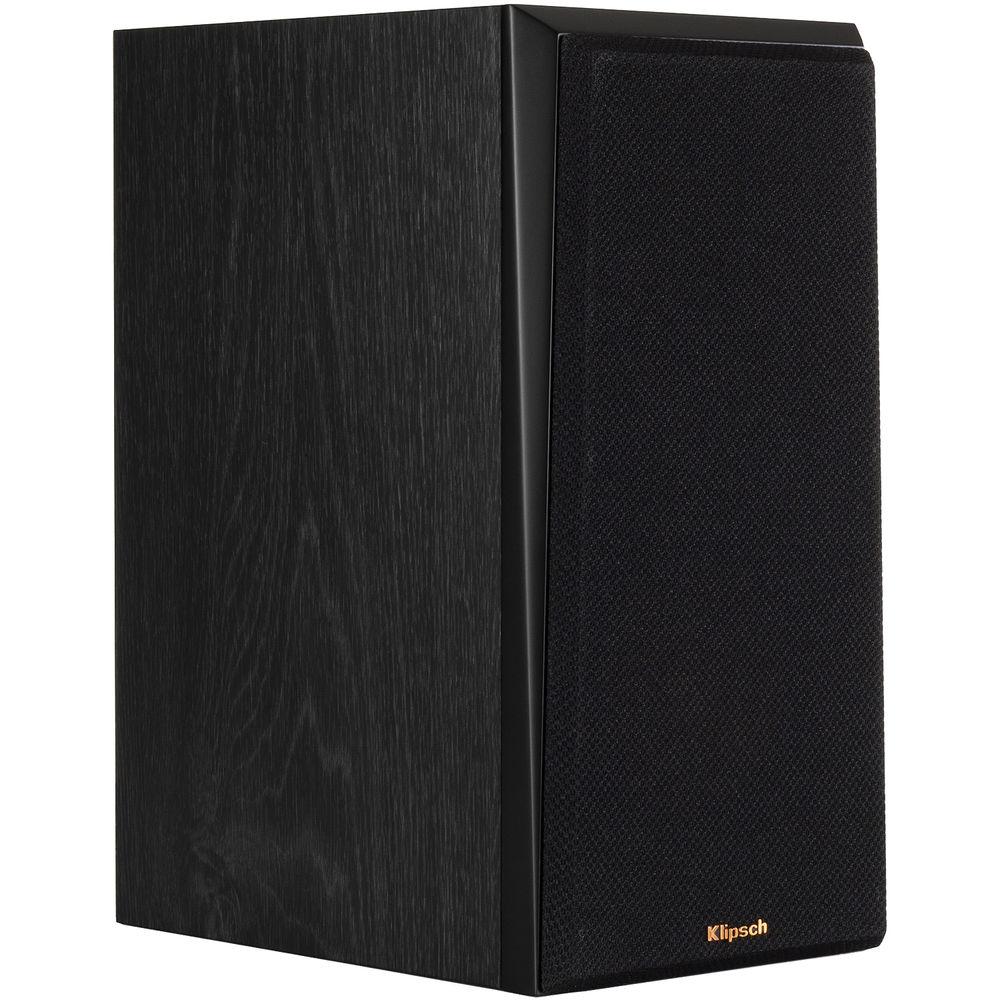

- Strong, Flexible, Removable Grille
- The speaker's strong and flexible magnetic grille can be easily mounted/removed.
- Design Details
- The RP-500M's design includes copper anodized trim rings, satin painted baffles, and a laser-etched logo.
UPC: 743878035735 In the Box Klipsch Reference Premiere RP-500M 2-Way Bookshelf Speaker (Pair, Ebony) 8 x Rubber Feet Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Klipsch Reference Premiere RP-500M 2-Way Bookshelf Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKlipsch RP-500M Specs | Frequency Response ± 3dB | 48 Hz to 25 kHz | | Sensitivity | At 3.3' / 1 m (2.83 V): 93 dB | | Power Handling | RMS: 75 W
Peak: 300 W | | Nominal Impedance | 8-Ohm Compatible | | Crossover Frequency | 1500 Hz | | High Frequency Horn | Hybrid Cross-Section Tractrix Horn | | High Frequency Driver | 1" / 2.54 cm Titanium LTS Vented Tweeter | | Low Frequency Driver | 5.25" / 13.3 cm Cerametallic Cone Woofer | | Enclosure Material | MDF | | Enclosure Type | Bass Reflex via Rear-Firing Tractrix Port | | Inputs | Binding Post Pair | | Dimensions | 13.5 x 6.8 x 9.5" / 34.3 x 17.3 x 24.1 cm | | Weight | 12 lb / 5.4 kg | | | | Package Weight | 29.81 lb | | Box Dimensions (LxWxH) | 19.2 x 17.7 x 14.2" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 02 owners. Add your rating and experience with the product.
