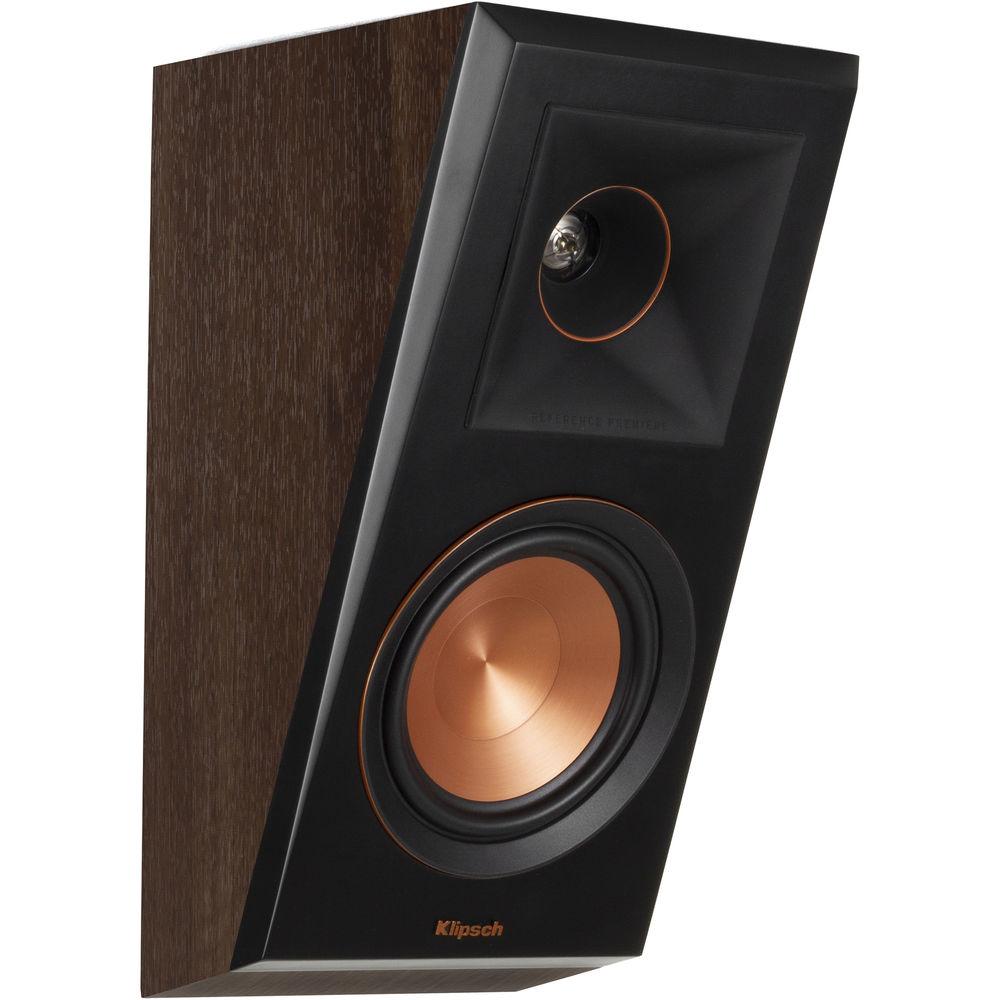

User Manual for Klipsch Reference Premiere RP-500SA Dolby Atmos 2-Way Elevation Surround Speaker Click to enlarge the picture
Contents of the user manual for the Klipsch Reference Premiere RP-500SA Dolby Atmos
- Product category: Atmos Add-on Speakers Klipsch
- Brand: Klipsch
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Klipsch Atmos Add-on Speakers
 |
User manual for the Klipsch Reference Premiere RP-500SA Dolby Atmos contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Klipsch product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Klipsch user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Klipsch product will considerably shorten its lifespan!
|

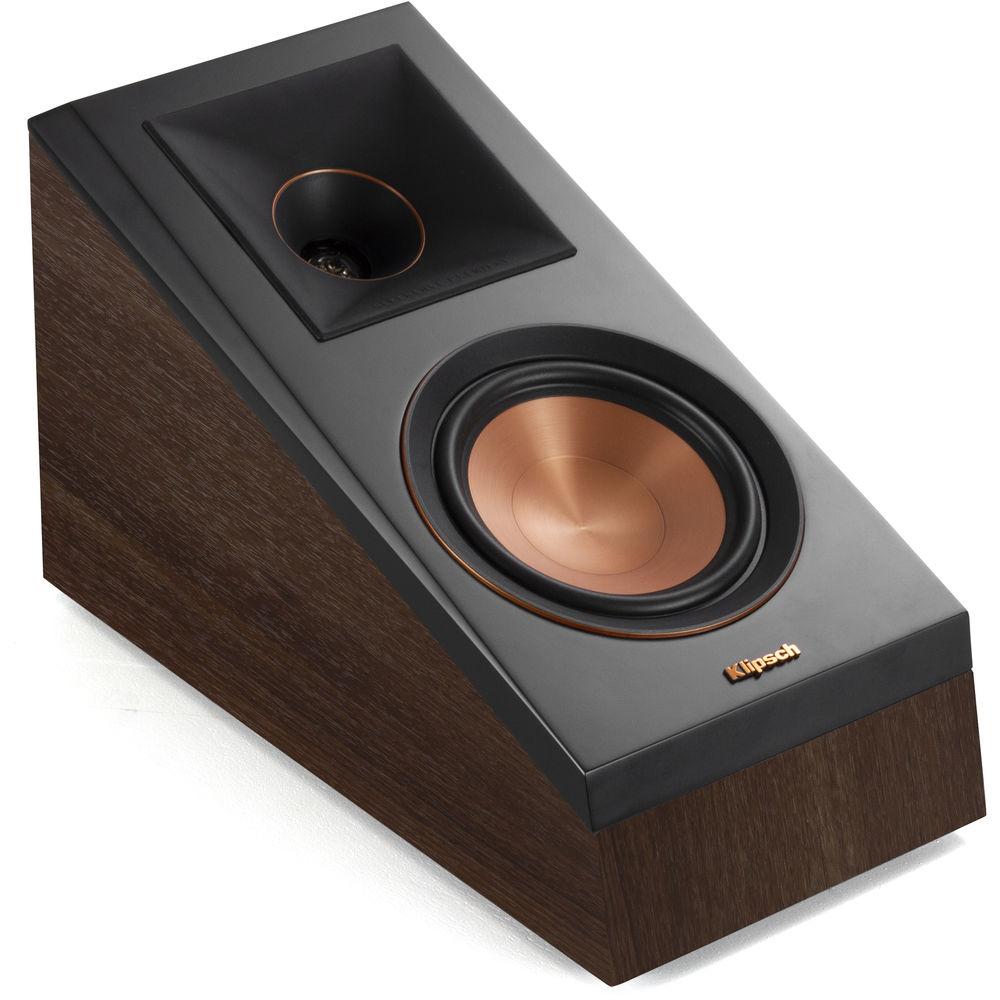

Product description Bring pure, natural overhead sound to your home theater with this pair of walnut Reference Premiere RP-500SA Dolby Atmos 2-Way Elevation/Surround Speakers from Klipsch. Featuring horn-loaded controlled directivity technology, the RP-500SA bounces sound off the ceiling to create an immersive listening experience. The Reference Premiere 500SA can also be used as an on-wall elevation or surround speaker via its easy-to-use keyhole mounting system.

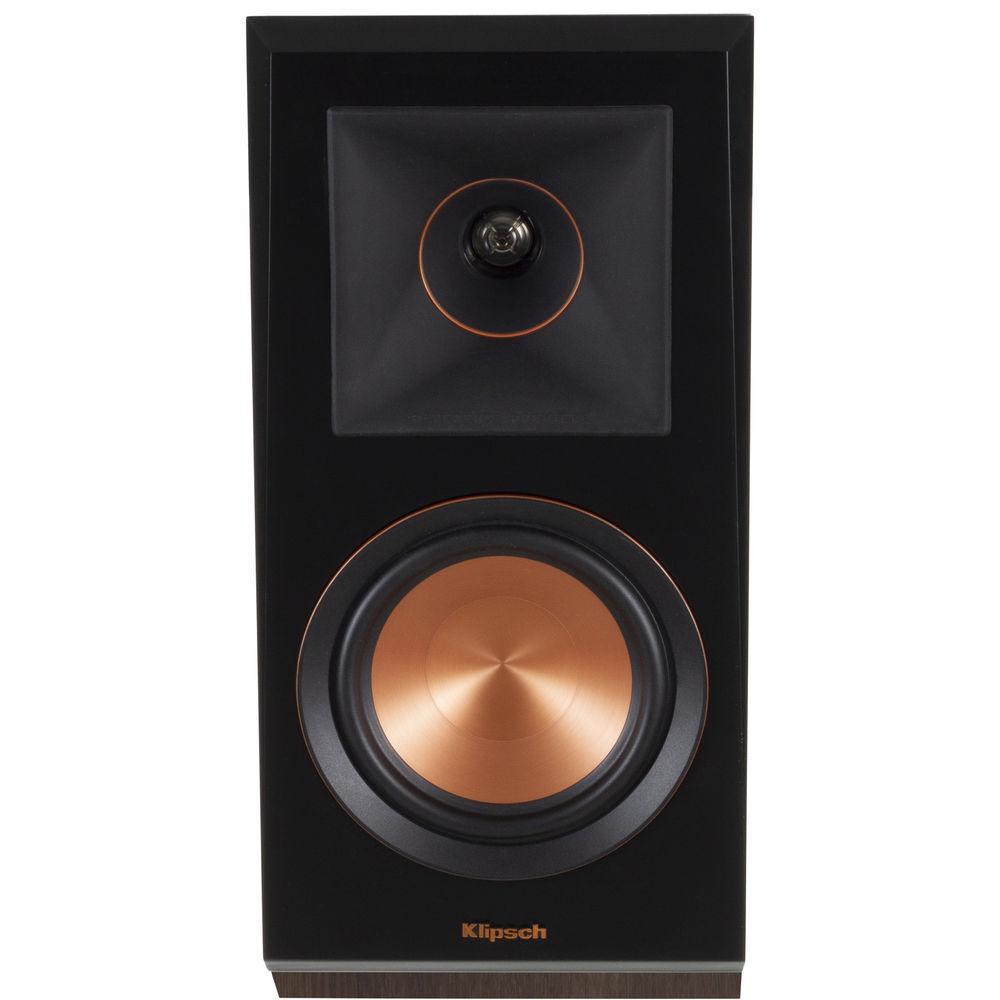

Featuring a two-way speaker design, each RP-500SA incorporates a 1" titanium LTS vented tweeter paired with a hybrid Tractrix horn and a 5.25" spun copper Cerametallic woofer. The RP-500SA conforms to Dolby Atmos specifications and can handle up to 75W of continuous power from your amplifier of choice. - Versatile Surround Speaker
- The RP-500SA can be used as an up-firing immersive speaker for Dolby Atmos technology, as a height speaker, or as a rear surround speaker. The speaker pair can sit atop monitors or tower speakers, or be used as a surround speakers for a hemisphere of rich, detailed sound.
- Dolby Atmos-Certified Elevation Speaker
- The RP-500SA is tested and approved by Dolby Labs to faithfully reproduce Dolby Atmos elevation effects for a cinematic listening experience.
- Switchable Crossover
- The RP-500SA features a switchable crossover that changes between Atmos and Surround speaker modes. This allows for optimized performance as either a Dolby Atmos elevation speaker or a wall-mounted side or rear surround speaker.
- 90 x 90° Silicone Composite Hybrid Tractrix Horn
- The RP-500SA incorporates a Tractrix horn designed to enhance efficiency and increase detail while focusing high frequencies towards the listening area. The horn uses a phase plug and a compressed molded silicone face to ensure smooth frequency response and deliver clean, natural sound.
- Linear Travel Suspension (LTS) Titanium Diaphragm Tweeter
- The speaker's design includes a Linear Travel Suspension tweeter that minimizes distortion for enhanced, detailed performance.
- Vented Tweeter Design
- The vented tweeter housing reduces standing waves that create unwanted harmonics. This tweeter design results in enhanced detail and clarity in high-frequency reproduction.
- Spun Copper Cerametallic Woofer
- The RP-500SA's Cerametallic woofer combines high rigidity with a lightweight construction to minimize distortion. It pairs seamlessly with the Tractrix horn-loaded LTS tweeter to deliver enhanced speaker efficiency.
- Furniture-Grade Materials and Finishes
- The speaker cabinet boasts a walnut vinyl finish, as well as satin-painted baffle with a scratch-resistant finish.

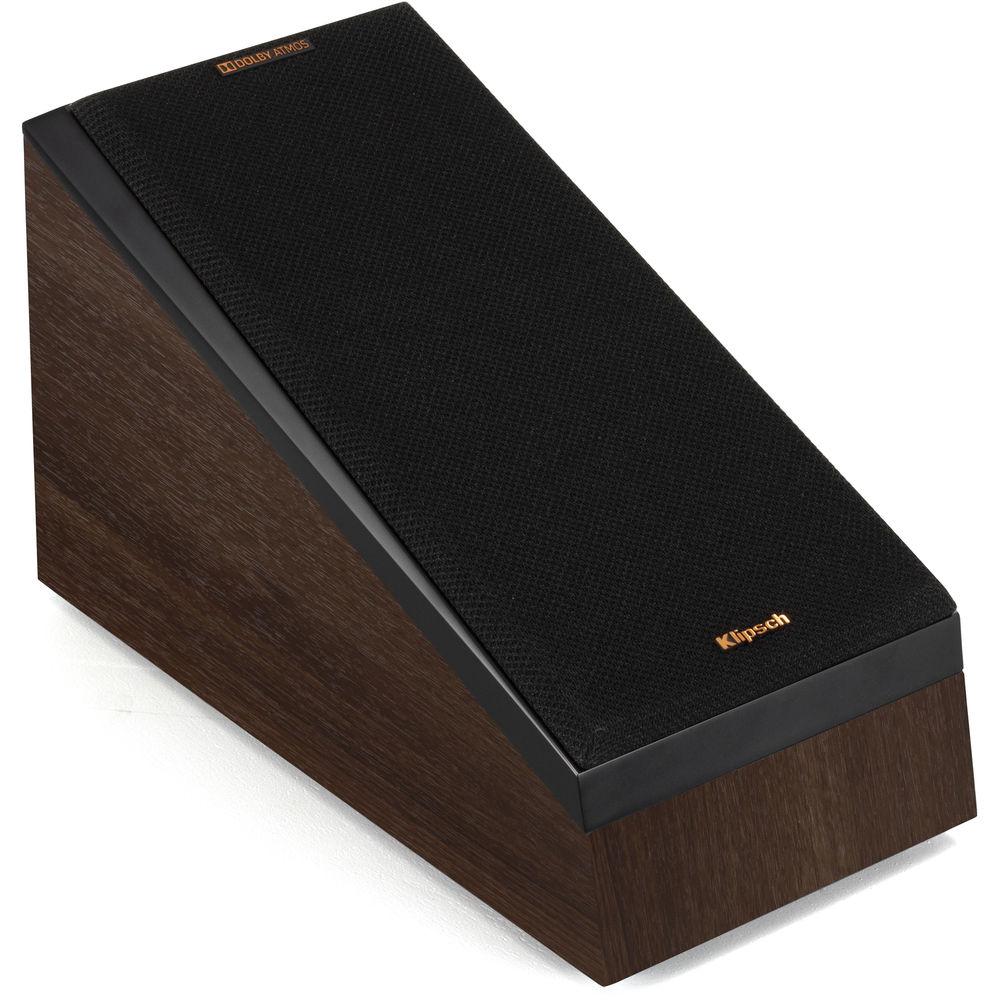

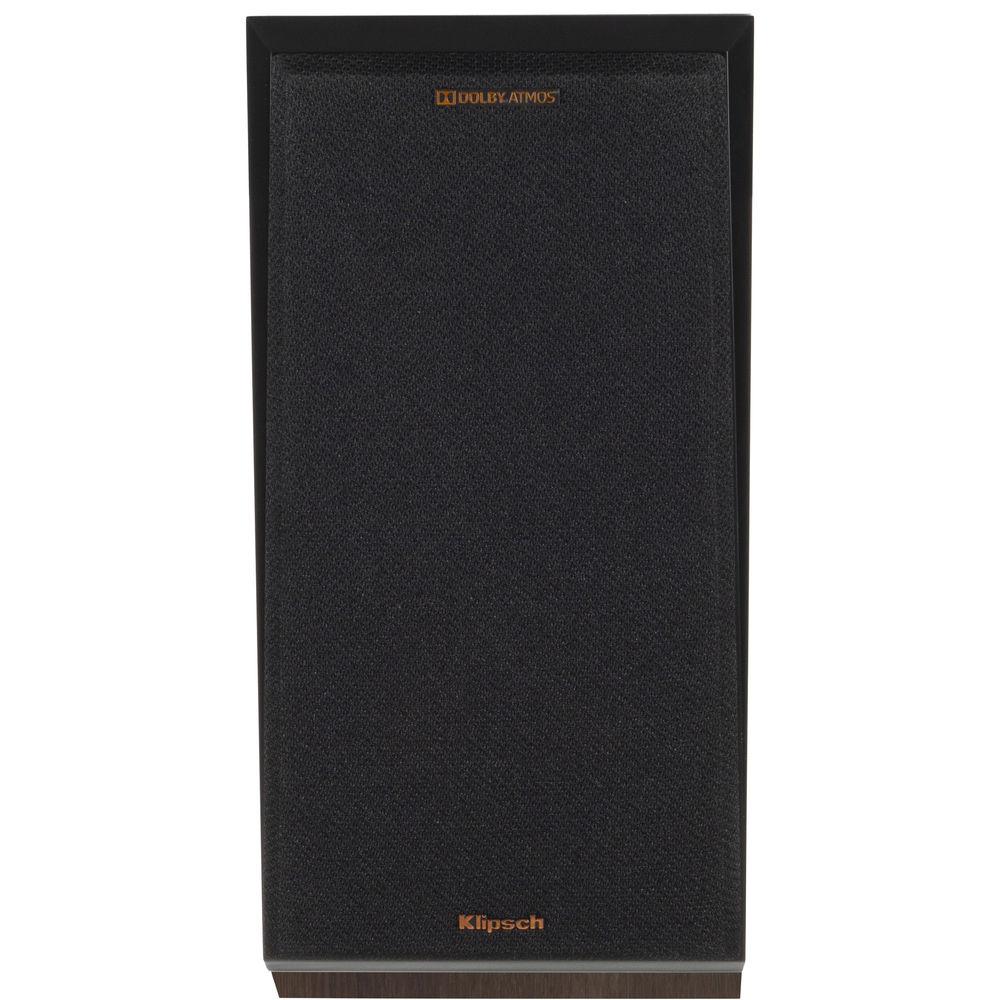

- Strong, Flexible, Removable Grille
- The RP-500SA's strong and flexible magnetic grille can be easily mounted/removed.
UPC: 743878036510 In the Box Klipsch Reference Premiere RP-500SA Dolby Atmos 2-Way Elevation/Surround Speaker (Pair, Walnut) 2 x Speaker Grilles Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Klipsch Reference Premiere RP-500SA Dolby Atmos 2-Way Elevation Surround Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKlipsch RP-500SA Specs | Frequency Response | Conforms to Dolby Atmos Specification | | Sensitivity | Conforms to Dolby Atmos Specification | | Power Handling | RMS: 75 W
Peak: 300 W | | Nominal Impedance | 8-Ohm Compatible | | Crossover Frequency | Conforms to Dolby Atmos Specification | | High Frequency Horn | Hybrid Cross-Section Tractrix Horn | | High Frequency Driver | 1" / 2.54 cm Titanium LTS Vented Tweeter | | Low Frequency Driver | 5.25" / 13.3 cm Cerametallic Cone Woofer | | Enclosure Material | MDF | | Enclosure Type | Sealed | | Inputs | Single Binding Post | | Dimensions | 7.39 x 6.81 x 11.16" / 18.8 x 17.3 x 28.4 cm | | Weight | 8 lb / 3.6 kg | | | | Package Weight | 22.95 lb | | Box Dimensions (LxWxH) | 17.8 x 17.0 x 11.0" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 32 owners. Add your rating and experience with the product.
