User Manual for Klipsch Reference Premiere RP-504C 2.5-Way Center Channel Speaker Click to enlarge the picture
Contents of the user manual for the Klipsch Reference Premiere RP-504C 2.5-Way Center
- Product category: Center Channel Speakers Klipsch
- Brand: Klipsch
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Klipsch Center Channel Speakers
 |
User manual for the Klipsch Reference Premiere RP-504C 2.5-Way Center contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Klipsch product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Klipsch user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Klipsch product will considerably shorten its lifespan!
|

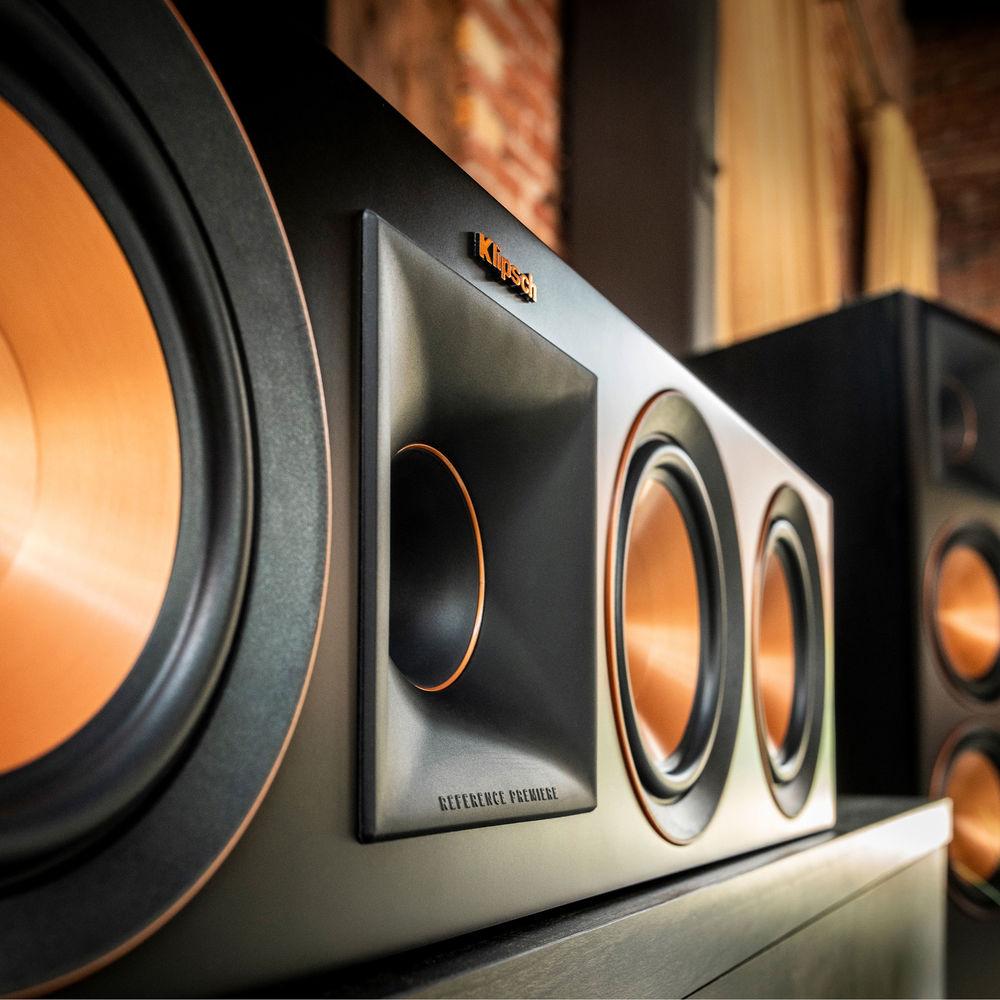

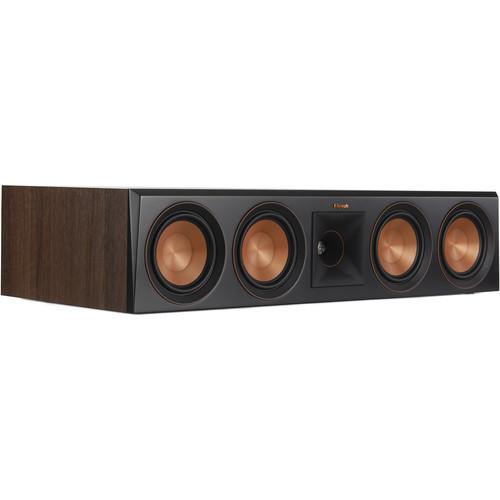

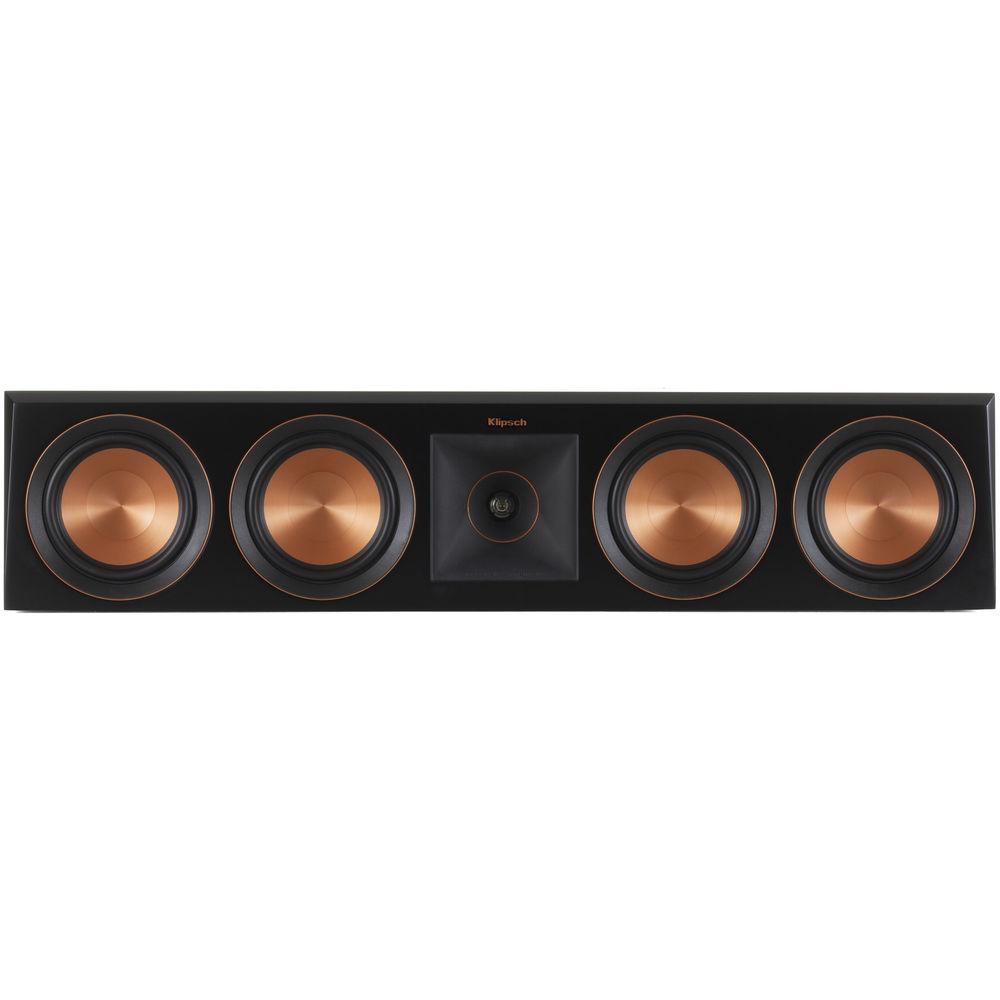

Product description Enjoy enhanced vocal quality when you add the walnut Klipsch Reference Premiere RP-504C 2.5-Way Center Channel Speaker to your home theater system. As a center-channel speaker, the Reference Premiere RP-504C will handle the bulk of the dialogue in your favorite movies and TV shows when used in a traditional home theater setup. It features a 1" LTS tweeter paired with a 90 x 90° Tractrix horn and four 5.25" copper-spun IMG woofers to provide a 58 Hz to 25 kHz frequency response. Each woofer pair is tuned to a different crossover frequency to provide enhanced bass and midrange audio reproduction. It can handle up to 150W of continuous power from your amplifier of choice. - 90 x 90° Silicone Composite Hybrid Tractrix Horn
- Tractrix geometry is designed to provide an efficient transfer of high-frequency waves into the listening area. The phase plug and compressed molded silicone face help ensure smooth frequency response for natural sound.
- Linear Travel Suspension (LTS) Titanium-Diaphragm Tweeter
- This tweeter design helps minimize distortion for enhanced, detailed performance.
- Vented Tweeter Design
- The vented tweeter housing is engineered to reduce standing waves that create unwanted harmonics, resulting in augmented detail and clarity in high-frequency reproduction.
- Spun-Copper Cerametallic Woofers
- These woofers are designed to be rigid, yet lightweight, for minimal distortion and enhanced efficiency. The cones are mated to a dual-layer, copper-wound voice coil for augmented conductivity. The woofers are also housed in a non-resonating, stamped-steel basket that's secured to a large magnet motor to help improve efficiency and reduce distortion, and are matched to the horn-loaded tweeter.

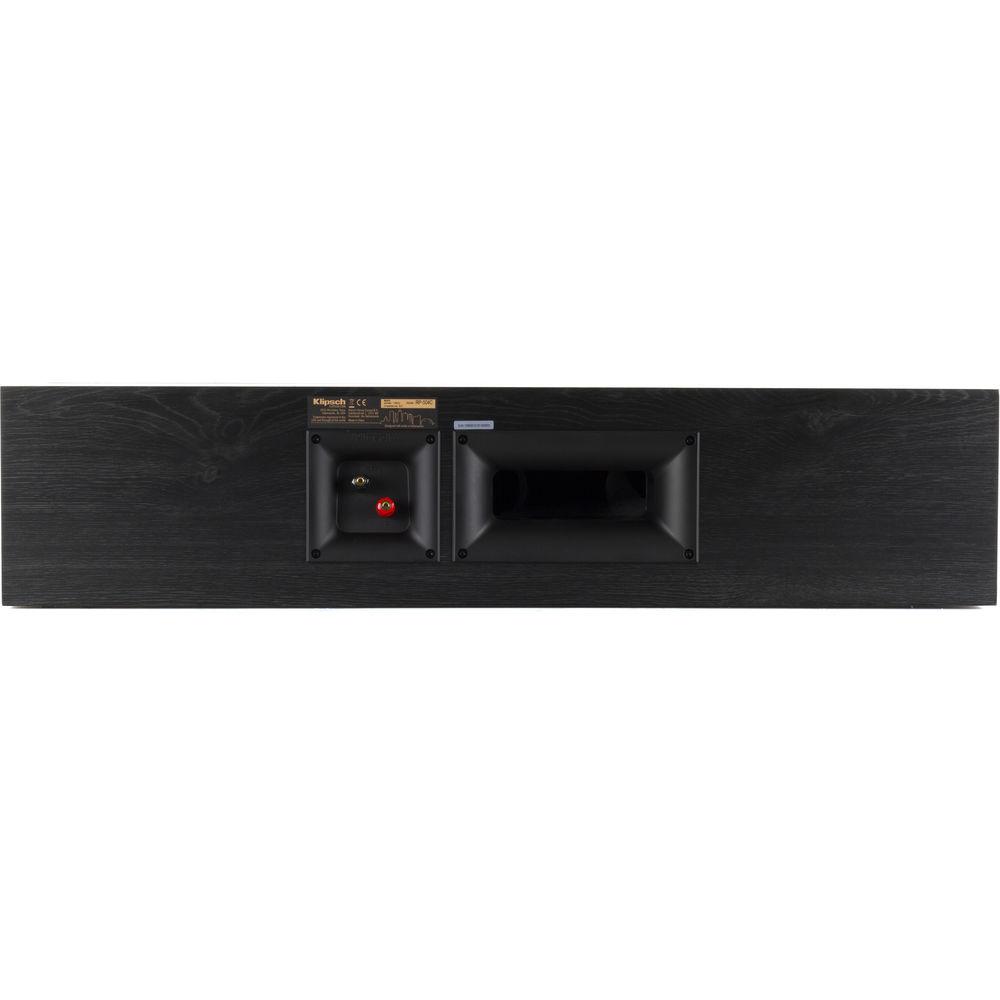

- Tractrix Port
- Utilizing Tractrix geometry, this port helps provide efficient, fast air transfer from the cabinet, reducing port noise for punchy low frequencies. The Tractrix port has inner flares that help reduce air turbulence entering the port for cleaner, more powerful bass.
- 5-Way Binding Posts
- The binding posts accept banana plugs or bare wire up to 12-gauge to provide flexible connection options, while color-coding offers easy setup and connection.

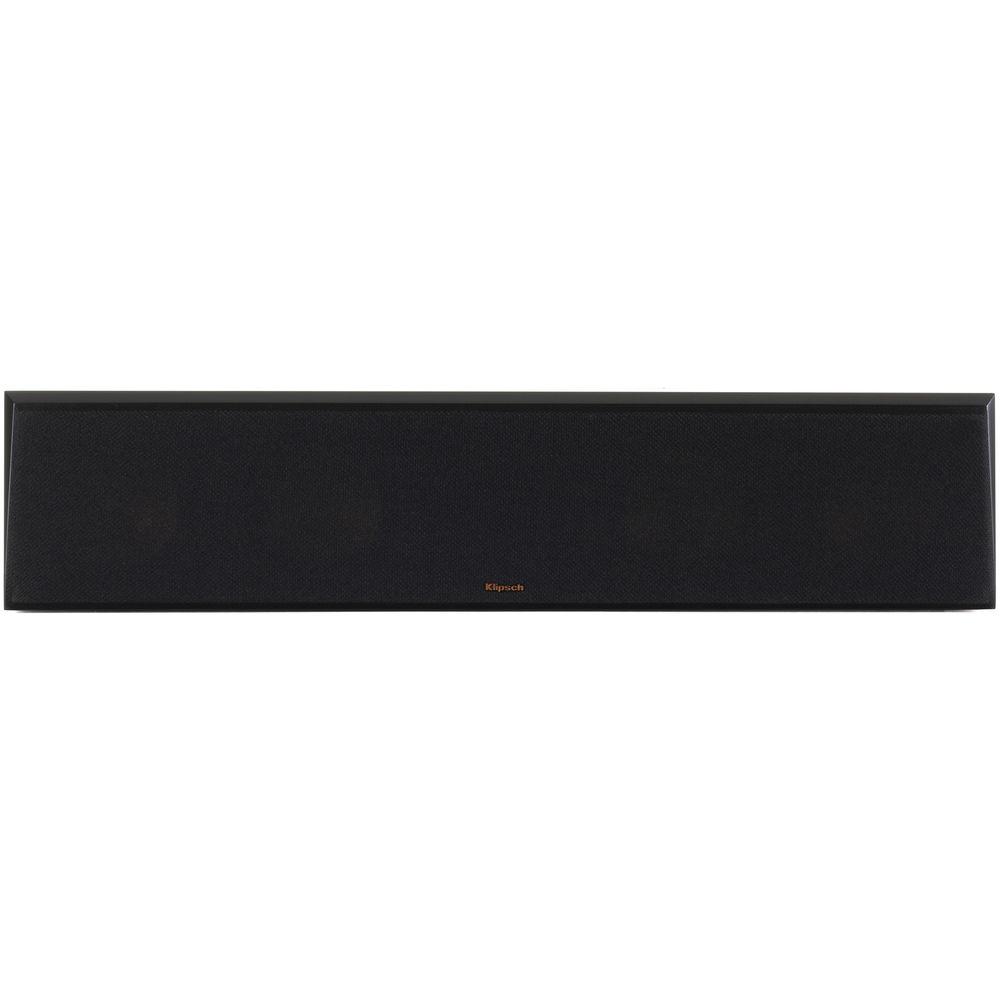

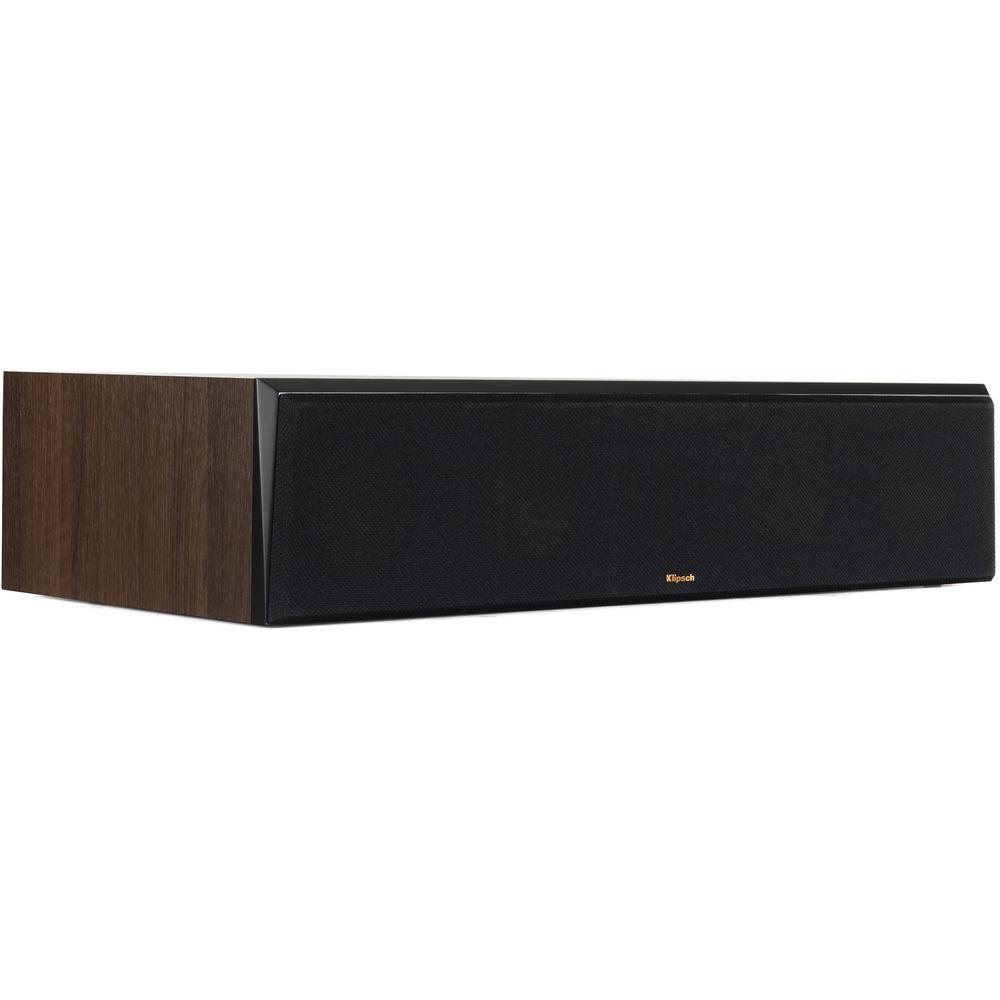

- Flexible, Removable Grille
- The grille attaches magnetically for easy attachment and removal.
- Aesthetic Features
-
- Satin-painted baffles with a scratch-resistant finish
- Copper-anodized trim rings
- Cast-aluminum feet
- Laser-etched logo treatment
UPC: 743878035780 In the Box Klipsch Reference Premiere RP-504C 2.5-Way Center Channel Speaker (Walnut) Grille Rubber Bumpers Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Klipsch Reference Premiere RP-504C 2.5-Way Center Channel Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKlipsch RP-504C Specs | Frequency Response ± 3dB | 58 Hz to 25 kHz | | Sensitivity | 97 dB @ 2.83 V / 1 m | | Power Handling | RMS: 150 W
Peak: 600 W | | Nominal Impedance | 8-Ohm Compatible | | Crossover Frequencies | 500 Hz, 1500 Hz | | Low Frequency Drivers | 4x 5.25" / 13.34 cm Cerametallic Cone Woofers | | High Frequency Driver | 1x 1" / 2.5 cm Titanium LTS Vented Tweeter | | Horn | 90 x 90° Silicone Composite Hybrid Cross-Section Tractrix Horn | | Enclosure Material | MDF | | Enclosure Type | Bass Reflex via Rear-Firing Tractrix Port | | Inputs | 1 x 5-Way Binding Post Pair | | Dimensions (W x H x D) | 31.13 x 6.81 x 14.46" / 79.1 x 17.3 x 36.7 cm | | Weight | 34 lb / 15.4 kg | | | | Package Weight | 40.56 lb | | Box Dimensions (LxWxH) | 35.12 x 18.13 x 11.12" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 64 owners. Add your rating and experience with the product.
