User Manual for Klipsch Reference Premiere RP-6000F 2-Way Floorstanding Speaker Click to enlarge the picture
Contents of the user manual for the Klipsch Reference Premiere RP-6000F 2-Way Floorstanding
- Product category: Floorstanding Speakers Klipsch
- Brand: Klipsch
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Klipsch Floorstanding Speakers
 |
User manual for the Klipsch Reference Premiere RP-6000F 2-Way Floorstanding contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Klipsch product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Klipsch user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Klipsch product will considerably shorten its lifespan!
|

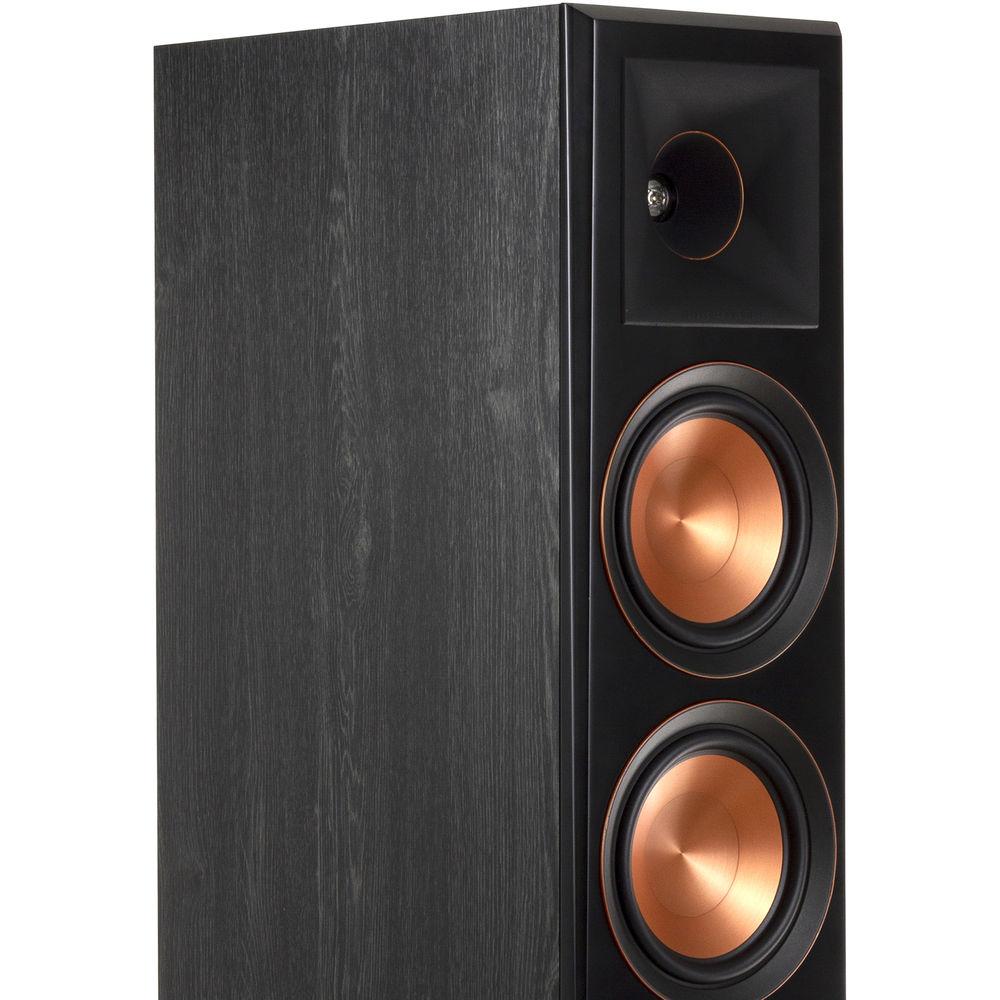

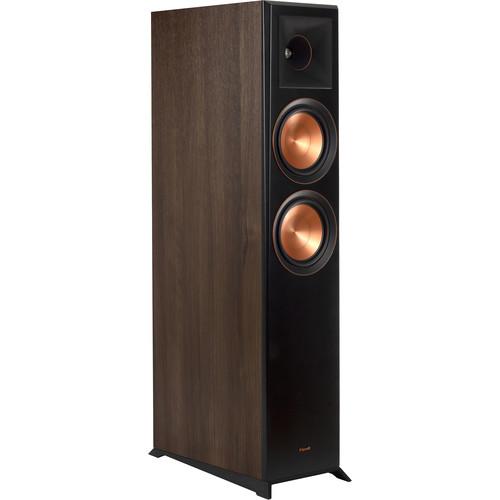

Product description Bring pure, natural sound to your home theater with the walnut Reference Premiere RP-6000F 2-Way Floorstanding Speaker from Klipsch. Featuring a 1" titanium LTS vented tweeter paired with a hybrid Tractrix horn and two 6.5" spun copper Cerametallic woofers, this floorstanding speaker delivers a frequency response of 34 Hz to 25 kHz. It can handle up to 125W of continuous power from your amplifier of choice. - 90 x 90° Silicone Composite Hybrid Tractrix Horn
- The RP-6000F incorporates a Tractrix horn designed to enhance efficiency and increase detail while focusing high frequencies towards the listening area. The horn uses a phase plug and a compressed molded silicone face to ensure smooth frequency response and deliver clean, natural sound.
- Linear Travel Suspension (LTS) Titanium Diaphragm Tweeter
- The speaker's design includes a Linear Travel Suspension tweeter that minimizes distortion for enhanced, detailed performance.
- Vented Tweeter Design
- The vented tweeter housing reduces standing waves that create unwanted harmonics. This tweeter design results in enhanced detail and clarity in high-frequency reproduction.
- Spun Copper Cerametallic Woofers
- The RP-6000F's Cerametallic woofers combine high rigidity with a lightweight construction to minimize distortion. They pair seamlessly with the Tractrix horn-loaded LTS tweeter to deliver enhanced speaker efficiency.

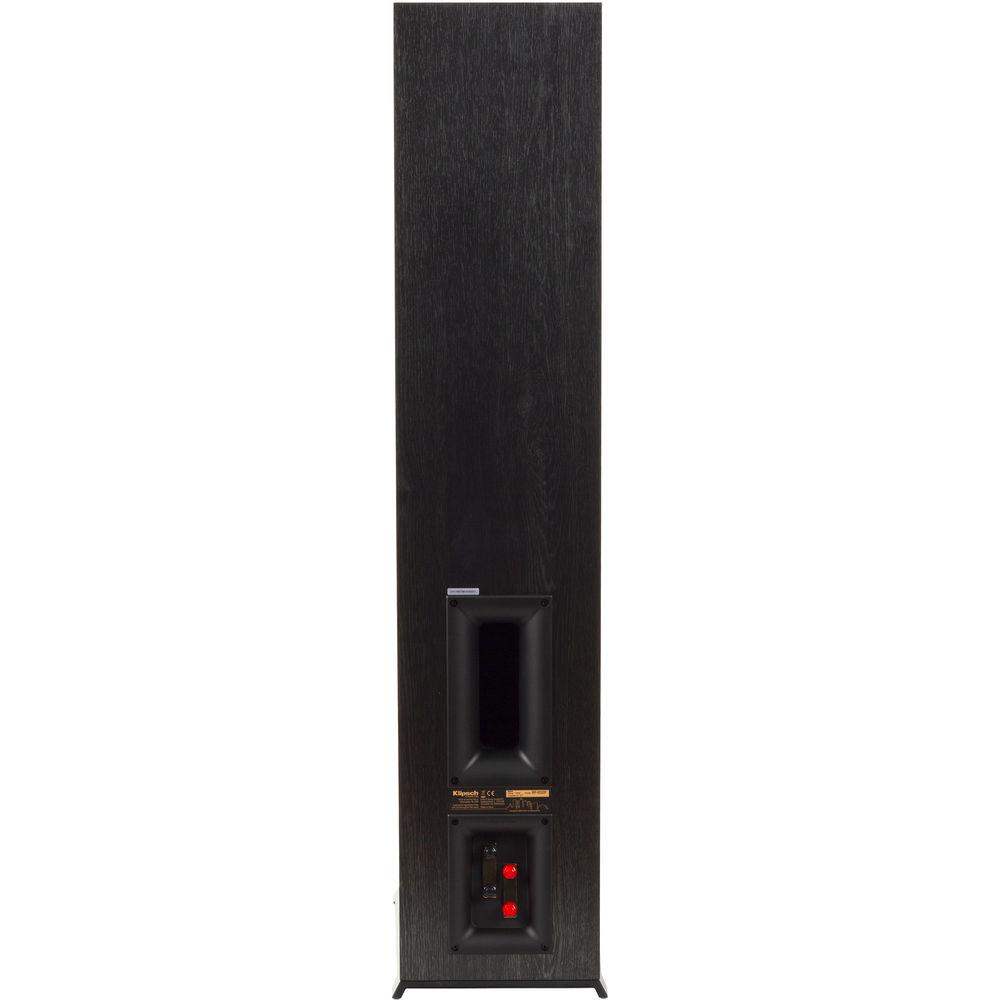

- Tractrix Ports
- Using Tractrix geometry, the RP-6000F's ports allow for efficient, fast air transfer from the cabinet, reducing port noise and resulting in punchier low frequencies. Inner flares help reduce air turbulence entering the ports for cleaner, more powerful bass.

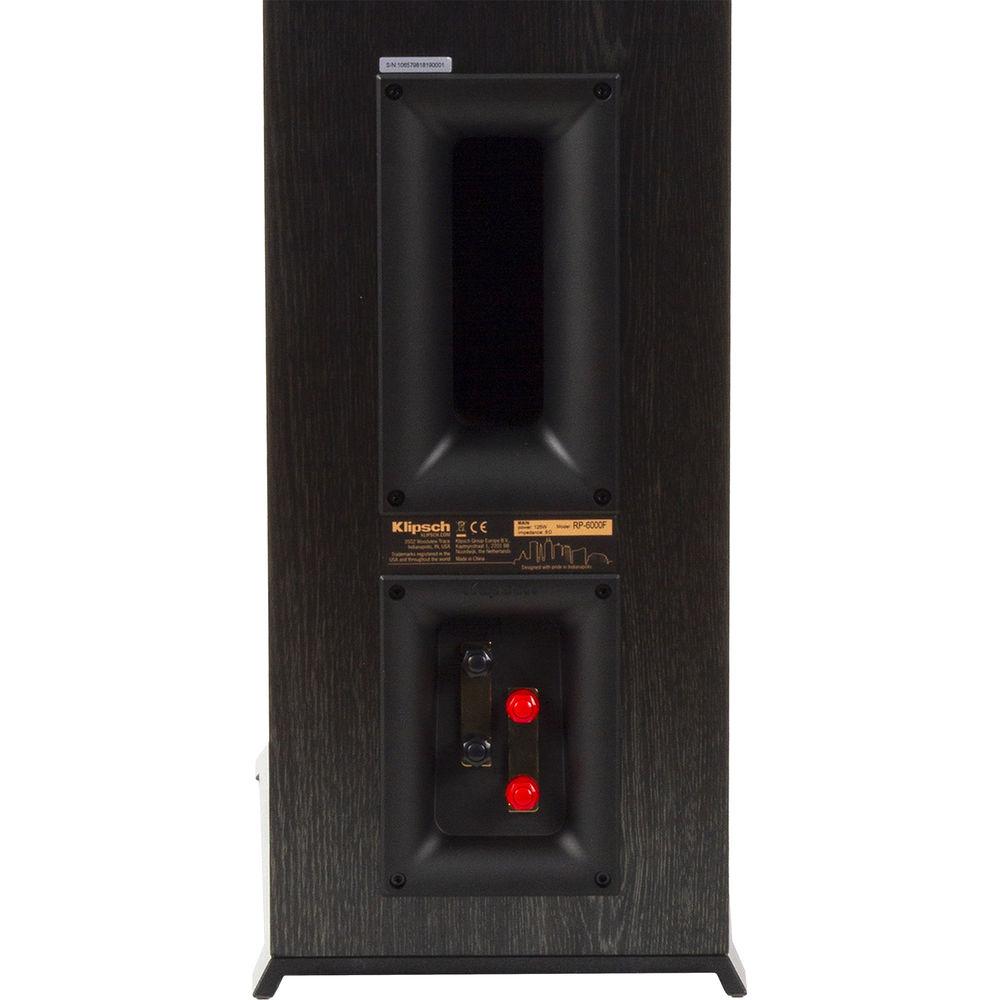

- Bi-Wiring / Bi-Amping Capability
- The RP-6000F is equipped with dual input terminals for bi-wiring / bi-amping capabilities. Bi-wiring separates high- and low-frequency current into separate speaker cables, reducing intermodulation distortion for a clearer midrange. Bi-amping allows for customization using outboard crossovers when using separate amplifiers.
- Furniture-Grade Materials and Finishes
- The speaker cabinet boasts a walnut vinyl finish, as well as satin-painted baffles with a scratch-resistant finish.

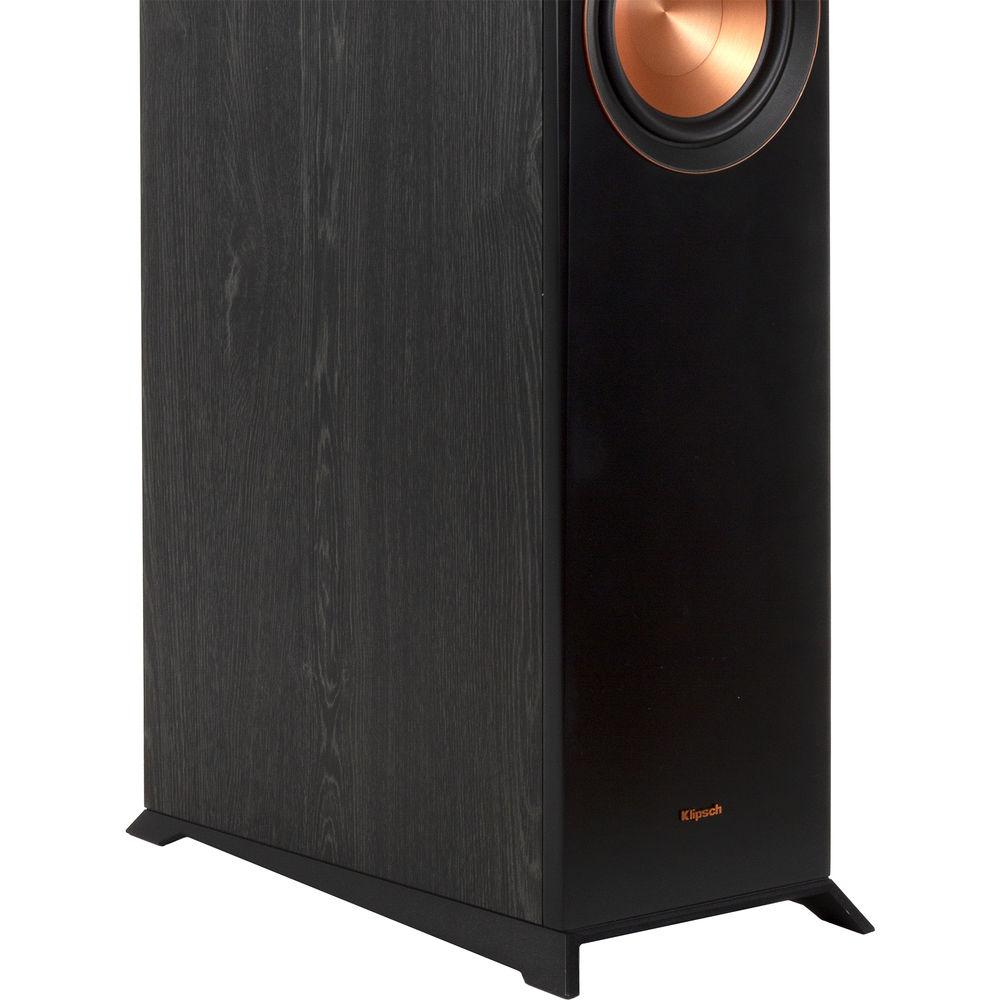

- Cast Aluminum Feet
- The RP-6000F speaker uses cast aluminum feet designed to minimize the area of contact with the floor, decoupling the speaker for faster, tighter low frequencies and more detail.
- Strong, Flexible, Removable Grille
- The speaker's strong and flexible magnetic grille can be easily mounted/removed.
- Design Details
- The RP-6000F's design includes copper anodized trim rings, cast aluminum feet, satin painted baffles, and a laser-etched logo.
In the Box Klipsch Reference Premiere RP-6000F 2-Way Floorstanding Speaker (Single, Walnut) Speaker Grille Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Klipsch Reference Premiere RP-6000F 2-Way Floorstanding Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKlipsch RP-6000F Specs | Frequency Response ± 3dB | 34 Hz to 25 kHz | | Sensitivity | At 3.3' / 1 m (2.83 V): 97 dB | | Power Handling | RMS: 125 W
Peak: 500 W | | Nominal Impedance | 8-Ohm Compatible | | Crossover Frequency | 1800 Hz | | High Frequency Horn | Hybrid Cross-Section Tractrix Horn | | High Frequency Driver | 1" / 2.54 cm Titanium LTS Vented Tweeter | | Low Frequency Drivers | 2 x 6.5" / 16.5 cm Cerametallic Cone Woofers | | Enclosure Material | MDF | | Enclosure Type | Bass Reflex via Rear-Firing Tractrix Port | | Inputs | Dual Binding Posts, Bi-Wire, Bi-Amp | | Dimensions | 39.62 x 9.35 x 17.02" / 100.6 x 23.7 x 43.2 cm | | Weight | 49 lb / 22.2 kg |
