Klipsch Reference R-610F Floorstanding Speaker

Search your instruction manual in PDF to download

User Manual for Klipsch Reference R-610F Floorstanding Speaker

Click to enlarge the picture
Klipsch Reference R-610F Floorstanding Speaker Contents of the user manual for the Klipsch Reference R-610F Floorstanding Speaker
  • Product category: Floorstanding Speakers Klipsch
  • Brand: Klipsch
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Klipsch Floorstanding Speakers

Klipsch Reference R-610F Floorstanding Speaker Klipsch Reference R-610F Floorstanding Speaker Klipsch Reference R-610F Floorstanding Speaker Klipsch Reference R-610F Floorstanding Speaker Klipsch Reference R-610F Floorstanding Speaker Klipsch Reference R-610F Floorstanding Speaker Klipsch Reference R-610F Floorstanding Speaker
User manual for the Klipsch Reference R-610F Floorstanding Speaker contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Klipsch product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Klipsch user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Klipsch product will considerably shorten its lifespan!



Product description

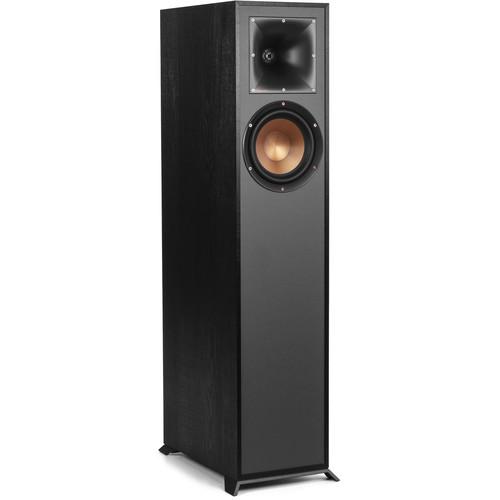

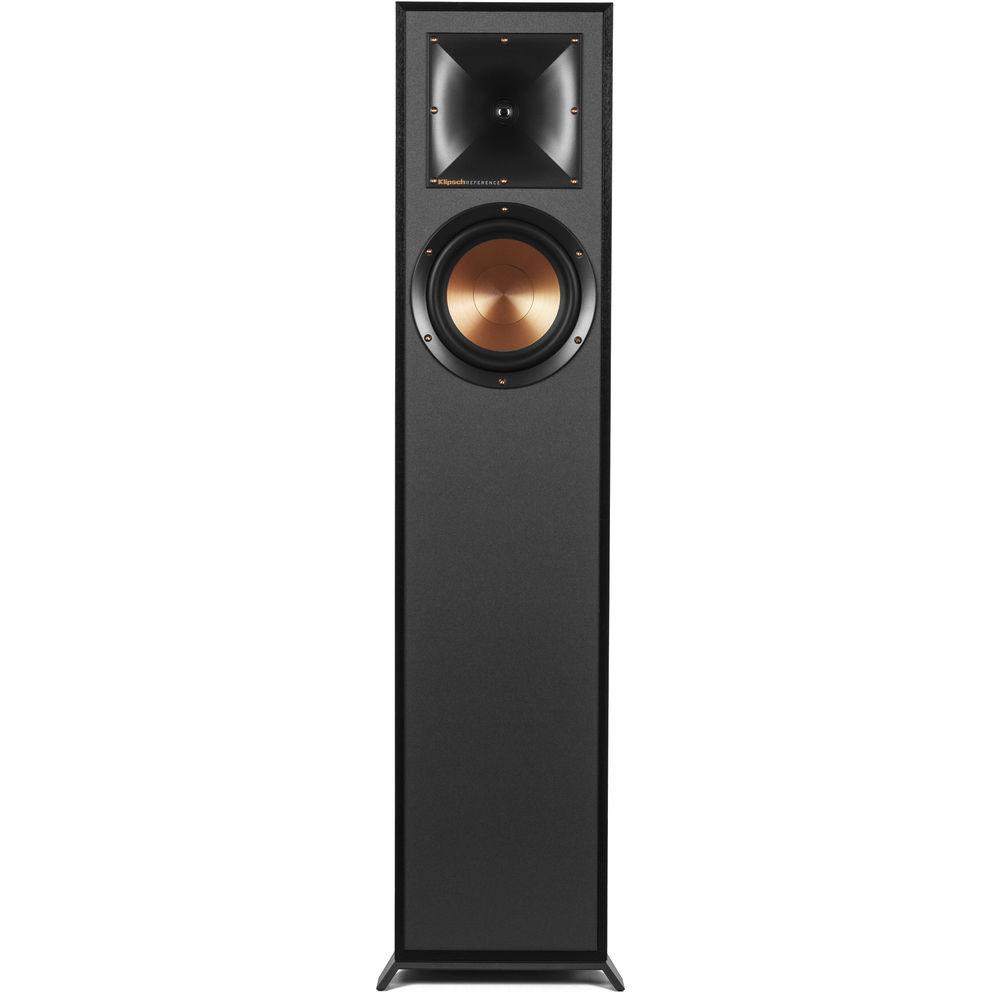

Enjoy enhanced audio reproduction with the Klipsch Reference R-610F Floorstanding Speaker. It has a two-way design featuring a 6.5" woofer and a 1" tweeter paired to a 90 x 90° square Tractrix horn. The speaker can handle up to 85W RMS or 340W peak power and has a 45 Hz to 21 kHz frequency response.

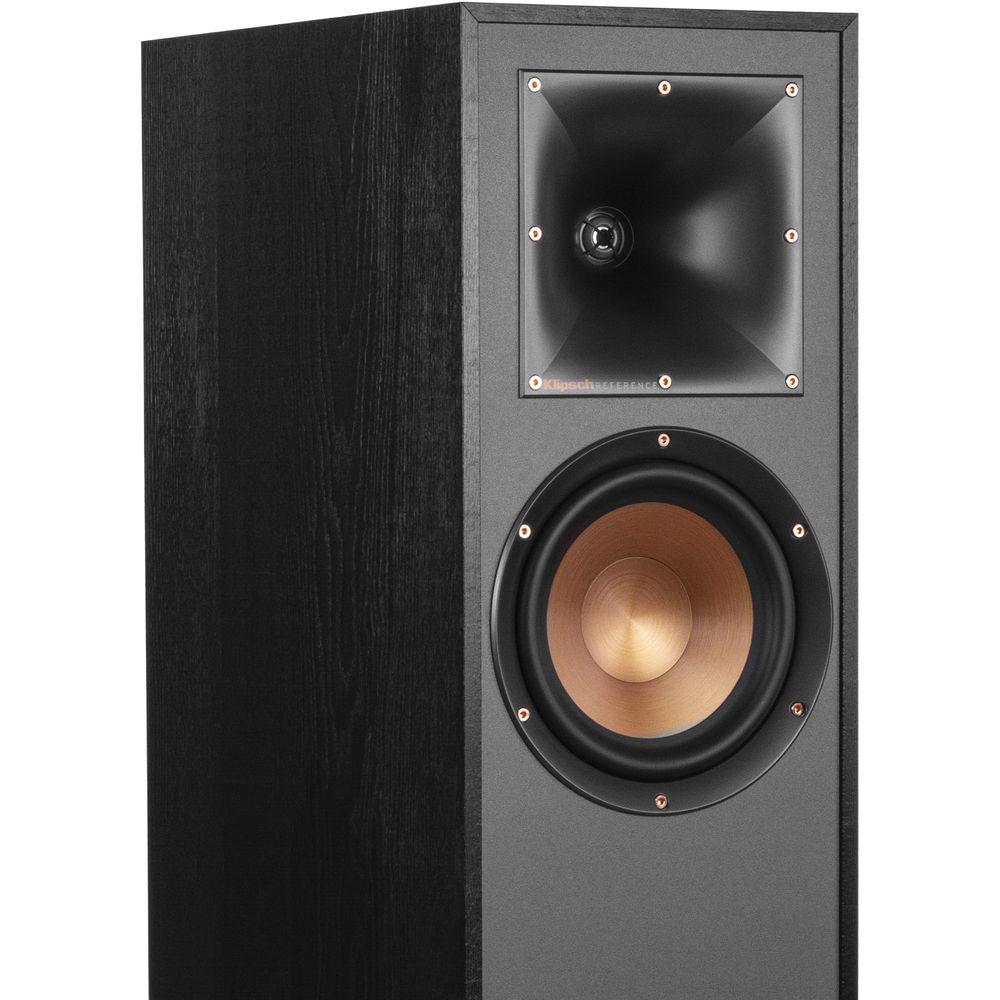

    90 x 90° Tractrix Horn
  • The Tractrix horn helps deliver the power and detail of the live music experience with clean, natural sound.
    Linear Travel Suspension (LTS) Aluminum Tweeter with Kapton Suspension
  • The LTS helps minimize distortion for detailed sound reproduction. Kapton, the material used in the tweeter suspension, is engineered to be light and rigid for enhanced efficiency and detail.
    Spun-Copper IMG Woofer
  • The IMG (Injection Molded Graphite) woofer cone has a light, rigid design for augmented low frequency response with minimal cone breakup and distortion.

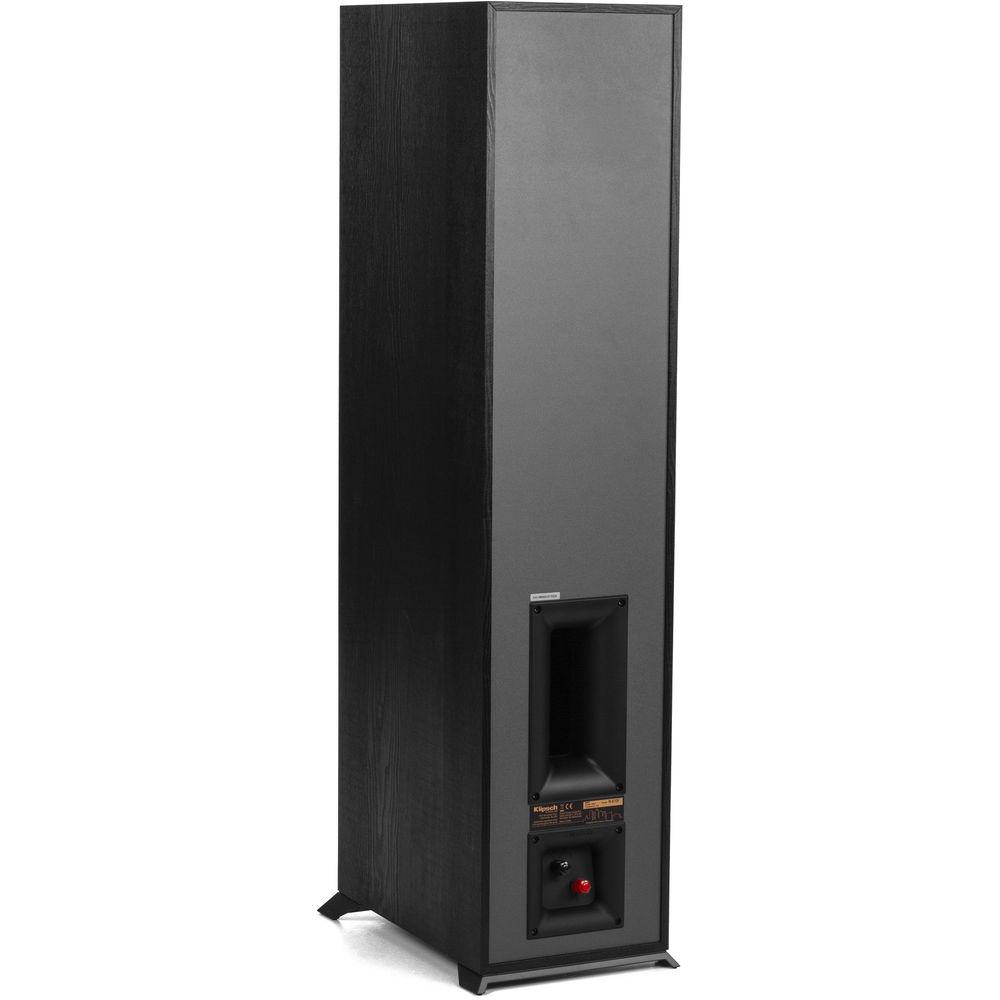

    Rear Tractrix Port
  • The rear Tractrix port is designed to match the cabinet and woofers to help optimize airflow with minimal distortion or turbulence, even at low frequencies.
    Tapered Crossover
  • The tapered-array crossover helps enhance dispersion, resulting in augmented midrange definition.
    Reinforced Cabinet
  • The reinforced MDF design helps reduce cabinet vibration to help provide less audible coloration and improved sonic accuracy.
    Scratch-Resistant Vinyl Finish
  • The Reference series features a scratch-resistant, textured wood-grain vinyl finish.
UPC: 743878035483 In the Box Klipsch Reference R-610F Floorstanding Speaker (Single)

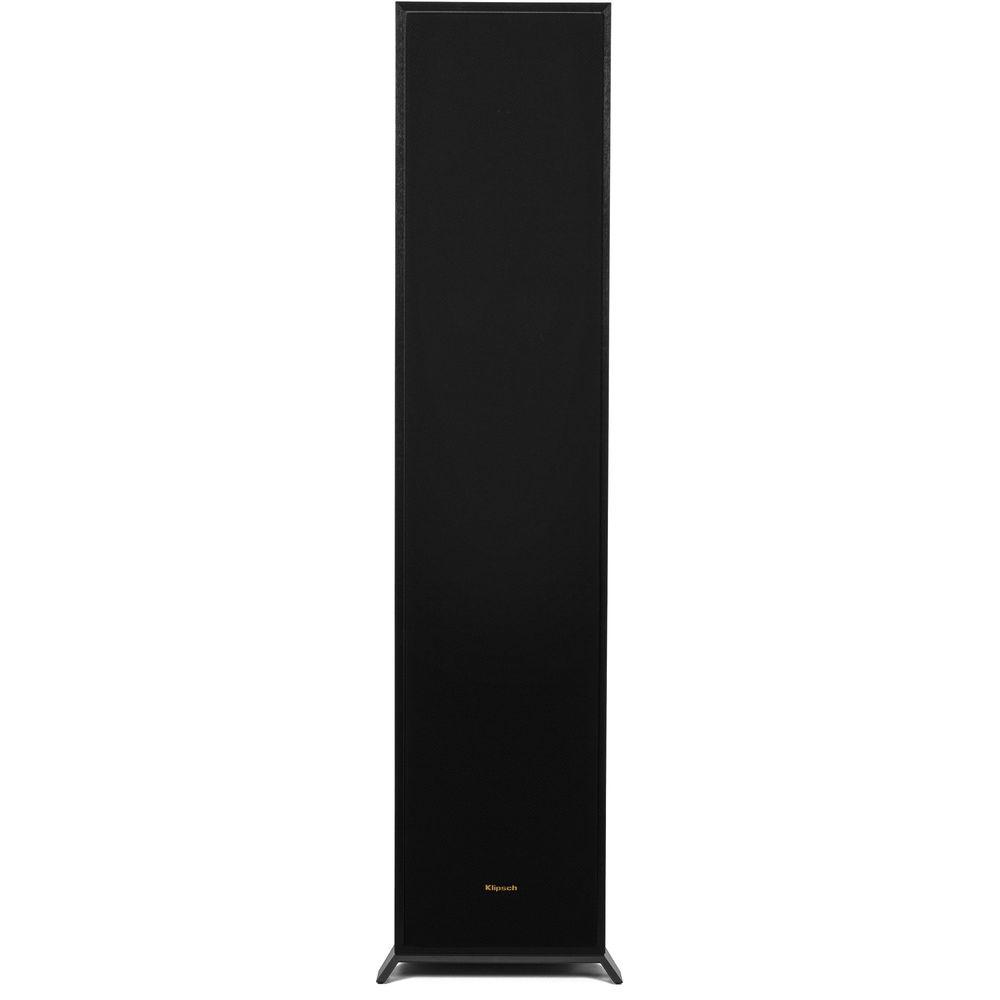

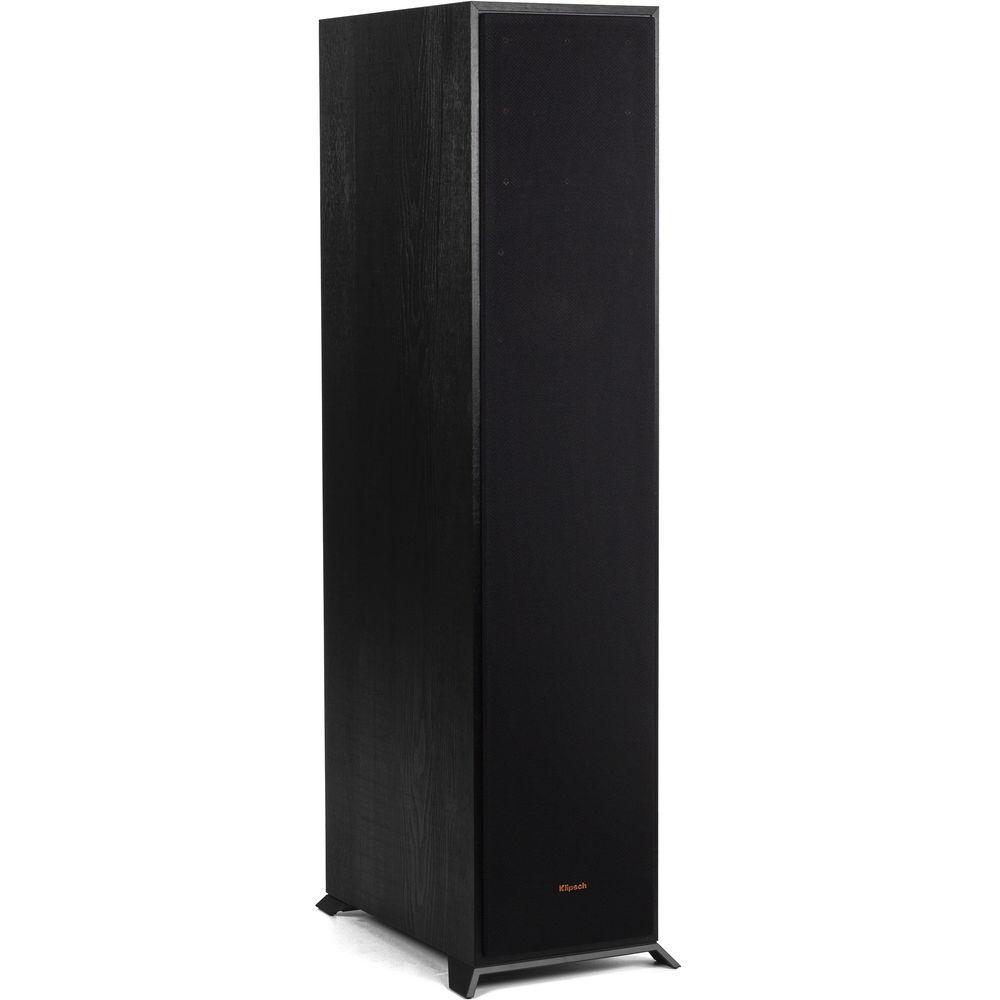

  • Magnetic Grille

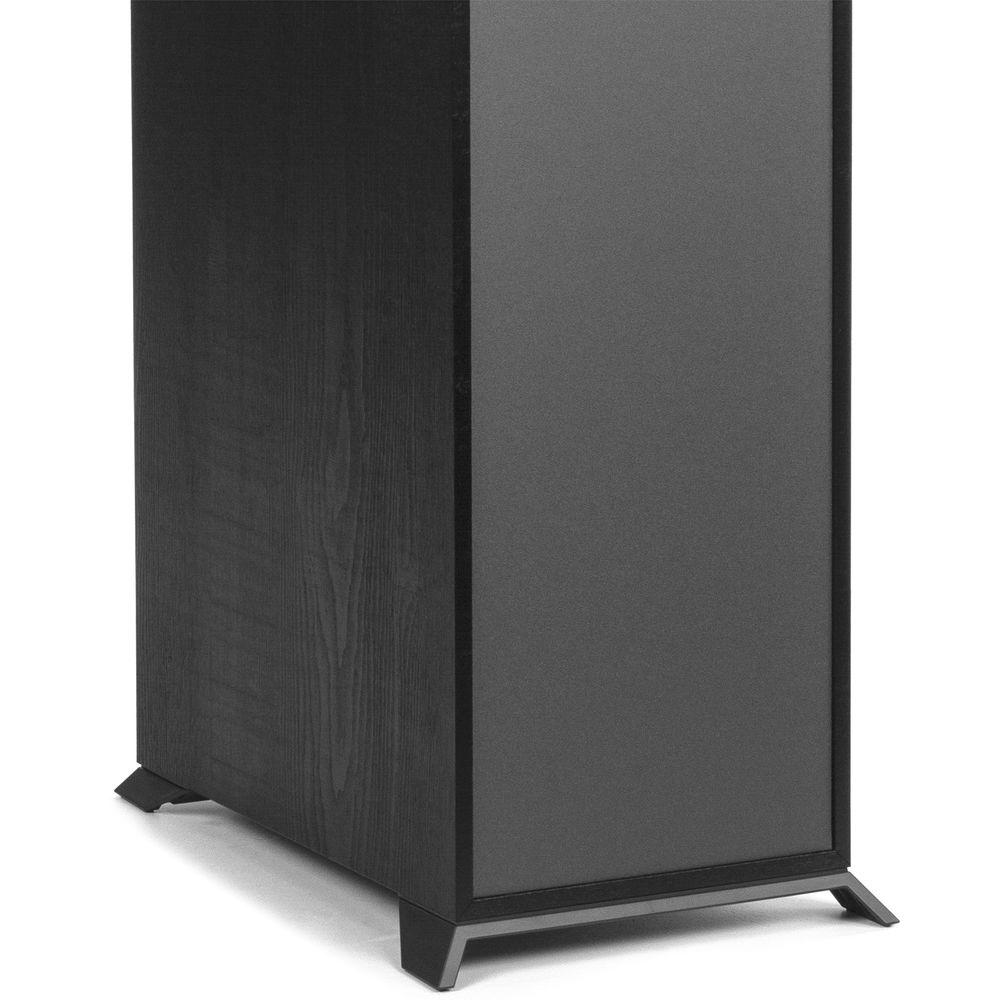

  • Injection-Molded Feet & Screws
  • Limited 5-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Klipsch Reference R-610F Floorstanding Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Klipsch R-610F Specs

    Frequency Response ± 3dB 45 Hz to 21 kHz
    Sensitivity dB @ 2.83 V/1 m 94 dB
    Power Handling RMS: 85 W
    Peak: 340 W
    Nominal Impedance 8 ohms compatible
    Crossover Frequency 1800 Hz
    Woofer 1x 6.5" / 16.5 cm spun-copper IMG woofer
    High Frequency Driver 1x 1" / 2.5 cm aluminum LTS tweeter
    Horn 90 x 90° square Tractrix horn
    Enclosure Bass reflex via rear-firing Tractrix port
    Inputs 1 x gold-plated binding post pair
    Construction Material MDF
    Dimensions (W x H x D) 9.4 x 37 x 15.1" / 24 x 94 x 38 cm
    Weight 36 lb / 16.3 kg
    Package Weight 45.07 lb
    Box Dimensions (LxWxH) 41.25 x 18.25 x 12.5"
