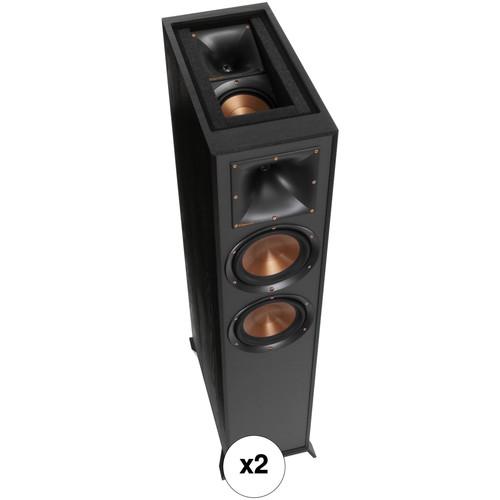

User Manual for Klipsch Reference R-625FA Dolby Atmos Floorstanding Speaker Pair Kit Click to enlarge the picture
Contents of the user manual for the Klipsch Reference R-625FA Dolby Atmos Floorstanding
- Product category: Floorstanding Speakers Klipsch
- Brand: Klipsch
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Klipsch Floorstanding Speakers
|
User manual for the Klipsch Reference R-625FA Dolby Atmos Floorstanding contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Klipsch product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Klipsch user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Klipsch product will considerably shorten its lifespan!
|
Product description Enjoy an additional dimension of surround sound with your compatible amplifier and this Kit that includes two Klipsch Reference R-625FA Dolby Atmos Floorstanding Speakers. They each feature a two-channel design with a top-firing 5.25" IMG woofer and 1" LTS tweeter, which, when paired with an Atmos-capable receiver and content, generate sound effects that will carom off your ceiling to simulate an overhead source. The front channels have dual 6.5" IMG woofers and a 1" LTS tweeter and accept up to 100W RMS, while the Atmos channels accept up to 75W RMS. - 2 x Klipsch Reference R-625FA Dolby Atmos Floorstanding Speaker (Single) Enjoy an additional dimension of surround sound with the Klipsch Reference R-625FA Dolby Atmos Floorstanding Speaker. It has a two-channel design featuring a top-firing 5.25" IMG woofer and a 1" LTS tweeter, which, when paired with an Atmos-capable receiver and content, generates sound effects that will carom off your ceiling to simulate an overhead source. The front channel has dual 6.5" IMG woofers and a 1" LTS tweeter and accepts up to 100W RMS, while the Atmos channel accepts up to 75W RMS.
- Built-In, Up-Firing Height Channel
- The built-in, up-firing height channel allows you to create an Atmos system with the front-facing channel and the rest of your speaker system for a more immersive soundstage.
- 90 x 90° Tractrix Horn
- The Tractrix horn is designed to ensure that the high-frequency energy is aimed at the listener and to reduce artificial reverb or filtering caused by indirect sound bouncing off walls. This helps to provide enhanced clarity, dynamics, and detail for your music and movies.
- Linear Travel Suspension Aluminum Tweeter with Kapton Suspension
- Linear Travel Suspension (LTS) tweeters help minimize distortion for enhanced performance. Kapton, the material used in the tweeter suspension, is designed to provide high efficiency and augment resolution and detail.
- Spun Copper IMG Woofers
- Injection Molded Graphite (IMG) woofers are engineered to be light, yet rigid, to help provide enhanced low frequency response with minimal cone breakup and distortion.
- Rear Tractrix Port
- The rear Tractrix port is matched to the cabinet and woofers, helping to create an ideal airflow with minimal distortion or turbulence, even at low frequencies.
- Reinforced MDF Cabinet
- The reinforced MDF construction helps reduce cabinet vibration for less audible coloration and augmented sonic accuracy
- Scratch-Resistant Vinyl Finish
- This speaker sports a scratch-resistant, textured wood grain vinyl finish designed to integrate into nearly any d
|
Upload User Manual
Have you got an user manual for the Klipsch Reference R-625FA Dolby Atmos Floorstanding Speaker Pair Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - 2 x Klipsch Reference R-625FA Dolby Atmos Floorstanding Speaker (Single)
| Frequency Response | Main Channel: 38 Hz to 21 kHz ±3 dB
Height Channel: Conforms to Dolby Atmos specification | | Sensitivity | Main Channel: 96 dB @ 2.83 V / 1 m
Height Channel: Conforms to Dolby Atmos specification | | Power Handling | Main Channel, RMS: 100 W
Main Channel, Peak: 400 W
Height Channel, RMS: 75 W
Height Channel, Peak: 150 W | | Nominal Impedance | Main & Height Channels: 8 ohms compatible | | Crossover Frequency | Main Channel: 2 kHz
Height Channel: Not specified by manufacturer | | Tweeter | Main Channel: 1x 1" / 25.4 mm aluminum LTS tweeter
Height Channel: 1x 1" / 25.4 mm aluminum LTS tweeter | | Woofers | Main Channel: 2x 6.5" / 165.1 mm spun-copper IMG woofers
Height Channel: 1x 5.25" / 113.35 mm spun-copper IMG woofer | | Enclosure | Main Channel: Bass reflex via rear-firing Tractrix port
Height Channel: Acoustic suspension | | Inputs | Main Channel: 1 x binding post pair
Height Channel: 1 x binding post pair | | Enclosure | MDF | | Dimensions (W x H x D) | 9.4 x 40 x 17.3" / 240 x 1017 x 439 mm | | Weight | 49 lb / 22.2 kg | | | | Box Dimensions (LxWxH) | 44.25 x 20.25 x 12.75" |
