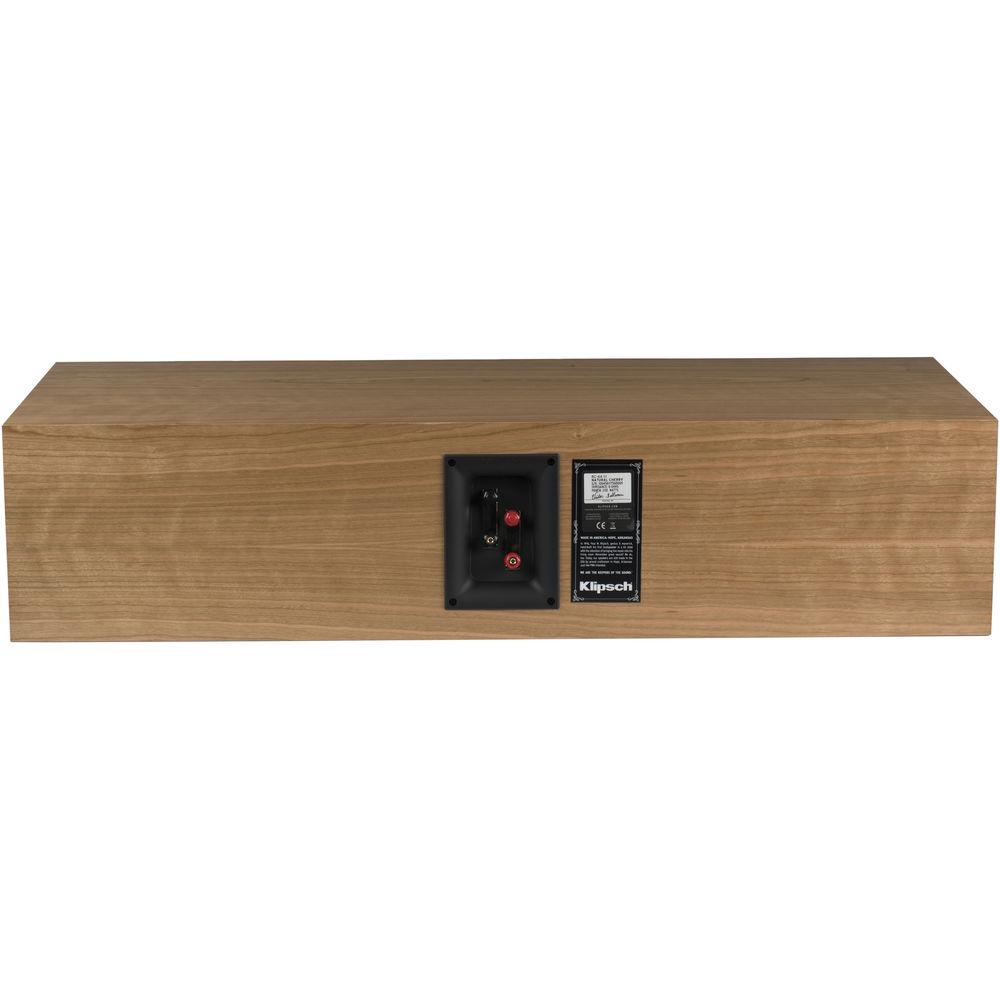

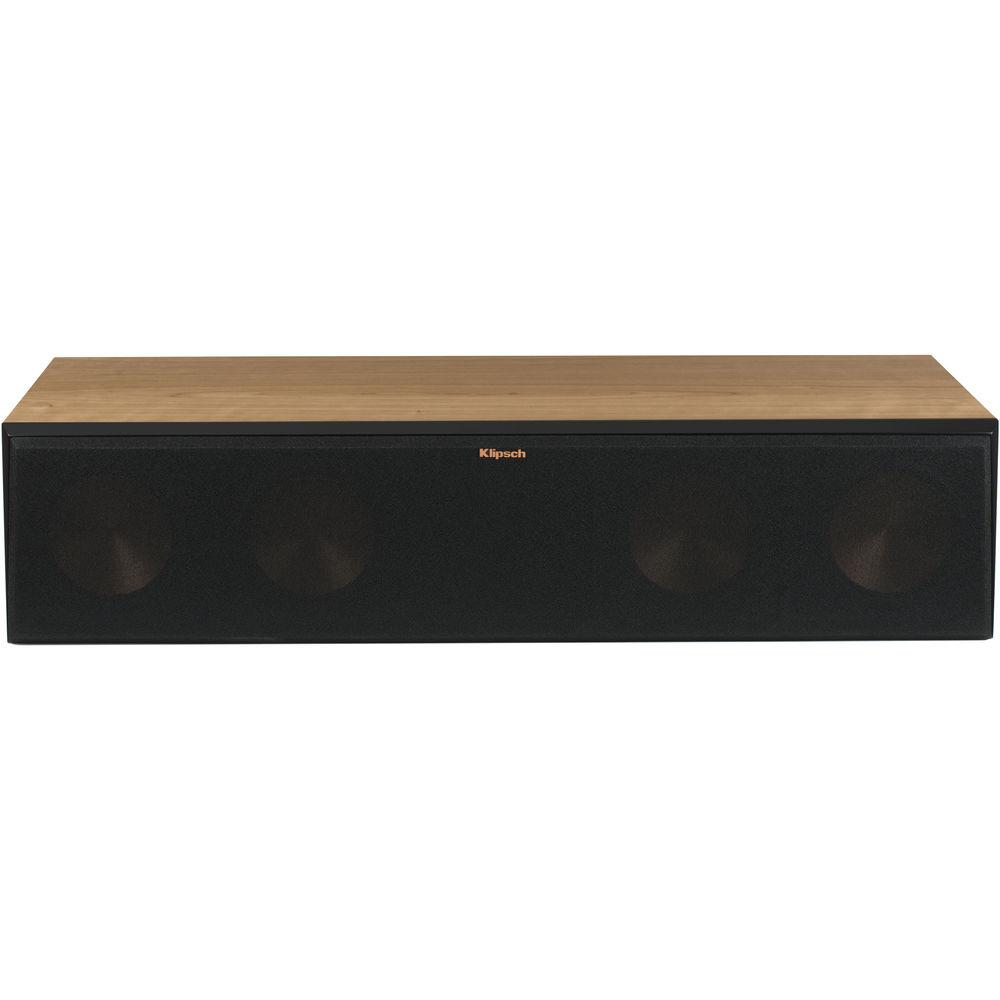

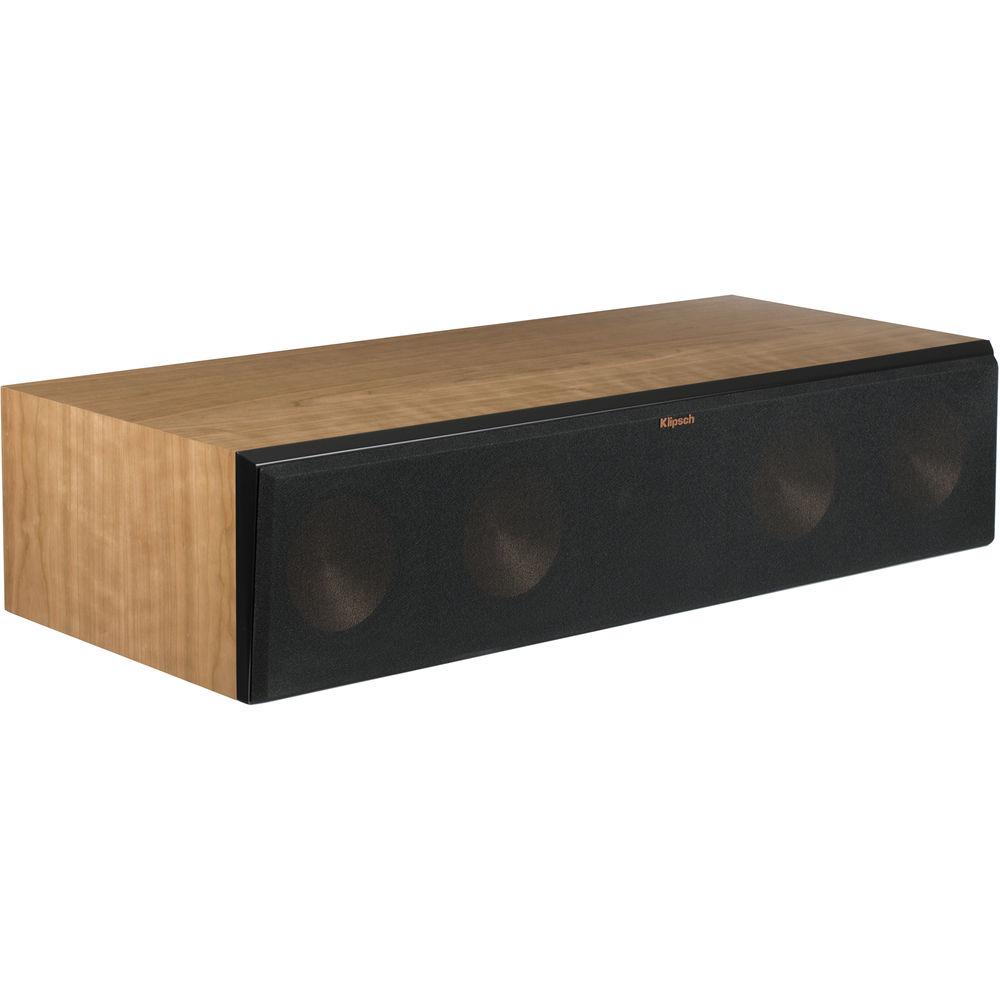

User Manual for Klipsch Reference RC-64 III 2.5-Way Center Channel Speaker Click to enlarge the picture
Contents of the user manual for the Klipsch Reference RC-64 III 2.5-Way Center
- Product category: Center Channel Speakers Klipsch
- Brand: Klipsch
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Klipsch Center Channel Speakers
 |
User manual for the Klipsch Reference RC-64 III 2.5-Way Center contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Klipsch product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Klipsch user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Klipsch product will considerably shorten its lifespan!
|

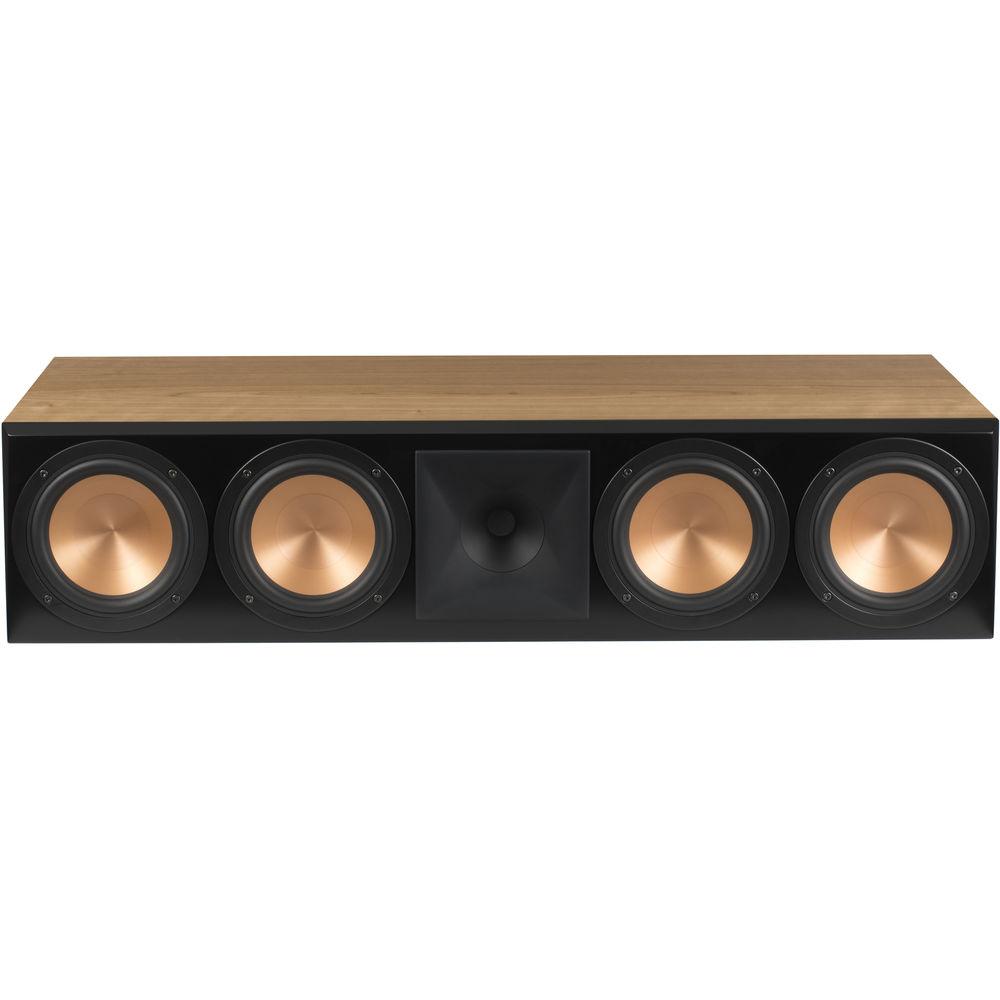

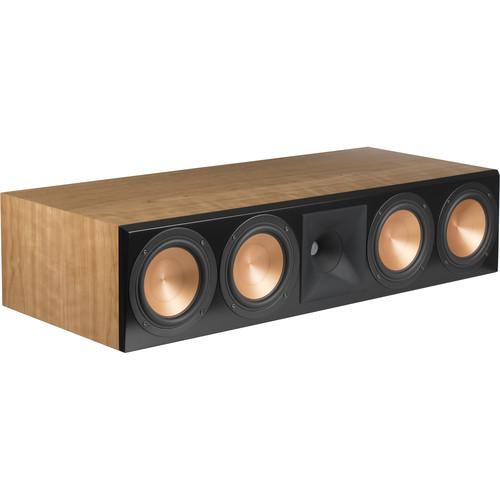

Product description Conjure the power, detail, and emotion of the live music experience in your home theater with the natural-cherry Reference RC-64 III 2.5-Way Center Channel Speaker from Klipsch. Featuring a 1.75" titanium diaphragm compression driver paired with a 90 x 90° Tractrix horn and four 6.5" Cerametallic cone woofers, this center channel speaker delivers a frequency response of 57 Hz to 24 kHz. It can handle up to 200W of continuous power from your amplifier of choice. - 1.75" Titanium Diaphragm Compression Driver
- The compression driver's phase plug design improves phase coherency at the throat of the horn, resulting in improved sound pressure linearity at high frequencies.
- 90 x 90° Tractrix Horn
- The Tractrix horn uses a circular horn throat paired to a square horn mouth to further improve high-frequency response and extension while enhancing imaging and dynamics. The compressed molded rubber construction adds high-frequency damping to reduce harshness, improve detail, and deliver clean, natural sound.
- Spun Copper Cerametallic Woofers
- Cerametallic woofers are designed to combine high rigidity with a lightweight construction to ensure minimal cone breakup and distortion. They pair seamlessly with the Tractrix horn-loaded compression driver to deliver enhanced speaker efficiency.
- Cast Frame Woofer Design
- Each of the RC-64 III speaker's four 6.5" woofers is equipped with a heavy-duty cast aluminum frame for resonant-free operation.
- 2.5-Way Network Crossover Design
- The 2.5-way design of the RC-64 III network attenuates the outer woofers' output at higher frequencies to minimize horizontal interference off-axis to the loudspeaker. This ensures a wide and even sound distribution.
- Furniture-Grade Wood Veneer
- The RC-64 III speaker's enclosure boasts a furniture-grade wood veneer.
In the Box Klipsch Reference RC-64 III 2.5-Way Center Channel Speaker (Natural Cherry) Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Klipsch Reference RC-64 III 2.5-Way Center Channel Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKlipsch RC-64 III Specs | Frequency Response ± 3dB | 57 Hz to 24 kHz | | Power Handling | RMS: 200 W
Peak: 800 W | | Sensitivity | At 3.3' / 1 m (2.83 V): 99 dB | | Nominal Impedance | 8-Ohm Compatible | | High Frequency Horn | 6.25" / 15.9 cm Square 90 x 90° Tractrix Horn | | High Frequency Driver | 1.75" / 4.45 cm Titanium Diaphragm Compression Driver | | Crossover Frequencies | 1000 and 1400 Hz | | Low Frequency Drivers | 4 x 6.5" / 16.5 cm Cerametallic Cone Woofers | | Inputs | Dual Binding Posts, Bi-Wire, Bi-Amp | | Enclosure Type | Sealed | | Dimensions | 8.0 x 35.8 x 15.0" / 20.3 x 91.0 x 38.1 cm | | Weight | 55 lb / 25 kg |
