User Manual for Klipsch Reference Series R-41M 2-Way Bookshelf Speakers Click to enlarge the picture
Contents of the user manual for the Klipsch Reference Series R-41M 2-Way Bookshelf
- Product category: Bookshelf Speakers Klipsch
- Brand: Klipsch
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Klipsch Bookshelf Speakers
 |
User manual for the Klipsch Reference Series R-41M 2-Way Bookshelf contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Klipsch product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Klipsch user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Klipsch product will considerably shorten its lifespan!
|

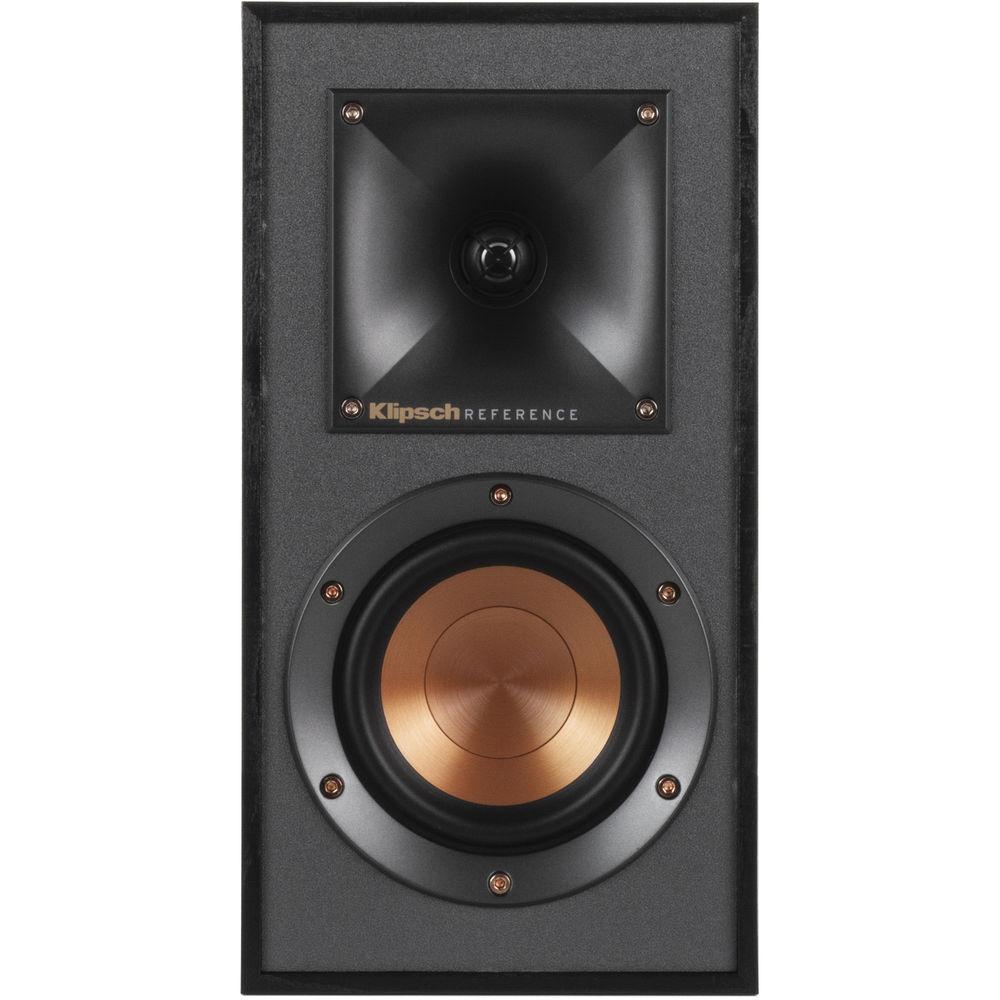

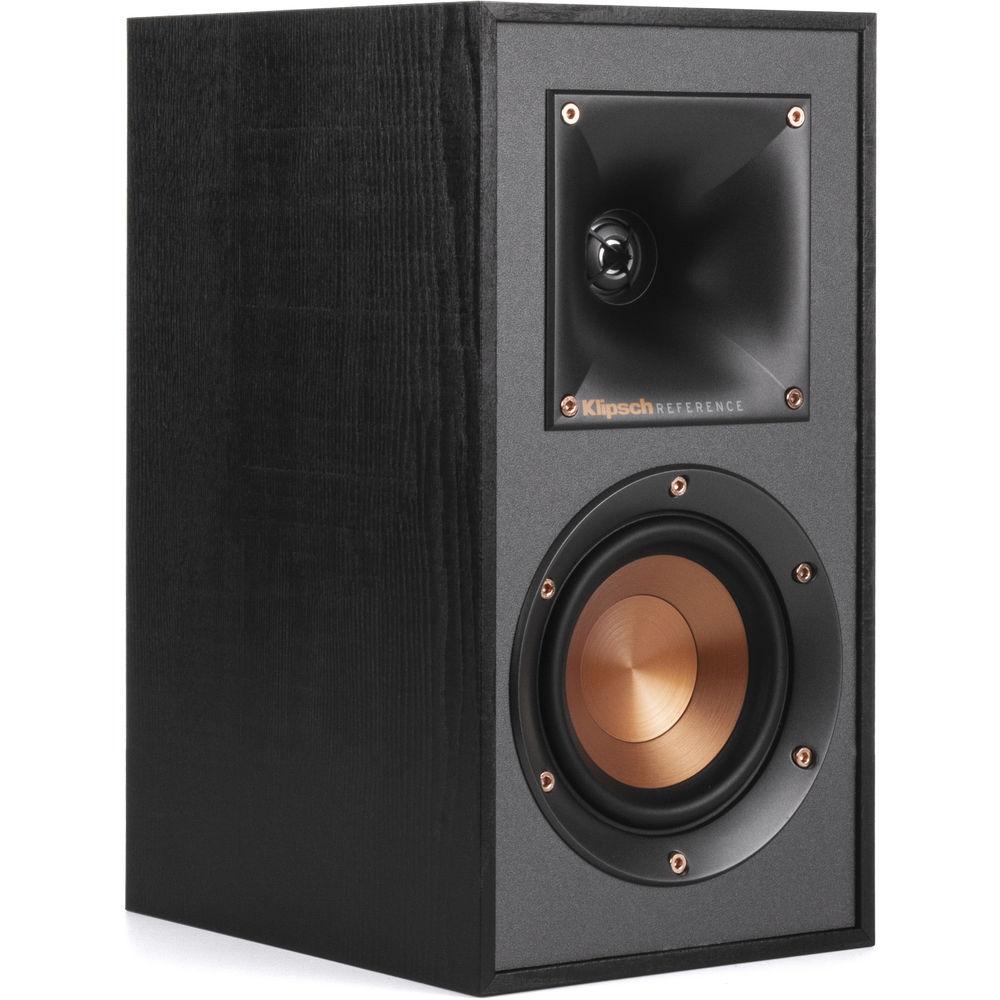

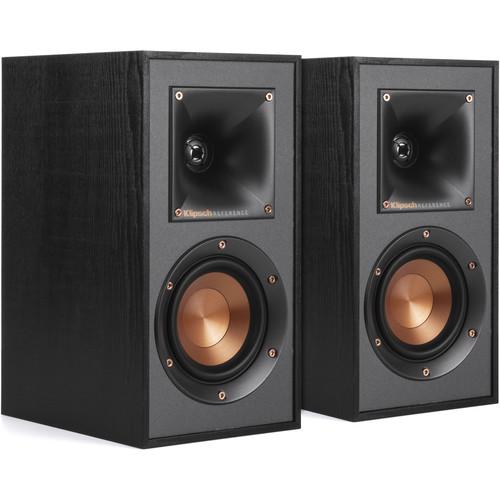

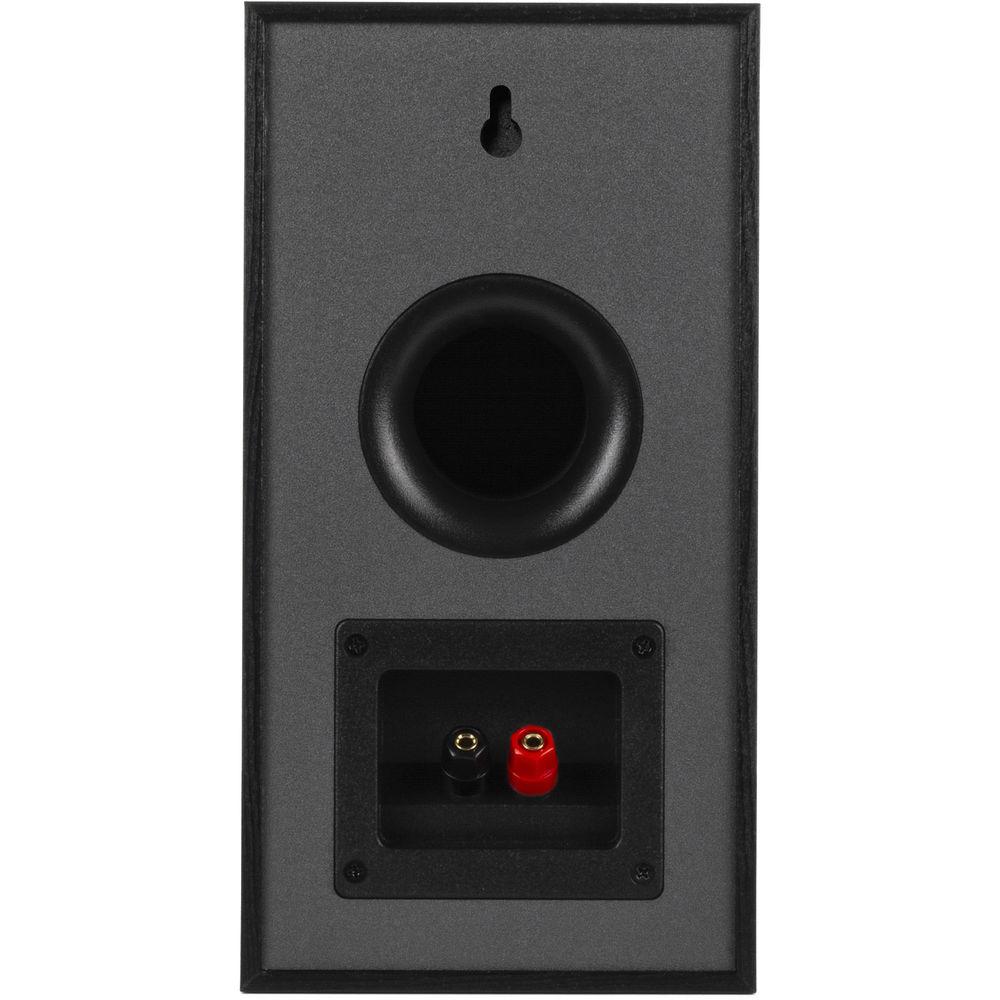

Product description Suitable for use in various settings, this pair of Klipsch Reference Series R-41M 2-Way Bookshelf Speakers can handle up to 50W per channel RMS or 200W peak and are equipped with a 4" spun-copper IMG woofer and a 1" aluminum LTS tweeter paired with a 90 x 90° Tractrix horn for broad directionality. They have a frequency response of 68 Hz to 21 kHz and feature a keyhole for convenient wall mounting. - 90 x 90° Tractrix Horn
- The Tractrix horn is designed to ensure that the high-frequency energy is aimed at the listener, while reducing artificial reverb or filtering caused by indirect sound bouncing off walls. This helps provide a clean, natural sound with enhanced clarity and dynamics.
- Linear Travel Suspension (LTS) Aluminum Tweeter with Kapton Suspension
- The LTS aluminum tweeter is engineered to minimize distortion for enhanced and detailed performance. Kapton is the material used in the tweeter suspension and is designed to be light and rigid to help provide high efficiency and augmented detail.
- Spun Copper IMG (Injection Molded Graphite) Woofer
- IMG woofer cones are designed to be light and rigid for enhanced low frequency response with minimal cone breakup and distortion.

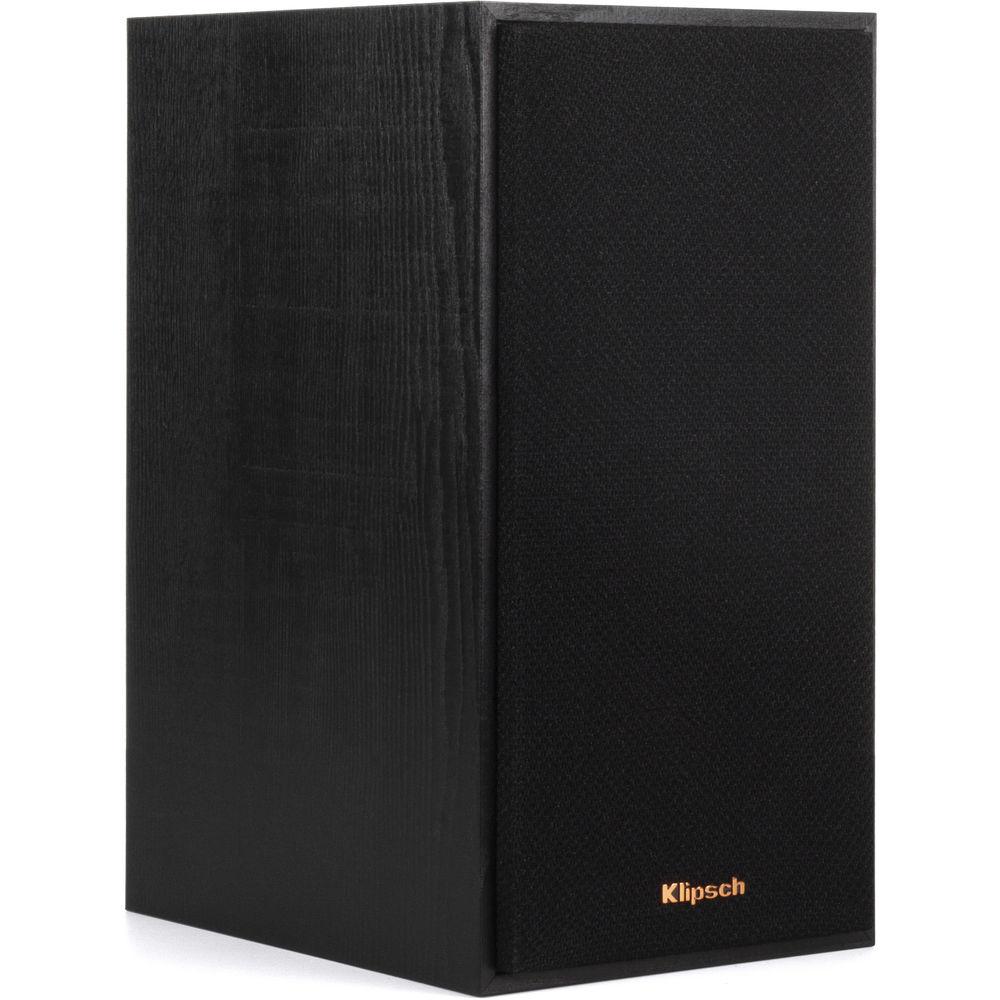

- Reinforced MDF Cabinet with Scratch-Resistant, Textured Wood Grain Vinyl
- The reinforced MDF construction helps reduce cabinet vibration for enhanced sonic accuracy, and the wood grain vinyl helps provide durability and an aesthetic that can blend into nearly any d
|
Upload User Manual
Have you got an user manual for the Klipsch Reference Series R-41M 2-Way Bookshelf Speakers in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKlipsch R-41M Specs | Frequency Response ± 3dB | 68 Hz to 21 kHz | | Sensitivity | 90 dB @ 2.83 V / 1 m | | Power Handling | RMS: 50 W
Peak: 200 W | | Nominal Impedance | 8 ohms compatible | | Crossover Frequency | 1730 Hz | | Tweeter | 1x 1" / 25.4 mm aluminum LTS tweeter mated to 90 x 90° Tractrix horn | | Low Frequency Driver | 1x 4" / 101.6 mm spun-copper IMG woofer | | Enclosure Material | MDF | | Enclosure Type | Bass-reflex via rear-firing ports | | Inputs | 1 x gold-plated binding post pair | | Mounting | Keyhole | | Dimensions (W x H x D) | 5.75 x 11.3 x 7.9" / 146 x 287 x 200 mm | | Weight | 7 lb / 3.2 kg | | | | Package Weight | 17.085 lb | | Box Dimensions (LxWxH) | 15.7 x 15.3 x 11.4" |
