Product description

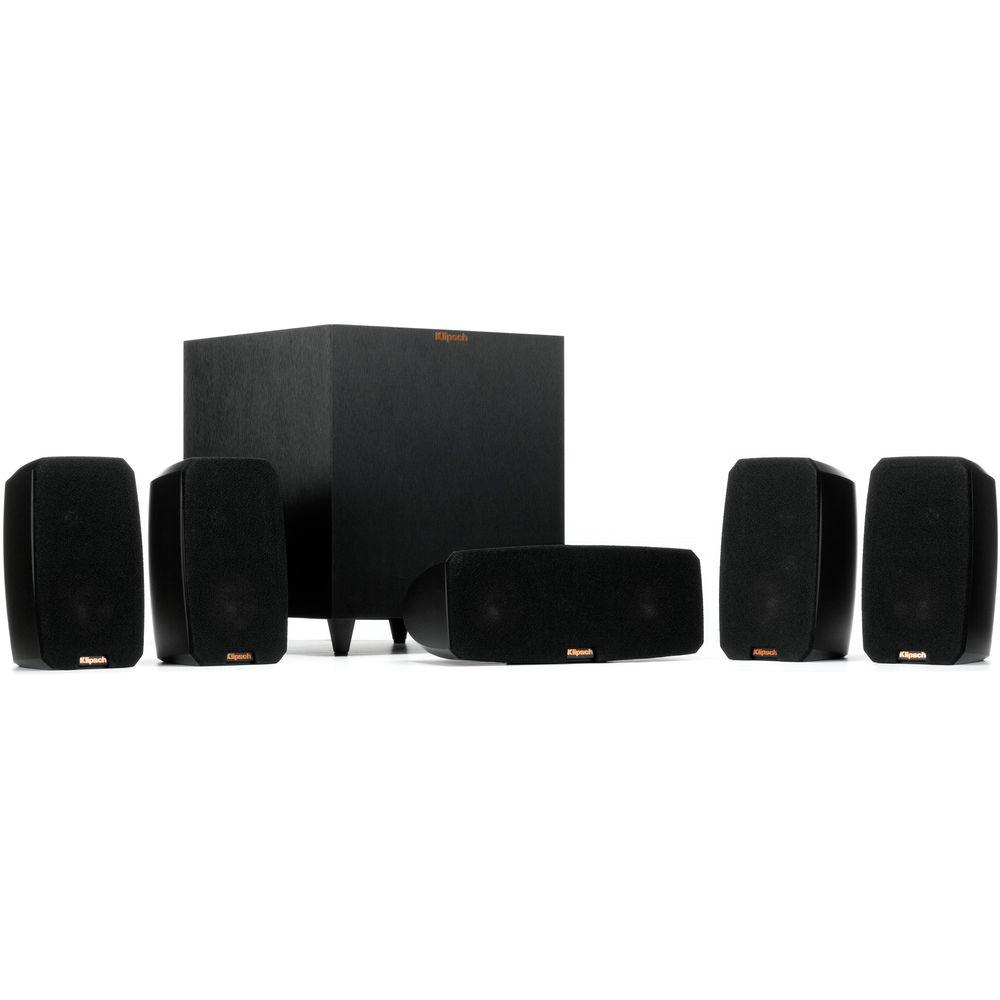

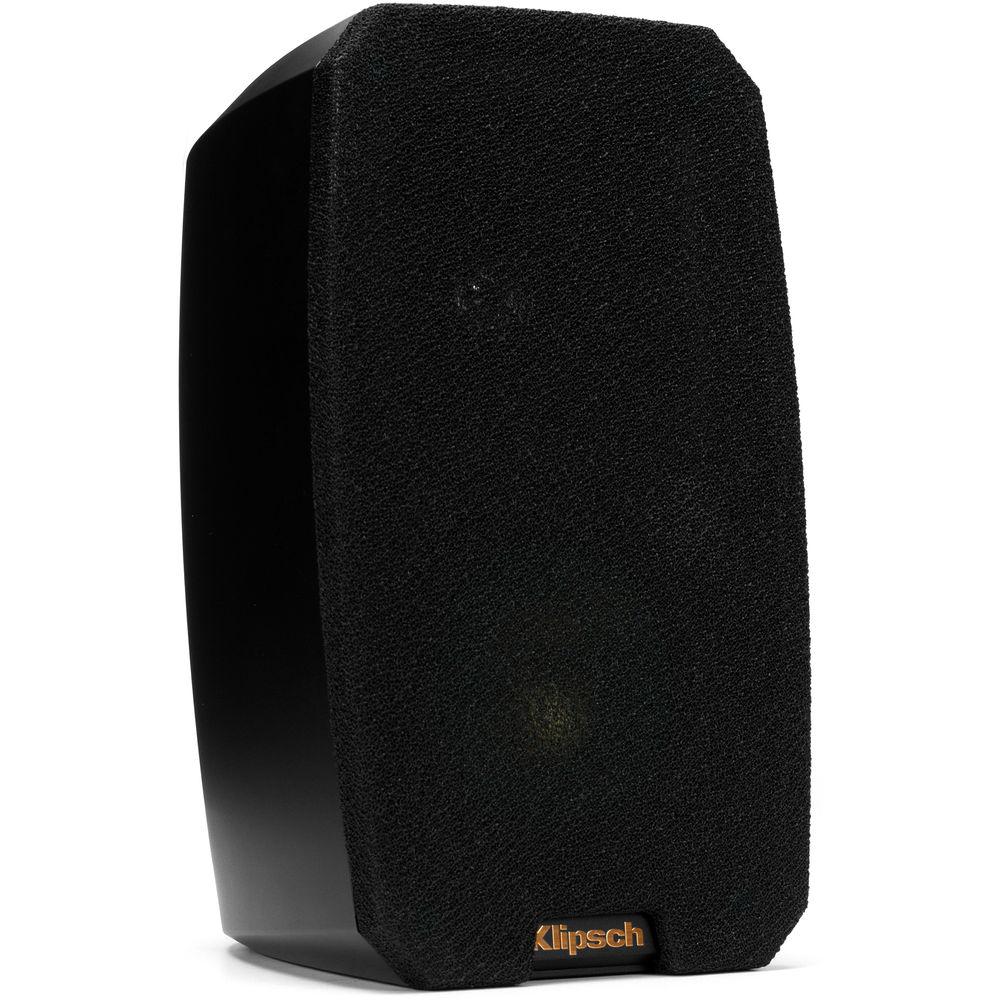

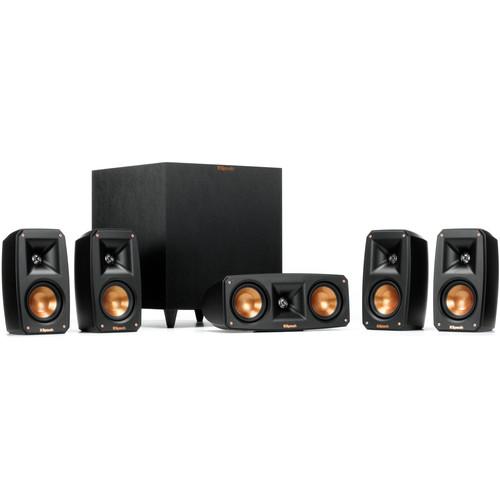

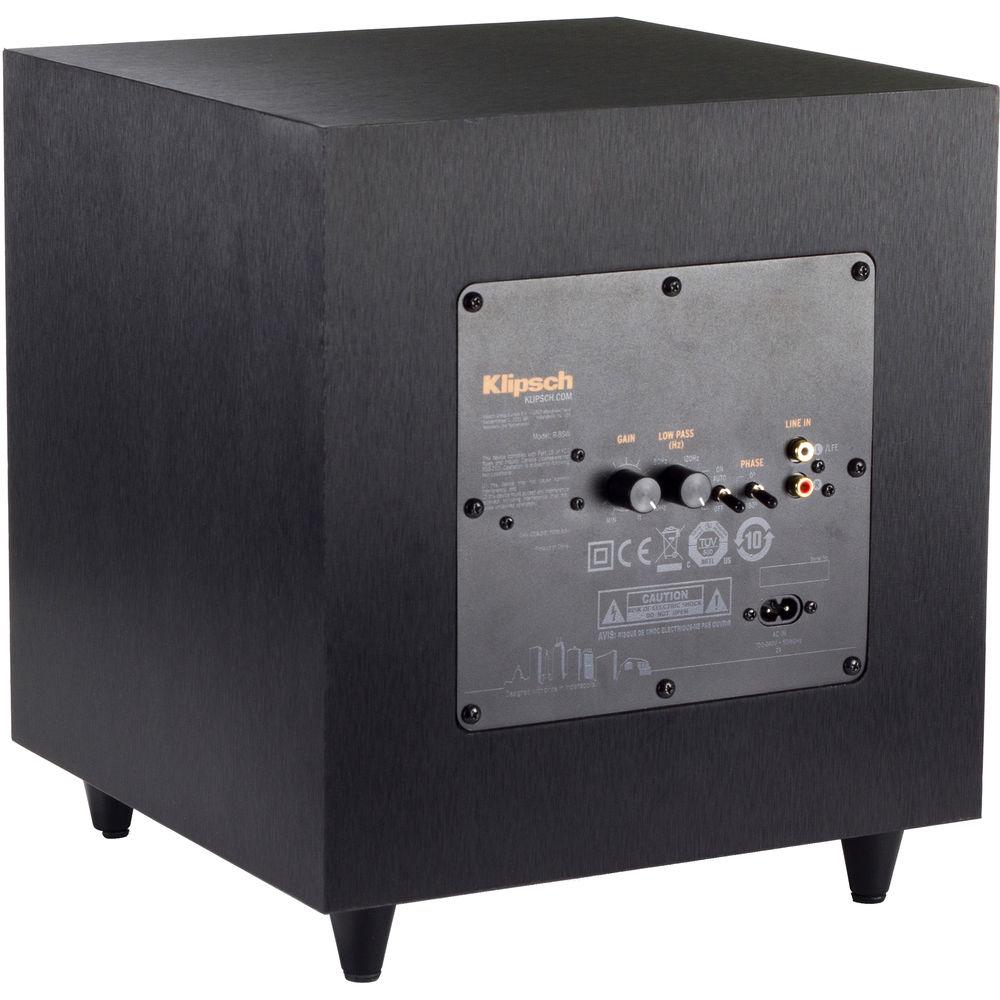

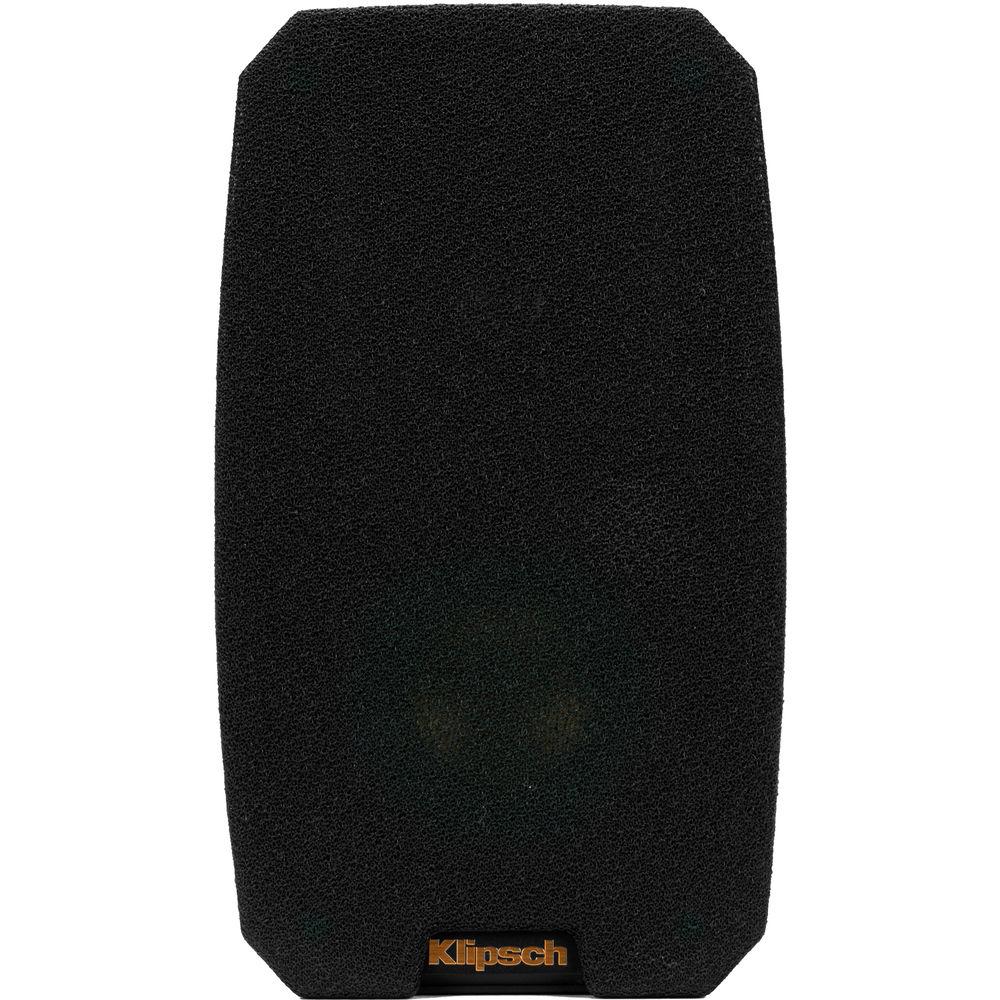

Bring cinematic sound into your home with a minimal footprint with the Reference Theater Pack 5.1 System from Klipsch. Designed to be paired with your favorite AV receiver, the system combines a wireless powered subwoofer with one center-channel and four passive satellite speakers. The center-channel and satellite speakers use spun-copper IMG woofers and Linear Travel Suspension horn-loaded tweeters for clean, natural sound with a 110 Hz to 23 kHz frequency response. The subwoofer delivers a frequency response of 38 to 120 Hz and is equipped with an all-digital amplifier with a peak power rating of 150W. Also included in the system are a wireless transmitter, an AC power adapter, and a 6.5' AC power cord.
    Wireless Subwoofer Connectivity
  • 2.4 GHz connectivity allows for CD-quality sound anywhere in the room. Simply connect the compact, pre-paired transmitter to the subwoofer or LFE out on your receiver.
    Spun-Copper IMG Cones
  • Injection Molded Graphite (IMG) woofers are both lightweight and rigid, providing enhanced low-frequency response with minimal cone breakup and distortion.

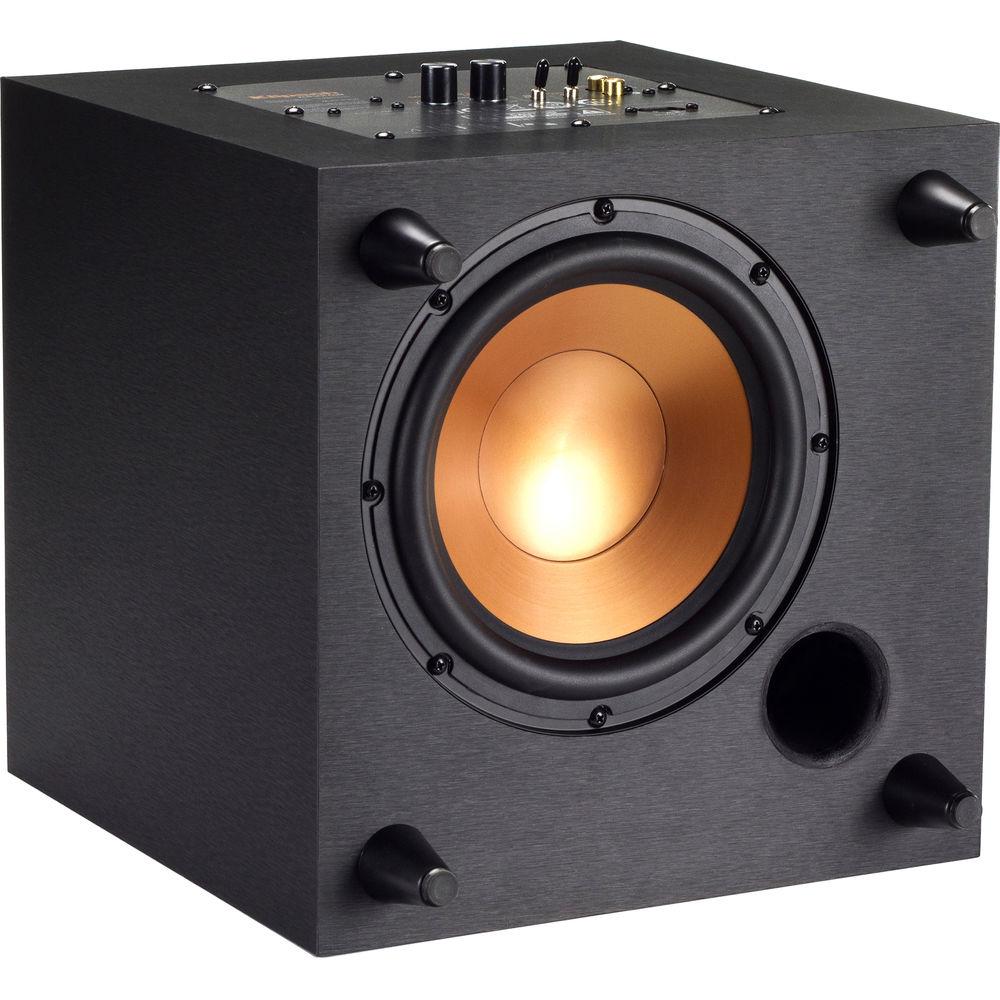

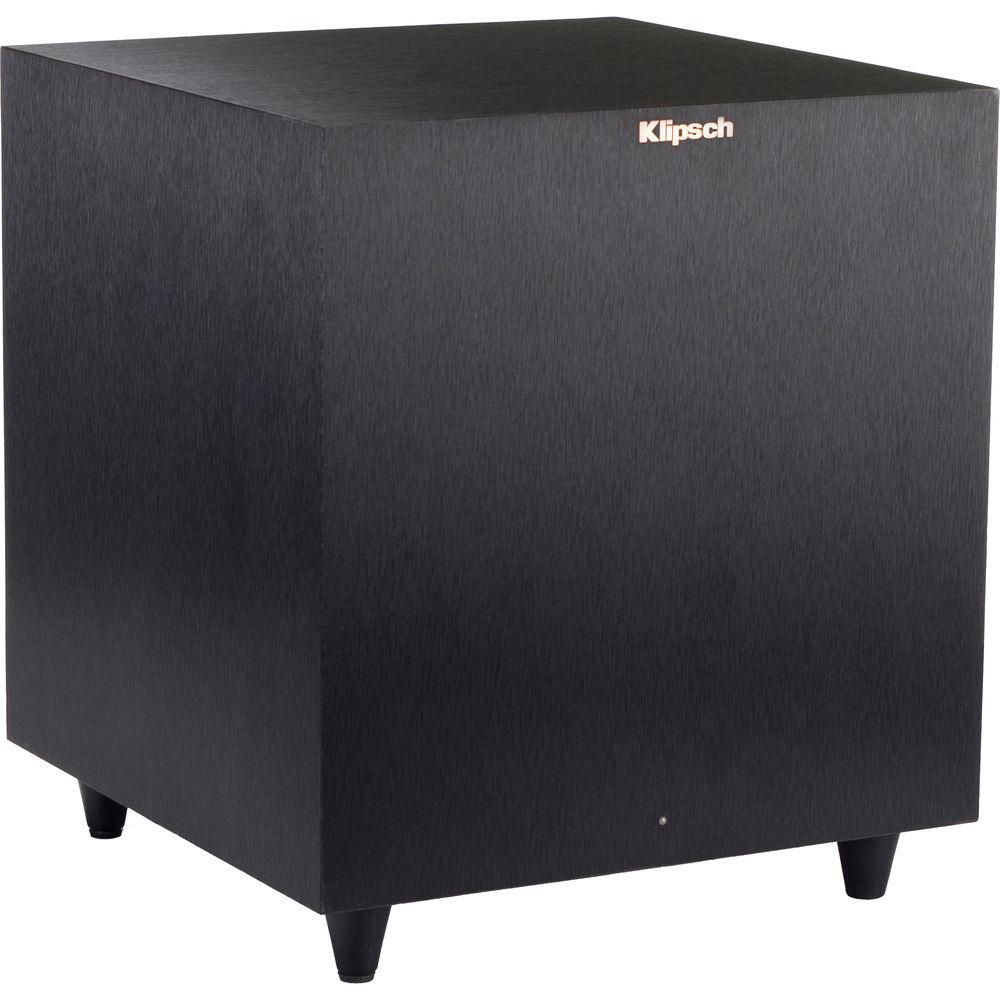

    All-Digital Amplifier
  • The built-in all-digital subwoofer amplifier delivers 50W RMS and 150W peak power with high efficiency and true-to-source accuracy in reproduction.

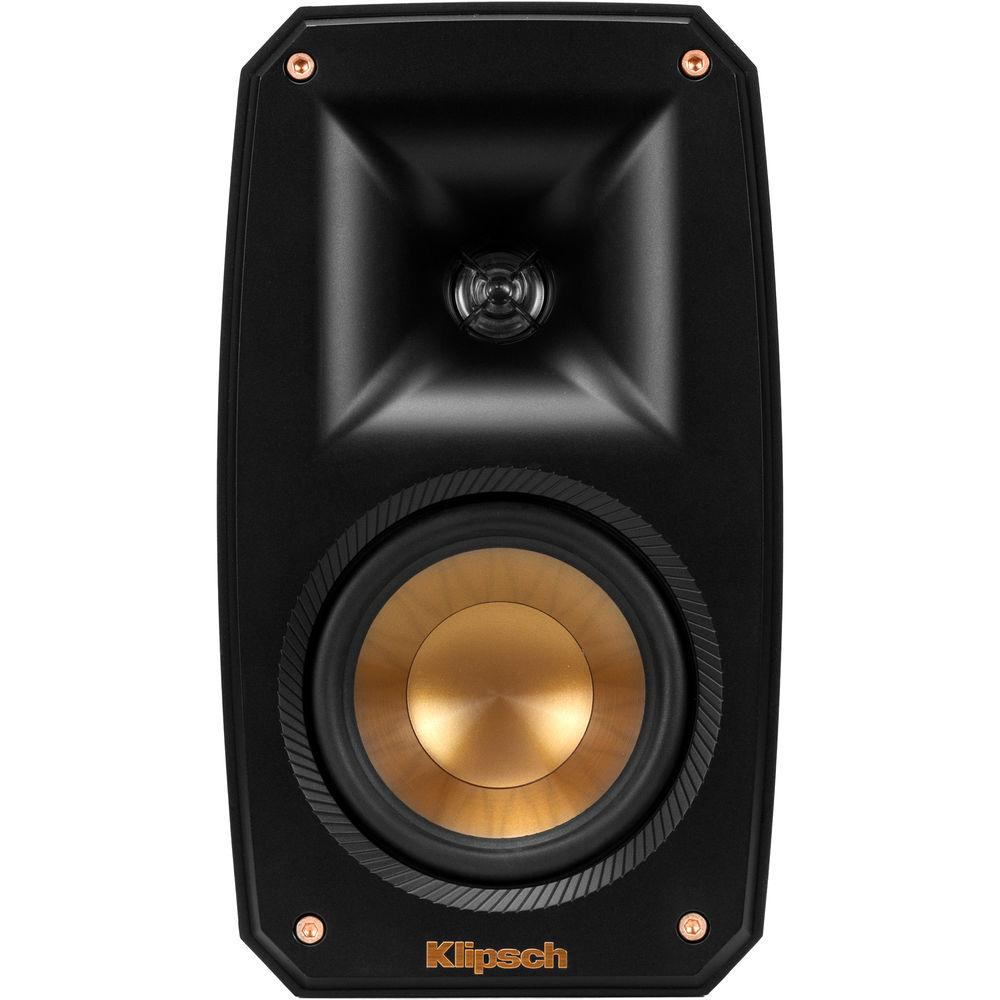

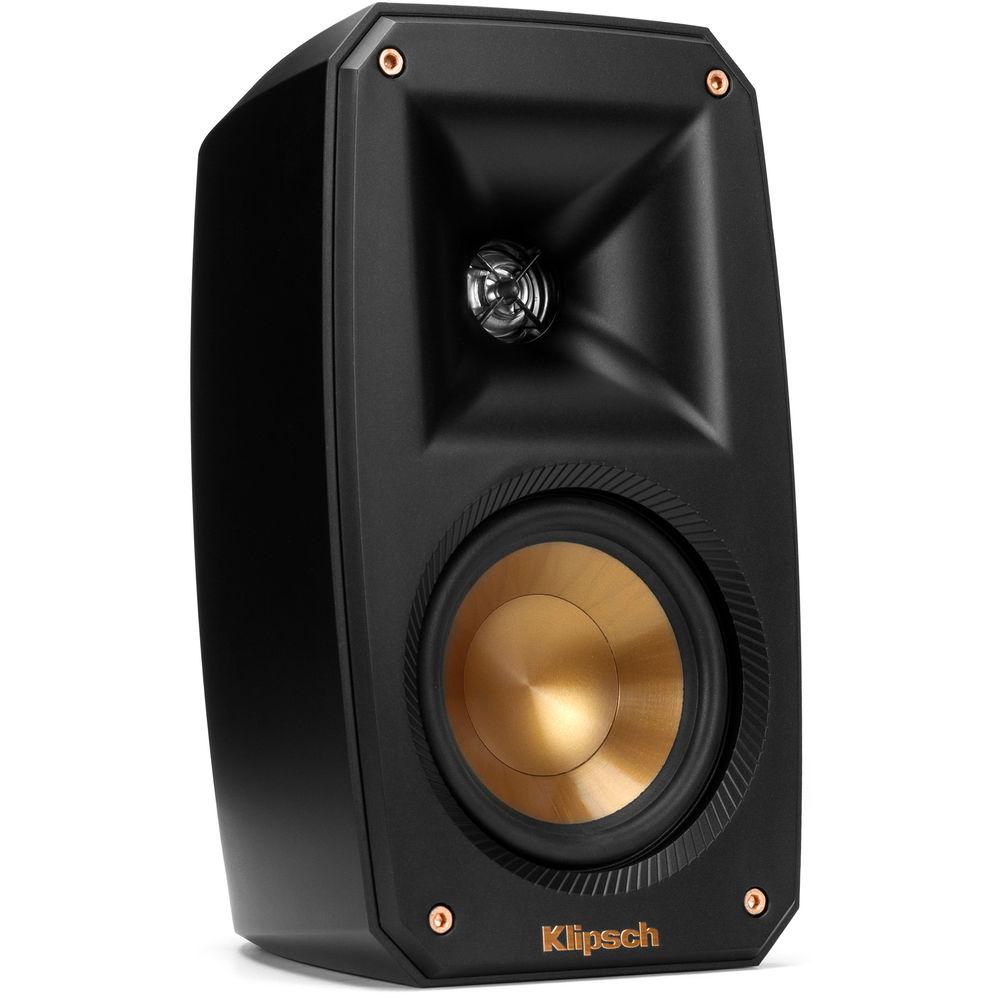

    Linear Travel Suspension (LTS) Tweeters
  • The satellite and center-channel speakers' Linear Travel Suspension tweeters minimize distortion for enhanced, detailed performance.
    90 x 90° Tractrix Horns
  • The satellite and center-channel speakers' aluminum tweeters are loaded with Tractrix horns to maximize high-end response and extension, resulting in clean, natural sound with a wide and layered soundstage and powerful dynamics.
    Flexible System Placement

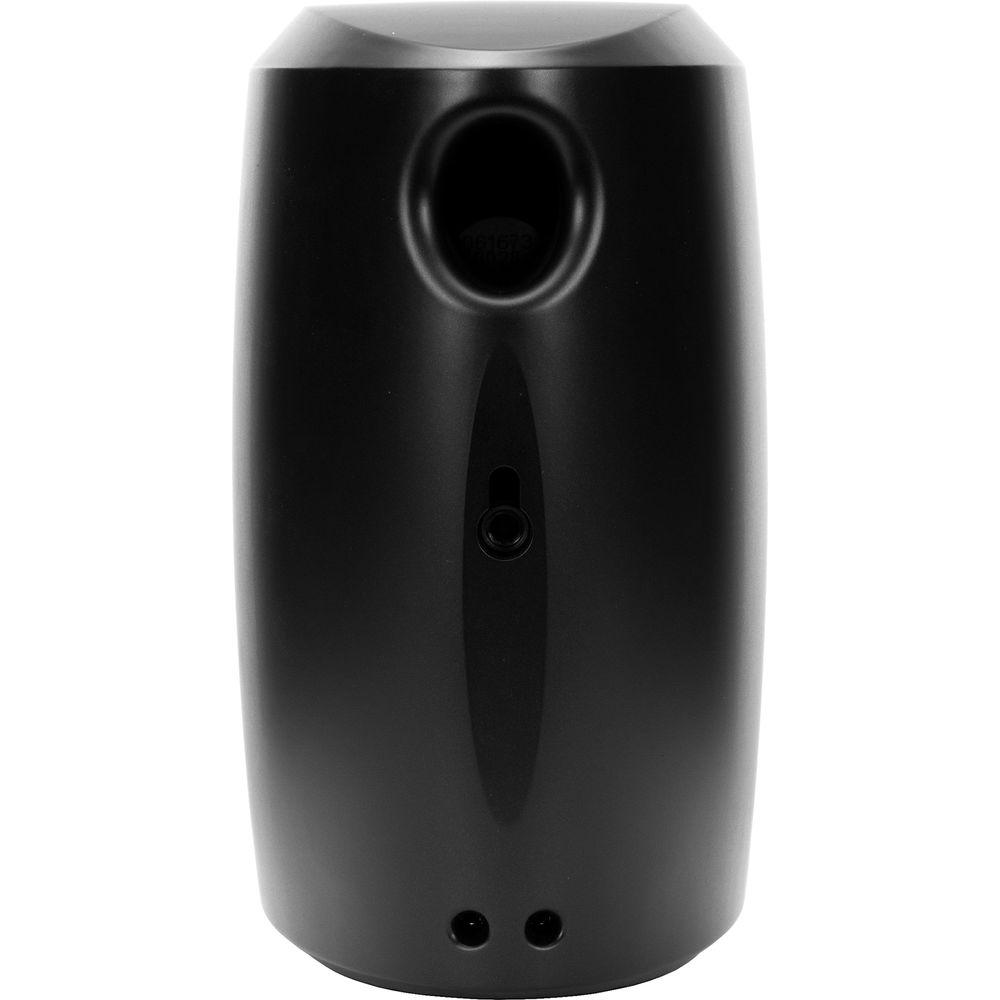

  • For maximum mounting flexibility, each satellite speaker has a keyhole mount and a 1/4"-20 threaded insert, and the center channel has dual keyholes and 1/4"-20 threaded inserts.
UPC: 743878034370 In the Box Klipsch Reference Theater Pack 5.1 System (Black)
  • Wireless Transmitter
  • 6.5' AC Power Cord
  • AC Power Adapter with 59" DC Cord
  • Limited 5-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Klipsch Reference Theater Pack 5.1 System in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Klipsch Reference Specs

    Speaker Configuration 5.1-Channel
    Driver Configuration Center: 2-Way
    Side: 2-Way
    Power Handling Side:
    50 W (RMS)
    200 W (Peak)
    Center:
    75 W (RMS)
    300 W (Peak)
    Subwoofer:
    50 W (RMS)
    150 W (Peak)
    Frequency Response Center, Side: 110 Hz to 23 kHz
    Subwoofer: 38 Hz to 120 Hz
    Impedance Center, Side: 8 Ohms
    Sensitivity Side: 91 dB
    Center: 94 dB
    SPL Subwoofer: 108 dB
    Driver Type/Size Center, Side:
    1 x 0.75" / 19.05 mm Tweeter
    Side:
    1 x 3.5" / 88.9 mm Woofer
    Center:
    2 x 3.5" / 88.9 mm Woofer
    Subwoofer:
    1 x 8" / 203.2 mm Woofer
    Connector Type Center, Side: Binding Post
    Subwoofer: RCA
    Subwoofer Type Active
    Enclosure Type Subwoofer: Bass-Reflex
    Dimensions Side: 4.4 x 7.8 x 5.4" / 11.2 x 19.8 x 13.7 cm
    Center: 10.8 x 4.4 x 5.4" / 27.4 x 11.2 x 13.7 cm
    Subwoofer: 11.8 x 13.3 x 11.8" / 30.0 x 33.8 x 30.0 cm
    Weight Side (Each): 3.0 lb / 1.4 kg
    Center: 5.0 lb / 2.3 kg
    Subwoofer: 15.0 lb / 6.8 kg
    Package Weight 39.75 lb
    Box Dimensions (LxWxH) 187.25 x 26.0 x 19.25"
