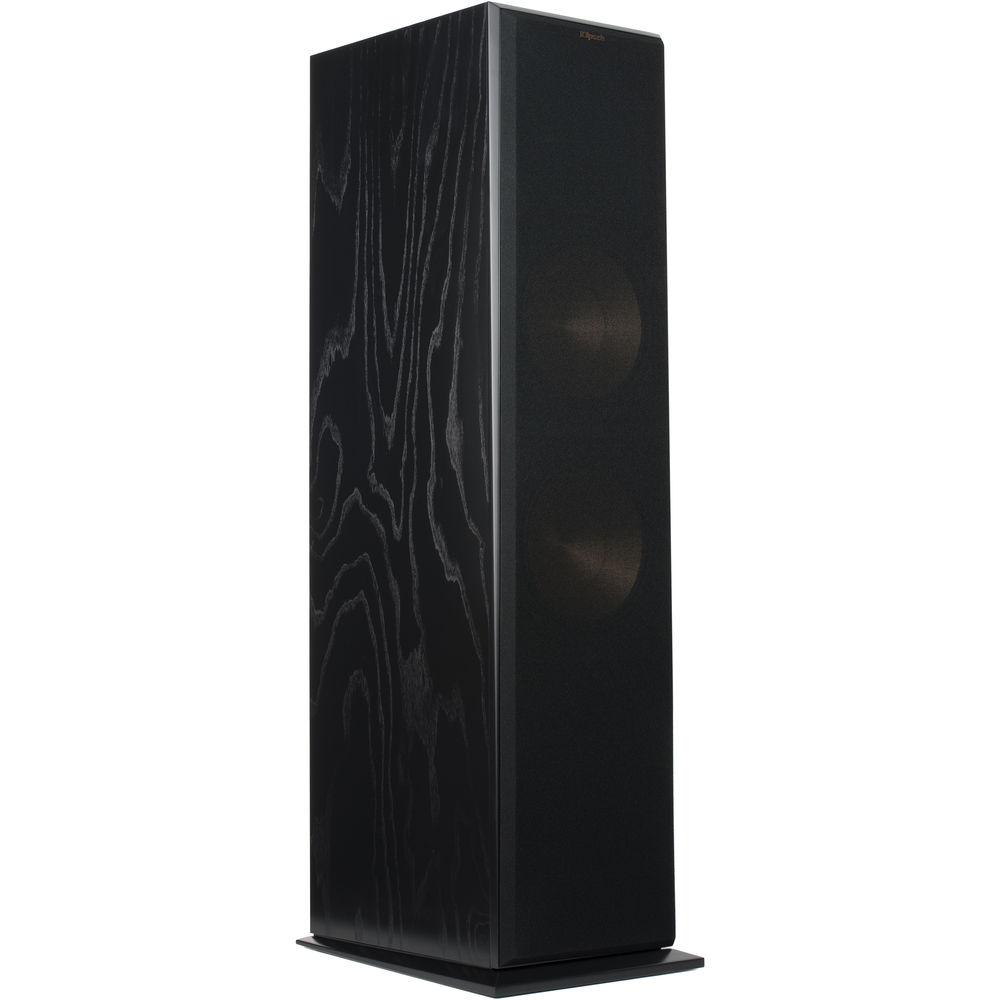

User Manual for Klipsch RF-7 III 2-Way Floorstanding Speaker Click to enlarge the picture
Contents of the user manual for the Klipsch RF-7 III 2-Way Floorstanding Speaker
- Product category: Floorstanding Speakers Klipsch
- Brand: Klipsch
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Klipsch Floorstanding Speakers
 |
User manual for the Klipsch RF-7 III 2-Way Floorstanding Speaker contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Klipsch product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Klipsch user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Klipsch product will considerably shorten its lifespan!
|

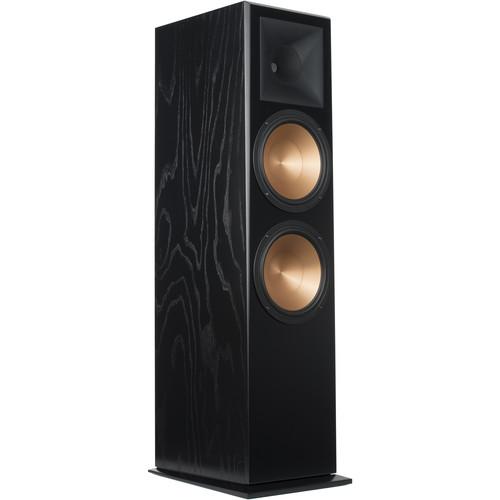

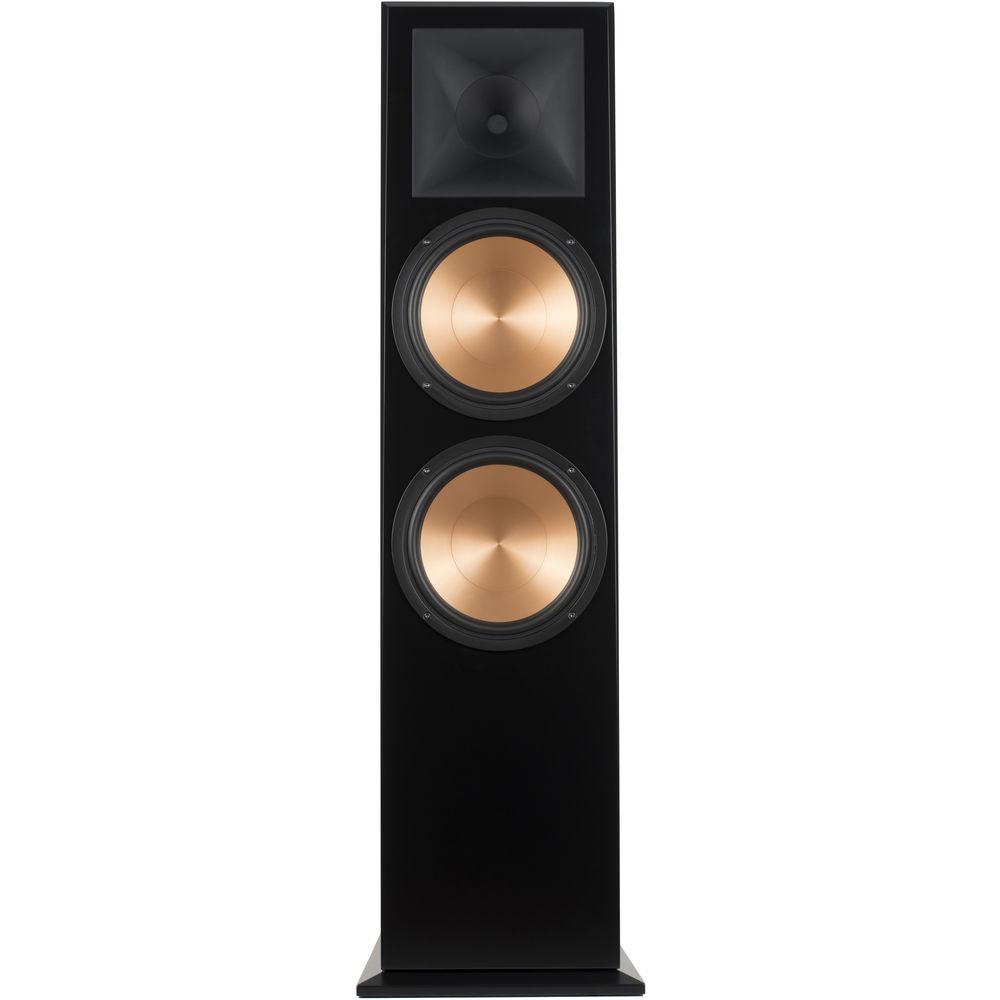

Product description Conjure the power, detail, and emotion of the live music experience in your home theater with the black-ash RF-7 III 2-Way Floorstanding Speaker from Klipsch. Featuring a 1.75" titanium diaphragm compression driver paired with an 8.5" 90 x 90° Tractrix horn and two 10" Cerametallic cone woofers, this floorstanding speaker delivers a frequency response of 32 Hz to 25 kHz. It can handle up to 250W of continuous power from your amplifier of choice. - 1.75" Titanium Diaphragm Compression Driver
- The compression driver's phase plug design improves phase coherency at the throat of the horn, resulting in improved sound pressure linearity at high frequencies.
- 90 x 90° Tractrix Horn
- The Tractrix horn uses a circular horn throat paired to a square horn mouth to further improve high-frequency response and extension while enhancing imaging and dynamics. The compressed molded rubber construction adds high-frequency damping to reduce harshness, improve detail, and deliver clean, natural sound.
- Spun Copper Cerametallic Woofers
- Cerametallic woofers are designed to combine high rigidity with a lightweight construction to ensure minimal cone breakup and distortion. They pair seamlessly with the Tractrix horn-loaded compression driver to deliver enhanced speaker efficiency.

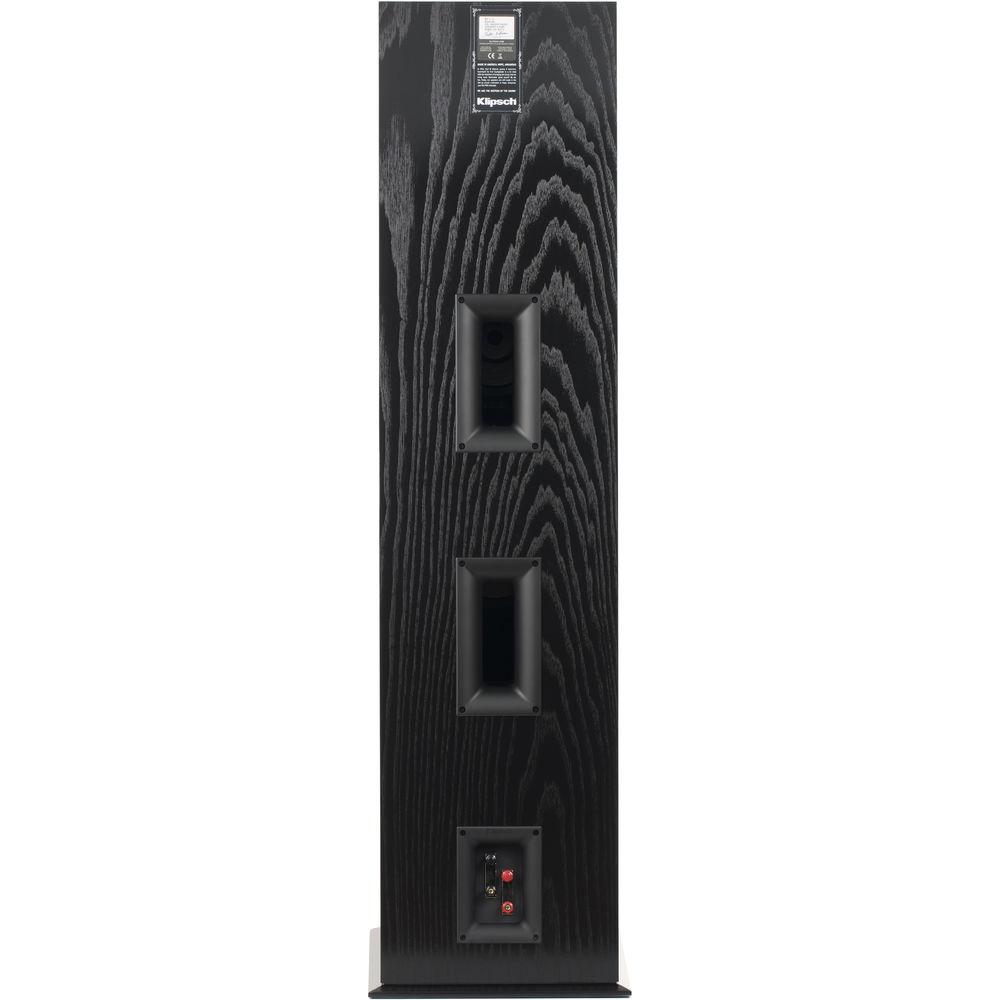

- Tractrix Ports
- Using Tractrix geometry, the RF-7 III' ports ensure efficient air transfer from the cabinet for clean and powerful low-frequency response.
- Dual-Chamber Enclosure Design
- The bifurcated enclosure allows each 10" driver and port to work independently from each other. This improves the linearity of both drive systems, and minimizes standing wave problems inside the cabinet to prevent frequency anomalies in the sensitive mid-range frequencies
- Cast Frame Woofer Design
- Each 10" woofer is equipped with a heavy-duty cast aluminum frame for resonant-free operation. In addition, each woofer incorporates a dual shorting-ring magnet structure to eliminate modulation of the magnetic flux. This design results in improved linearity of cone movement.
- Furniture-Grade Wood Veneer
- The RC-7 III speaker's enclosure boasts a furniture-grade black-ash wood veneer.
UPC: 743878034486 In the Box Klipsch RF-7 III 2-Way Floorstanding Speaker (Single, Black Ash) Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Klipsch RF-7 III 2-Way Floorstanding Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKlipsch RF-7 III Specs | Frequency Response ± 3dB | 32 Hz to 25 kHz | | Power Handling | RMS: 250 W
Peak: 1000 W | | Sensitivity | At 3.3' / 1 m (2.83 V): 100 dB | | Nominal Impedance | 8-Ohm Compatible | | High Frequency Driver | 1.75" / 4.45 cm Titanium Diaphragm Compression Driver | | High Frequency Horn | 8.5" / 21.6 cm Square 90 x 90° Tractrix Horn | | Crossover Frequency | 1300 Hz | | Low Frequency Drivers | 2 x 10" / 25.4 cm Cerametallic Cone Woofers | | Inputs | Dual Binding Posts, Bi-Wire, Bi-Amp | | Enclosure Type | Dual Chambered, Bass Reflex via Dual Rear-Firing Tractrix Ports | | Dimensions | 49.0 x 13.9 x 17.9" / 124.5 x 35.2 x 45.4 cm, Including Plinth | | Weight | 97 lb / 44.1 kg | | | | Package Weight | 100.0 lb | | Box Dimensions (LxWxH) | 55.0 x 23.5 x 18.5" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 86 owners. Add your rating and experience with the product.
