User Manual for Klipsch RSB-11 Reference-Series 135W 2.1-Channel Soundbar System Click to enlarge the picture
Contents of the user manual for the Klipsch RSB-11 Reference-Series 135W 2.1-Channel Soundbar
- Product category: Soundbar Speakers Klipsch
- Brand: Klipsch
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Klipsch Soundbar Speakers
 |
User manual for the Klipsch RSB-11 Reference-Series 135W 2.1-Channel Soundbar contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Klipsch product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Klipsch user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Klipsch product will considerably shorten its lifespan!
|

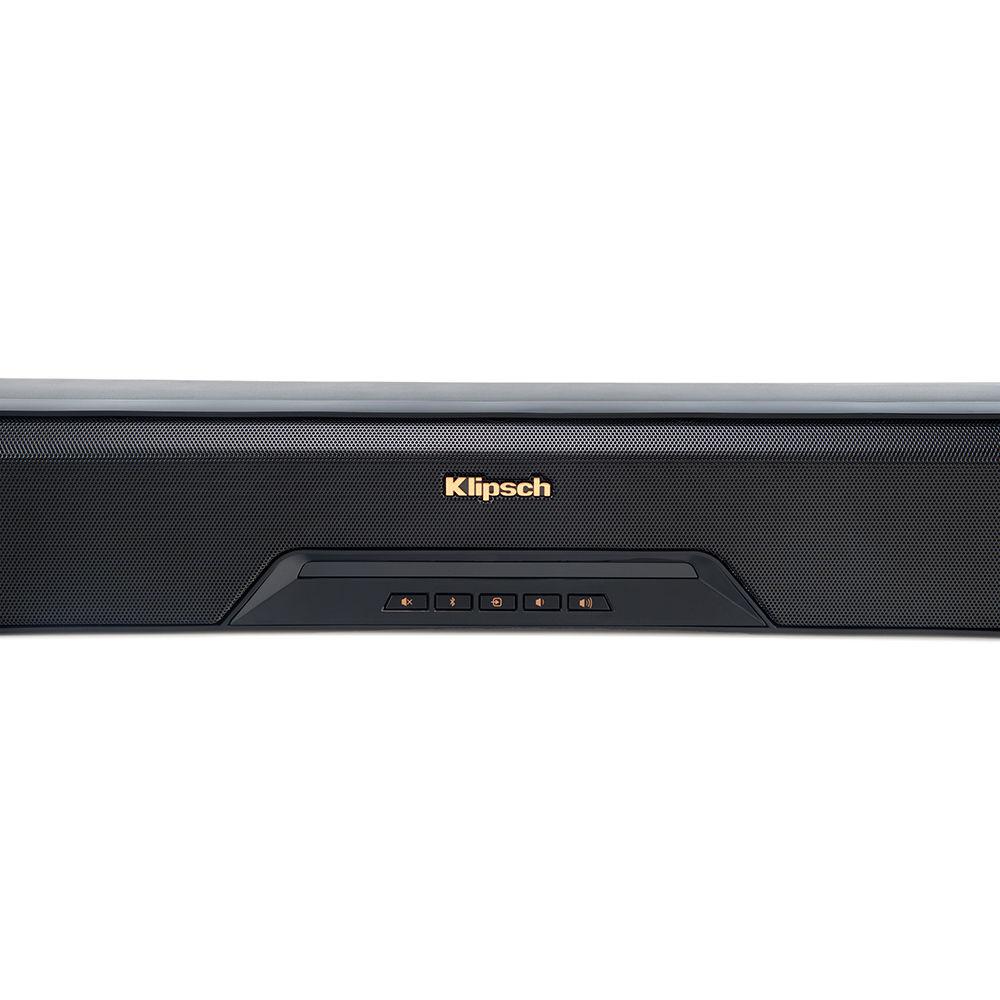

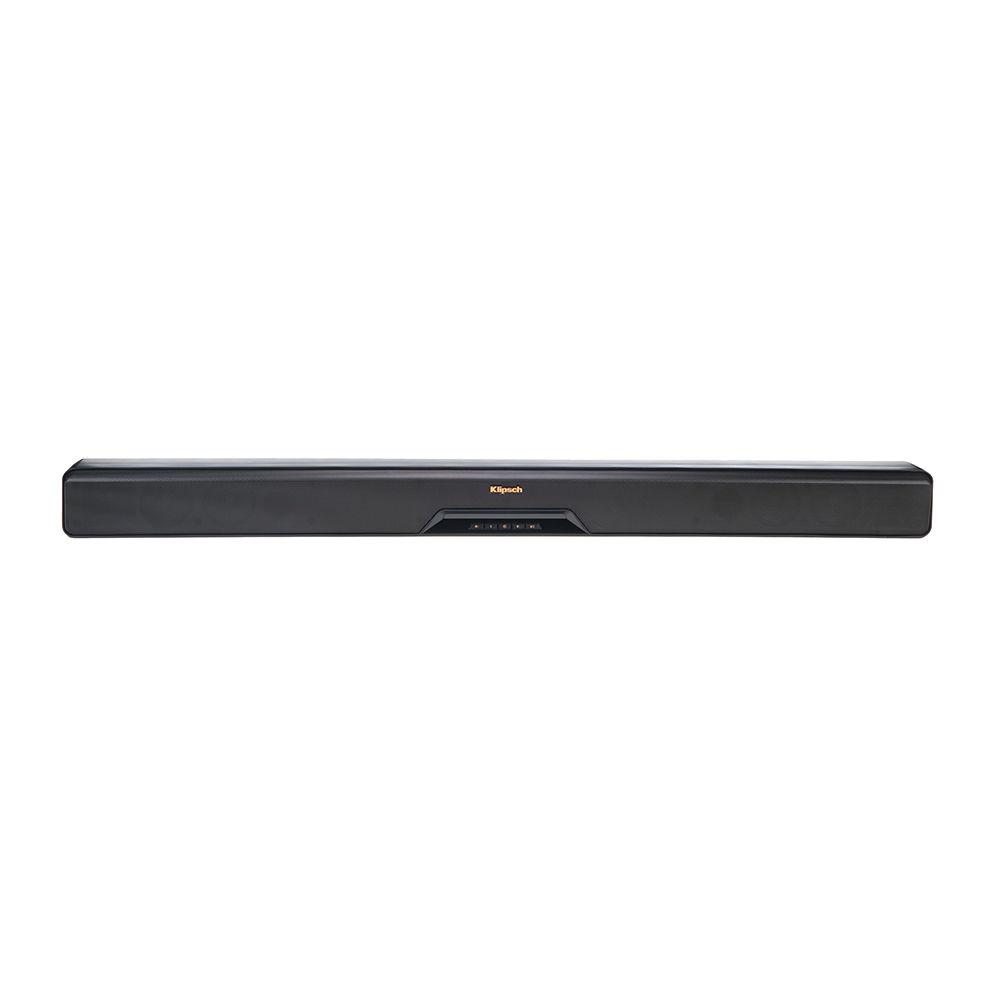

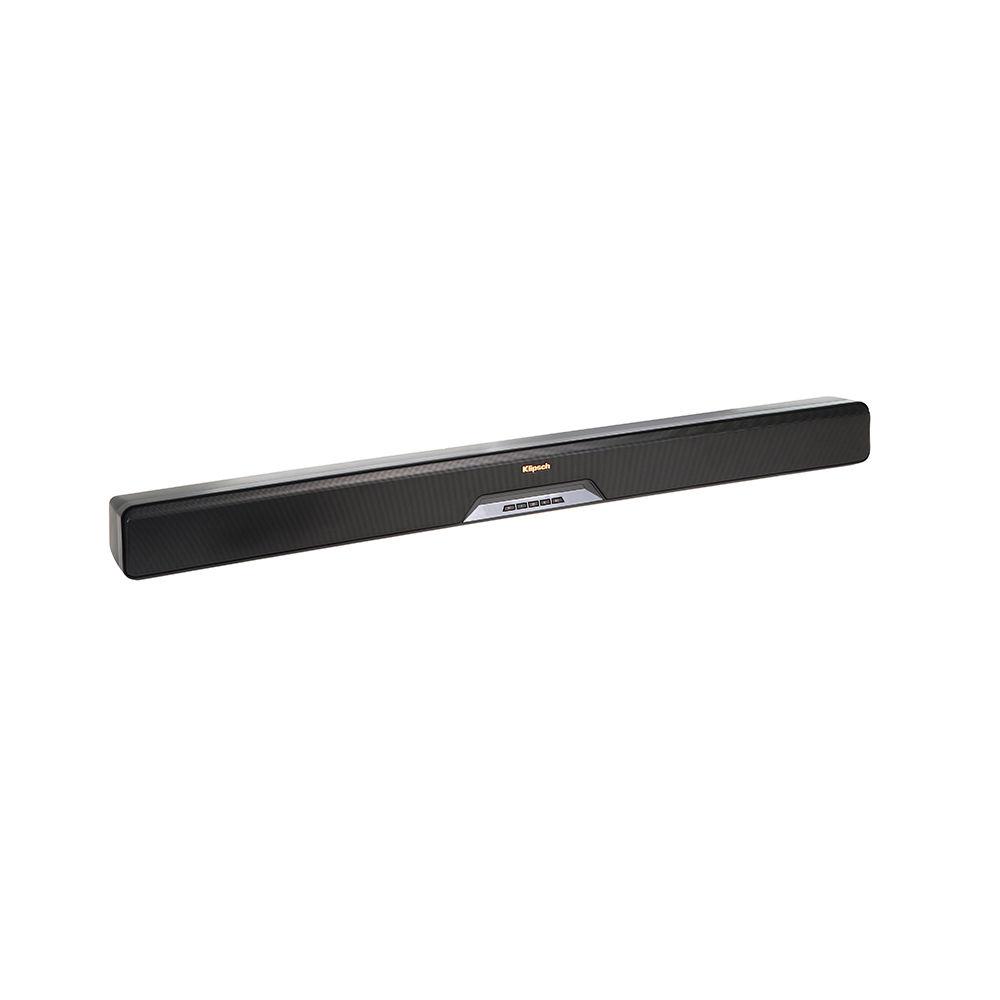

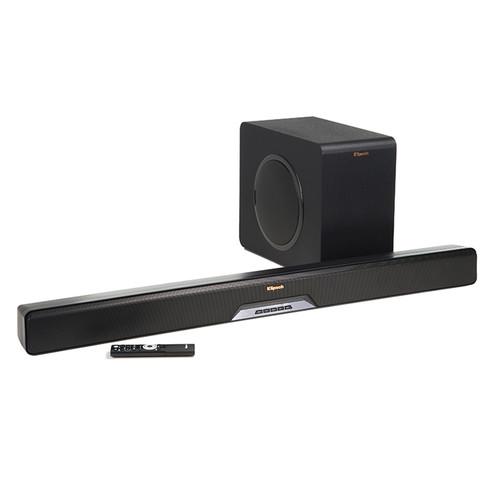

Product description How to Choose a Soundbar System Read More Enjoy virtual surround sound with a quick, simple setup with the Klipsch RSB-11 Reference-Series 135W 2.1-Channel Soundbar System. The subwoofer is designed to automatically connect to the soundbar via a 2.4 GHz wireless connection to help ease the setup process. The soundbar features an optical, 1/8", and three HDMI inputs to support a variety of devices, plus an HDMI output to connect to your display. The HDMI ports are HDMI 2.0 and HDCP 2.2-compliant for 4K support. The soundbar can be placed on a TV stand or tabletop or mounted to the wall with the built-in keyhole mounts. A wall mounting template, remote control, and HDMI cable are all included for added convenience. - 2-Way Bi-Amplified Soundbar
- The two 0.75" horn-loaded textile dome tweeters with 90 x 90° Tractrix horns are designed to deliver crisp highs, while four 2.75" woofers round out the sound with clear vocals and dynamic soundtracks. Includes a DSP-controlled crossover via separate amplifier channels for tweeter and woofer.
- HDMI 2.0 for 4K Video Pass-Through
- Whether or not you already have a 4K display, the Klipsch Reference RSB-11 soundbar is a suitable choice for enhanced sound from your current display. Three HDMI 2.0 inputs with HDCP 2.2 compatibility allow for easy connection of your cable/DSS box, Blu-Ray player, or gaming systems. One HDMI cable out to your display allows the video signal to pass through the soundbar, and an HDMI cable is included.
- Optical and Analog Inputs
- If you haven't made the jump to a display with HDMI yet, Klipsch included an optical and 1/8" analog input.
- Built-In Dolby Audio Decoding
- Dolby Audio decoding is designed to provide clear audio and prevent jumps in volume as you switch content or go from broadcast programs to commercial breaks.
- Suitable for Large Displays
- The RSB-11 is 44" wide, making it a suitable match for displays 50" and larger.

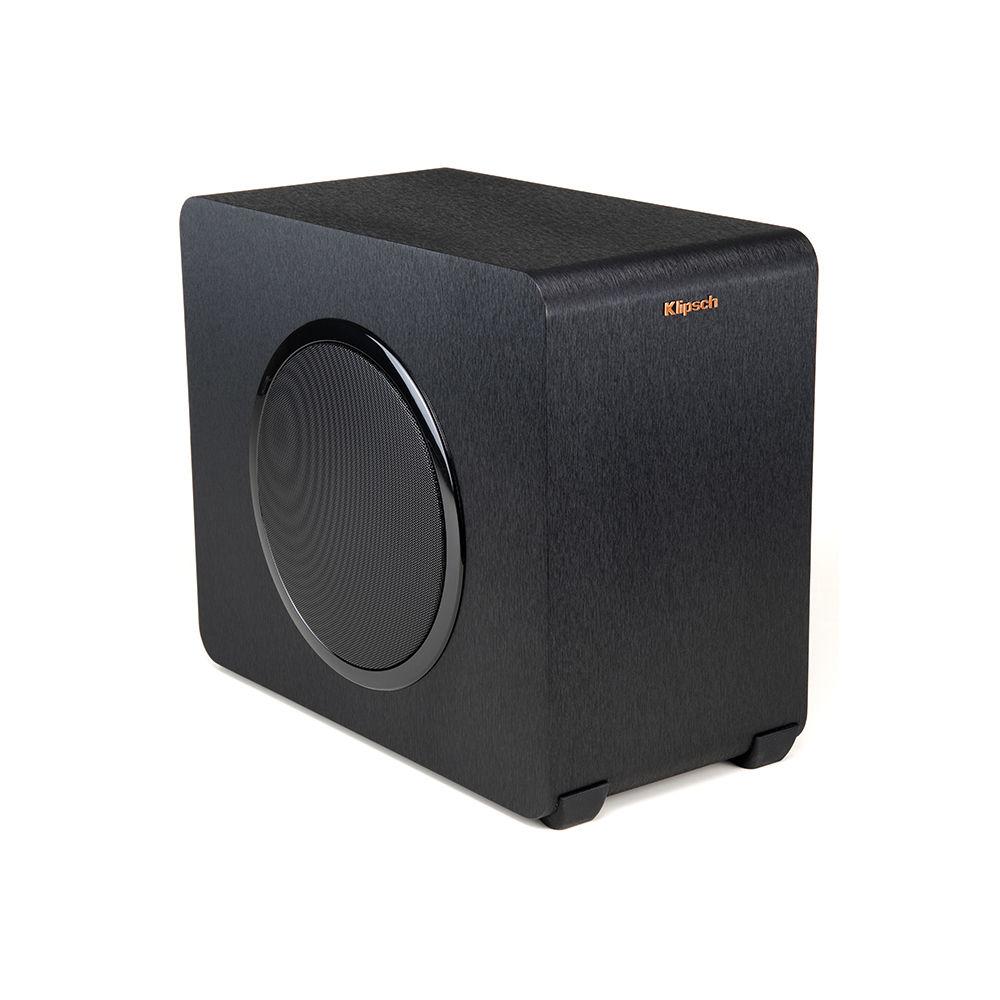

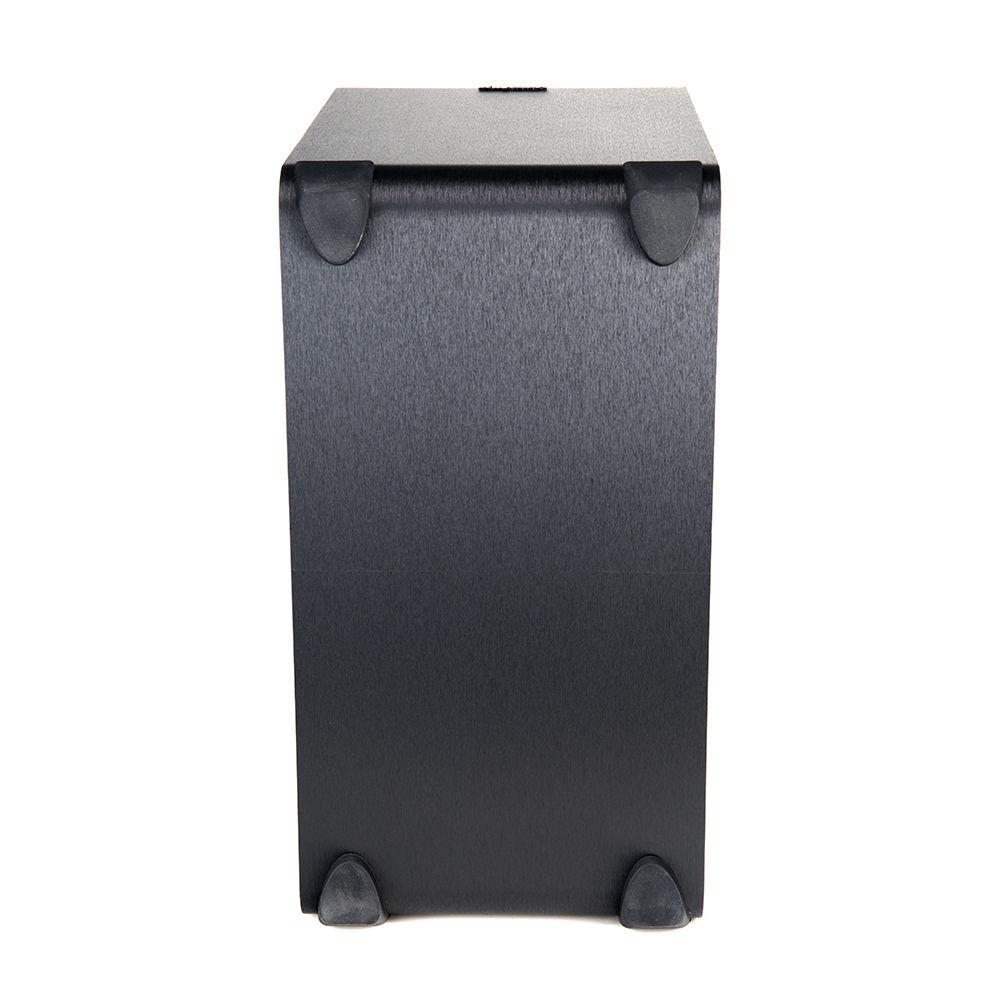

- 8" Wireless Subwoofer Included
- With an 8" side-firing driver and ported cabinet, the RSB-11 is fashioned to deliver bass worthy of a movie theater. It automatically connects to the soundbar with 2.4 GHz wireless technology.
- Bluetooth Connectivity Built-In
- The RSB-11 will wirelessly connect to most Bluetooth-compatible devices, including mobile phones, audio devices, and computers.
- Virtual Surround Mode
- The Virtual Surround Mode is designed to provide an enhanced, three-dimensional surround sound effect for your movies and music.
- Dialogue Enhance Mode
- This mode is designed to increase the dialogue volume for augmented vocal clarity without increasing ambient sounds.
- Night Mode
- Adjust the dynamic range for quieter listening environments with Night Mode.

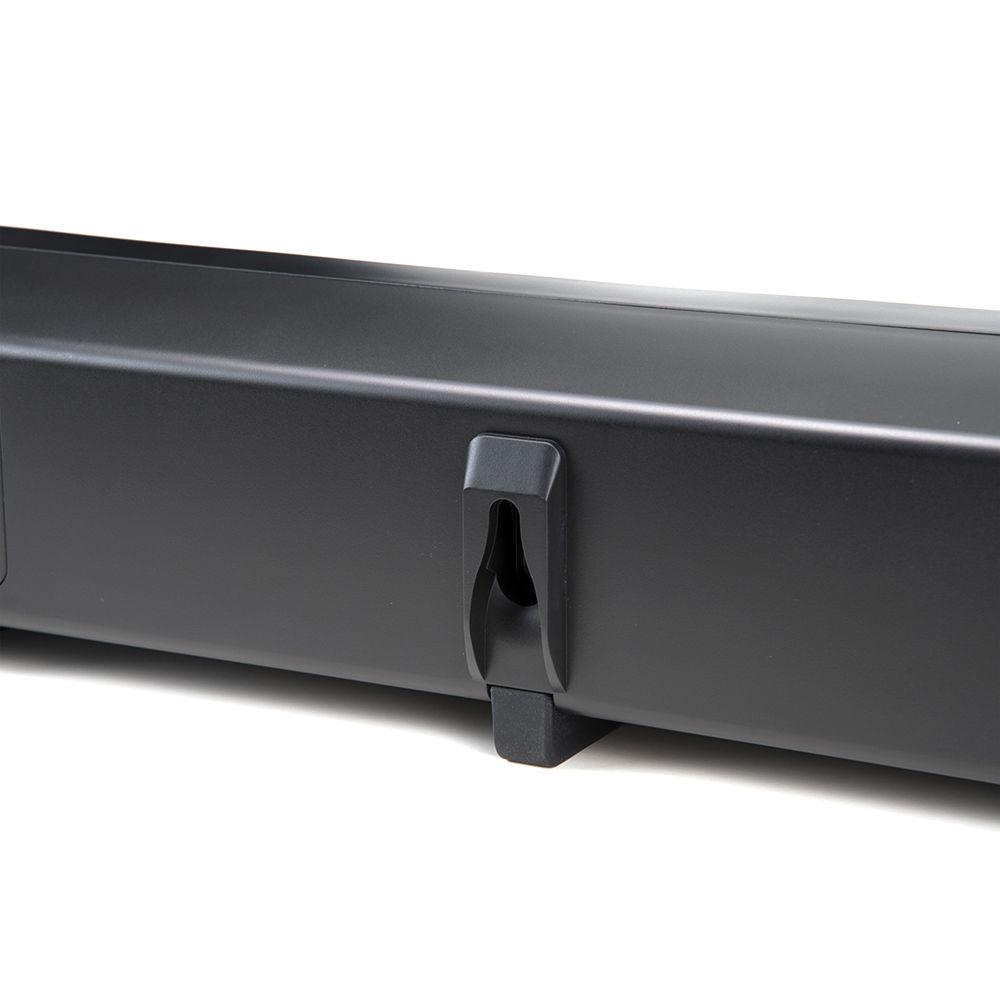

- Flexible Placement Options
- Keyhole mounts for wall mounting and rubber feet for stable, on-stand placement are included.

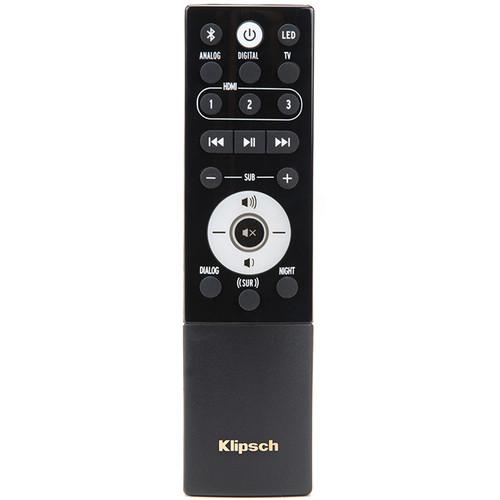

- Wireless Remote Control
- A wireless remote control is included in the box.
UPC: 743878030402 In the Box Klipsch RSB-11 Reference-Series 135W 2.1-Channel Soundbar System 4.9' HDMI Cable Remote Control 2 x Rubber Feet Wall Mounting Template 2 x Power Supplies Limited 1-Year Warranty on Electronics Limited 3-Year Warranty on Woofer, Cabinet, and Non-Electrical Mechanics Bose: The New Lineup of Home Speaker Systems Richard L. Stevens 10/11/2014 More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the Klipsch RSB-11 Reference-Series 135W 2.1-Channel Soundbar System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKlipsch RSB-11 Specs | | | Speaker Configuration | 2.1-Channel | | Enclosure Type | Ported | | Midrange Drivers | 4 x 2.5" / 63.5 mm Cone | | High-Frequency Drivers | 2 x 0.75" / 19 mm Dome | | Amplifier Output | 135 W RMS
200 W Peak | | Crossover | 2-Way | | Frequency Response | 28 Hz to 20 kHz | | Maximum SPL | 110 dB | | Total Harmonic Distortion (THD) | <0.5% | | | | Enclosure Type | Ported | | Drivers | 1 x 8" / 203 mm | | | | Inputs | 3 x HDMI 2.0
1 x Optical TOSLINK
1 x 1/8" (3.5 mm) | | Outputs | 1 x HDMI 2.0 | | Bluetooth Version | 2.0 | | Bluetooth Codec Support | aptX | | | | AC Input Power | 120 VAC, 60 Hz | | | | Dimensions | 44.0 x 3.3 x 3.3" / 111.8 x 8.3 x 8.3 cm (Soundbar)
7.0 x 16.0 x 13.1" / 17.8 x 40.6 x 33.3 cm (Subwoofer) | | Weight | 10 lb / 4.5 kg (Soundbar)
24 lb / 10.9 kg (Subwoofer) | | | | Package Weight | 40.5 lb | | Box Dimensions (LxWxH) | 47.4 x 21.5 x 11.4" |
