User Manual for Klipsch RSB-3 2-Channel Soundbar Click to enlarge the picture
Contents of the user manual for the Klipsch RSB-3 2-Channel Soundbar
- Product category: Soundbar Speakers Klipsch
- Brand: Klipsch
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Klipsch Soundbar Speakers
 |
User manual for the Klipsch RSB-3 2-Channel Soundbar contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Klipsch product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Klipsch user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Klipsch product will considerably shorten its lifespan!
|

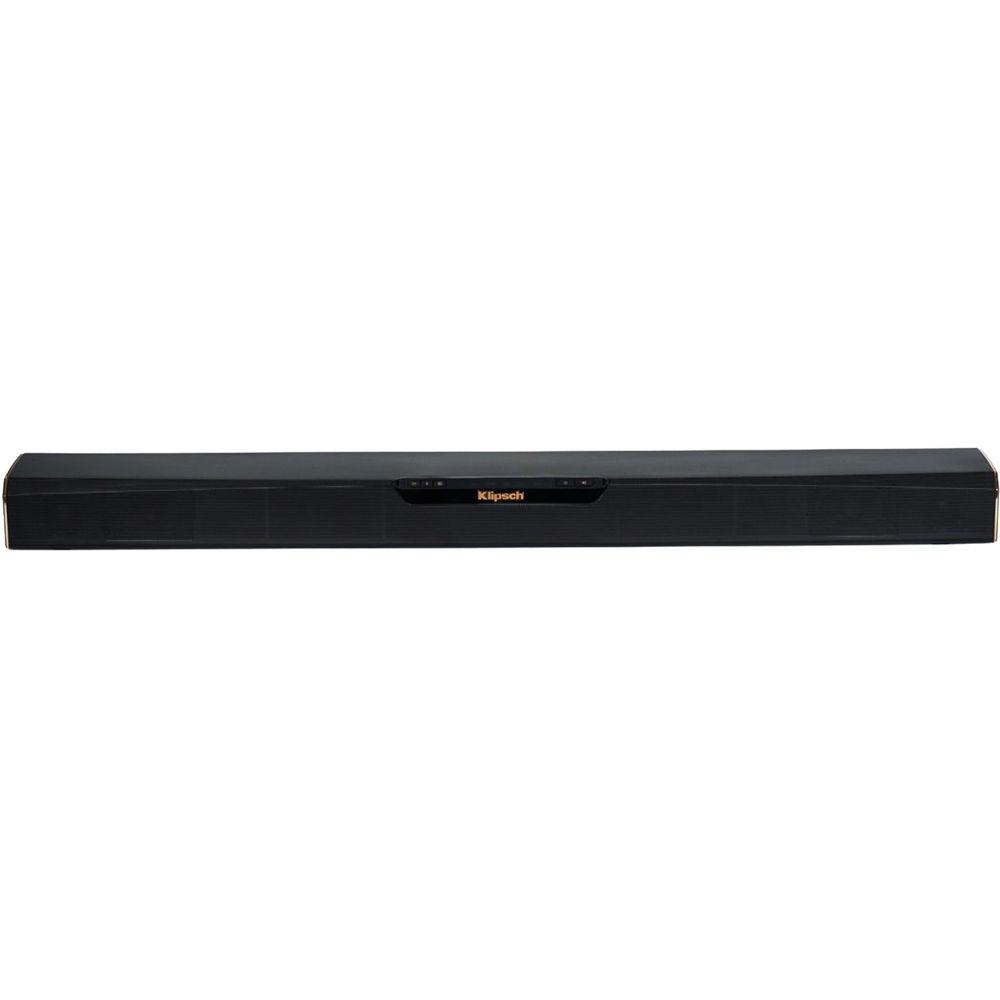

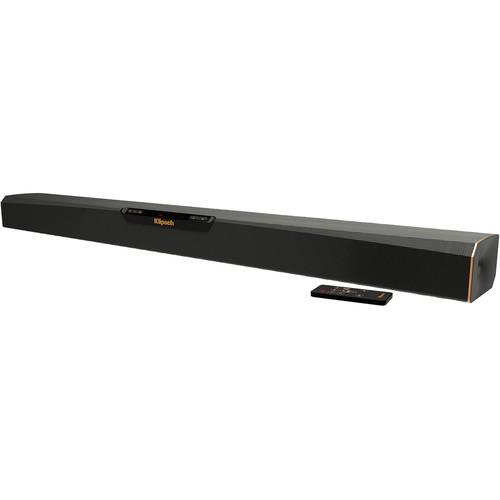

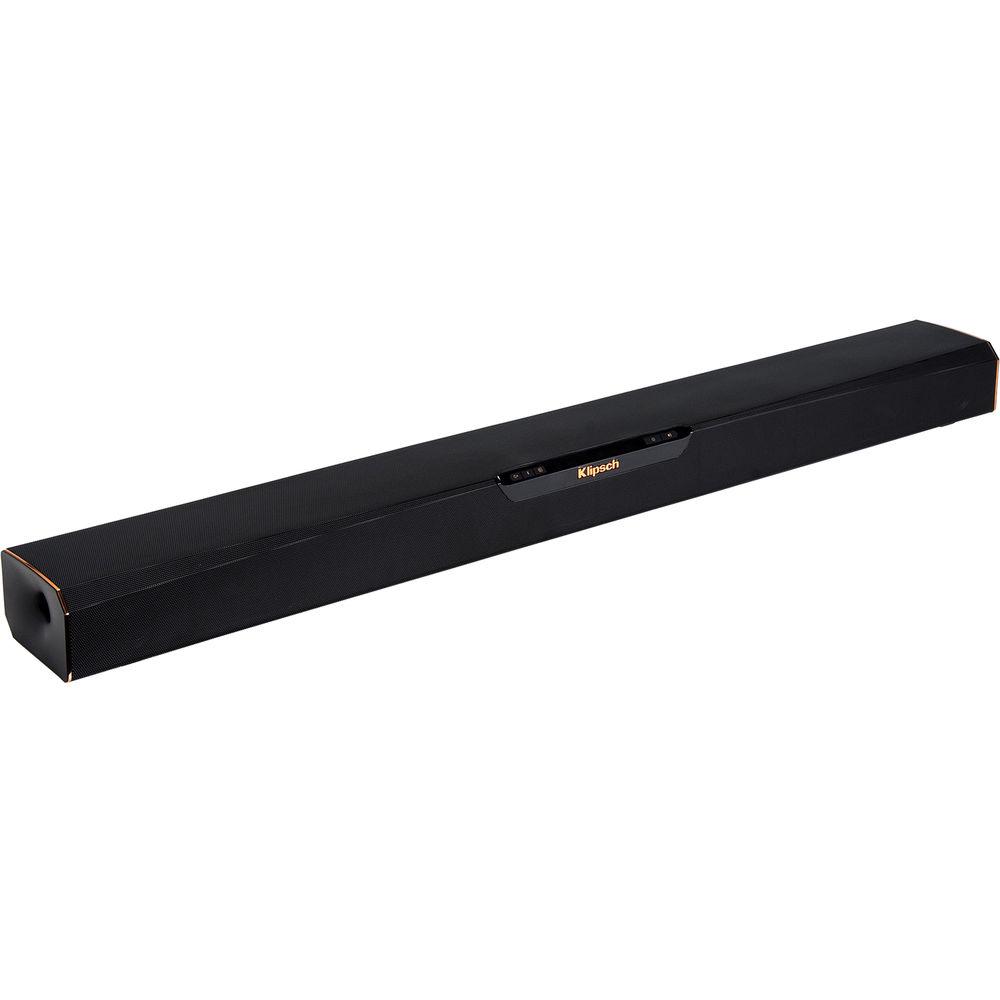

Product description How to Choose a Soundbar System Read More xctyvtszbwexrwvxydtctwufeb Enhance the audio of your display with the Klipsch RSB-3 2-Channel Soundbar. It features a pair of 3/4" tweeters with 90 x 90° Tractrix horns and two 2.5" mid-woofers, with a bass-reflex design to enhance the low end for an augmented bass response. The soundbar has an optical input for direct connection to your display, Bluetooth connectivity for your compatible device, and a 1/8" analog input for non-Bluetooth-equipped devices. At just 2.6" tall, you can place the RSB-3 under your display on a table top, or mount it to the wall with the keyholes. - Designed for Easy Plug-and-Play Setup
- The RSB-3 soundbar is designed to quickly connect to your display via the included optical cable.
- Slim-Profile Design
- Measuring only 2.6" tall, the RSB-3 is designed to fit below your display in both wall-mounted and tabletop installations.
- Dolby Audio Decoding Built-In
- The integrated Dolby decoder formats all your Dolby content to help provide a detailed cinematic experience.
- 2-Way Bi-Amplified Sound
- The dual 3/4" horn-loaded, soft-dome tweeters with 90 x 90° Tractrix horns are designed to deliver crisp highs, while the dual 2.5" oval woofers help round out the sound for clear vocals and dynamic soundtracks. The soundbar also features a DSP-controlled crossover via separate amplifier channels for the tweeters and woofers.

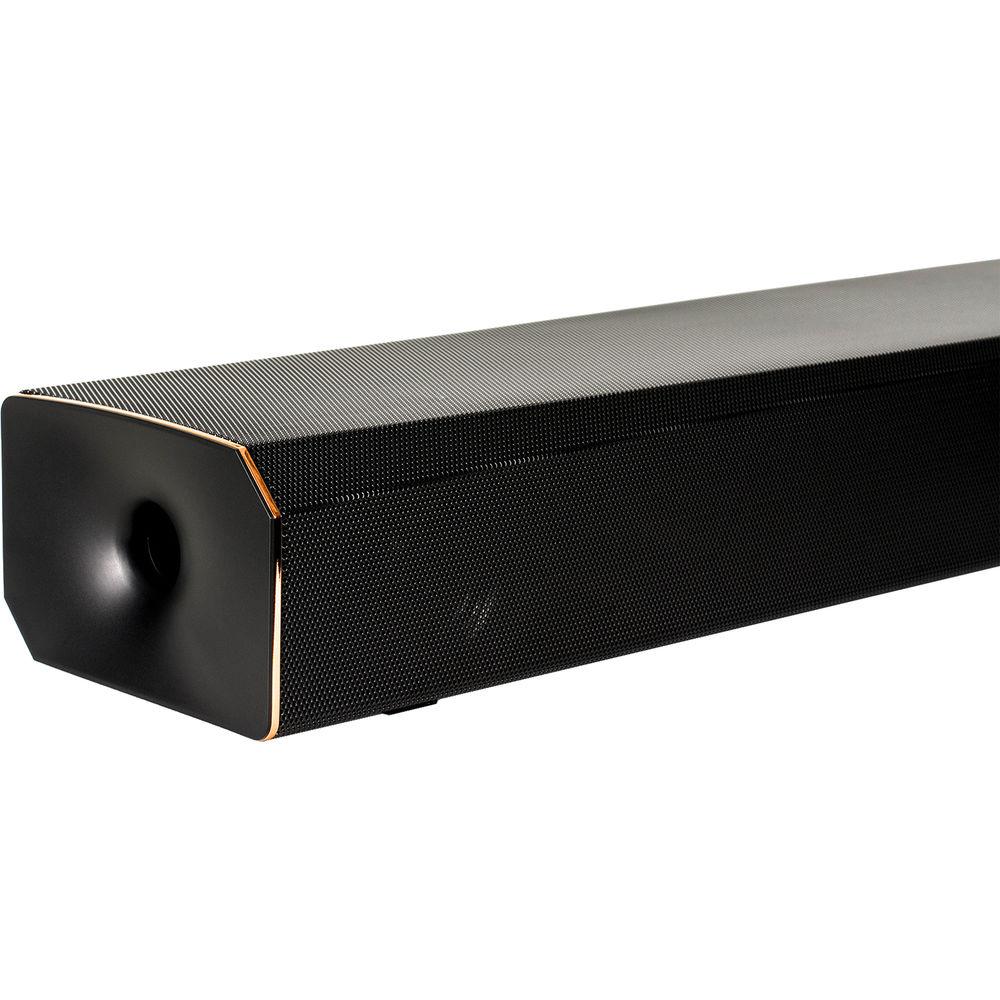

- Ported Cabinet for Enhanced Bass
- The soundbar features a ported design, enhancing the bass response from the dual 2.5" oval woofers.
- Bluetooth Wireless Technology
- You can connect to nearly all Bluetooth-enabled smartphones, tablets, and computers to play music wirelessly from your device.
- Virtual Surround Mode
- Virtual Surround Mode is designed to provide an engulfing surround effect without additional speakers or wires.
- Voice Enhance Mode
- Voice Enhance Mode boosts dialogue volume for enhanced clarity without increasing the volume of other sounds.

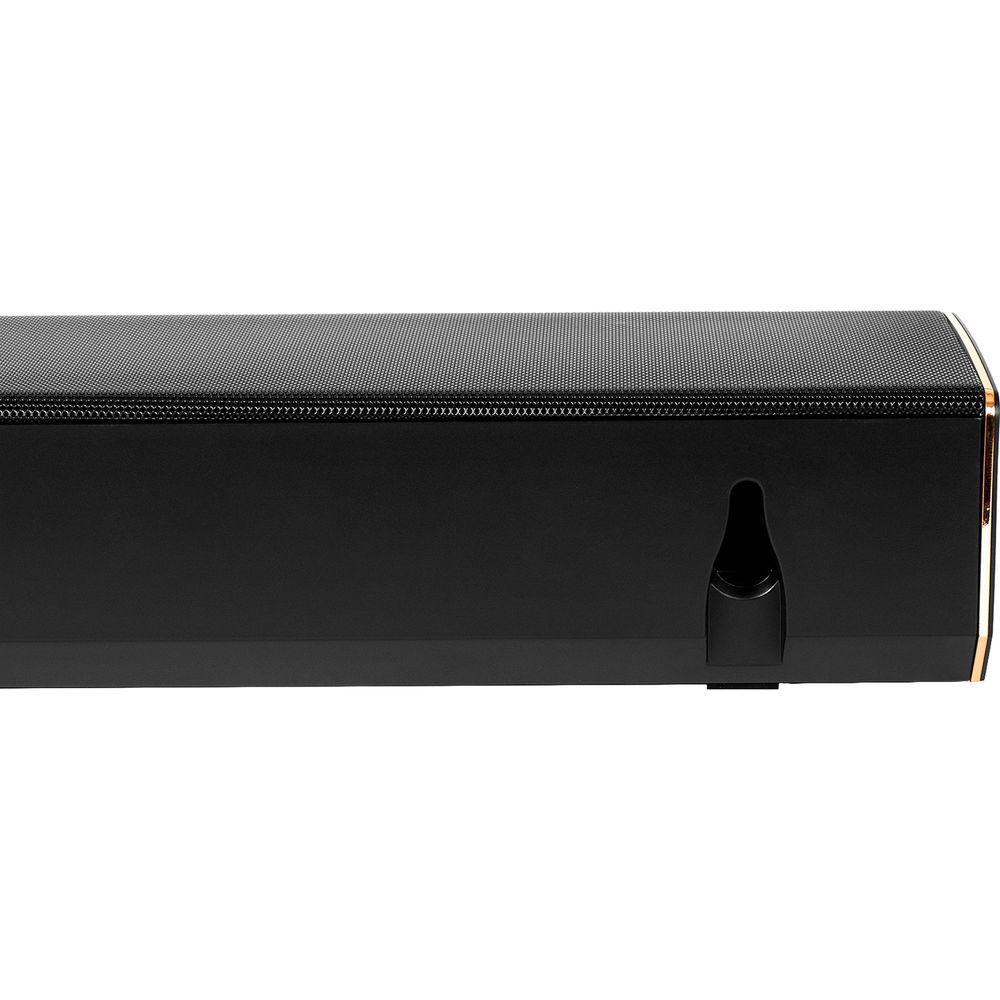

- Rubber Feet & Keyhole Mounts
- These variable mounting options enable you to place the soundbar on a tabletop or mount it to the wall.
- Additional Features
-

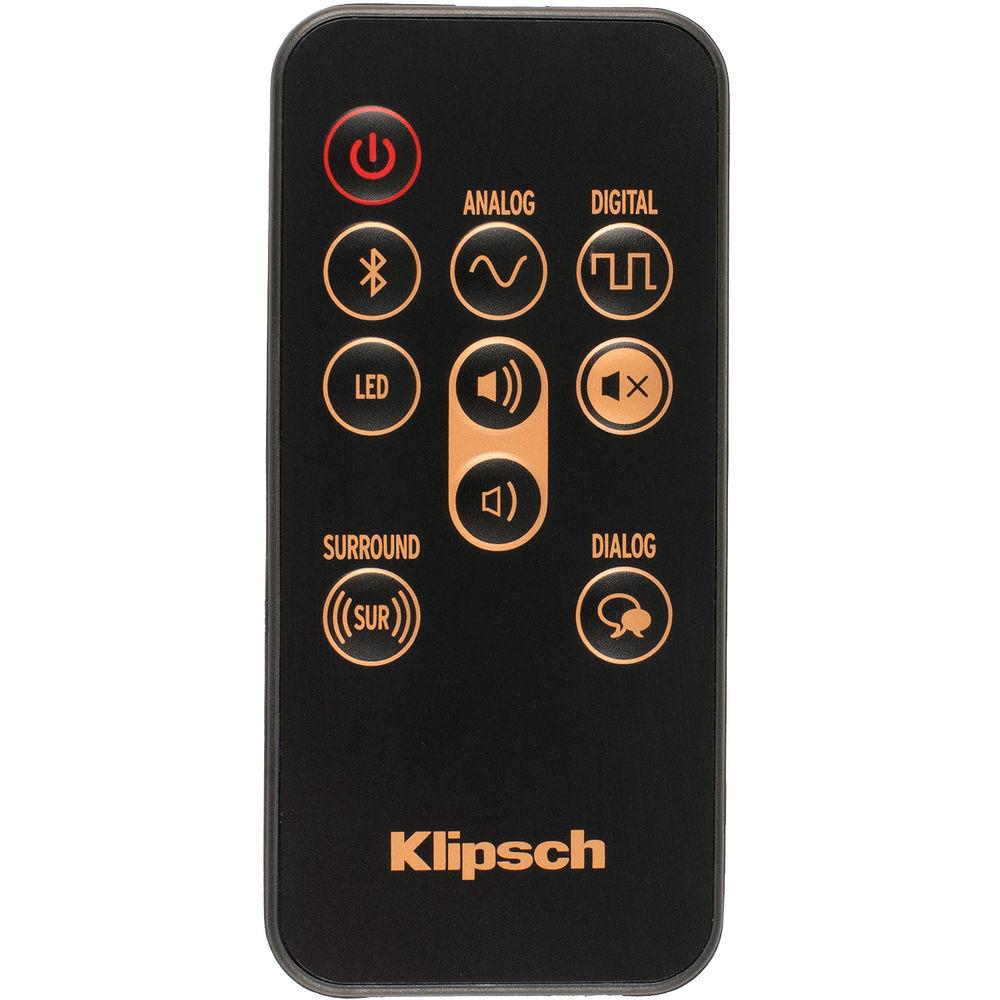

- Wireless remote control included
- Metal mesh grille

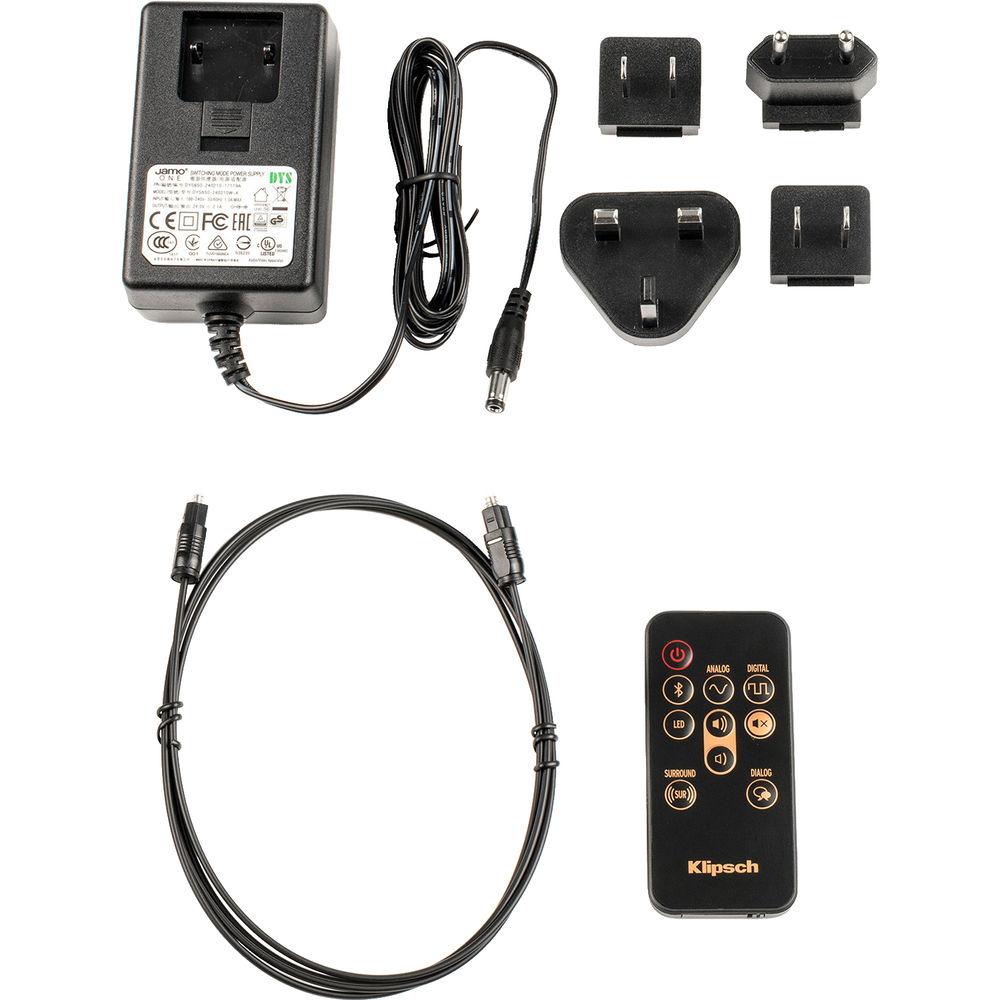

In the Box Klipsch RSB-3 2-Channel Soundbar Remote Control CR2025 Battery 4.9' Optical Cable Wall Mounting Template 6.6' Power Adapter Region-Specific Power Clips Limited 1-Year Warranty on Electronics Limited 3-Year Warranty on Cabinet and Non-Electrical Mechanics Bose: The New Lineup of Home Speaker Systems Richard L. Stevens 10/11/2014 More from Manufacturer xctyvtszbwexrwvxydtctwufeb Table of Contents
|
Upload User Manual
Have you got an user manual for the Klipsch RSB-3 2-Channel Soundbar in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

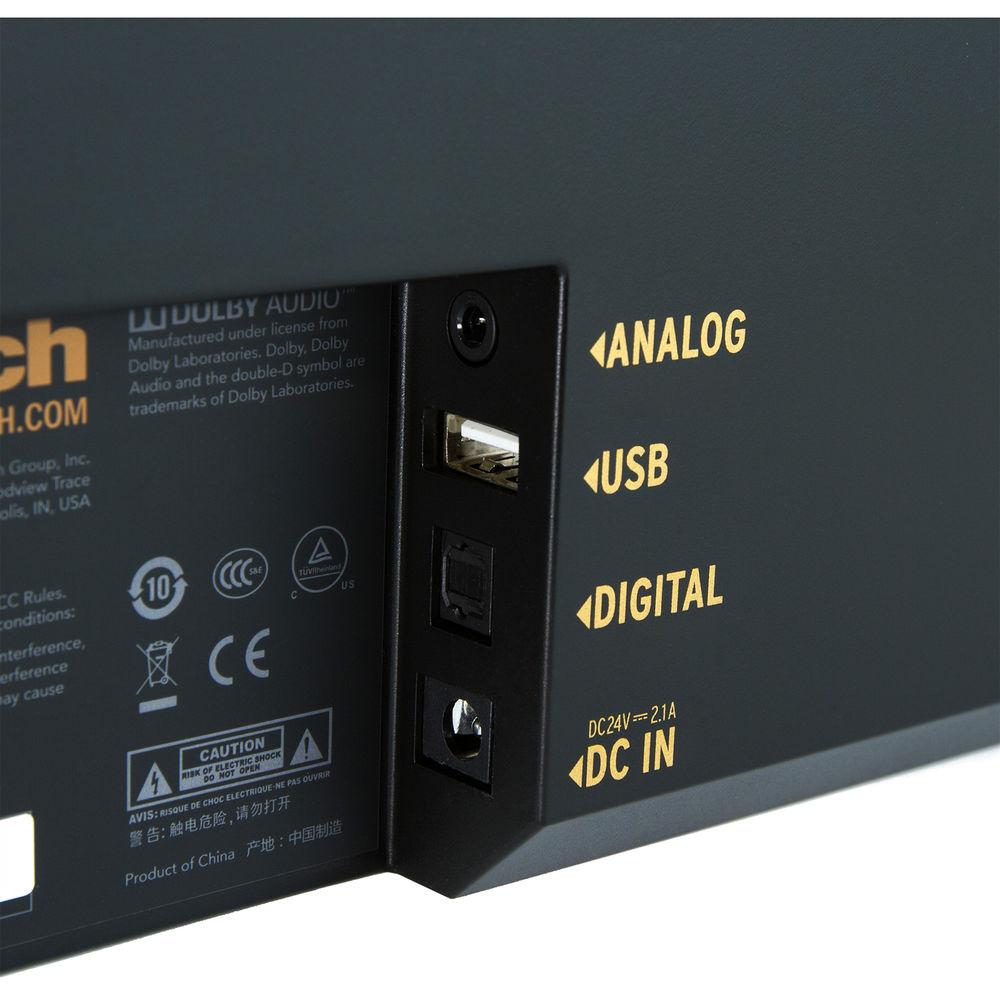

Technical parametersKlipsch RSB-3 Specs | | | Enclosure Type | Ported | | Midrange Drivers | 2 x 2.5" / 63.5 mm Oval Cone | | High-Frequency Drivers | 2 x 0.75" / 19 mm Dome | | Amplifier Output | 56 W | | Crossover | 2-Way at 2300 Hz | | Frequency Response | 55 Hz to 18 kHz | | Maximum SPL | 100 dB | | Total Harmonic Distortion (THD) | <1% | | | | Inputs | 1 x Optical TOSLINK
1 x 1/8" (3.5 mm) | | Wireless Audio Protocols | Bluetooth | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | | | Material of Construction | ABS | | Dimensions | 36.0 x 2.6 x 4.0" / 94.4 x 6.5 x 10.2 cm | | Weight | 7 lb / 3.2 kg | | | | Package Weight | 9.0 lb | | Box Dimensions (LxWxH) | 42.0 x 7.0 x 5.0" |
