User Manual for Klipsch SPL-120 12" 600W Subwoofer Click to enlarge the picture
Contents of the user manual for the Klipsch SPL-120 12" 600W Subwoofer
- Product category: Subwoofers Klipsch
- Brand: Klipsch
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Klipsch Subwoofers
 |
User manual for the Klipsch SPL-120 12" 600W Subwoofer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Klipsch product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Klipsch user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Klipsch product will considerably shorten its lifespan!
|

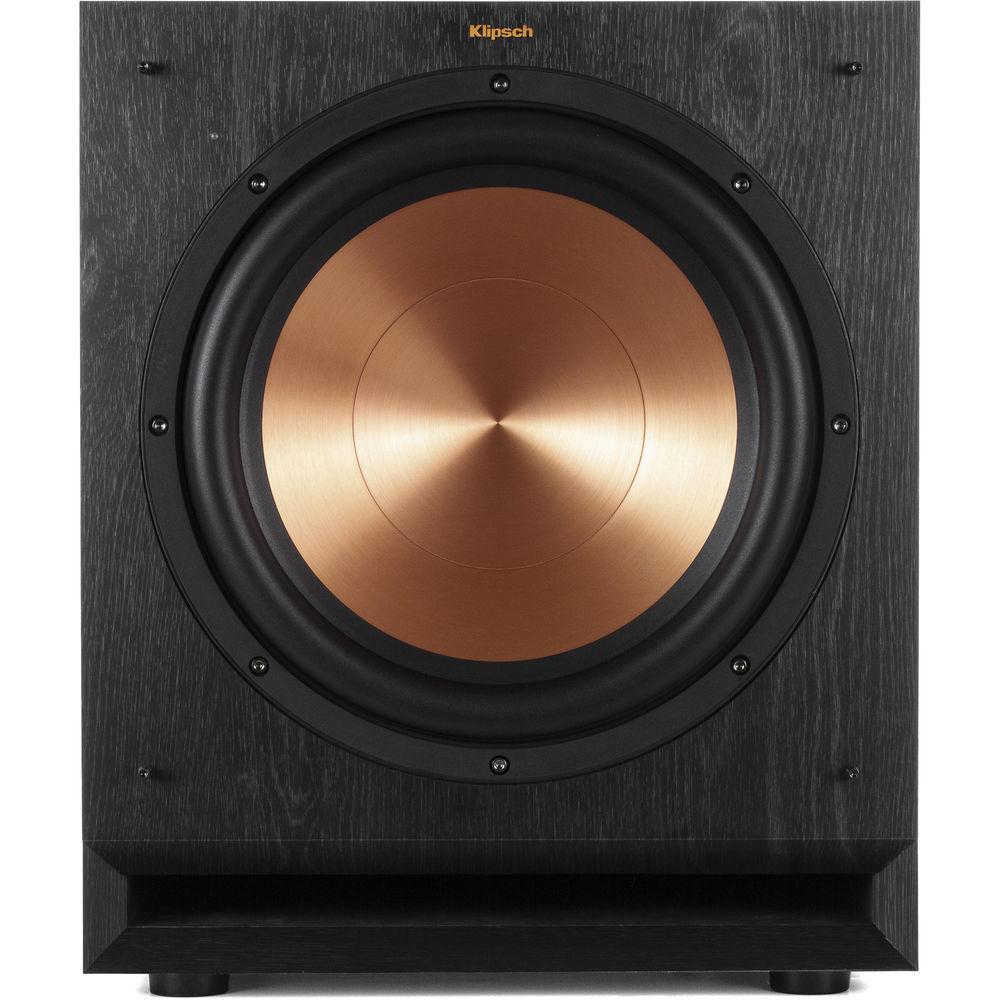

Product description Boost the bass impact of your movies and music with the ebony SPL-120 12" 600W Subwoofer from Klipsch. This front-firing subwoofer features a 12" long-throw Cerametallic woofer and delivers up to 600W of peak power. With a frequency response of 24 to 125 Hz, this subwoofer is equipped to handle a variety of listening material. Integrated low-pass, volume, and phase control settings allow you to tailor the sound of the subwoofer to your listening environment.
For installation flexibility, the SPL-120's RCA inputs support both LFE and line level signals. Moreover, the optional WA-2 Wireless Subwoofer Kit allows high-resolution wireless connectivity for easy placement anywhere in your room. - Spun-Copper Front-Firing Cerametallic Woofer
- Cerametallic woofers are designed to be light and rigid for enhanced low-frequency response with minimal cone breakup and distortion.
- Class D Amplifier
- The built-in amplifier features an analog preamp design, which maintains the original signal path for cleaner, true-to-source reproduction. The Class D output stage augments output, detail, and low-frequency power.
- Front-Firing Slot Port with Internal Flare
- The SPL-120's slot port geometry minimizes port noise for clean, undistorted low frequencies. The front-firing design allows for placement flexibility.
- WA-2 Wireless Subwoofer Kit Capable
- The WA-2 Wireless Subwoofer Kit (available separately) allows high-resolution wireless connectivity for easy placement anywhere in your room and optimizes output and low-frequency response. Connect up to four WA-2 wireless kits to compatible Klipsch subwoofers in a single room for a completely wireless connection.
- Low-Pass Crossover and Phase Control
- These controls help you blend the subwoofer with other Klipsch speakers and establish the level of bass you want in your room. Line Level / LFE RCA inputs ensure compatibility with home theater receivers (available separately).
- Use RCA and WA-2 Inputs Simultaneously
- The RCA and wireless inputs can be used simultaneously, giving you the ability to use a single subwoofer with multiple systems in the same room. For example, you can use the wireless input for your home theater setup and the RCA input for your 2-channel system, without needing to switch inputs when changing between systems.
- 0.5W Standby Mode
- The SPL-120 features a 0.5W standby mode designed to reduce energy consumption.
- Scratch-Resistant Ebony Finish
- The entire subwoofer cabinet is covered with a scratch-resistant ebony finish.
- Design Details
- The SPL-120's design includes shock-absorbing rubber feet, steel grille posts, and a woven cloth grille.
In the Box Klipsch SPL-120 12" 600W Subwoofer (Ebony) Magnetic Grille Limited 2-Year Warranty on Electronics Limited 5-Year Warranty on Driver, Cabinet, and Non-Electrical Mechanics Table of Contents
|
Upload User Manual
Have you got an user manual for the Klipsch SPL-120 12" 600W Subwoofer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKlipsch SPL-120SW Specs | Frequency Response | 24 to 125 Hz | | Max Acoustic Output | 118 dB | | Amplifier Type | Class D with Analog Preamp Stage | | Amplifier Power | RMS: 300 W
Peak: 600 W | | Woofer | 12" Long-Throw Cerametallic Woofer | | Enclosure Material | MDF, Vinyl Finish | | Enclosure Type | Bass Reflex via Front-Firing Slot Port | | Inputs | Stereo RCA/LFE Line In, WA-2 Wireless Port | | Standby Power Consumption | 0.5 W | | Dimensions | 17.75 x 14.7 x 19.9" / 45.1 x 37.4 x 50.6 cm | | Weight | 45 lb / 20.4 kg | | | | Package Weight | 57.1 lb | | Box Dimensions (LxWxH) | 23.0 x 22.0 x 19.0" |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 69 owners. Add your rating and experience with the product.
