User Manual for Kodak i2900 Document Scanner Click to enlarge the picture
Contents of the user manual for the Kodak i2900 Document Scanner
- Product category: Flatbed & Document Scanners Kodak
- Brand: Kodak
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kodak Flatbed & Document Scanners
 |
User manual for the Kodak i2900 Document Scanner contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kodak product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kodak user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kodak product will considerably shorten its lifespan!
|

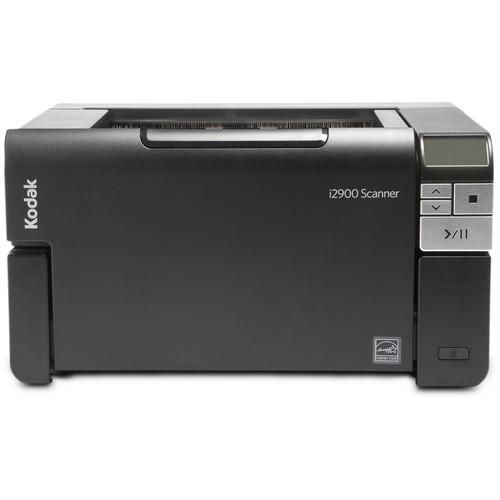

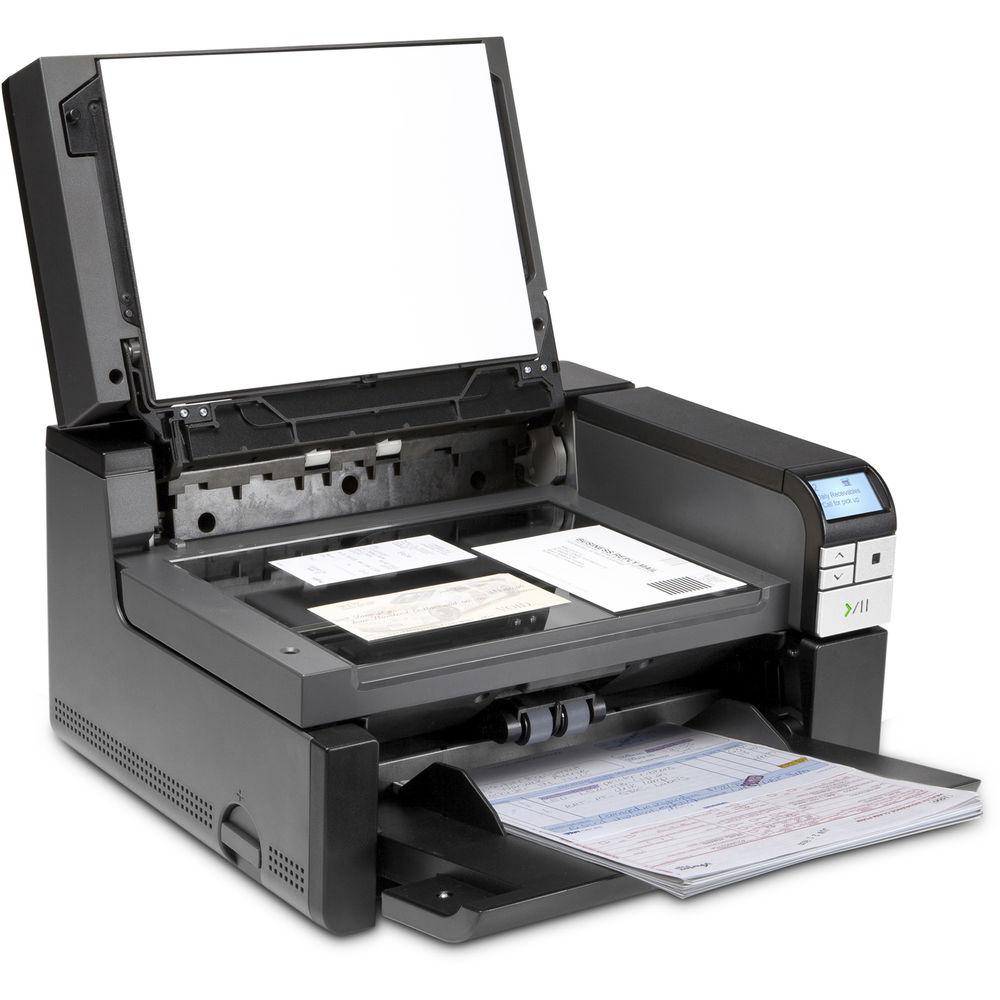

Product description The Kodak i2900 Document Scanner is a fast 600 dpi rotary scanner with the ability to handle up to 60 ppm or 120 ipm at 300 dpi. The scanner is ready for a variety of different document sizes and types as well with both a 250-sheet automatic document feeder and a book-edge A4-size flatbed scanner. This allows for a maximum document size up to 8.5 x 160" in long document mode and a minimum document size of just 2 x 2". Also, there is ultrasonic multi-feed protection built-in to ensure that pages are scanned correctly and without damaging the original documents.
Duplex scanning is another function of this device and the scanner can handle up to 10,000 pages a day with the automatic document feeder. Changing settings and viewing scan info is simple with the implementation of a graphical LCD display and four operating buttons. Also, the scanner connects to a computer with a USB 2.0 connectivity that is also USB 3.0 compatible. - Scan Quality
-
- Optical resolution of 600 dpi
- Output resolutions from 100 to 1200 dpi
- Color input bit depth of 48-bit with 24-bit output
- Grayscale is captured in 256 levels (8-bit)
- Scan Performance
-
- Up to 60 ppm or 120 ipm at 200 and 300 dpi in color, grayscale, and black & white
- Saves scans as single and multi-page TIFF, JPEG, RTF, BMP, PDF, and searchable PDF formats
- Batch scanning with 250-sheet ADF and automatic duplex capability

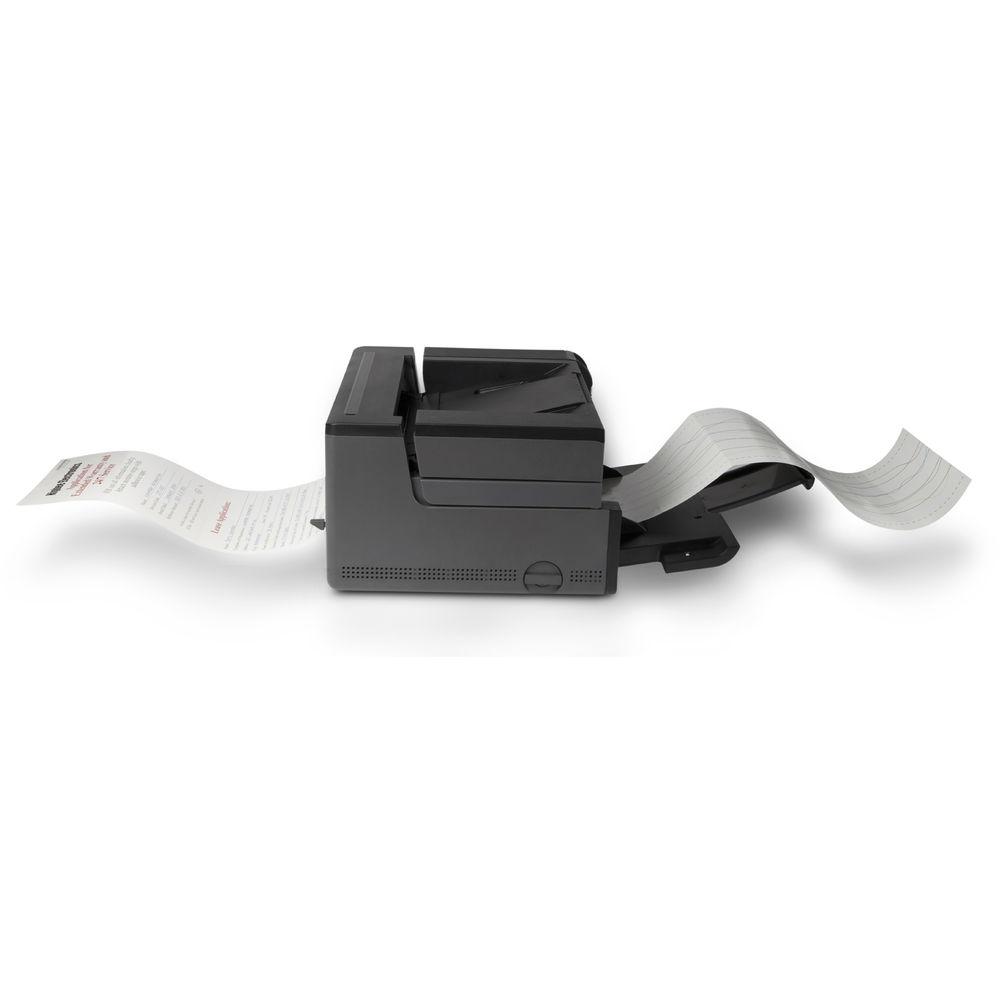

- Works with documents from 2 x 2" to 8.5 x 160"
- Scan Features
-
- Intelligent Document Protection will protect documents from unintentional damage
- Smart Touch allows you to quickly streamline repetitive tasks
- Perfect Page technology optimizes image quality for data extraction and optimizes image processing
- TWAIN, ISIS, and WIA drivers included
- Capture Pro Software Limited Edition offers in depth scanner control and scanning tools
UPC: 041771433284 In the Box Kodak i2900 Document Scanner - USB 3.0 Cable
- Power Cord
- Software CDs
- Sample Cleaning Kit
- Limited 3-Year Warranty
Brochure PDF 713.9kb More info from Kodak Table of Contents
|
Upload User Manual
Have you got an user manual for the Kodak i2900 Document Scanner in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKodak i2900 Specs | Maximum dpi Resolution | 600 dpi | | Duplex Speed | 120 ipm (Color)
120 ipm (Grayscale) | | Simplex Speed | 60 ppm (Color)
60 ppm (Grayscale) | | Maximum Document Width | 8.5" / 21.6 cm | | Maximum Document Length | 14" / 35.6 cm | | Color Depth | 24-Bit (External)
48-Bit (Internal) | | Grayscale Bit-Depth | 8-Bit (Internal) | | Document Feeding | ADF, Flatbed | | Connectivity | USB 2.0 | | File Formats | BMP, JPEG, Multi-Page TIFF, PDF, RTF, TIFF | | Paper Weight | 9 to 110 lb | | Operating System Compatibility | Windows, Linux | | Light Source | LED | | Control Panel | LCD Touchscreen, 4 Buttons | | Duty Cycle | 10000 Scans | | Maximum Sheet Capacity | 250 | | Automatic Image Corrections | Yes | | Operating Acoustic Noise | 60.0 dB | | Idle Acoustic Noise | 30 dB | | Operating Humidity | 15 to 80% | | Operating Temperature | 59 to 95°F / 15 to 35°C | | Maximum Power Consumption | 75 W | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Dimensions | 17.0 x 9.4 x 14.6" / 43.2 x 23.8 x 37.1 cm | | Weight | 35.00 lb / 15.8 kg |
