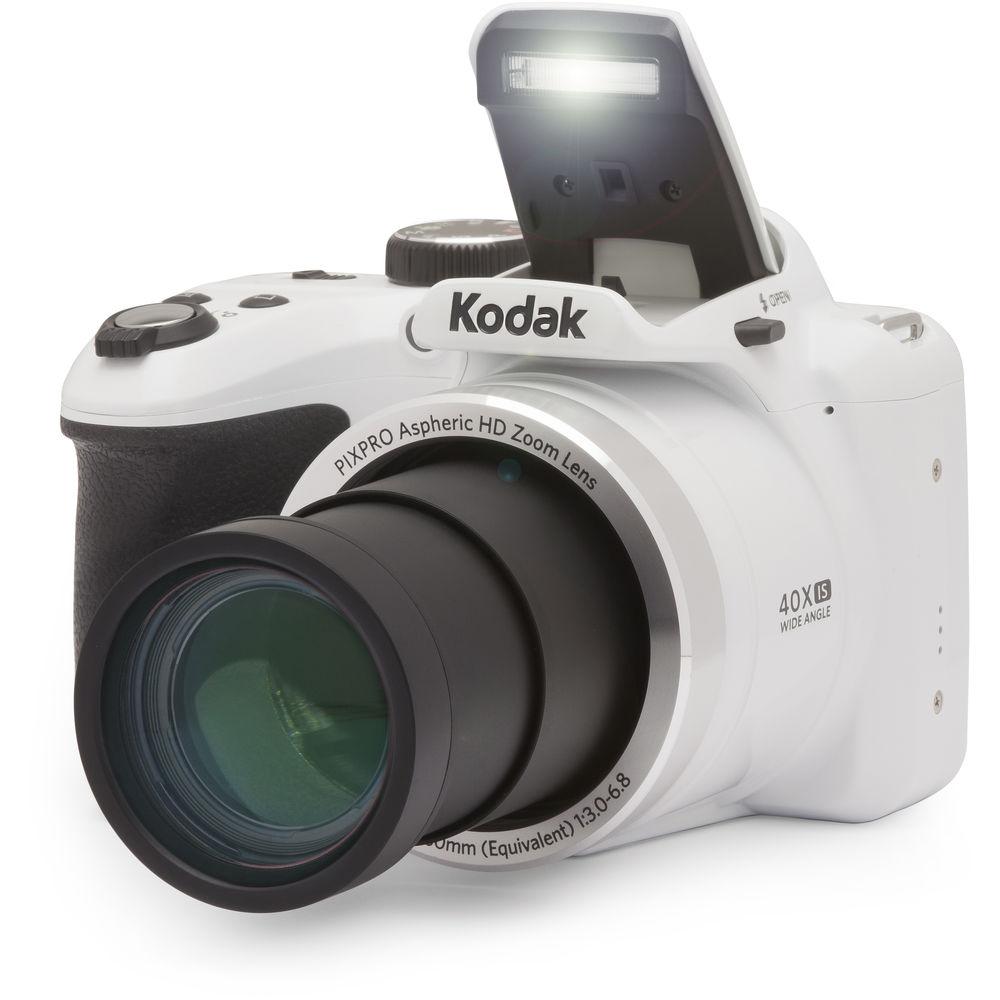

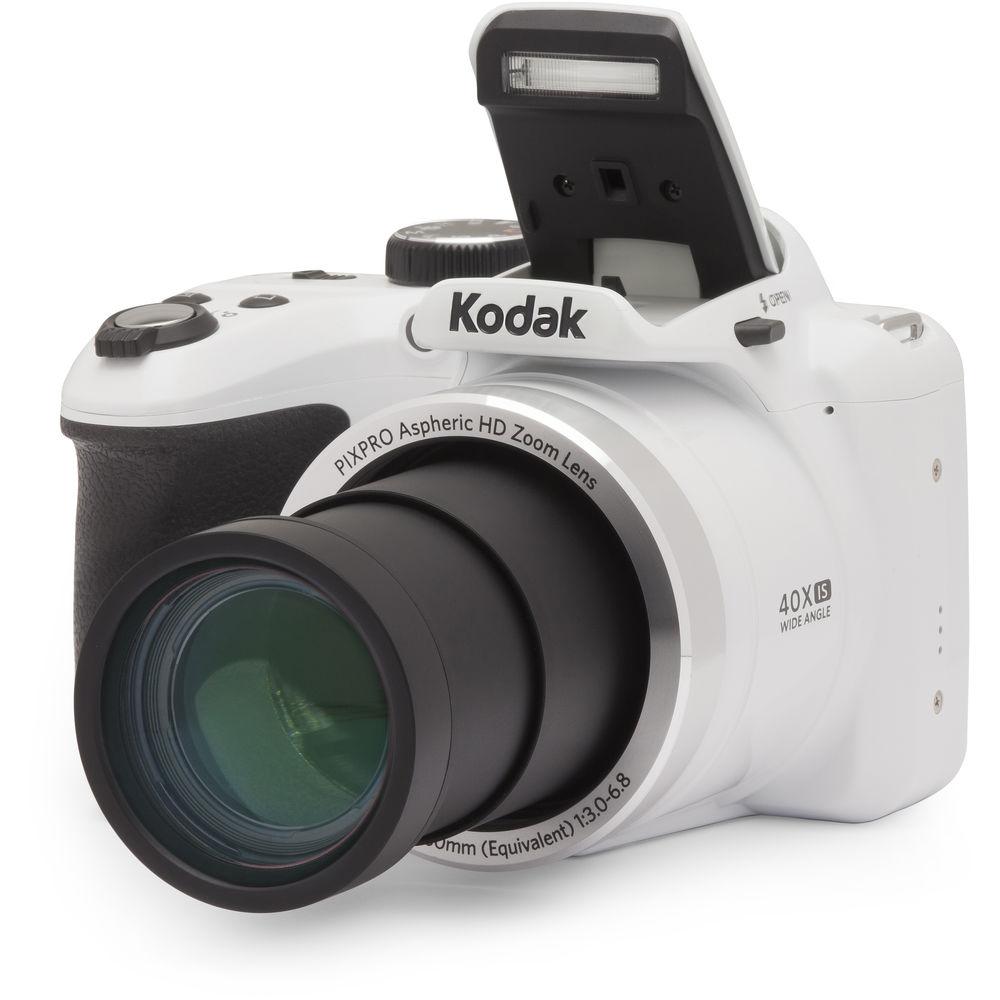

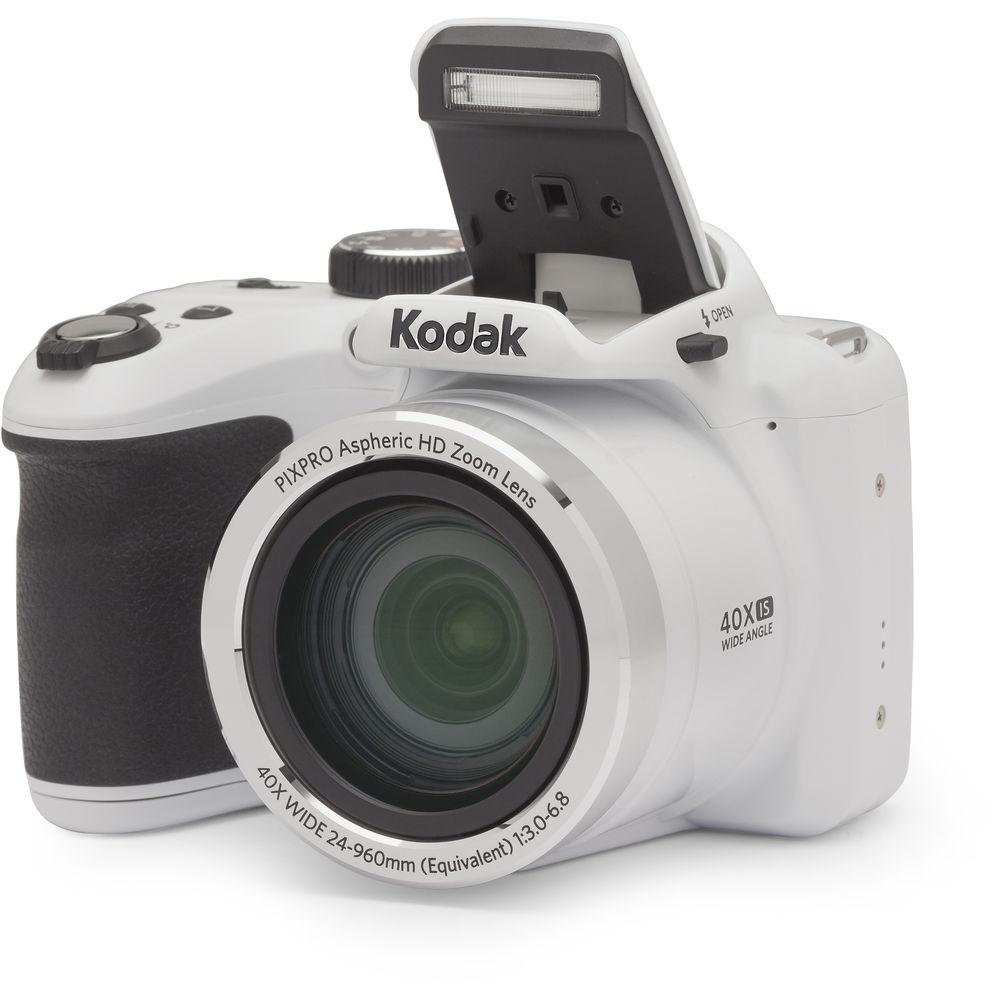

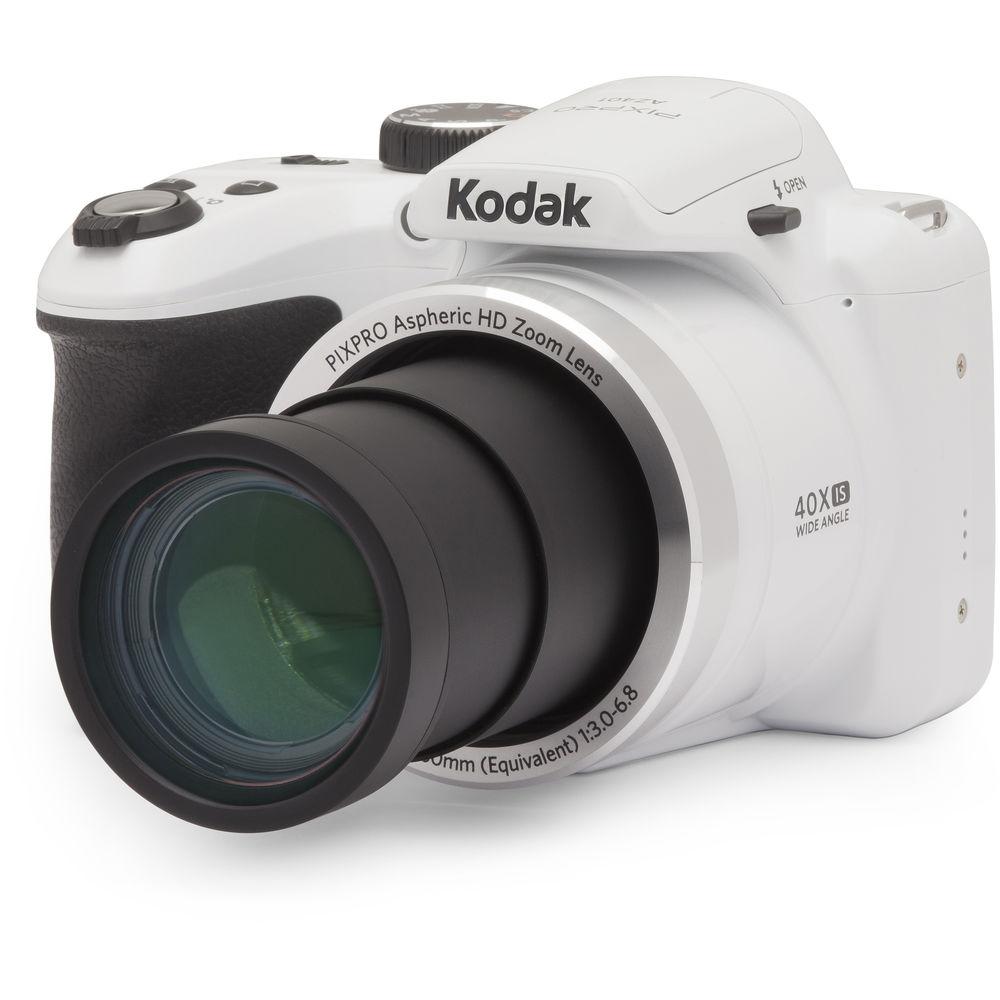

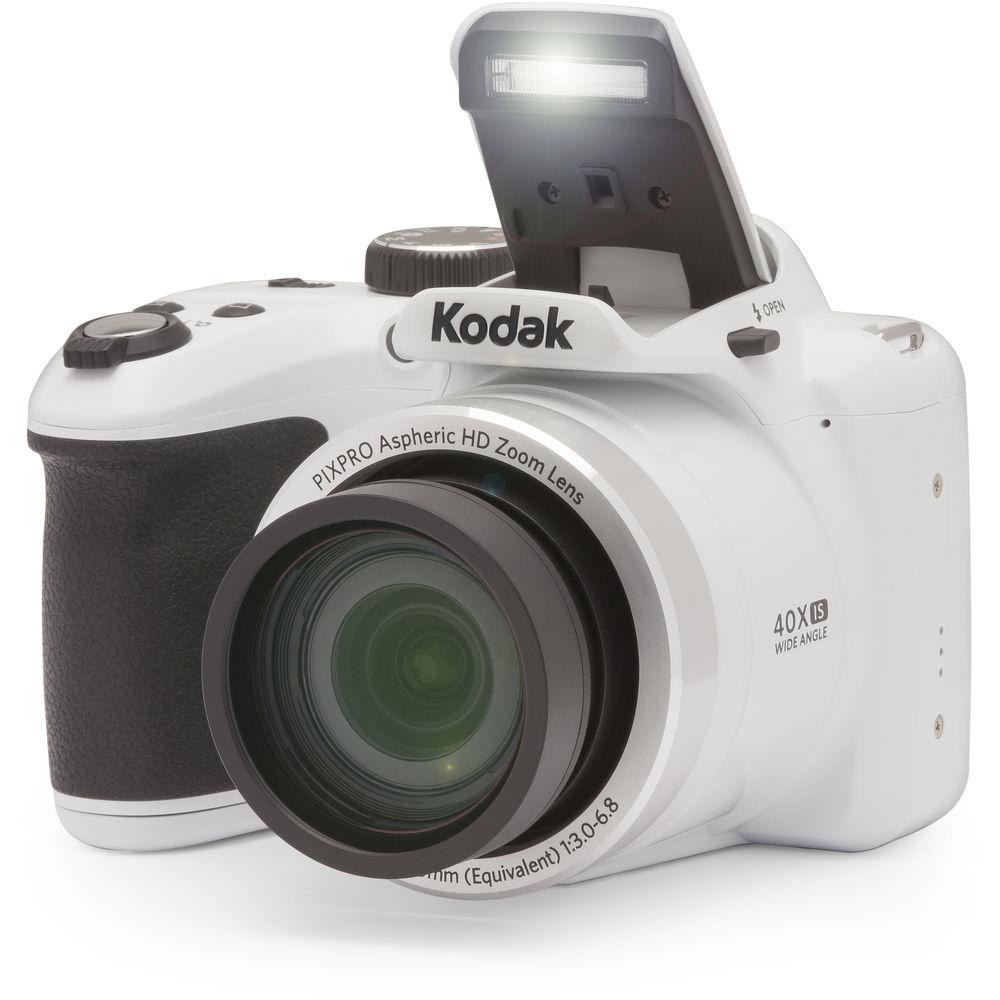

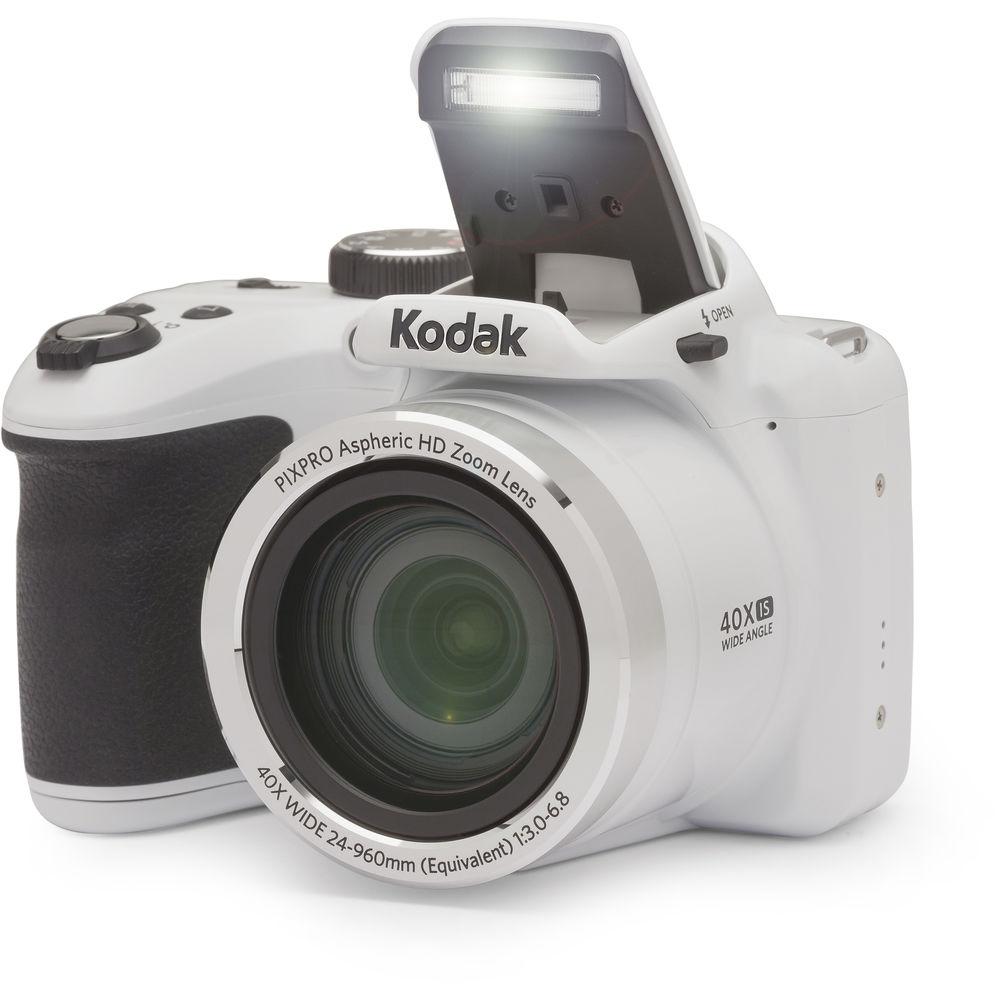

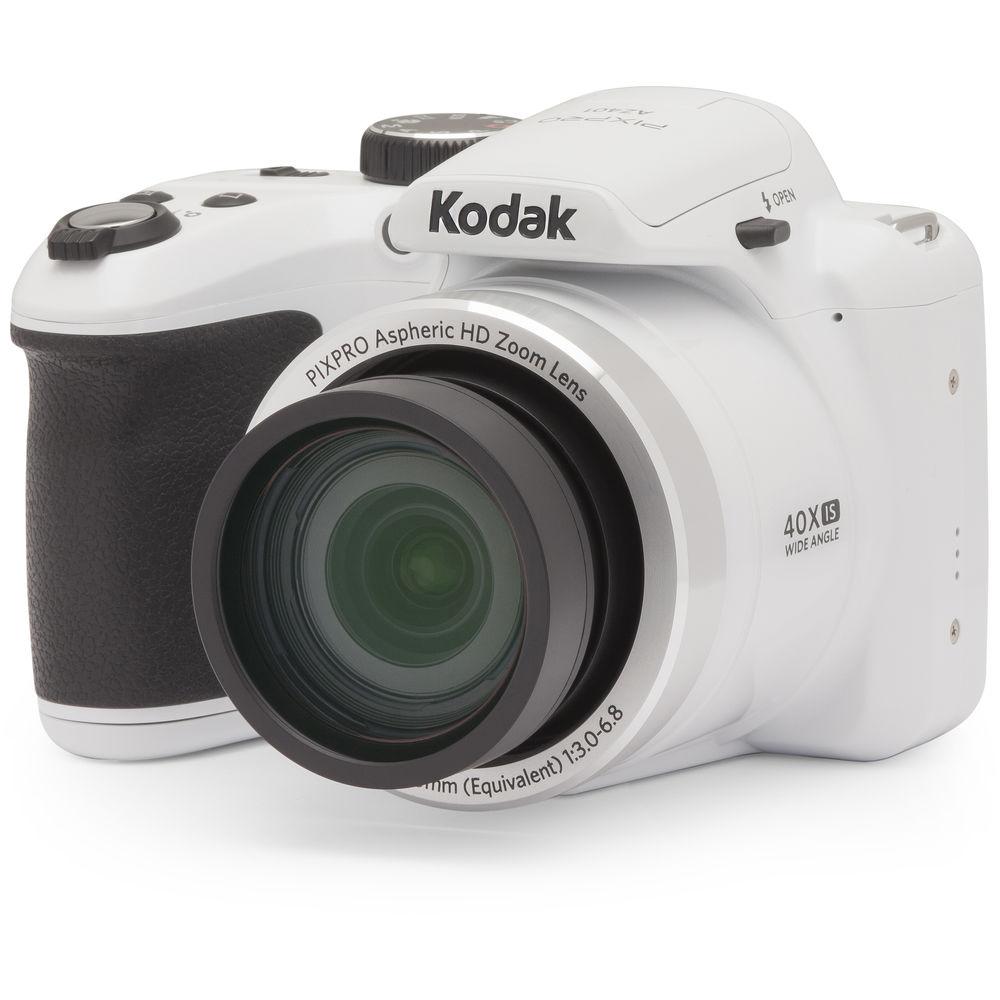

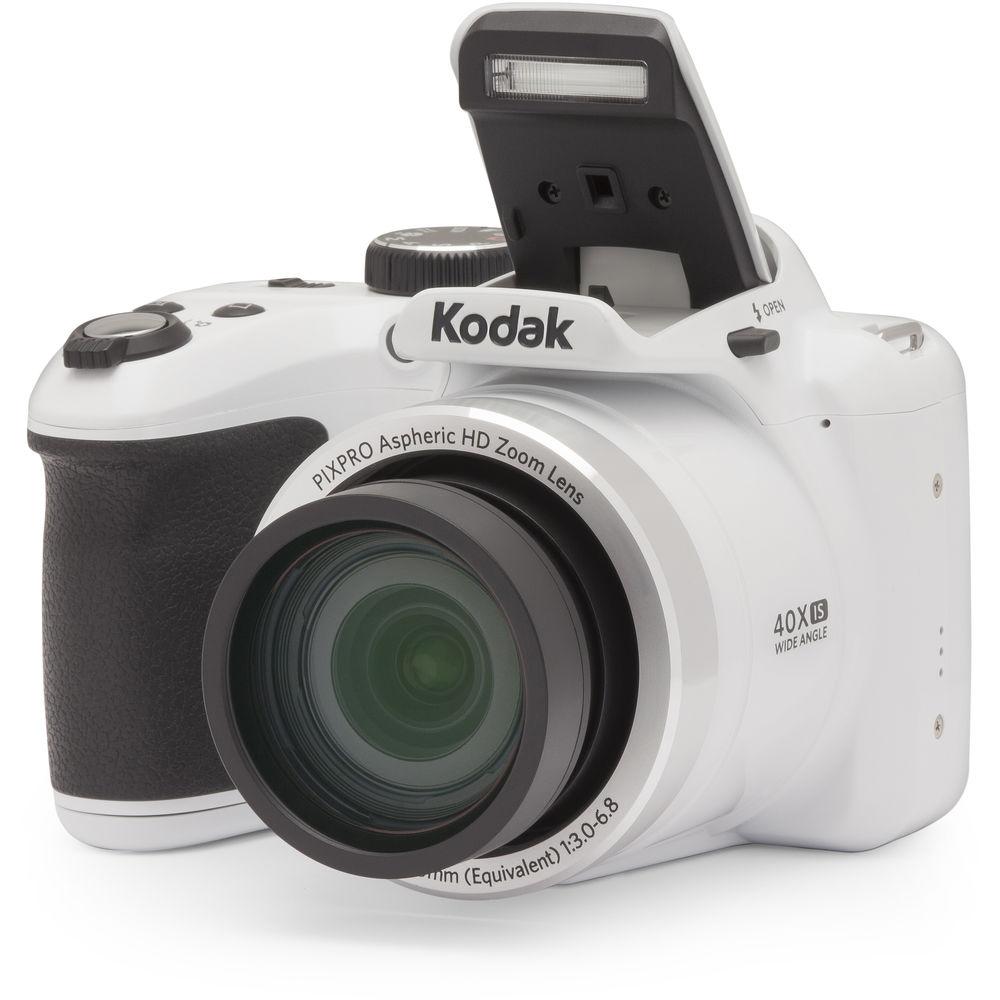

Product description As part of the Astro Zoom Collection, the white PIXPRO AZ401 Digital Camera from Kodak is distinguished by a long-reaching 40x zoom along with versatile recording capabilities. A 16.15MP CCD sensor enables recording high-resolution stills and HD 720p video, as well as an expandable sensitivity range from ISO 80-3200 for working in a variety of lighting conditions. The expansive zoom covers a 24-960mm equivalent focal length range for working with subjects both near and far, and optical image stabilization helps to minimize the appearance of camera shake for sharper handheld shooting. The rear of the camera features a 3.0" 460k-dot LCD monitor and four AA batteries are used as a convenient source of power. - A 16.15MP 1/2.3" CCD sensor produces high-resolution stills and HD 720p/30 video, along with a sensitivity range of ISO 80-1600 to suit working in a variety of lighting conditions. This can be extended to ISO 3200 when recording 4MP images for working in low-light conditions.
- A long-reaching 40x optical zoom lens provides a 24-960mm equivalent focal length range, covering wide-angle to super-telephoto perspectives, and 4x digital zoom is also available to further extend the effective reach.
- Optical image stabilization is available to minimize the appearance of camera shake when shooting handheld in difficult lighting conditions or with longer focal lengths.
- Rear 3.0" 460k-dot LCD monitor is available for composing and reviewing imagery, as well as for navigating the menu system.
- 180° Panorama mode lets you take sweeping images by simply panning the camera to create a wide-field composition.
- Face, Smile, Blink, Cat, and Dog detection modes can be used to optimize shooting settings to capture perfect portraits and pet pictures.
- Both single and multi, 9-point autofocus modes can be used, and Face Detection AF is also available to prioritize subjects' faces when shooting portraits.
- Built-in flash provides additional illumination when working in low-light conditions.
- Four AA batteries are used as a convenient power source and offer approximately 280 shots per fresh set of batteries.
UPC: 819900013191 In the Box Kodak PIXPRO AZ401 Digital Camera (White) 4 x AA Battery Neck Strap Lens Cap Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kodak PIXPRO AZ401 Digital Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKodak AZ401 Specs | | | Pixels | Actual: 16.44 Megapixel
Effective: 16.15 Megapixel | | Sensor | 1/2.3" CCD | | File Formats | Still Images: JPEG
Movies: AVC/H.264, MOV
Audio: Linear PCM (Mono) | | Max Resolution | 16 MP: 4608 x 3456 | | Aspect Ratio | 3:2, 4:3, 16:9 | | Image Stabilization | Optical | | | | Lens | 15 Elements in 11 Groups
Effective Focal Length: 4.3 to 172mm (35 mm Equivalent: 24 to 960mm)
Aperture: f/3 (W) to f/6.8 (T) | | Zoom | Optical: 40x
Digital: 4x | | Focus Range | Wide: 1.64' to Infinity / 49.99 cm to Infinity
Telephoto: 6.57' to Infinity / 2 m to Infinity
Macro: 0.63" to Infinity / 1.6 cm to Infinity | | | | ISO Sensitivity | Auto, 80 to 1600 (Extended Mode:80 to 3200) | | Shutter | 30 to 1/2000 Second | | Exposure Metering | Artificial Intelligence AE, Center-Weighted, Face Detection, Spot | | Exposure Modes | Modes: Aperture Priority, Auto, Manual, Program, Shutter Priority
Compensation: -2 EV to +2 EV (in 1/3 EV Steps) | | Shooting Modes | ASCN
Face Beautifier
Fireworks
Landscape
Movie
Night Landscape
Night Portrait
Panorama
Party/Indoor
Pet Mode
Portrait
Snow
Sports
Sunset | | White Balance | Auto, Cloudy, Color Temperature, Daylight, Fluorescent, Fluorescent CWF, Incandescent, Manual | | Self-Timer | 2, 10 Sec | | | | Flash Modes | Auto
Fill-In
Off
Red-Eye Reduction
Slow Sync
Slow Sync/Red-Eye Reduction | | Built-In Flash | Yes | | Effective Flash Range | Wide:1.6 to 24.6' / 0.5 to 7.5 m
Telephoto:3.9 to 12.1' / 1.2 to 3.7 m | | | | Built-In Memory | 8 MB | | Memory Card Type | SD
SDHC | | | | Video Recording | Yes, NTSC | | Resolution | 1280 x 720p: 30 fps, 15 fps
640 x 480p: 30 fps | | | | Audio Recording | Built-In Mic: With Video (Mono) | | | | Screen | 3.0" LCD Rear Screen (460,000 Pixels) | | | | Connectivity | HDMI D (Micro), USB 2.0 Micro-B | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 0 to 90% | | | | Dimensions (W x H x D) | 4.5 x 3.2 x 3.3" / 114.3 x 81.6 x 84.4 mm | | Weight | 15.38 oz / 436 g body only | | | | Package Weight | 1.6 lb | | Box Dimensions (LxWxH) | 6.25 x 6.0 x 4.5" |
