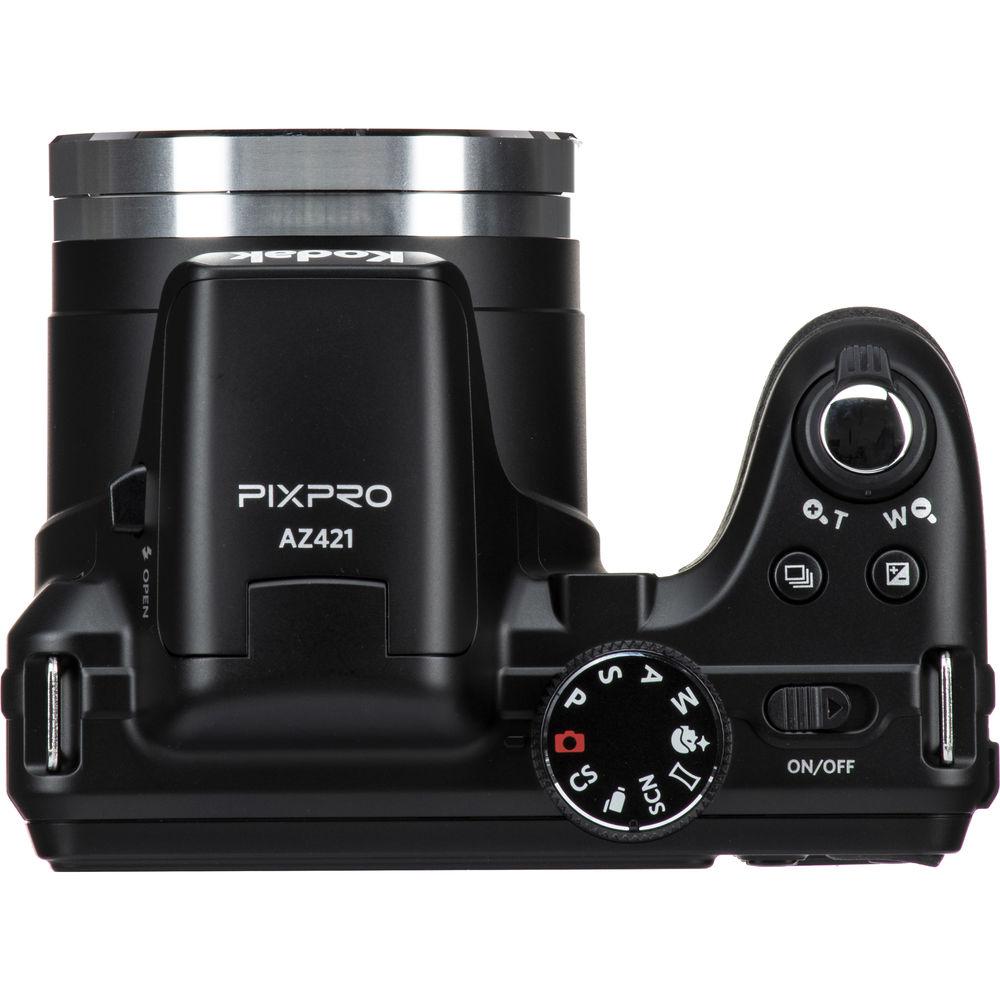

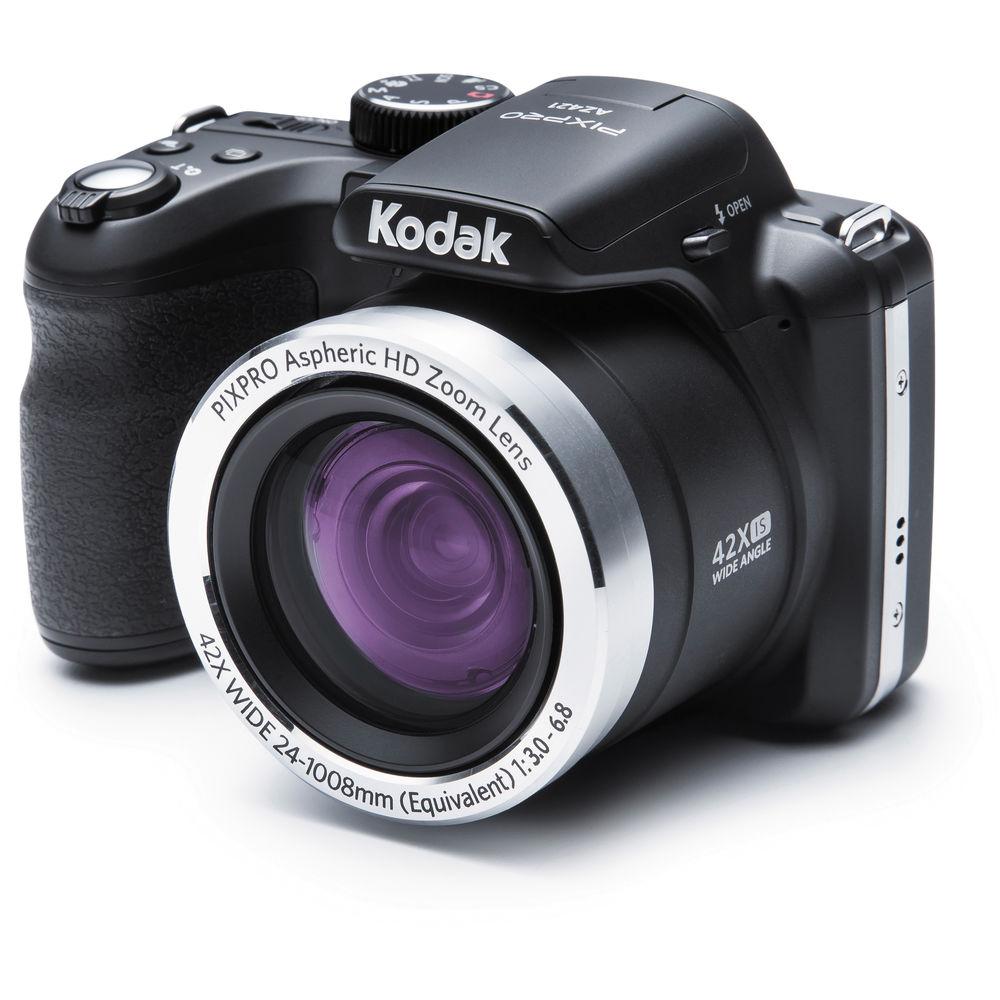

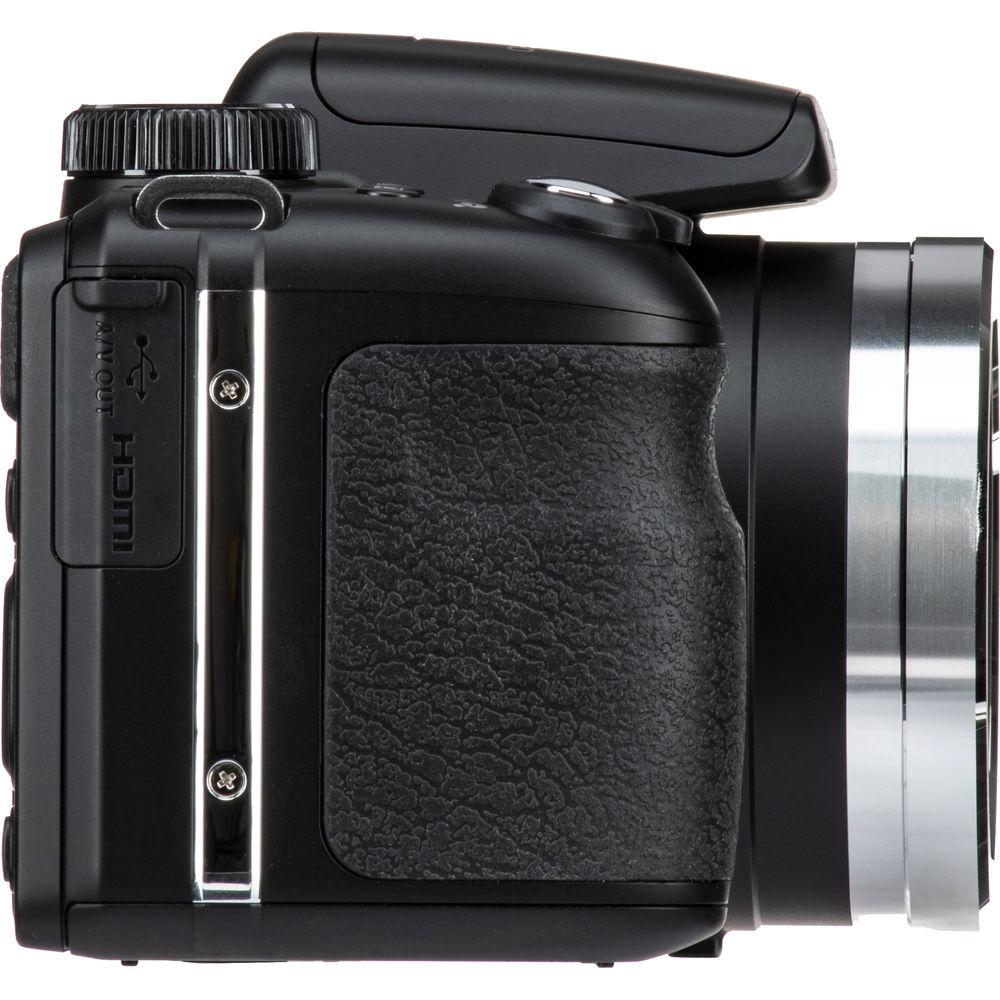

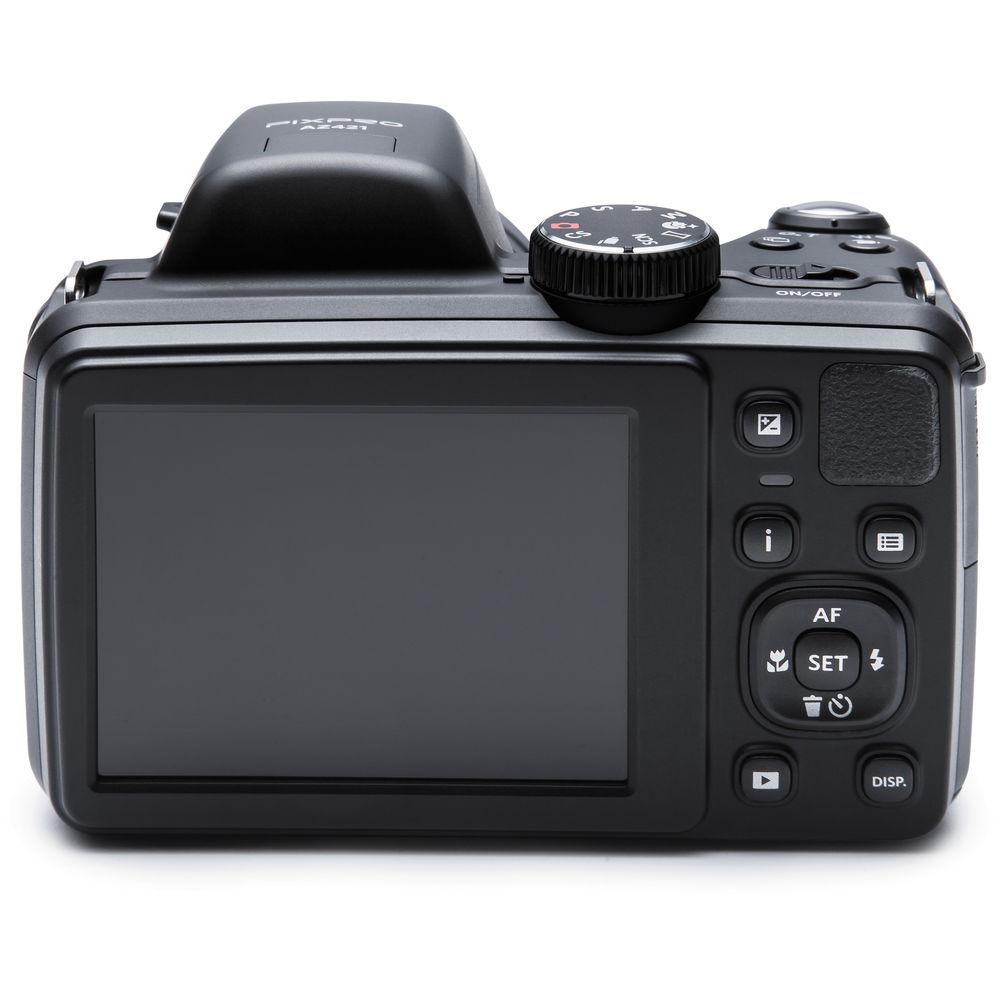

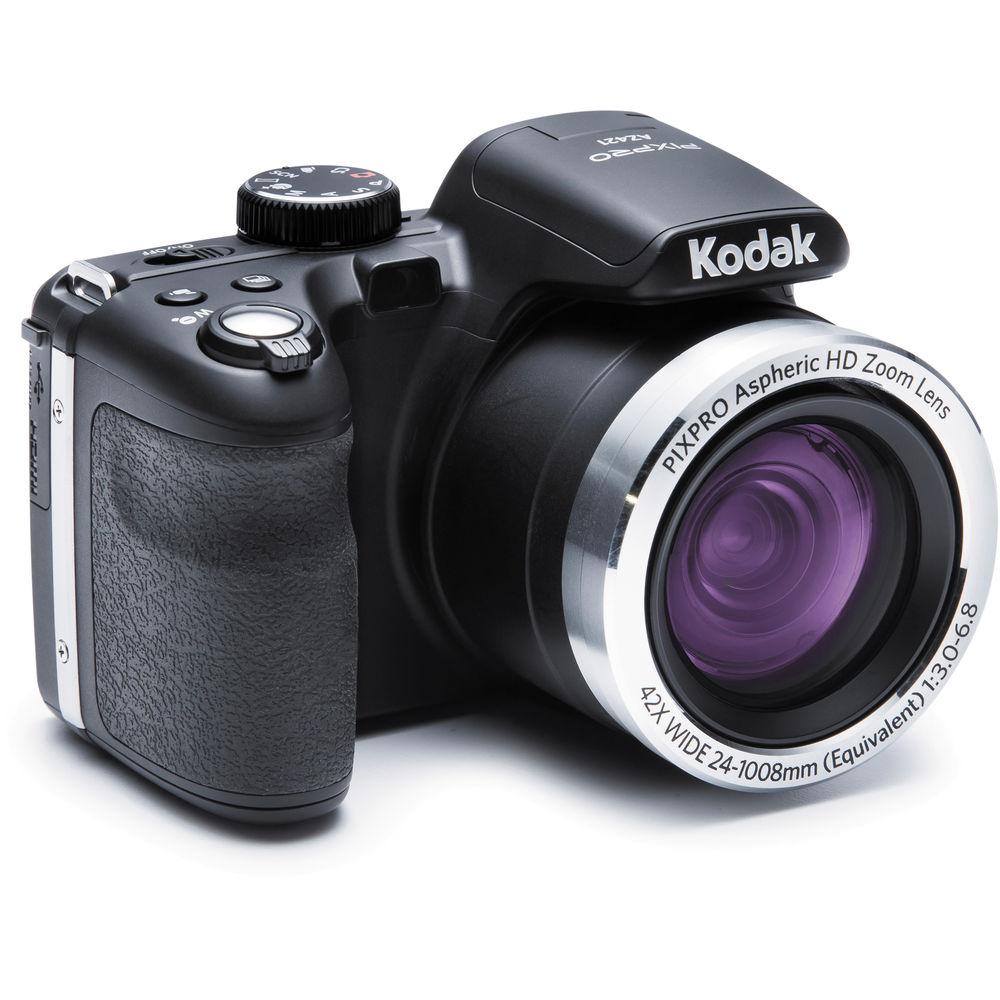

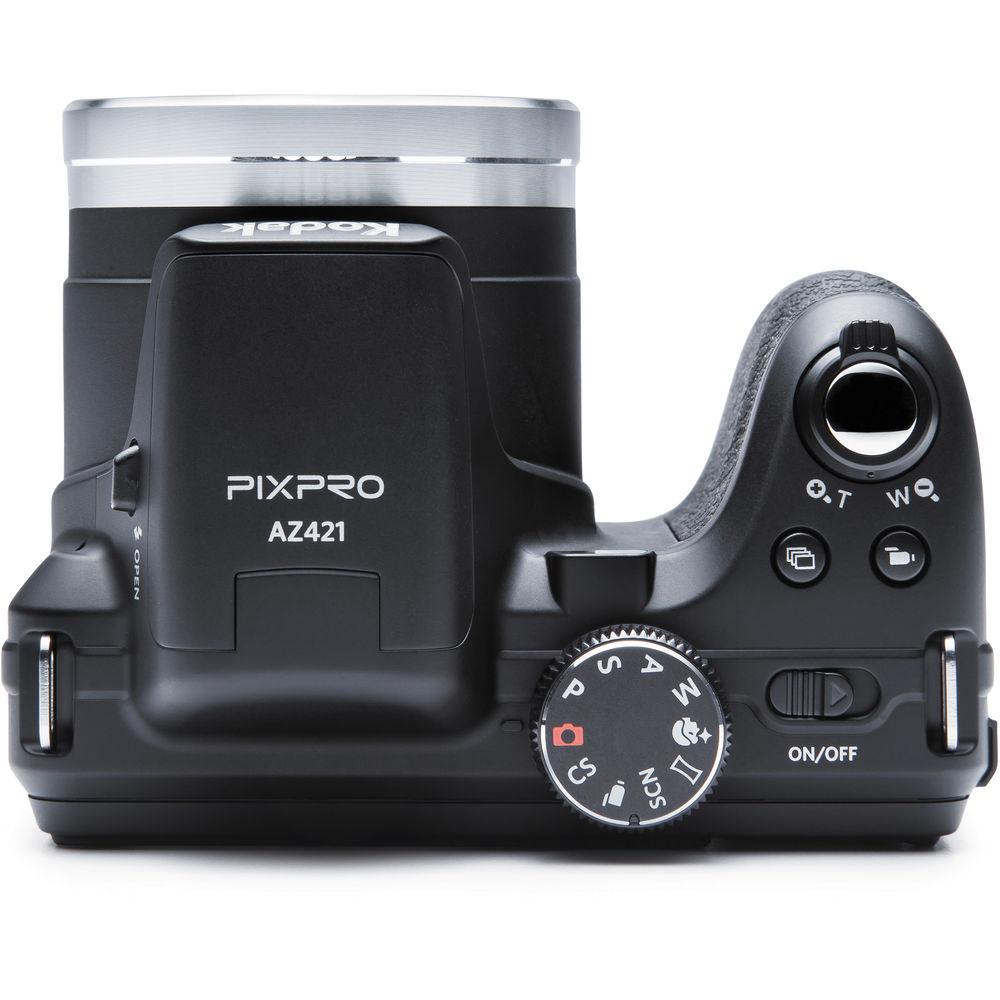

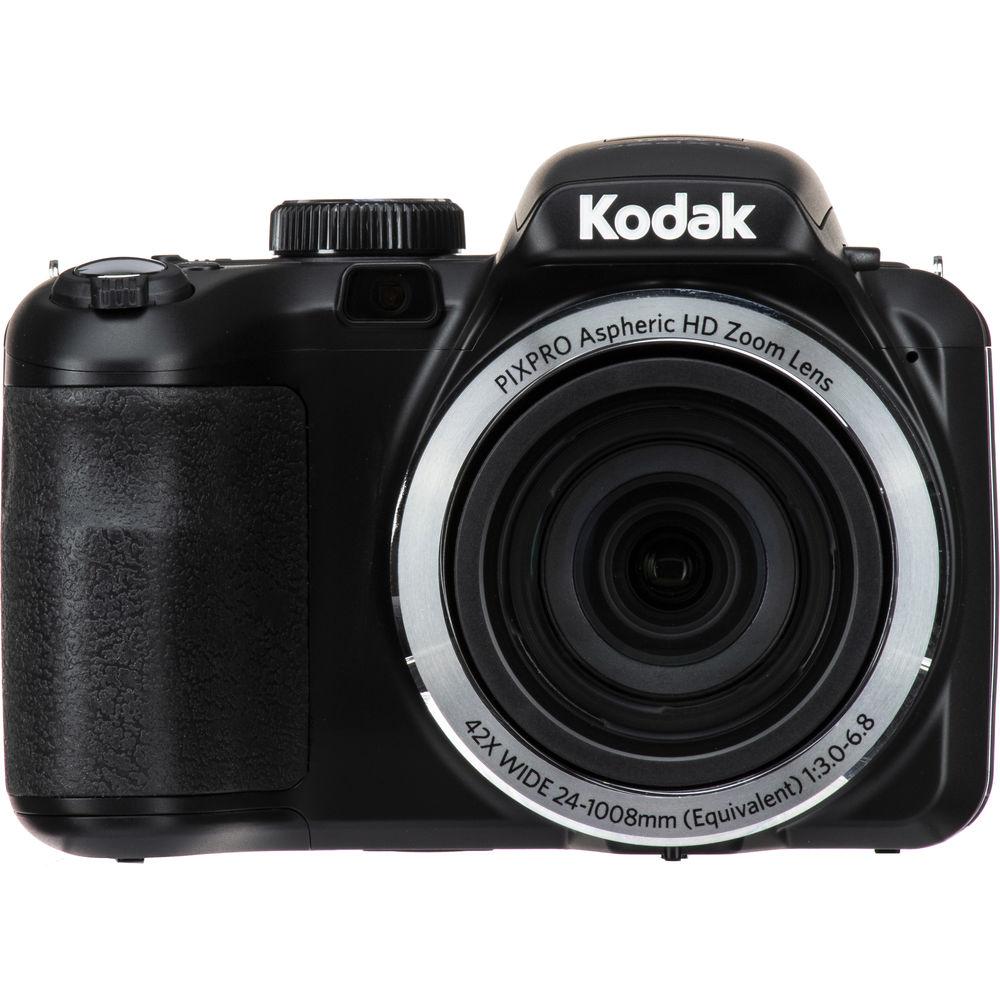

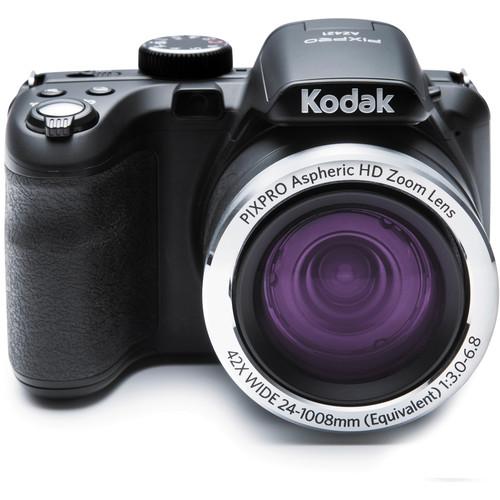

User Manual for Kodak PIXPRO AZ421 Digital Camera Click to enlarge the picture
Contents of the user manual for the Kodak PIXPRO AZ421 Digital Camera
- Product category: Point & Shoot Cameras Kodak
- Brand: Kodak
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kodak Point & Shoot Cameras
 |
User manual for the Kodak PIXPRO AZ421 Digital Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kodak product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kodak user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kodak product will considerably shorten its lifespan!
|
Product description With an optically stabilized 42x zoom lens you can capture subjects near and far with the black PIXPRO AZ421 Digital Camera from Kodak. The AZ421 utilizes a 16.15-megapixel 1/2.3" CCD image sensor to produce high resolution imagery and works with a 4.3-180.6mm lens, 35mm equivalent of 24-1008mm, for everything from wide group shots to distant wildlife. Additionally, it has a 3.0" 460k-dot rear LCD screen which allows for composition and image review during both stills and HD 1280 x 720p video recording at up to 30 fps.
For working in low-light conditions, the AZ421 features a built-in pop-up flash unit that can add some light when needed. There are also a variety of specialty features such as a 180° panorama mode. The camera will save these images and video to SD/SDHC cards up to 32GB and it runs off a rechargeable Li-ion battery pack. The AZ421 is also compatible with Eye-Fi cards. - 16.15MP 1/2.3" CCD Sensor
- The 16.15MP 1/2.3" CCD sensor provides richly colored, detailed images that can be blown up into large prints without losing clarity.
- 42x Optical Zoom Lens
- With an optically stabilized 24-1008mm equivalent lens, the AZ421 has the ability to capture close ups and far away objects. It can also work in a macro mode that enables focusing as close as 0.6". Also, the aperture opens up to f/3.0 at the widest setting for bright imagery.
- 4x Digital Zoom
- Combining the 42x optical zoom with the 4x digital zoom provides an impressive 168x total zoom range.
- 720p HD Video Recording
- Record high resolution 1280 x 720p video at up to 30 fps.

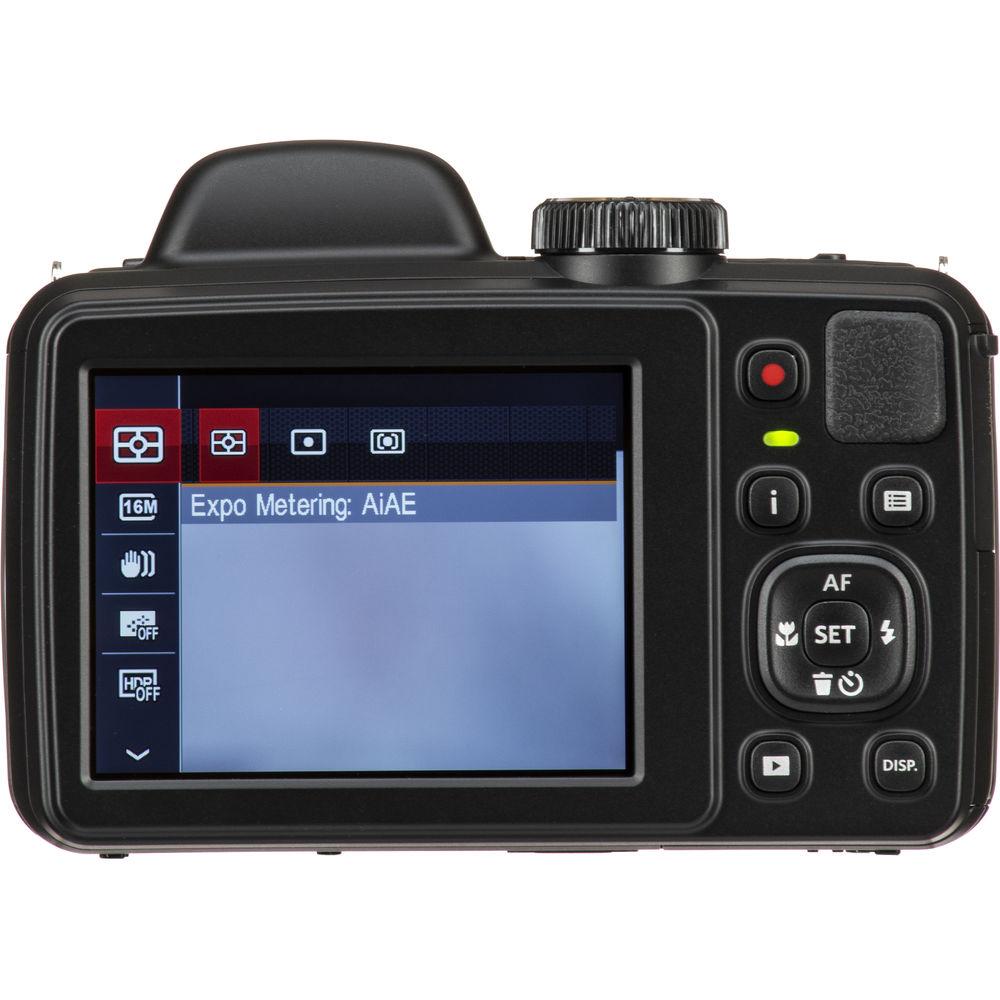

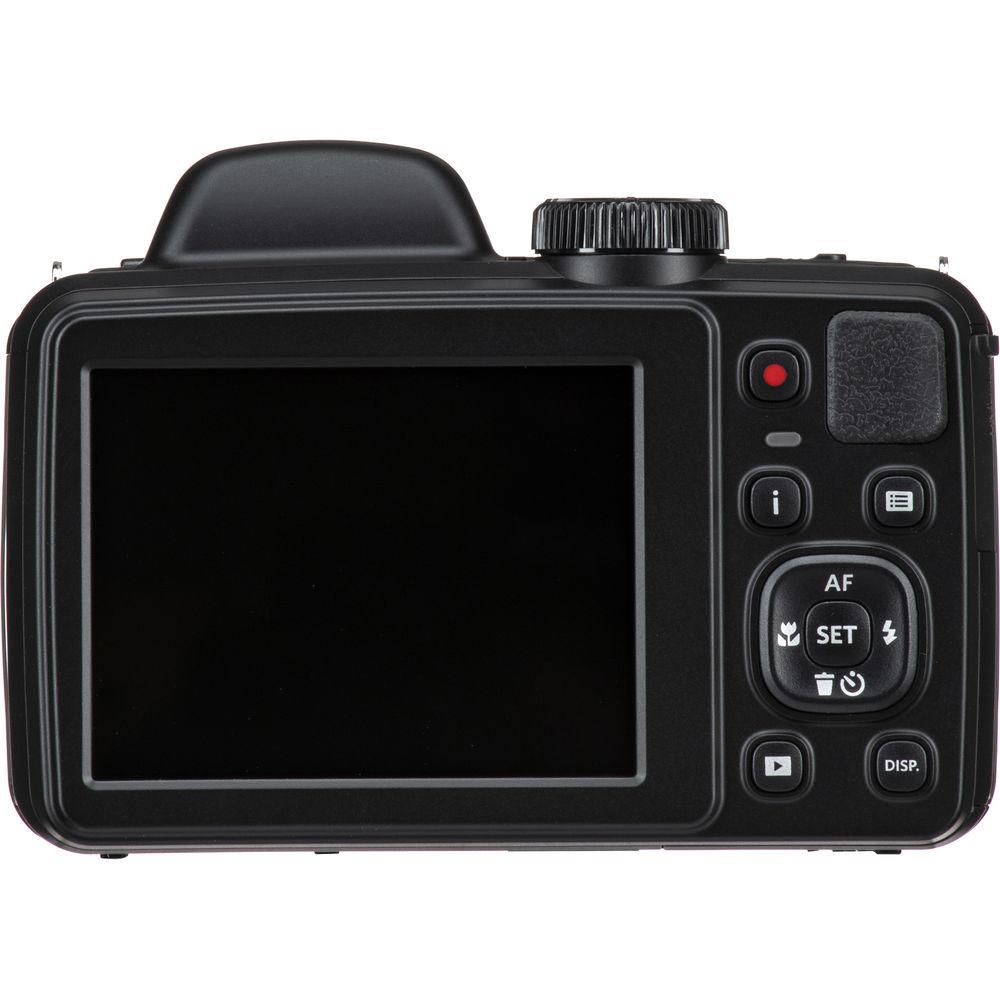

- 3.0" LCD Screen
- This 3.0" LCD with 460k-pixel resolution allows for easier composing and shooting as well as detailed image review.
- Shooting Modes
- Automatic, program, manual, shutter & aperture priority modes are available along with dedicated scene settings for scenarios like fireworks, beach, snow, and more.
- ISO Range 80-3200
- An ISO range up to 3200 offers accurate color reproduction and low-noise imaging even in low light situations.
- Panorama Mode
- Capture panoramic vistas all in one frame with the touch of one button, by simply panning the camera across the scene.
- Eye-Fi Support
- Wirelessly transfer images from your camera with optional Eye-Fi cards.
UPC: 819900011197 In the Box Kodak PIXPRO AZ421 Digital Camera (Black) Neck Strap Lens Cap with Strap LB-060 Rechargeable Lithium-Ion Battery Pack AC Adapter USB Cable Software CD-ROM Limited 1-Year Warranty More info from Kodak Table of Contents
|
Upload User Manual
Have you got an user manual for the Kodak PIXPRO AZ421 Digital Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKodak AZ421 Specs | | | Pixels | Actual: 16.44 Megapixel
Effective: 16.15 Megapixel | | Sensor | 1/2.3" CCD | | File Formats | Still Images: JPEG
Movies: MOV
Audio: Linear PCM (Mono) | | Max Resolution | 16 MP: 4608 x 3456 | | Aspect Ratio | 3:2, 4:3, 16:9 | | Image Stabilization | Optical | | | | Lens | 15 Elements in 11 Groups
Effective Focal Length: 4.3 to 180.6mm (35 mm Equivalent: 24 to 1008mm)
Aperture: f/3.0 (W) to f/6.8 (T) | | Filter Thread | None | | Zoom | Optical: 42x
Digital: 4x | | Focus Range | Wide: 19.69" to Infinity / 50 cm to Infinity
Telephoto: 78.74" to Infinity / 200 cm to Infinity
Wide Macro: 0.63" to Infinity / 1.6 cm to Infinity | | | | ISO Sensitivity | Auto, 80 to 3200 | | Shutter | 1/2000 to 30 Seconds | | Exposure Metering | Artificial Intelligence AE, Center-Weighted, Face Detection, Spot | | Exposure Modes | Modes: Aperture Priority, Auto, Manual, Programmed Auto, Shutter Priority
Compensation: -2 EV to +2 EV (in 1/3 EV Steps) | | Shooting Modes | Beach
Face Beautifier
Fireworks
Fish-Eye Effect
Glass Through
Indoor
Kids
Landscape
Movie
Museum
Night Landscape
Night Portrait
Panning
Panorama
Party/Indoor
Pet Mode
Portrait
Scene Auto Selector
Snow
Sports
Sunset
Text | | White Balance | Auto, Cloudy, Color Temperature, Daylight, Fluorescent, Fluorescent CWF, Incandescent, Manual | | Interval Recording | Yes | | | | Flash Modes | Auto
Forced On
Off
Red-Eye Reduction
Slow Sync
Slow Sync/Red-Eye Reduction | | Built-In Flash | Yes | | Effective Flash Range | Wide:1.6 to 24.6' / 0.5 to 7.5 m
Telephoto:3.9 to 12.1' / 1.2 to 3.7 m | | External Flash Connection | None | | | | Built-In Memory | 8 MB | | Memory Card Type | SD
SDHC (Up to 32 GB) | | | | Video Recording | Yes | | Resolution | 1280 x 720: 30 fps, 15 fps
640 x 480: 30 fps
320 x 240: 30 fps | | | | Video Clip Length | Up to 29 Minutes | | Audio Recording | Built-In Mic: With Video (Mono) | | | | Viewfinder Type | None | | Screen | 3" LCD (460,000 Pixels) | | | | Connectivity | AV / USB Multi, HDMI D (Micro) | | Wi-Fi | None | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 0 to 90% | | Waterproofing | None | | | | Battery | 1 x LB-060 Rechargeable Lithium-Ion Battery Pack, 3.7 VDC, 1100 mAh | | | | Dimensions (W x H x D) | 4.4 x 3.2 x 3.3" / 112.7 x 81.6 x 84.4 mm | | Weight | 15.66 oz / 444 g body only | | | | Package Weight | 1.65 lb | | Box Dimensions (LxWxH) | 6.2 x 6.1 x 4.5" |
