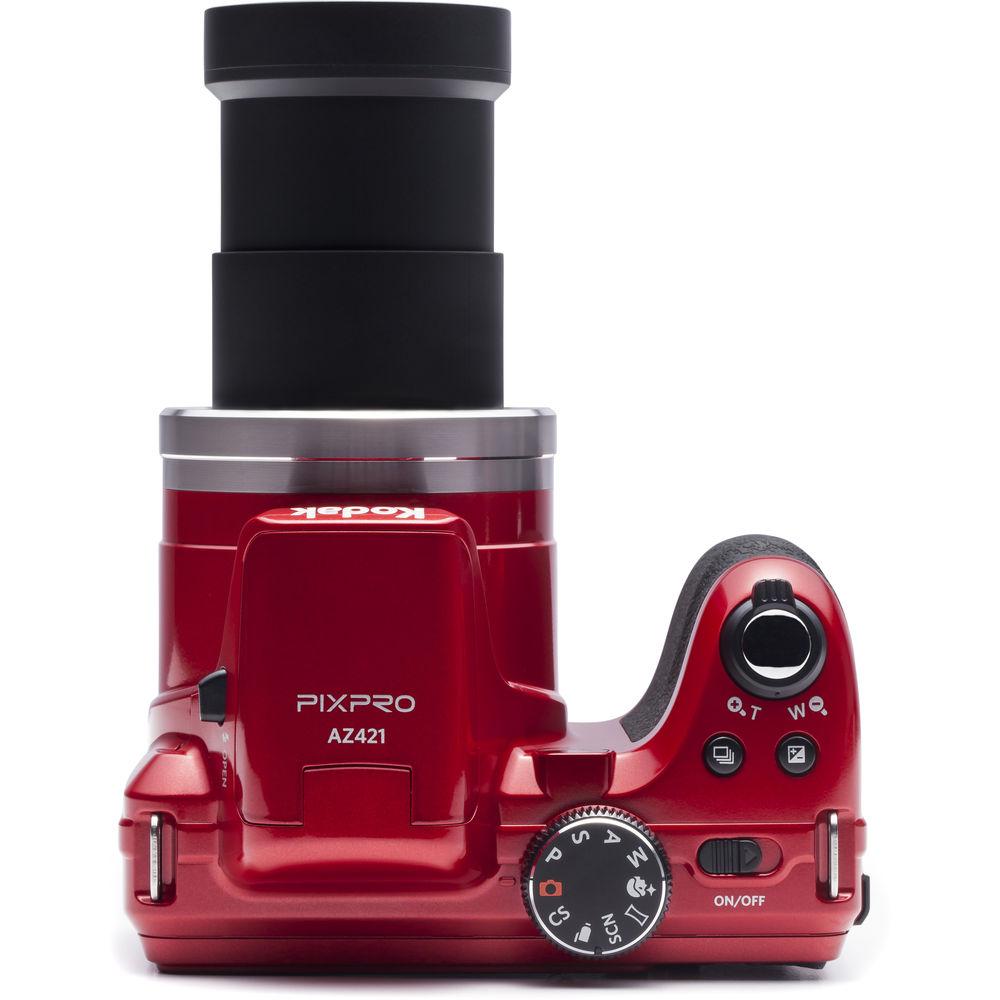

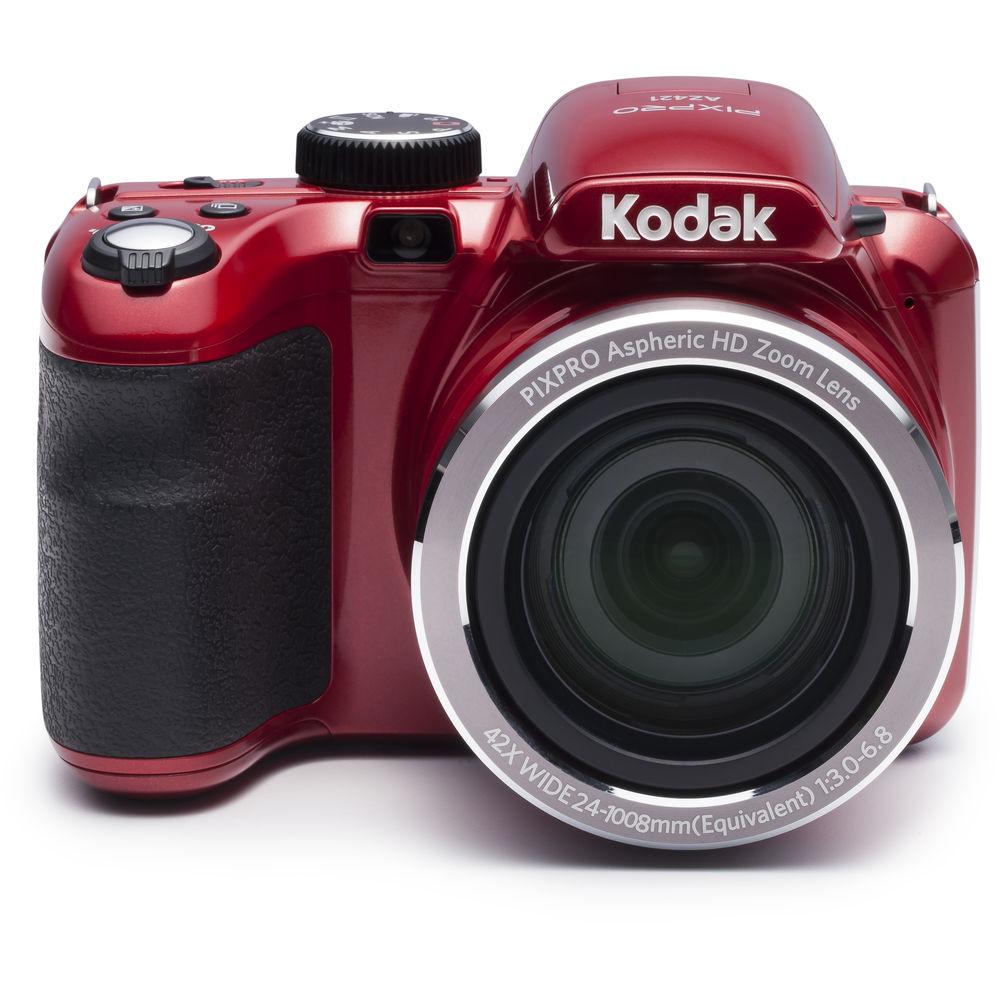

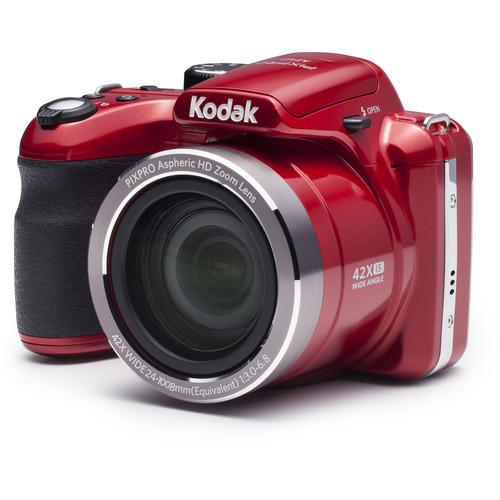

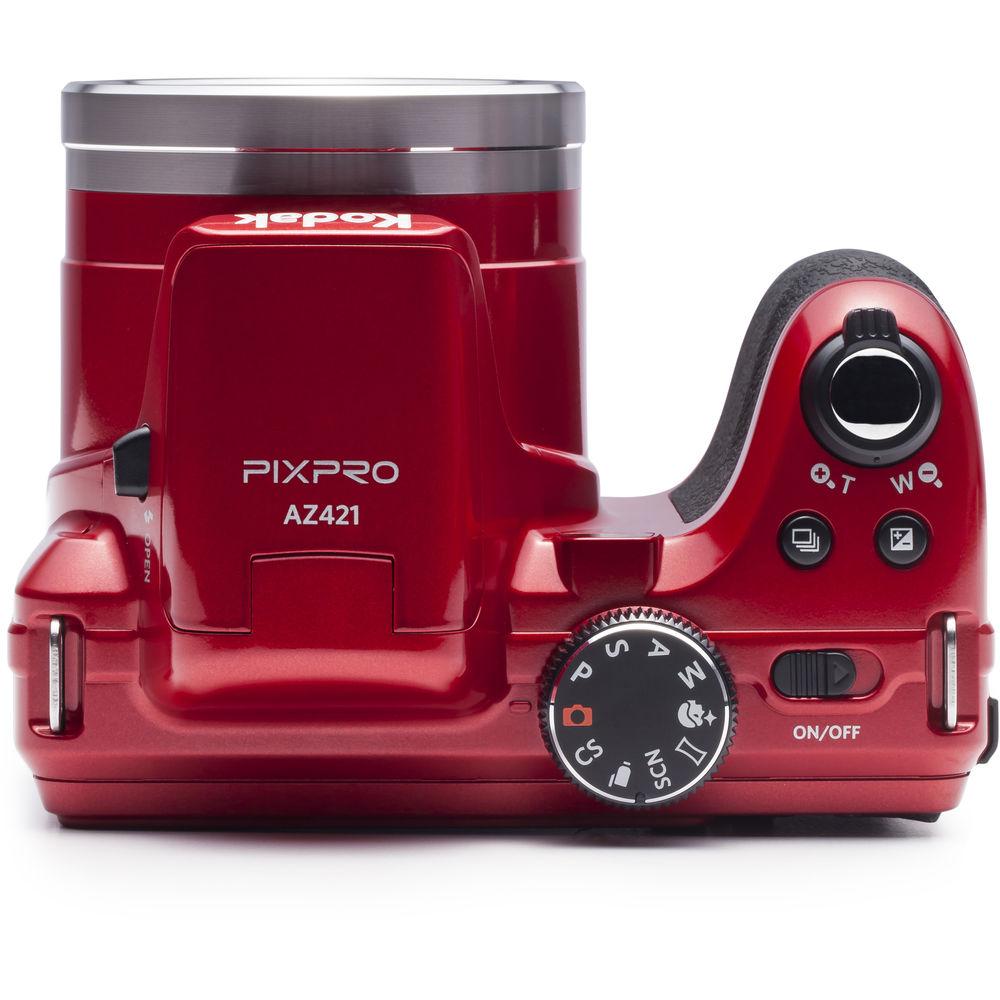

Product description Characterized by its expansive zoom range, the red PIXPRO AZ421 Digital Camera from Kodak is versatile point-and-shoot offering both stills and video capabilities. Using a 16.15MP 1/2.3" CCD sensor, it can record high-resolution stills and HD 720p video with a sensitivity range of ISO 80-1600, which can be expanded to ISO 3200 to create 4MP stills. Balancing the imaging capabilities is a wide-angle to super-telephoto 42x optical zoom lens, which provides a 24-1008mm equivalent focal length range, and uses optical image stability to produce sharper images when shooting handheld. The ergonomic body design also incorporates a 3.0" 230k-dot LCD monitor, a pop-up flash, and is powered by a rechargeable lithium-ion battery that can be conveniently charged in-camera. - A 16.15MP 1/2.3" CCD sensor produces high-resolution stills and HD 720p/30 video, along with a sensitivity range of ISO 80-1600 to suit working in a variety of lighting conditions. The sensitivity can also be extended to ISO 3200 for capturing 4MP images in low lighting.

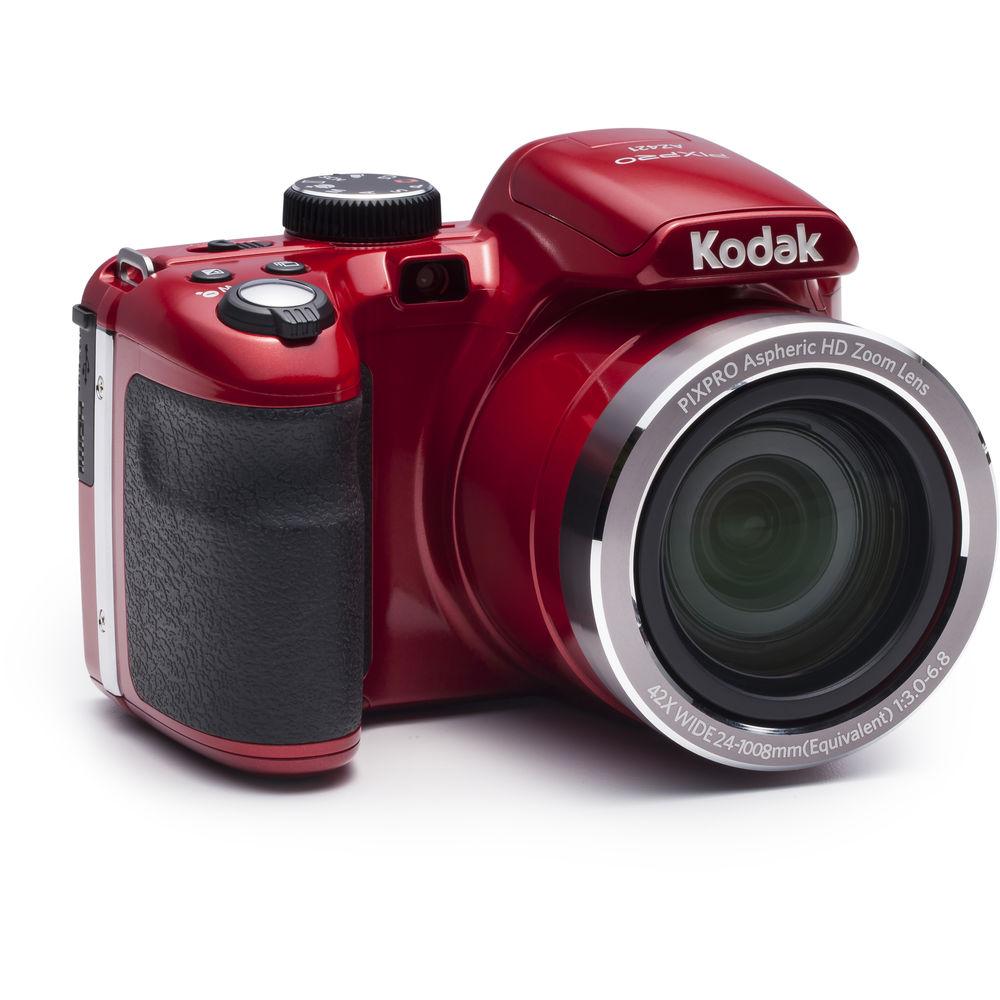

- An expansive 42x optical zoom lens provides a 24-1008mm equivalent focal length range, covering wide-angle to super-telephoto perspectives, and 4x digital zoom is also available to further extend the effective reach.
- Optical image stabilization is available to minimize the appearance of camera shake when shooting handheld in difficult lighting conditions or with longer focal lengths.

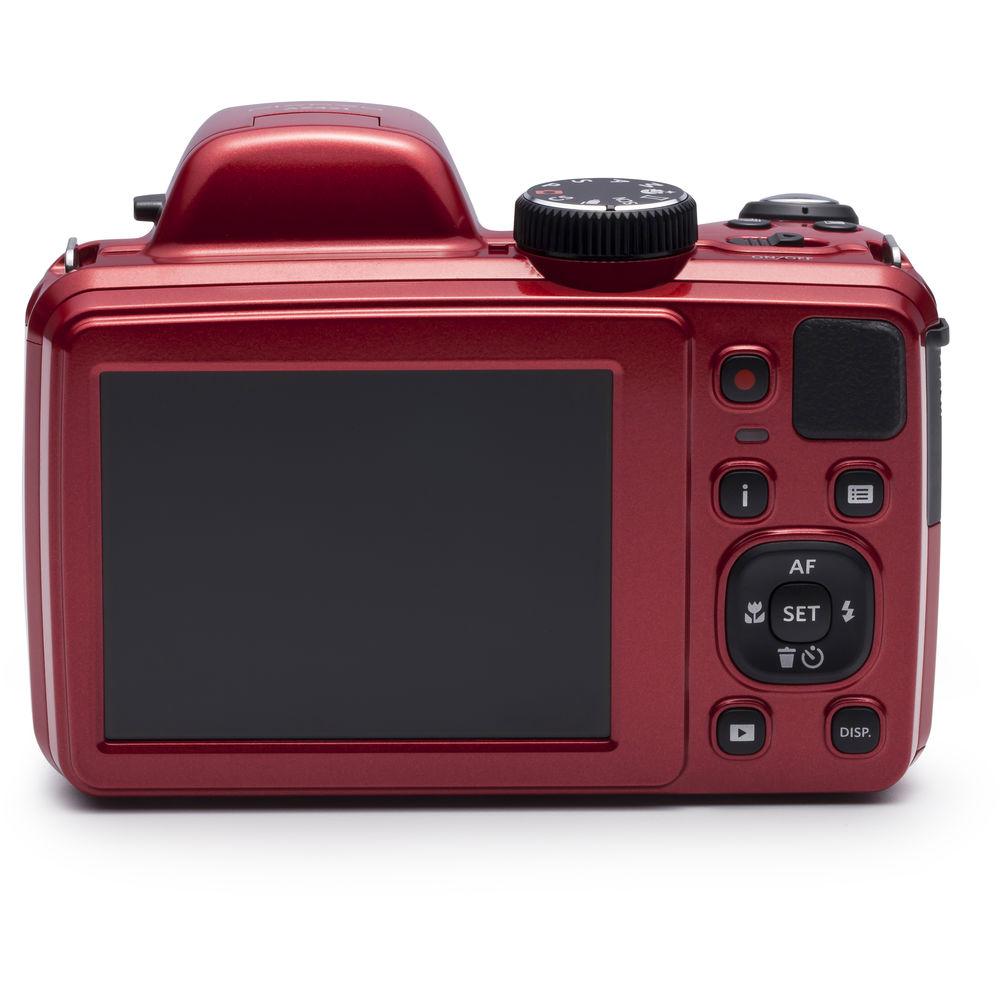

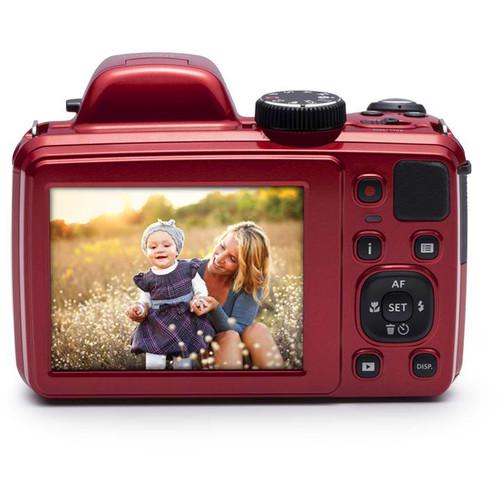

- The ergonomic camera body design incorporates a rear 3.0" 230k-dot LCD monitor for composing and reviewing imagery, as well as for navigating the menu system.
- The included LB-060 rechargeable lithium-ion battery can be charged in-camera and provides approximately 200 shots per charge.
- Both single and multi, 9-point autofocus modes can be used, and Face Detection AF is also available to prioritize subjects' faces when shooting portraits. Additionally, Object Tracking helps to maintain focus on moving subjects when photographic sports or other action.
- Face, Blink, and Smile Detection functions can be used to help ensure properly exposed, focused, and well-timed portraits, and both Cat and Dog Detection modes are also available for taking photographs of your pets.
- A 180° Panorama Capture mode lets you pan about the scene in order to capture a seamless panoramic image.
- An HDR mode can be used to maintain greater detail in the highlight and shadow regions of an image for a longer apparent tonal range.
- Photo Touch-Up lets you remove red-eye, soften skin, brighten eyes, and enlarge eyes to produce more flattering portraits.

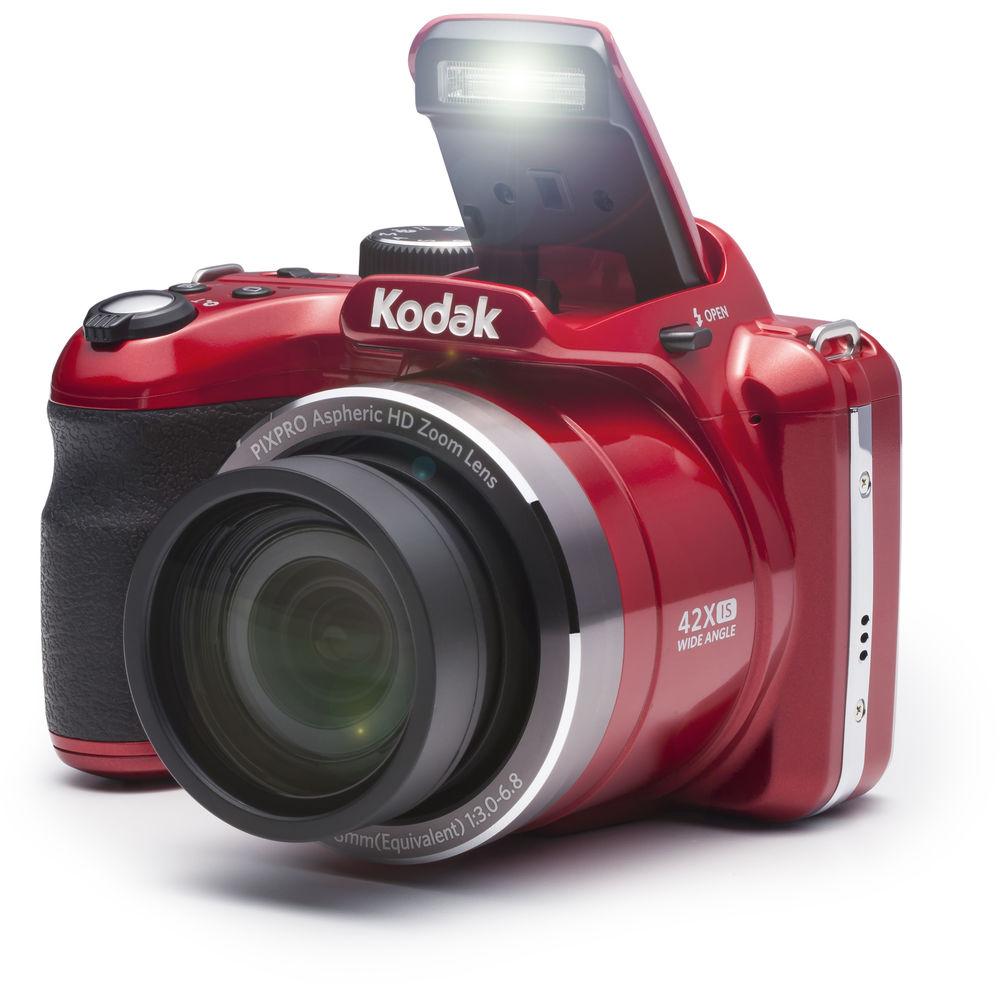

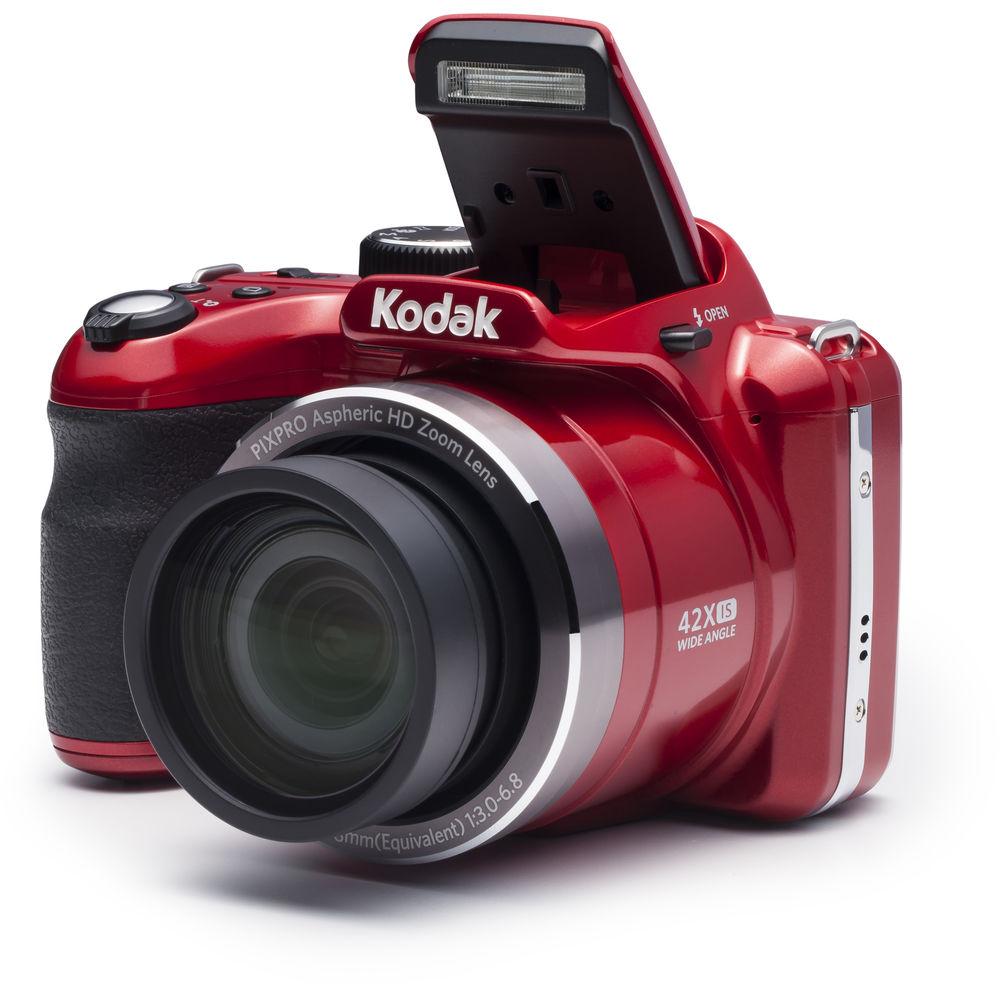

- Built-in pop-up flash provides additional illumination when working in low-light conditions.
UPC: 819900011203 In the Box Kodak PIXPRO AZ421 Digital Camera (Red) LB-060 Rechargeable Lithium-Ion Battery AC Adapter USB Cable Neck Strap Lens Cover Software CD-ROM Limited 1-Year Warranty User Manual PDF 12.6mbsecuvtvqdzuceeutqcyzeesbyrvusavxeyq More info from Kodak Table of Contents
|
Upload User Manual
Have you got an user manual for the Kodak PIXPRO AZ421 Digital Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKodak AZ421 Specs | | | Pixels | Actual: 16.44 Megapixel
Effective: 16.15 Megapixel | | Sensor | 1/2.3" CCD | | File Formats | Still Images: JPEG
Movies: MJPEG, MOV
Audio: Linear PCM (Mono) | | Max Resolution | 4608 x 3456 | | Aspect Ratio | 3:2, 4:3, 16:9 | | Image Stabilization | Optical | | | | Lens | 15 Elements in 11 Groups
Effective Focal Length: 4.3 to 180.6mm (35 mm Equivalent: 24 to 1008mm)
Aperture: f/2.6 (W) to f/6 (T) | | Zoom | Optical: 42x
Digital: 4x | | Focus Range | Wide: 1.97' to Infinity / 60 cm to Infinity
Telephoto: 9.84' to Infinity / 3 m to Infinity
Wide Macro: 0.63" to Infinity / 1.6 cm to Infinity | | | | ISO Sensitivity | Auto, 80 to 1600 (Extended Mode:80 to 3200) | | Shutter | 30 to 1/2000 Second | | Exposure Metering | Artificial Intelligence AE, Center-Weighted, Face Detection, Spot | | Exposure Modes | Modes: Aperture Priority, Auto, Manual, Programmed Auto, Shutter Priority
Compensation: -2 EV to +2 EV (in 1/3 EV Steps) | | Shooting Modes | Beach
Face Beautifier
Fireworks
Fish-Eye Effect
Glass Through
Kids
Landscape
Movie
Museum
Night Landscape
Night Portrait
Panning
Panorama
Party/Indoor
Pet Portrait
Portrait
Snow
Sports
Sunset
Text | | White Balance | Auto, Cloudy, Color Temperature, Daylight, Fluorescent, Fluorescent CWF, Incandescent, Manual | | | | Flash Modes | Auto
Forced On
Off
Red-Eye Reduction
Slow Sync
Slow Sync/Red-Eye Reduction | | Built-In Flash | Yes | | Effective Flash Range | Wide:1.6 to 24.6' / 0.5 to 7.5 m
Telephoto:3.9 to 14.4' / 1.2 to 4.4 m | | | | Built-In Memory | 8 MB | | Memory Card Type | SD
SDHC | | | | Video Recording | Yes, NTSC | | Resolution | 1280 x 720p: 30 fps, 15 fps
640 x 480p: 30 fps
320 x 240p: 30 fps | | | | Audio Recording | Built-In Mic: With Video (Mono) | | | | Screen | 3.0" LCD Rear Screen (230,000 Pixels) | | | | Connectivity | AV / USB Multi, HDMI D (Micro), USB 2.0 Micro-B, USB 2.0 | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 0 to 90% | | | | Battery | 1 x LB-060 Rechargeable Lithium-Ion Battery Pack, 3.7 VDC, 1100 mAh | | | | Dimensions (W x H x D) | 4.4 x 3.2 x 3.3" / 112.7 x 81.6 x 84.4 mm | | Weight | 1.00 lb / 454 g | | | | Package Weight | 1.65 lb | | Box Dimensions (LxWxH) | 6.4 x 6.2 x 4.5" |
