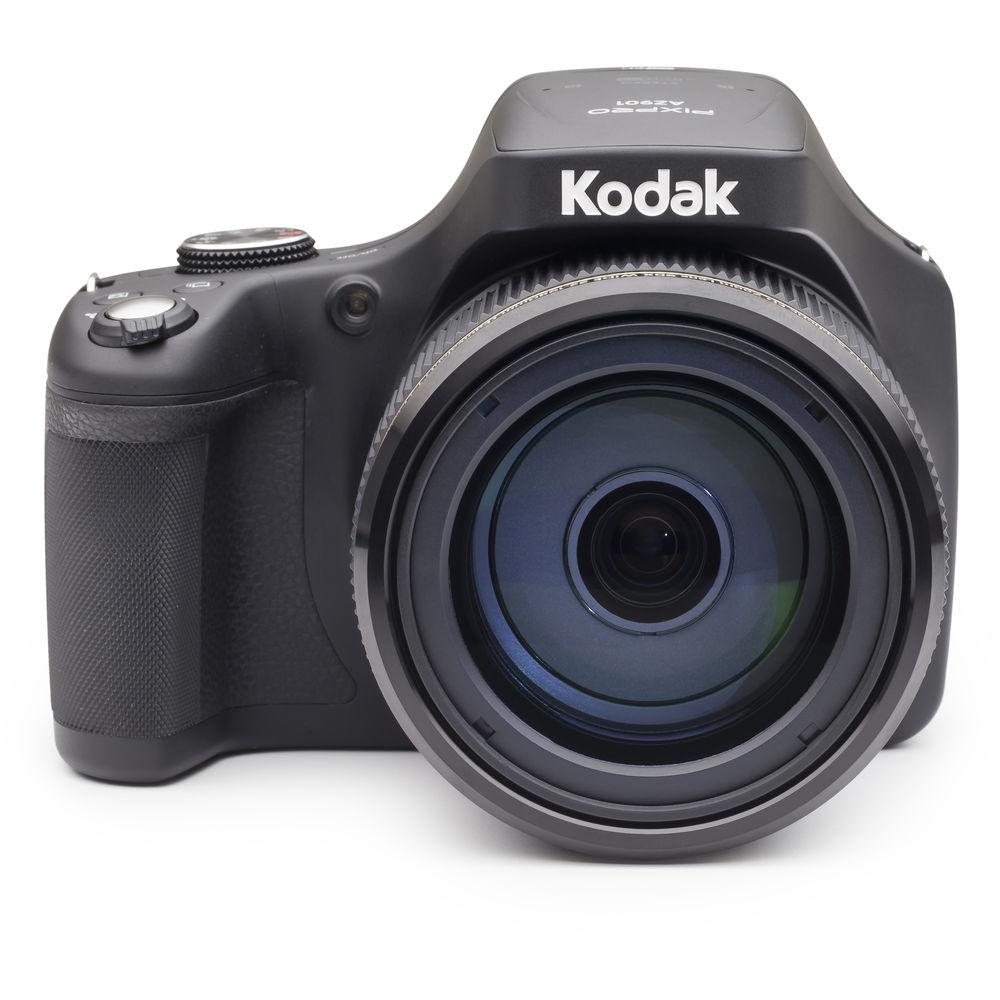

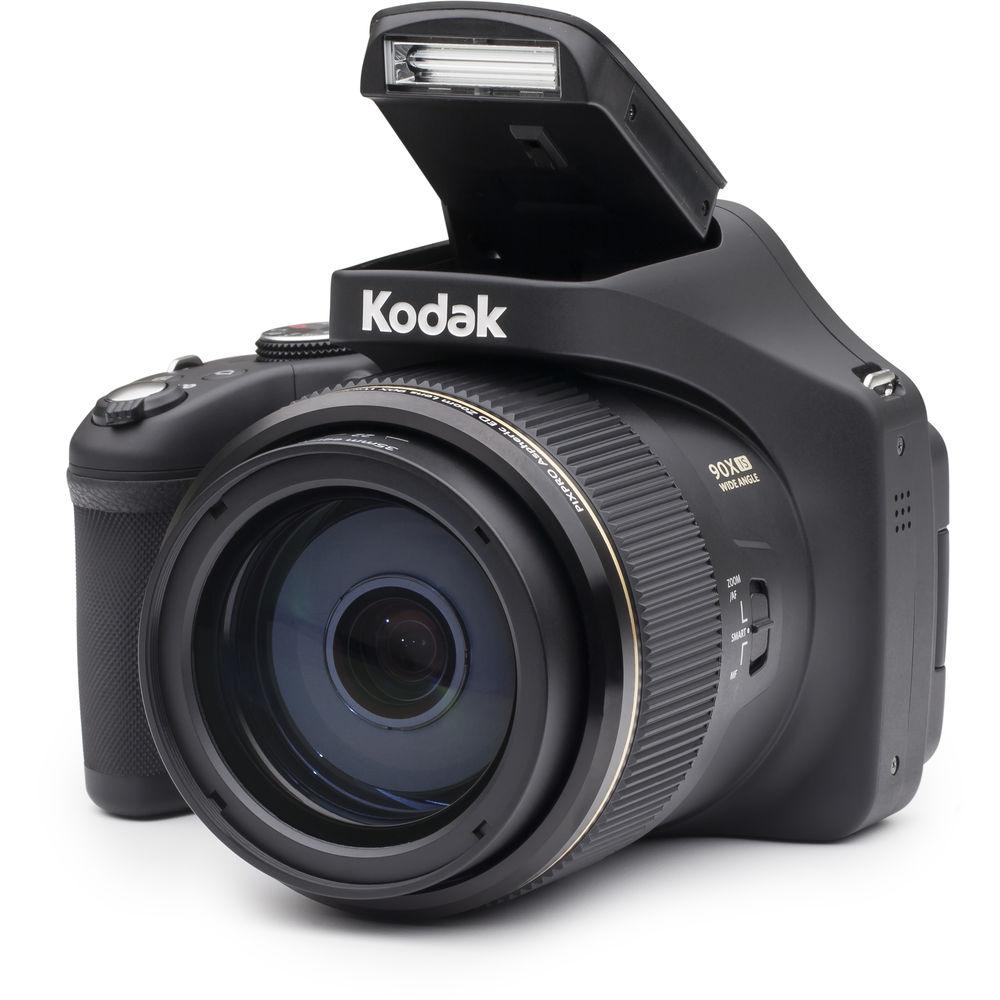

User Manual for Kodak PIXPRO AZ901 Digital Camera Click to enlarge the picture
Contents of the user manual for the Kodak PIXPRO AZ901 Digital Camera
- Product category: Point & Shoot Cameras Kodak
- Brand: Kodak
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kodak Point & Shoot Cameras
 |
User manual for the Kodak PIXPRO AZ901 Digital Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kodak product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kodak user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kodak product will considerably shorten its lifespan!
|

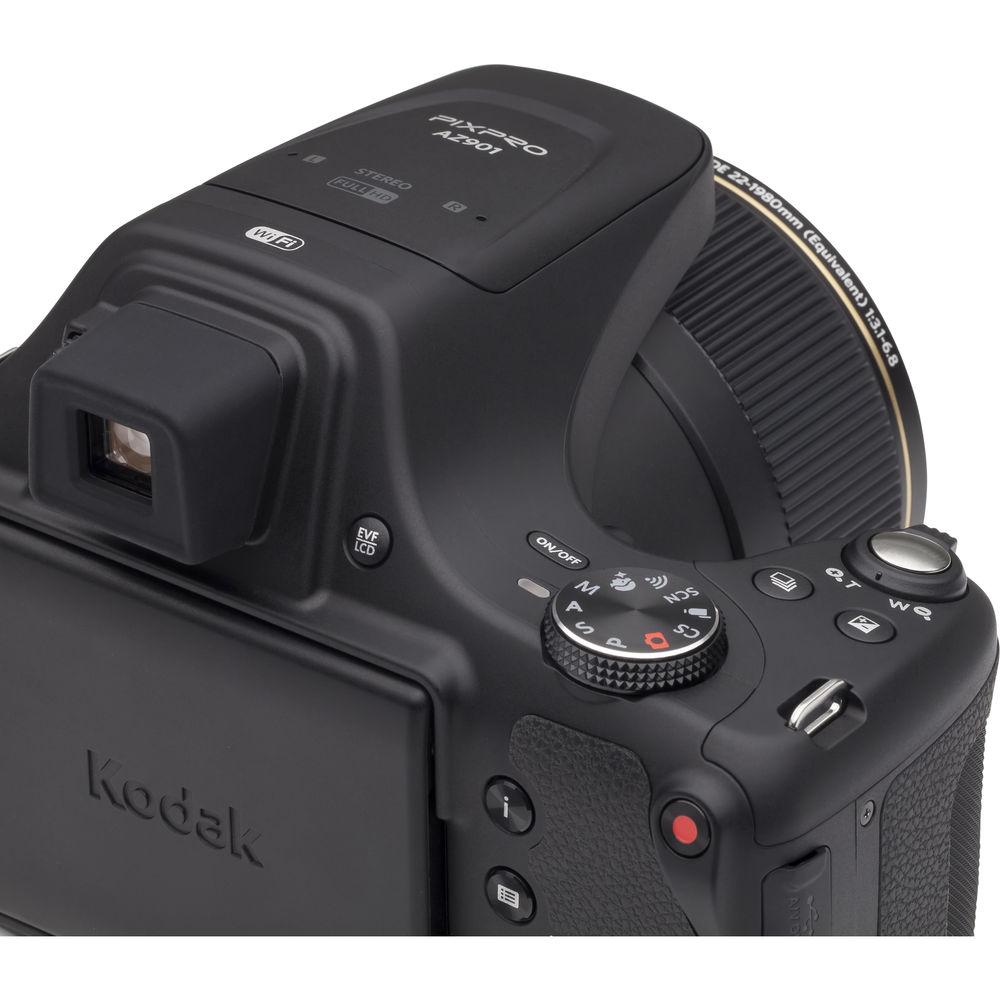

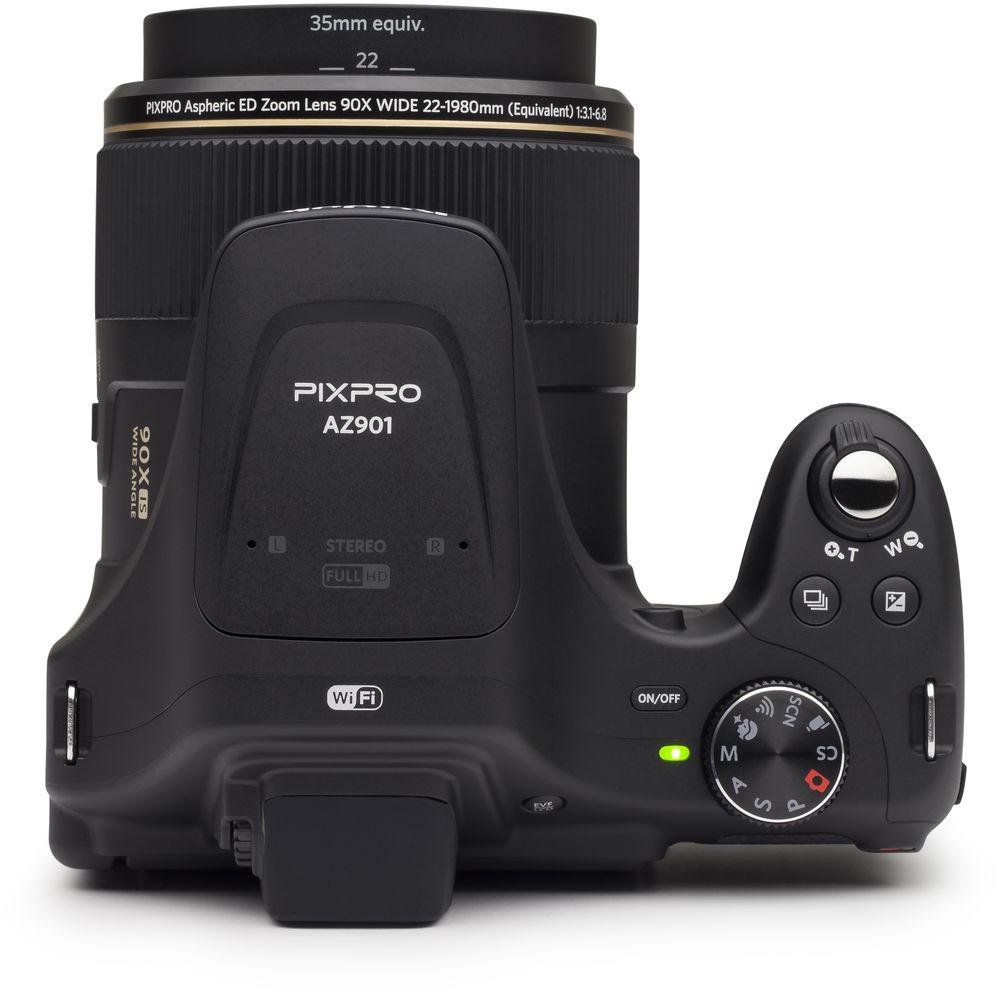

Product description Revolving around an impressive zoom, the PIXPRO AZ901 is a Kodak Astro Zoom Collection camera that blends long reach with an apt set of imaging capabilities. Its 20.68MP 1/2.3" BSI CMOS sensor affords Full HD 1080p video recording and 5-fps continuous shooting, along with a sensitivity range from ISO 100-3200 for working in various lighting conditions. The BSI design of the sensor helps to maintain low noise and high clarity for truer colors and accurate rendering, especially in low lighting. Complementing the imaging assets is an immense 90x optical zoom lens, which covers a 22-1980mm equivalent focal length range, and optical image stabilization benefits this reach by minimizing the appearance of camera shake for sharper handheld shooting. Both an electronic viewfinder and a rear 3.0" 920k-dot LCD monitor are available for composing and reviewing imagery, and the LCD sports an articulating design to better suit working from high and low angles. Additionally, built-in Wi-Fi is available for wireless transferring of imagery and remote camera control from a linked smartphone or tablet. - A 20.68MP 1/2.3" BSI CMOS sensor produces high-resolution stills and Full HD 1080p/30 video, along with a 5-fps continuous shooting rate and a sensitivity range of ISO 80-3200 to suit working in a variety of lighting conditions. The BSI (back illuminated) sensor design helps to produce increased clarity and reduced noise for clean image quality.

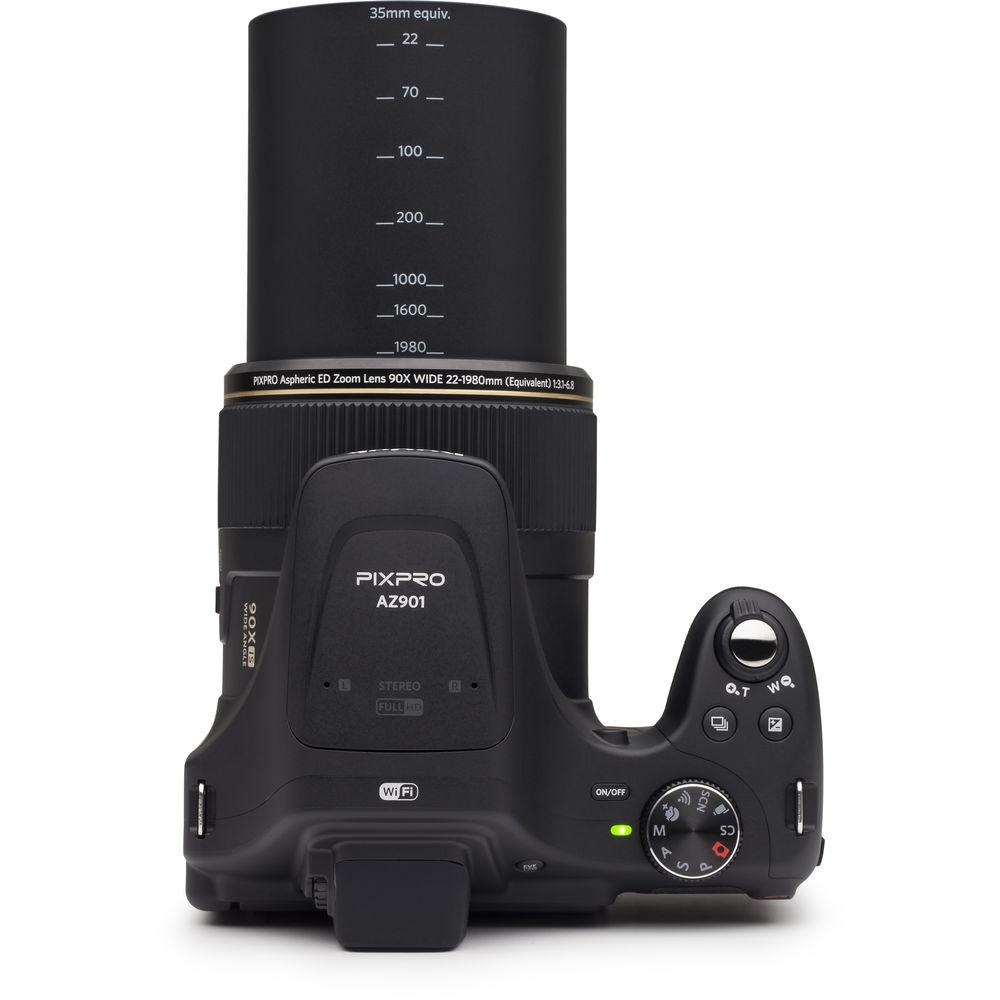

- An extremely long-reaching 90x optical zoom lens provides a 22-1980mm equivalent focal length range, covering wide-angle to super-telephoto perspectives, and 4x digital zoom is also available to further extend the effective reach.
- Optical image stabilization is available to minimize the appearance of camera shake when shooting handheld in difficult lighting conditions or with longer focal lengths.

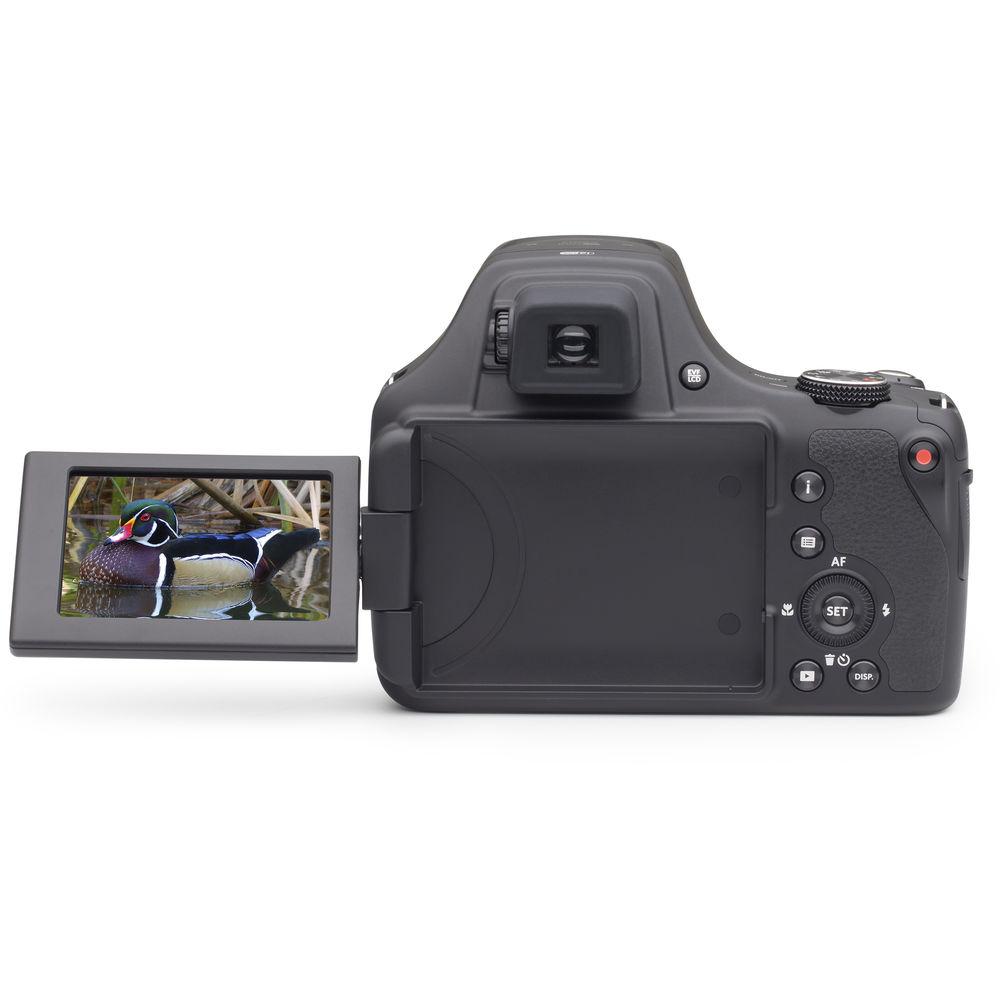

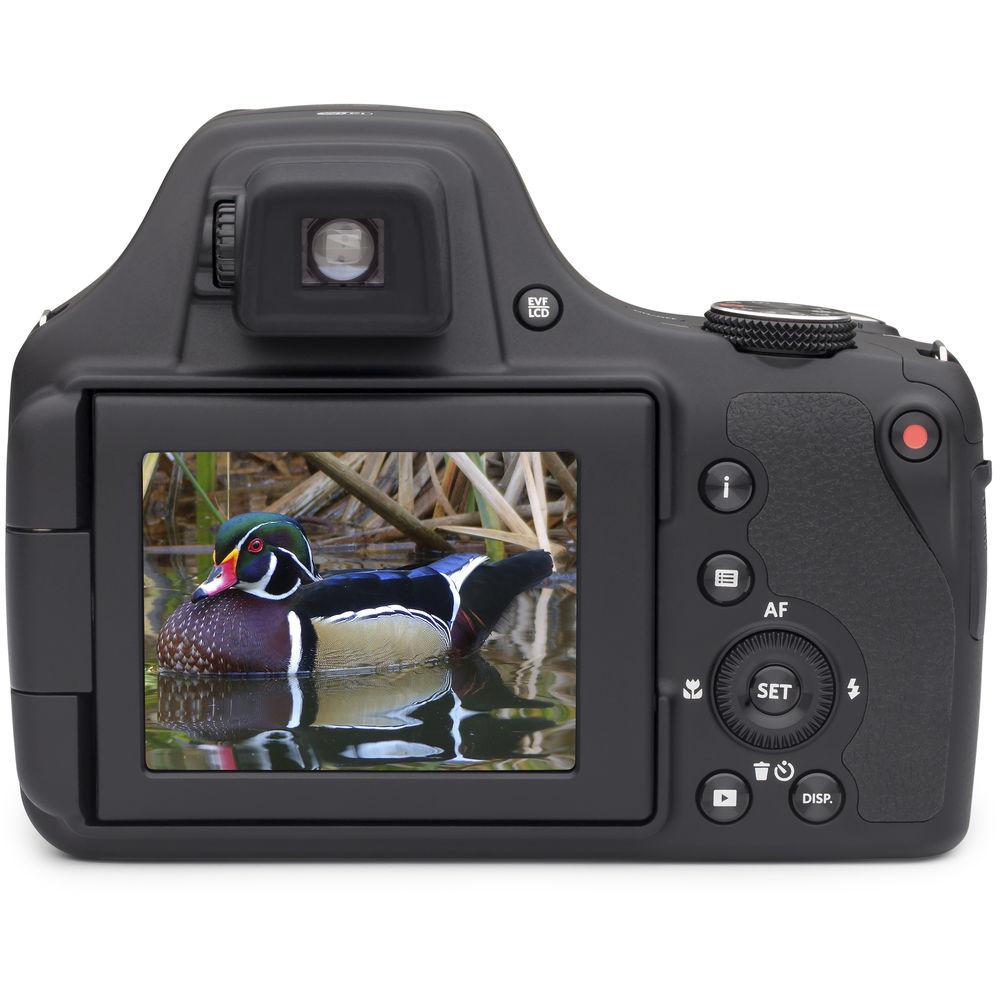

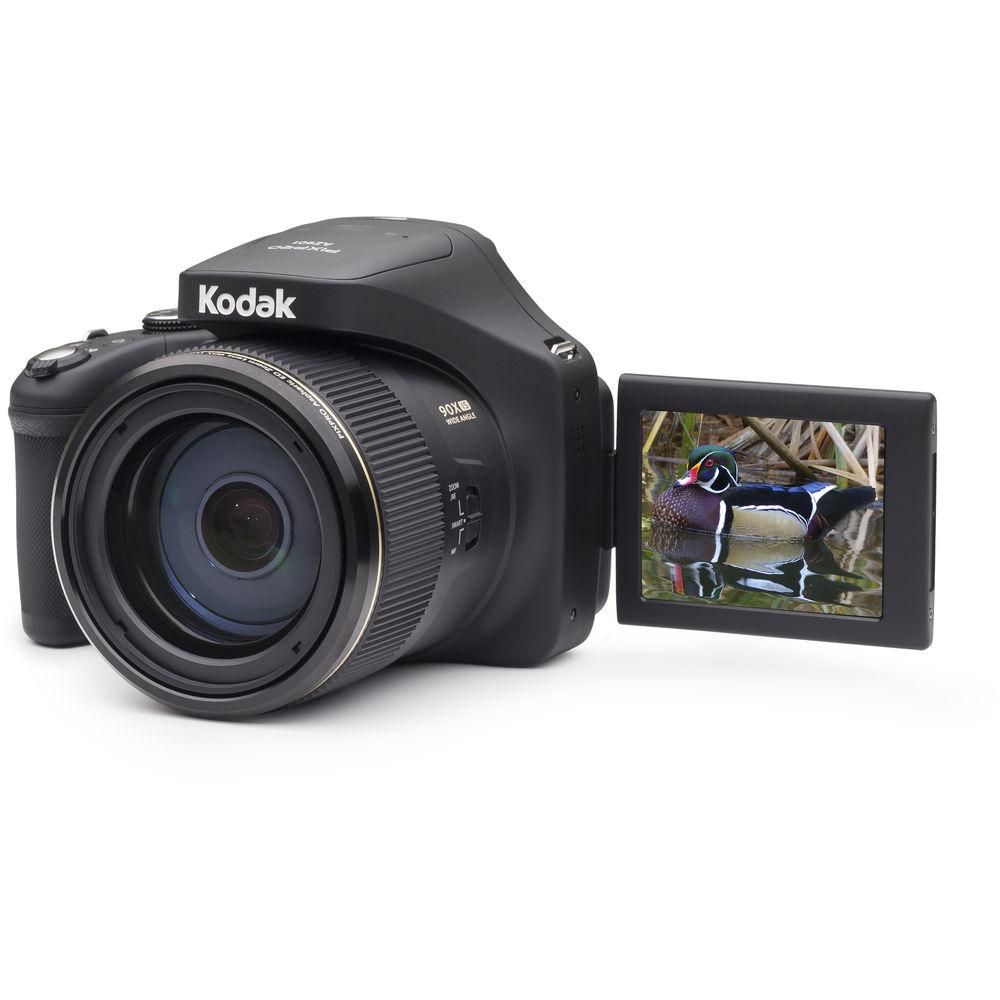

- Both an electronic viewfinder and a rear 3.0" 920k-dot LCD monitor are available for composing and reviewing imagery. Additionally, the LCD's articulating design enables working from high, low, and even front-facing angles for greater shooting flexibility.
- Built-in Wi-Fi allows you to wirelessly transfer imagery and remotely control the camera from a linked iOS or Android mobile device.
- Both JPEG and raw image file types can be recorded; JPEGs are convenient and ideal for saving storage space on your memory card while raw images offer greater editing possibilities during post-production.
- 360° Panorama mode lets you take sweeping images by simply panning the camera to create a wide-field composition.
- Face, Smile, Blink, Cat, and Dog detection modes can be used to optimize shooting settings to capture perfect portraits and pet pictures.
- Both single and multi, 9-point autofocus modes can be used, and Face Detection AF is also available to prioritize subjects' faces when shooting portraits.

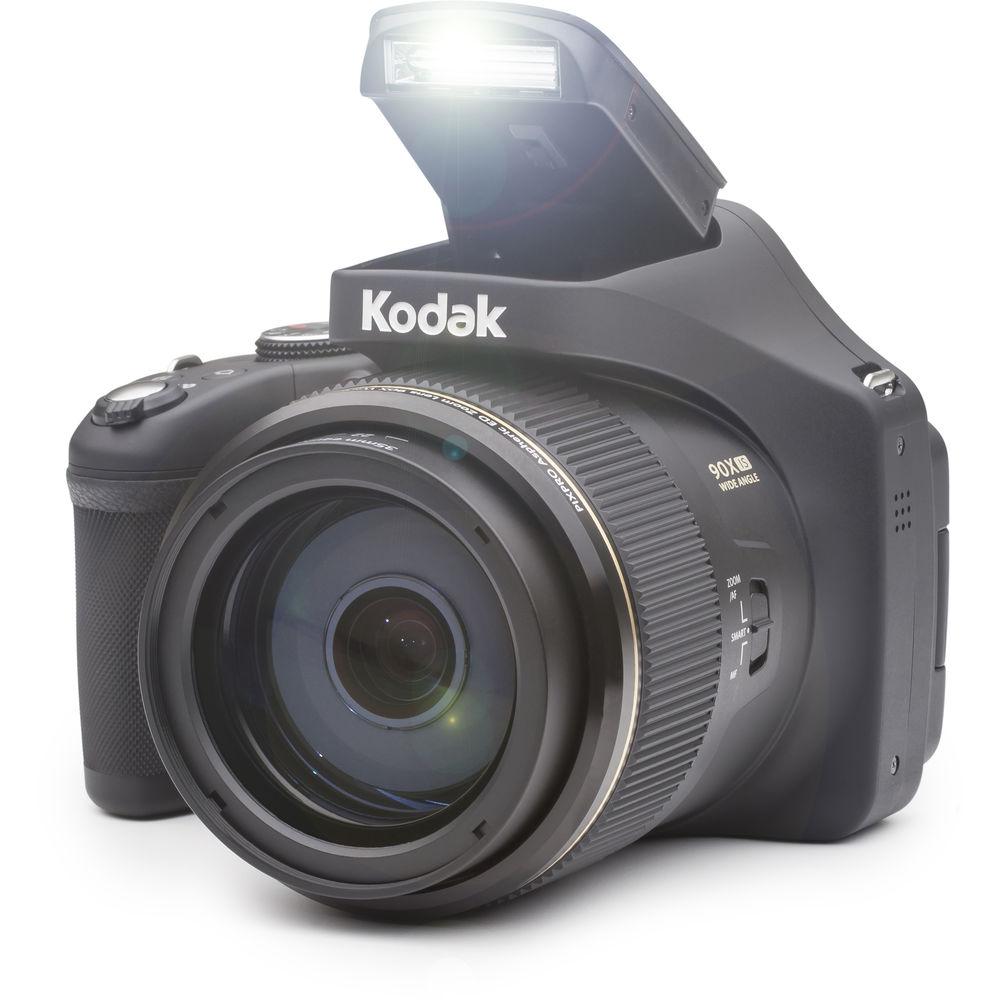

- Built-in flash provides additional illumination when working in low-light conditions.
UPC: 819900012903 In the Box Kodak PIXPRO AZ901 Digital Camera LB-070 Rechargeable Lithium-Ion Battery AC Adapter USB Cable Neck Strap Lens Cap Software CD-ROM Limited 1-Year Warranty User Manual PDF 16.4mb More info from Kodak Table of Contents
|
Upload User Manual
Have you got an user manual for the Kodak PIXPRO AZ901 Digital Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKodak AZ901 Specs | | | Pixels | Actual: 21.14 Megapixel
Effective: 20.68 Megapixel | | Sensor | 1/2.3" CMOS | | File Formats | Still Images: JPEG, RAW
Movies: AVC/H.264, MOV
Audio: Linear PCM (Stereo) | | Max Resolution | 20 MP: 5184 x 3888 | | Aspect Ratio | 3:2, 4:3, 16:9 | | Image Stabilization | Optical | | | | Lens | 18 Elements in 14 Groups
Effective Focal Length: 3.9 to 351mm (35 mm Equivalent: 22 to 1980mm)
Aperture: f/3.1 (W) to f/6.8 (T) | | Zoom | Optical: 90x
Digital: 4x | | Focus Range | Wide: 1.64' to Infinity / 49.99 cm to Infinity
Telephoto: 16.4' to Infinity / 5 m to Infinity
Macro: 1.97" to Infinity / 5 cm to Infinity | | | | ISO Sensitivity | Auto, 100 to 3200 | | Shutter | 30 to 1/2000 Second | | Exposure Metering | Artificial Intelligence AE, Center-Weighted, Face Detection, Spot | | Exposure Modes | Modes: Aperture Priority, Auto, Manual, Program, Shutter Priority
Compensation: -3 EV to +3 EV (in 1/3 EV Steps) | | Shooting Modes | ASCN
Face Beautifier
Fireworks
Landscape
Movie
Night Landscape
Night Portrait
Panorama
Party/Indoor
Pet Mode
Portrait
Snow
Sports
Sunset | | White Balance | Auto, Cloudy, Color Temperature, Daylight, Fluorescent, Fluorescent CWF, Incandescent, Manual | | Continuous Shooting | Up to 5 fps at 20 MP | | Self-Timer | 2, 10 Sec | | | | Flash Modes | Auto
Fill-In
Off
Red-Eye Reduction
Slow Sync
Slow Sync/Red-Eye Reduction | | Built-In Flash | Yes | | | | Built-In Memory | 8 MB | | Memory Card Type | SD
SDHC | | | | Video Recording | Yes, NTSC | | Resolution | 1920 x 1080p: 30 fps
1280 x 720p: 60 fps, 30 fps
640 x 480p: 120 fps, 30 fps | | | | Audio Recording | Built-In Mic: With Video (Stereo) | | | | Viewfinder Type | Electronic | | Diopter Adjustment | -3 to +1 m | | Screen | 3.0" LCD Rear Screen Swivel (920,000 Pixels) | | | | Connectivity | HDMI D (Micro), USB 2.0 Micro-B | | Wi-Fi | Yes, Wi-Fi 4 (802.11n) Built In | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 0 to 90% | | | | Battery | 1 x LB-070 Rechargeable Lithium-Ion Battery Pack, 7.4 VDC, 1020 mAh | | | | Dimensions (W x H x D) | 5.5 x 4.1 x 4.7" / 138.7 x 103.5 x 118.5 mm | | Weight | 1.71 lb / 777 g | | | | Package Weight | 2.8 lb | | Box Dimensions (LxWxH) | 9.0 x 7.0 x 5.6" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 76 owners. Add your rating and experience with the product.
Discussion
Ask our technicians if you have a problem with your settings,
or if anything is unclear in the user manual you have downloaded.
You can make use of our moderated discussion.
The discussion is public and helps other users of our website who may be encountering similar problems.
Post new comment to Kodak PIXPRO AZ901 Digital Camera
| Subject: Trying to disengage the red-eye beam on my Pixpro AZ901 | | Date: 26.07.2022 20:10:16 | Name: Mark Gasper | I have not selected the Flash Mode for Red-eye Reduction, but when I shoot photos with a high ISO setting and no flash, the assist beam for red-eye is still activated. I am trying to avoid this. I don't want my subject to be distracted by the red-eye beam flashing when I focus on them.
I would appreciate any advice on how to do this. The User Guide only shows how to activate the Red-eye Reduction mode, but not how to disable or simply turn off the assist beam.
Thank you. | | Post reply |
