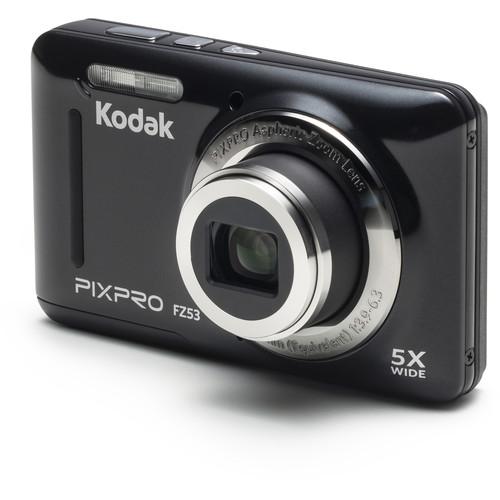

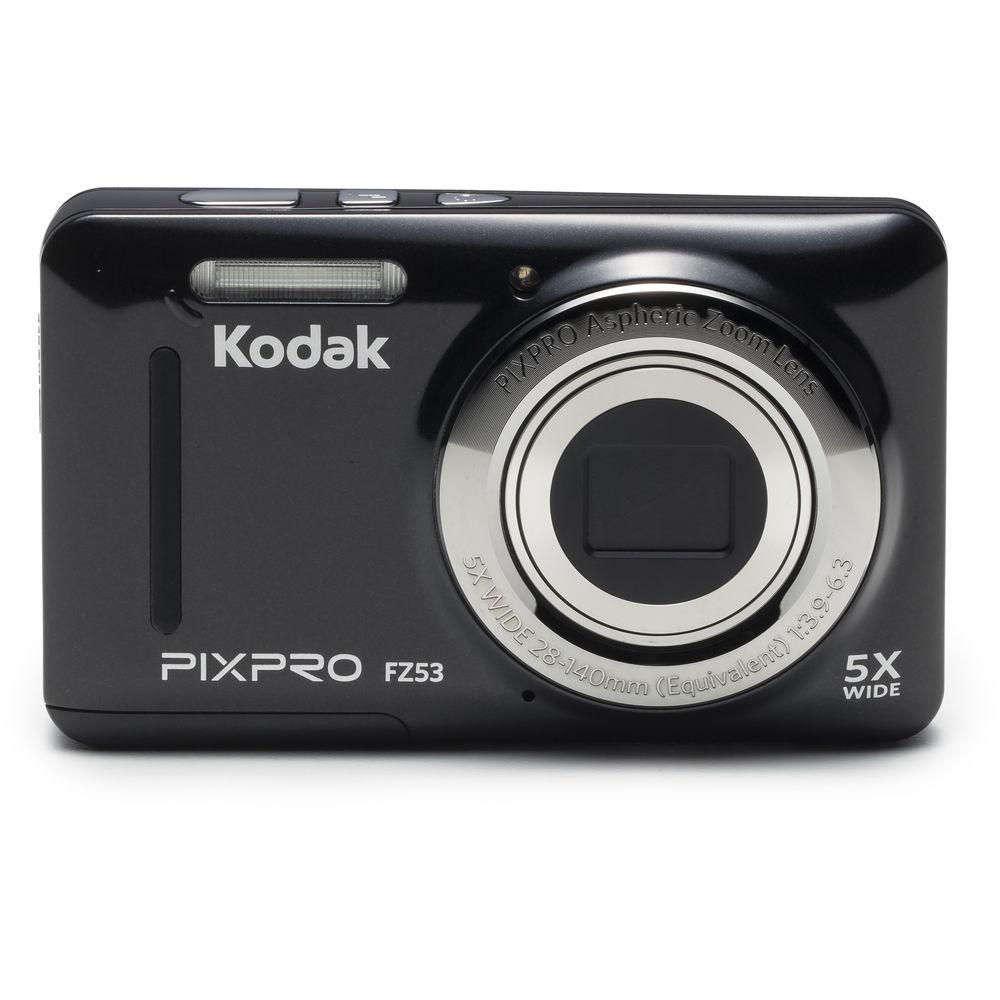

Product description A truly slim and pocketable point-and-shoot, the black KODAK PIXPRO FZ53 Digital Camera is a versatile camera for everyday shooting. Revolving around a 16.15MP 1/2.3" CCD sensor, this camera is capable of producing high-resolution stills and HD 720p video, along with a sensitivity range of ISO 80-1600. The slender form factor incorporates a 5x, 28-140mm equivalent zoom lens to cover wide-angle to telephoto focal lengths, and digital image stabilization benefits this reach by minimizing the appearance of camera shake for sharper handheld shooting. Additionally, a rear 2.7" 230k-dot LCD monitor is available for clear live view monitoring and image playback; built-in flash can be used to illuminate low-light scenes; and the FZ53 is powered by a rechargeable lithium-ion battery that can be conveniently charged in-camera.
- A 16.15MP 1/2.3" CCD sensor produces high-resolution stills and HD 720p/30 video, along with a sensitivity range of ISO 80-1600 to suit working in a variety of lighting conditions.
- A 5x optical zoom lens provides a 28-140mm equivalent focal length range, covering wide-angle to telephoto perspectives, and 6x digital zoom is also available to further extend the effective reach.
- Digital image stabilization is available to minimize the appearance of camera shake when shooting handheld in difficult lighting conditions or with longer focal lengths.

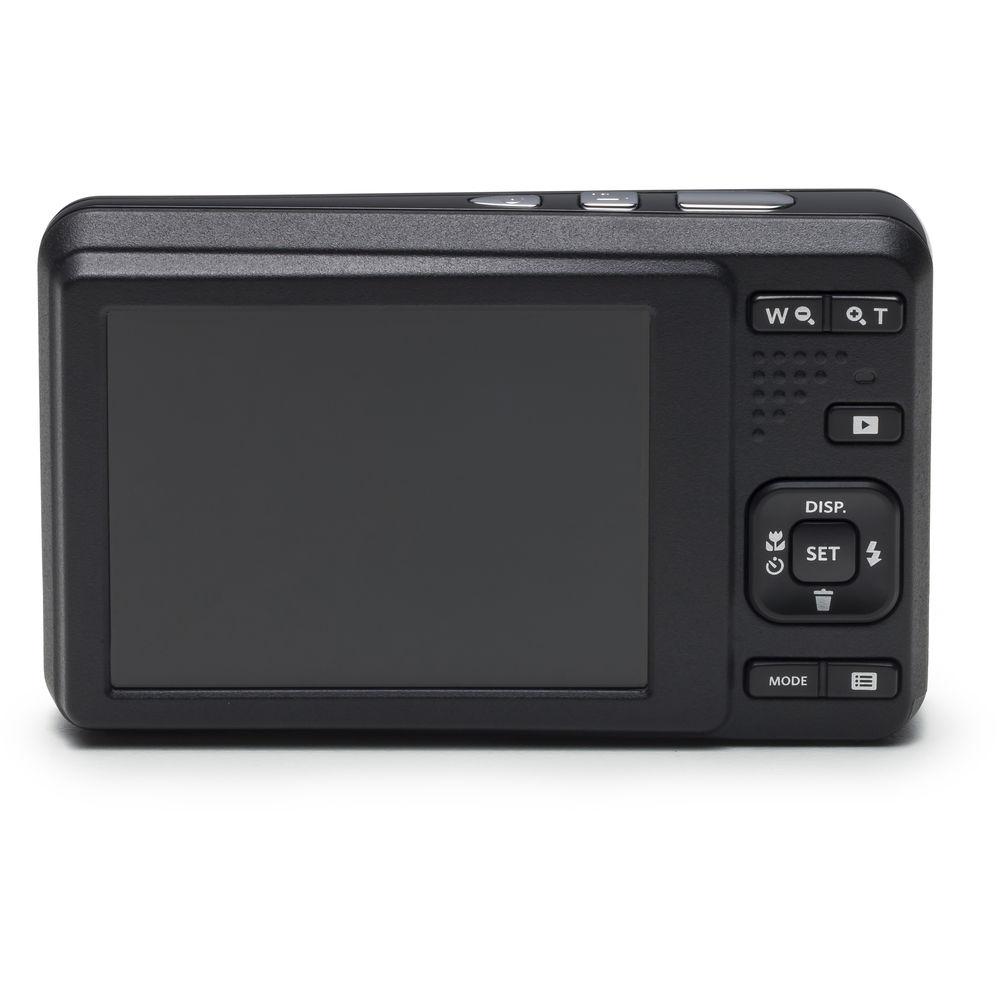

- The slim camera body incorporates a rear 2.7" 230k-dot LCD monitor for composing and reviewing imagery, as well as for navigating the menu system.
- The included LB-012 rechargeable lithium-ion battery can be charged in-camera and provides approximately 200 shots per charge.
- Both single and multi, 9-point autofocus modes can be used, and Face Detection AF is also available to prioritize subjects' faces when shooting portraits.
- Face, Blink, and Smile Detection functions can be used to help ensure properly exposed, focused, and well-timed portraits.
- A 180° Panorama Capture mode lets you pan about the scene in order to capture a seamless panoramic image.
UPC: 819900012231 In the Box Kodak PIXPRO FZ53 Digital Camera (Black) Rechargeable Lithium-Ion Battery AC Adapter USB Cable Wrist Strap Limited 1-Year Warranty User Manual PDF 8.1mb More info from Kodak Table of Contents
- Built-in flash provides additional illumination when working in low-light conditions.
Upload User Manual
Have you got an user manual for the Kodak PIXPRO FZ53 Digital Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Kodak FZ53 Specs
| Pixels || Actual: 16.44 Megapixel |
Effective: 16.15 Megapixel
| Sensor || 1/2.3" CCD |
| File Formats || Still Images: JPEG |
Movies: MJPEG, MOV
Audio: Linear PCM (Mono)
| Max Resolution || 4608 x 3456 |
| Aspect Ratio || 3:2, 4:3, 16:9 |
| Image Stabilization || Digital |
| Lens || 8 Elements in 8 Groups |
Effective Focal Length: 5.1 to 25.5mm (35 mm Equivalent: 28 to 140mm)
Aperture: f/3.9 (W) to f/6.3 (T)
| Zoom || Optical: 5x |
| Focus Range || Wide: 1.97' to Infinity / 60 cm to Infinity |
Telephoto: 3.28' to Infinity / 1 m to Infinity
Wide Macro: 1.97" to Infinity / 5 cm to Infinity
| ISO Sensitivity || Auto, 80 to 1600 |
| Shutter || 4 to 1/2000 Second |
30 to 0 Second in Manual Mode
| Exposure Metering || Artificial Intelligence AE, Face Detection |
| Exposure Modes || Modes: AE Lock, Programmed Auto |
Compensation: -2 EV to +2 EV (in 1/3 EV Steps)
| Shooting Modes || Auto |
| White Balance || Auto, Cloudy, Daylight, Fluorescent, Fluorescent CWF, Incandescent, Manual |
| Flash Modes || Auto |
Slow Sync/Red-Eye Reduction
| Built-In Flash || Yes |
| Effective Flash Range || Wide:1.0 to 12.8' / 0.3 to 3.9 m |
Telephoto:3.9 to 7.9' / 1.2 to 2.4 m
| Built-In Memory || 8 MB |
| Memory Card Type || SD |
| Video Recording || Yes, NTSC |
| Resolution || 1280 x 720p: 30 fps, 15 fps |
640 x 480p: 30 fps
320 x 240p: 30 fps
| Audio Recording || Built-In Mic: With Video (Mono) |
| Screen || 2.7" LCD Rear Screen (230,000 Pixels) |
| Connectivity || AV / USB Multi, USB 2.0 Micro-B, USB 2.0 |
| Operating Temperature || 32 to 104°F / 0 to 40°C |
| Operating Humidity || 0 to 90% |
| Battery || 1 x LB-012 Rechargeable Lithium-Ion Battery Pack, 3.7 VDC, 700 mAh |
| Dimensions (W x H x D) || 3.6 x 2.2 x 0.9" / 91.5 x 56.5 x 22.6 mm |
| Weight || 3.74 oz / 106 g |
| Package Weight || 0.5 lb |
| Box Dimensions (LxWxH) || 5.9 x 5.7 x 2.3" |
