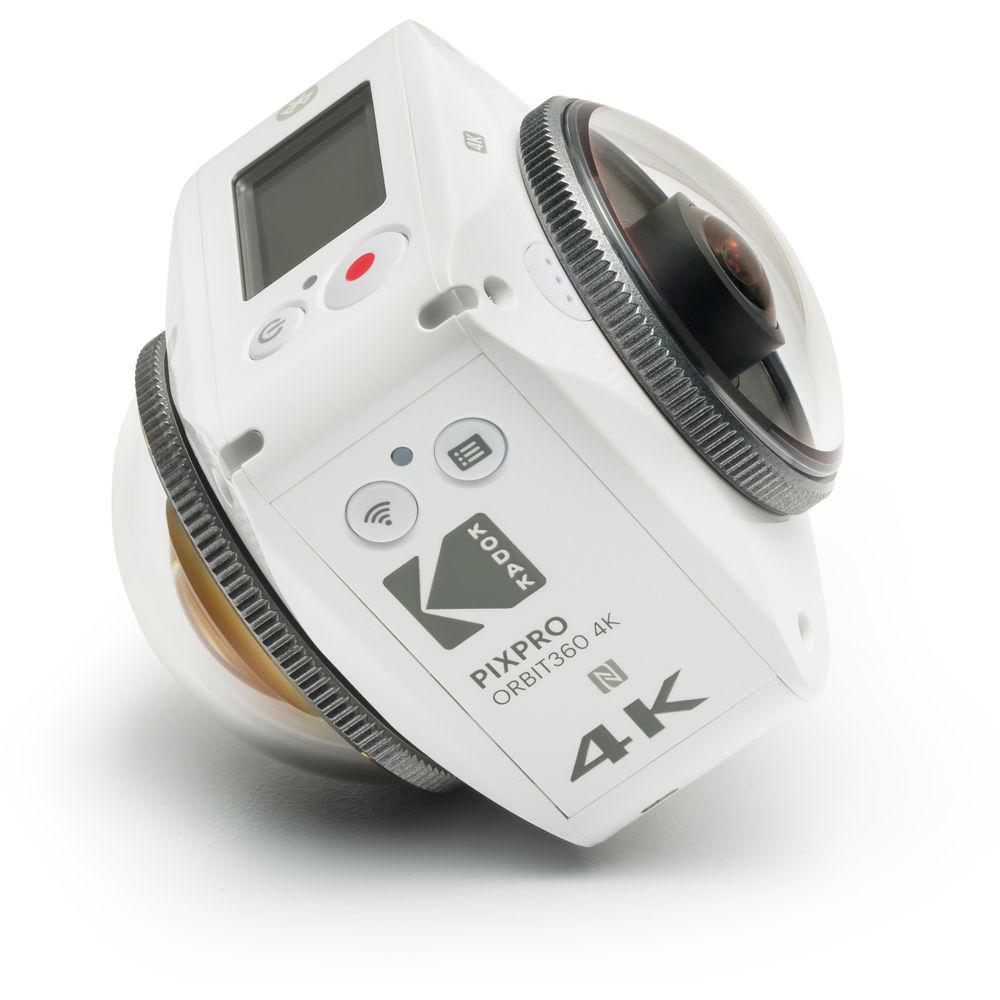

User Manual for Kodak PIXPRO ORBIT360 4K Spherical VR Camera Satellite Pack Click to enlarge the picture
Contents of the user manual for the Kodak PIXPRO ORBIT360 4K Spherical VR
- Product category: All 360 Video Cameras Kodak
- Brand: Kodak
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kodak All 360 Video Cameras
 |
User manual for the Kodak PIXPRO ORBIT360 4K Spherical VR contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kodak product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kodak user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kodak product will considerably shorten its lifespan!
|
Product description - Orbit Full FC04 1920x1080

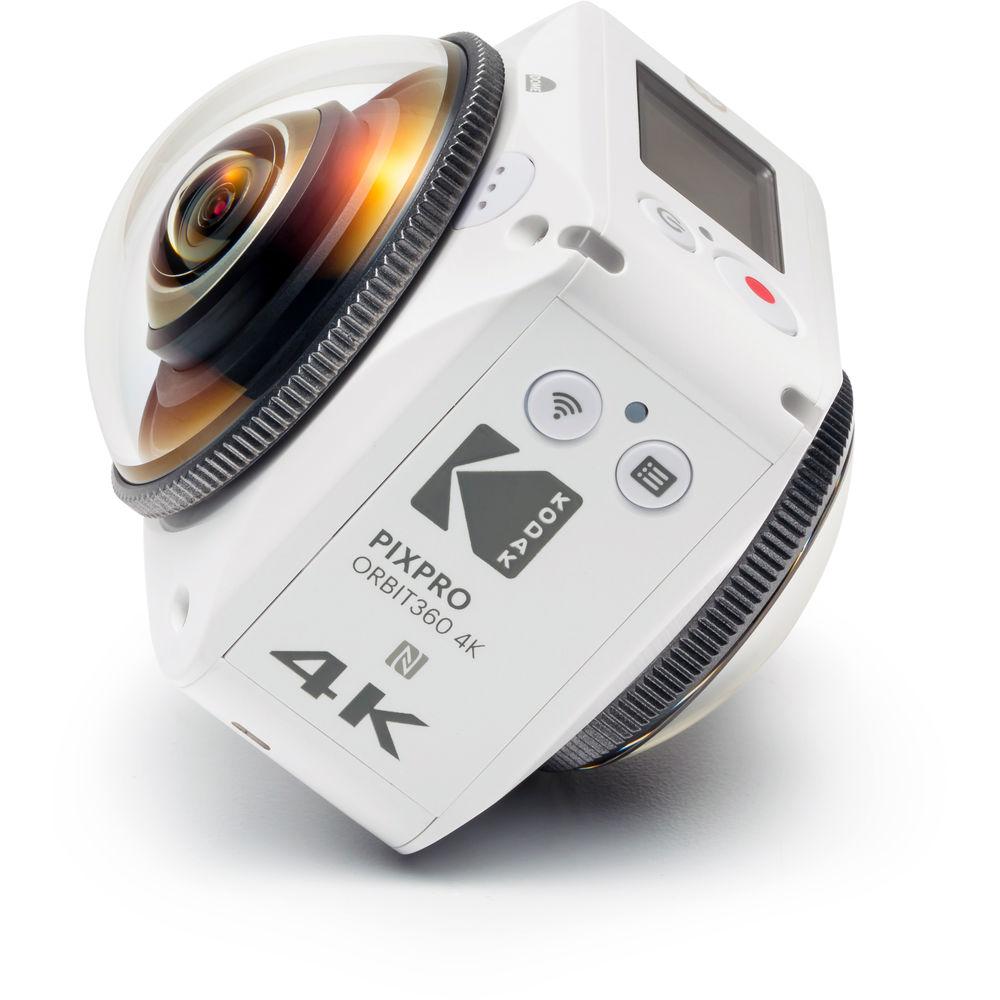

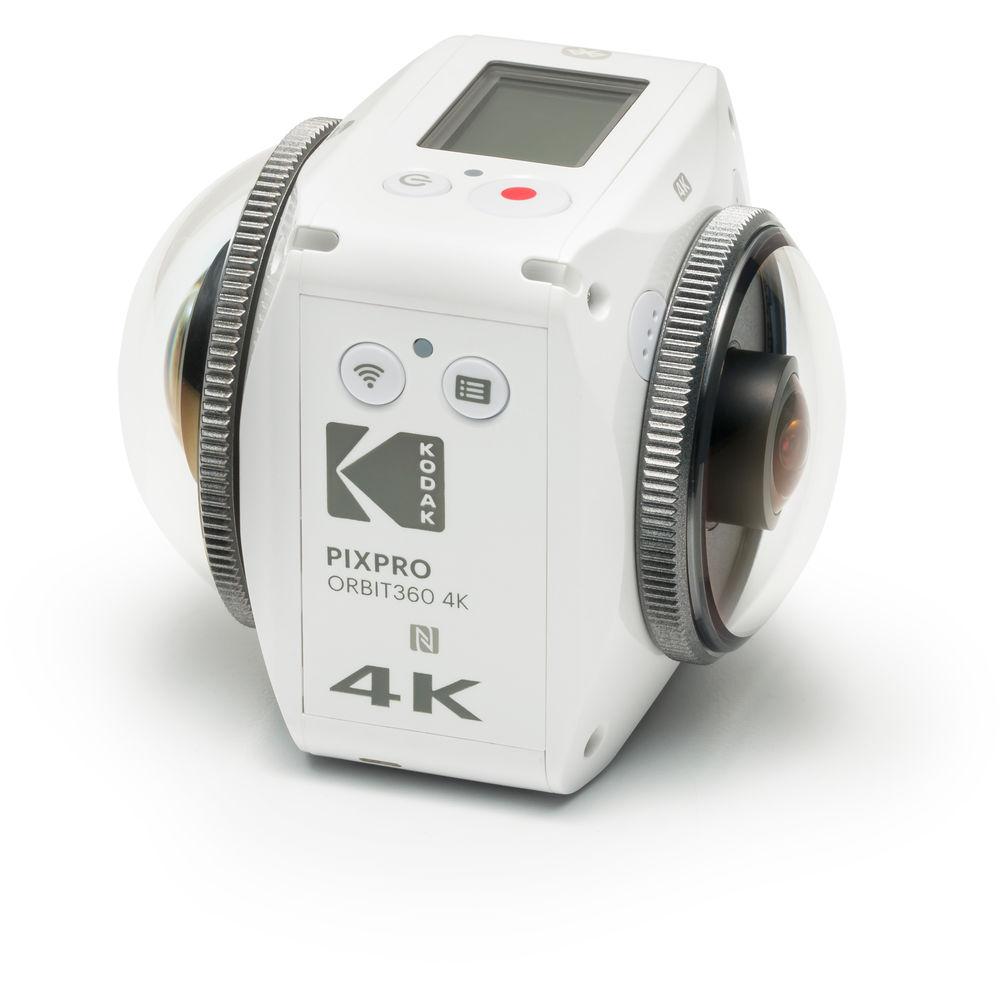

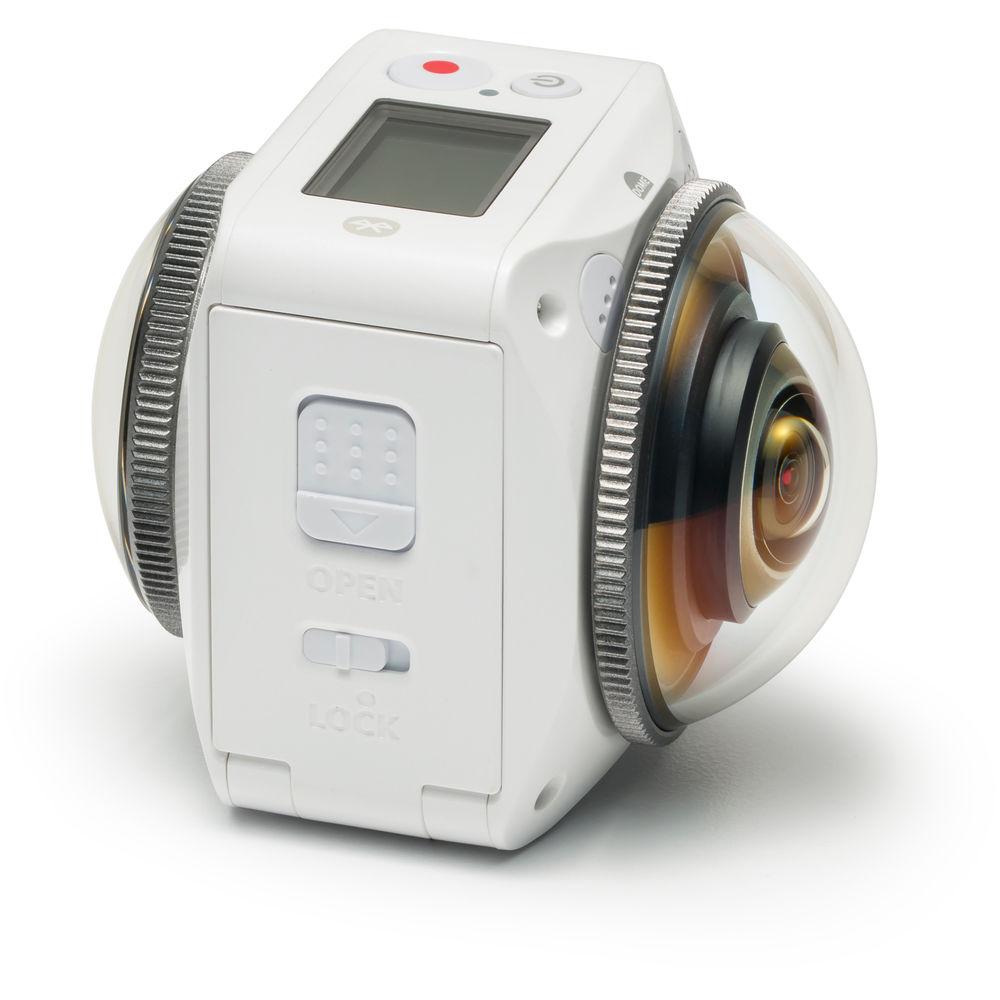

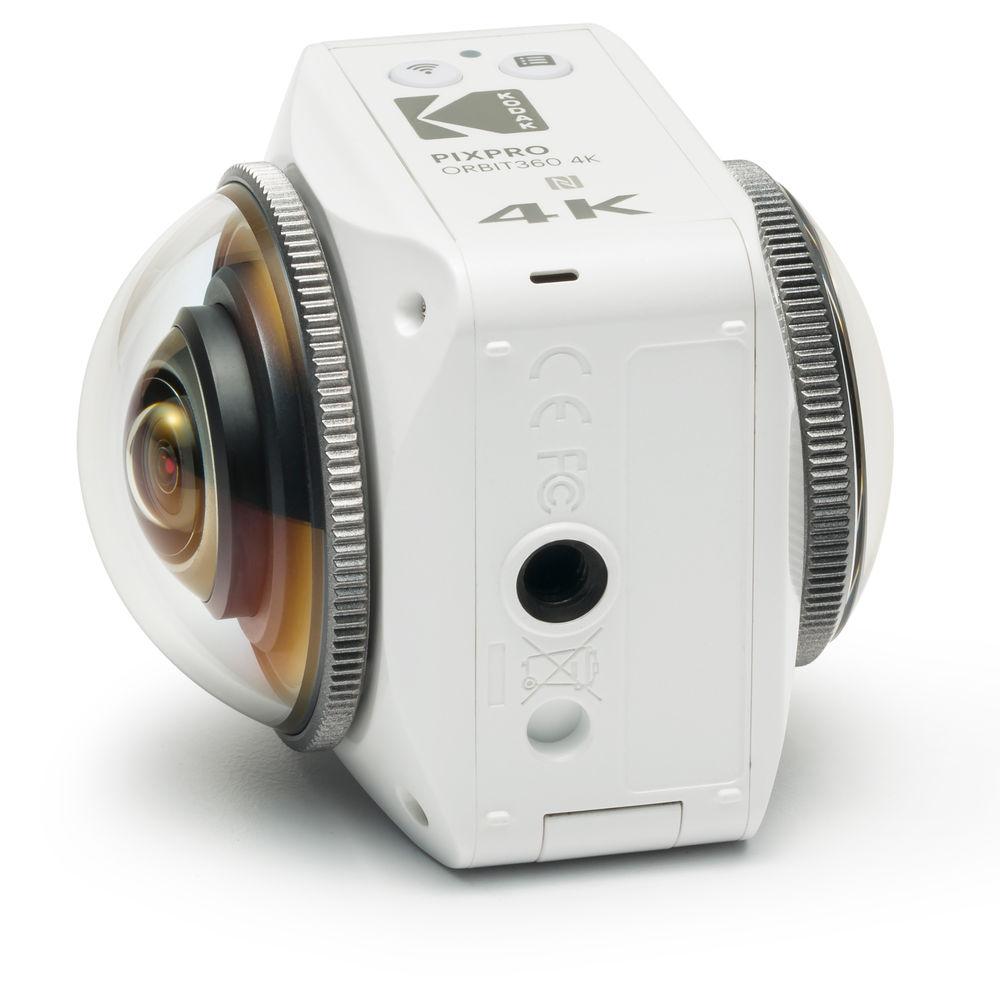

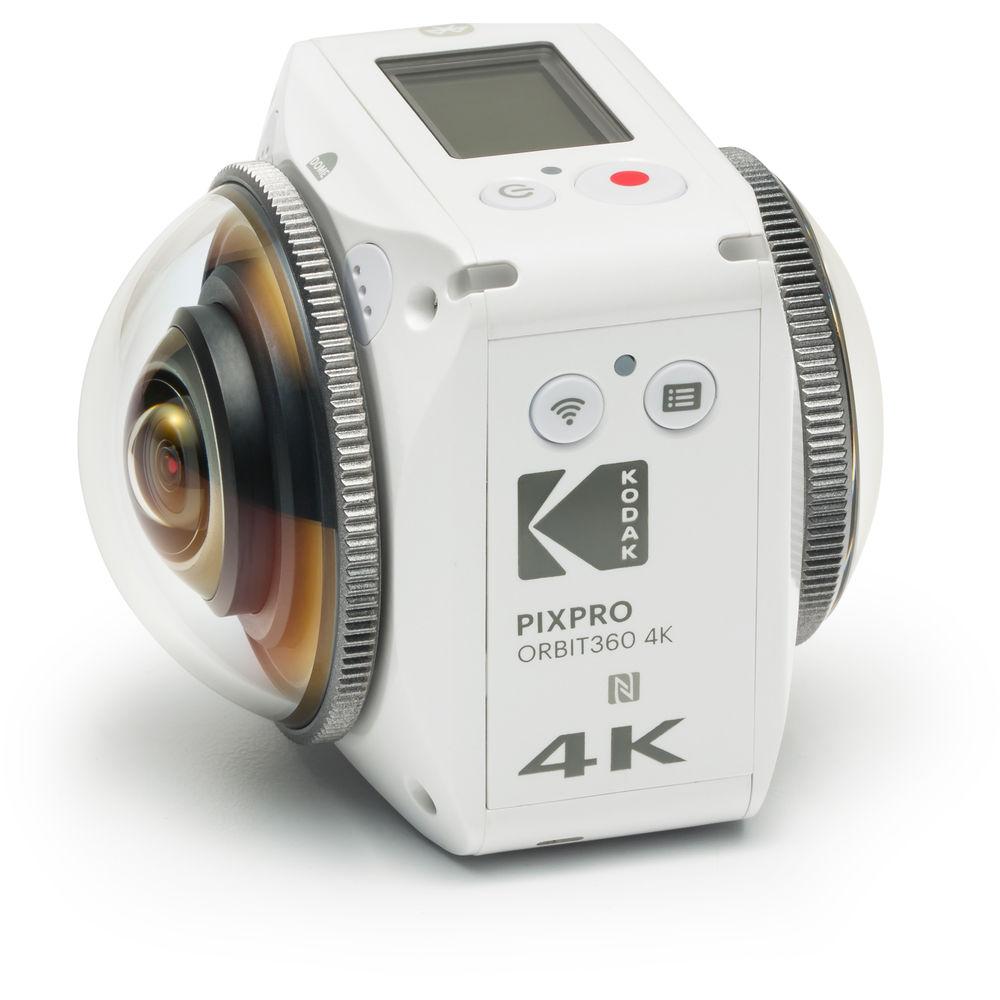

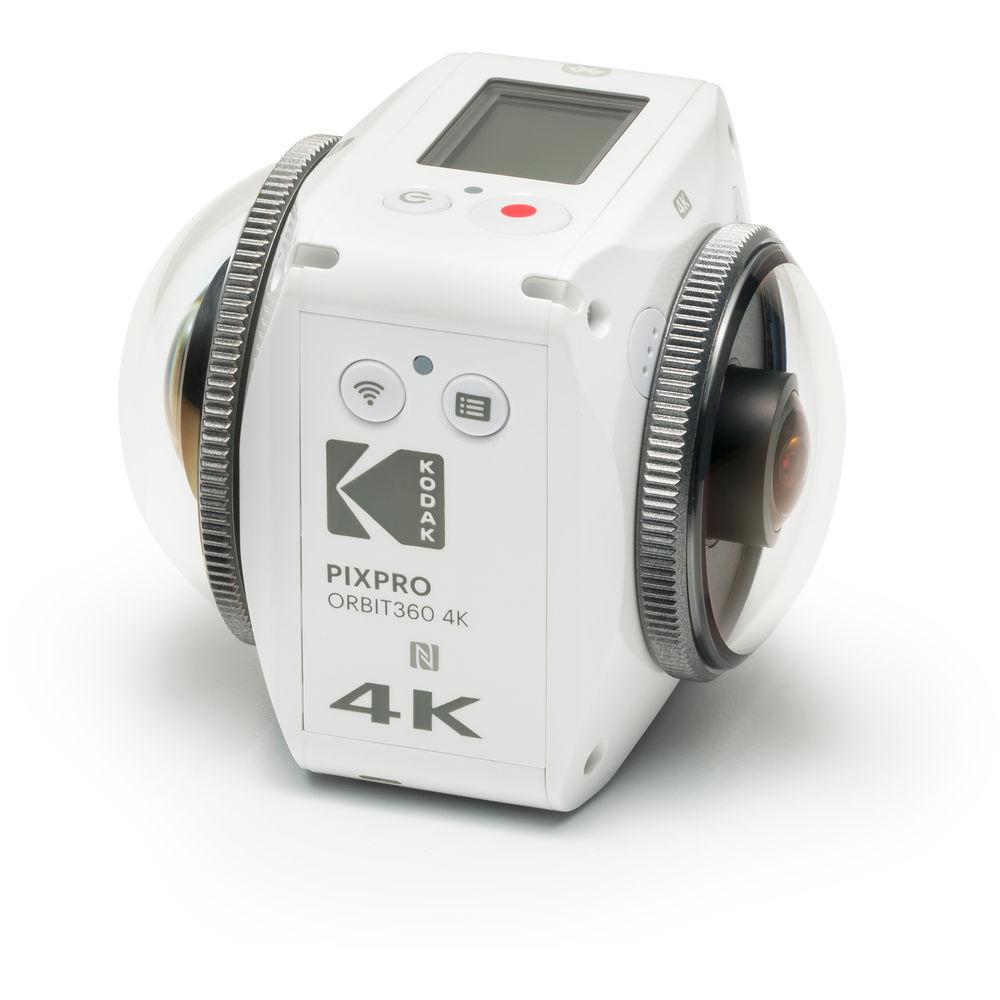

Take 360° photos and videos with the KODAK PIXPRO ORBIT360 4K VR Camera Satellite Pack to record and share your adventures on social media. Featuring dual 20.1 megapixel sensors behind wide angle lenses, the ORBIT360 camera unit is capable of both wide-angle, single-camera capture and stitched 360° surround capture using both the front and rear cameras. The 4K video from the ORBIT360 can be easily uploaded to Facebook and YouTube for 360° playback on the go using the free mobile app for iOS and Android. The camera's diminutive size makes it not only easy to store, but to mount to various accessories. For those who want their camera kitted out-of-the-box, the Satellite Pack comes with a housing frame for attaching two-prong accessories like the included extension pole. - Capture and Share in 360°
- The PIXPRO ORBIT360 is compact, yet it offers three multiview angles in one, giving you the flexibility to frame and capture your adventures, both big and small, any way you choose.
- Be Your Own Director
- The ORBIT360 4K allows you to take control of your artistic vision and passions. Whether taking 360° photos or videos, you have plenty of options to capture everything you do in a variety of ways. Two movie modes and two photo modes give you freedom to express yourself. The four capture modes are:
- Movie
- High-Speed Movie
- Photo
- Burst
- Go Live!
- Want to connect with your friends and family now? Then why not live stream to them using your computer with a Wi-Fi connection? Share your live gaming, music, sports, news or simply hangout with your friends and family.
- Free PIXPRO Remote Viewer App
- Are you constantly on the go and don't want to wait to share your content? Download the free PIXPRO Remote Viewer app for iOS or Android for the ability to upload your spherical photos and videos. Share your passions with your social circles. With the PIXPRO Remote Viewer app you can do the following:
- Control your ORBIT360 camera
- Set photo and video resolution
- Preview 360° photos and videos
- Control exposure levels and white balance
- Play back recorded content
- Share to popular social media platforms

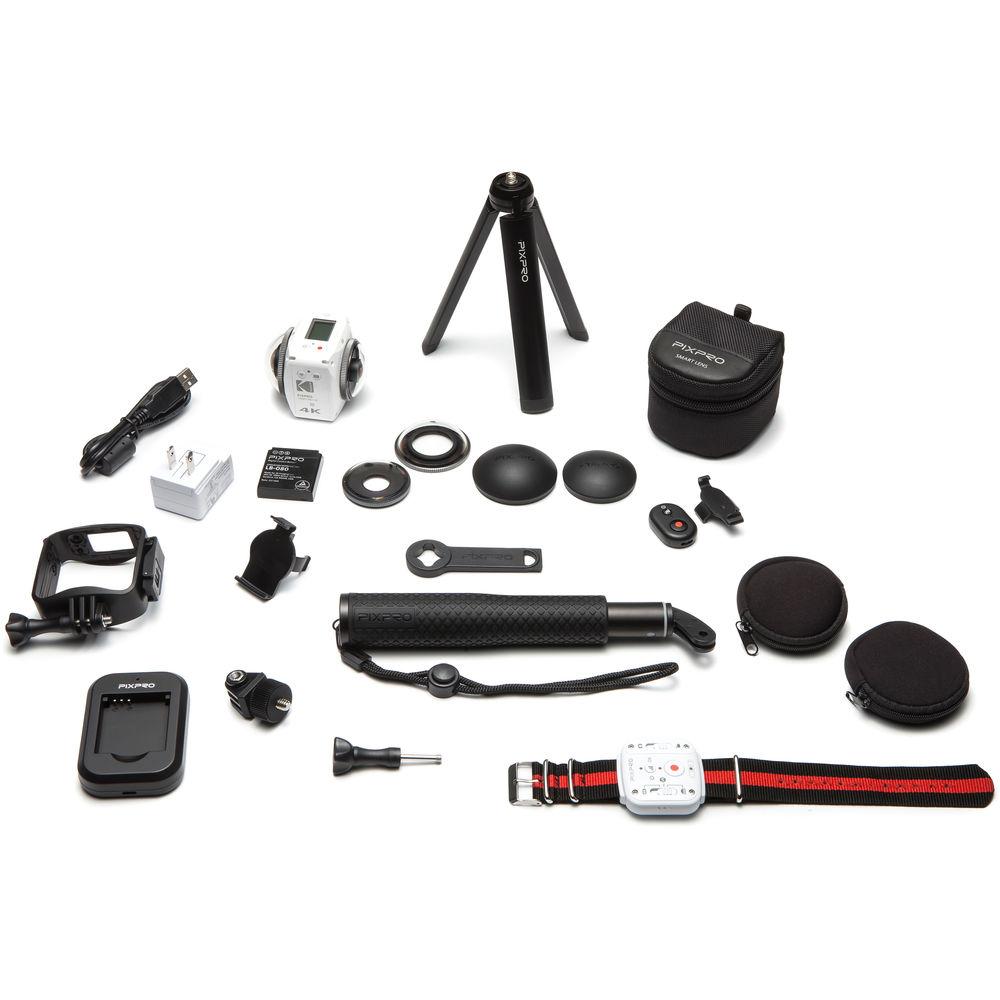

UPC: 819900013344 In the Box Kodak PIXPRO ORBIT360 4K Spherical VR Camera Satellite Pack Lens Cover Protective Cover Battery Charger USB Cable AC Adapter Carrying Case Remote Control Remote Control Mount Selfie Stick Accessory Tool and Thumbscrew Adapter Screw Mount Mini Tripod Cleaning Cloth Limited 1-Year Warranty More info from Kodak xxsbzbut Table of Contents
|
Upload User Manual
Have you got an user manual for the Kodak PIXPRO ORBIT360 4K Spherical VR Camera Satellite Pack in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKodak ORBIT360 Specs | | | Sensor | 1-Chip 1/2.3" CMOS | | Sensor Resolution | 21.14 MP | | Effective Pixels | 20.68 MP (Photo) | | | | Focal Length | 1.633mm | | Maximum Aperture | f/2.4 | | Lens Elements | 8 | | Minimum Focusing Distance | 11.8" / 30.0 cm | | Fixed Focus | Yes | | Angle of View | 197° (Front Mode, 16:9) | | | | Sensor | 1 x 1/2.3" CMOS | | Pixel Gross | 21.14 MP | | | | Focal Length | 1.257mm | | Maximum Aperture | f/2.4 | | Minimum Focusing Distance | 11.8" / 30.0 cm | | Fixed Focus | Yes | | Angle of View | 235° (maximum) | | | | System | NTSC | | Recording Media | x microSD/HC/XC (256 GB Maximum) | | Video Format | 3840 x 1920 at 15/24/30 fps (MP4)
2880 x 2880 at 24 fps (MP4)
1920 x 1920 at 30 fps (MP4)
1920 x 1080p at 60 fps (MP4)
1920 x 960 at 30 fps (MP4)
1280 x 720 at 60 fps (MP4) | | Still Image Resolution | JPEG: 27 Megapixel, 7360 x 3680 (2:1) | | Microphone Recording Angle | 360° | | Audio Format | AAC | | | | Display Type | LCD | | Touchscreen | No | | Screen Size | 1" | | Status Display | Yes | | | | Photo ISO Range | 100 - 800 (Auto) | | Video ISO Range | 100 - 1600 (Auto) | | Exposure Modes | Modes: Programmed Auto | | Shooting Modes | Burst Shooting
High Speed Movie
Time-Lapse Movie | | | | Image Stabilization | Digital | | Shockproof Rating | 6.0' / 2.0 m | | IP Rating | IP65 | | White Balance Modes | Auto
Cloudy
Daylight
Fluorescent
Incandescent
Underwater | | Built-In Mic | Yes | | Built-In Light/Flash | Light - No

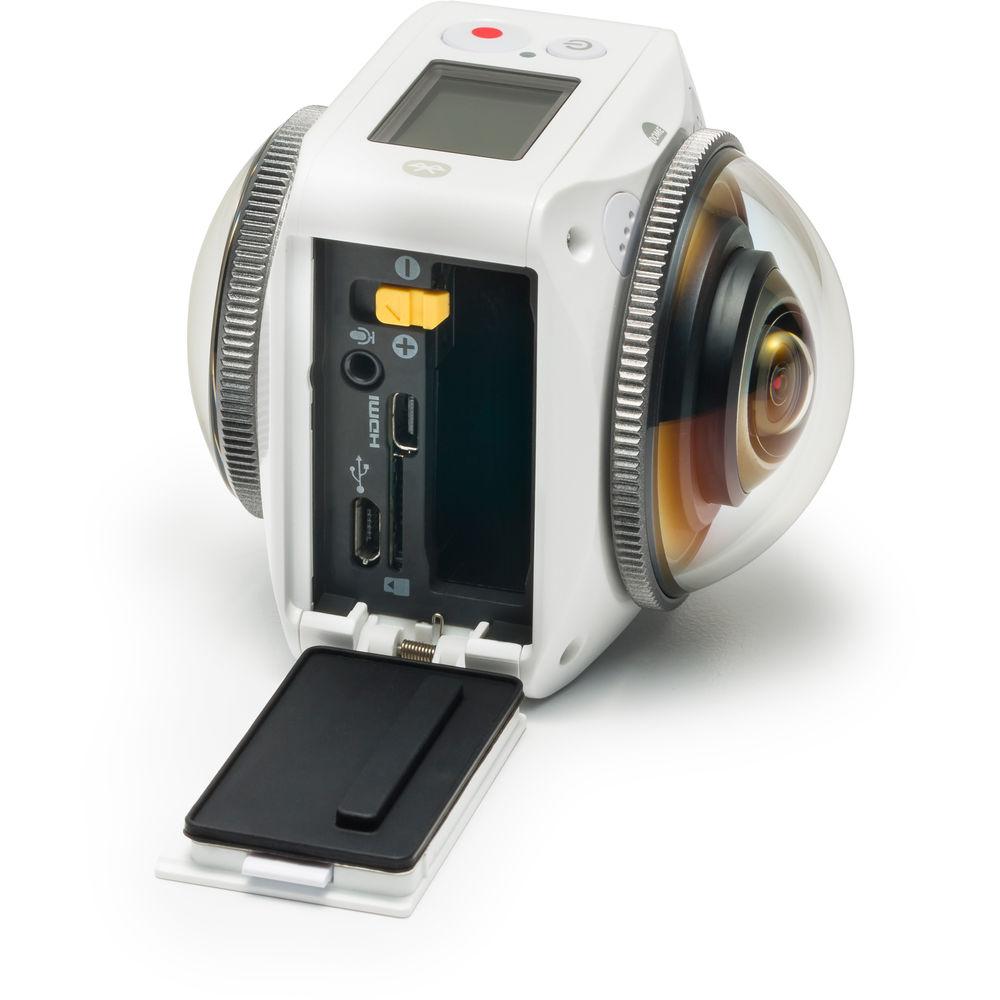

Flash - No | | Wi-Fi | Yes, Wi-Fi 4 | | | | Inputs | 1 x USB Micro-B
1 x Microphone In 2.5mm | | Outputs | 1 x Micro-HDMI (Type D) | | Microphone Input | Yes | | Headphone Jack | No | | | | Battery | Rechargeable Lithium-Ion Battery Pack, 3.6 VDC, 1250 mAh
Max Runtime: 1 Hours per Charge | | Charging Method | AC Adapter | | Dimensions (W x H x D) | 2.2 x 2.2 x 2.7" / 55.0 x 55.0 x 67.6 mm | | Weight | 4.6 oz / 130.4 g Body Only
5.5 oz / 155.9 g With battery and SD card | | | | Package Weight | 3.145 lb | | Box Dimensions (LxWxH) | 10.75 x 6.8 x 5.4" |
