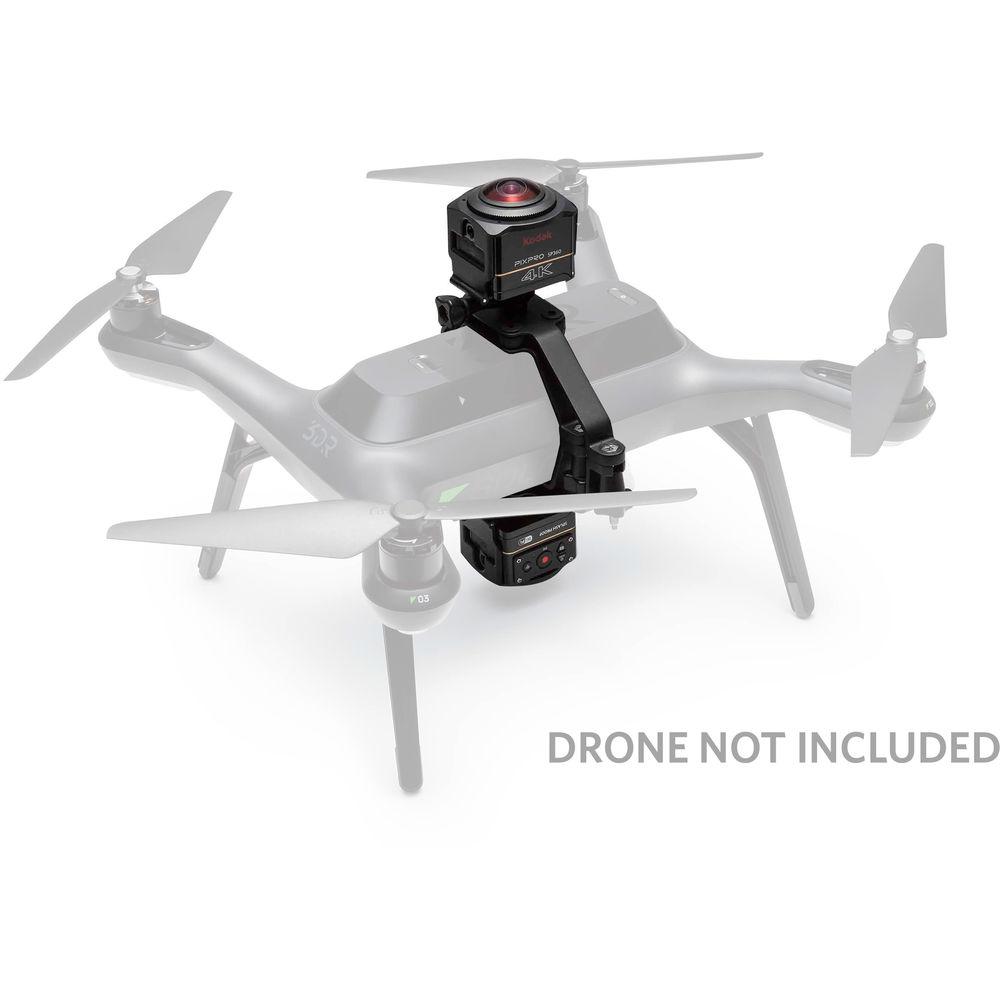

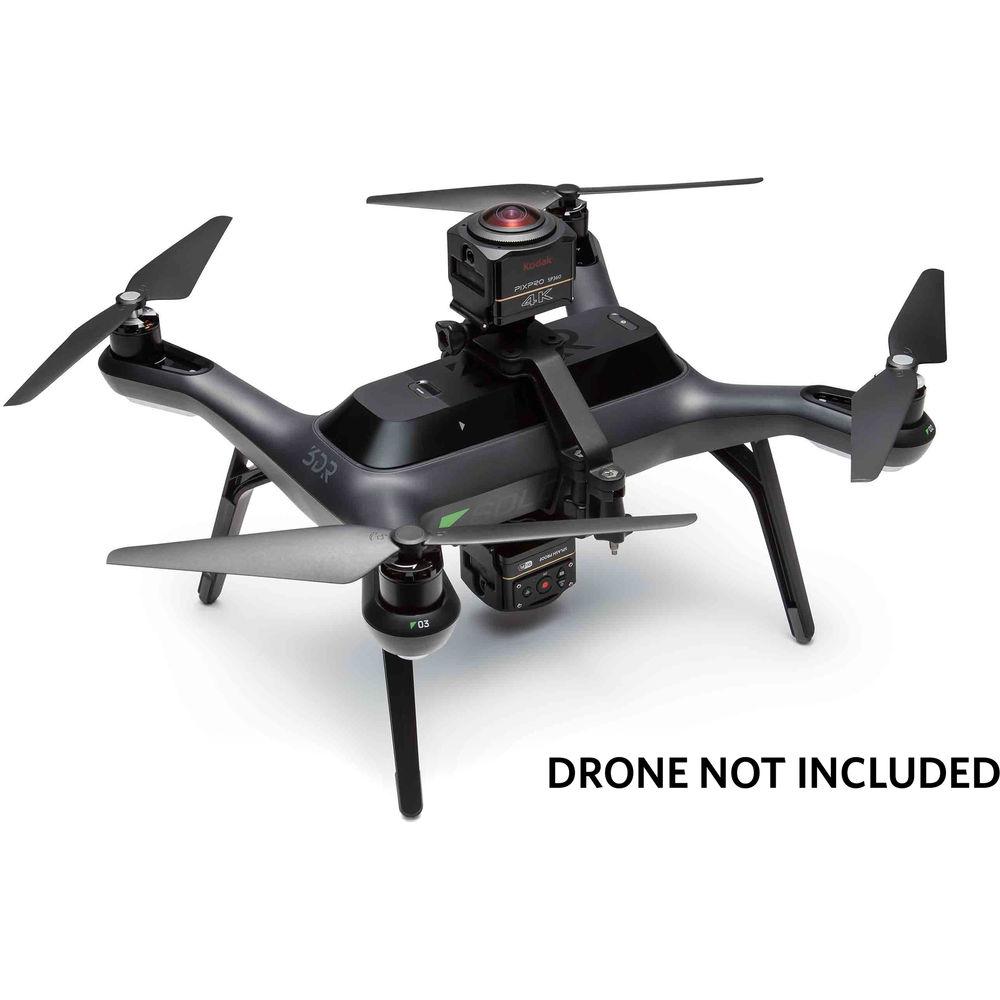

Product description Capture 360° aerial videos with your 3DR Solo drone thanks to the PIXPRO SP360 4K Action Camera Aerial Pack from Kodak. The bundle features two SP360 4K cameras, one for mounting above and one for mounting below the drone, to give you truly all-encompassing video. In addition to the cameras, the required mounting hardware and accessories are included - the only thing you will need is the 3DR Solo itself. In addition, a suction cup, pole mount, and other accessories are included so you can use the action cameras to capture stunning VR footage on solid ground as well.

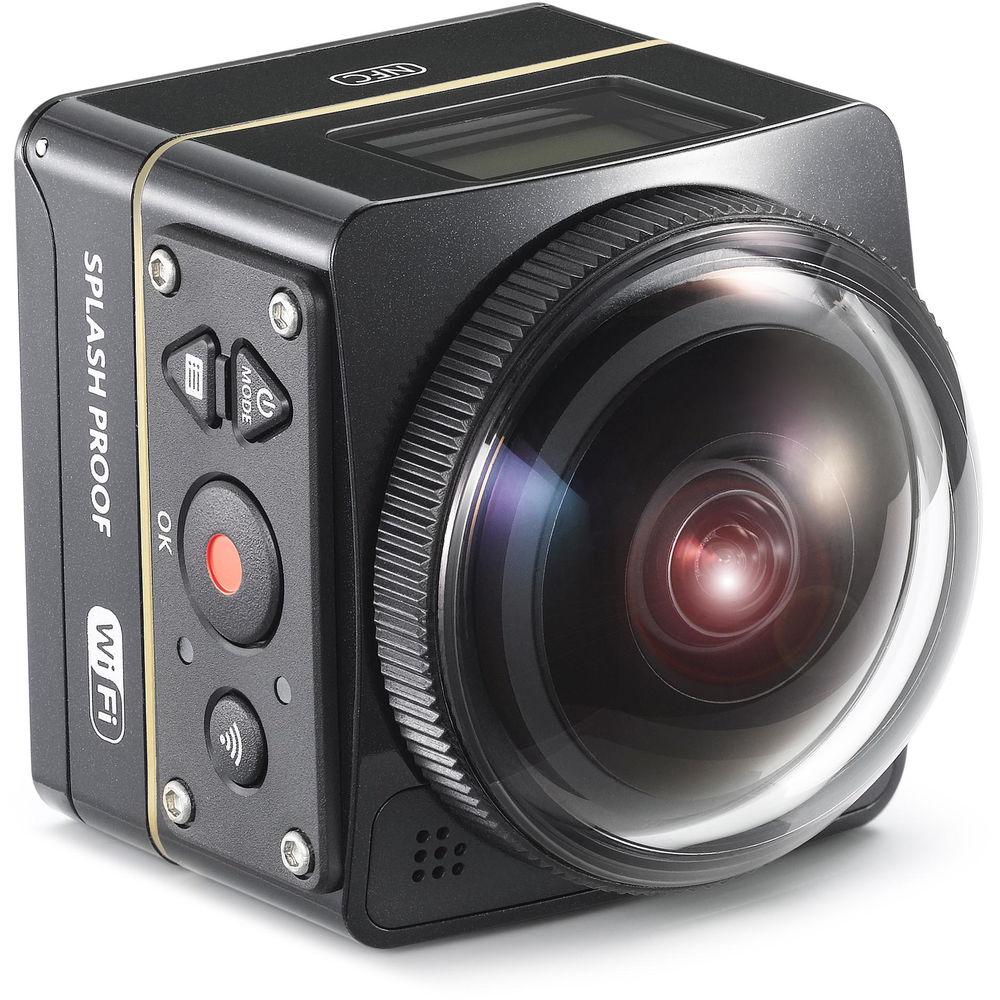

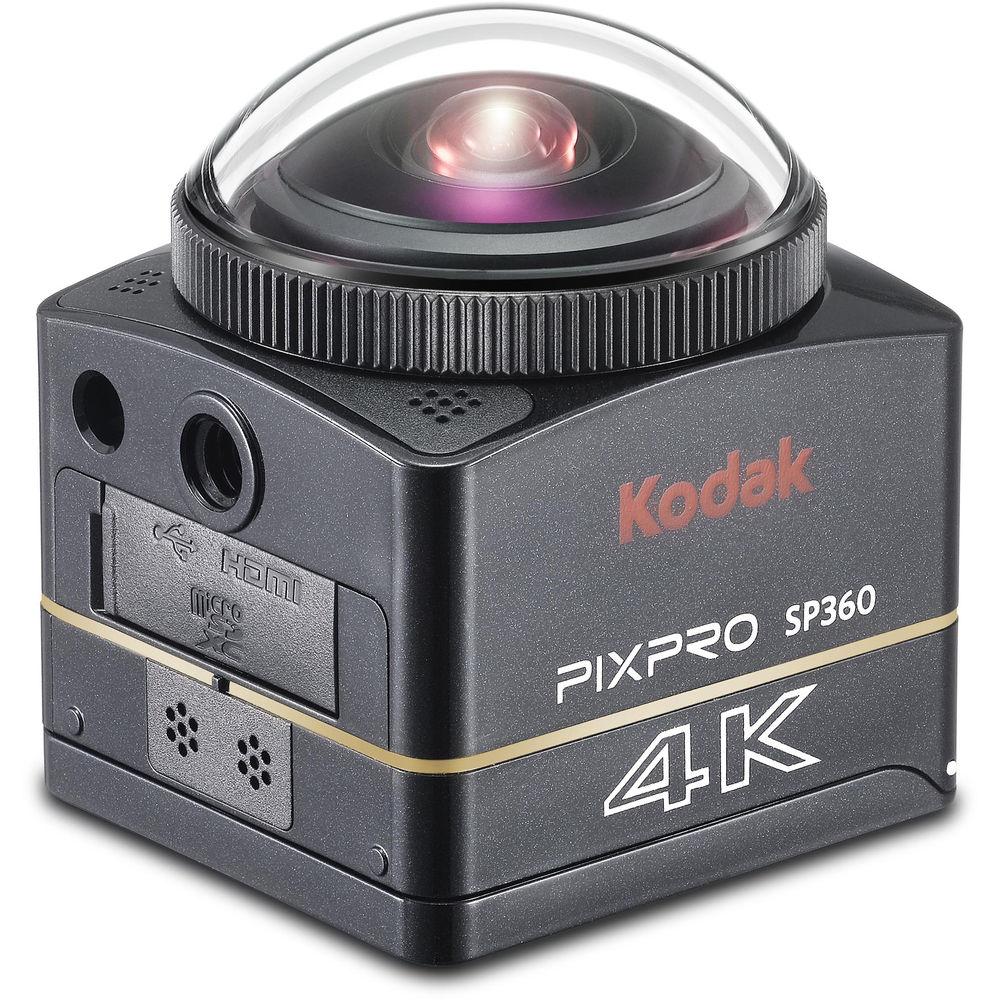

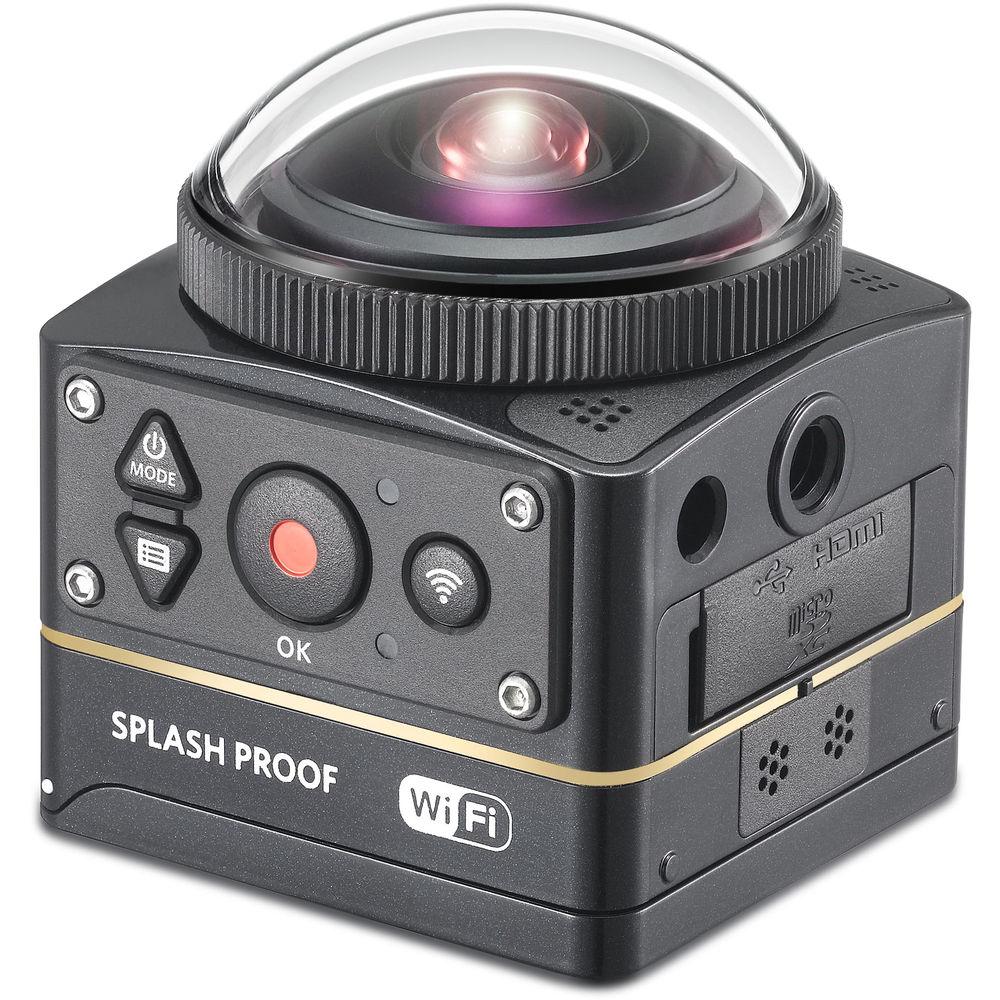

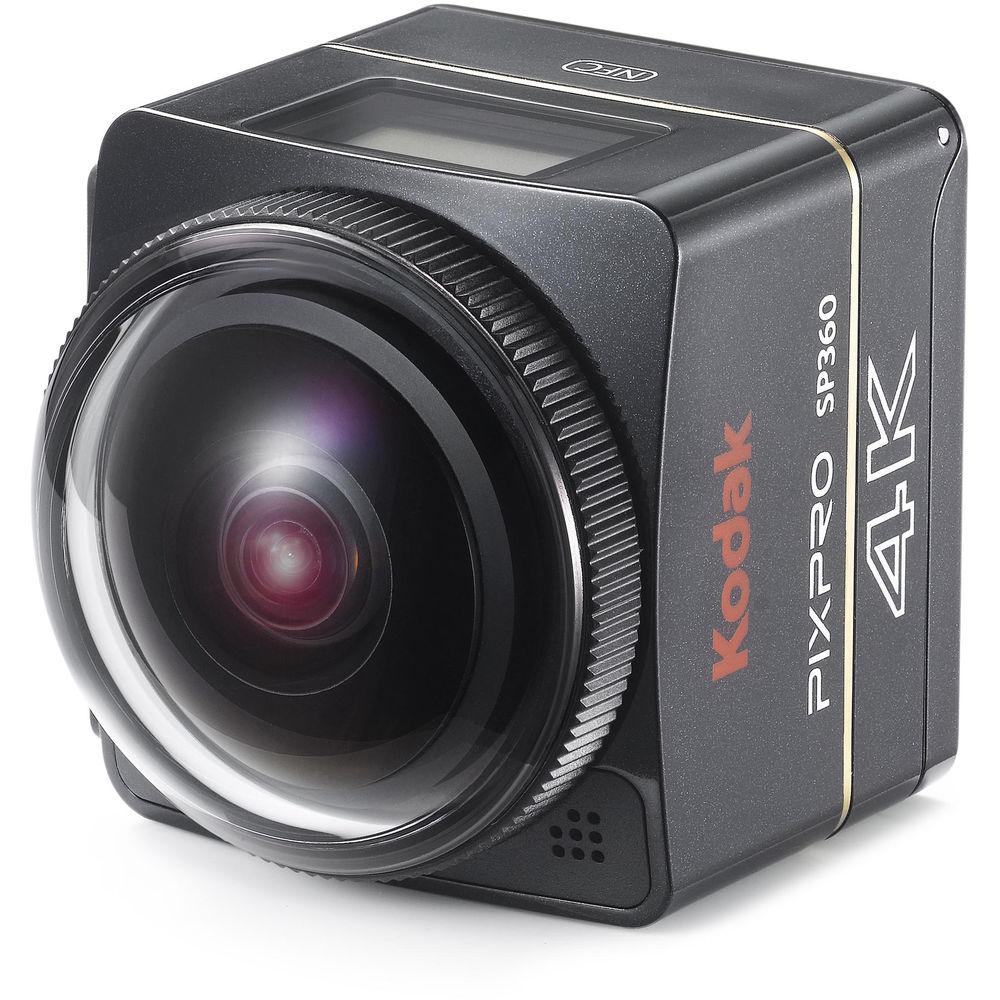

Featuring multiple recording options and a fixed-focus 235° lens, the PIXPRO SP360 4K Action Camera gives you the versatility to capture 16:9 rectangular video at resolutions up to UHD 4K, or a fully circular fish-eye view. The camera's 12MP backside-illuminated CMOS sensor supports a variety of resolutions and frame rates in both 16:9 and circular recording modes. For 16:9 video, you can record up to UHD 4K (3840x2160) at 30 fps, 1080p up to 60p, and 720p video up to 120 fps for hi-speed recording. For circular fish-eye content, you can record video with a diameter up to 2880 pixels at 30 fps, with a 1440-pixel diameter offering frame rates up to 60 fps, and a 720-pixel diameter offering 120 fps. The camera also takes still photos at resolutions up to 8-megapixels, with 10-frame burst shooting to help capture the perfect shot. Editing and stitching together your 360° video is made easy thanks to desktop software downloaded from the Kodak PIXPRO website.

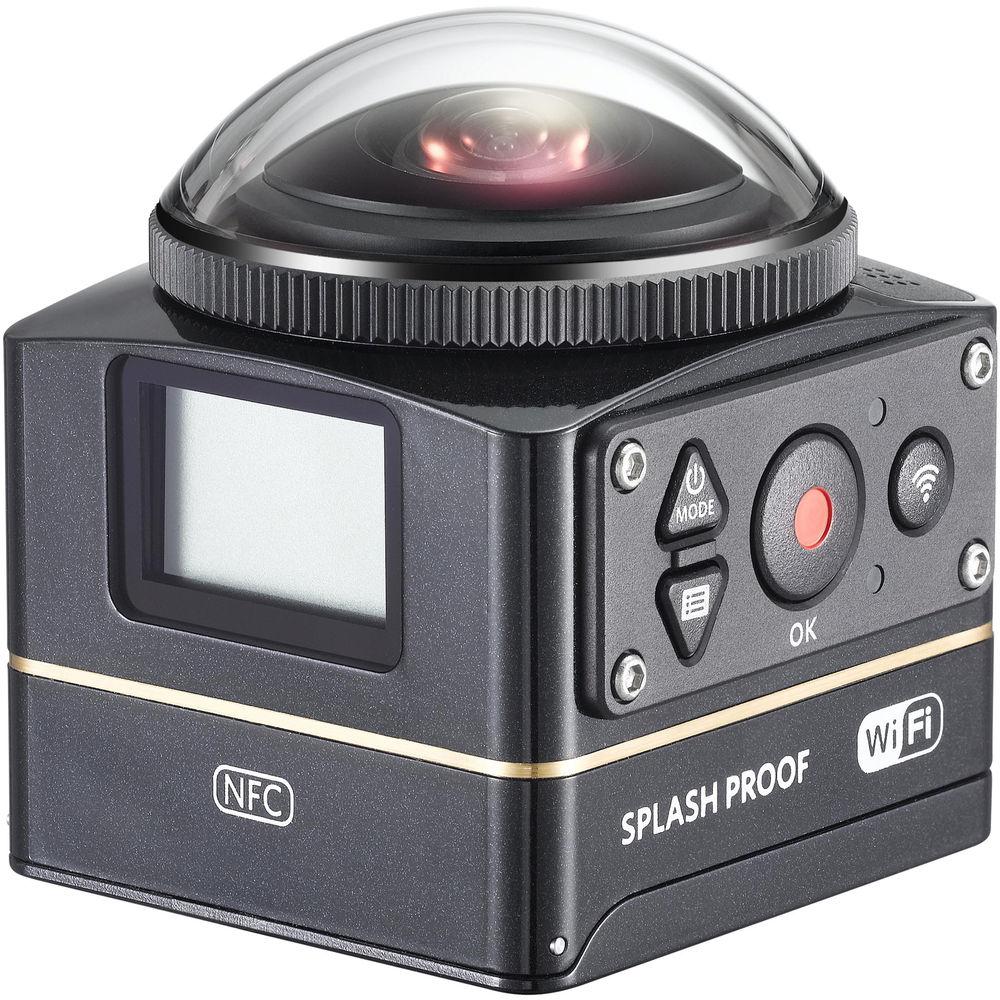

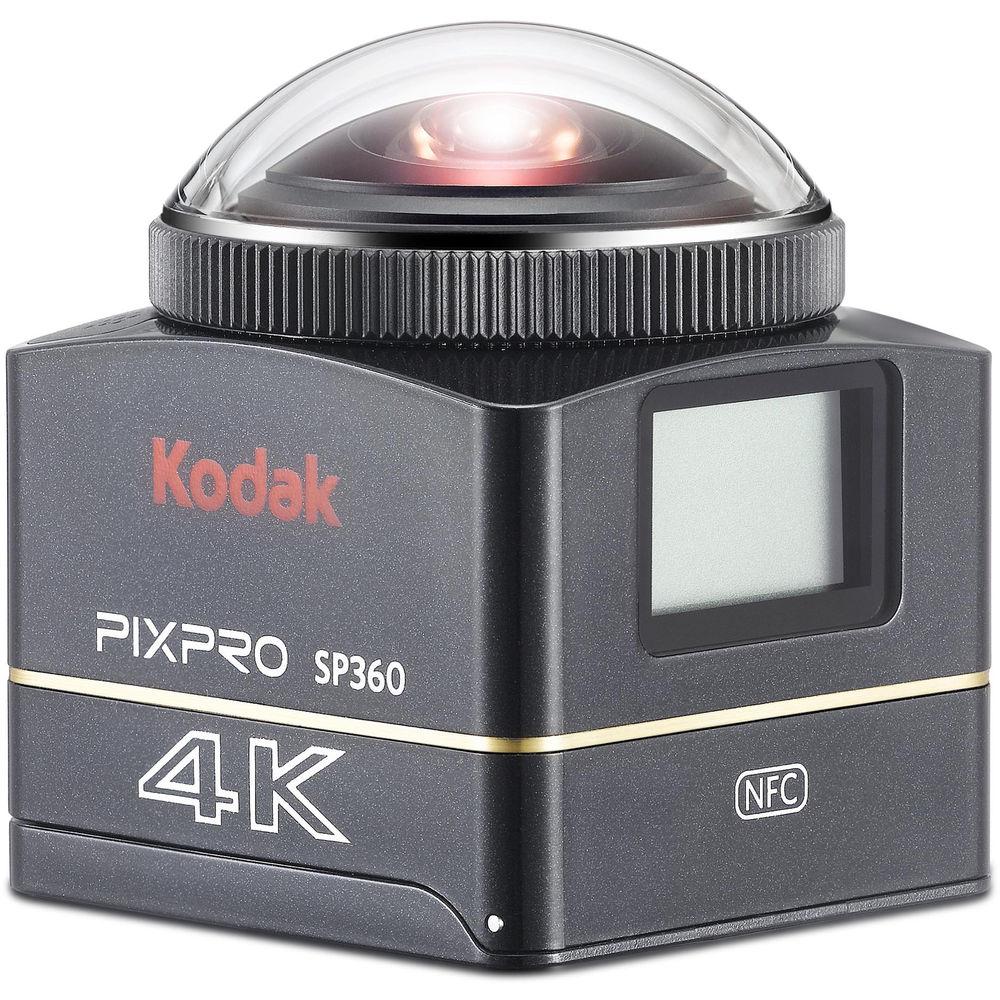

To take advantage of its versatile recording options in a variety of environments, the SP360 4K features a compact and rugged design that is shockproof from drops up to 6.5' (with lens cover attached), dustproof, splash-resistant, and operable in temperatures down to 14°F. A built-in 1" LCD screen allows you set up your shooting modes, with built-in Wi-Fi and NFC connectivity letting you you use your iOS or Android mobile device to remotely monitor the shots and control the camera. The supplied battery will provide around 55 minutes of continuous UHD 4K video recording. - Video Features
-
- 12MP 1/2.33" BSI CMOS sensor
- 235° ultra wide-angle lens
- Capture circular fish-eye video or 16:9 rectangular video
- 235° Round Video: 2880x2880 at 30 fps, 1440x1440 up to 60 fps, 720x720 at 120 fps
- 16:9 Video: UHD 4K at 30 fps, 1080p up to 60 fps, 720p up to 120 fps
- Medium (188°) and Narrow (163°) FOV options for 16:9 HD recording
- Pair with second SP360 4K camera to capture fully spherical 360° VR video
- Video stitching software and desktop editing software included (downloaded from the Kodak PIXPRO website)
- Loop recording
- Motion Detection start/stop recording
- Photo Features
-
- Still photos up to 8MP (2880x2880)
- 10-frame burst shooting
- Interval recording for time-lapse video
- Rugged Construction
-
- Shockproof up to 6.5'
- 14°F Freezeproof
- IP6X dustproof rating
- Splash resistant
- Additional Features
-
- Wi-Fi and NFC connectivity
- Remote control with iOS and Android devices using free app
- Supports microSD/SDHC/SDXC cards up to 128GB
- Micro-HDMI output
- Built-in 1" LCD
- Electronic image stabilization
- Rechargeable 1250mAh battery provides up to 55 minutes of video recording (UHD 4K, with Wi-Fi on)

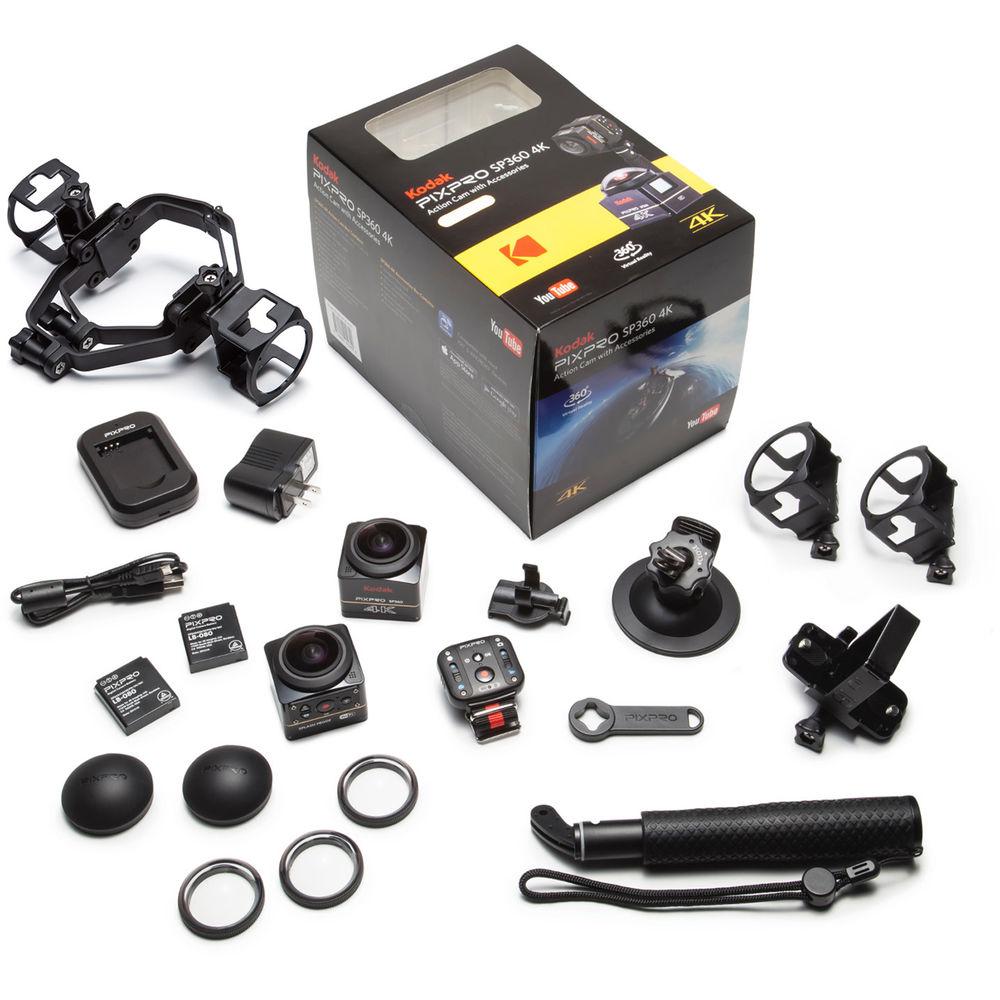

UPC: 819900013108 In the Box Kodak PIXPRO SP360 4K Action Camera Aerial Pack 2 x Standard Housing-B Suction Cup Mount-A Dual Camera Base Mount-C RF Remote Control Remote Control Mount Self Shooting Pole Accessories Tool 3 x Lens Cover 2 x Protective Cover-A Battery Charger USB Cable AC Adapter 2 x Rechargeable Li-ion Battery Dual Camera Carrying Case-A 2 x Small Lens Cover Case Microfiber Cleaning Cloth 3DR Made for SOLO Dual Camera Drone Mount Limited 1-Year Warranty More info from Kodak Table of Contents
|
Upload User Manual
Have you got an user manual for the Kodak PIXPRO SP360 4K Action Camera Aerial Pack in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKodak SP360 Specs | | | Sensor | 12.76 Megapixel 1/2.33" CMOS | | Backside Illumination | Yes | | Effective Pixels | 12,400,000 | | | | Focal Length | 0.85 mm | | 35mm Equivalent Focal Length | 8.2 | | Maximum Aperture | f/ 2.8 | | Lens Elements/Groups | 9 | | Focusing Distance | 19.7" / 50.0 cm - Infinity | | Angle of View | 235° (Ultra Wide)
173° (Middle)
150° (Narrow) | | | | Recording Media | microSD/HC/XC Up To 128 GB | | Video Format | MP4
2880 x 2880p / 30 fps
2048 x 2048p / 30 fps
1440 x 1440p / 60 fps
1440 x 1440p / 30 fps
1072 x 1072p / 60 fps
1072 x 1072p / 30 fps
3840 x 2160p / 30 fps
1920 x 1080p / 60 fps
1920 x 1080p / 30 fps
1280 x 720p / 60 fps
1280 x 720p / 30 fps
848 x 480p / 60 fps | | Slow Motion Mode | 120 fps recorded @ 1280 x 720p
240 fps recorded @ 840 x 480p
120 fps recorded @ 720 x 720p | | Still Image Resolution | JPEG: 8 Megapixel, 2880 x 2880 (1:1)
JPEG: 4 Megapixel, 2304 x 1728 (4:3)
JPEG: 2 Megapixel, 1920 x 1080 (16:9) | | Channels | Stereo | | Audio Format | AAC | | | | Display Type | LCD | | Screen Size | 1.0" | | | | ISO Sensitivity | 100-800 | | Exposure Metering | Artificial Intelligence AE | | Exposure Modes | Modes: Program | | Shooting Modes | Burst Shooting
High Speed Movie
Movie
Time-Lapse Movie | | Interval Recording | 1 sec
2 sec
5 sec
10 sec
30 sec
60 sec | | Continuous Shooting | Up to 10 fps at 8 MP for up to 10 frames | | Remote Control | RR-BK01 (Optional) | | | | Image Stabilization | Digital | | Shockproof Rating | 6.5' / 2.0 m | | Dustproof Rating | IP6X | | White Balance Modes | Auto
Cloudy
Daylight
Fluorescent
Underwater | | Built-in Mic | Yes | | Wi-Fi | Yes, 802.11b/g/n | | Tripod Mount | 1/4" - 20 | | | | Outputs | 1x USB Micro-B
1x HDMI D (Micro) | | | | Languages | English | | Battery | Rechargeable Lithium-Ion Battery Pack Batteries, 3.6 VDC, 1250 mAh | | Charging Method | USB | | Operating Temperature | 14 - 104°F (-10 - 40°C) 90% Relative Humidity | | Dimensions (WxHxD) | 1.9 x 2.0 x 2.1" / 48.0 x 50.0 x 52.5 mm without glass lens cover | | Weight | 3.60 oz / 102 g body only
4.52 oz / 128 g with battery and microSD card | | | | Package Weight | 3.25 lb | | Box Dimensions (LxWxH) | 9.6 x 7.1 x 6.7" |
