Product description
Shock! - The Band Is Back In Town - SP360 4K
Sedona Drone - KODAK PIXPRO SP360 4K
KODAK PIXPRO SP360: 360° Boating (VR)
360 Jet Fighter - KODAK PIXPRO SP360
Take A Look Around - KODAK PIXPRO SP360
360 Surfing Oceanside Beach CA - KODAK PIXPRO SP360

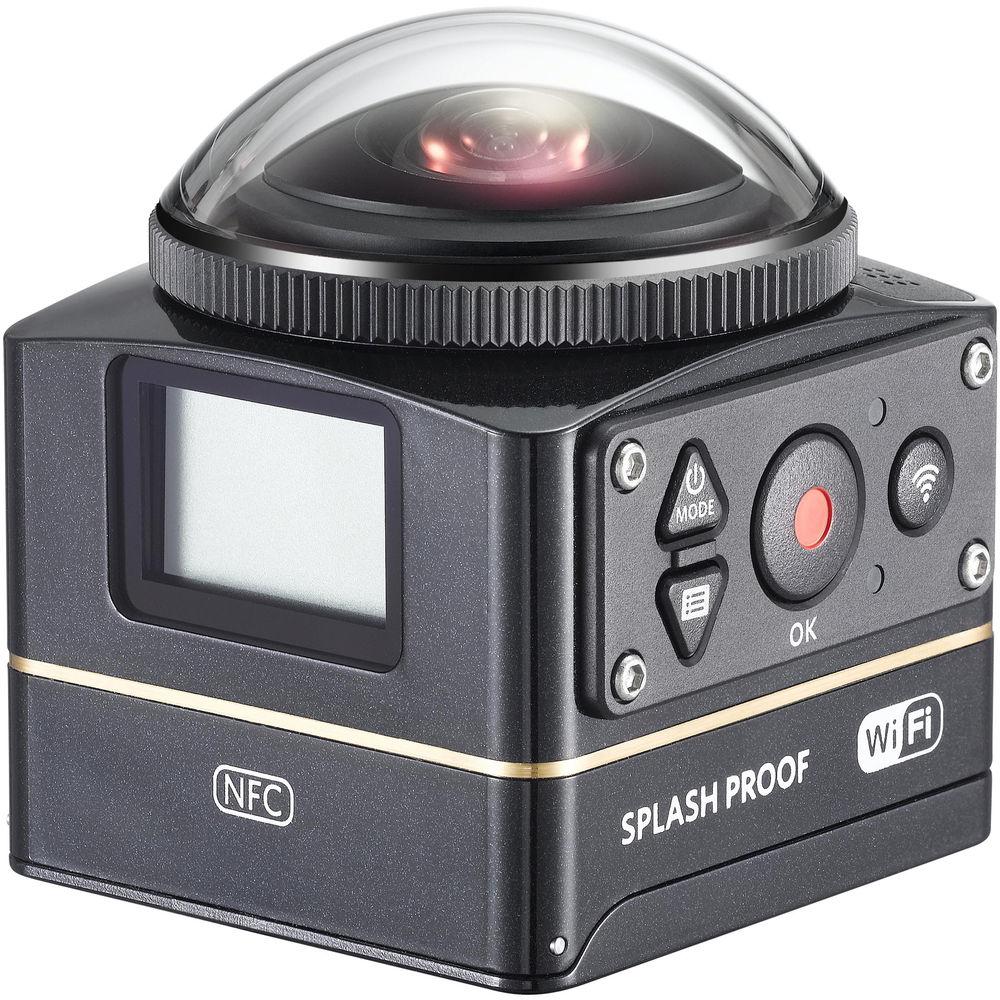

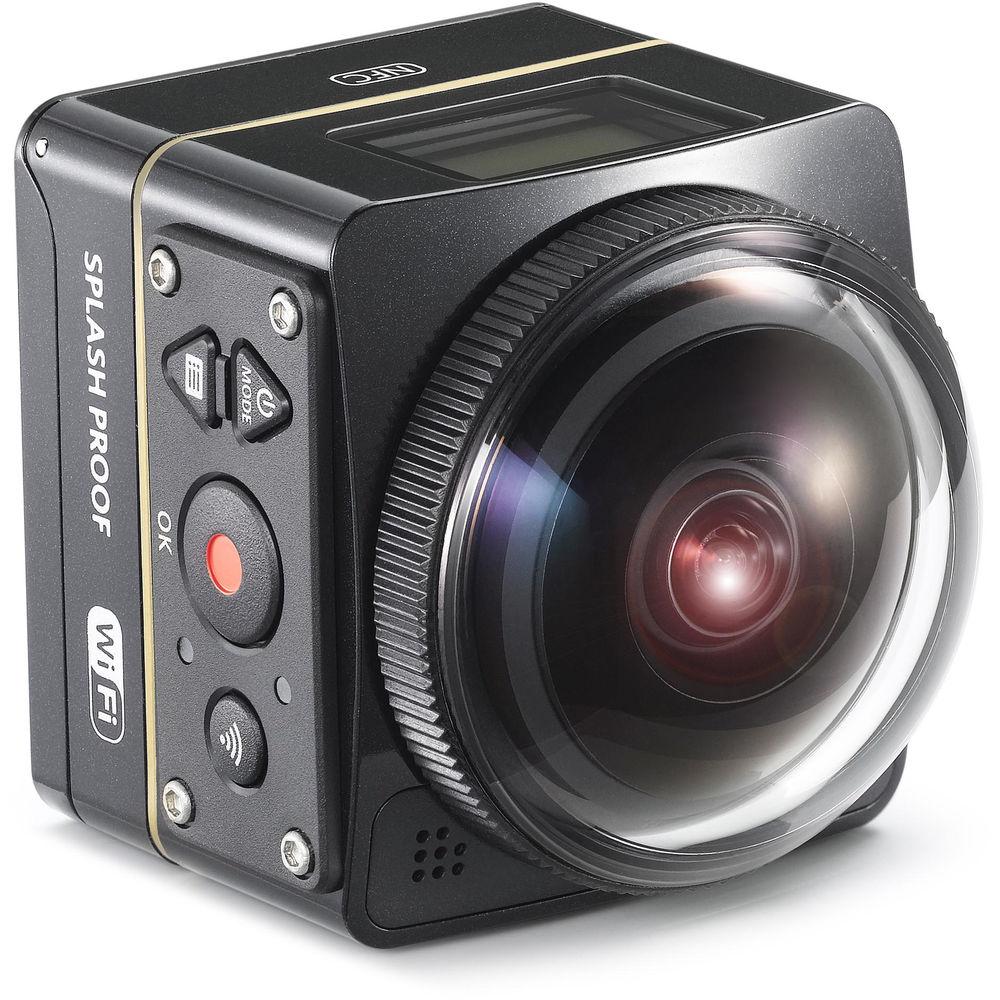

Featuring multiple recording options and a fixed-focus 235° lens, the PIXPRO SP360 4K Action Camera Premier Pack from Kodak gives you the versatility to capture 16:9 rectangular video at resolutions up to UHD 4K, or a fully circular fish-eye view. Because the FOV of the lens is so wide, you can easily mount a second SP360 4K camera using a separately-available Dual Camera Base Mount to capture full 360° VR videos. Editing and stitching together your 360° video is made easy thanks to desktop software downloaded from the Kodak PIXPRO website.
Included in this Premier Pack is a frame housing and a variety of mounting accessories to get you started and take your shots to the next level. Mounting accessories consist of a bar mount, suction cup mount, flat and curved adhesive mounts, and protective lens covers.
The camera's 12MP backside-illuminated CMOS sensor supports a variety of resolutions and frame rates in both 16:9 and circular recording modes. For 16:9 video, you can record up to UHD 4K (3840x2160) at 30 fps, 1080p up to 60p, and 720p video up to 120 fps for hi-speed recording. For circular fish-eye content, you can record video with a diameter up to 2880 pixels at 30 fps, with a 1440-pixel diameter offering frame rates up to 60 fps, and a 720-pixel diameter offering 120 fps. The camera also takes still photos at resolutions up to 8-megapixels, with 10-frame burst shooting to help capture the perfect shot.
To take advantage of its versatile recording options in a variety of environments, the SP360 4K features a compact and rugged design that is shockproof from drops up to 6.5' (with lens cover attached), dustproof, splash-resistant, and operable in temperatures down to 14°F. A built-in 1" LCD screen allows you set up your shooting modes, with built-in Wi-Fi and NFC connectivity letting you you use your iOS or Android mobile device to remotely monitor the shots and control the camera. The supplied battery will provide around 55 minutes of continuous UHD 4K video recording.
Video Features
12MP 1/2.33" BSI CMOS sensor

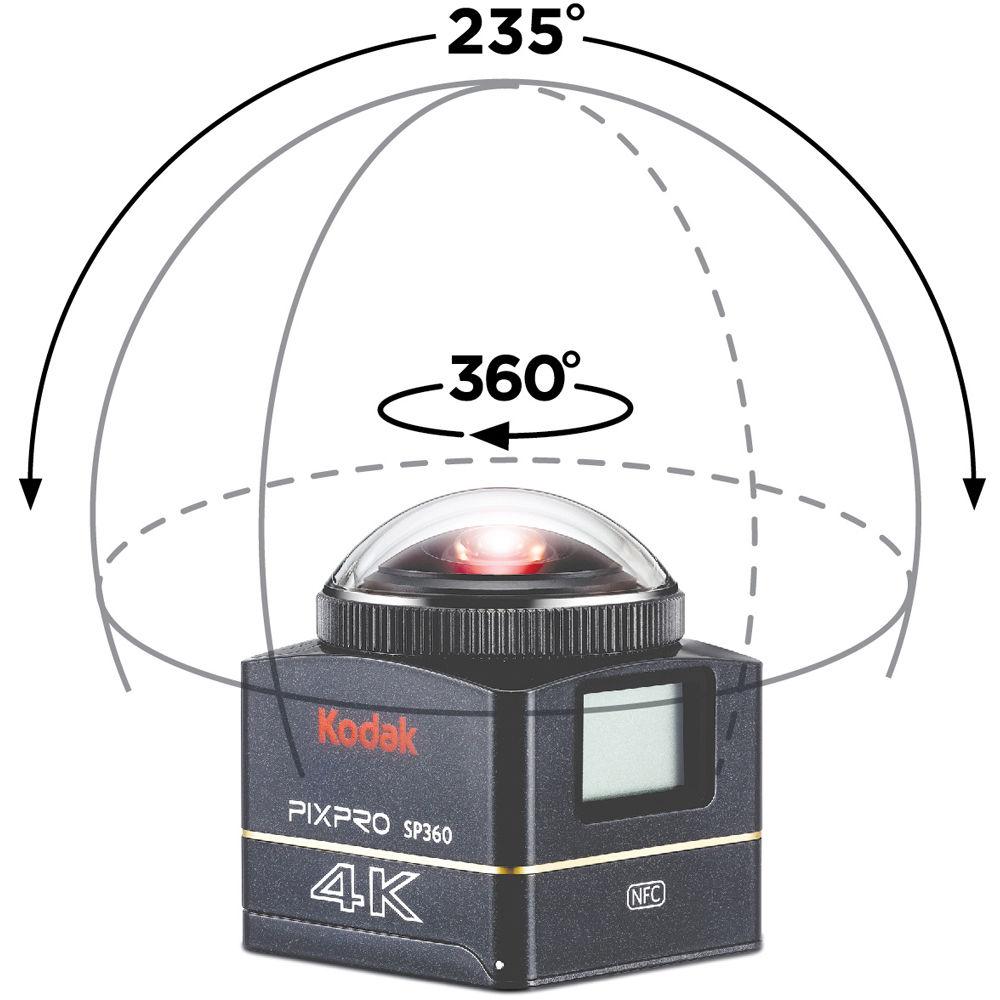

235° ultra wide-angle lens
Capture circular fish-eye video or 16:9 rectangular video
235° Round Video: 2880x2880 at 30 fps, 1440x1440 up to 60 fps, 720x720 at 120 fps
16:9 Video: UHD 4K at 30 fps, 1080p up to 60 fps, 720p up to 120 fps
Medium (188°) and Narrow (163°) FOV options for 16:9 HD recording
Pair with second SP360 4K camera to capture fully spherical 360° VR video
Video stitching software and desktop editing software included (downloaded from the Kodak PIXPRO website)
Loop recording
Motion Detection start/stop recording
Photo Features
Still photos up to 8MP (2880x2880)
10-frame burst shooting
Interval recording for time-lapse video
Rugged Construction
Shockproof up to 6.5'
14°F Freezeproof
IP6X dustproof rating
Splash resistant
Additional Features
Wi-Fi and NFC connectivity
Remote control with iOS and Android devices using free app
Supports microSD/SDHC/SDXC cards up to 128GB
Micro-HDMI output
Built-in 1" LCD
Electronic image stabilization
Rechargeable 1250mAh battery provides up to 55 minutes of video recording (UHD 4K, with Wi-Fi on)

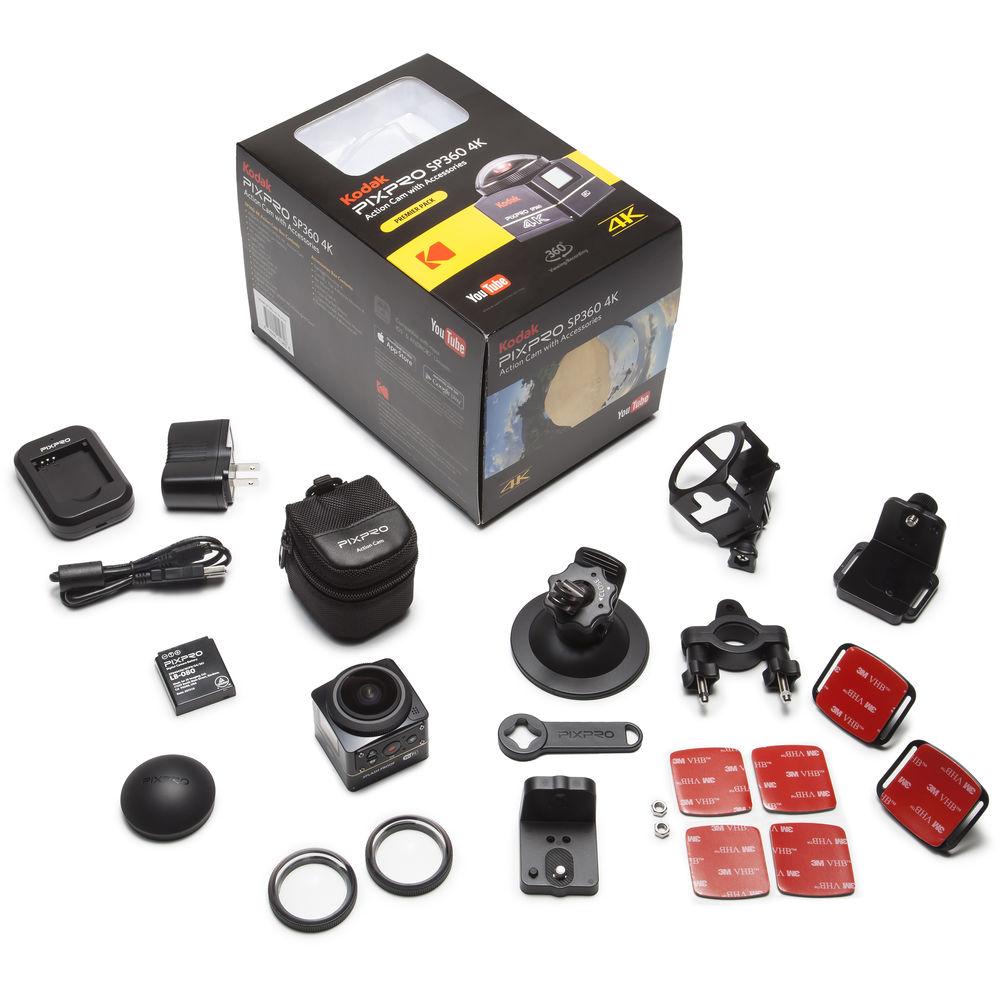

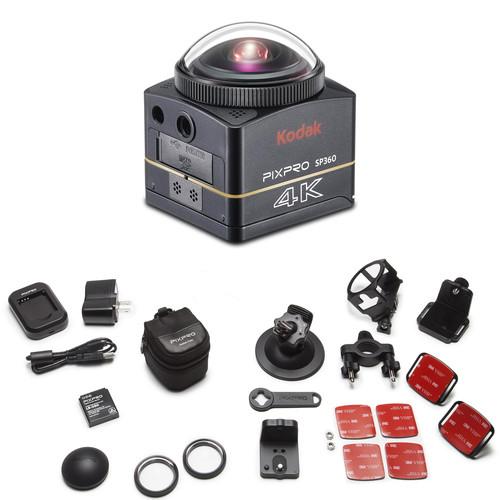

UPC: 819900012606 In the Box Kodak PIXPRO SP360 4K Action Camera Premier Pack
Standard Housing-B
Bar Mount
Suction Cup Mount-A
Curved Adhesive Mount
Flat Adhesive Mount
Accessories Tool
Rechargeable Lithium-Ion Battery (LB-080)
Battery Charger
USB Cable
AC Adapter
Glass Lens Cover
Protective Cover
Lens Ring
Small Lens Cover Case
Cleaning Cloth
Carrying Case
Limited 1-Year Warranty
User Manual PDF 9.9mbdarqxdwcwquzubzsvtdvayyf More info from Kodak Table of Contents
Upload User Manual
Have you got an user manual for the Kodak PIXPRO SP360 4K Action Camera Premier Pack in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters
Kodak SP360 Specs
Sensor
1-Chip 1/2.33" CMOS
Sensor Resolution
12.76 MP
Effective Pixels
12.4 MP (Photo)
Focal Length
0.85mm
35mm-Equivalent Focal Length
8.2
Maximum Aperture
f/2.8
Lens Elements
9
Minimum Focusing Distance
19.7" / 50.0 cm
Angle of View
235° (Ultra Wide) 173° (Middle) 150° (Narrow)
Recording Media
x microSD/HC/XC (128 GB Maximum)
Video Format
2880 x 2880p at 30 fps (MP4) 2048 x 2048p at 30 fps (MP4) 1440 x 1440p at 30/60 fps (MP4) 1072 x 1072p at 30/60 fps (MP4) 3840 x 2160p at 30 fps (MP4) 1920 x 1080p at 30/60 fps (MP4) 1280 x 720p at 30/60 fps (MP4) 848 x 480p at 60 fps (MP4)
Slow Motion Mode
120 fps Recorded at 1280 x 720p 240 fps Recorded at 840 x 480p 120 fps Recorded at 720 x 720p
Still Image Resolution
JPEG: 8 Megapixel, 2880 x 2880 (1:1) JPEG: 4 Megapixel, 2304 x 1728 (4:3) JPEG: 2 Megapixel, 1920 x 1080 (16:9)
Channels
Stereo
Audio Format
AAC
Display Type
LCD
Screen Size
1.0"
Photo ISO Range
100 - 800 (Auto)
Video ISO Range
100 - 800 (Auto)
Exposure Metering
Artificial Intelligence AE
Exposure Modes
Modes: Program
Shooting Modes
Burst Shooting High Speed Movie Movie Time-Lapse Movie
Interval Recording
1 Second 2 Second 5 Second 10 Second 30 Second 60 Second
Continuous Shooting
Up to 10 fps at 8 MP for up to 10 Exposures (JPEG Format)
Remote Control
RR-BK01 (Optional)
Image Stabilization
Digital
Shockproof Rating
6.5' / 2.0 m
IP Rating
IP6X
White Balance Modes
Auto Cloudy Daylight Fluorescent Underwater
Built-In Mic
Yes
Wi-Fi
Yes, Wi-Fi 4 (802.11n)
Tripod Mount
1/4" - 20
Outputs
1 x USB Micro-B 1 x Micro-HDMI (Type D)
Supported Languages
English
Battery
Rechargeable Lithium-Ion Battery Pack, 3.6 VDC, 1250 mAh
Charging Method
USB
Operating Temperature
14 to 104°F / -10 to 40°C Humidity: 90%
Dimensions (W x H x D)
1.9 x 2.0 x 2.1" / 48.0 x 50.0 x 52.5 mm without glass lens cover
Weight
3.60 oz / 102 g body only 4.51 oz / 128 g with battery and microSD card
Package Weight
2.15 lb
Box Dimensions (LxWxH)
9.5 x 6.4 x 6.2"
