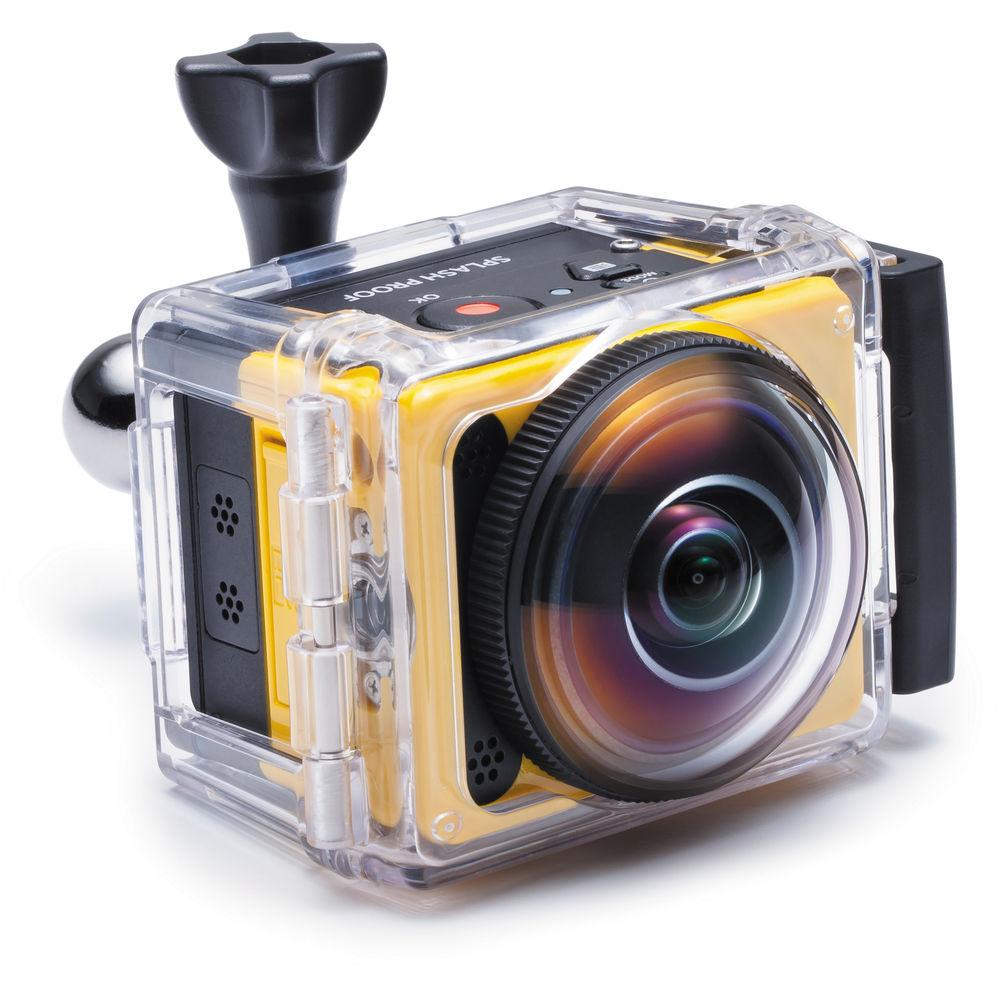

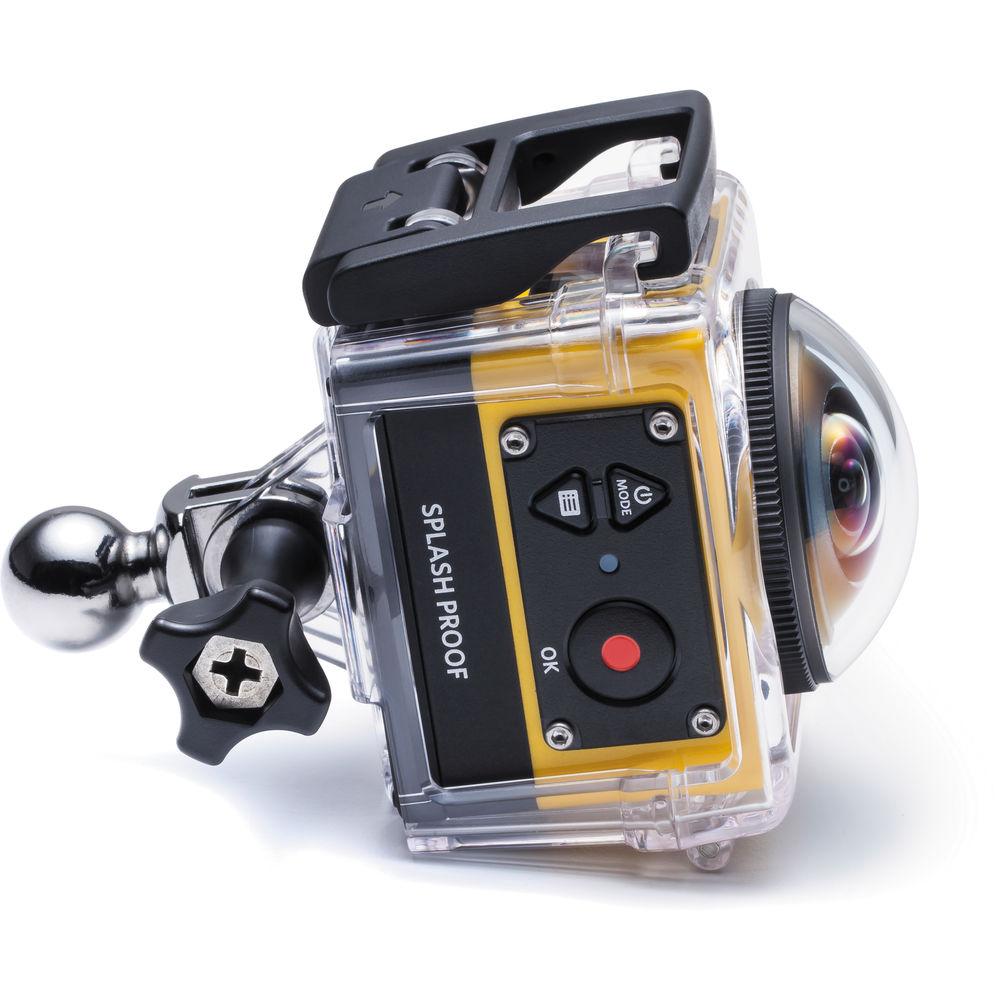

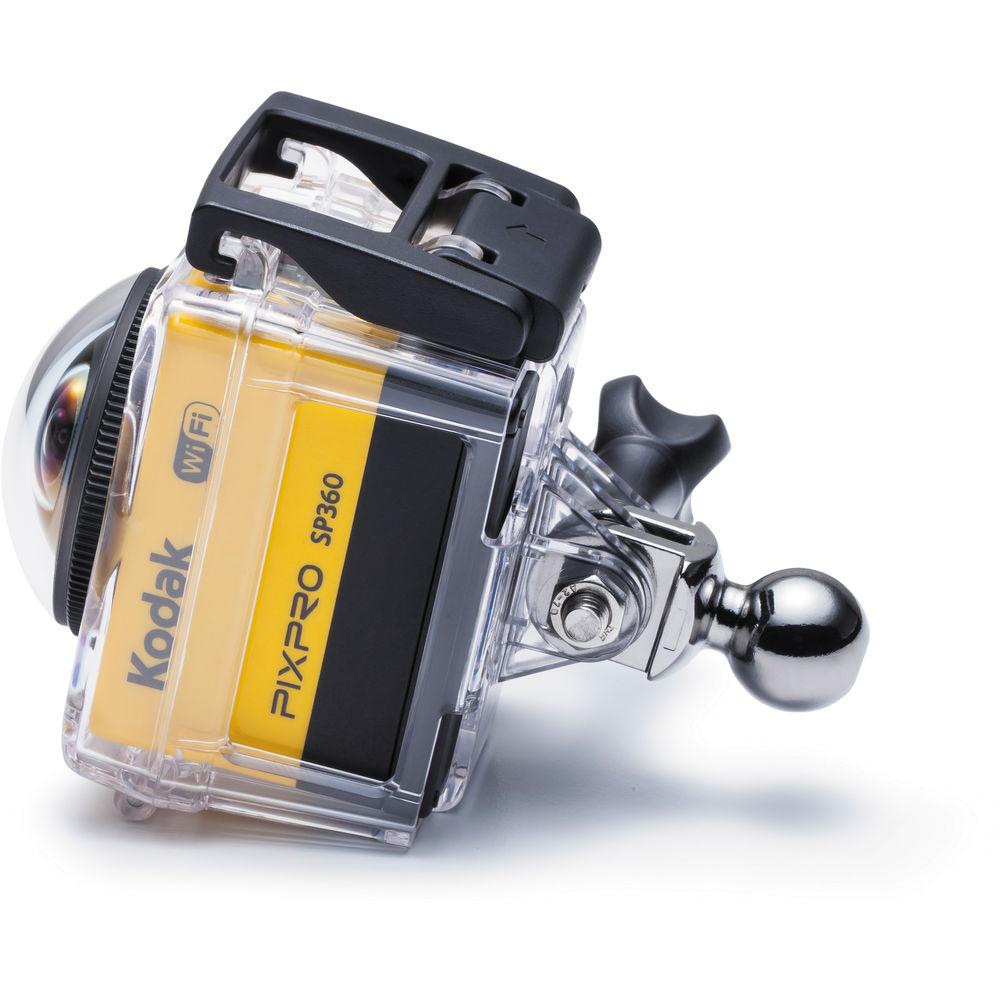

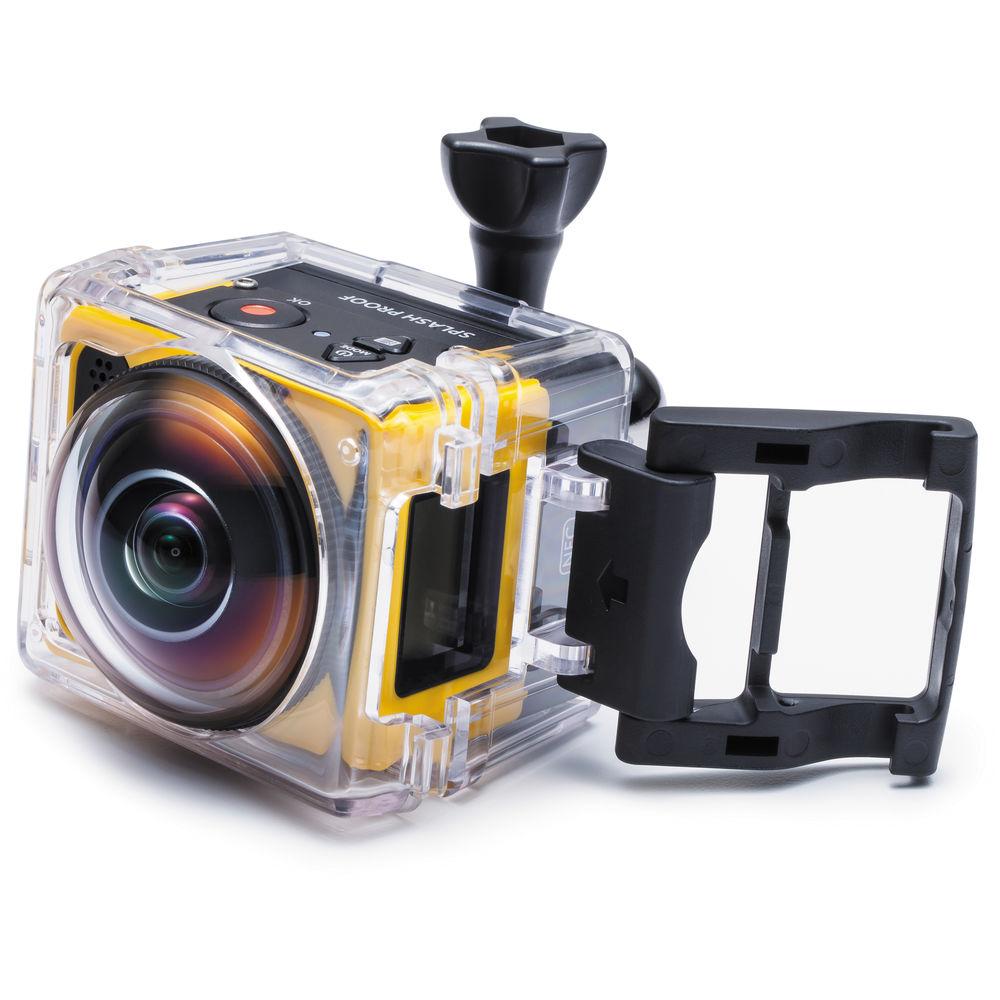

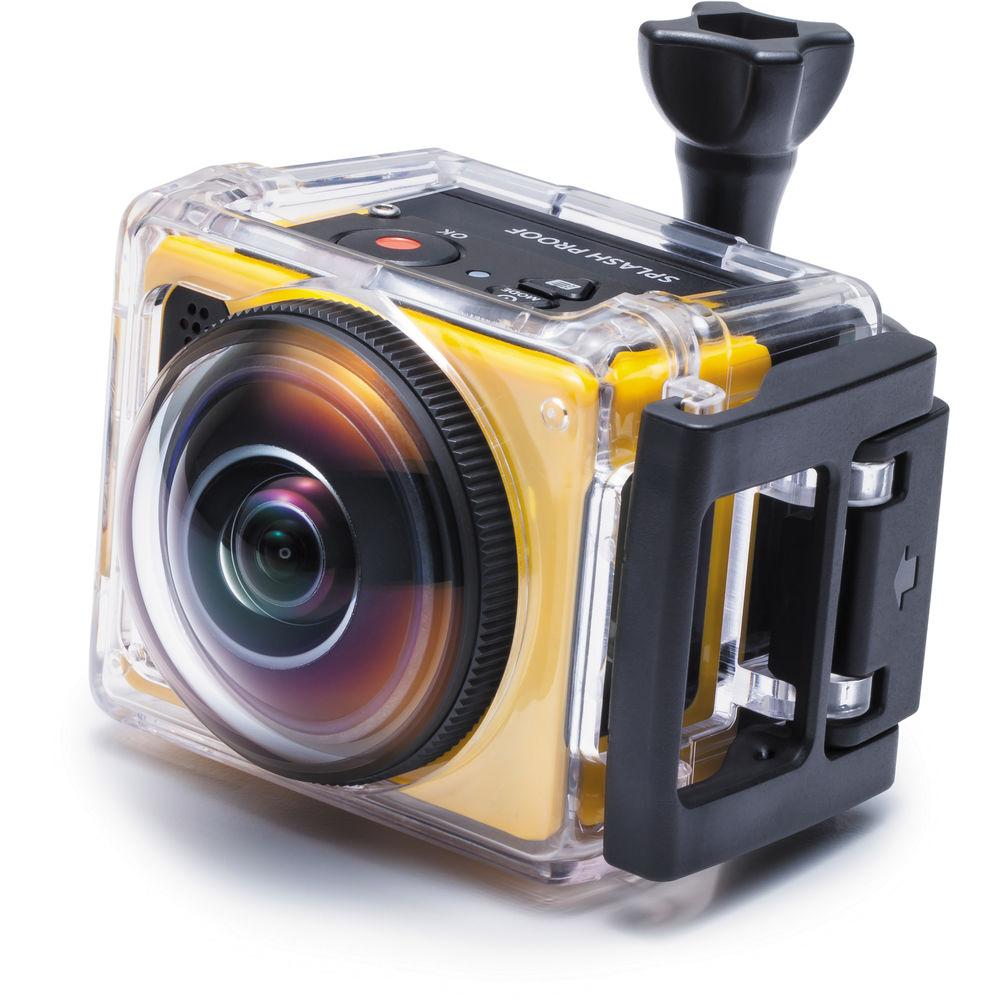

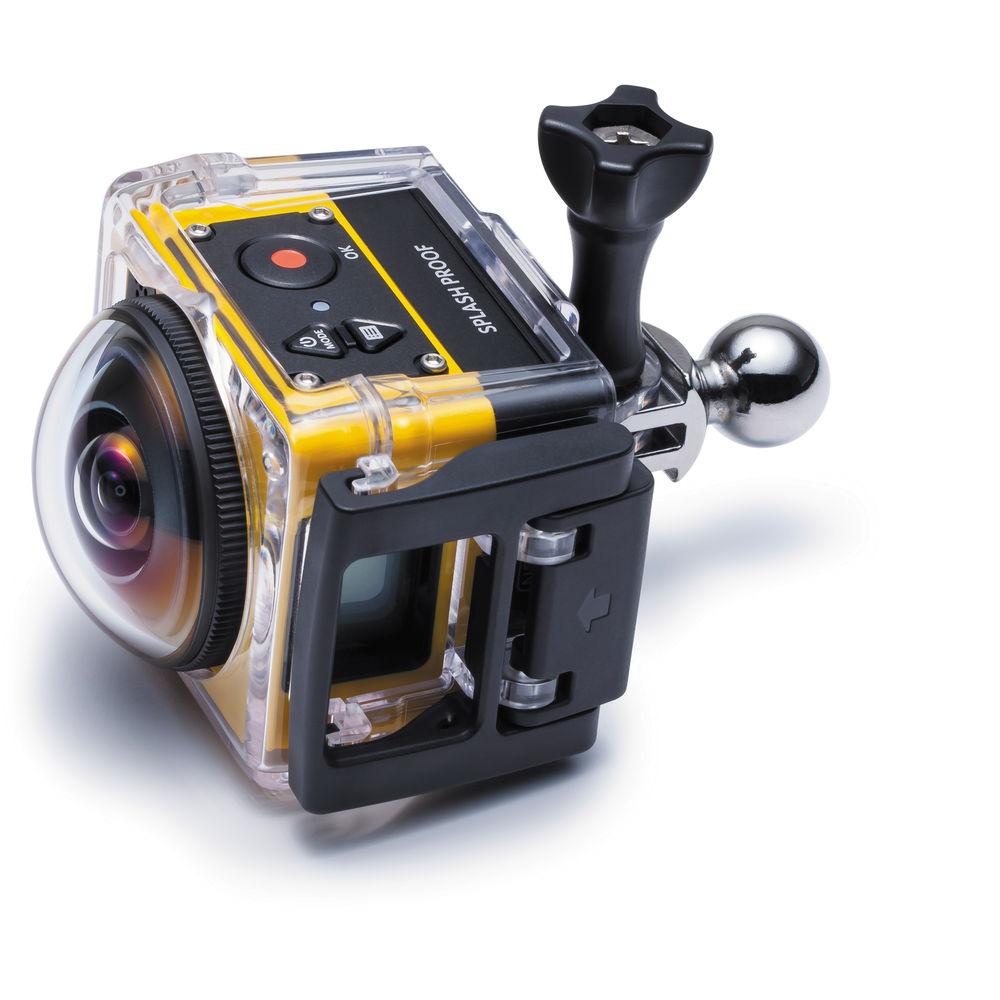

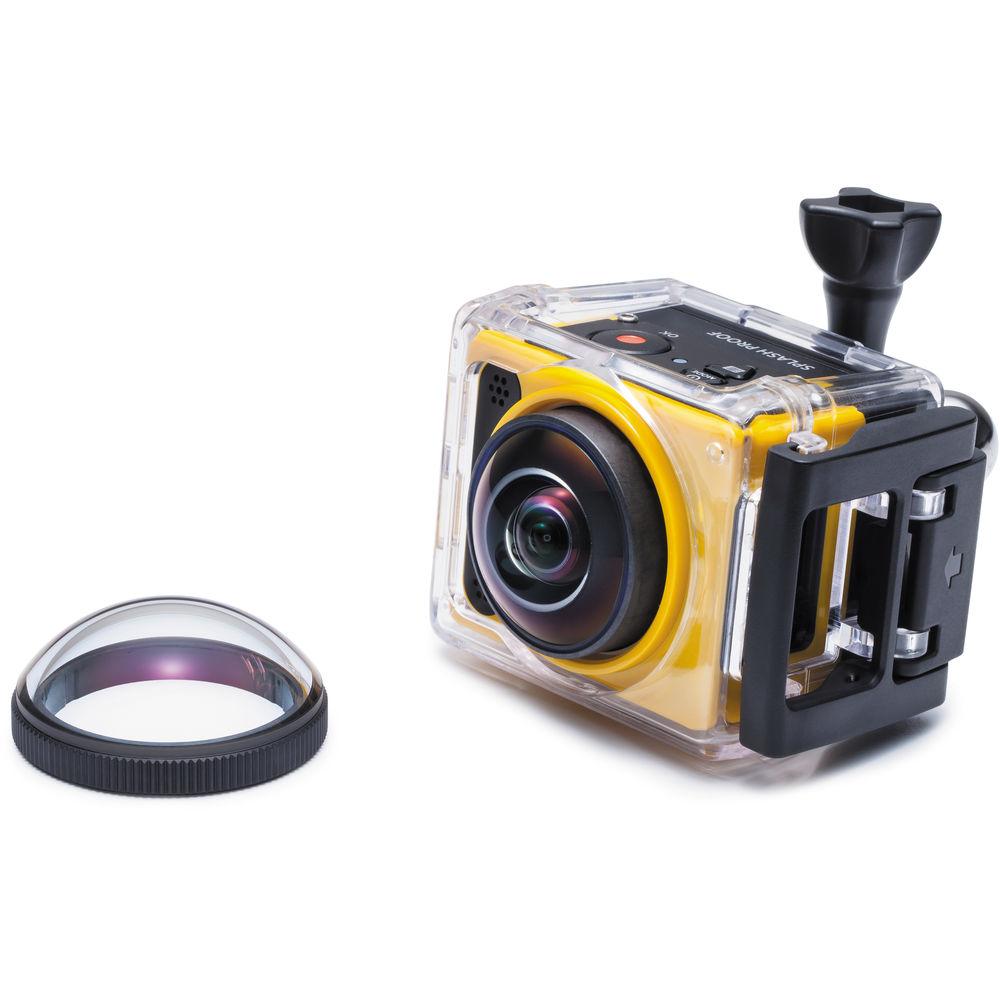

Product description Capture perspectives as unique as your adventures with the Kodak PIXPRO SP360 Action Camera with Extreme Pack. Using a dome-shaped fixed lens with a wide 214° angle of view, the camera records a circular fisheye view of the surroundings, with multiple options available for how that image is 'unfolded' and viewed. Among the viewing options is the fully circular fisheye view, a 360° panorama mode, and a dual front 180° and rear 180° mode that's great for capturing your POV as well as your reactions with a single camera. To take advantage of its versatile recording options in a variety of environments, the camera features a compact and rugged design that is 14°F freezeproof, shockproof from falls up to 6.5', dustproof, and splash resistant.

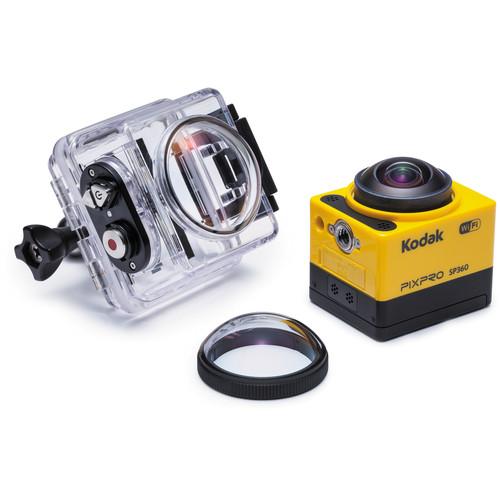

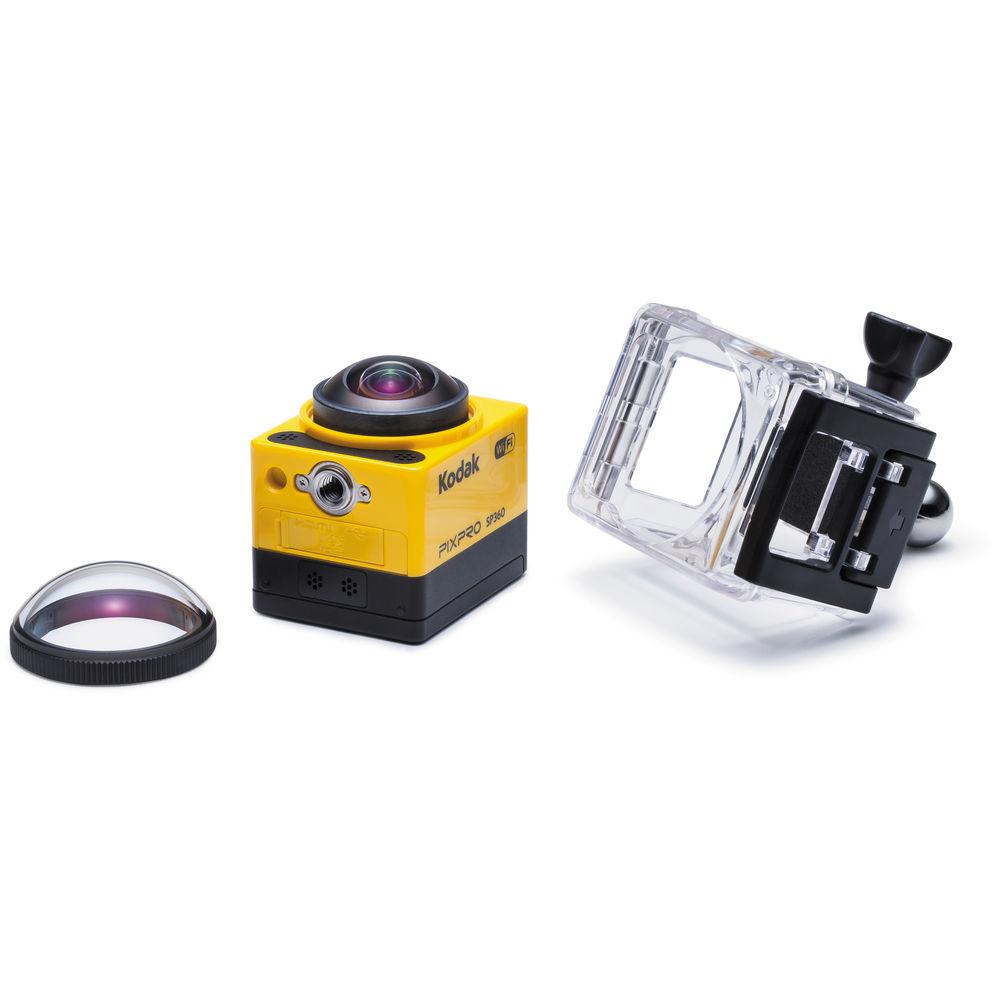

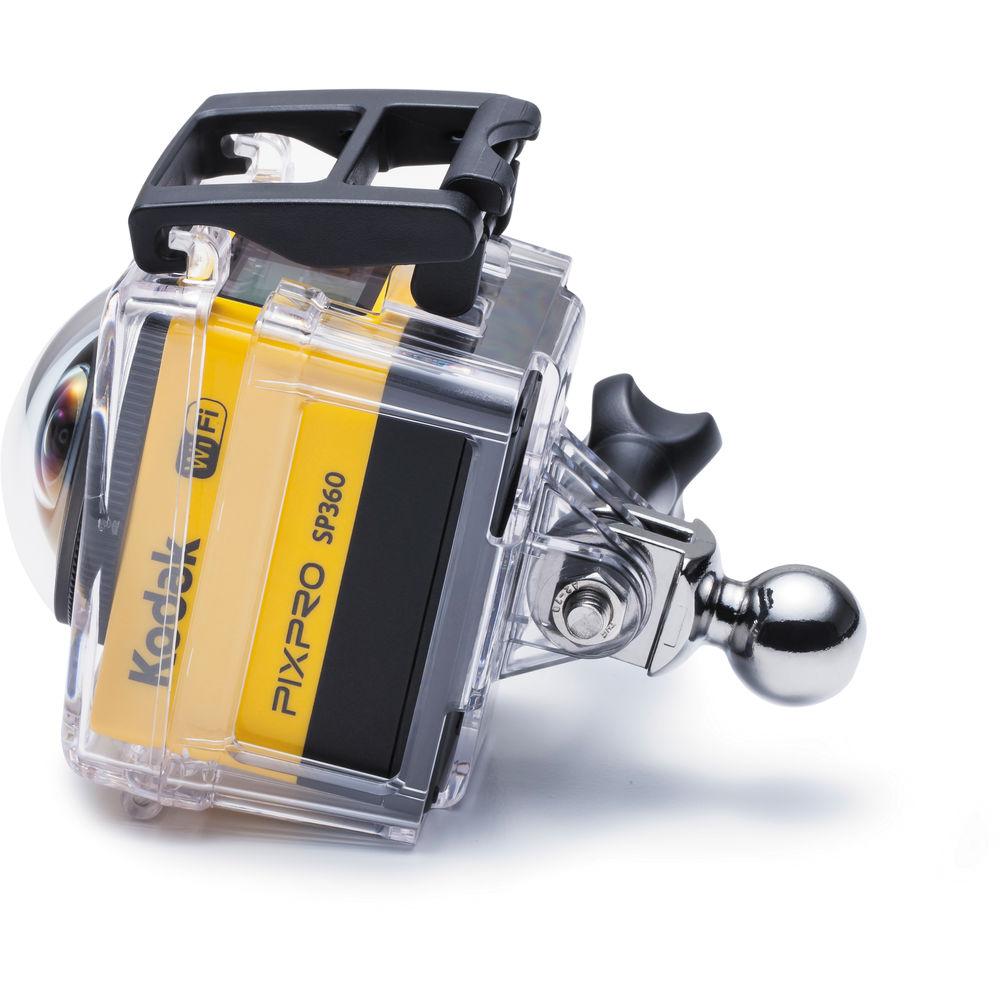

The included Extreme Pack provides a standard housing, waterproof housing rated to depths of 197', and mounting accessories for nearly any sport or activity. Mounting accessories consist of two curved/flat adhesive mounts, a bar mount, suction cup, surfboard adhesive mount, head strap, vented helmet straps, and two extended arms.
The SP360's 16-Megapixel MOS sensor lets you capture video in a variety of resolutions and frame rates including 16:9 formats up to 1920x1080 at 30 fps and 1280x720 at 60 fps, 1:1 square formats up to 1440x1440 at 30 fps, and 4:3 formats up to 1280x960 at 50 fps. For slow motion playback, you can record 120 fps at a WVGA (848x480) resolution. The camera also takes still photos at resolutions up to 10-megapixels, with burst mode shooting up to 10 fps so you won't miss that perfect moment. The SP360 is also equipped with a motion sensor setting to automatically trigger video recording when it detects movement.
Video and photos are recorded to microSD/SDHC cards up to 32GB in size. The camera also features a built-in 1.0" LCD screen, micro-USB 2.0 port, and micro HDMI port. When you're ready to share your videos or photos, built-in Wi-Fi and NFC connectivity makes it easy to transfer files to your mobile device, and connect to the free PIXPRO Remote Viewer app foriOS and Android devices. Among it's features, the app lets you toggle between viewing options, start/stop recording, take photos. In addition to the Extreme Pack, the camera comes included with a rechargeable lithium-ion battery, Battery charger, USB cable, AC adapter, glass lens cover, protective cover, cleaning cloth, and a carrying case. - Main Features
-
- 16MP 1/2.33" MOS sensor
- 214° lens with multiple viewing/"unfold" modes
- Video up to 1080p30
- Slow-motion 120 fps at 848x480 resolution
- Still photos up to 10-Megapixels
- 10 fps burst mode
- 1.0" LCD
- Electronic image stabilization
- Time-Lapse: 1, 2, 5, 10, 30, and 60 sec intervals
- Motion Detection start/stop recording for Movie mode the view, it will automatically start recording
- Built-in Wi-Fi and NFC connectivity
- Control Wirelessly with iOS and Android devices using free app
- Unfold Viewing Modes
-
- Dome - Unfolds into a dome-like view
- Front - A center extract of the full fish-eye image circle (1:1 aspect ratio) with 212° angle of view
- Segment - Dual 180° views of front and rear, or either side of you
- Ring - 360° Wrap-around view
- Panorama - Similar to ring, but unfolds the image into a 360° panorama
- Rugged
-
- Shockproof up to 6.5'
- 14°F Freezeproof
- Dustproof rating: JIS/IEC IP6X
- Splash resistant
- Extreme Pack
- 1 x Standard housing
1 x Waterproof housing (197' depth rating)
2 x Curved / Flat Adhesive Mount
1 x Suction Cup
1 x Bar Mount
1 x Surfboard Mount
2 x Vented Helmet Strap
1 x Head Strap
2 x Extended Arm
UPC: 819900011661 In the Box Kodak PIXPRO SP360 Action Camera with Extreme Pack Rechargeable Lithium-Ion Battery (LB-080) Battery Charger USB Cable AC Adapter Glass Lens Cover Protective Cover Cleaning Cloth Carrying Case Standard Housing Waterproof Housing Bar Mount Suction Cup Mount 2 x Curved / Flat Adhesive Mount Surfboard Adhesive Mount Head Strap 2 x Vented Helmet Straps 2 x Extended Arms Limited 1-Year Warranty User Manual PDF 7.4mb More info from Kodak Table of Contents
|
Upload User Manual
Have you got an user manual for the Kodak PIXPRO SP360 Action Camera with Extreme Pack in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKodak SP360 Specs | | | Sensor | 1-Chip 1/2.33" MOS | | Sensor Resolution | 17.52 MP | | Effective Pixels | 16.36 MP (Photo) | | | | Focal Length | 0.805mm | | 35mm-Equivalent Focal Length | 8.25 | | Maximum Aperture | f/2.8 | | Lens Elements | 9 | | Minimum Focusing Distance | 19.7" / 50.0 cm | | Angle of View | 214° | | | | Recording Media | x microSD/HC (32 GB Maximum) | | Video Format | 1920 x 1080p at 30 fps (MP4)
1440 x 1440p at 30 fps (MP4)
1072 x 1072p at 30 fps (MP4)
1280 x 960p at 30/50 fps (MP4)
1280 x 720p at 30/60 fps (MP4)
848 x 480p at 60 fps (MP4) | | Aspect Ratio | 16:9
4:3 | | Slow Motion Mode | 120 fps Recorded at 848 x 480p | | Still Image Resolution | JPEG: 10.6 Megapixel, 3264 x 3264 (1:1)
JPEG: 6.7 Megapixel, 2592 x 2592 (1:1)
JPEG: 2 Megapixel, 1920 x 1080 (16:9) | | Channels | Stereo | | Audio Format | AAC | | | | Display Type | LCD | | Screen Size | 1.0" | | | | Photo ISO Range | 100 - 800 (Auto) | | Video ISO Range | 100 - 800 (Auto) | | Exposure Metering | Artificial Intelligence AE | | Exposure Modes | Modes: Program | | Shooting Modes | Burst Shooting
Movie
Time-Lapse Movie | | Continuous Shooting | Up to 10 fps at 10 MP for up to Exposures | | | | Image Stabilization | Digital | | Shockproof Rating | 6.5' / 2.0 m | | Waterproof Depth Rating | 196.9' / 60.0 m (Waterproof Housing) | | IP Rating | IP6X | | White Balance Modes | Auto
Cloudy
Daylight
Fluorescent | | Built-In Mic | Yes | | Wi-Fi | Yes, Wi-Fi 4 (802.11n) | | Tripod Mount | 1/4" - 20 | | | | Outputs | 1 x USB Micro-B
1 x Micro-HDMI (Type D) | | | | Supported Languages | English | | Battery | Rechargeable Lithium-Ion Battery Pack, 3.6 VDC, 1250 mAh | | Charging Method | USB | | Operating Temperature | 14 to 104°F / -10 to 40°C | | Dimensions (W x H x D) | 1.6 x 2.0 x 1.5" / 41.1 x 50.0 x 38.0 mm | | Weight | 3.63 oz / 103 g Body only | | | | Package Weight | 2.8 lb | | Box Dimensions (LxWxH) | 9.4 x 6.2 x 6.1" |
