Product description - KODAK Portrait 3D Printer- Full-Length Video HD
- Why KODAK Portrait is so special?
- KODAK Portrait 3D Printer - Unboxing & Setting Up

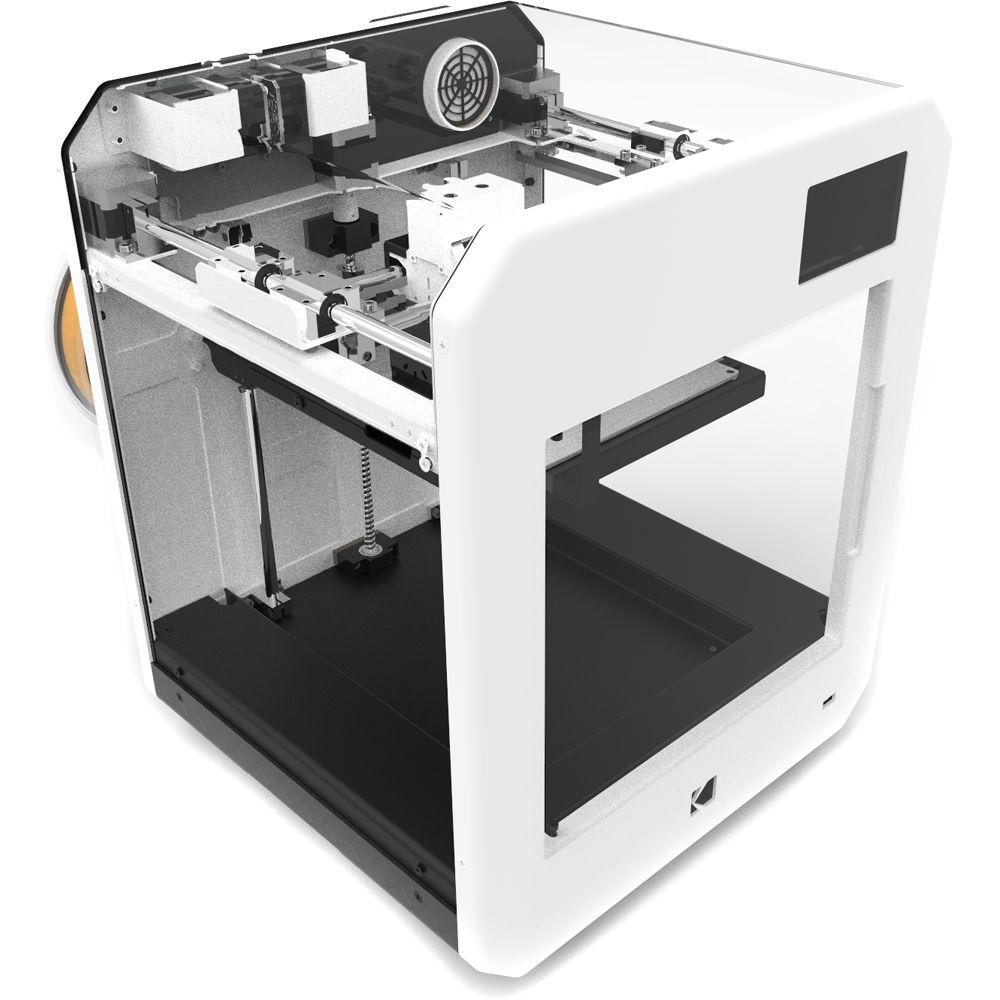

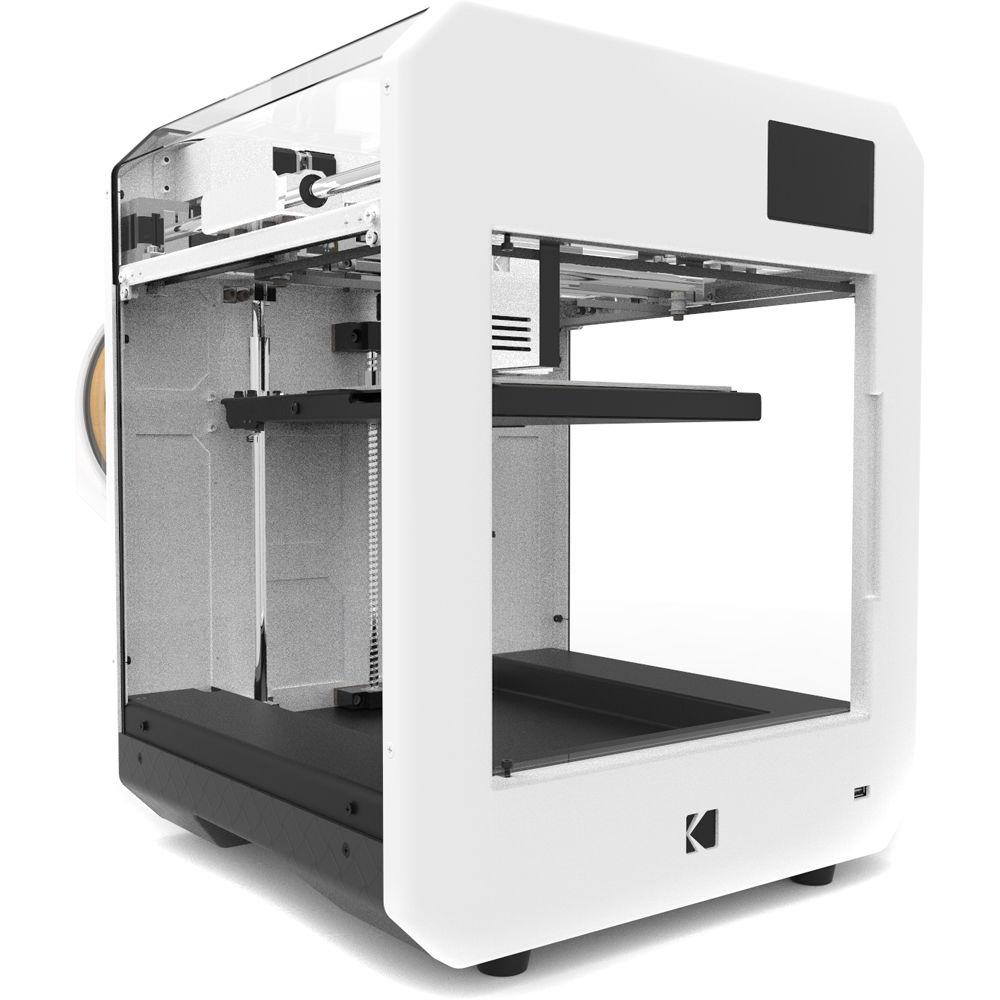

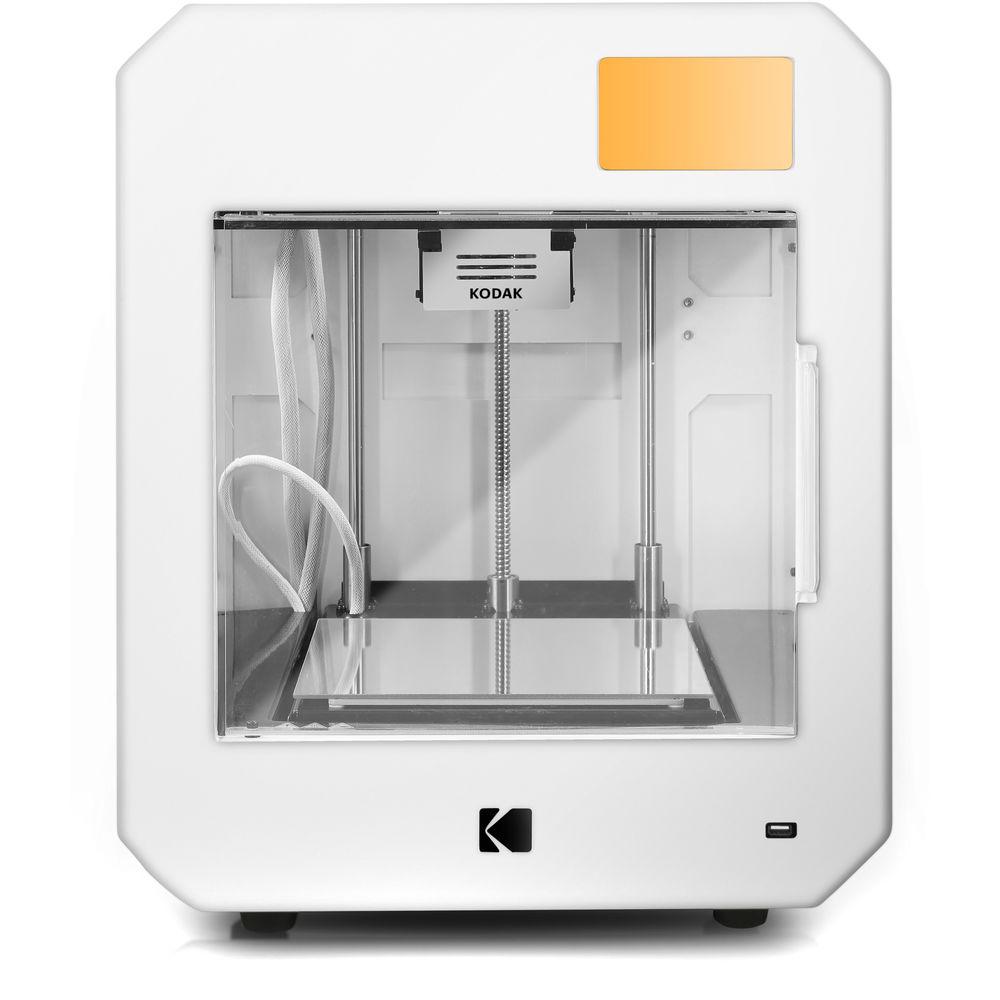

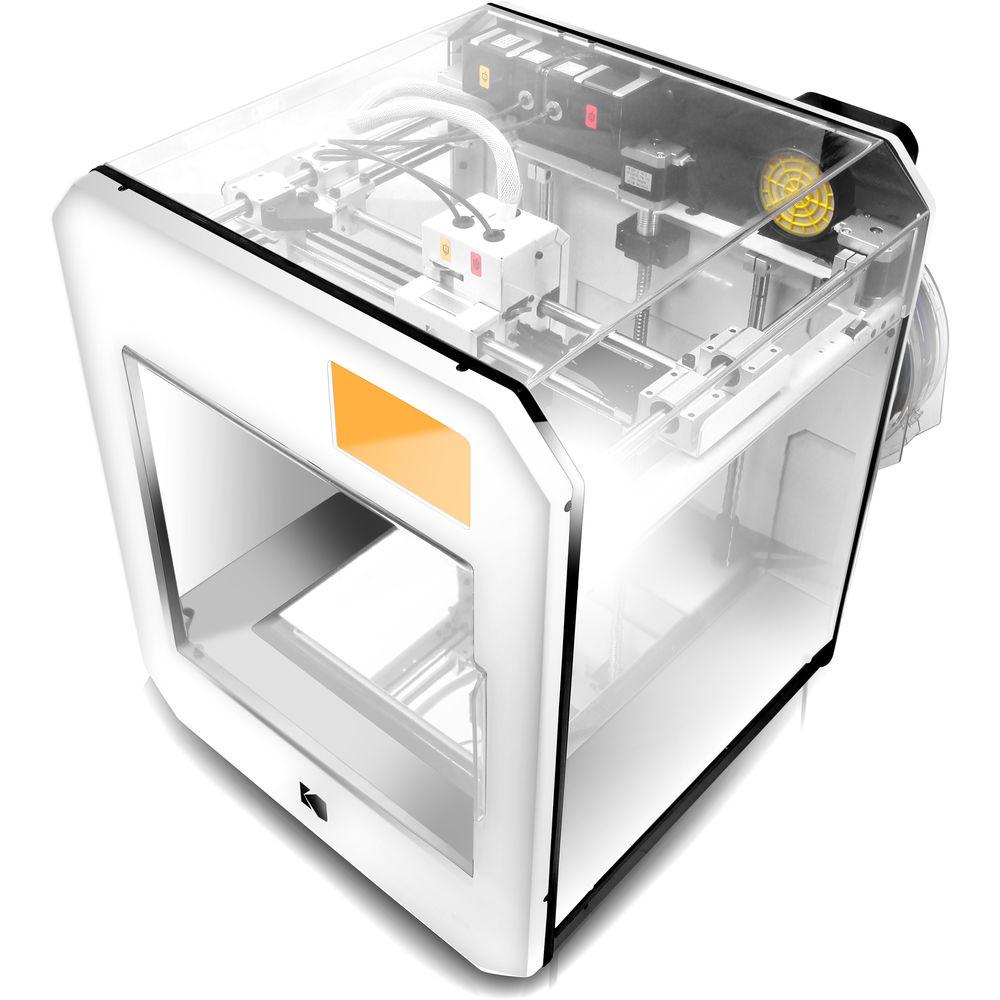

Print your 3D models in a wide variety of filament types with the Kodak Portrait 3D Printer.The enclosed print chamber can fit a build volume of up to 7.9 x 7.9 x 9.3". It helps reduce warping by allowing better temperature regulation and reducing noise, and it keeps your hands away from hot and moving parts. The enclosed space also helps reduce the fumes from 3D printing to a minimum while the built-in HEPA filter with activated carbon allows you to use the printer safely in classrooms, laboratories, and offices. The heated print bed features a BuildTak surface as well as automatic calibration and leveling.The Portrait uses Fused Filament Fabrication (FFF) technology with dual extruders, one with an all-metal hotend while the other has a PTFE hotend. The extruder with the PTFE hotend is for PLA+, TPU Flex 98, and PLA filaments, while the all-metal hotend extruder is for PLA Tough, ABS, HIPS, PETG, Nylon 6, and Nylon 12 filaments. The dual extruders also feature a hotend lifting system, which enables the inactive hotend to get out of the way while the other is running. This ensures that the inactive hotend is not dragging on the current 3D print job.Depending on your project, a 3D printing job can take hours to complete. Fortunately, the Portrait features a built-in camera for remote monitoring so you don't have to babysit the printer. Check the status via the 5" 800 x 480 color touchscreen. Print via USB, Wi-Fi, or Ethernet. You also get free access to the Kodak 3D Cloud, powered by 3DPrinterOS.The Kodak Portrait 3D Printer comes with a limited 1-year warranty. A warranty extension up to 3 years is available for purchase from Kodak with an annual fee and needs to be activated during the active warranty period. The extended warranty includes annual service checkups. - Built for Productivity
- The Kodak is capable of producing end-use parts in a wide variety of materials. Its solid steel structure, quality components, and careful design result in a high uptime with low maintenance costs.
- Reliability in Engineering Materials
- The Portrait features a fully enclosed environment with all-steel components and a lifting dual-extrusion system that can ensure a good performance when using high temperature polymers.
- For the Classroom, Office, or Industrial Environment
- Safe and transparent, the Portrait's intuitive touchscreen, automatic leveling/calibration and preset parameters for every material allow a beginner's use, as well as all levels of complexity.
- A Professional 3D Printing Platform
- Experience free access to the Kodak 3D Cloud, an IT-compliant printer management software powered by 3DPrinterOS.
UPC: 614143320743 In the Box Kodak Portrait 3D Printer 1 x 1.75mm PLA Tough Filament (Black) 1 x 1.75mm PLA+ Filament (Yellow) 2 x Filament Cases Glass Build Plate Power Cable Air Filter Blower with Cover and Two Screws Needle-Nosed Pliers Tweezers Metal Spatula Unclogging Needle Calibration Card Grease for Threaded Rod Oil for Linear Rods Adhesive Cloth Dust Cover Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kodak Portrait 3D Printer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKodak Portrait Specs | | | Print Technology | Fused Filament Fabrication (FFF) | | Build Volume | 7.9 x 7.9 x 9.3" / 20.1 x 20.07 x 23.6 cm (2 Extruders) | | Number of Extruders | 2 | | Layer Resolution | XY Axis: 20 to 250 micron / 0.02 to 0.25 mm | | Supported Extruder Nozzle Diameter | 400 micron / 0.4 mm | | Extruder Nozzle Temperature | 563°F / 295°C | | Positioning Precision | XY Axis: 12.5 micron / 0.0125 mm
Z Axis: 2.5 micron / 0.0025 mm | | Filament Compatibility | 1.75 mm Diameter:
ABS, HIPS, Nylon, PETG, PLA, PVA, TPU | | | | Build Area Type | Enclosed | | Extendable | Yes | | Build Plate Features | Auto Leveling, Heated, Magnetic | | Build Plate Temperature | 221°F / 105°C | | Build Plate Composition | Aluminum | | Filament Spool Storage | External | | Monitoring Camera | Yes | | | | Wired Connections | 1 x RJ45
1 x USB Type-A (USB 2.0) | | Wi-Fi | Yes | | Media Card Slots | Yes | | | | Supported Operating Systems | Linux (Version Unspecified)
Windows (Version Unspecified)
macOS X (Version Unspecified) | | Supported 3D File Types | .3ds, .3mf, .amf, .obj, .stl | | | | AC Input Power | 110 to 230 VAC, 50 / 60 Hz | | Operating Temperature | 50 to 86°F / 10 to 30°C | | Dimensions (W x H x D) | 17.91 x 22.24 x 20.87" / 455 x 565 x 530 mm (With Filament) | | Weight | 53.8 lb / 24.4 kg | | Warranty Length | Limited 1-Year Warranty | | | | Package Weight | 76.05 lb | | Box Dimensions (LxWxH) | 27.0 x 22.0 x 21.0" |
