User Manual for Kodak RODPJC100W 100-Lumen WVGA DLP Pocket Pico Projector with Wi-Fi Click to enlarge the picture
Contents of the user manual for the Kodak RODPJC100W 100-Lumen WVGA DLP Pocket Pico
- Product category: Pico Projectors Kodak
- Brand: Kodak
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kodak Pico Projectors
 |
User manual for the Kodak RODPJC100W 100-Lumen WVGA DLP Pocket Pico contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kodak product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kodak user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kodak product will considerably shorten its lifespan!
|
Product description Take the show on the road with the Kodak RODPJC100W 100-Lumen WVGA DLP Pocket Pico Projector with Wi-Fi. It can project an image up to 100" diagonal from 8' away with its 100 lumens of brightness, making it suitable for use in environments where ambient light can be kept to a minimum.

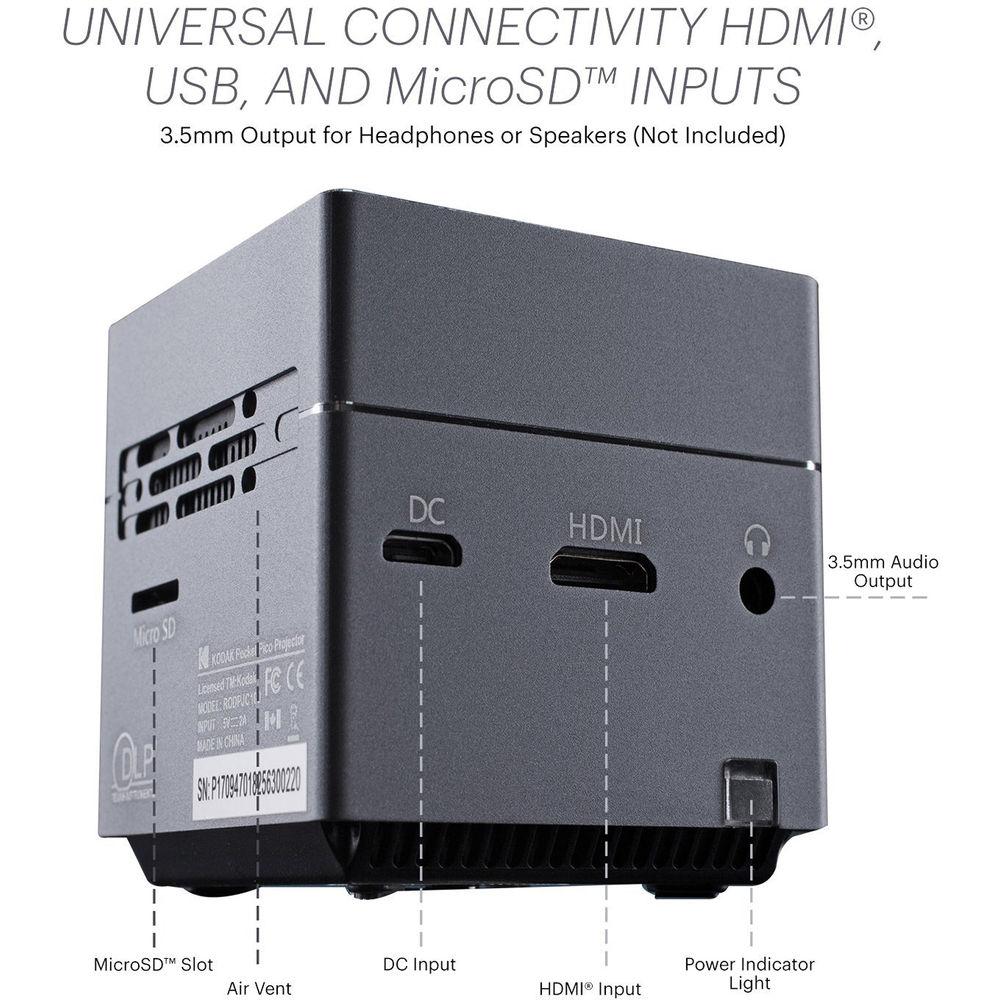

The projector has a built-in rechargeable battery, so you won't have to plug it in. Integrated Wi-Fi allows you to wirelessly connect to any compatible mobile device for wireless screen mirroring. It features a mini-HDMI input along with a microSD card slot to connect a video source or share digitally stored media. Weighing under 6 oz, this projector is easy to carry around. An HDMI cable and mini tripod are included for added convenience. -
- Wirelessly connects to any compatible mobile device for screen mirroring
- Projects images and videos directly onto nearly any surface
- Enjoy audio directly from the projector or with your headphones or speakers
- Tripod included for added height in any environment
- Remote control included for convenient operation
- Works with Windows and Mac computers
- Plug-and-play operation
- Built-in rechargeable battery eliminates the need for wires

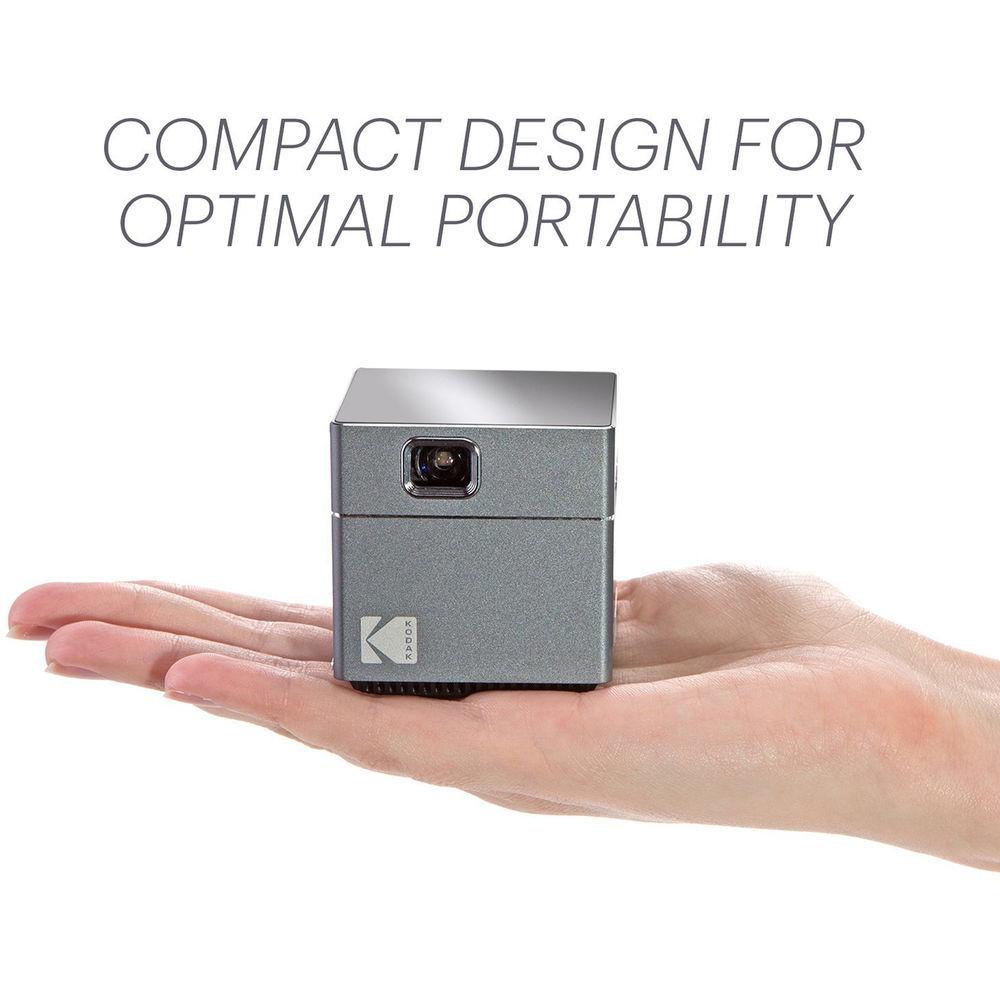

- Compact 2.1" cube design for enhanced portability
- 100" images at 8' distances, 56" images at 5' distances
UPC: 840102196115 In the Box Kodak RODPJC100W 100-Lumen WVGA DLP Pocket Pico Projector with Wi-Fi Remote Control HDMI Cable HDMI Adapter Mini Tripod Power Cable Power Adapter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kodak RODPJC100W 100-Lumen WVGA DLP Pocket Pico Projector with Wi-Fi in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKodak RODPJC100W Specs | | | Display System | DLP | | Native Chip Resolution | 854 x 480 (WVGA) | | Supported Resolutions | Minimum: VGA - 640 x 480
Maximum: Full HD 1080p - 1920 x 1080 | | Max Brightness | 100 Lumens | | Aspect Ratio | Native: 16:9 | | Dynamic Contrast Ratio | 1000:1 | | | | Focus | Manual | | Optical Zoom | None | | Projection Size | 120" / 304.80 cm | | | | Built-In Speaker | Yes (Mono) | | Speaker Power | 1W | | | | Inputs/Outputs | 1 x HDMI (Mini-HDMI) Audio, Video Input
1 x 1/8" (3.5 mm) Mini Audio, Headphone Output | | Memory Card Slot | 1 x microSD (Unspecified Type) | | Wireless LAN / Wi-Fi | Yes, Built-in | | | | Light Source | LED | | Expected Lamp Life | Medium Brightness: 30,000 Hours | | Supported Audio File Types | AAC, MP3, WAV, WMA | | Supported Document File Types | DAT | | Supported Photo File Types | BMP, JPEG, PNG | | Supported Video File Types | FLV, MKV, MOV, MP4, RMVB, TRP, TS | | Supported Languages | Dutch
English
French
German
Italian
Japanese
Portuguese
Simplified Chinese
Spanish | | DC Power Requirements | 5 VDC | | Power Consumption | Medium Brightness: 7 W | | Battery Capacity | 2500 mAh | | Operating Humidity | 10 - 90% | | Dimensions (W x H x D) | 2.2 x 2.2 x 2.2" / 55.0 x 55.0 x 55.0 mm | | Weight | 5.82 oz / 165 g | | | | Package Weight | 1.7 lb | | Box Dimensions (LxWxH) | 8.0 x 8.0 x 3.0" |
