User Manual for Konova K2 Slider Click to enlarge the picture
Contents of the user manual for the Konova K2 Slider
- Product category: Camera Sliders Konova
- Brand: Konova
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Konova Camera Sliders
 |
User manual for the Konova K2 Slider contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Konova product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Konova user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Konova product will considerably shorten its lifespan!
|

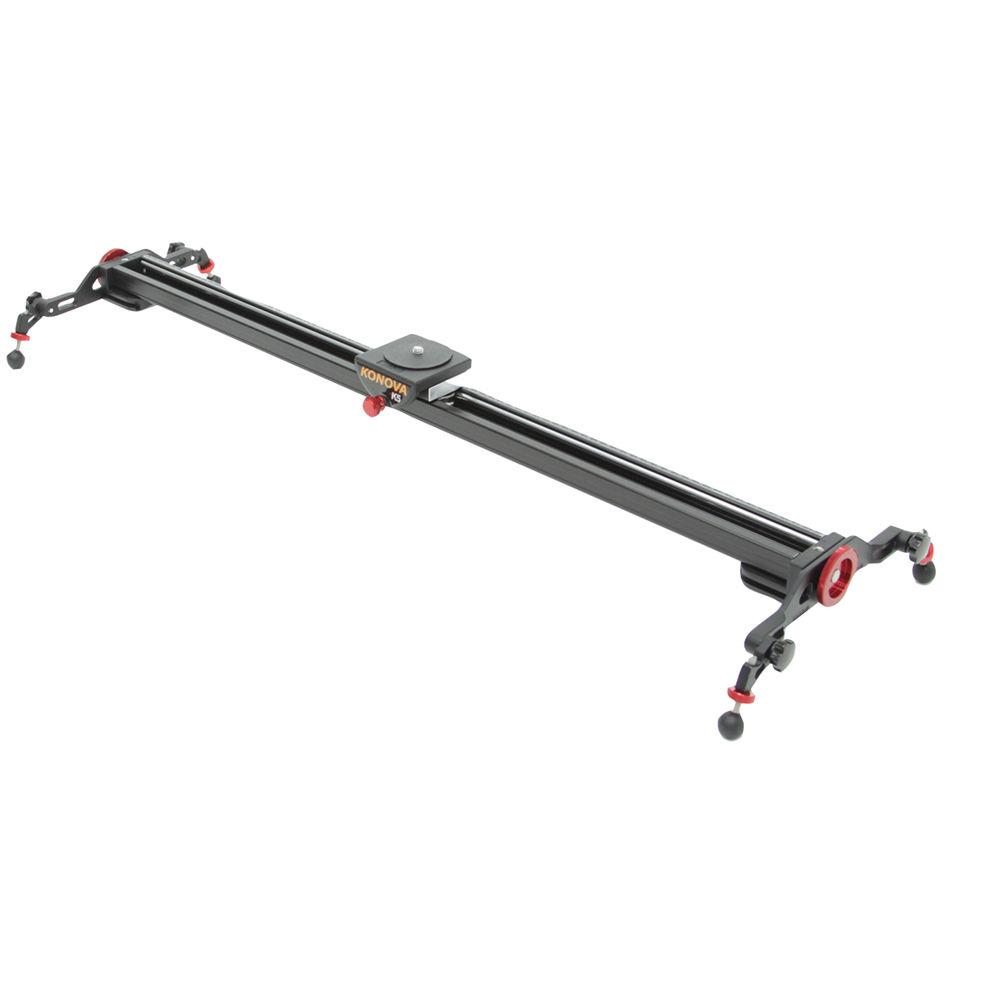

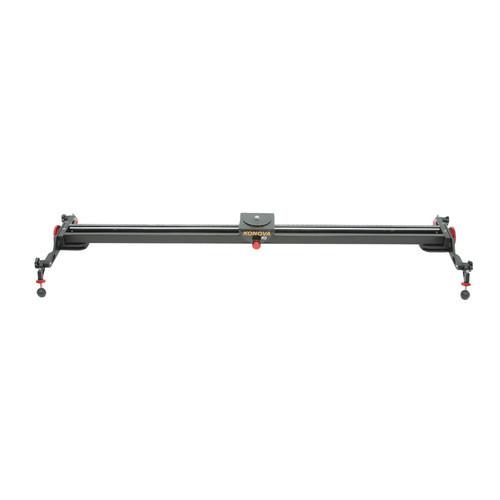

Product description The 31.5" long Konova K2 Slider supports loads up to 39.6 lb and features roller bearings that provide smooth, stable, and quiet operation. The slider can be supported using a single tripod or a pair of tripods/stands thanks to 1/4"-20 threads located on the underside of the track and positioned at the center and at either end. Additionally, there are threaded holes at the sides of the slider that enable you to mount it vertically, for expanded creative possibilities. For ground-level shooting, a pair of height and angle-adjustable legs with rubber ball feet that screw into the sides of the slider are included.
The slider carriage features a 3/8"-16 mounting point for attaching a fluid head or ball head, while also offering two 1/4"-20 threaded holes should you want to mount your camera or an accessory on an articulating arm. The resistance of the carriage can be dialed to taste quickly using a red friction adjustment knob, or with more finesse using a wrench to adjust tension. A metric ruler running the length of the slider makes it easy to perform precise and repeatable camera movements. Should you wish to expand the system in the future, you can choose to add an optional crank handle kit or one of the motion controller options. - Features
-
- 39.6 lb load capacity (6.6 to 26.4 lb optimal range)
- Three steel bearings in triangle arrangement provide smooth, stable, and quiet operation
- Camera carriage with 3/8"-16 screw and two 1/4"-20 threaded holes
- Friction-adjustment knob
- Precise tension adjustment using included wrench
- Heat-treated carbon steel rail
- 1/4"-20 and 3/8"-16 mounting threads at center and ends for tripods
- Mounting threads on side of tripod for vertical mounting

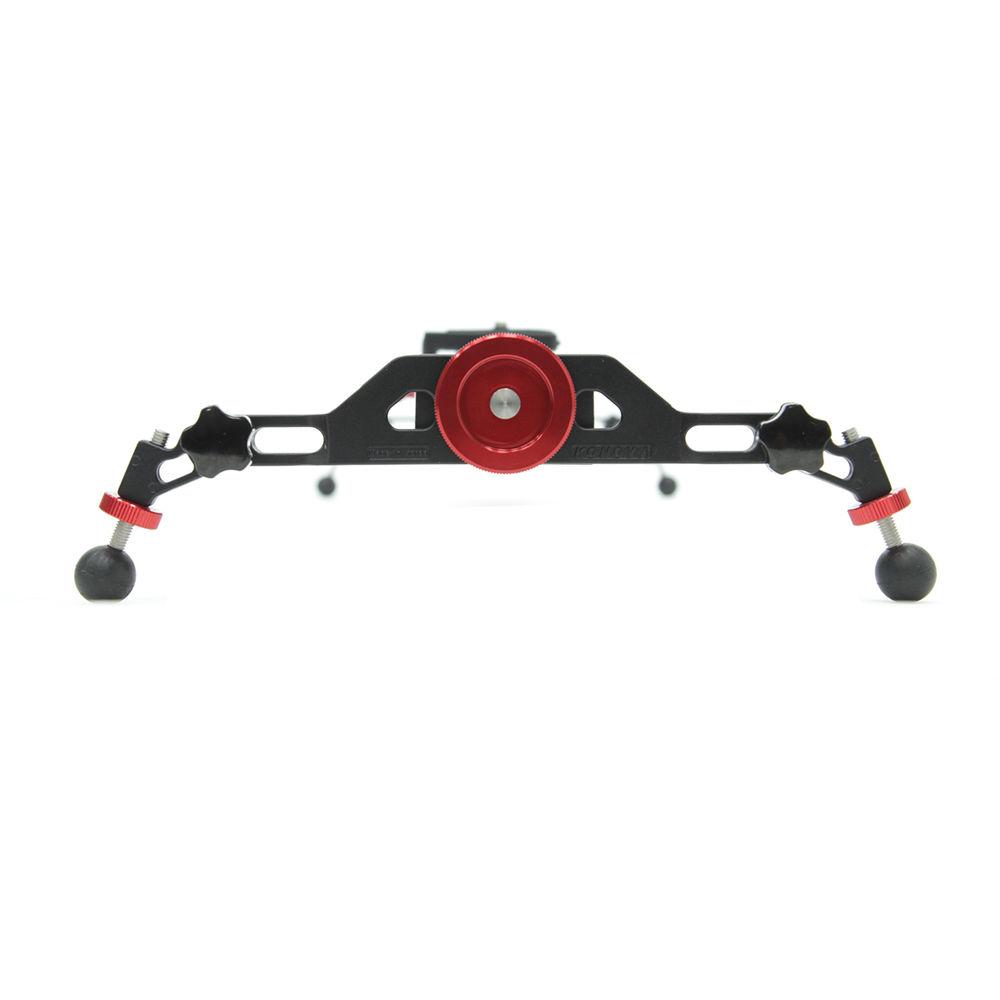

- Detachable height and angle-adjustable legs with rubber ball feet
- Metric ruler for repeatable movements
- 1/4"-20 accessory mounting thread at each end of slider
- Dual oil seals to help keep rails clean from dust and debris
- Bubble level
- Carrying bag
- Optional crank handle and motion control upgrade kits
In the Box Konova K2 Slider (31.5") 2 x Oil Seals 2 x Legs 2 x Leg Pouch Carrying Bag Table of Contents
|
Upload User Manual
Have you got an user manual for the Konova K2 Slider in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKonova K2-80 Specs | | | Load Capacity | 39.6 lb / 18 kg | | | | Camera Mounting Screw | 3/8"-16 Male | | Tripod Mounting | 4 x 1/4"-20 Female Thread
4 x 3/8"-16 Female Thread | | | | Dimensions |
