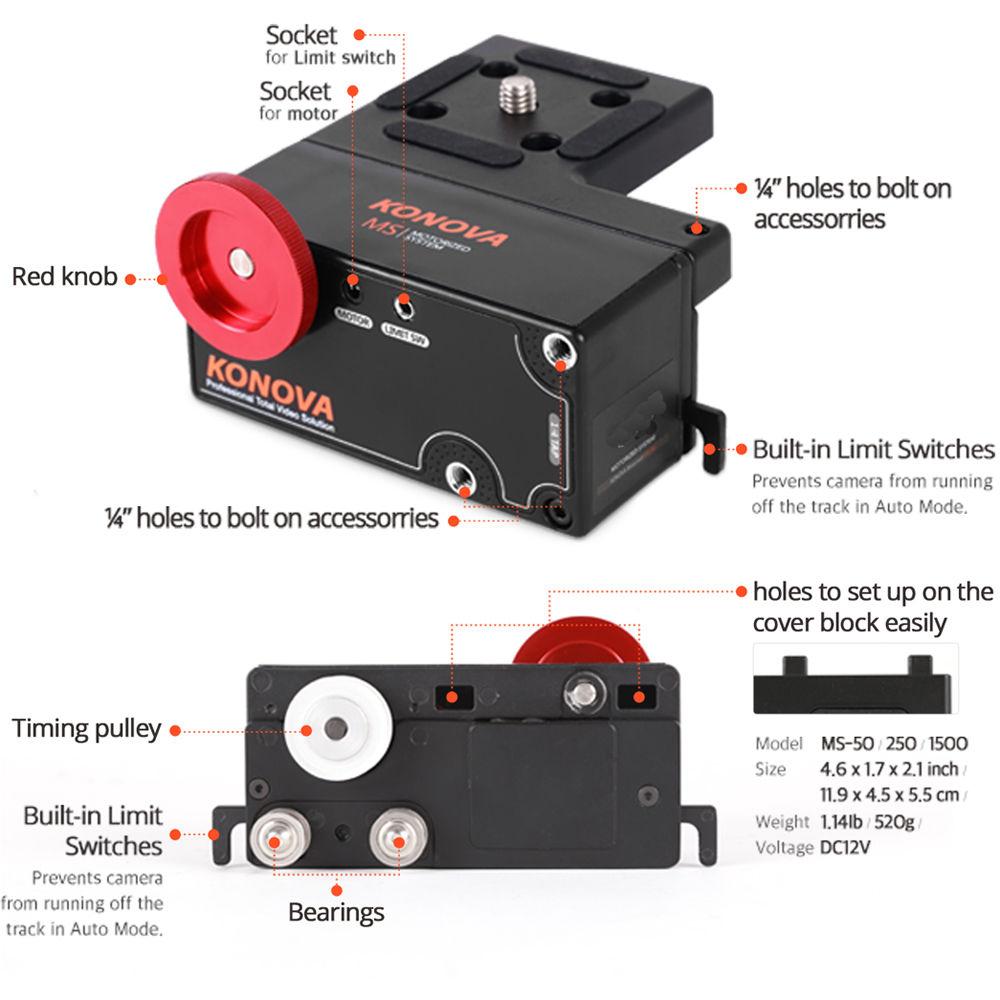

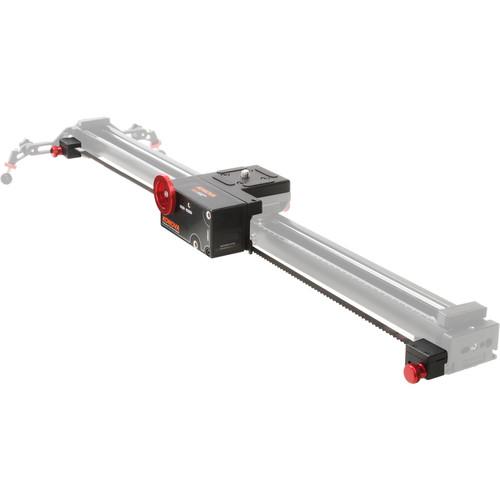

Product description Add motorized motion to your 59.1" Konova slider with the Konova MS 1500 Kit. The kit includes Konova's MS-1500 motor, a 59.1" drive belt with belt blocks, and a motor and limit switch cable. The MS-1500 motor supports loads up to 44 lb for horizontal slides, 13 lb for vertical slides, and features a 1500:1 gear ratio for slow movement with high torque, good for long time lapses and heavier rigs. A 3/8"-16 screw lets you mount a fluid head or ball head, while three 1/4"-20 threaded holes serve as mounting points for attaching optional accessories. Built-in limit switches at the end of the motor prevents your camera from running off the track when operating in Auto mode.
Note: In order to operate the motor, a separately available power supply is required. Basic Pan-Tilt or Smart Pan-Tilt Controller is required. In the Box Konova MS 1500 Kit for 59.1" Slider MS Motor (1500:1) 59.1" Drive Belt and Belt Block Motor and Limit Switch Cable Bolts 2mm Wrench 2.5mm Wrench 4mm Wrench Table of Contents
|
Upload User Manual
Have you got an user manual for the Konova MS 1500 Kit for 59.1" Slider in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

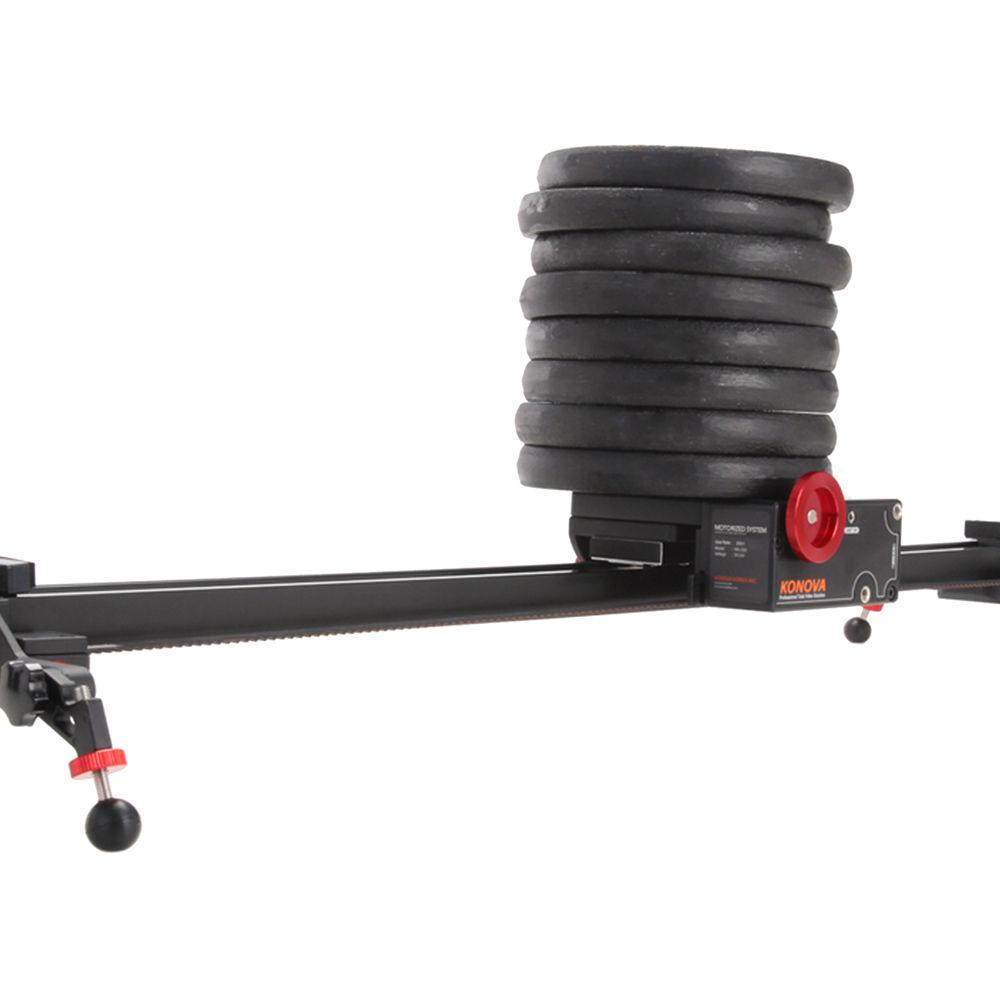

Technical parametersKonova MS 1500150 Specs | | | Load Capacity | Horizontal: 44 lb (20 kg)
Vertical: 13 lb (6 kg) | | Gear Ratio | 1500:1 | | Horizontal Moving Speed | 89.3 to 223.7 sec / ft (293 to 734 sec / m)
Tested with 9 lb (4 kg) weight and Basic Pan-Tilt Controller (Ramp: 0%) | | Vertical Moving Speed | Rise: 96.9 to 254.5 sec / ft (318 to 835 sec / m)
Descend: 93.6 to 139 sec / ft (307 to 456 sec / m)
Test with 13 lb (6 kg) weight and Basic Pan-Tilt Controller (Ramp: 0%) | | Mount Type | 3/8"-16 | | Accessory Mounting Threads | 3 x 1/4"-20 | | Power Requirements | 12 VDC / 3.5 A | | Dimensions | 4.6 x 1.7 x 2.1" (11.9 x 4.5 x 5.5 cm) | | Weight | 1.14 lb (0.52 kg) |
