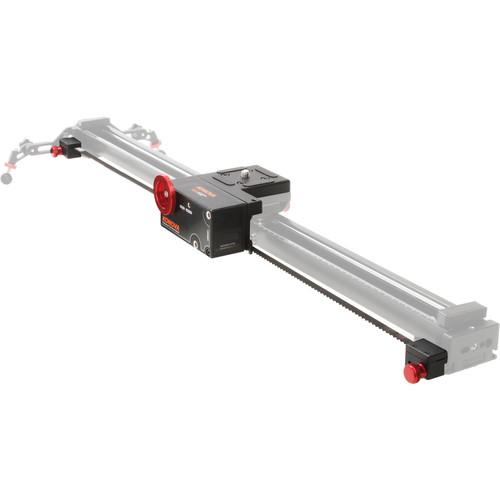

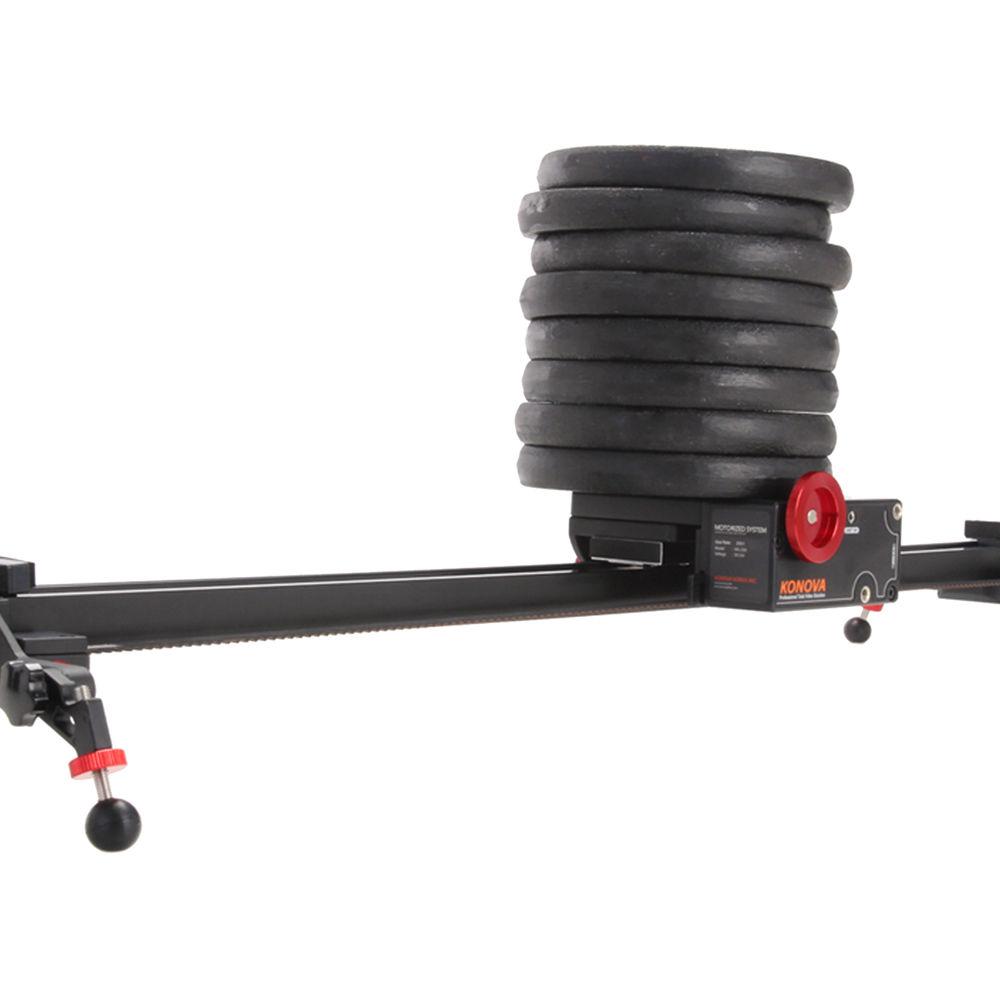

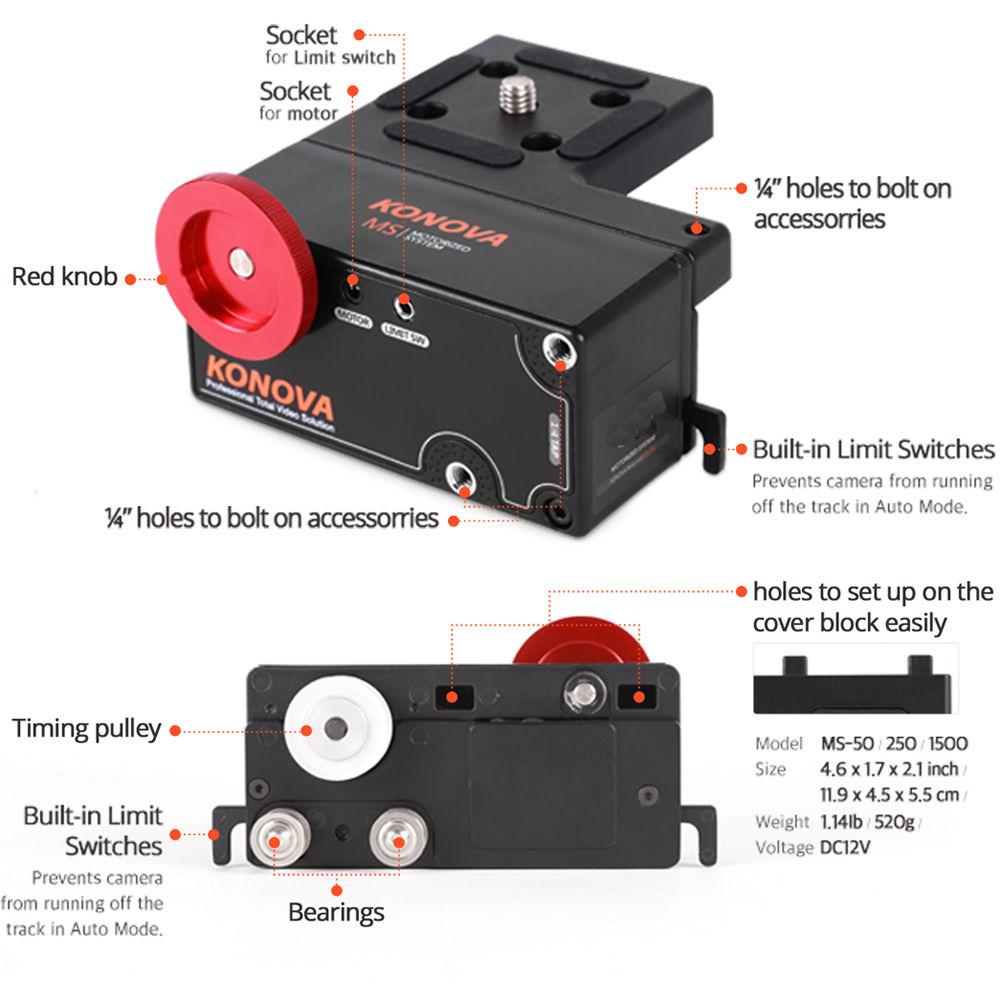

Product description Add motorized motion to your 39.4" Konova slider with the Konova MS 250 Kit. The kit includes Konova's MS-250 motor, a 39.4" drive belt with belt blocks, and a motor and limit switch cable. The MS-250 motor supports loads up to 44 lb for horizontal slides, 13 lb for vertical slides, and features a 250:1 gear ratio for a balance between movement speed and torque, good for both videos and time lapses. A 3/8"-16 screw lets you mount a fluid head or ball head, while three 1/4"-20 threaded holes serve as mounting points for attaching optional accessories. Built-in limit switches at the end of the motor prevents your camera from running off the track when operating in Auto mode.

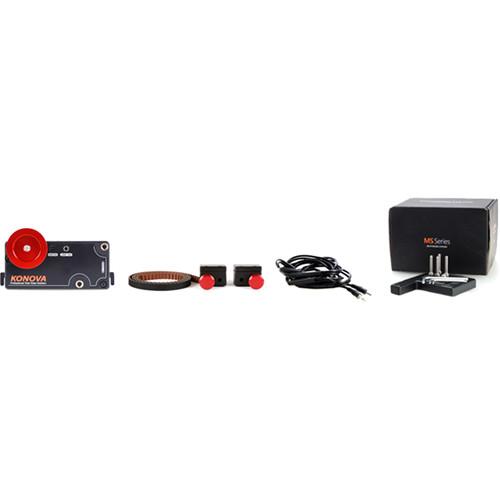

Note: In order to operate the motor, a separately available power supply is required. Basic Pan-Tilt or Smart Pan-Tilt Controller is required. In the Box Konova MS 250 Kit for 39.4" Slider MS Motor (250:1) 39.4" Drive Belt and Belt Block Motor and Limit Switch Cable Bolts 2mm Wrench 2.5mm Wrench 4mm Wrench Table of Contents
|
Upload User Manual
Have you got an user manual for the Konova MS 250 Kit for 39.4" Slider in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKonova MS 250100 Specs | | | Load Capacity | Horizontal: 44 lb (20 kg)
Vertical: 13 lb (6 kg) | | Gear Ratio | 250:1 | | Horizontal Moving Speed | 15.5 to 38.4 sec / ft (51 to 126 sec / m)
Tested with 9 lb (4 kg) weight and Basic Pan-Tilt Controller (Ramp: 0%) | | Vertical Moving Speed | Rise: 20.7 to 52.4 sec / ft (68 to 172 sec / m)
Descend: 14.3 to 14.9 sec / ft (47 to 49 sec / m)
Test with 11 lb (5 kg) weight and Basic Pan-Tilt Controller (Ramp: 0%) | | Mount Type | 3/8"-16 | | Accessory Mounting Threads | 3 x 1/4"-20 | | Power Requirements | 12 VDC / 3.5 A | | Dimensions | 4.6 x 1.7 x 2.1" (11.9 x 4.5 x 5.5 cm) | | Weight | 1.14 lb (0.52 kg) | | | | Package Weight | 2.7 lb | | Box Dimensions (LxWxH) | 7.1 x 5.8 x 4.8" |
